2026 XL Specialized X-L SPECIALIZED TRAILERS INC Double Drop Trailer Extendable, Used, 48x102, 40 ton

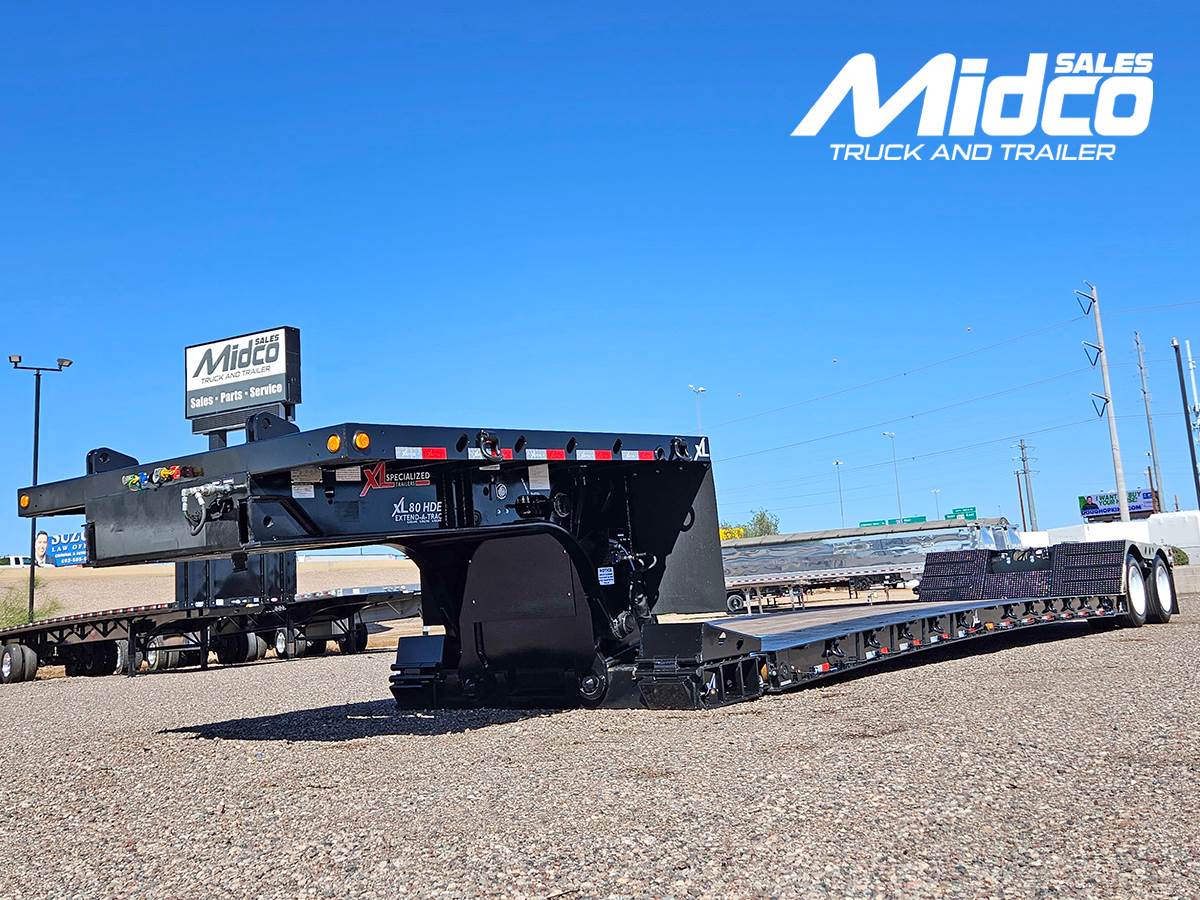

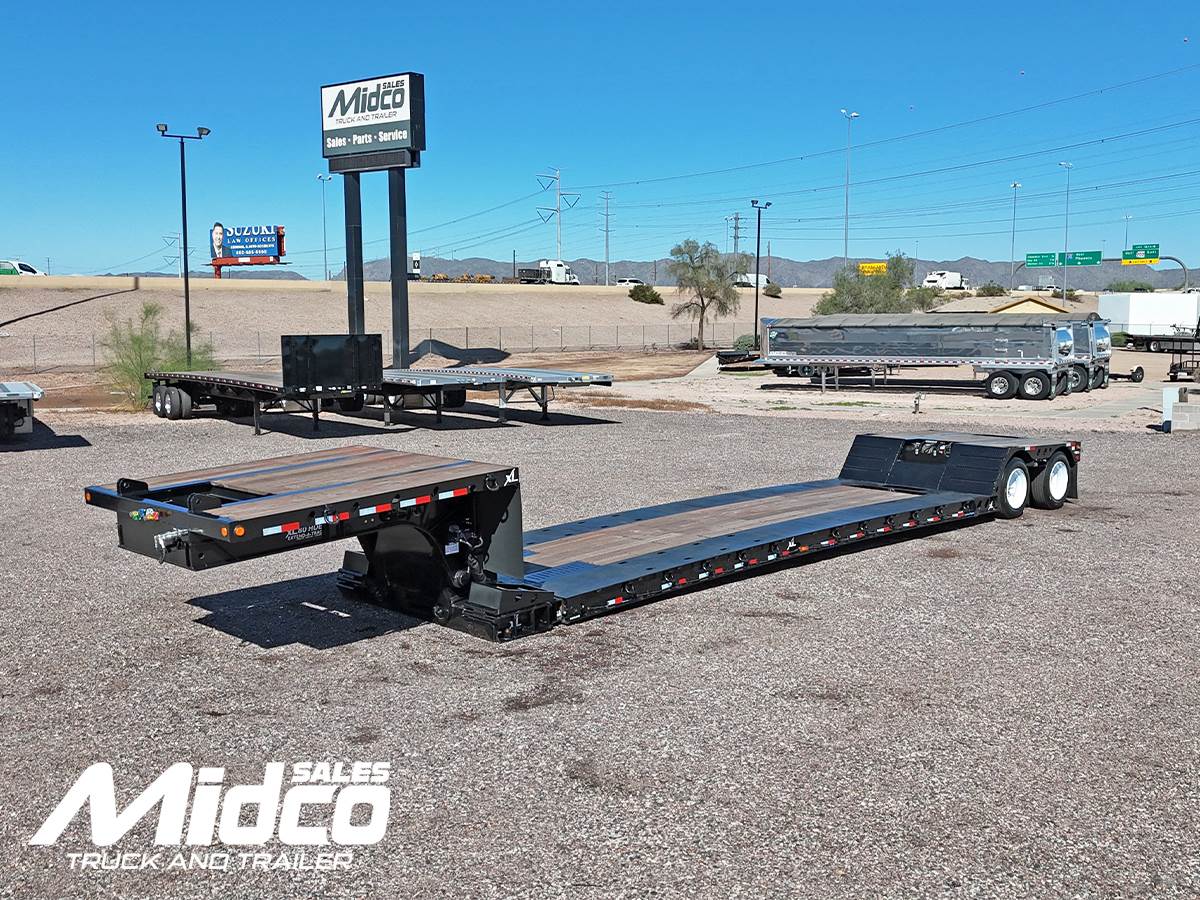

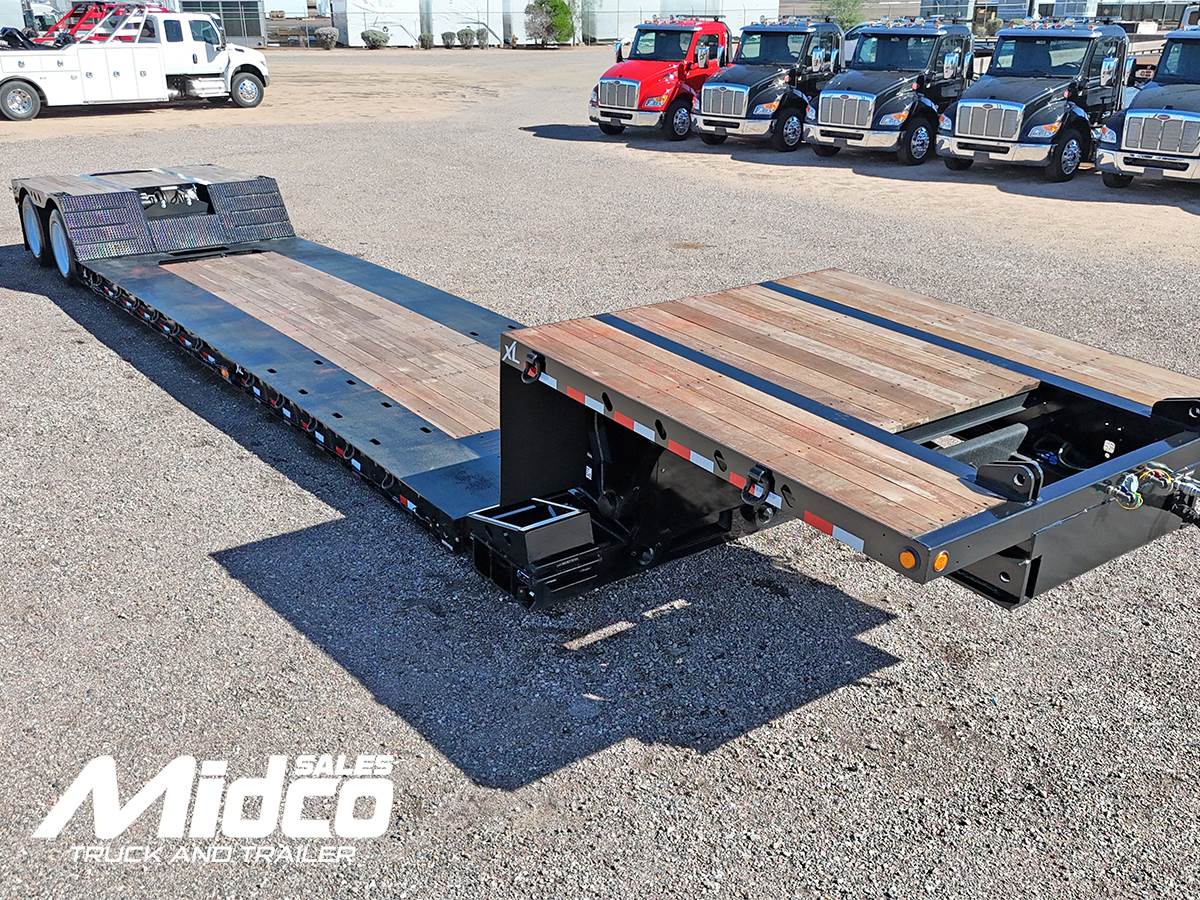

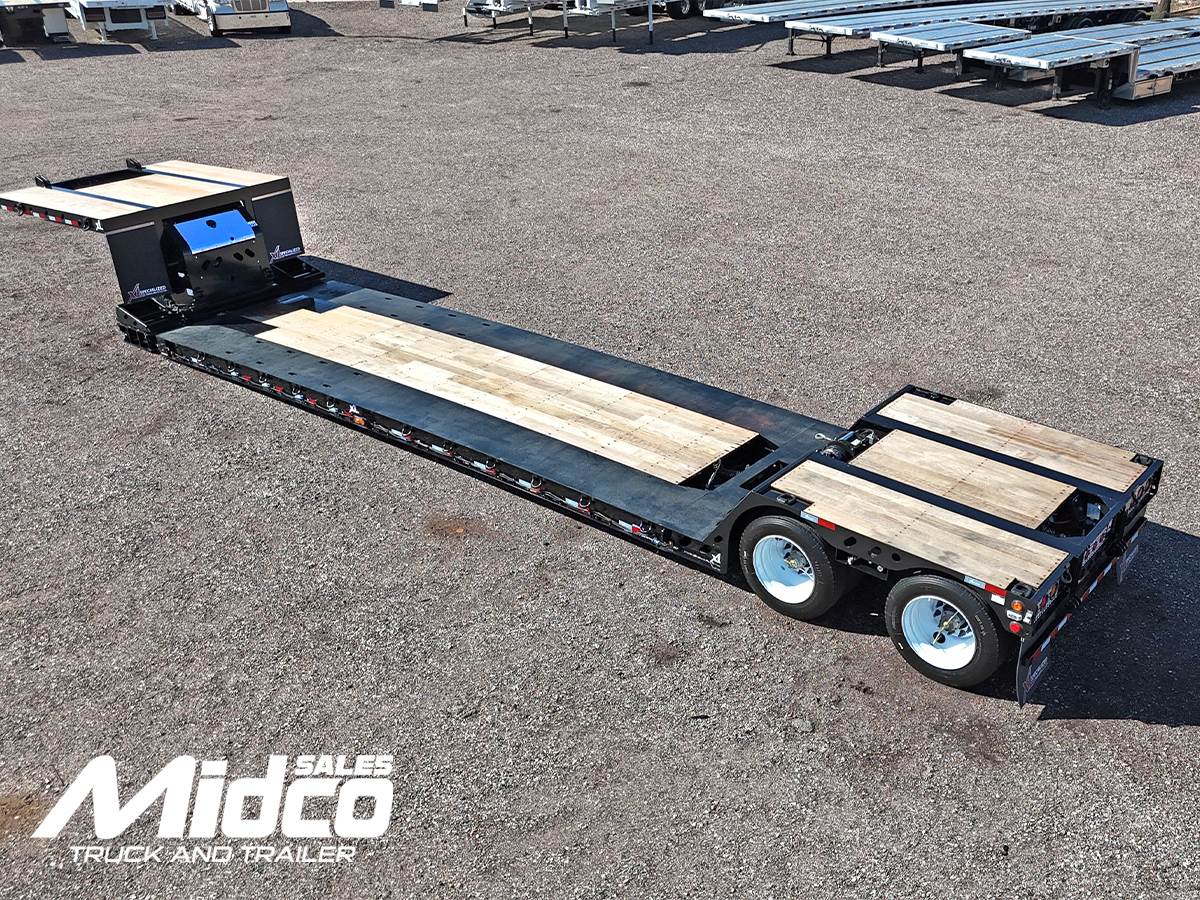

This used 2026 XL Specialized XL80 HDEM (Hydraulic Detachable Extendable Mini Deck) trailer is in like-new condition and has never been operated or loaded.

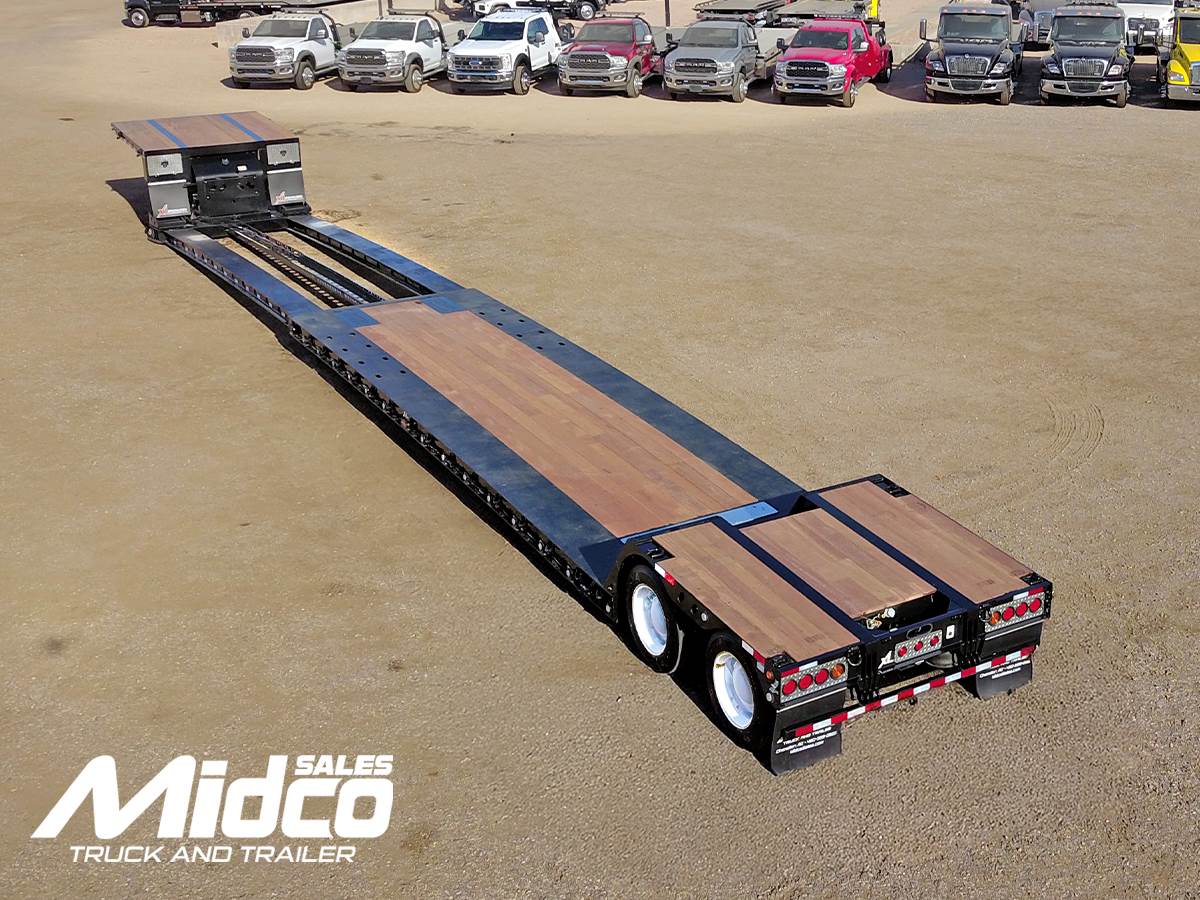

Built for versatility, the XL80 HDEM is an extendable double-drop trailer designed for heavy-haul operators who need flexibility for long or tall loads. The main deck extends from 28' 3" to 49' 8", providing additional length as needed, while maintaining excellent load balance and structural integrity. Its mini-deck configuration features a low 14-inch loaded deck height and just 4 inches of ground clearance, allowing you to move taller machinery while staying within legal height limits. This not only simplifies permit management but also lowers the center of gravity for improved load stability and easier loading.

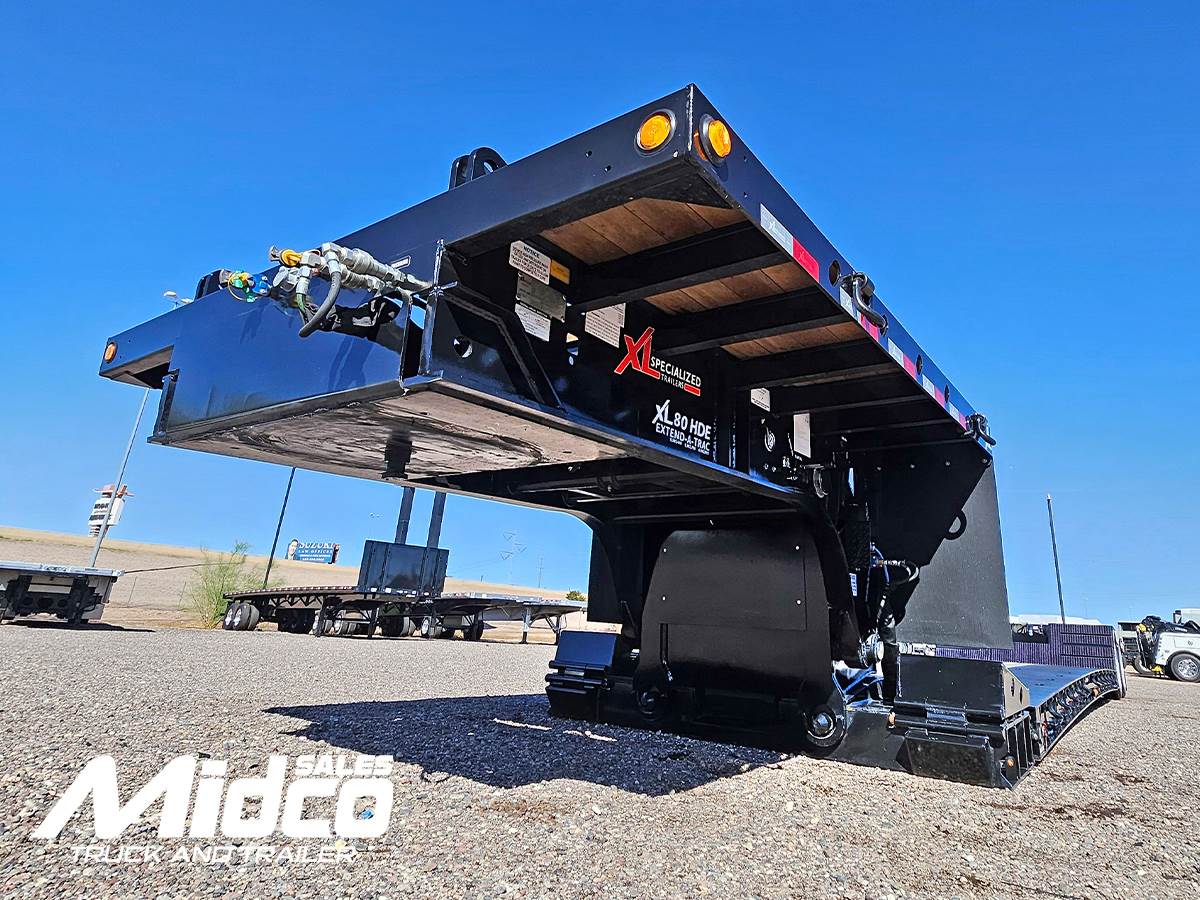

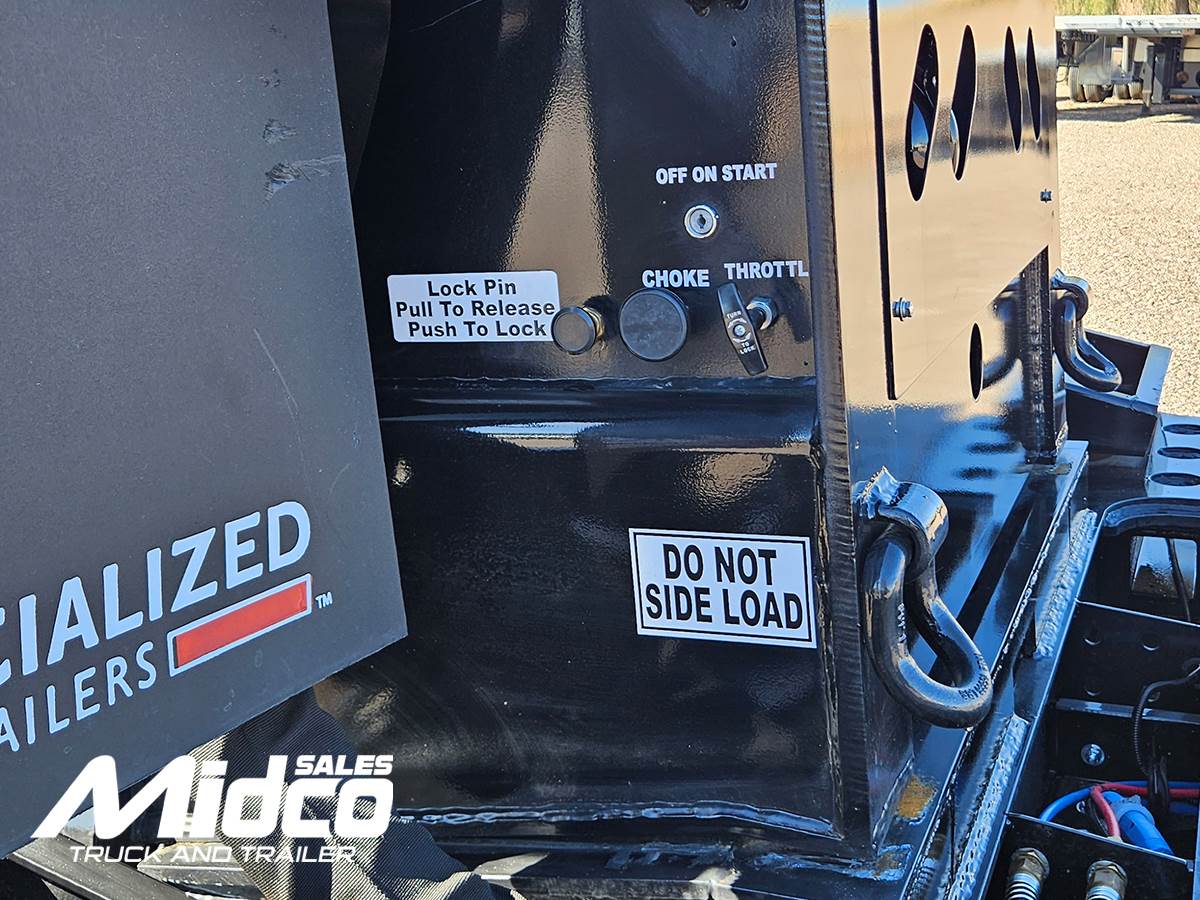

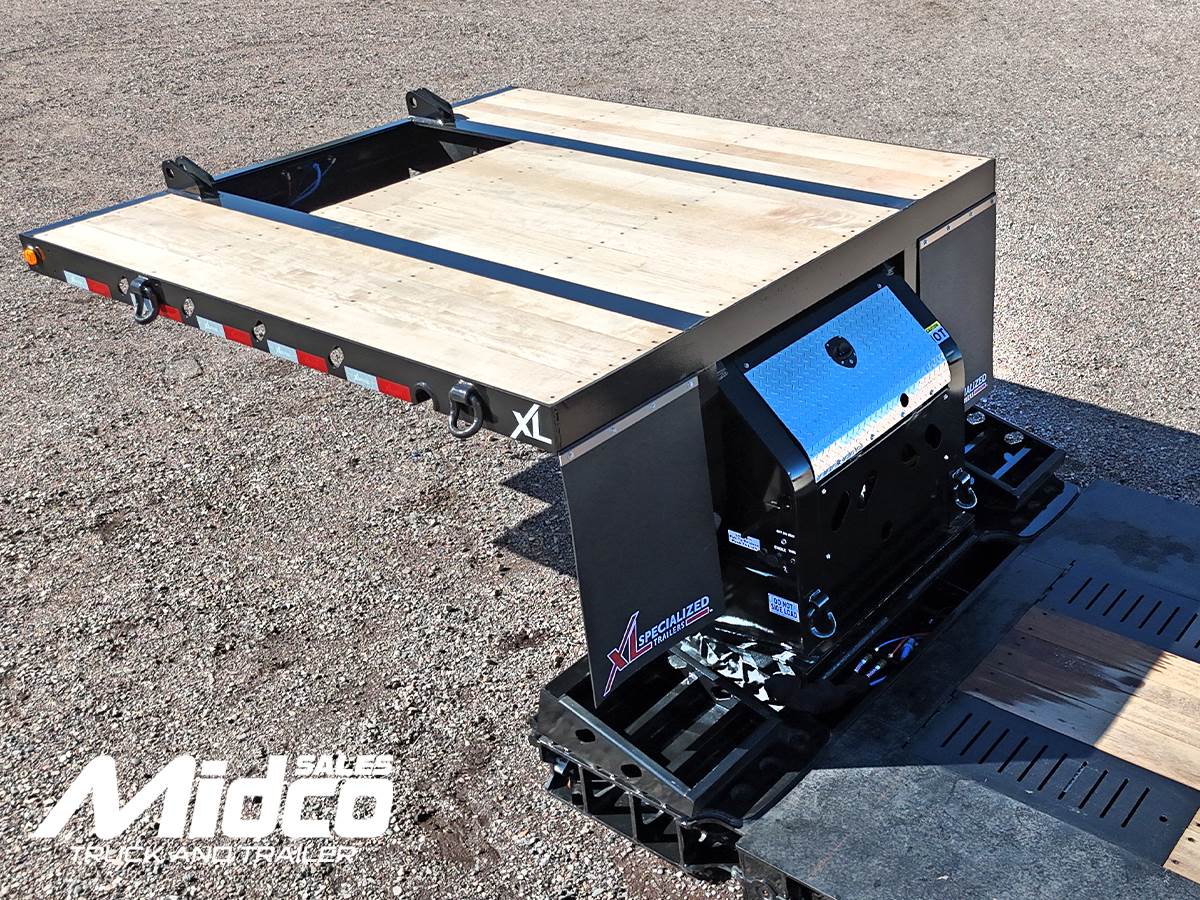

The detachable gooseneck includes a 13-horsepower Honda pony motor, offering independent hydraulic control to raise and lower the neck for front loading.

The main deck includes 11 D-rings per side plus 31-inch flip ramps, while the rear deck measures houses a 20,000-pound hydraulic winch with a wireless remote, making it ideal for loading disabled or heavy equipment. The trailer’s tandem axles are paired with Hendrickson air-ride suspension, a raise-and-lower valve, and a liquid-filled air gauge to help manage deck height and air pressure precisely. It rides on 255/70R22.5 tires mounted on steel disc wheels and includes a PSI tire inflation system to maintain optimal tire pressure automatically.

With its 80,000-pound distributed capacity when closed and up to 60,000 pounds when extended, this XL Specialized trailer delivers the strength and adaptability professional haulers demand.

Whether you’re transporting construction machinery, agricultural equipment, or oversize industrial loads, this extendable low-deck RGN trailer provides a premium combination of durability, adjustability, and modern engineering — all in a like-new unit that’s never seen a load.


XL SPECIALIZED TRAILER MODEL
XL 80 HDEM (Hydraulic Detachable Extendable - Mini Deck)

TRAILER DIMENSIONS & CAPACITY
Length:  48'
Width:  102"
Closed Capacity:  80,000 lbs distributed closed, 80,000 lbs in 16' closed centered on deck
Extended Capacity:  30,000 lbs in 5' fton and rear of deck fully extended - 60,000 lbs total

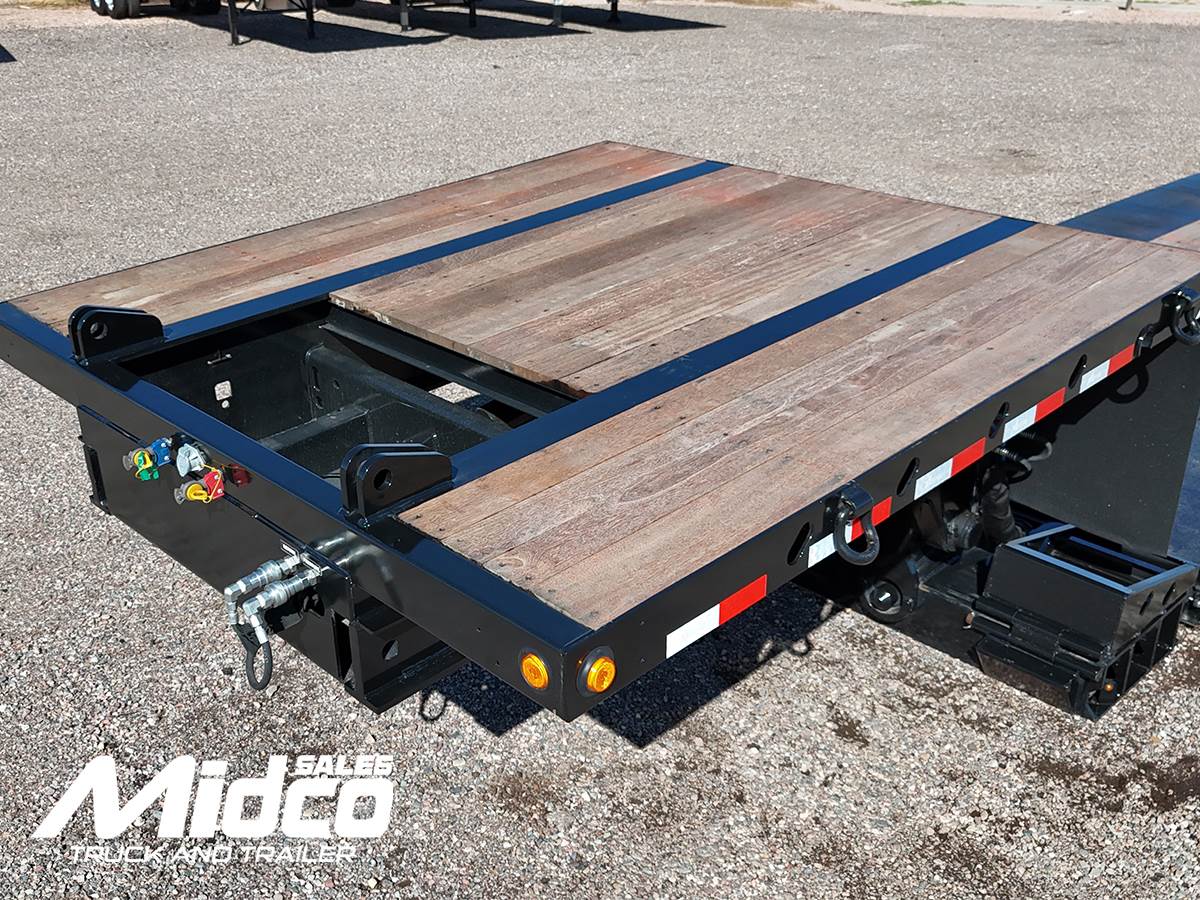

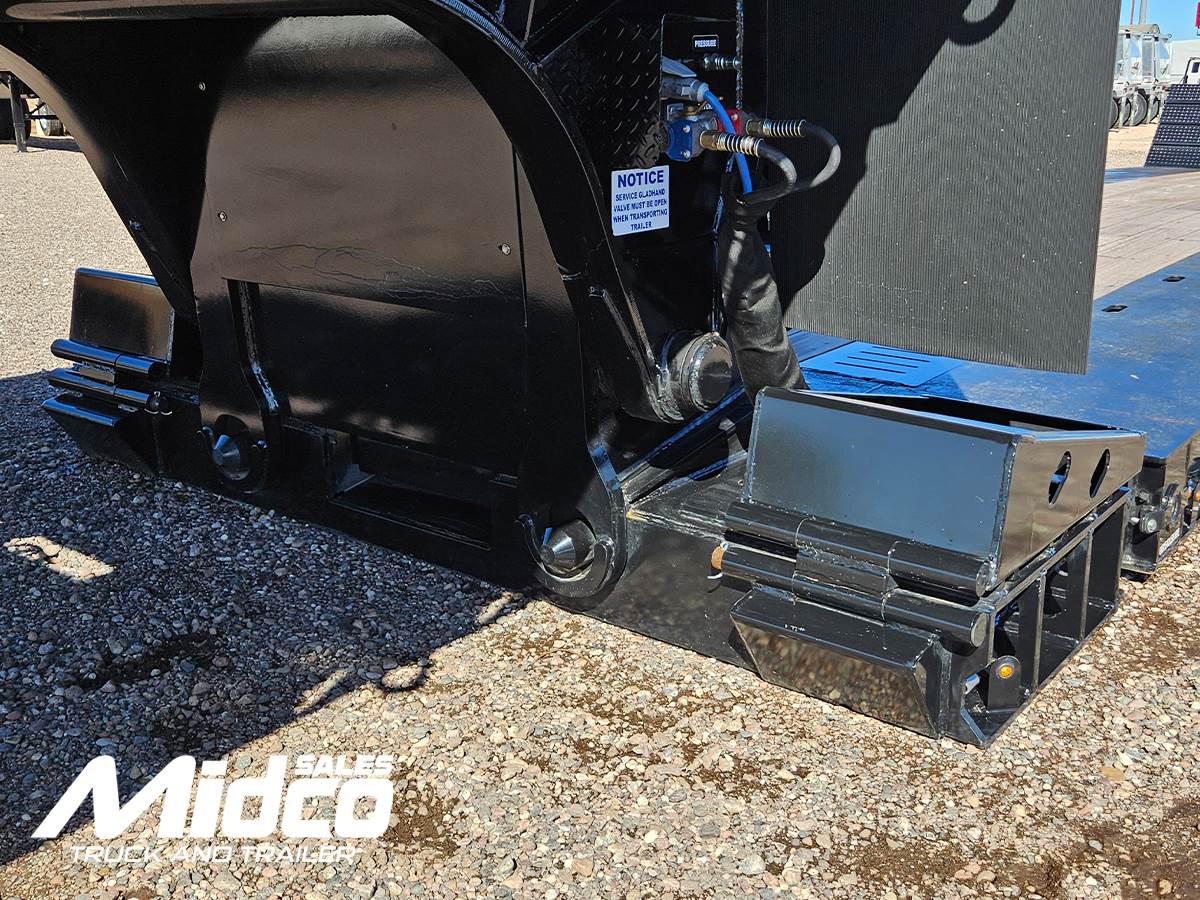

RGN GOOSENECK
Apitong decking
D-rings
Swing clearance:  84"
Kingpin:  16"
5th wheel height:  49" w/ 7 variable ride heights

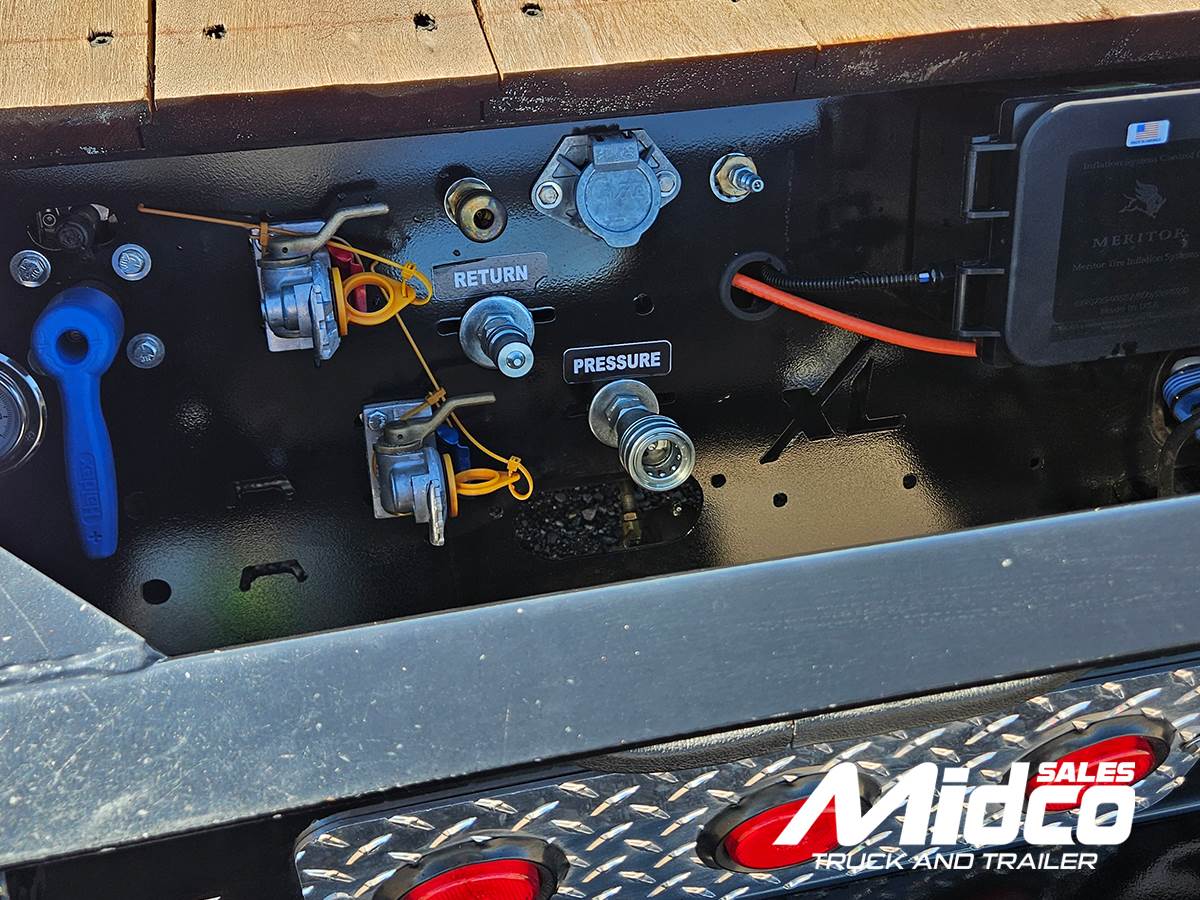

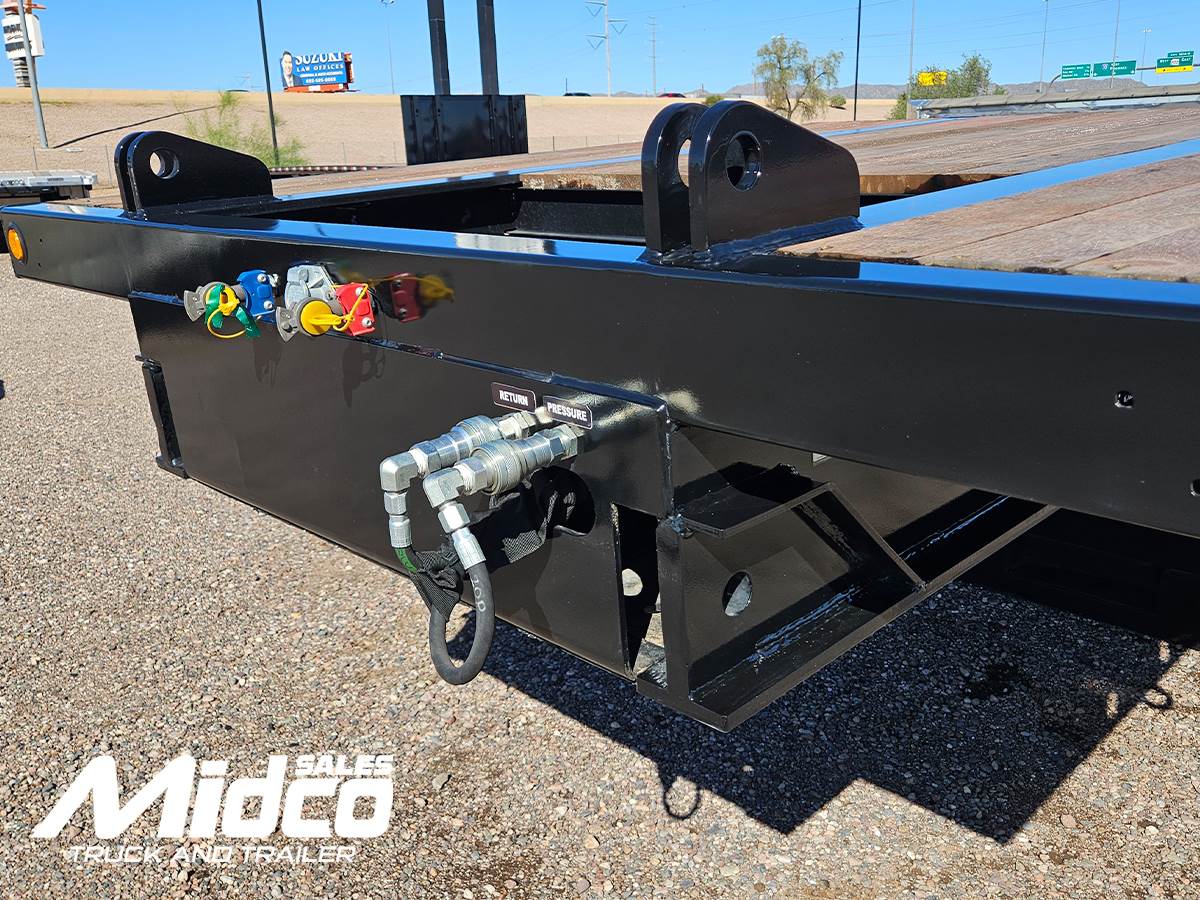

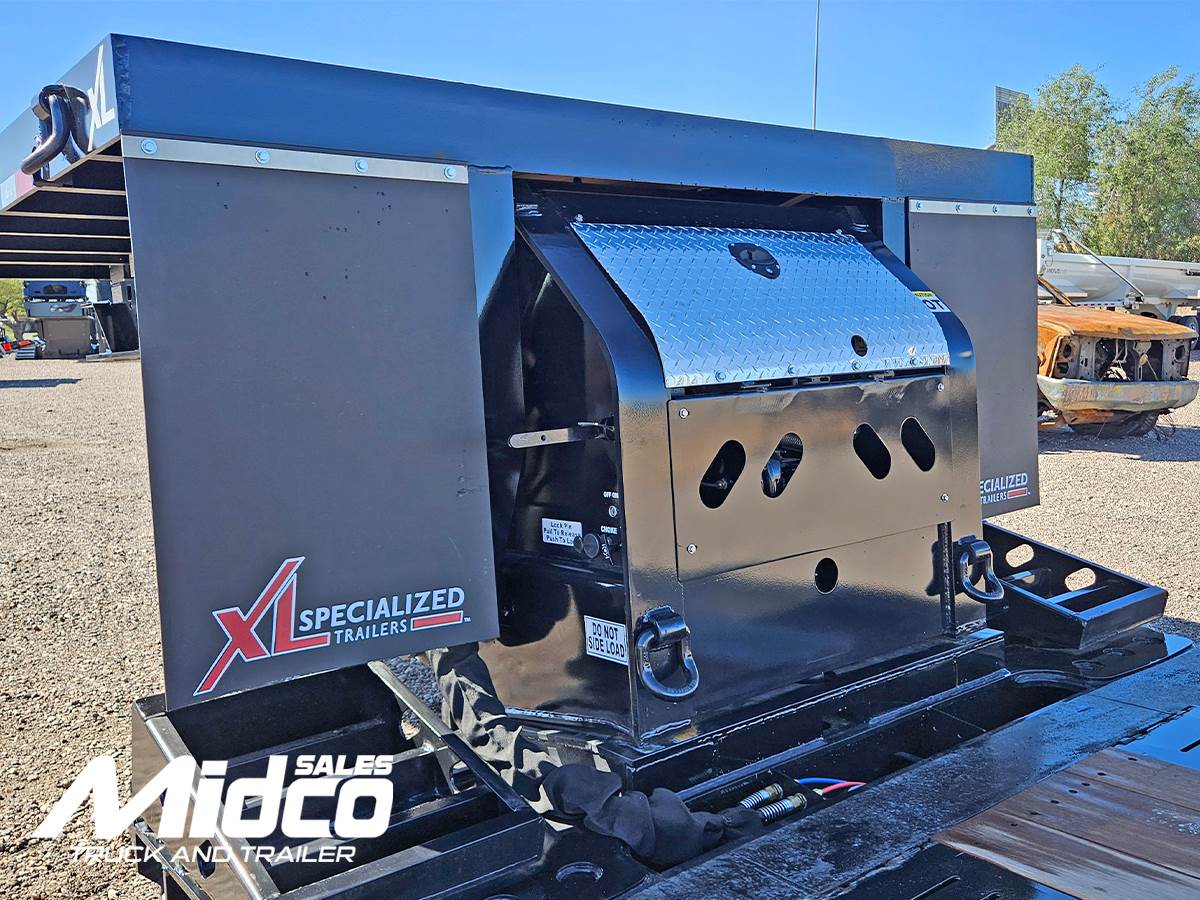

Hydraulics:  13 HP Honda pony motor w/ aluminum cover
Prepped for flip neck

MAIN DECK
Length:  28'3" closed, extended to 49'8"
Extends from front, extension stops on 24" centers
Loaded deck height:  14"
Ground clearance:  4"
Apitong deck

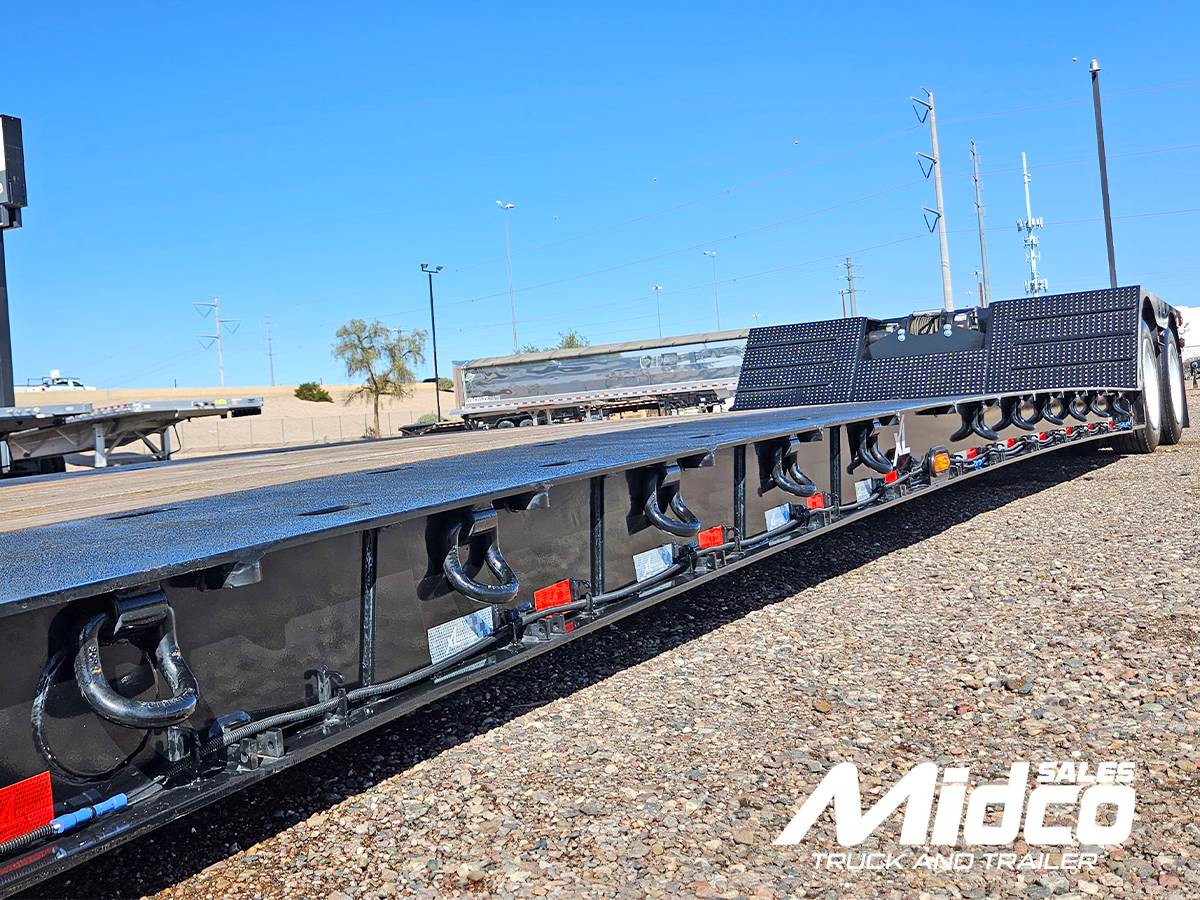

11 D-rings per side
31" flip ramps

REAR DECK
Length:  9'4"
Loaded deck height:  40"

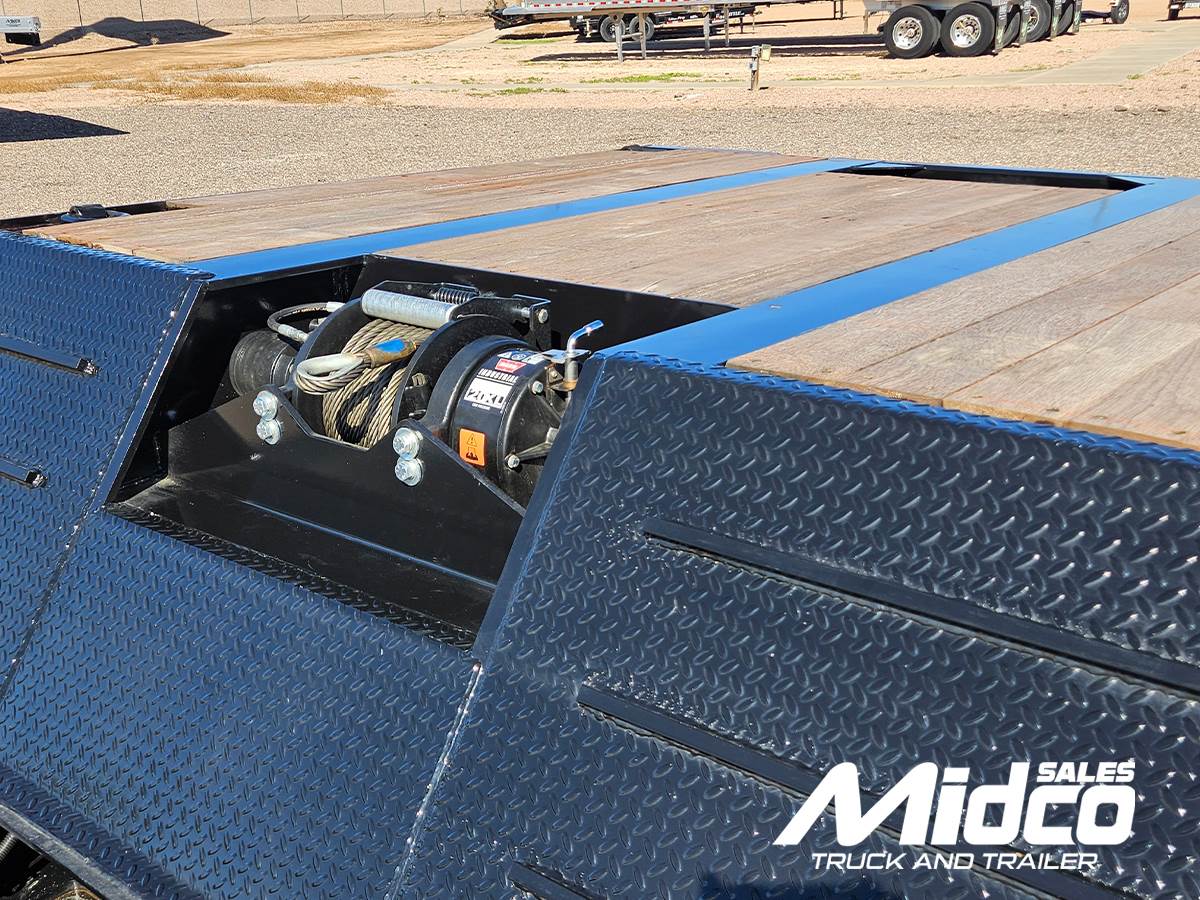

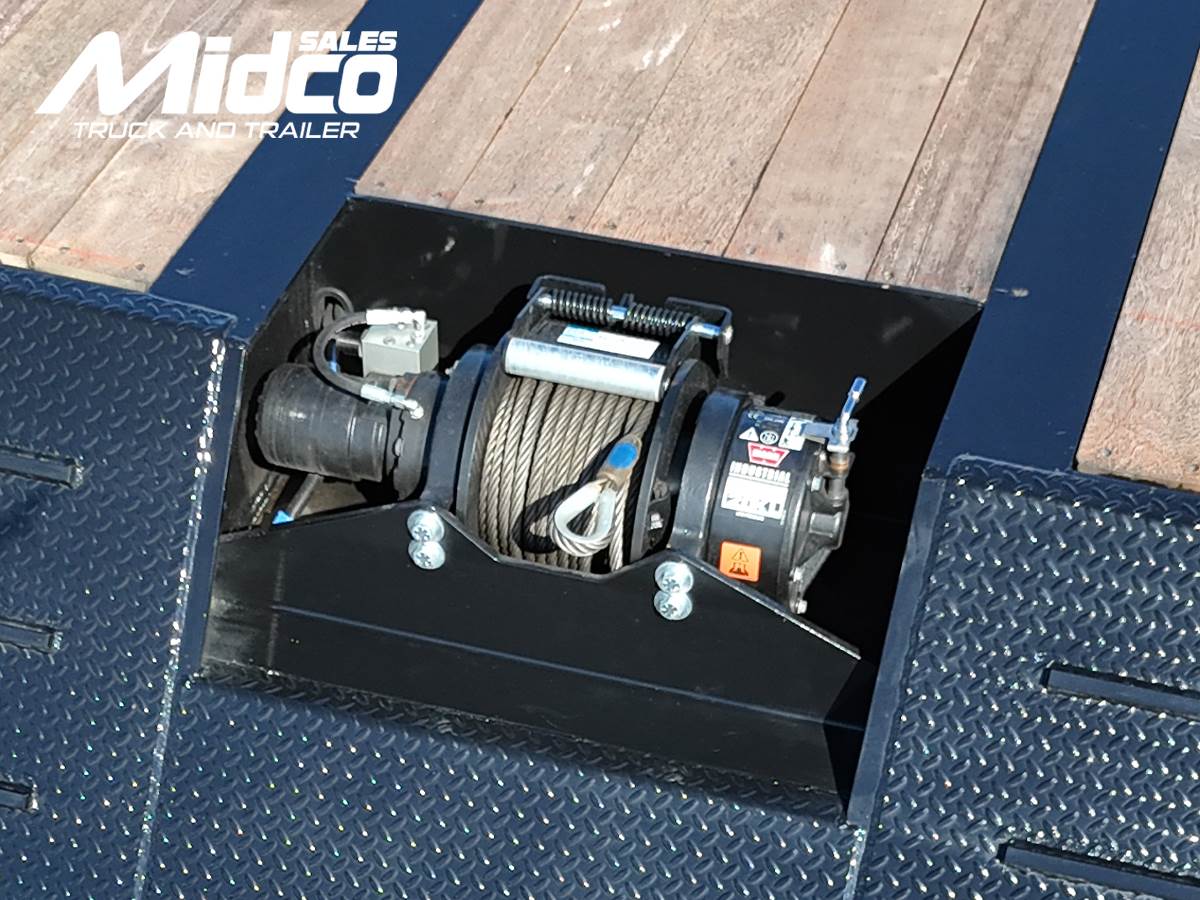

20,000 lb hydraulic winch w/ wireless remote
Flag holders

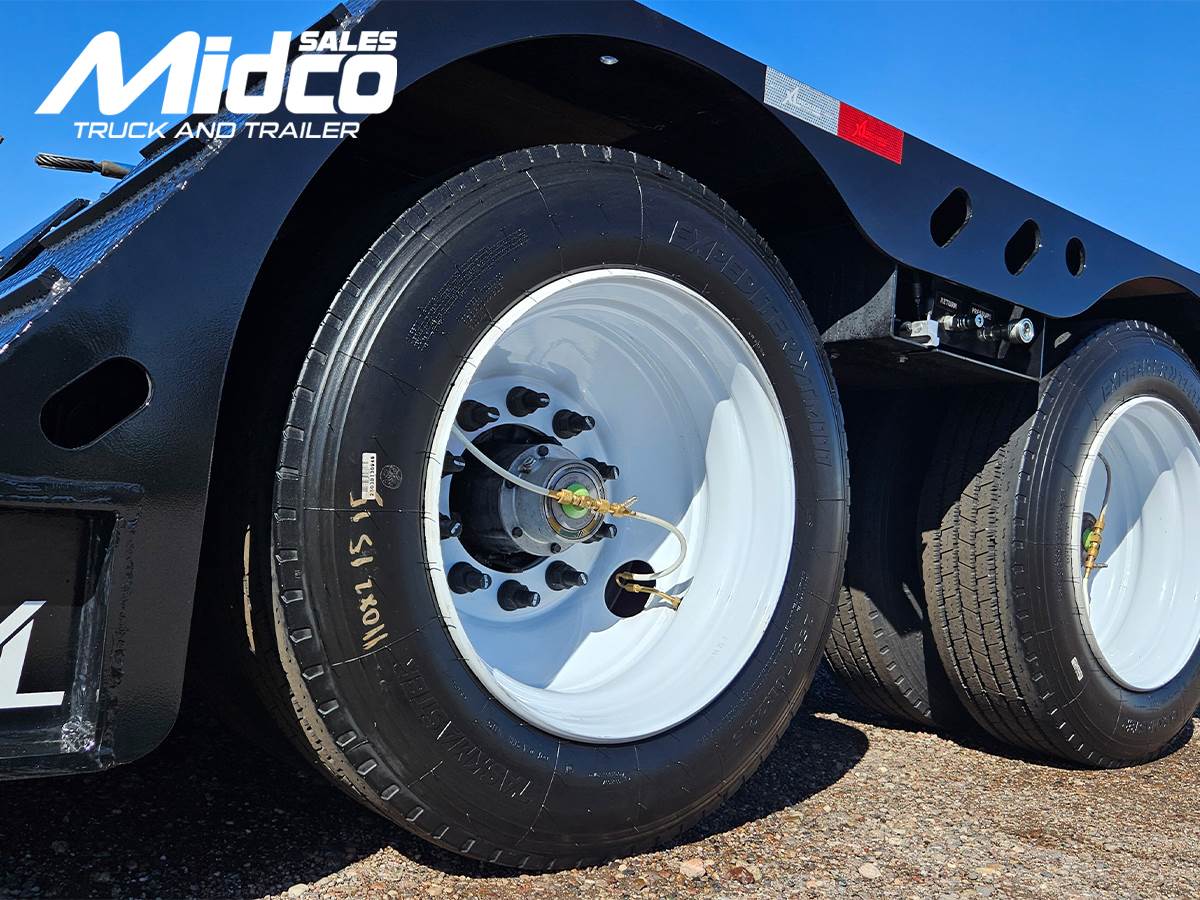

WHEELS & TIRES
Steel disc wheels
255/70R22.5 tires
PSI tire inflation system

AXLES & SUSPENSION
Tandem axles
Suspension:  Hendrickson air ride
Raise & lower valve
Liquid filled air gauge

LIGHTING & ELECTRICAL

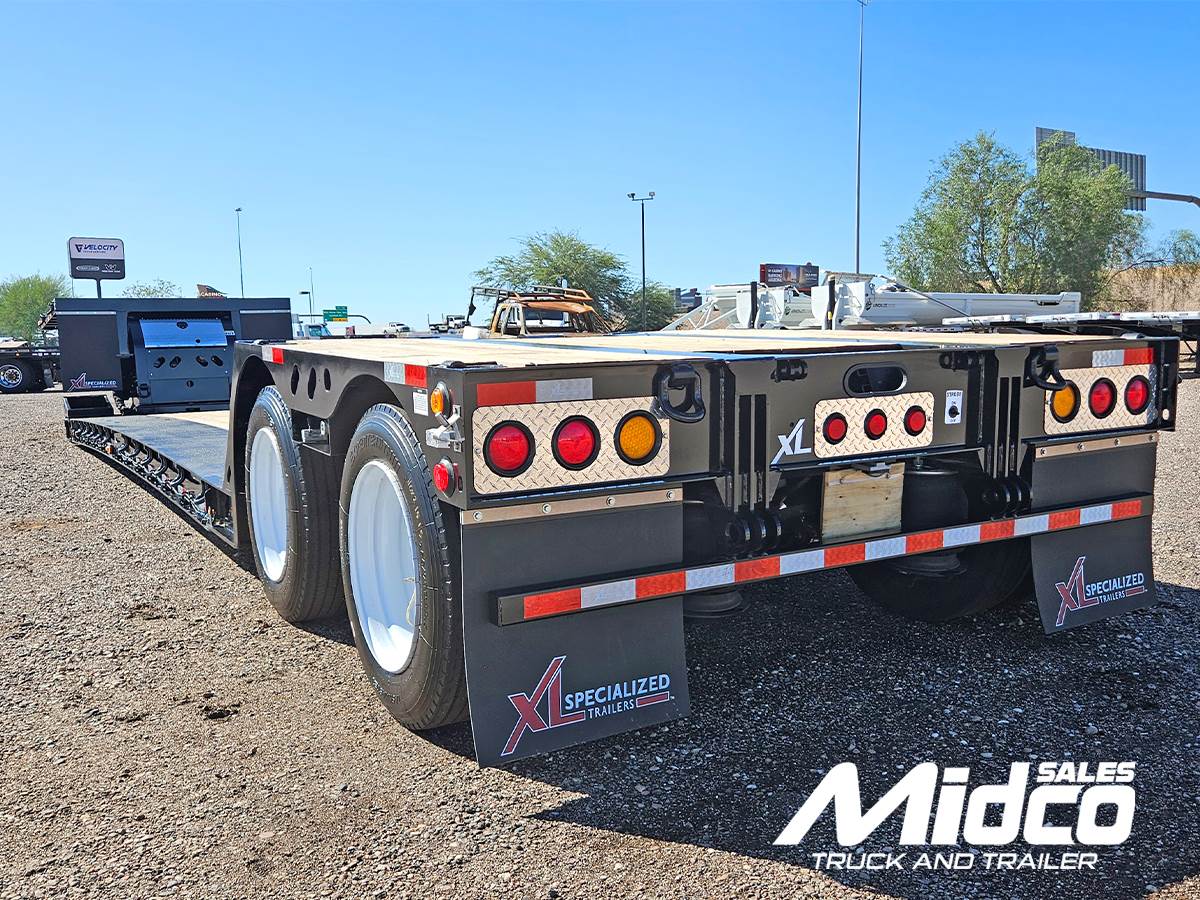

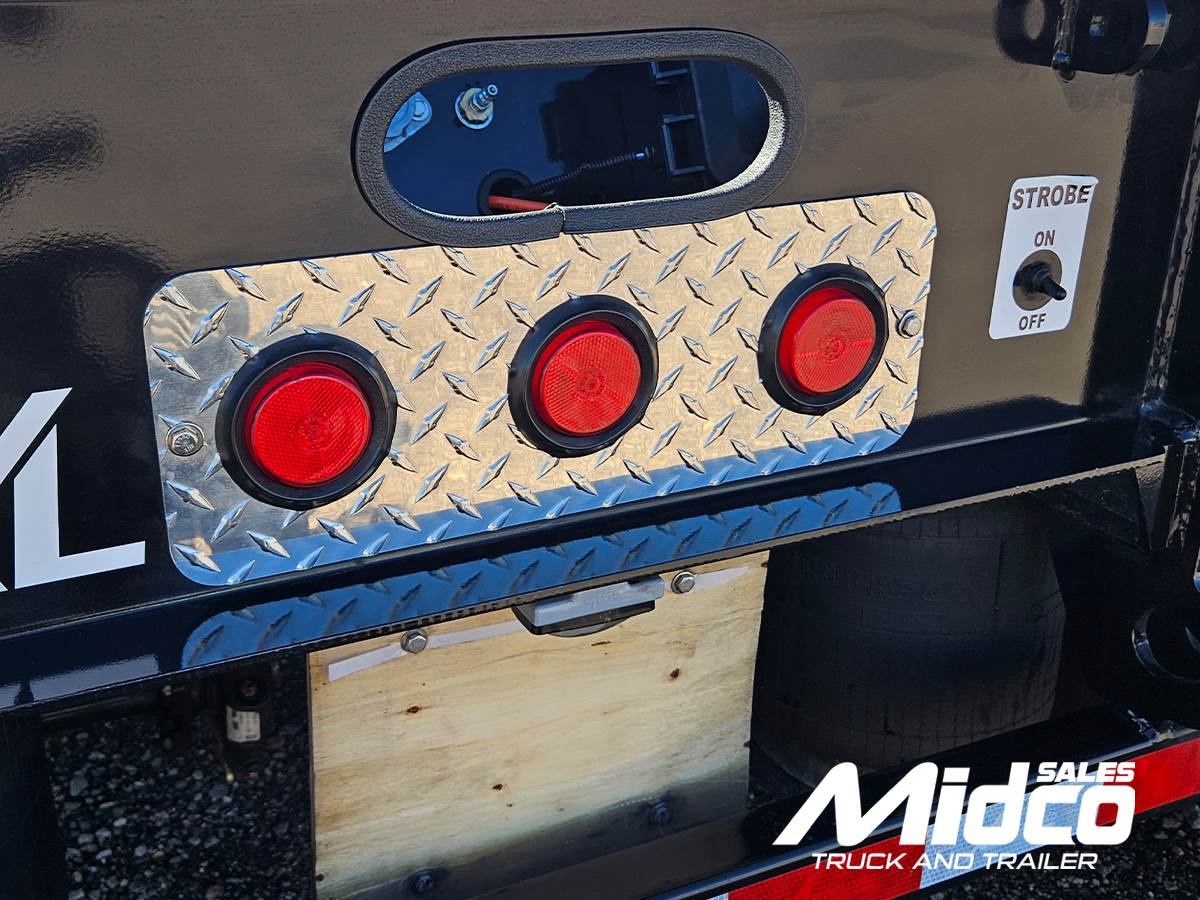

3 tail light aluminum package
Additional clearance lights on main deck sides
