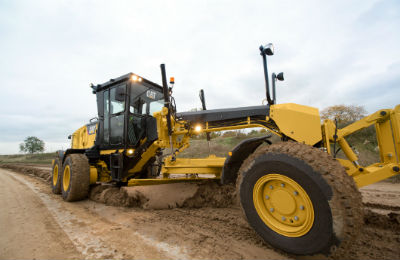

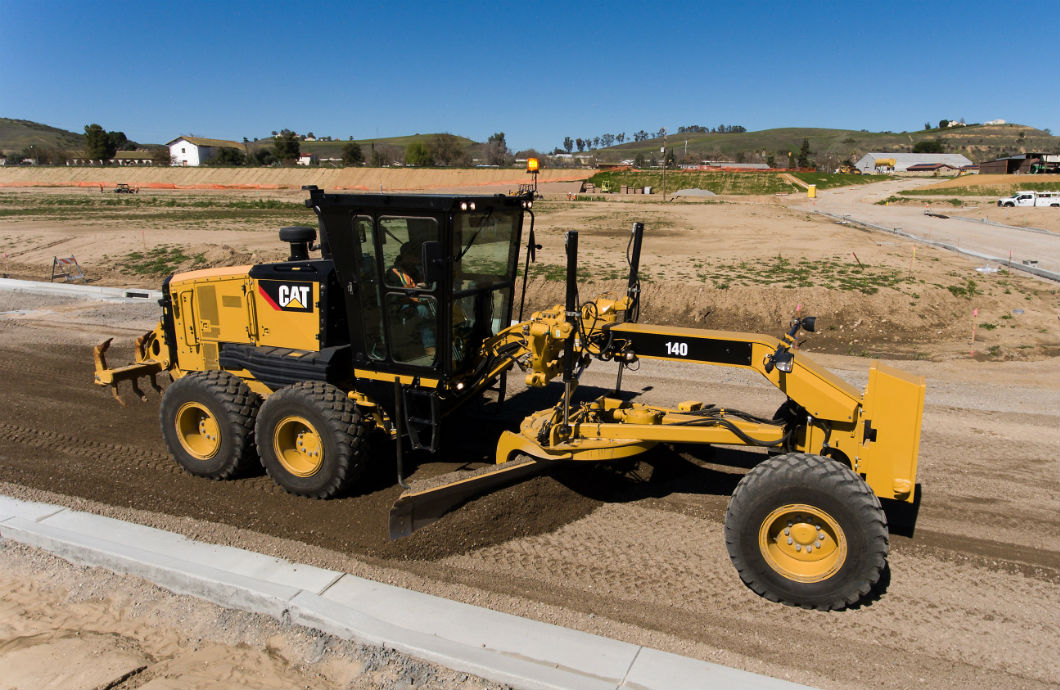

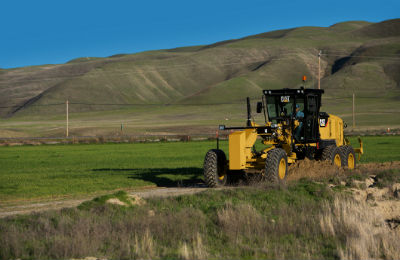

The release of the newest Cat motor grader is one to get excited about, as it not only offers enhanced operator comfort and convenience, but also showcases a selection of grade control technologies, conventional steering wheel/level controls, and a more efficient power train. Featuring an all-wheel-drive system option, the Cat 140 Motor Grader has a standard operating weight of 42,325 pounds, a 12-foot moldboard, a fuel-efficient Cat C9.3 engine rated at 250 standard net horsepower, and an 8F/6R direct-drive power-shift transmission. Throw in the Cat Product Link telematics system and extended-interval serviceability, and you’ve got yourself a powerhouse of a machine.
Scalable Cat GRADE technologies provide grade control options for customers with different application requirements and budgets—but all aimed at allowing operators to work faster and more accurately for increased productivity. In addition, the optional Stable Blade system automatically slows the machine if the grade will be adversely affected by machine bounce.
Cat GRADE with Cross Slope is an integrated system that automates blade cross slope, allowing material savings of up to 40 percent in some applications, as estimated by Caterpillar studies comparing this technology with manual blade control
Cat GRADE Attachment-Ready Option (ARO) integrates with Cat GRADE technologies, as well as with other grade-control systems, and ensures machine readiness for additional 2D/3D grade control technologies
The Cat C9.3 engine provides optimum power in all gears, with the Variable Horsepower Plus (VHP) system regulating power output between 177-250 horsepower (132-186 kW) for maximum efficiency and fuel economy. When operating in the standard ECO mode, fuel consumption is reduced up to 10 percent in certain applications.
The all-wheel-drive option provides added performance in rough terrain or poor underfoot conditions and the VHP system regulates power output between 176-270 horsepower (131-291 kW). Optimized machine balance ensures maximum drawbar power to the ground.

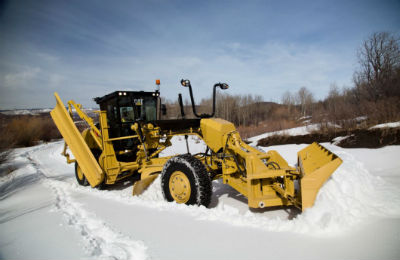

Optional hydraulic lines accommodate various powered work tools. To expand versatility, there are several attachments available such as the mast-type and mast-less snow wings, plows, straight blades, scarifiers, and the lift group for precise control of front-mounted tools.
Extended maintenance intervals provide significant reductions, saving up to 20 percent in fluid and filter costs. Filters are changed at 1,000 hours, instead of 500, keeping the machine moving and productive. Hydraulic oil, engine air and diesel exhaust fluid (DEF) filters are grouped together in a central location for easy access and preventative maintenance.
Ground level fuel fill keeps operators safe by reducing the need to climb onto the machine. Maximum tightness and accuracy with the top adjust drawbar option saves up to 45 percent in maintenance costs over the standard. The reversing fan option prevents material build up by the rear door intake screen, which helps reduce cleaning maintenance for the motor grader’s cooling system.
Optimum placement of the steering wheel and levers reduce operator effort and strain, promoting a safe, comfortable and productive working environment. The redesigned, ISO-certified ROPS cabin is sound-suppressed and sealed against dust intrusion with a high capacity heating and cooling system to circulate fresh air. An adjustable control console promotes comfort, and the display screen keeps the operator informed about machine functions, while also integrating with Cat Connect Technology information.
Large, floor-to-ceiling windows ensure all-around visibility, which gets a boost from an available rear-view camera system. The Comfort Cab option adds an air-suspension seat, rear wiper, and defrost fans. Halogen lighting is standard, LED optional. In addition, a canopy-type operator's station is optionally available. For added operator safety, the standard secondary-steering system automatically activates should main-pump pressure drop.
Net power (ISO 9249/SAE J1349)
250 hp (186 kW)
Operating weight, tandem*
42,325 lb. (19 198 kg)
Operating weight, all-wheel drive*
44,613 lb. (20 236 kg)
12 ft. (3.7 m)
23.4 in. (594 mm)
16.3 in. (413 mm)
4.9 in. (124 mm)
*Typically equipped operating weight is calculated with full fluids, operator, push block, guards, rear ripper/scarifier, tires, and other equipment.
