Location: Near Fresno, CA

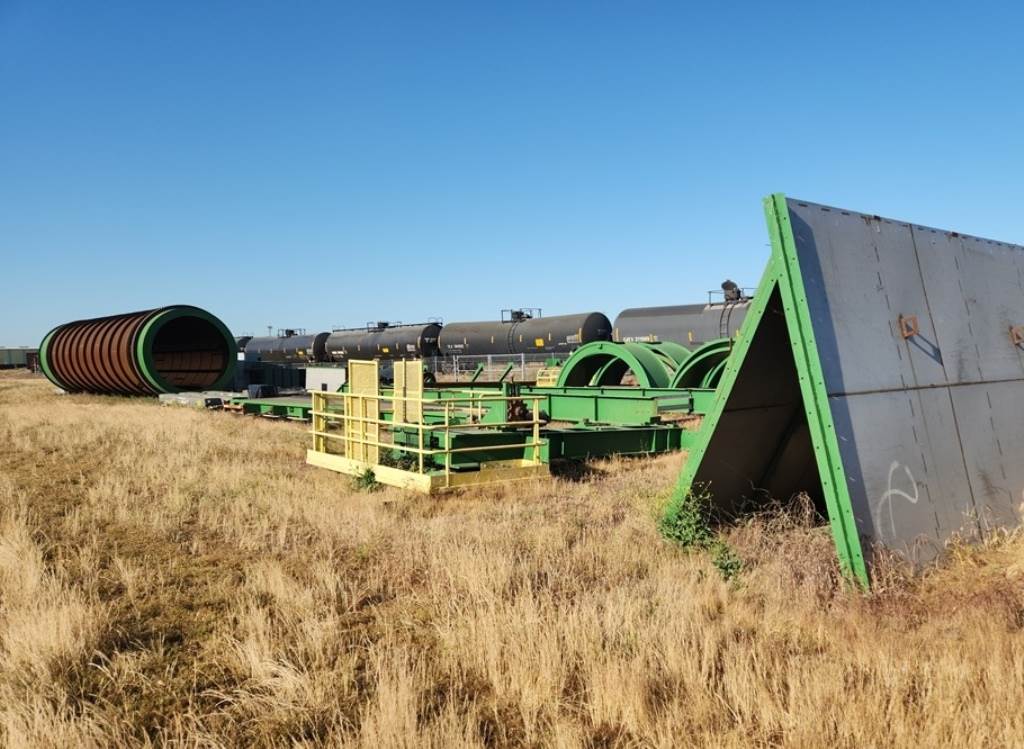

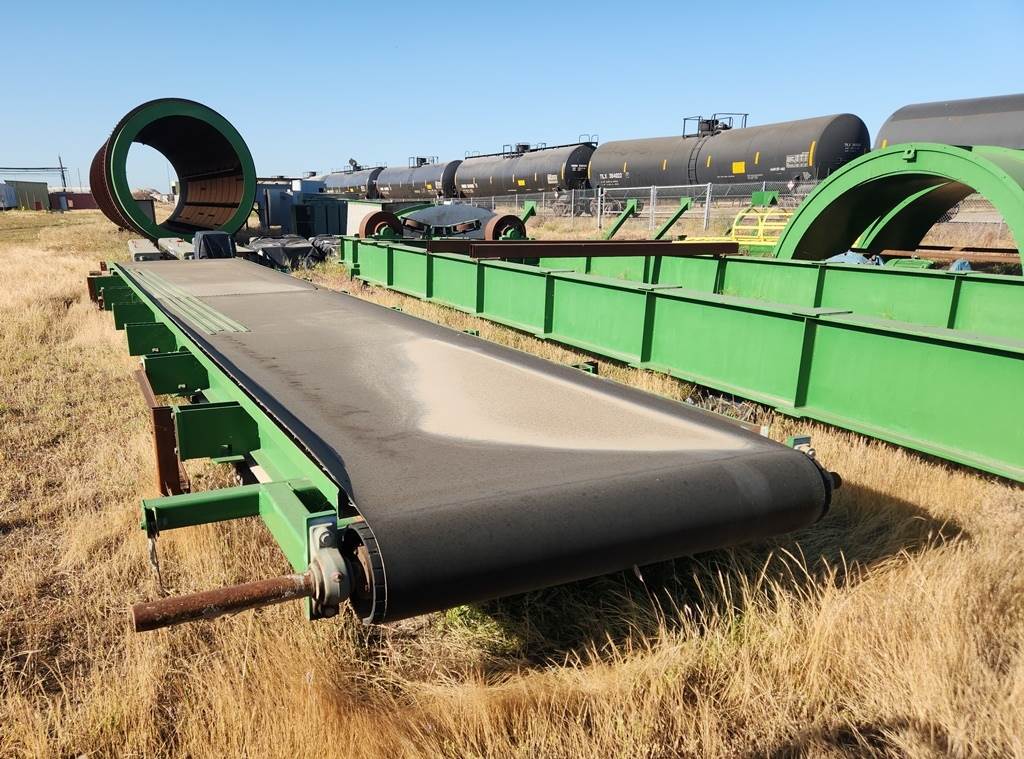

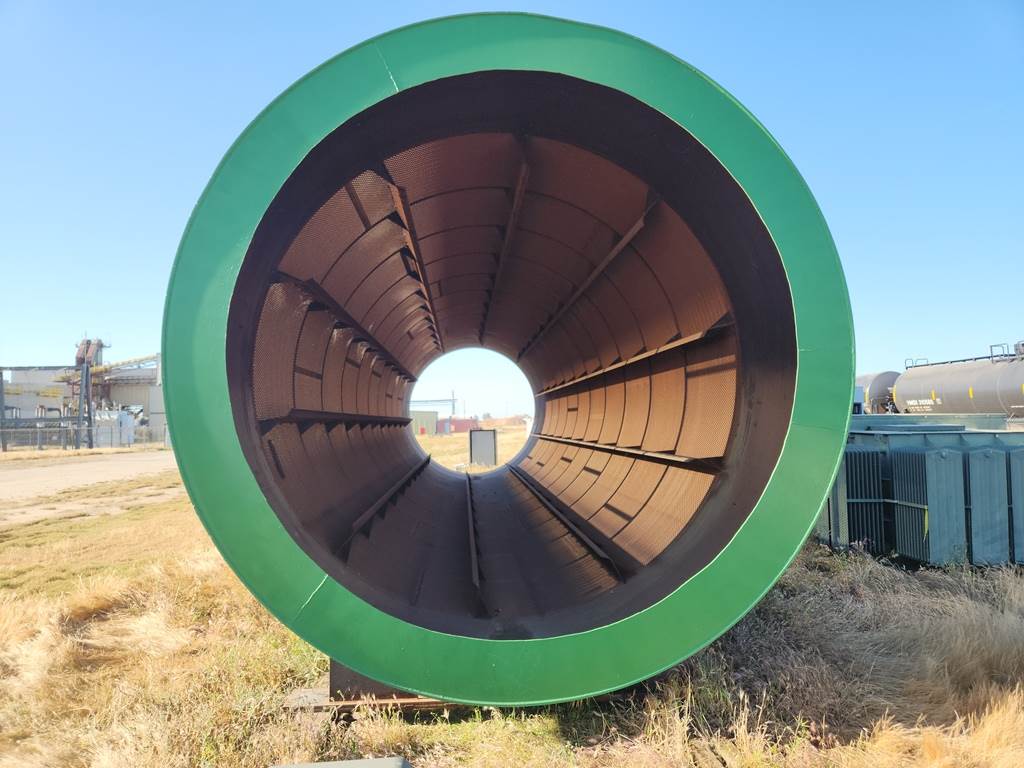

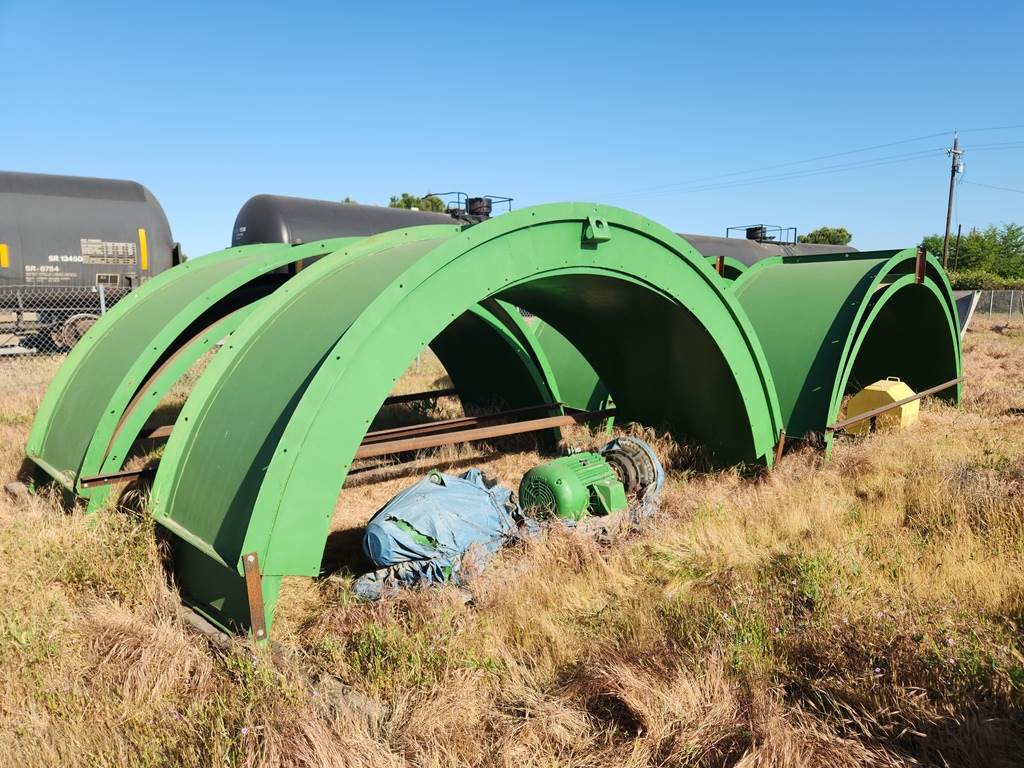

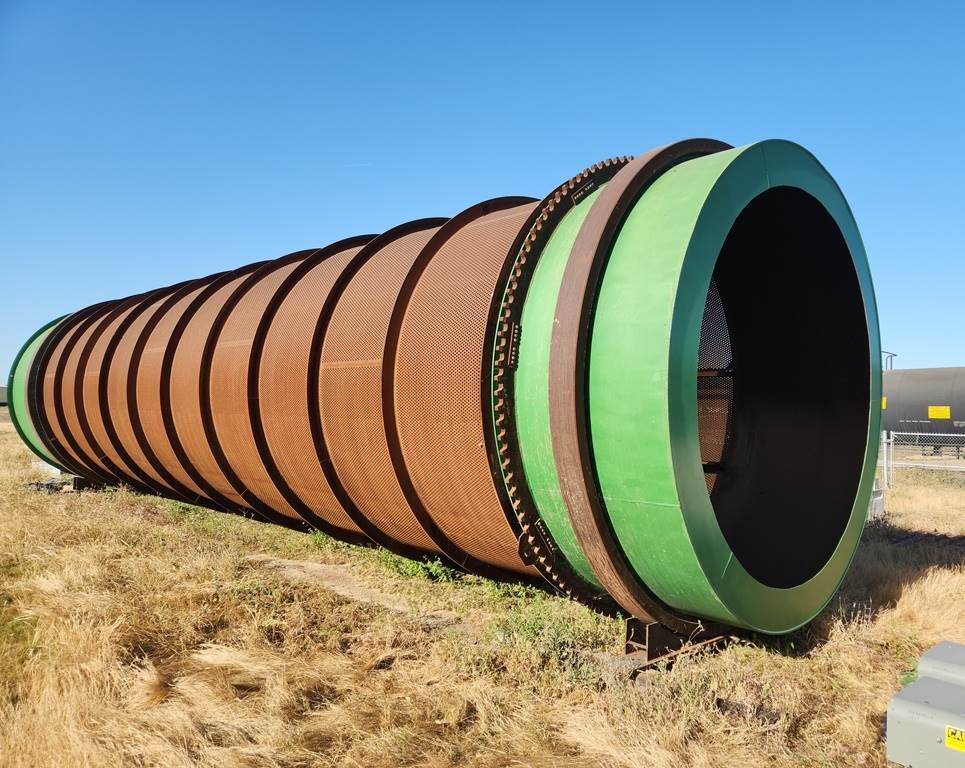

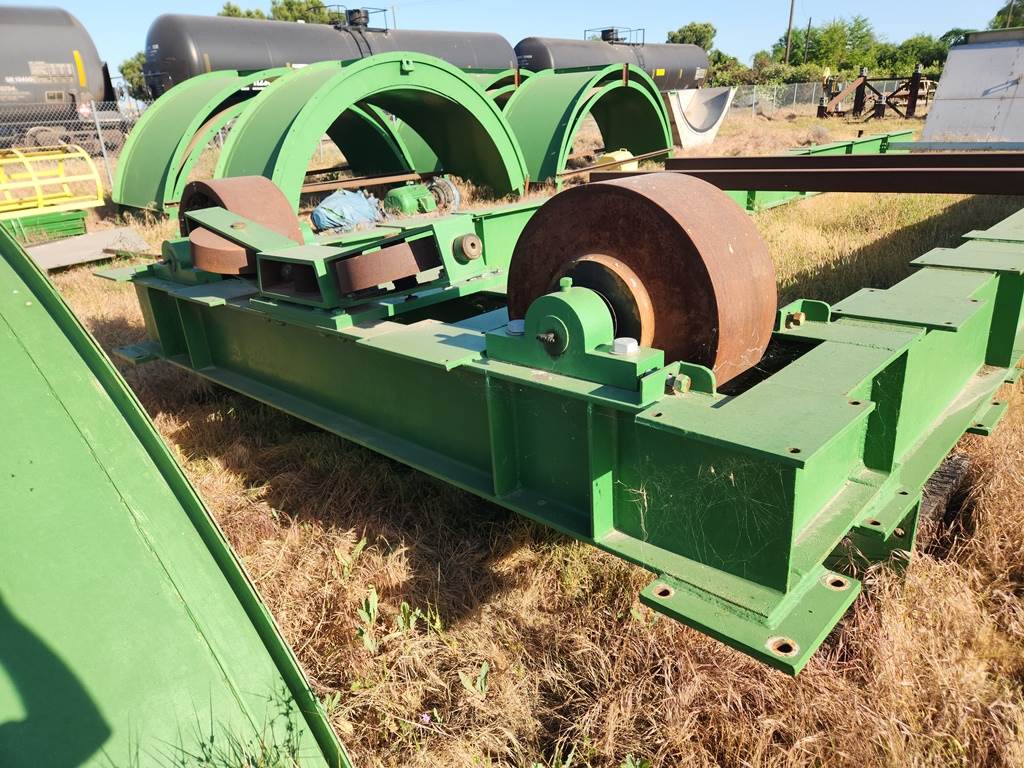

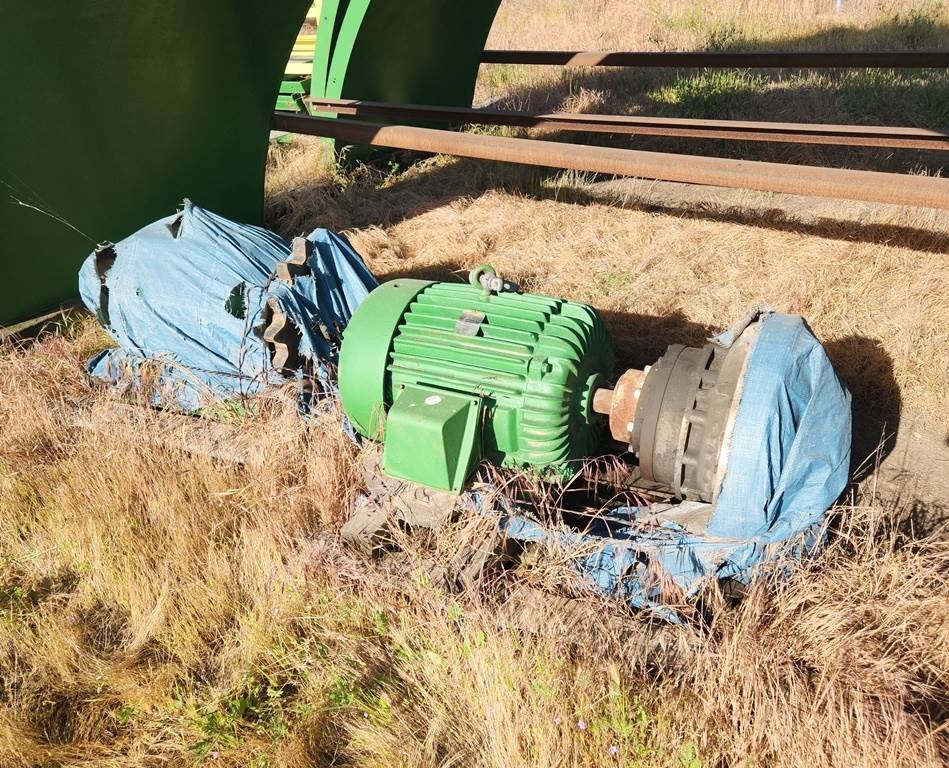

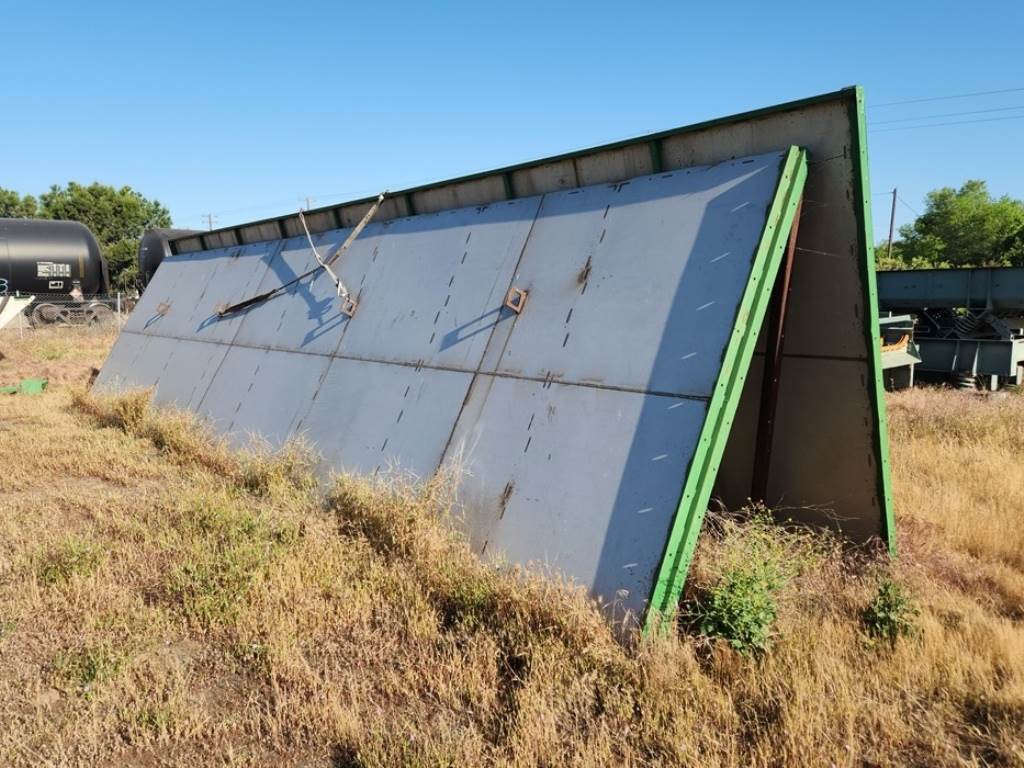

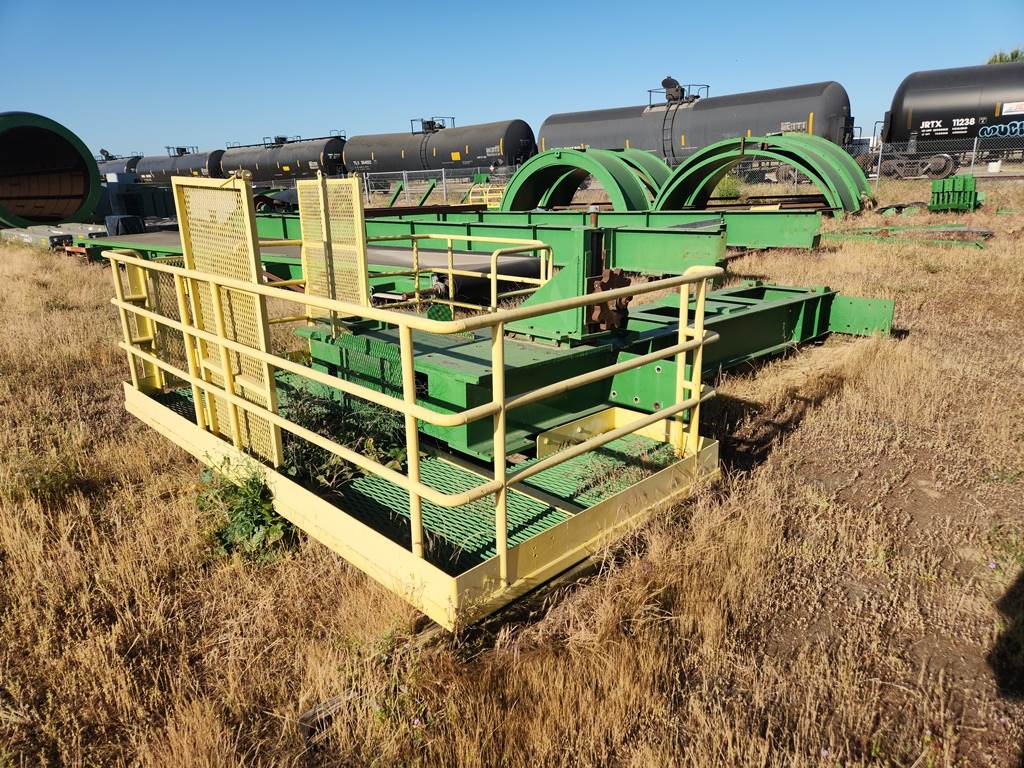

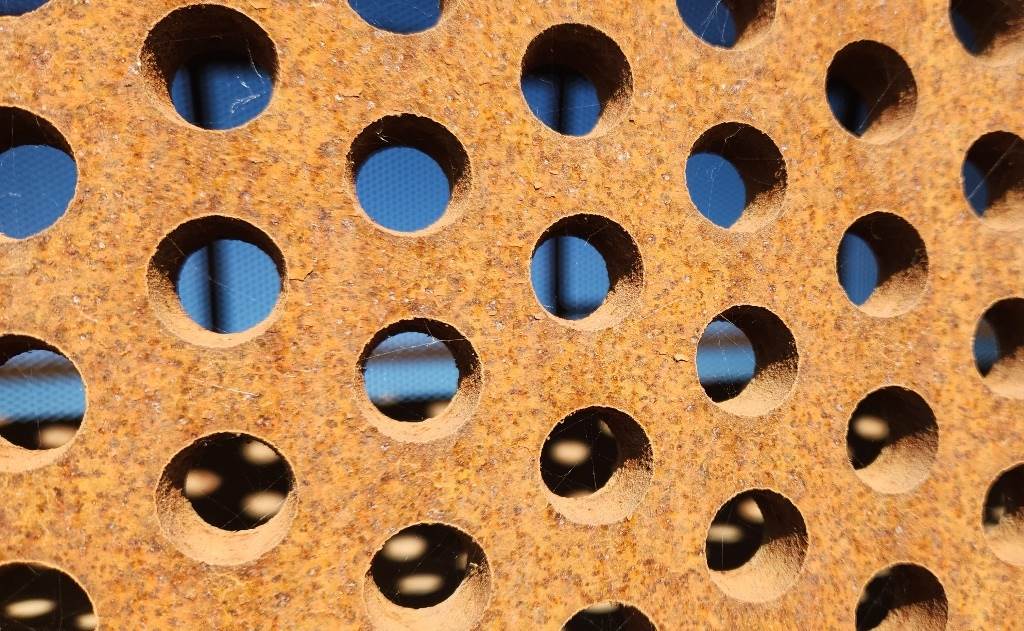

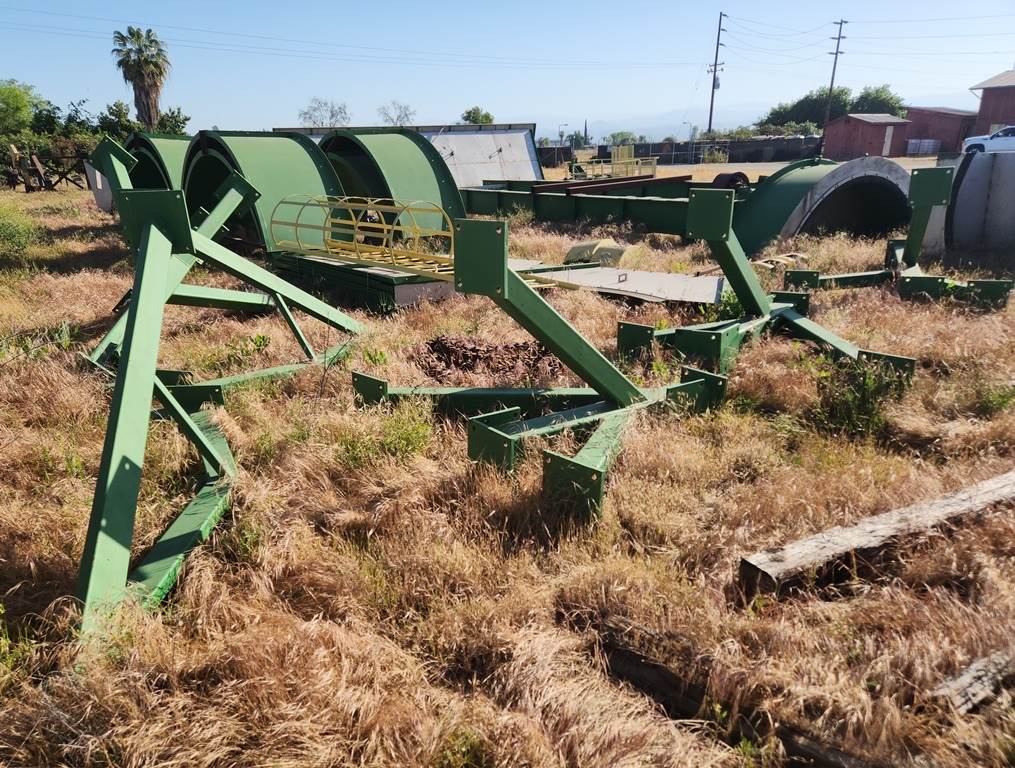

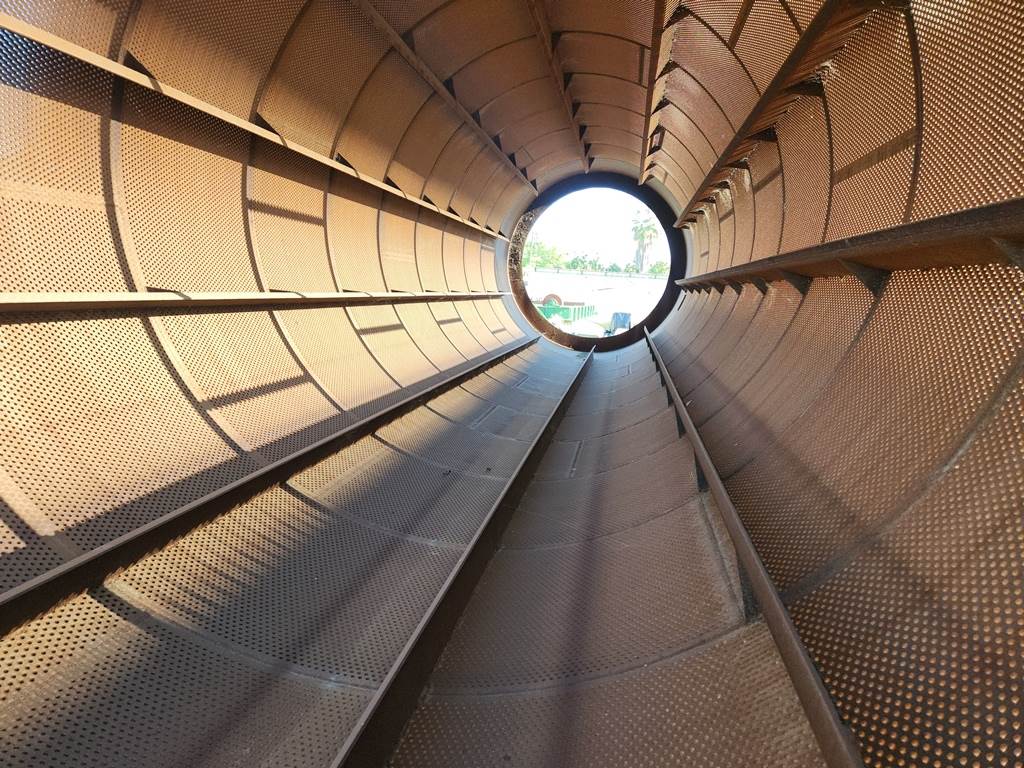

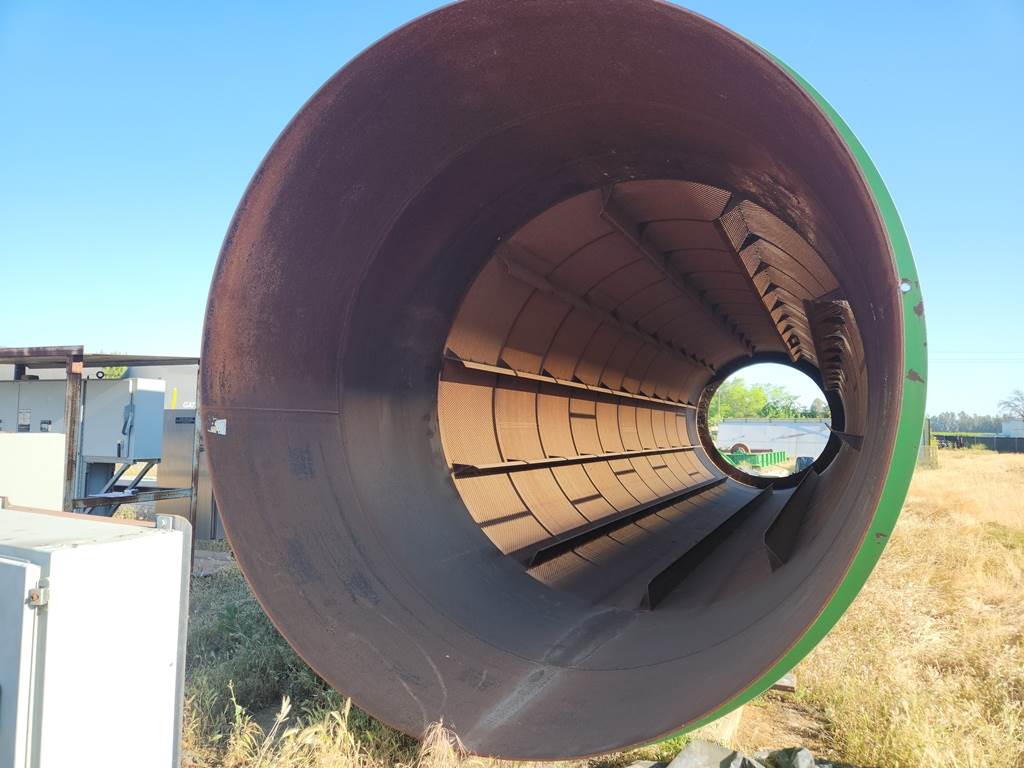

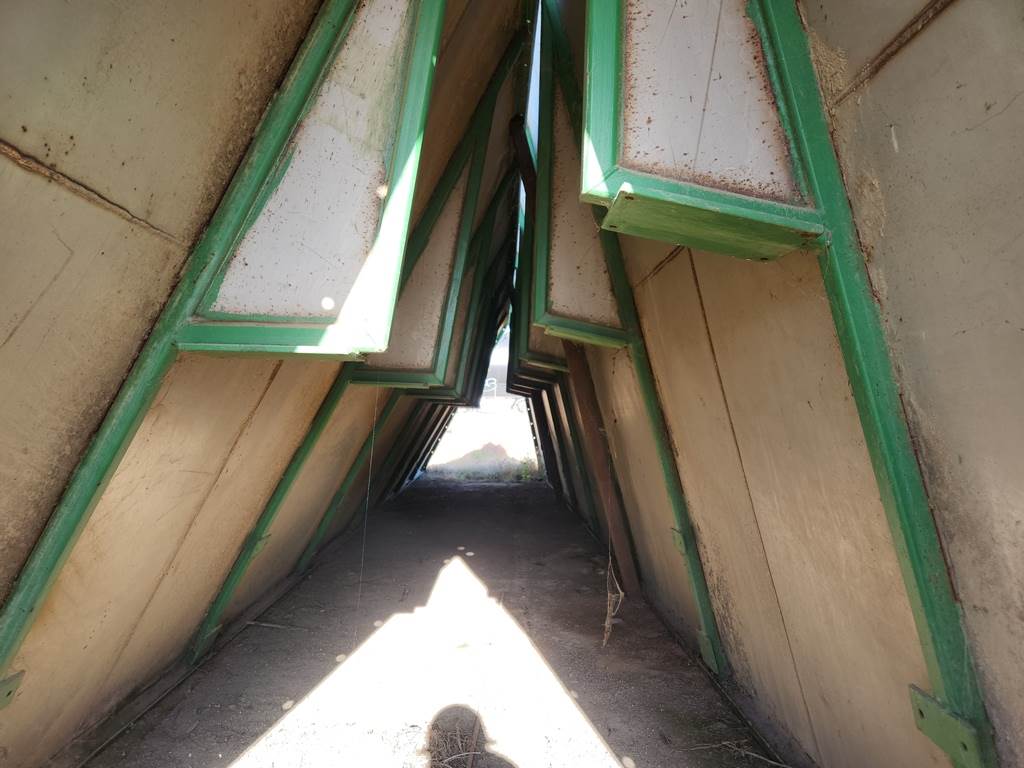

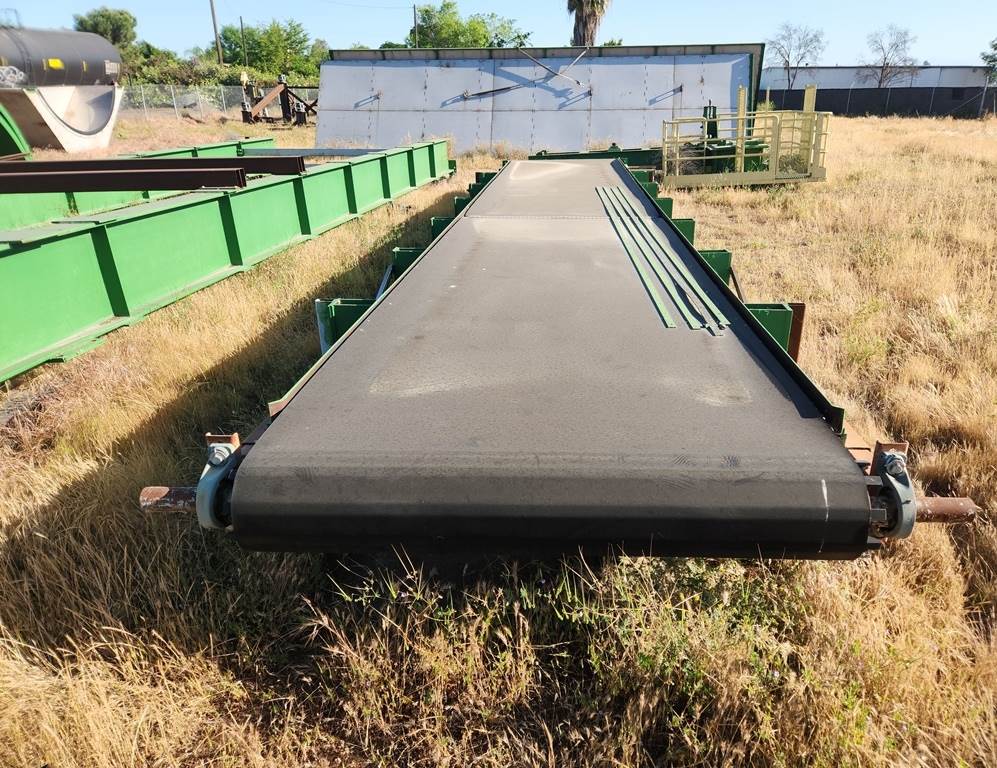

12’ diameter x 55’ long Heavy Duty Rotary Trommel Screen, ½” thick rolled steel drum, 5’ long solid drum at feed end, 40’ long screen section with ½” rolled steel punched plate with 7/16” self-cleaning tapered openings, 9’ long solid drum at discharge end; interior 10½” tall reinforced steel material lifters on 42” centers, exterior ¾” thick steel ring stiffeners on 48” centers, 75 h.p. electric motor with fluid coupler to oil lubricated gear reduction box, wrap around chain & sprocket drive, 24” I-Beam sub-base with (4)-four 12½” wide x 29” diameter steel trunnion wheel supports mounted on heavy shafts & bearings, (2)-Two 4” wide x 16” diameter drum retainer rollers mounted on a swivel yoke assembly designed to keep drum centered in position on the trunnion wheel steel support tires, bolt on electric motor and gearbox platform with handrails and access ladder with adjustable sprocket drive chain tensioner, full length fabricated steel covers with breech enclosures at both ends, under screen stainless steel sloped material deflectors to 72” wide x 38’ long under screen slide belt discharge conveyor with electric motor drive, 3-ply rubber conveyor belting, rubber lagged head pully, wing type self-cleaning tail pulley mounted on 2 15/16” diameter shaft with pillow block bearings and take-up assemblies, 75 h.p. electric motor control starter mounted in an outdoor rated steel enclosure on a free standing support.
*Heavy duty unit professionally manufactured by MSC in Los Angeles, CA using U.S. Standard motors, gearboxes, bearings and components. Used equipment, no warranty.…..Selling Price $298,000 Truck Loading is included in the price. Condition: Never used.
