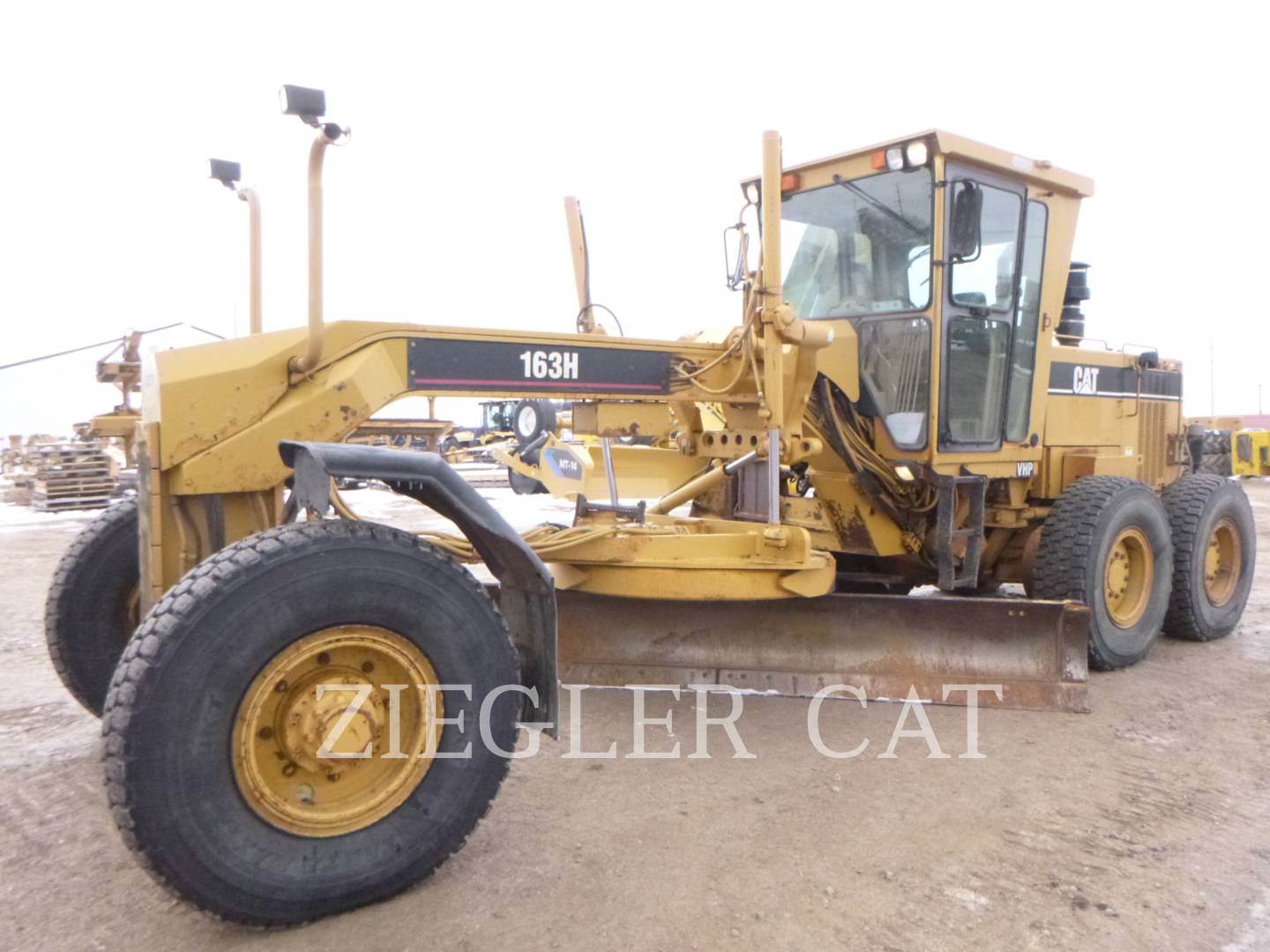

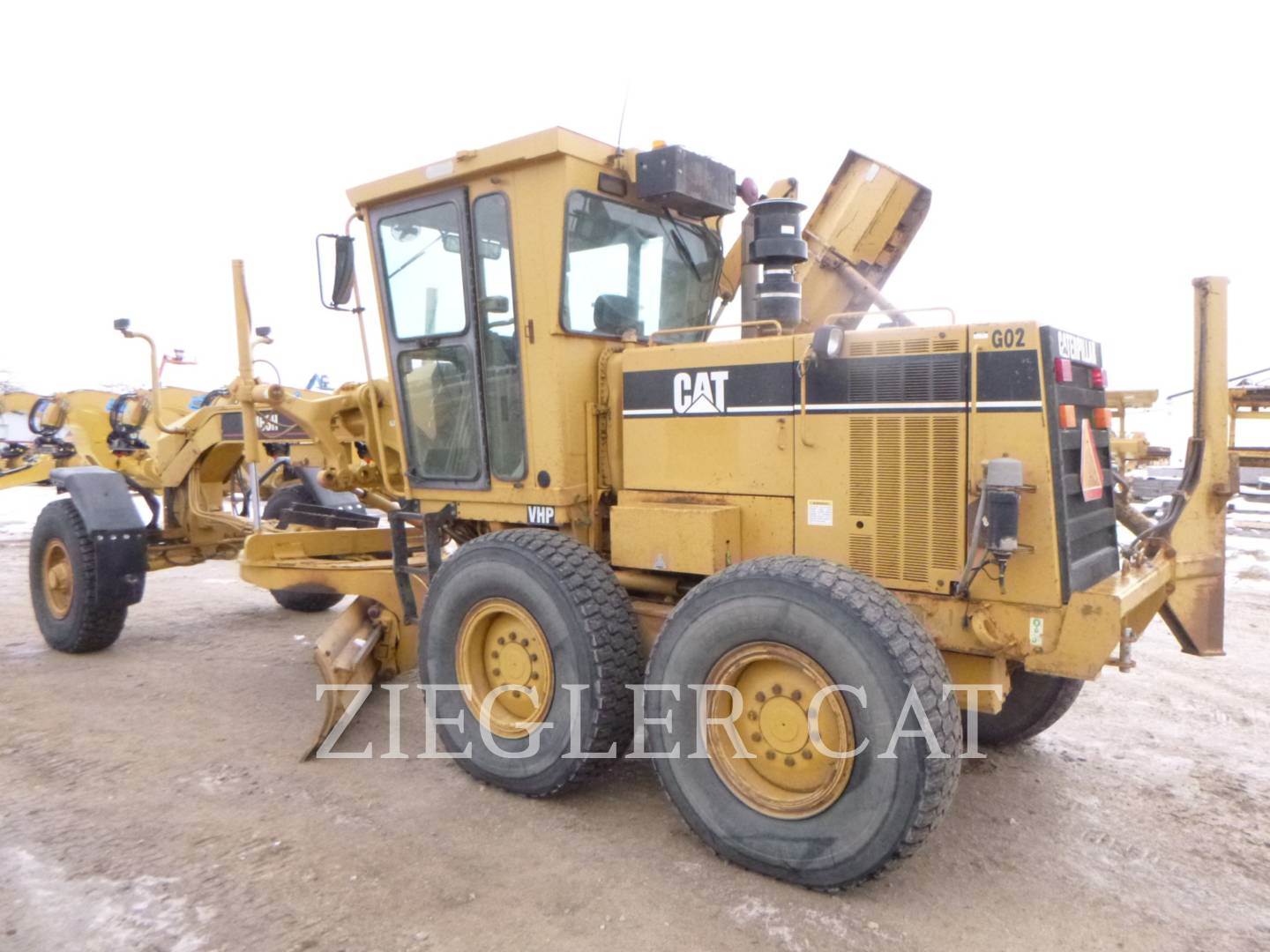

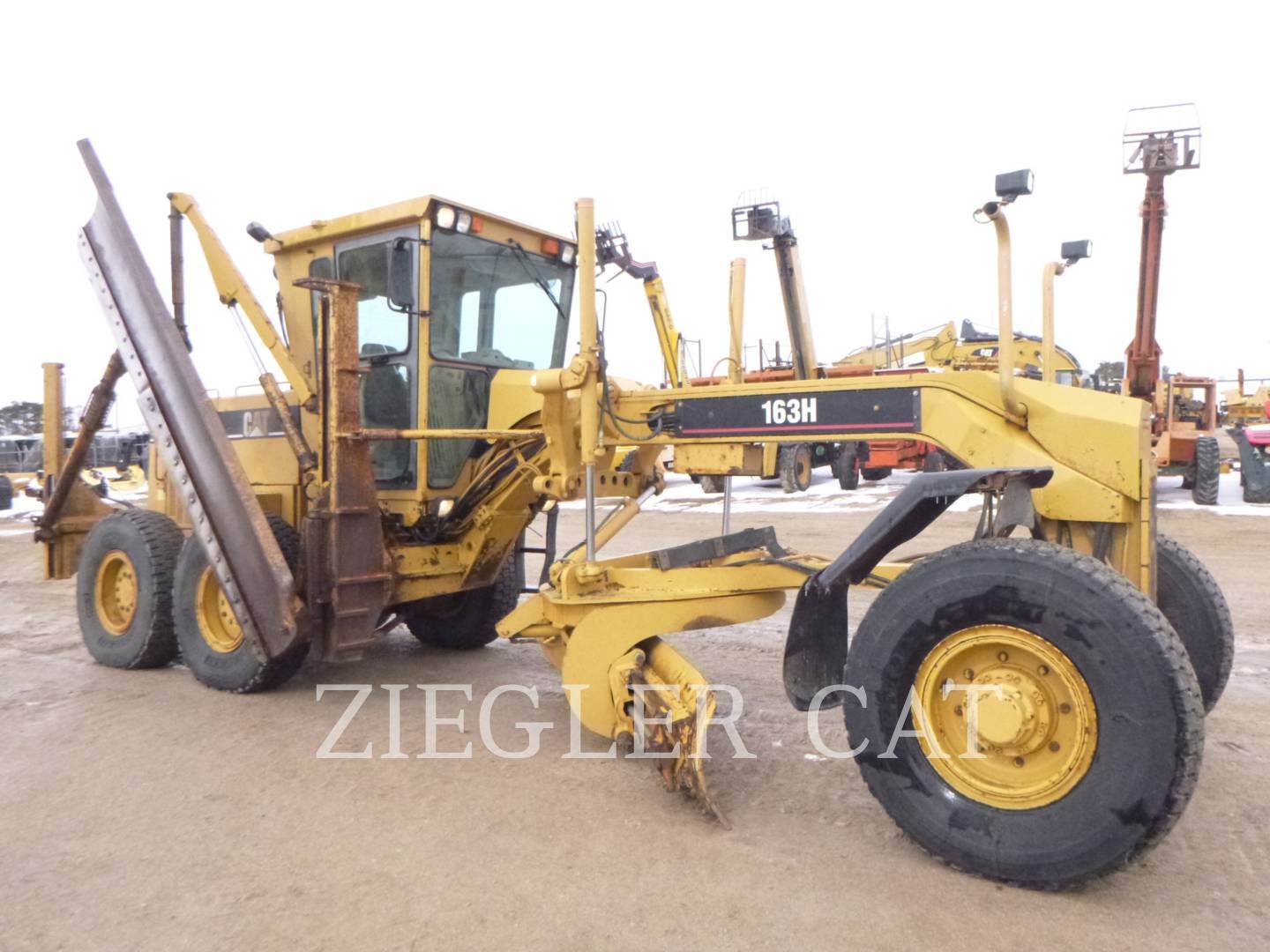

1998 Caterpillar 163H Motor Grader For Sale, 11,664 Hours | Shakopee, MN | EQ0167550

Year	1998
Category	Motor Graders
Manufacturer	Caterpillar
Model	163H
Condition	Used
Stock Number	EQ0167550
MLS Number	14201768

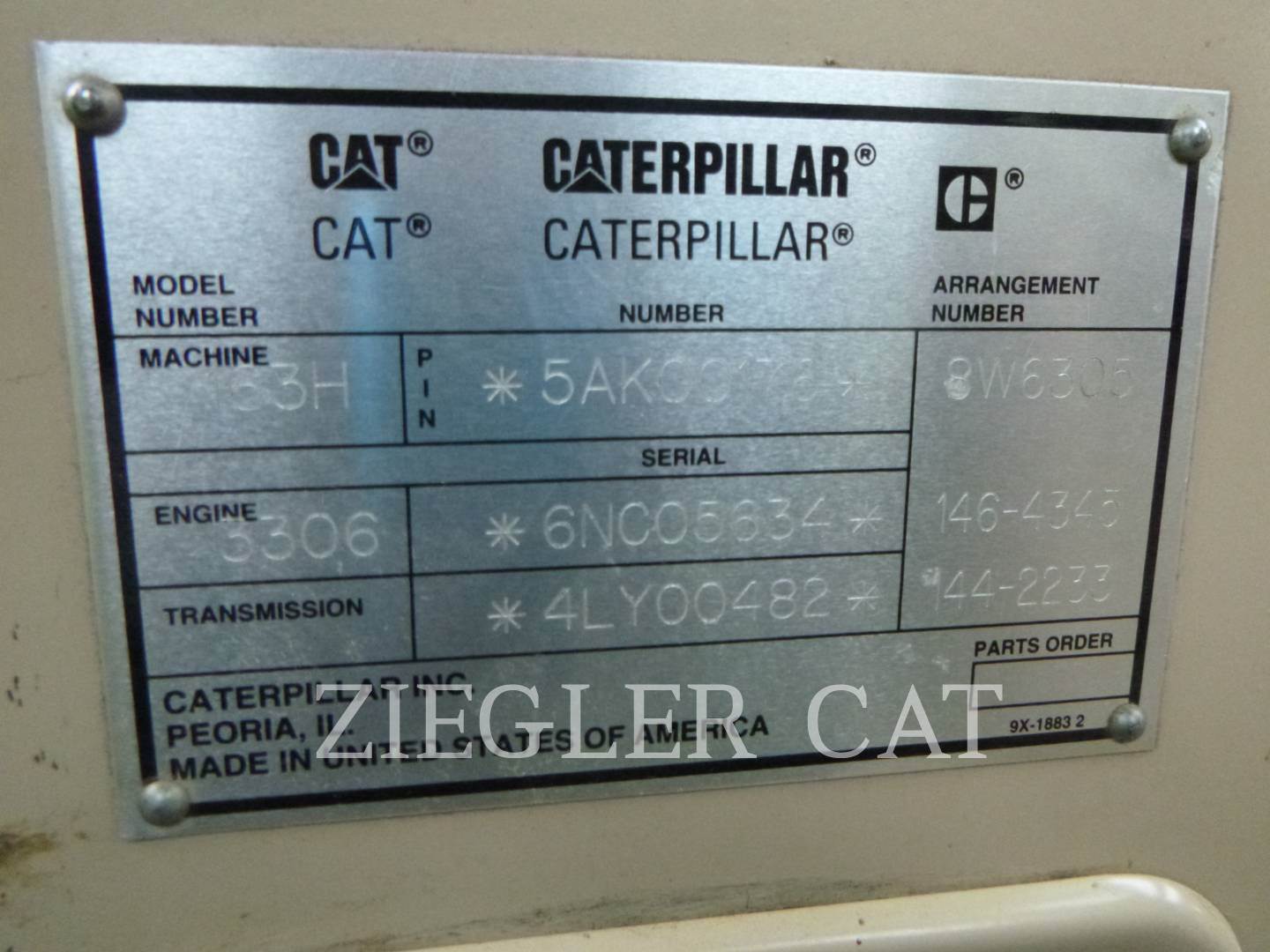

Serial Number	5AK00176
Usage	11,664 Hours

Rating	As-Is

Inspection Report

GENERAL CONDITION

Machine Starts and is Operable	Yes
Tires are Aired Up and Drivable	Yes
Body	Good
Frame - GENERAL CONDITION	Good
General	Fair

GENERAL APPEARANCE

Notes - GENERAL APPEARANCE	THE EXTERNAL SN TAG IS DAMAGED AND DETACHED. THE MACHINE IS STRAIGHT OVERALL WITH A FADED AND SURFACE RUSTED APPEARANCE.
Battery Box	Good
Cab or Canopy	Good
Decals	Fair
Draw Bar	Fair
Engine Enclosures	Good
Fenders	Fair
Front Frame Welds	Good
Fuel Tank	Good
Grab Irons	Good
Hood	Good
Paint	Fair
Pre-Cleaner Bowl	Poor
Radiator Grill	Good
Rear Frame Welds	Good
Sheet Metal	Fair
Steps / Ladder	Good

SAFETY ITEMS

Parking Brake Functioning	Yes
ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
Safety Locks / Pins	Yes
Service Brakes Functioning	Yes
Back Up Alarm	Good
Beacon / Strobe	Good
Horn	Poor
ROPS	Good
Seat Belt / Date	Fair

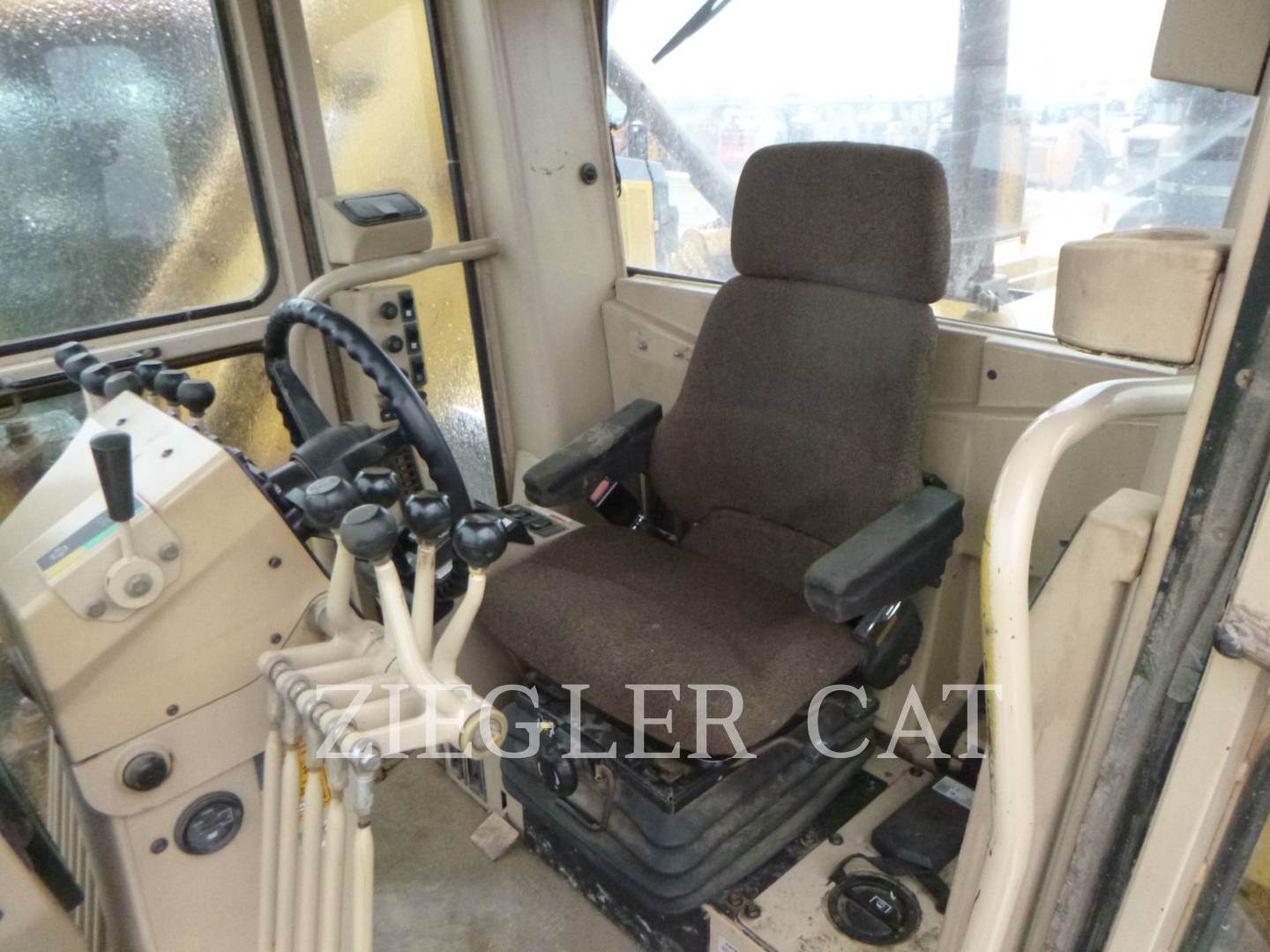

OPERATOR STATION

Fuel Level - OPERATOR STATION	100%
Current O&MM	Yes
Air Conditioner	Fair
Armrests	Fair
Cab Filter / Heat Vent Louvres	Fair
Dash Console	Good
Door Latches / Hinges / Seals	Good
Floor Boards / Mats	Good
Gauges	Good
Headliner	Good
Heater / Defroster	Fair

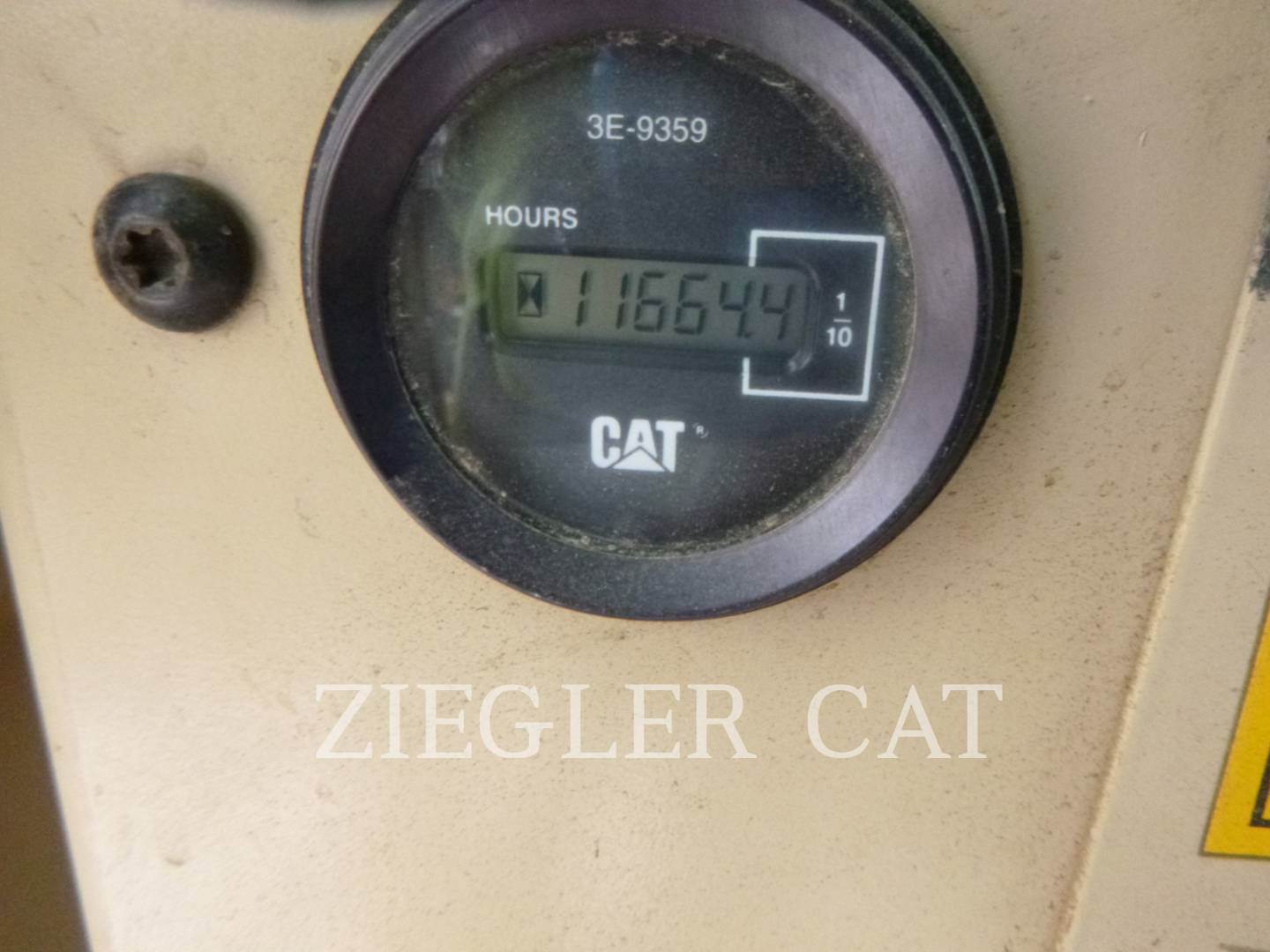

Hour Meter - GAUGES, OPERATION STATION, CONSOLE	Good
Interior Lights	Good
Interior Plastic / Fabric	Good
Mirrors	Good
Monitoring Display	Good
Radio	Good
Seat Cushions / Suspension / Type	Fair
Switches	Good
Windows	Poor
Windshield Wipers	Fair

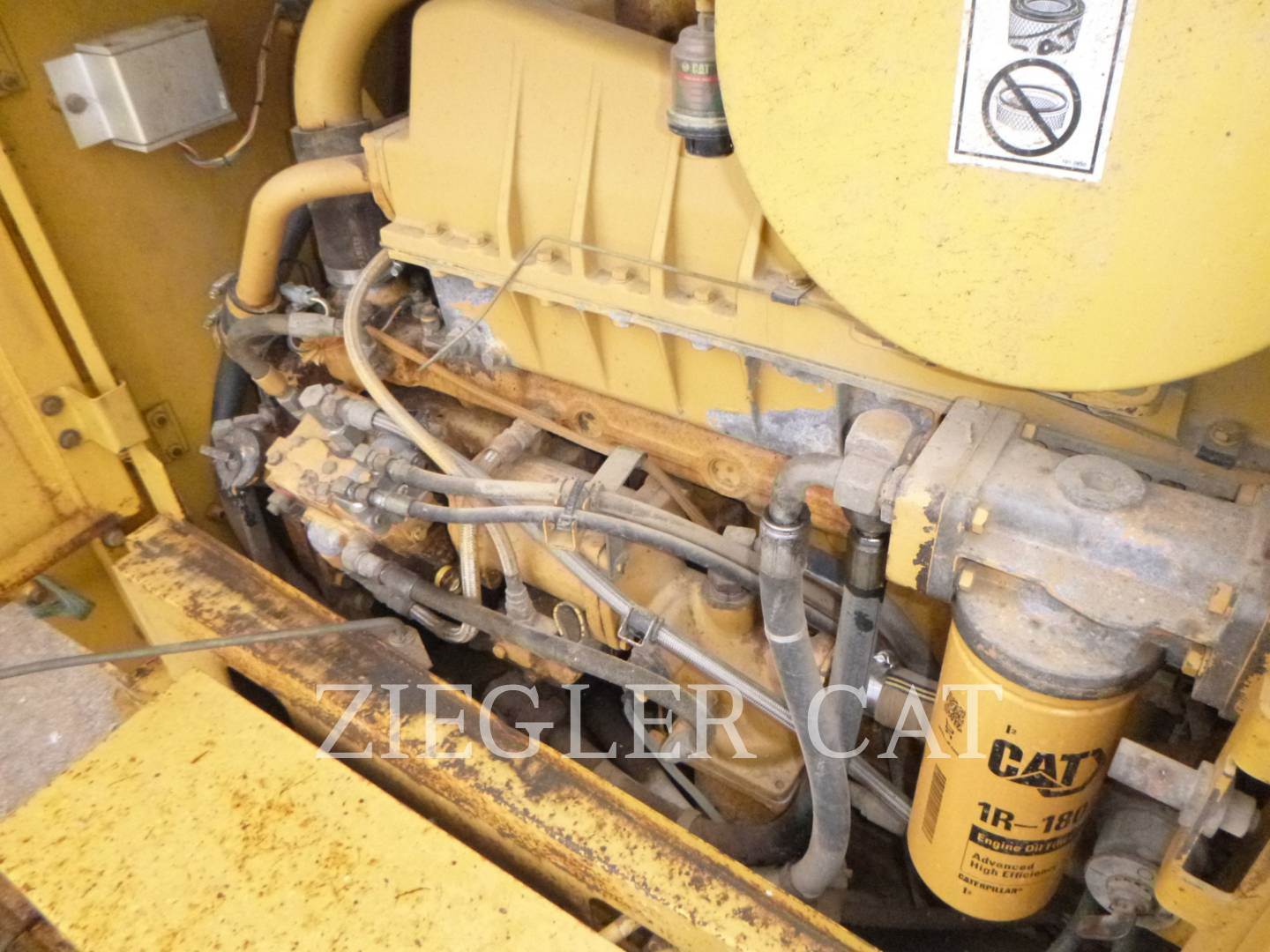

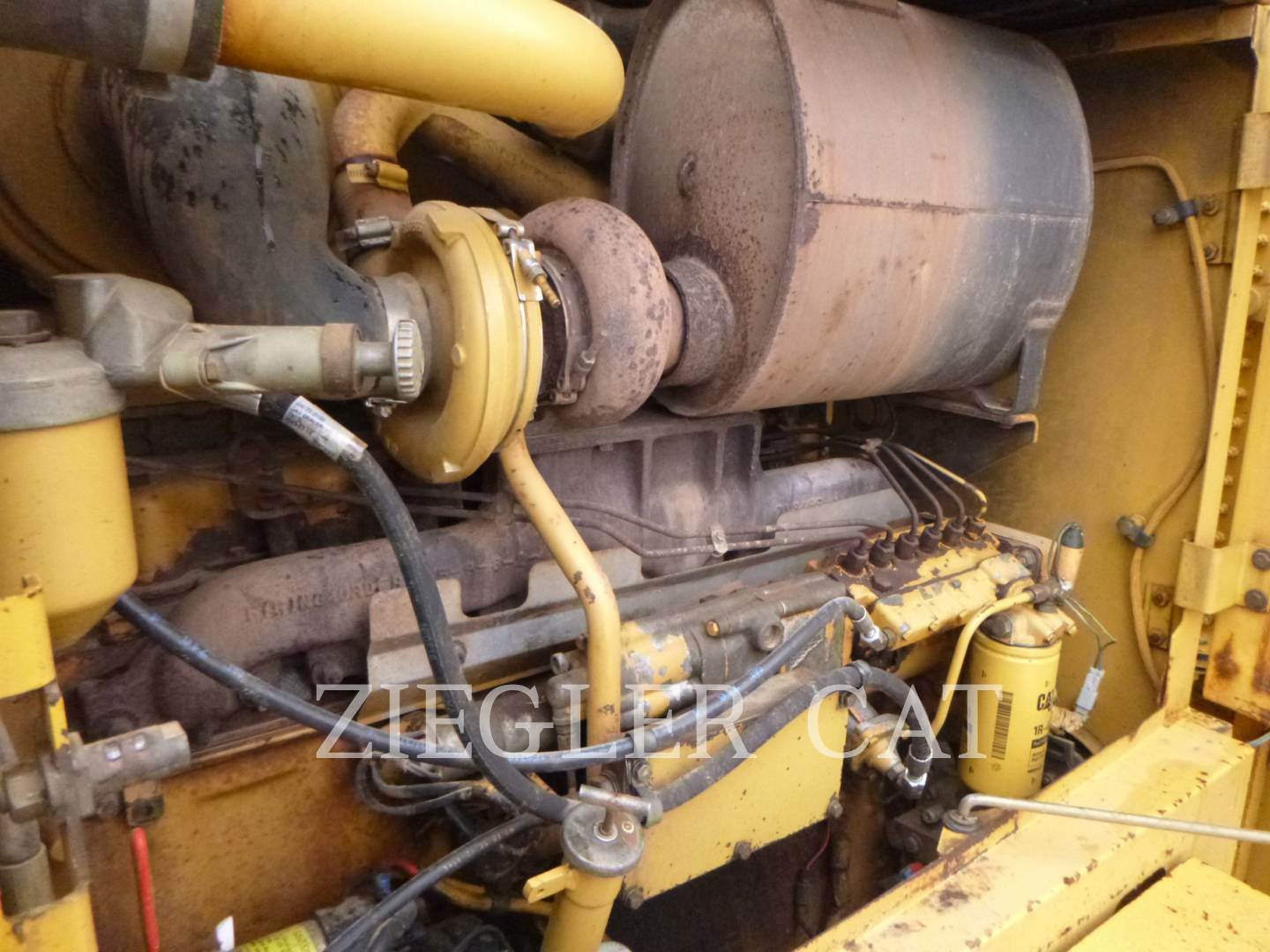

ENGINE

Blow By	Yes
Fuel Leaks	No
Knocking	No
Oil Leaks	Yes
Water in Oil	No
Notes - ENGINE	THE ENGINE IS RUNNING SMOOTH WITH FAIR TO NORMAL POWER.
Oil Pressure (H/L/N)	NORMAL
Smoke Color (B/D/L/W)	SIGNIFICANT BLUE ON STARTUP THEN NORMAL TO MINOR BLUE WHEN WARM.
Engine Oil Level / Condition	Good
Engine Supports / Mounts	Good
Exhaust / Muffler / Stack	Poor
Fuel Injection System	Good
Governor	Poor
Intake / Air Filters	Good
Operating Condition - ENGINE	Good
Turbocharger / Blower	Good

COOLING SYSTEM

Compression in Radiator	No
Coolant Leaks	No
Oil in Anti-Freeze	No
Standard Radiator	Yes
Notes - COOLING SYSTEM	THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 28 DEGREE WEATHER.
Anti-Freeze Level / Color / Condition	Good
Belts / Pulleys - COOLING SYSTEM	Fair
Coolers	Good
Fan	Good
Fan Drive / Type	Fair
Fan Shrouds / Guards	Good
Hoses / Tubes	Fair
Radiator	Good
Water Pump	Fair

ELECTRICAL, STARTING AND CHARGING SYSTEM

Block Heater	Yes
Ether Aid	Yes
Signal Lights	Yes
Alternator	Fair
Batteries / Cables	Good
Starter	Good
Wiring	Fair
Work Lights	Good

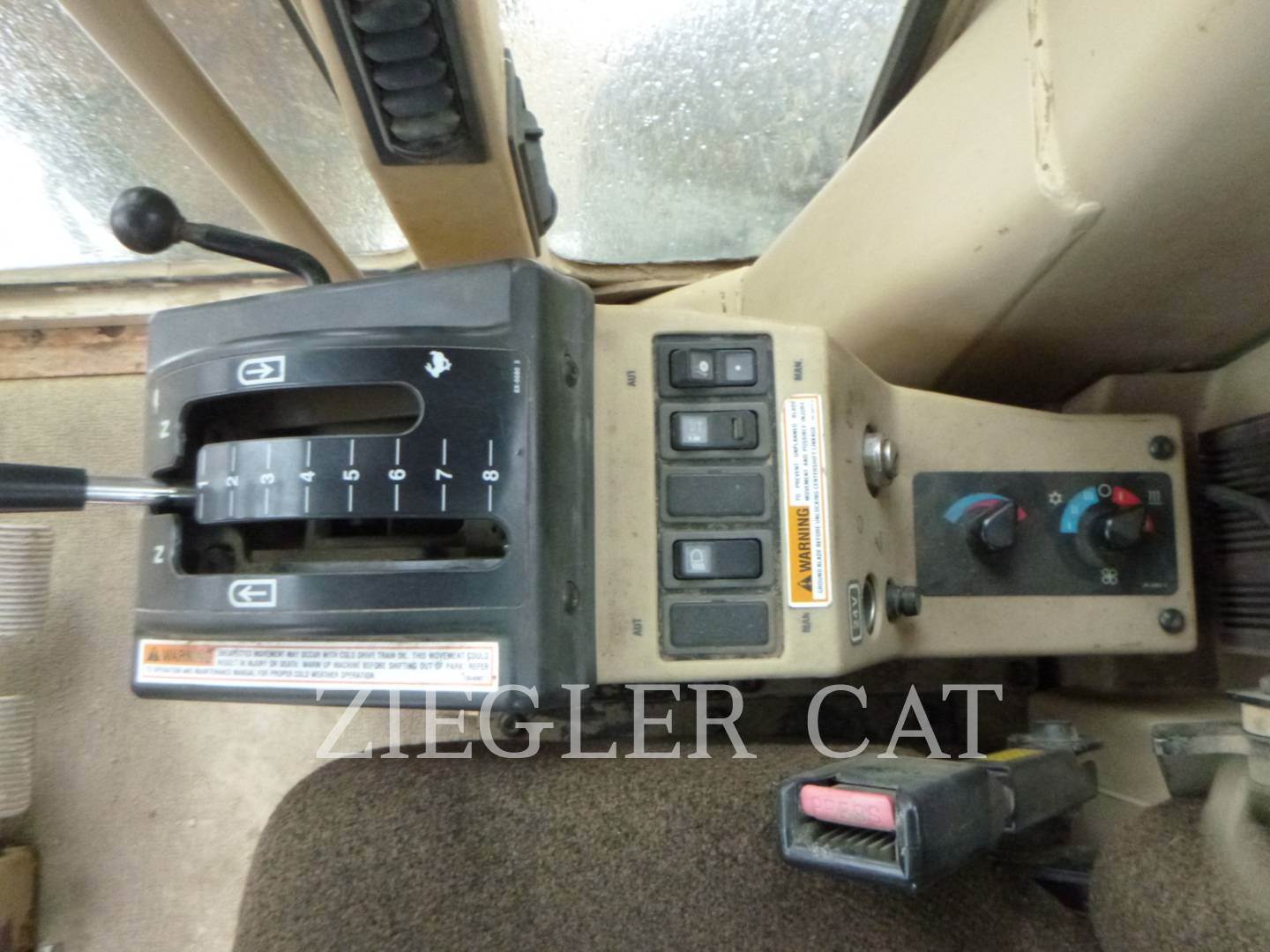

TRANSMISSION

Auto Shift	No
Leaks - TRANSMISSION	No
Powershift	Yes
Transmission - Noisy	Yes
Notes - TRANSMISSION	THE TRANSMISSION WAS RECONDITIONED 11-14 AROUND 5,962 HOURS. THE TRANSMISSION IS SHIFTING FAIR TO NORMAL BUT THE OIL SAMPLE RETURNED POOR.
Case - TRANSMISSION	Good
Controls - TRANSMISSION	Good
Cooler	Good
Lines / Fittings - TRANSMISSION	Fair
Operating Condition - TRANSMISSION	Fair
Pump - TRANSMISSION	Fair
Seals	Good
Temp / Pressure Gauges	Good
Transmission - Forward Shifts	Fair
Transmission - Reverse Shifts	Fair
Transmission Oil Filter Condition / Service Hours	Fair
Valves	Good

ALL WHEEL DRIVE

All Wheel Drive Notes	THE ALL WHEEL DRIVE IS FUNCTIONING TO NORMAL LEVELS.
All Wheel Drive Lines / Fittings	Fair
All Wheel Drive Operating Condition	Good
All Wheel Drive Valve	Good
Controls / Settings	Good
Drive Motors	Fair
Final Drives / Oil Levels	Fair
Pump	Fair

STEERING

Articulate P & B	Fair
King Pins	Fair
Lines / Fittings	Fair
Steering Column / Tilt	Poor
Steering Cylinder	Poor
Steering Frame	Good
Steering Linkage	Fair
Steering Operating Condition	Fair
Steering Pump	Fair
Steering Valve	Good
Tie Rods / Rod Ends	Fair
Wheel / Joystick	Good
Wheel Lean Cylinder - STEERING	Poor

BRAKE

Notes - BRAKE	ALL BRAKES ARE FUNCTIONING NORMAL.
Compressor	Fair
Control Valve	Good
Lines	Good
Parking Brake Operation	Good
Pedal	Good
Service Brake Operation	Good

DRIVECHAIN / TANDEMS

Drivetrain / Tandem Notes	THE DRIVETRAIN IS FUNCTIONING WITH SOME GROWL HERD AND LEAKS AS DESCRIBED. THE OILS WERE LAST CHANGED AT 11017 HOURS.
Differential	Fair
Differential Lock / Operation	Good
Drivetrain / Tandem Leaks	Poor
Oscillating Hubs / Oil Level	Good
Planetary	Fair
Tandem Housing / Drive Chains	Fair
Wheel Lugs & Rims	Good

HYDRAULICS

Notes - HYDRAULICS	THE HYDRAULICS ARE FUNCTIONAL AND RETURNED A NORMAL OIL SAMPLE.
Circle Drive Box	Fair
Circle Side Shift Cylinder	Good
Cylinder Mounts / Pins	Fair
Hydraulic Lines / Fittings	Fair
Hydraulic Oil Filter Condition / Service Hours	Fair
Hydraulic Pump	Fair
Hydraulic Valves	Fair
Lift Cylinders	Good
Linkage	Good
Operating Condition - HYDRAULICS	Fair
Pump Drive Shaft	Fair
Side Shift Cylinder	Good
Tank / Sight Glass / Cap	Good
Tip Cylinder	Good

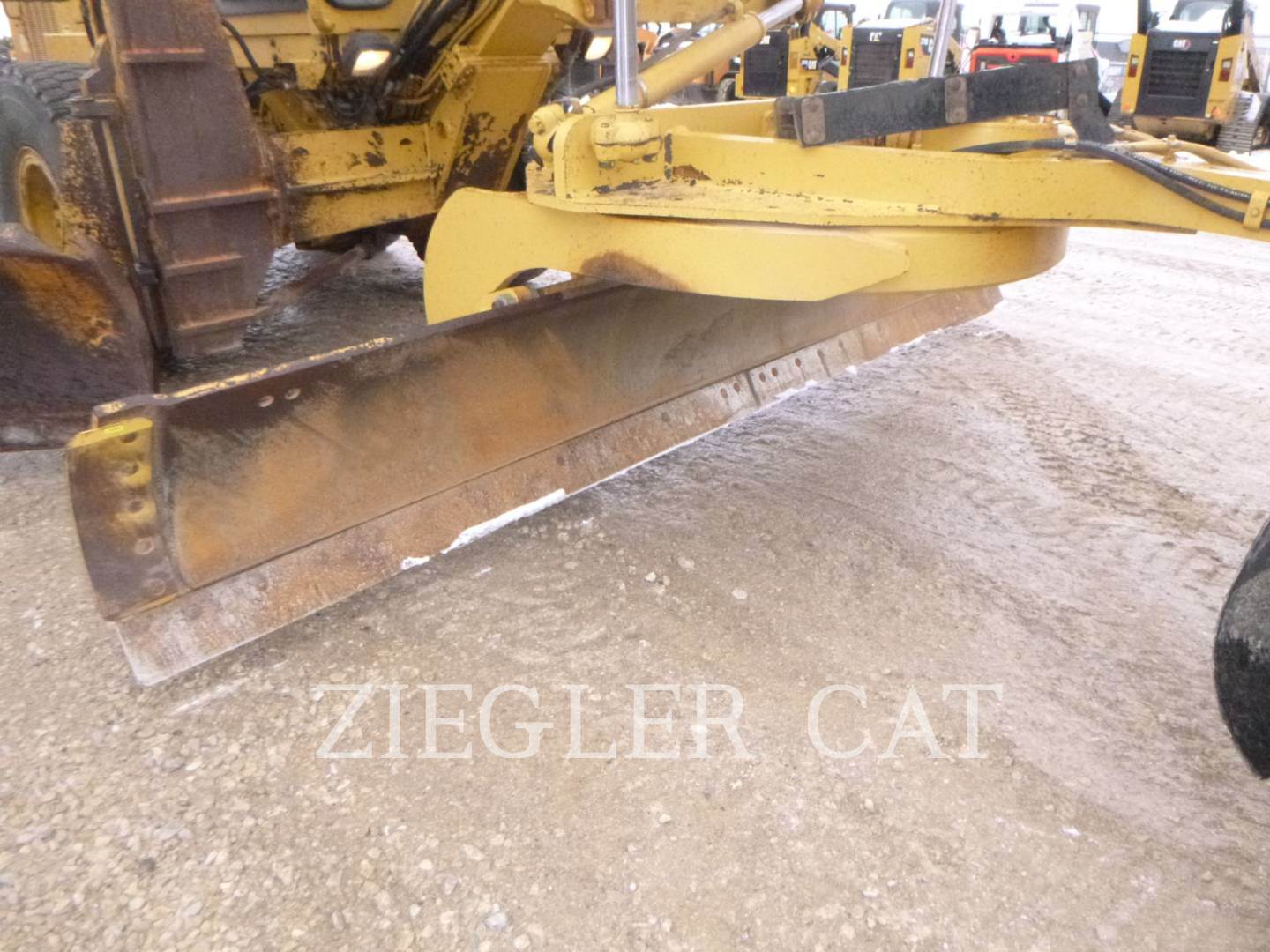

BLADE

Circle A Frame	Good
Circle Frame	Good
Circle Shoes / Inserts	Fair
Cutting Edge	Good
Cylinder Balls / Caps	Fair
Face / Moldboard	Good
Frog / Base Edge	Poor
Moldboard Tip Brackets / Inserts	Poor
Ring Gear	Fair
Saddle	Good
Tip Bracket Pivots / Bearings	Poor

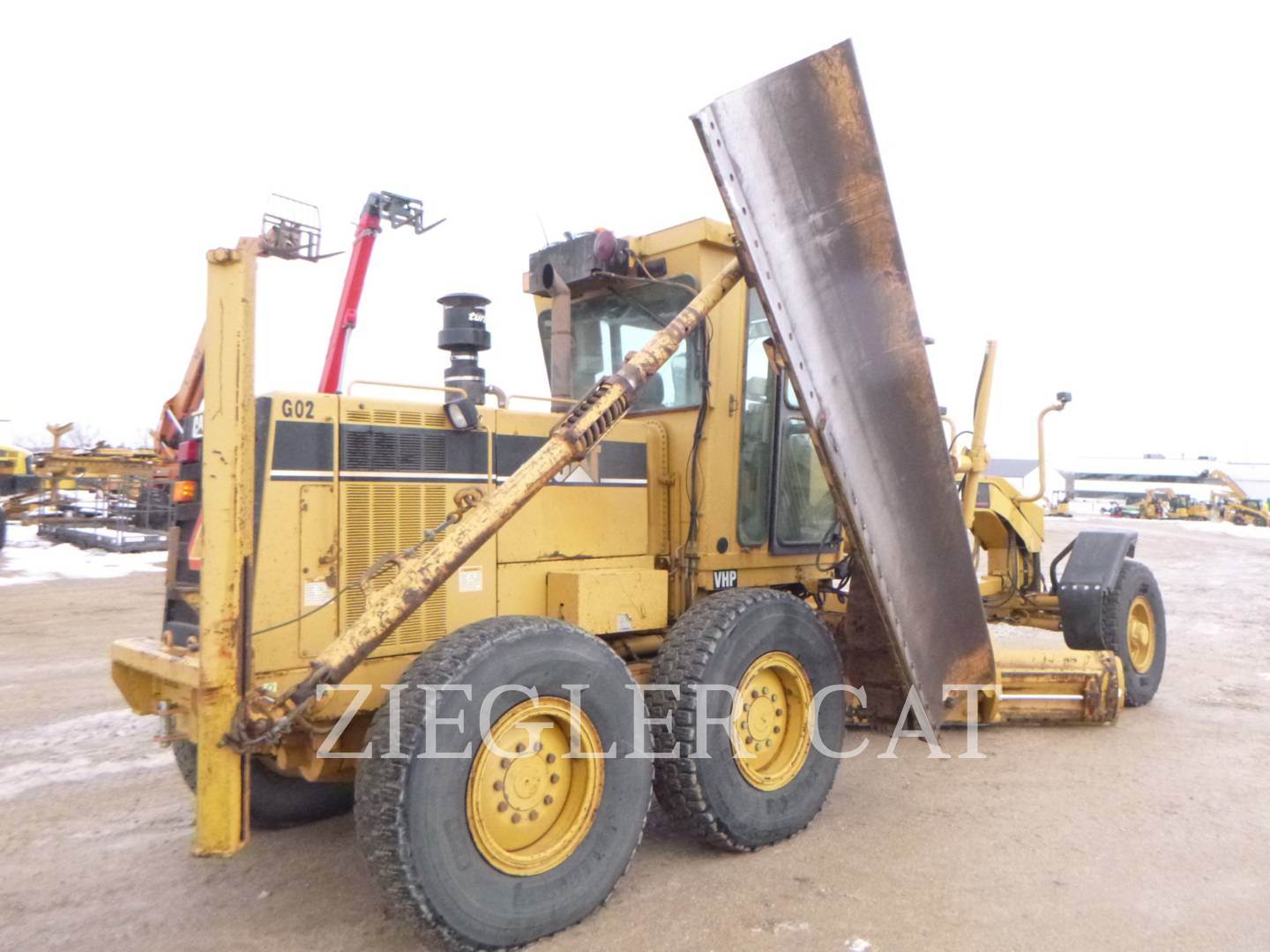

SNOW WING

Snow Wing Model / SN #	12 FOOT CAT HYDRAULIC
Blade / Moldboard	Fair
Cutting Edges	Poor
Cylinder Condition	Poor
Mast / Mounts / Supports	Poor
Operating Condition - SNOW WING	Fair
Rear Post / Mount	Good
Snow Wing Lines / Fittings	Fair

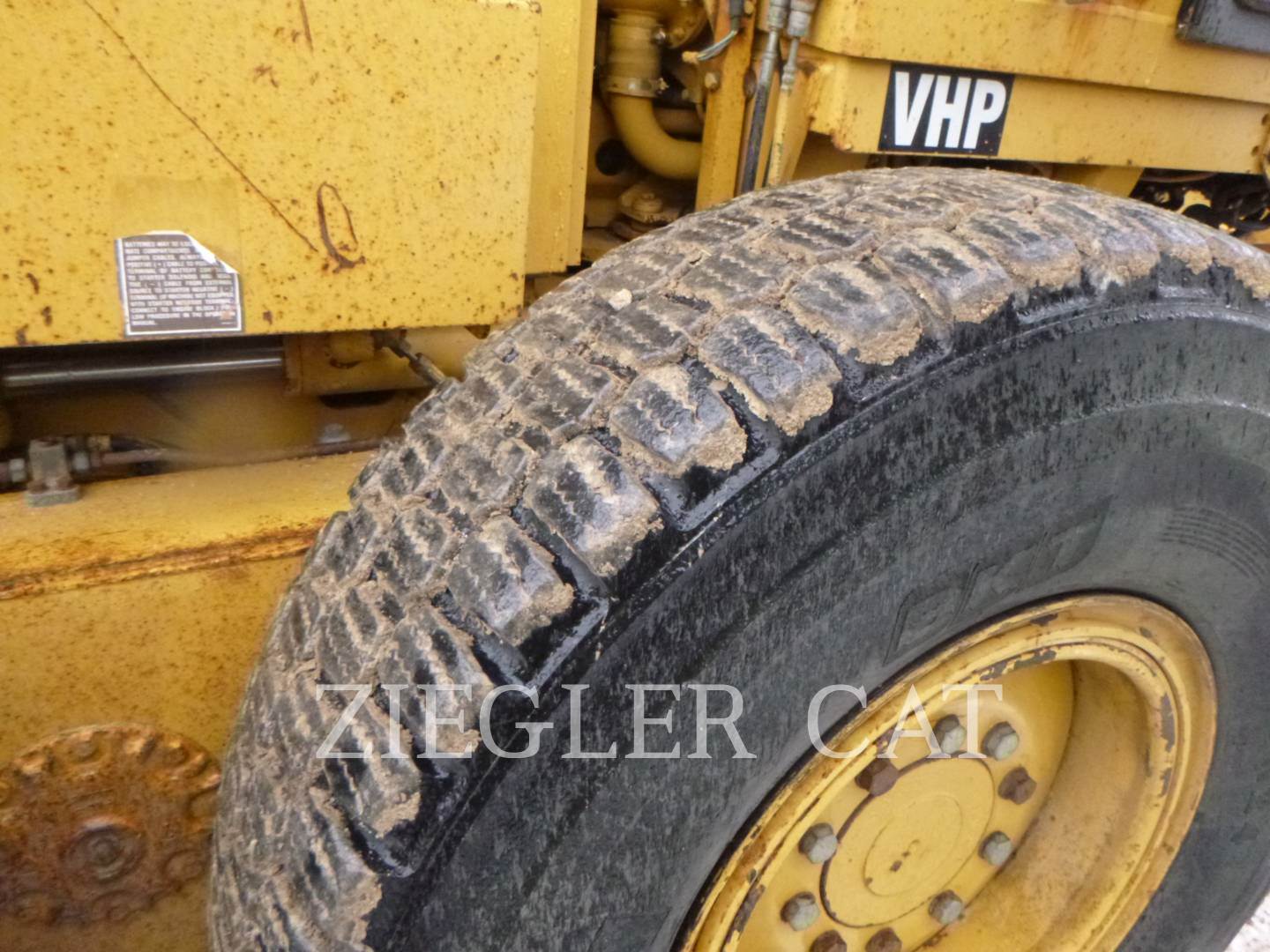

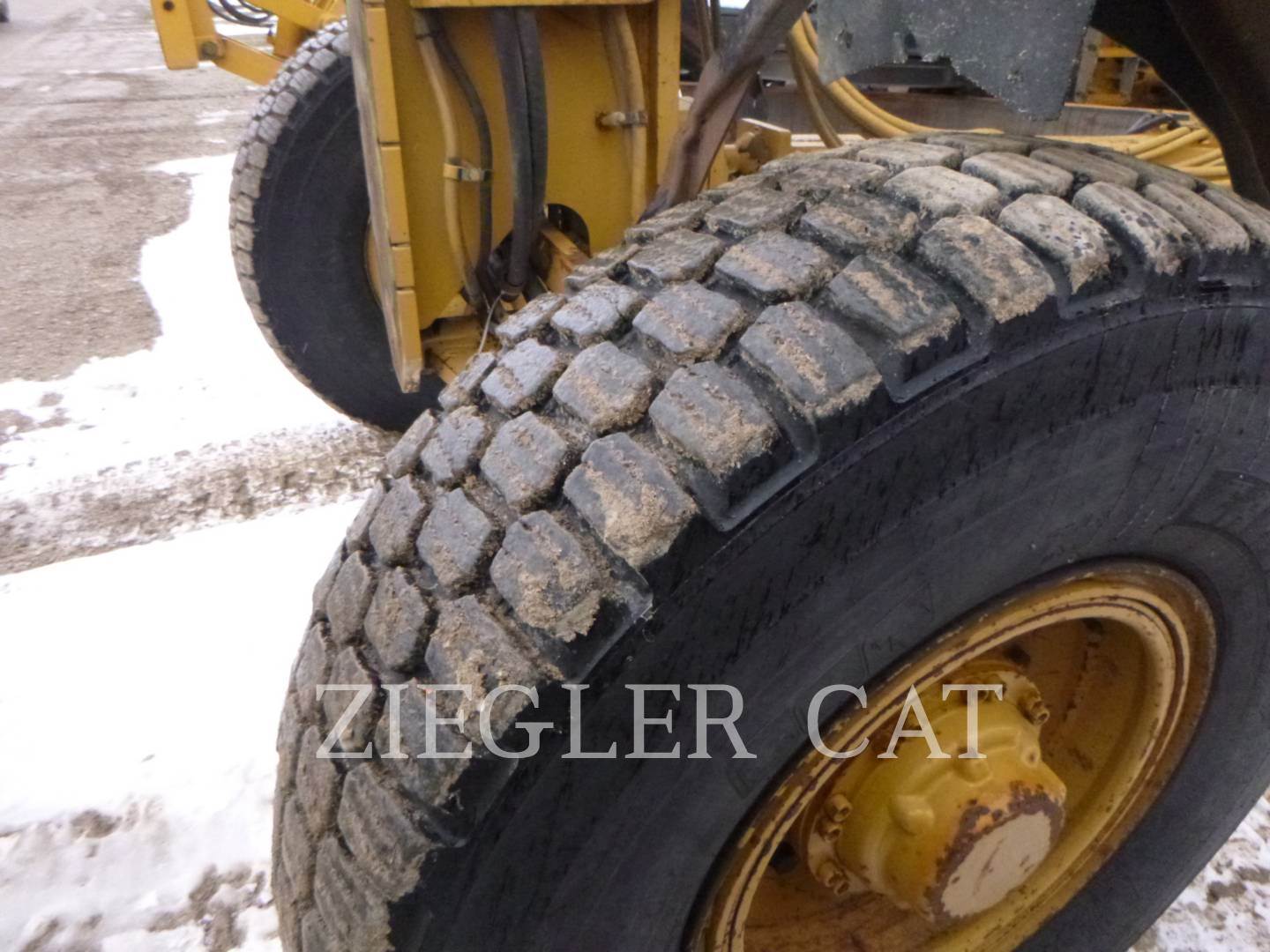

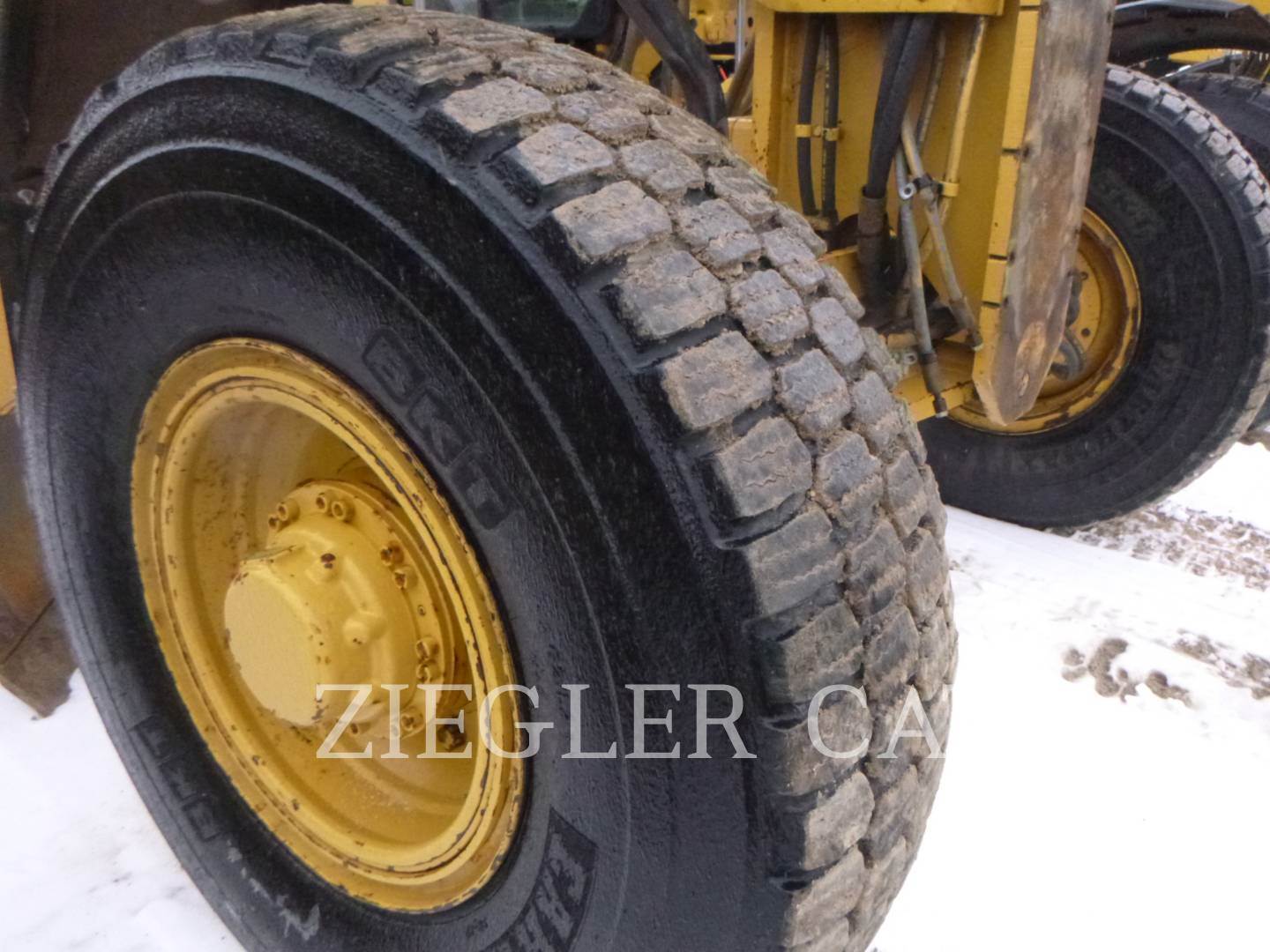

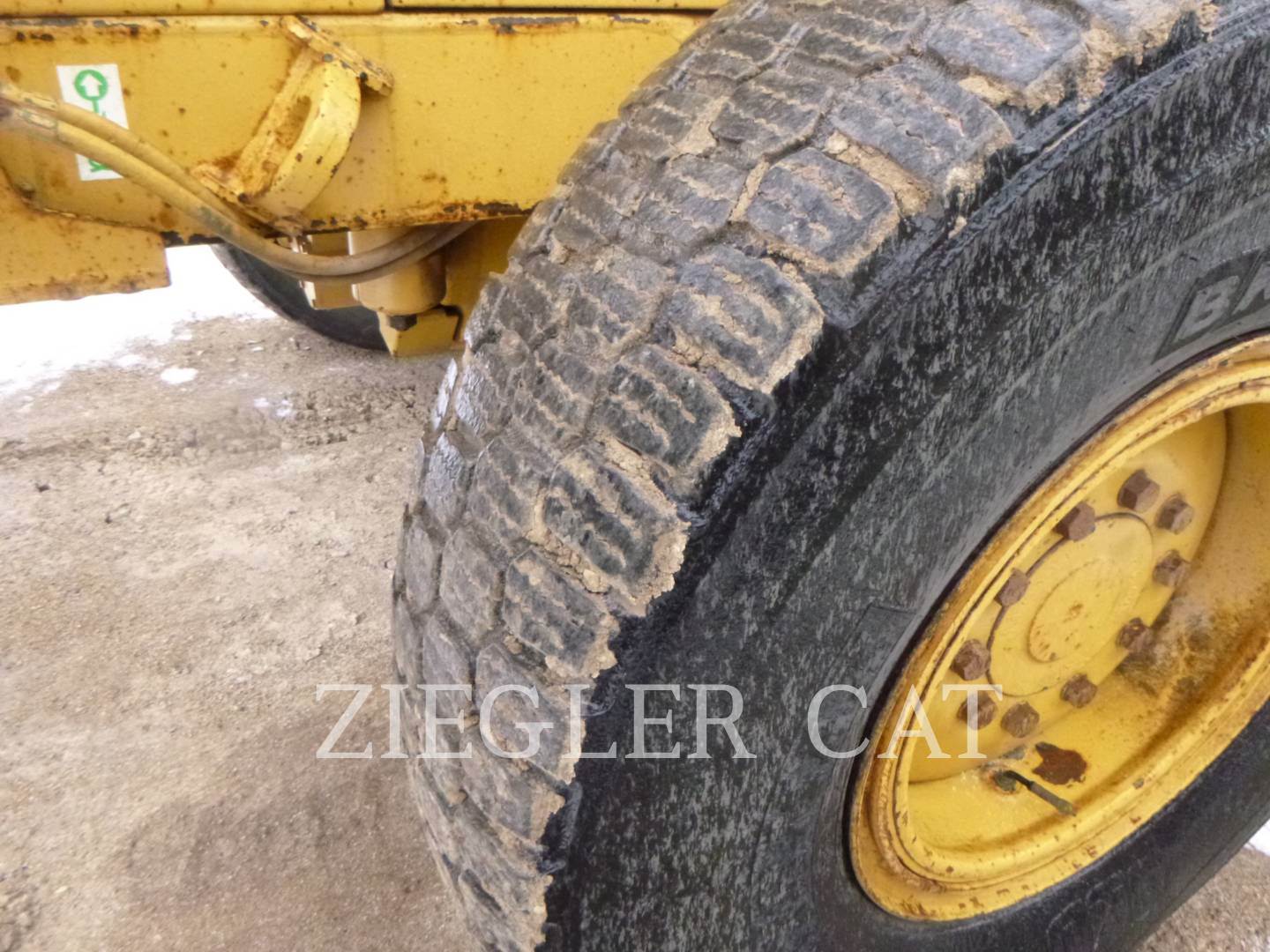

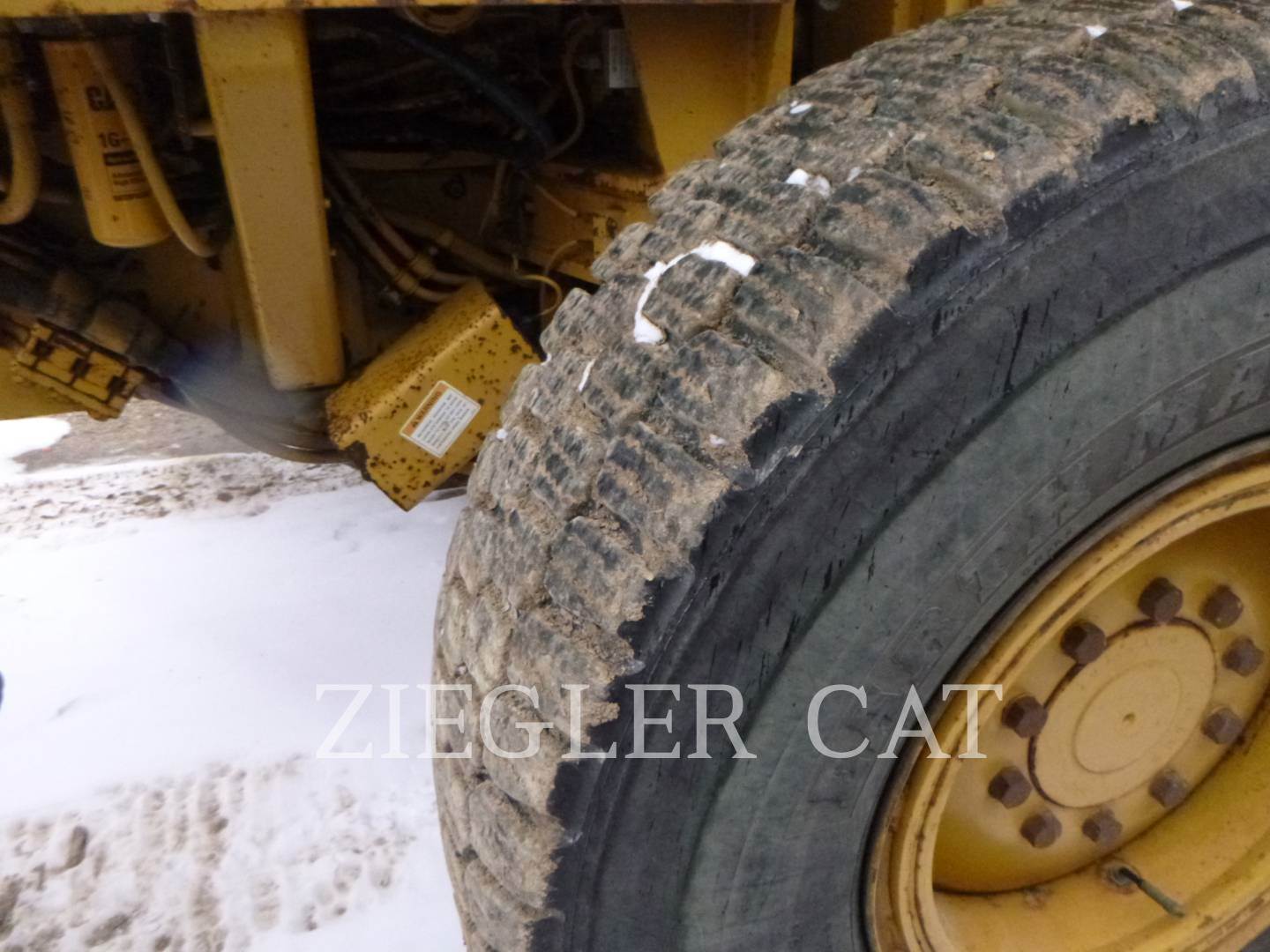

TIRES

Radial	Yes
Tire Size - TIRES	14.00R24
Left Center Tire
Make / Serial Number	BKT EARTHMAX
Life Left	40%
Left Front Tire
Make / Serial Number	BKT EARTHMAX
Life Left	65%
Left Rear Tire
Make / Serial Number	BKT EARTHMAX
Life Left	30%
Right Center Tire
Make / Serial Number	BKT EARTHMAX
Life Left	40%
Right Front Tire
Make / Serial Number	BKT EARTHMAX
Life Left	50%
Right Rear Tire
Make / Serial Number	BKT EARTHMAX
Life Left	25%

COMMENTS, MISC. REPAIRS, GENERAL REMARKS

comment 1	THE MACHINE IS CURRENTLY OPERATING WITH A SMOOTH ENGINE THAT RETURNED A NORMAL RECENT SAMPLE.
comment 2	LEVEL 4PM WAS COMPLETED 9-24 AT 11017 HOURS AND A LEVEL 2PM WAS PERFORMED AT 11642 HOURS

1998 Caterpillar 163H Motor Grader

Product Specifications

Product Description

$54,000 USD

Located in Shakopee, MN, US
