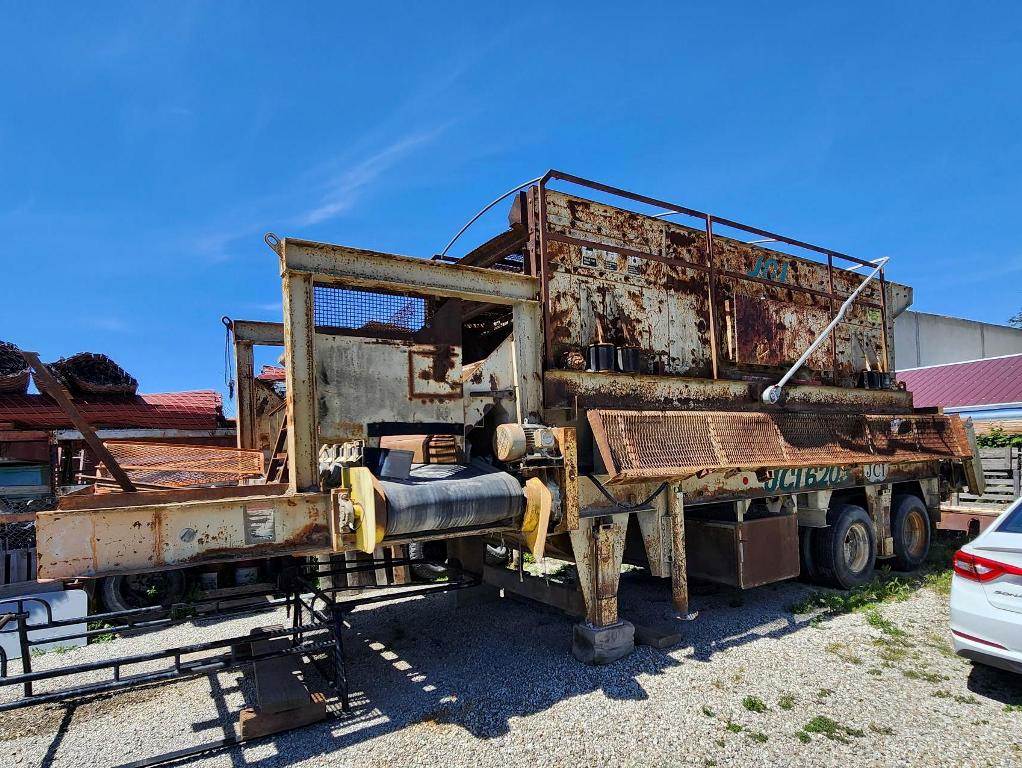

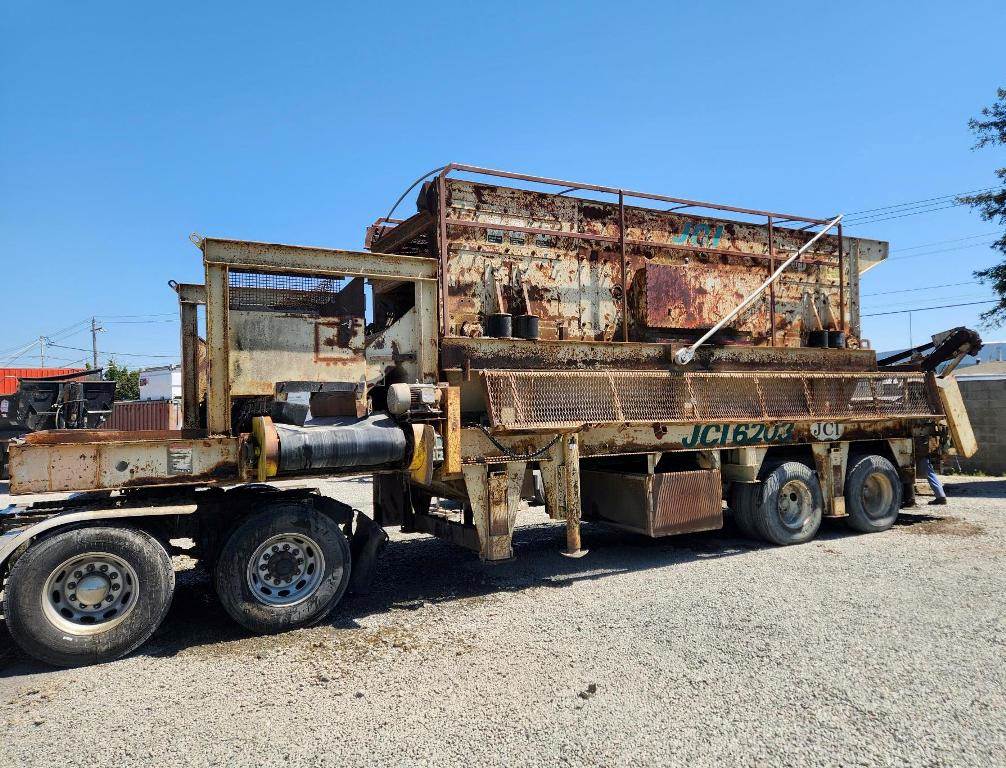

1999 JCI 6’ wide x 20’ long, 3 Deck Horizontal Portable Screening Plant

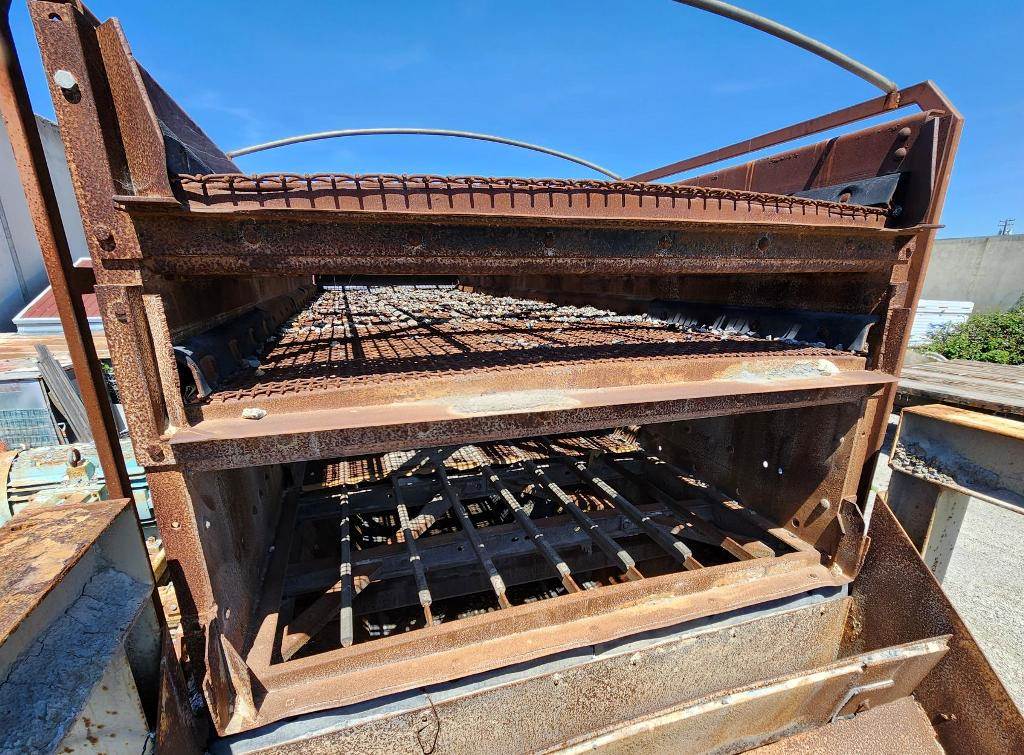

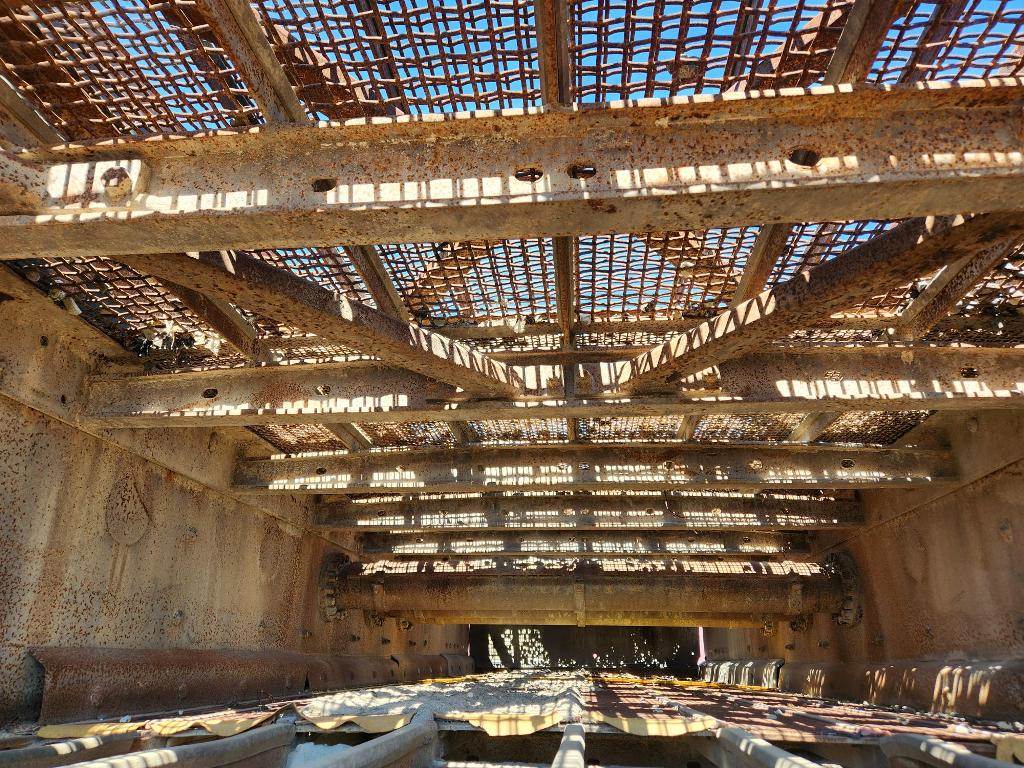

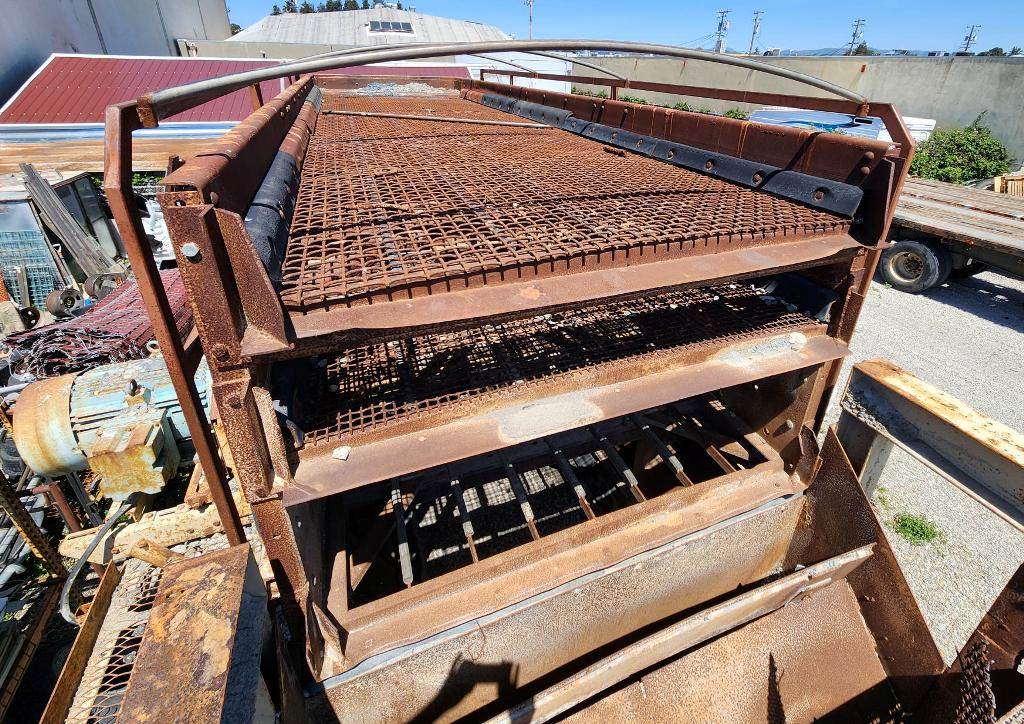

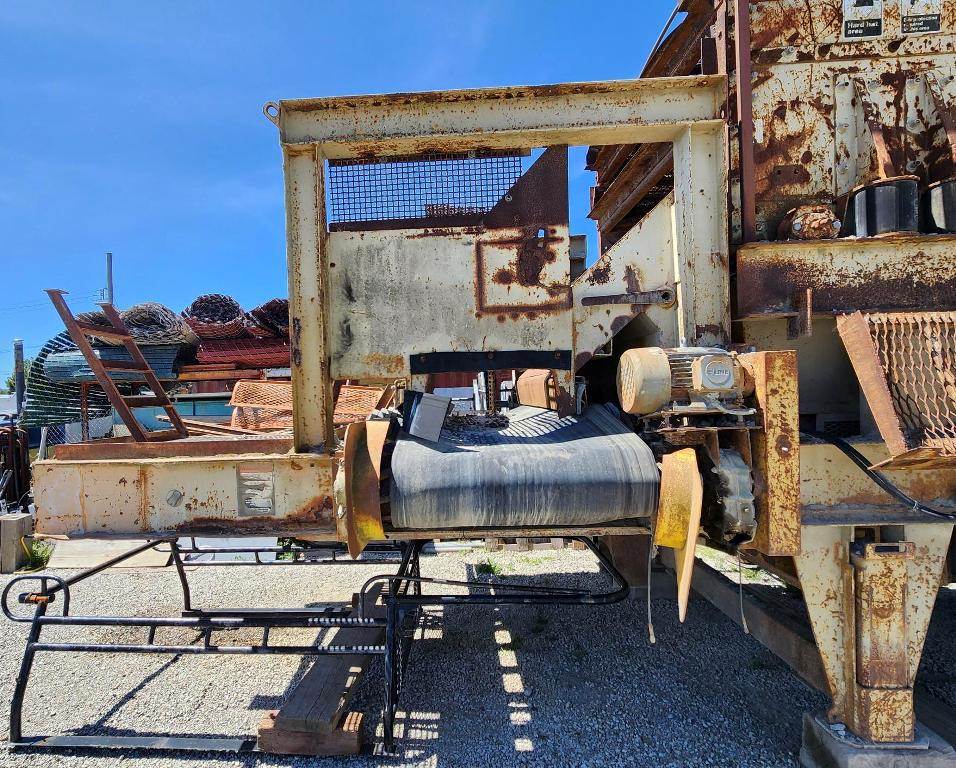

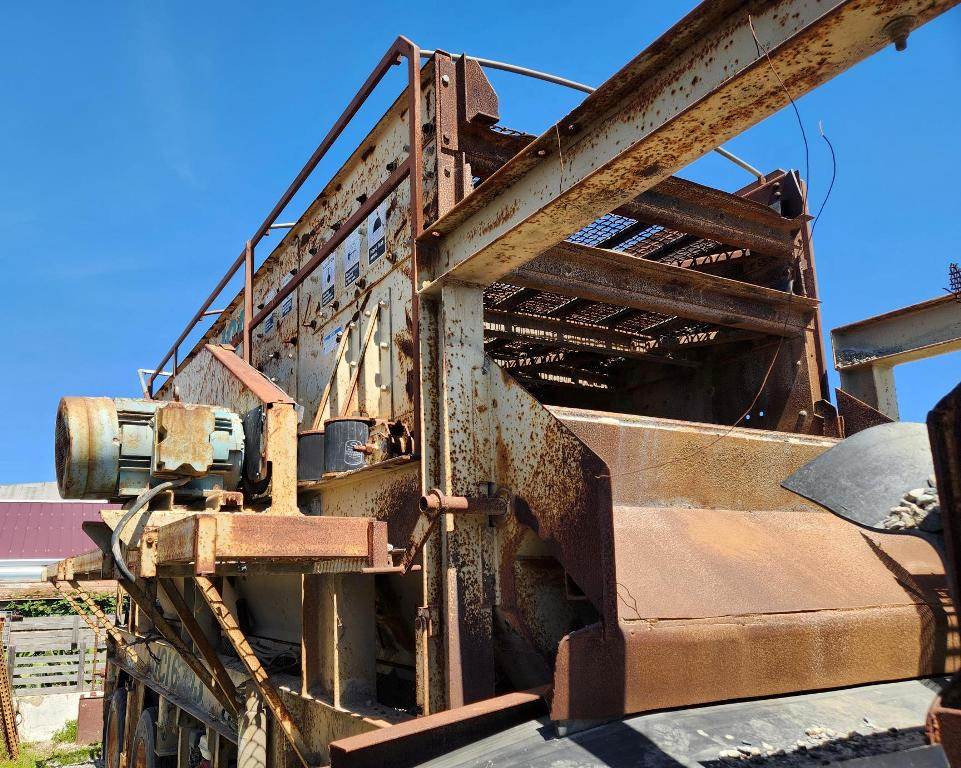

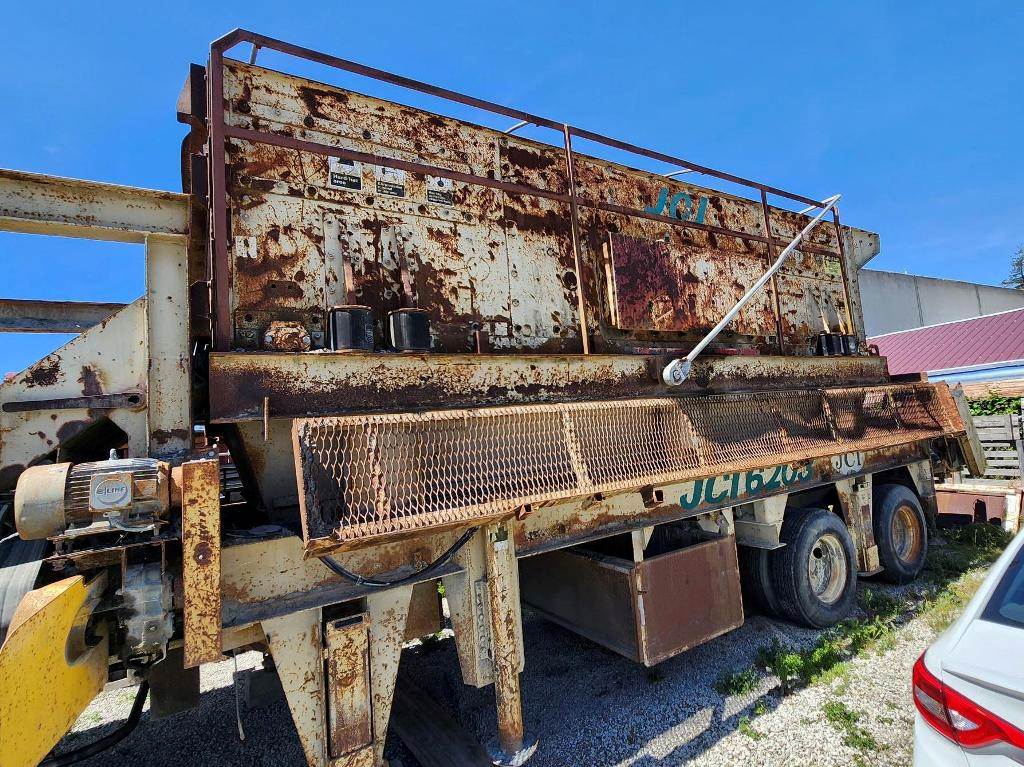

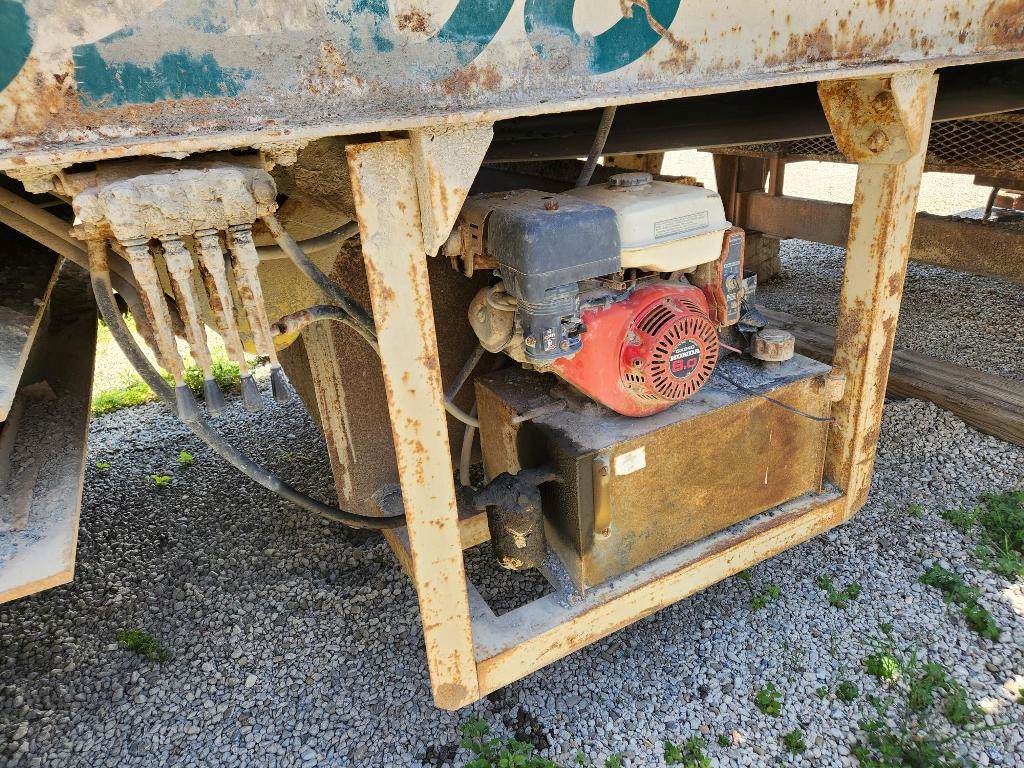

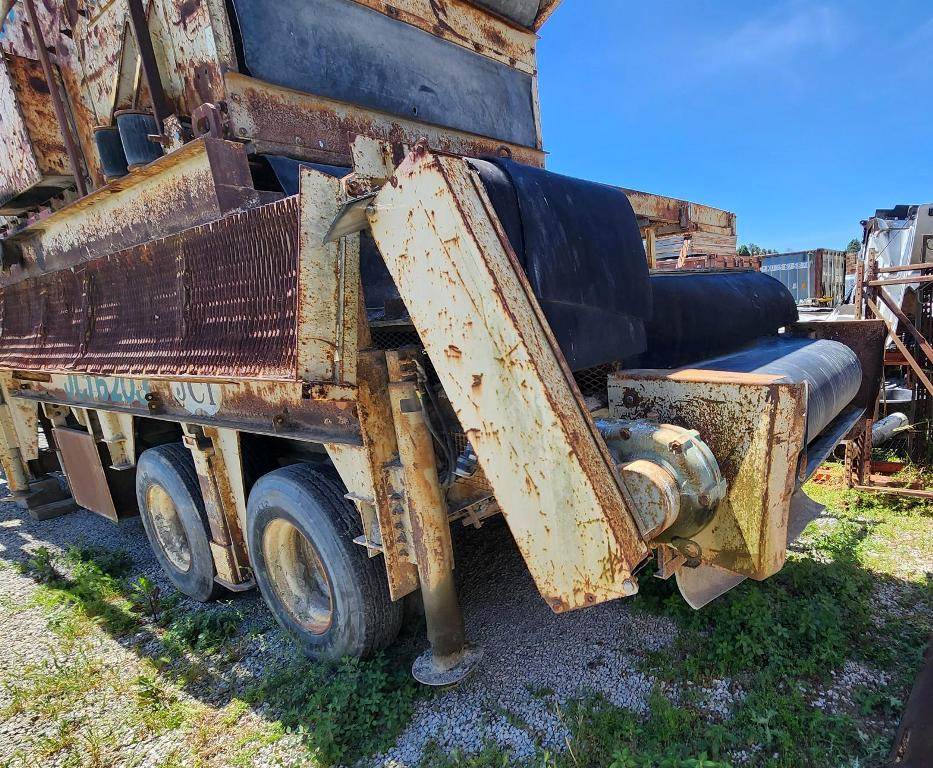

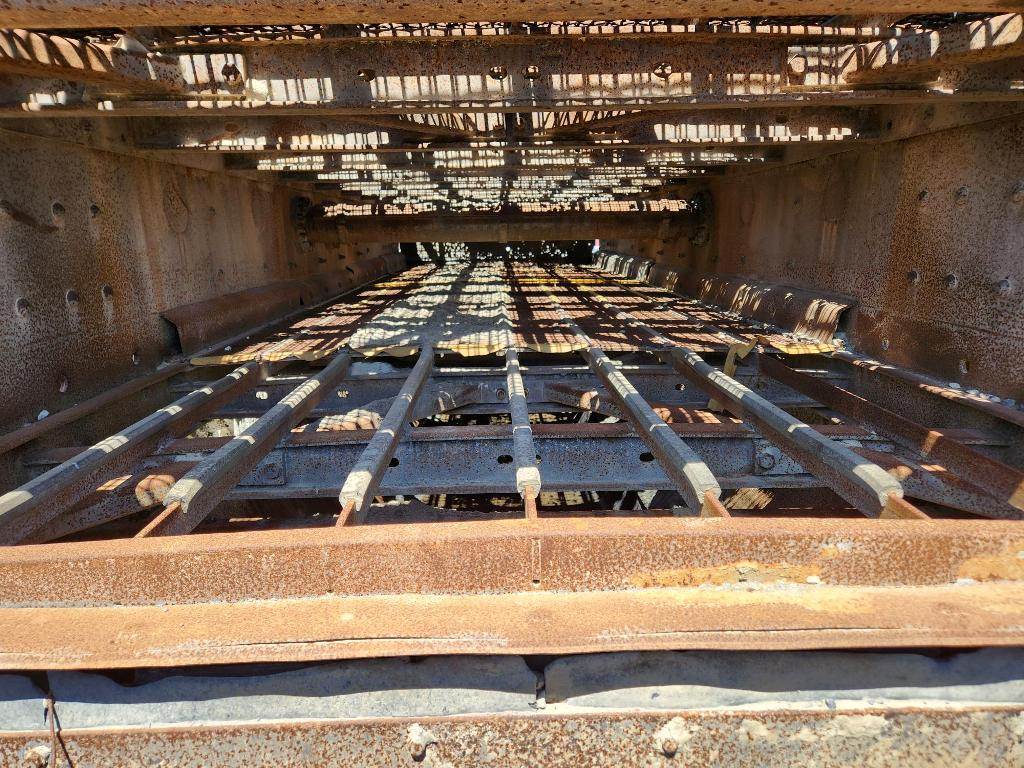

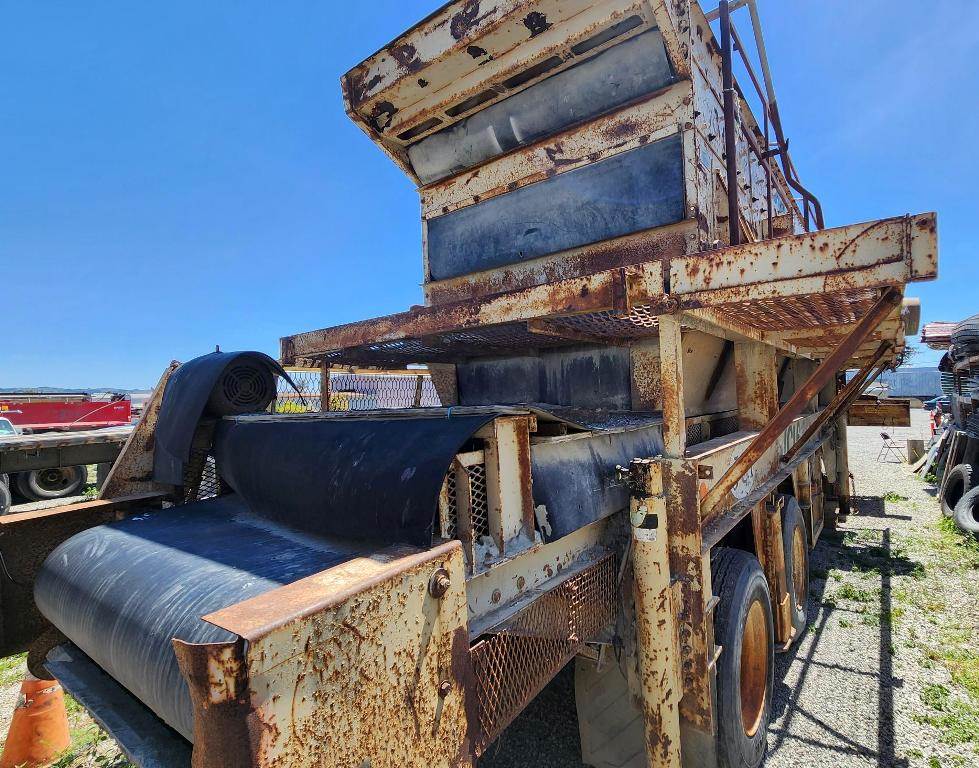

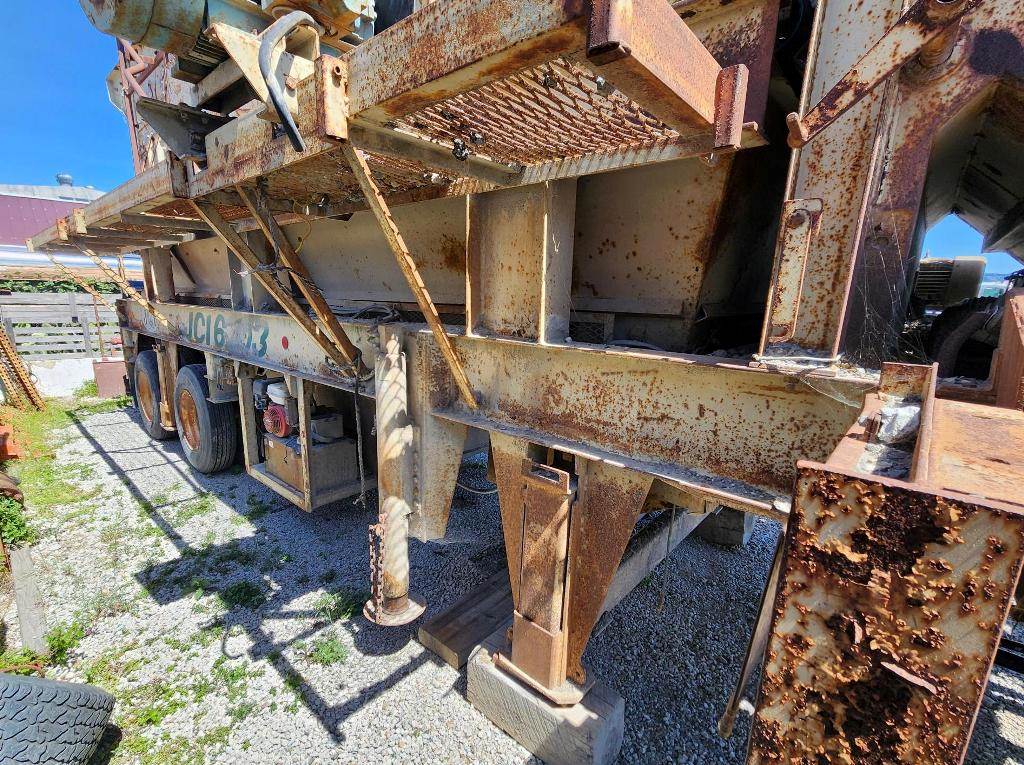

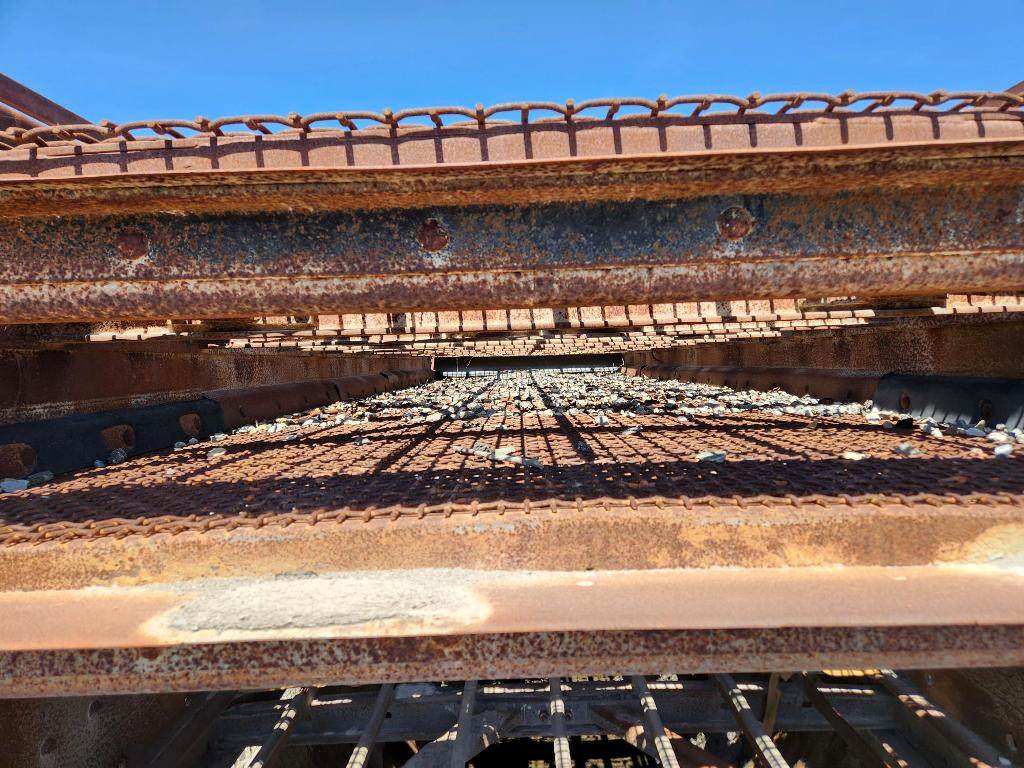

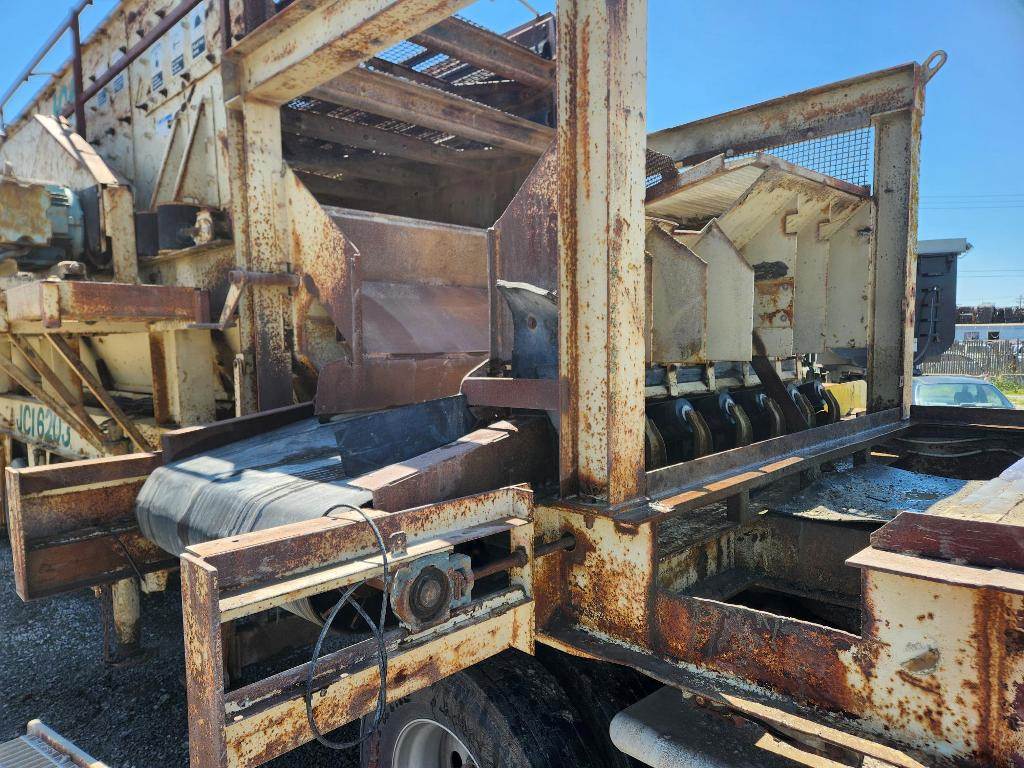

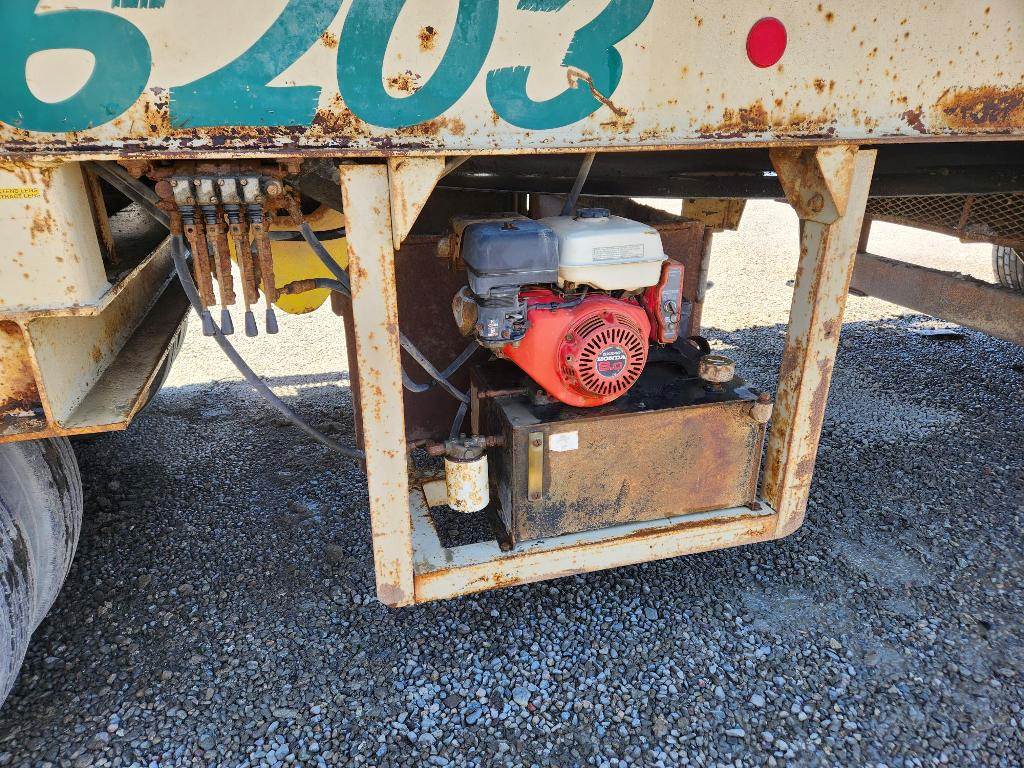

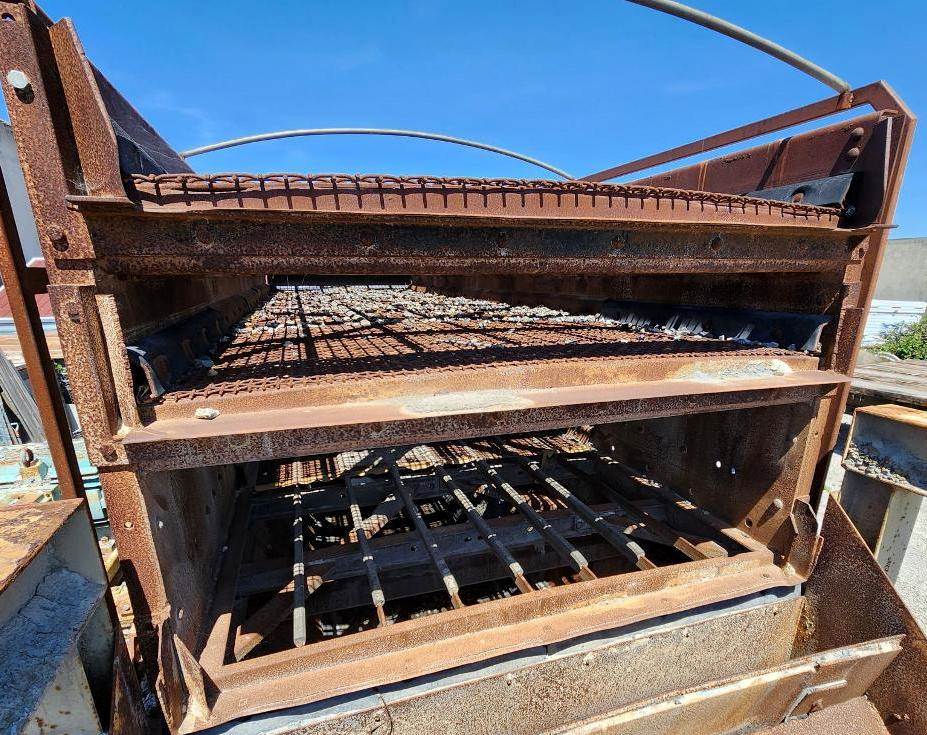

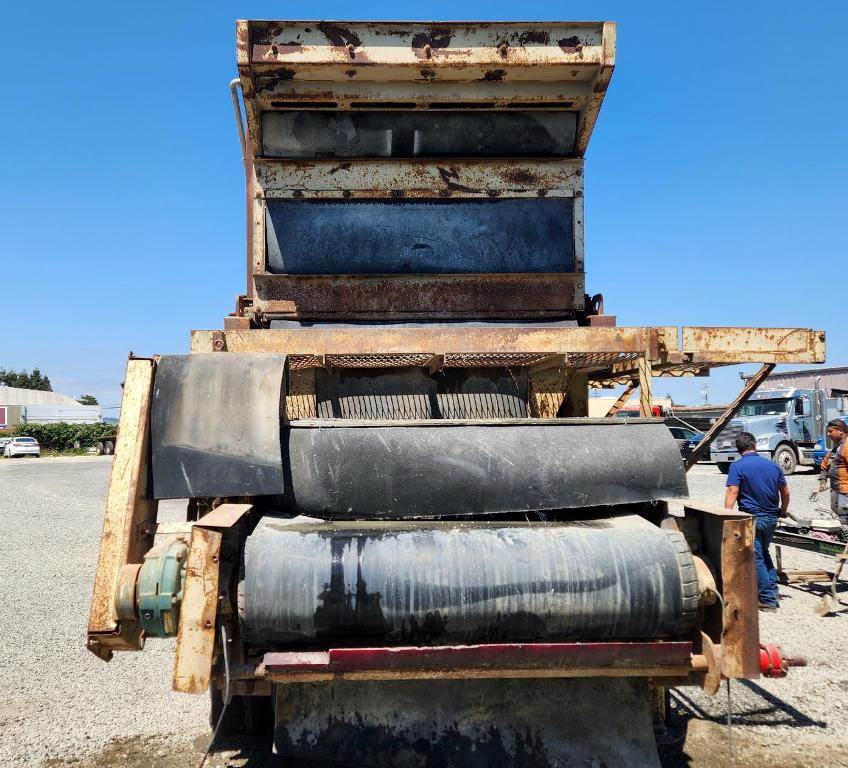

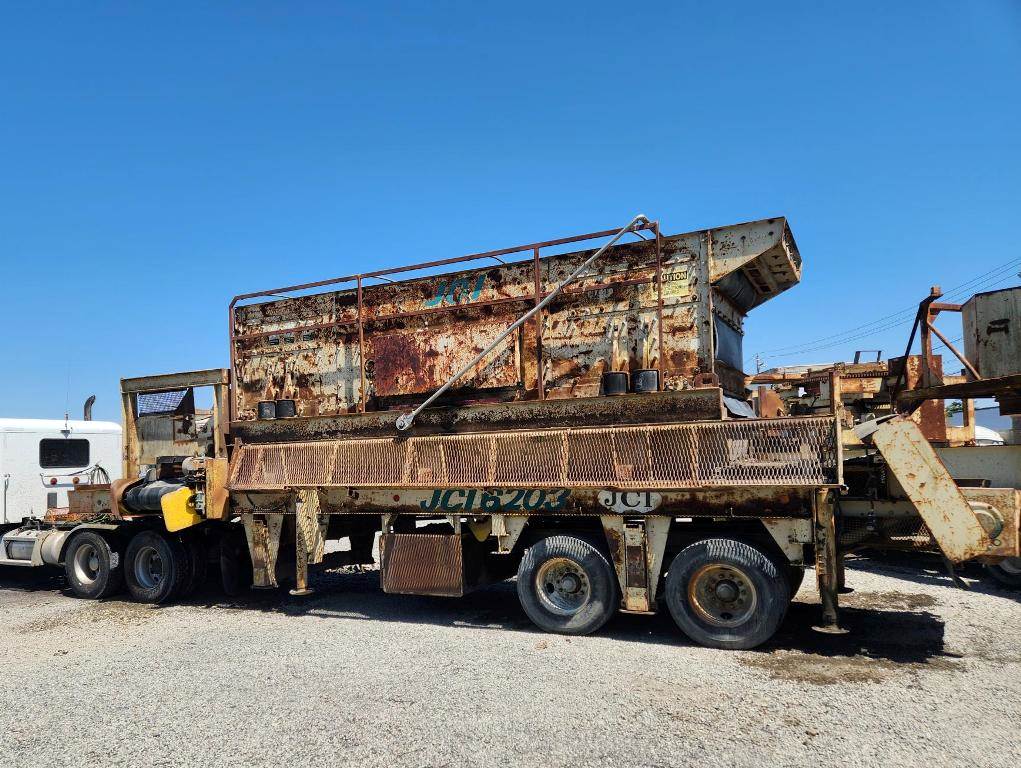

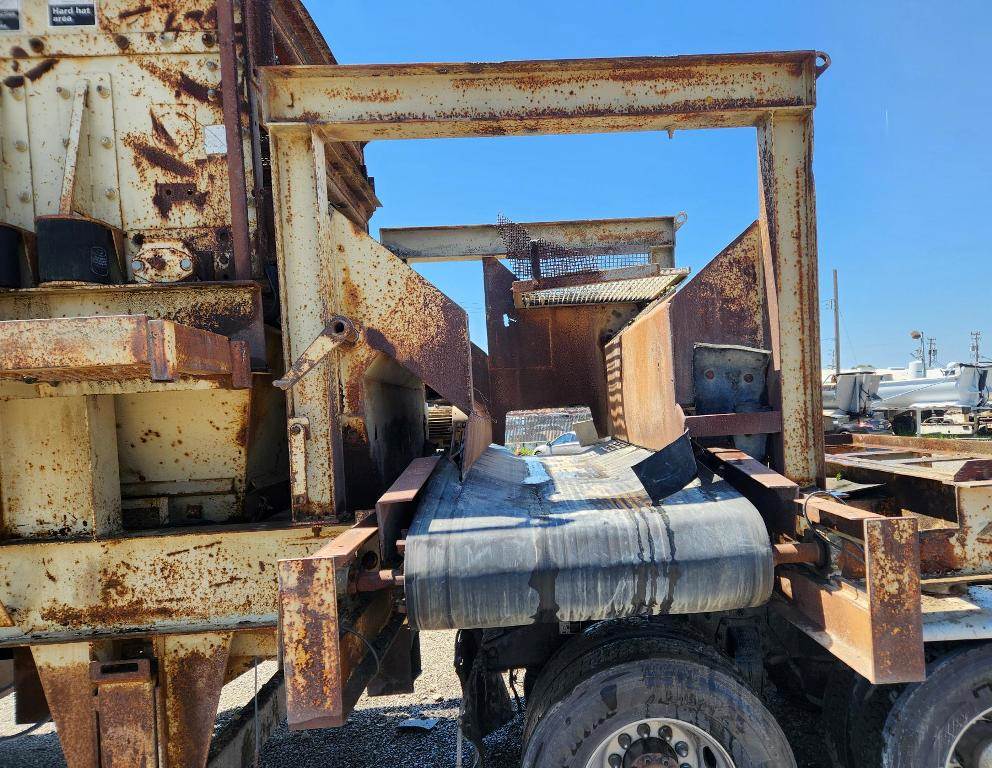

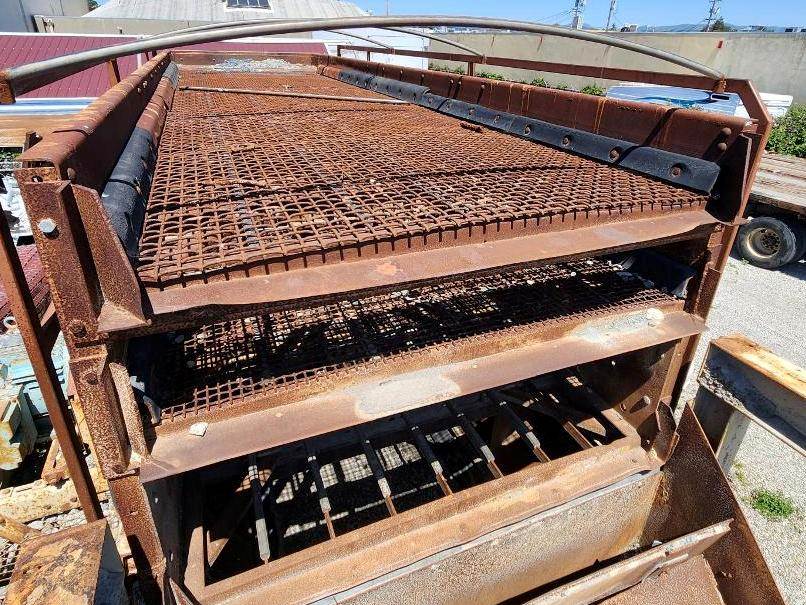

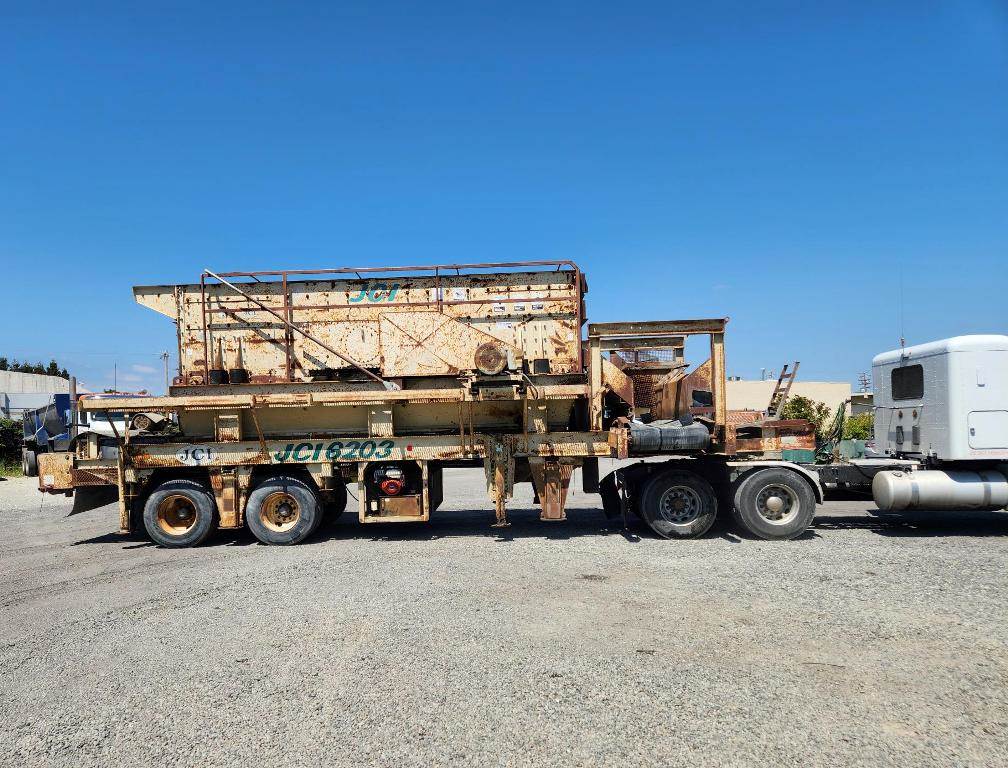

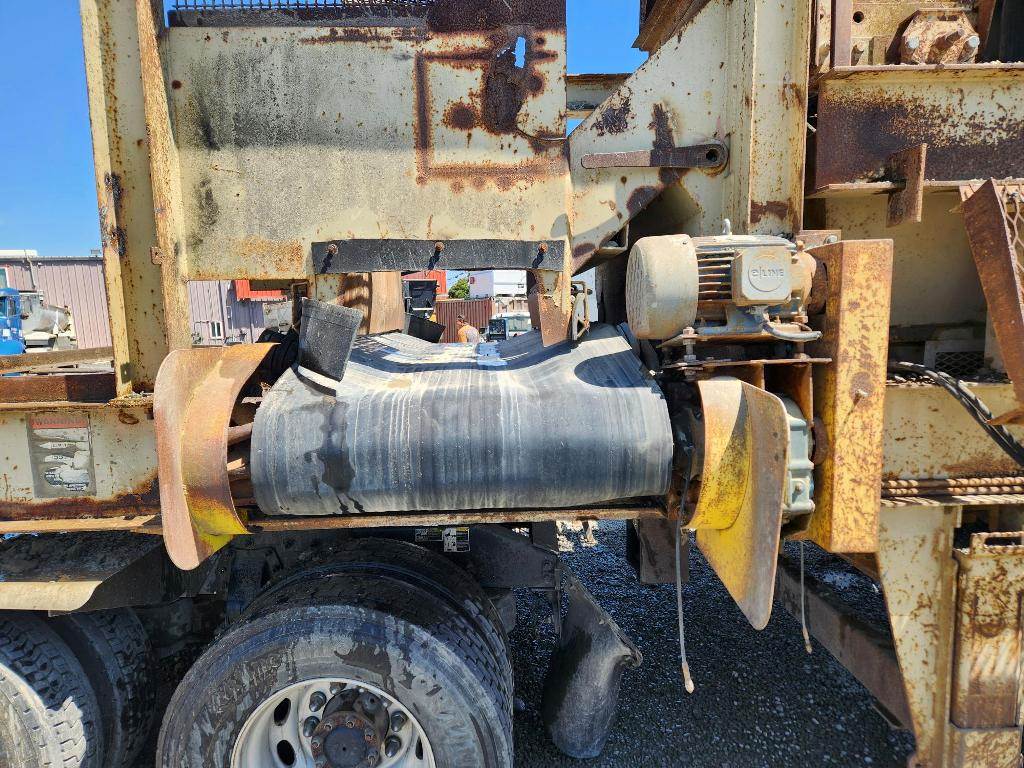

JCI 6’ wide x 20’ long Three Deck Portable Horizontal Vibrating Screen; 40 h.p. electric motor, V-Belt drive with guard, motor base; spray bar knockouts, Huck-Bolt construction; three shaft-six roller bearing vibrator assembly with flow through oil bath lubrication; rubber marshmallow isolation springs with friction check assemblies (4) at each lower corner; conventional single crown screen support decks with side tension clamp rails; one 42” wide cross conveyor at discharge end with rubber impact trough idlers and electric motor drive; under screen hopper with 60” wide rear discharge conveyor, electric motor drive, urethane belt wiper at head pully; all mounted on a I-Beam tandem axle trailer with walkways on three sides, four electric / hydraulic plant leveling cylinders, Trailer Model JCI 6203-LPPM; S/N 99 P01EJCPM; Screen Model JCI 6203-32; S/N 99 LP05C 32, Date of Mfr. 1999.

Used equipment........Selling Price $58,000.00

Condition: Generally good. Reported as running when taken out of service in 2004.

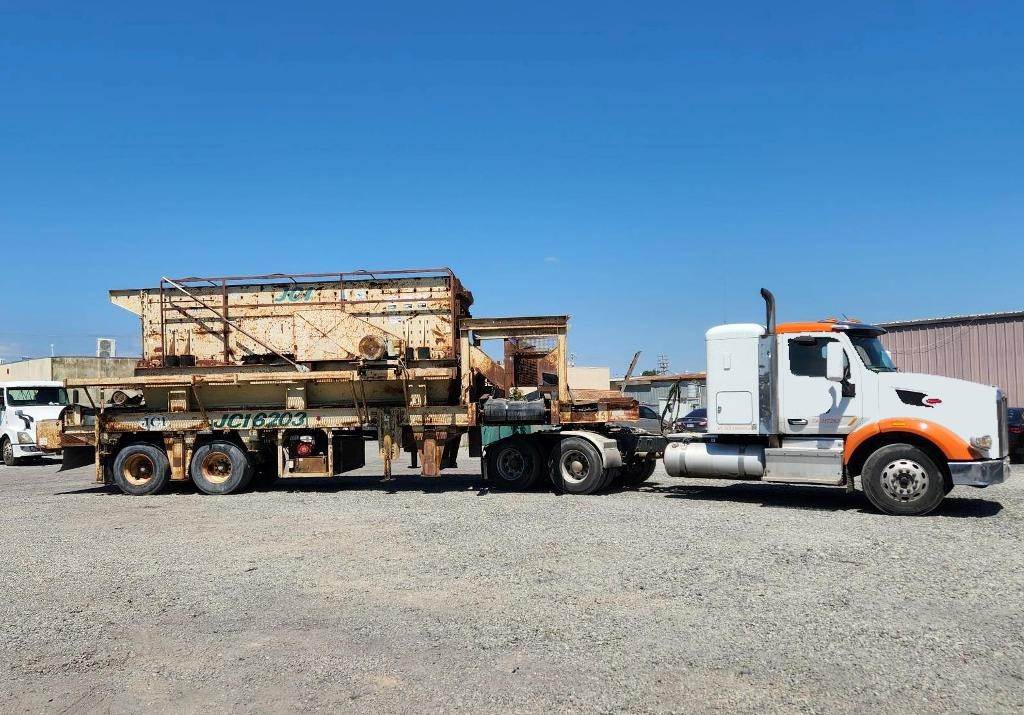

Shipping: Portable chassis 12’ 6” wide (As is); 13’ 6” tall; 39’ overall length; Weight: +/- 44,000 lbs.
