2000 Terex Crane Truck

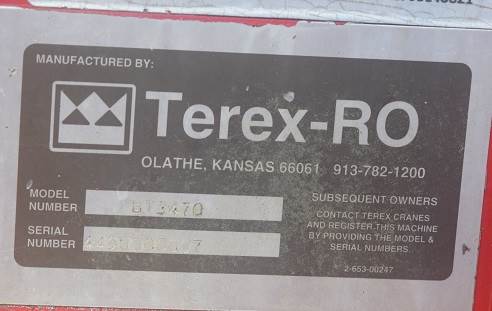

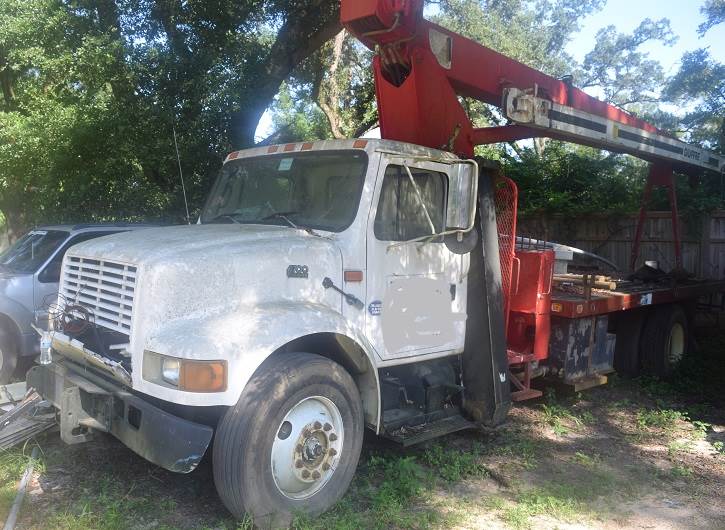

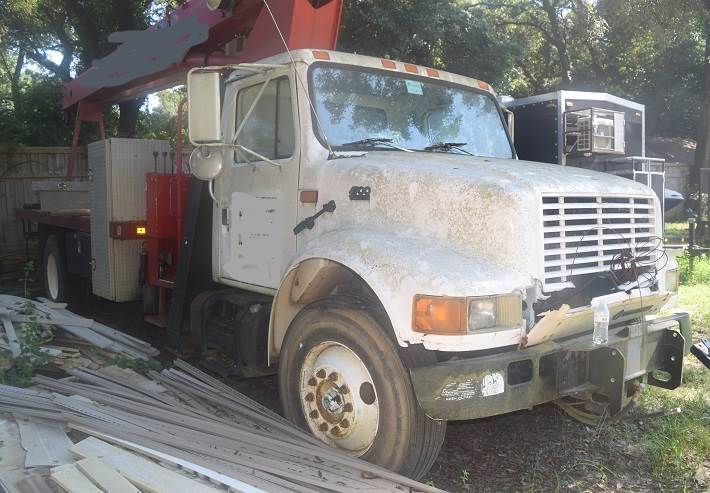

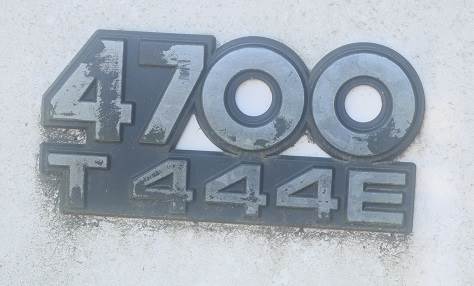

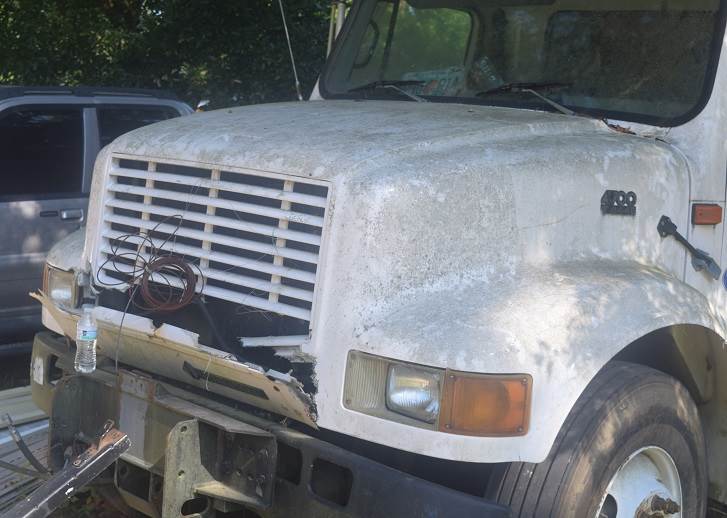

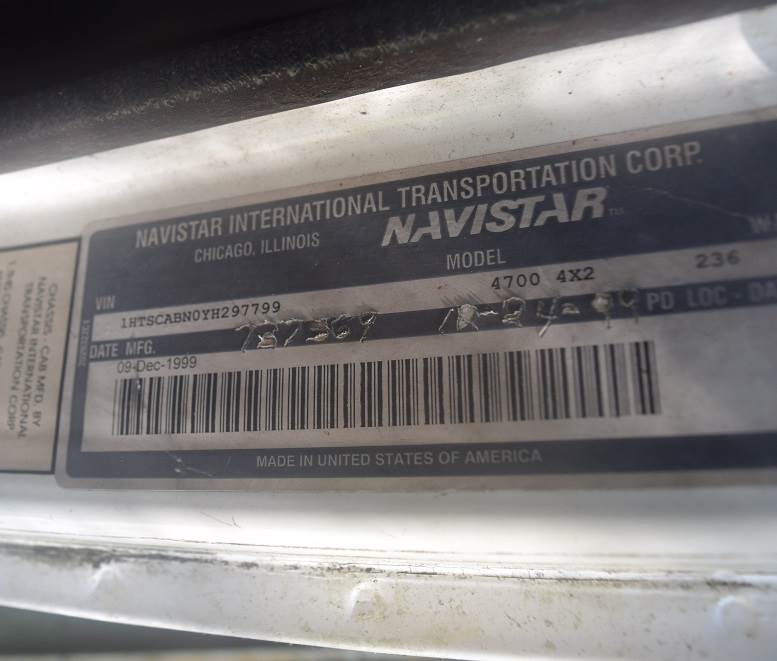

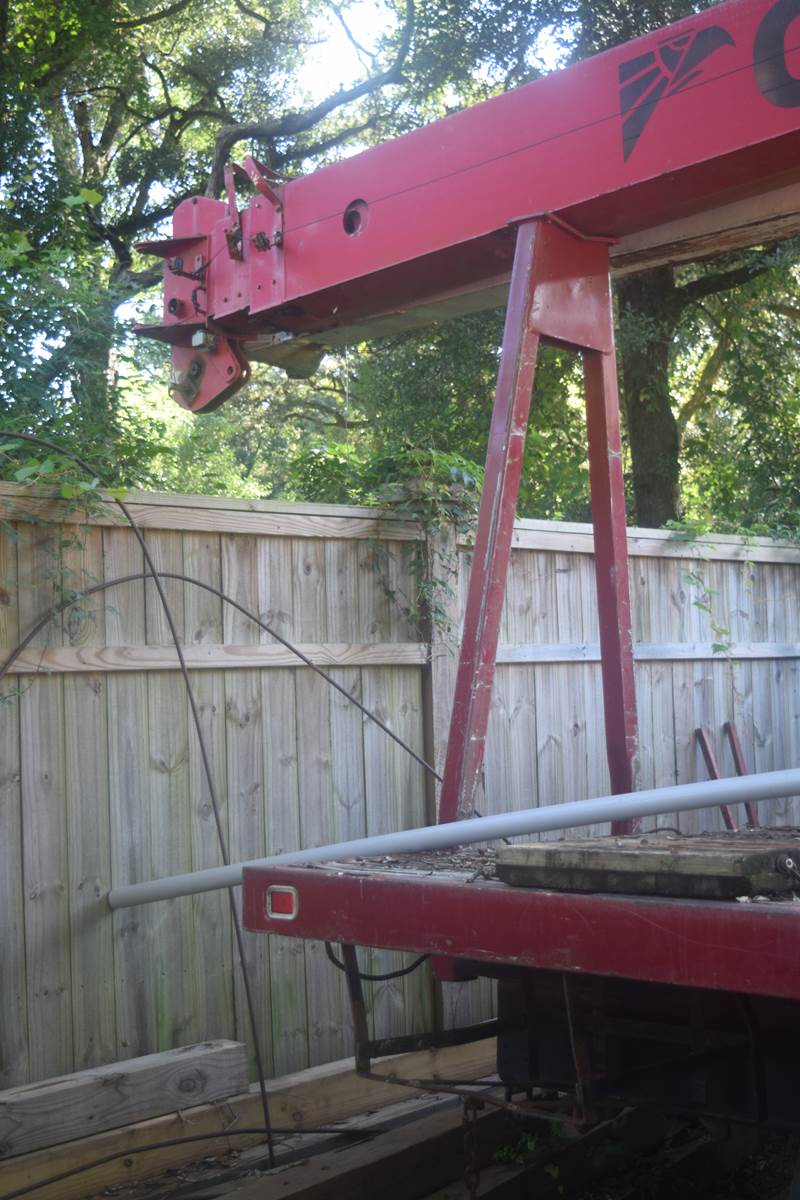

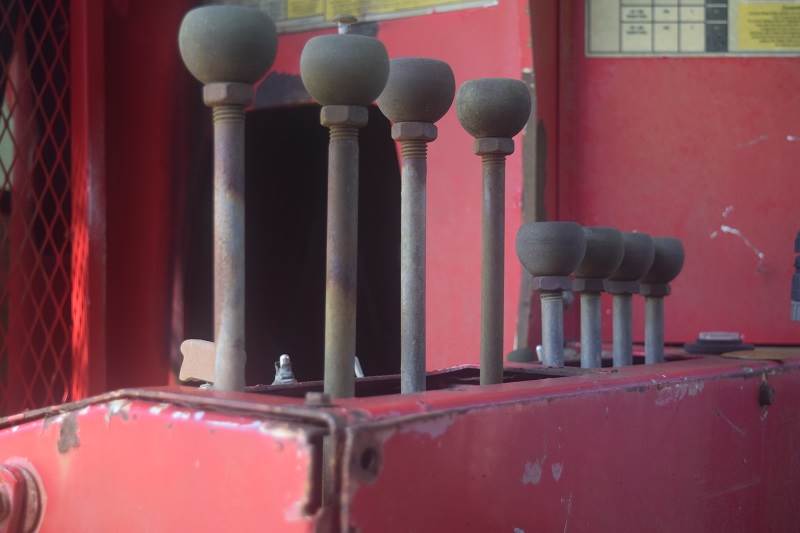

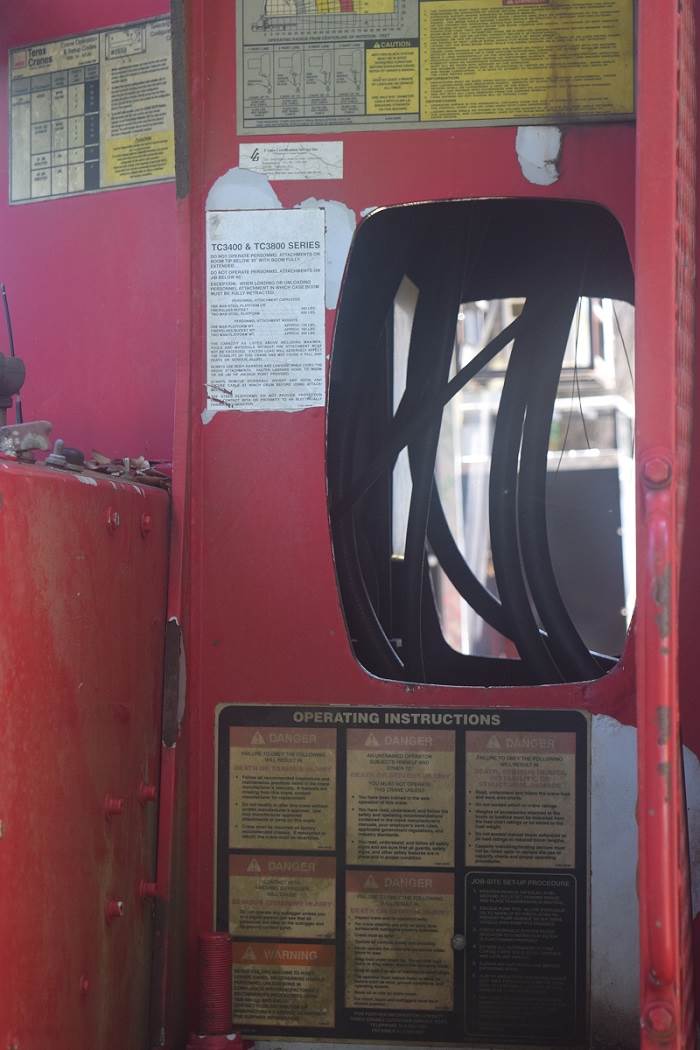

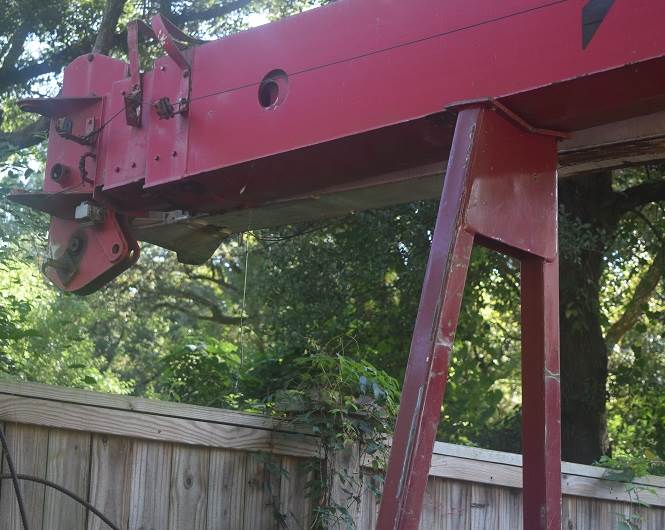

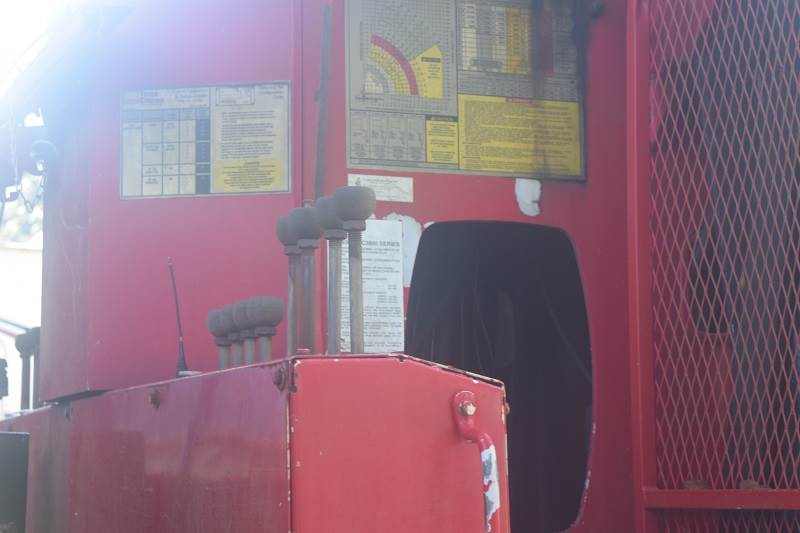

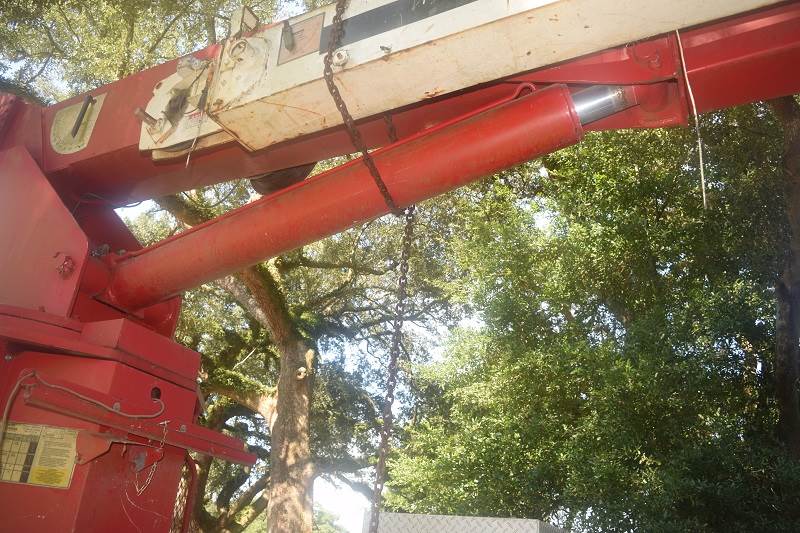

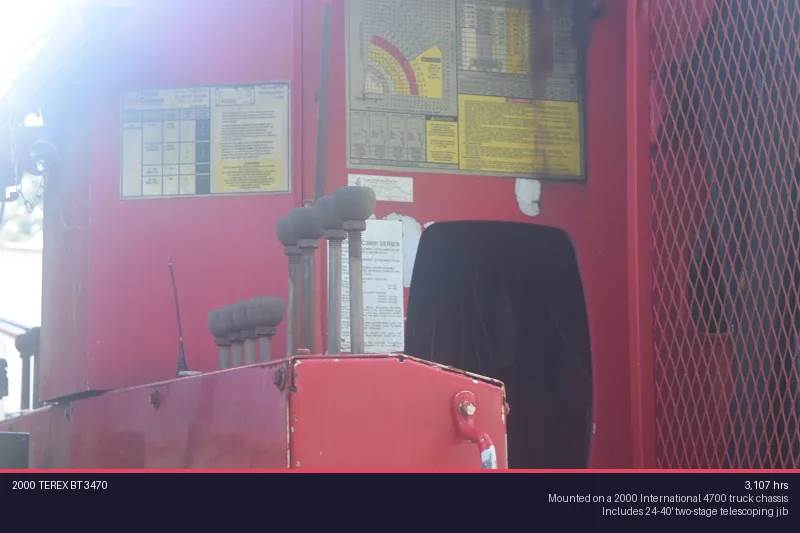

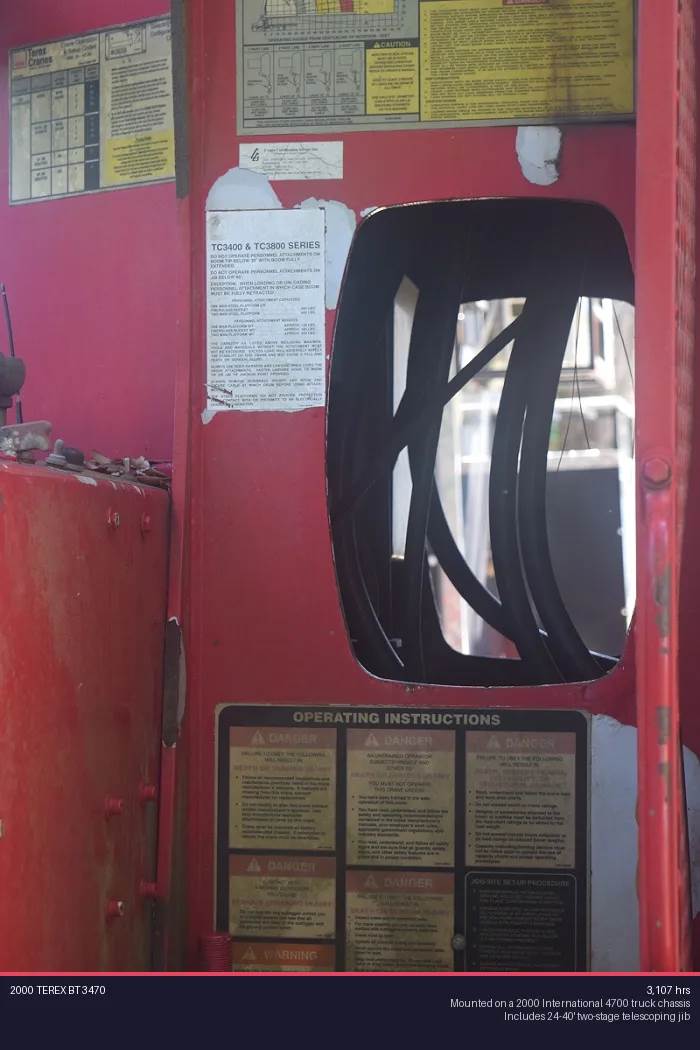

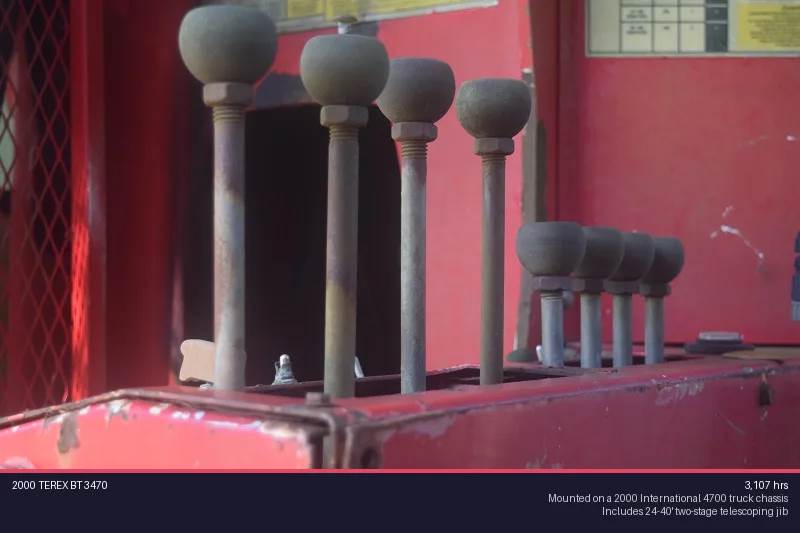

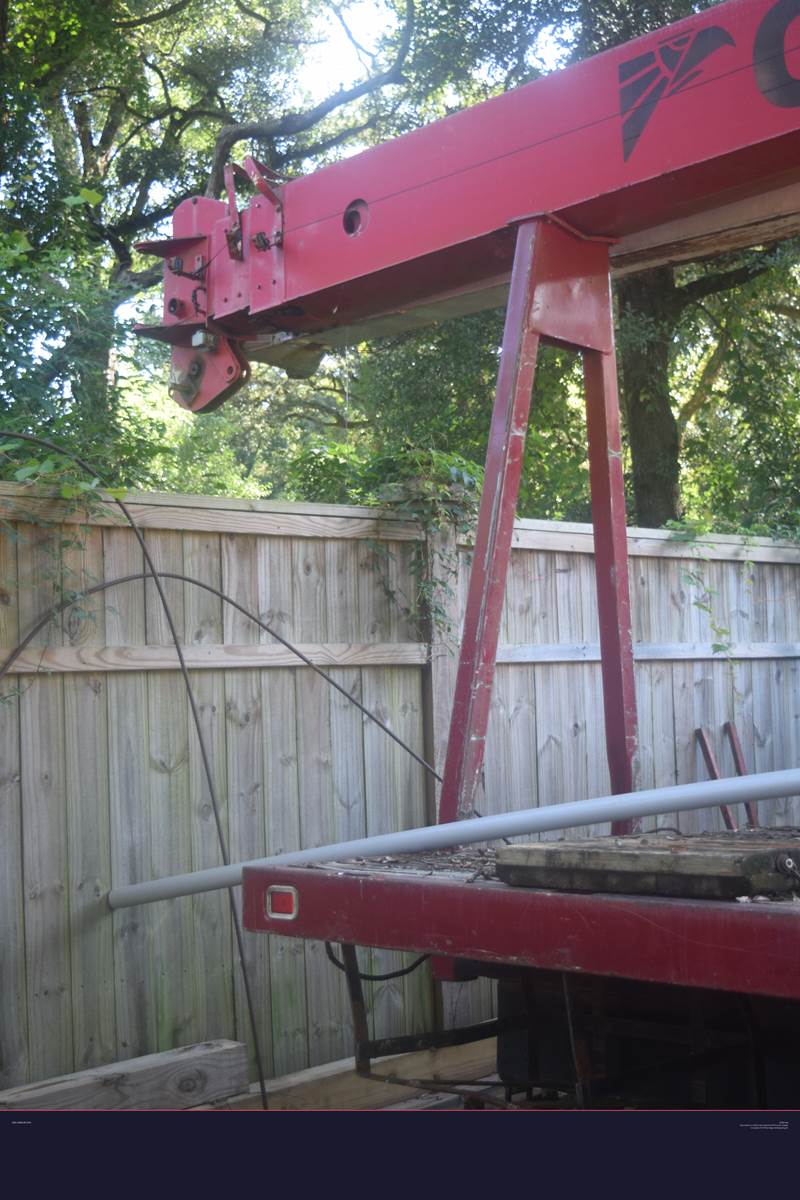

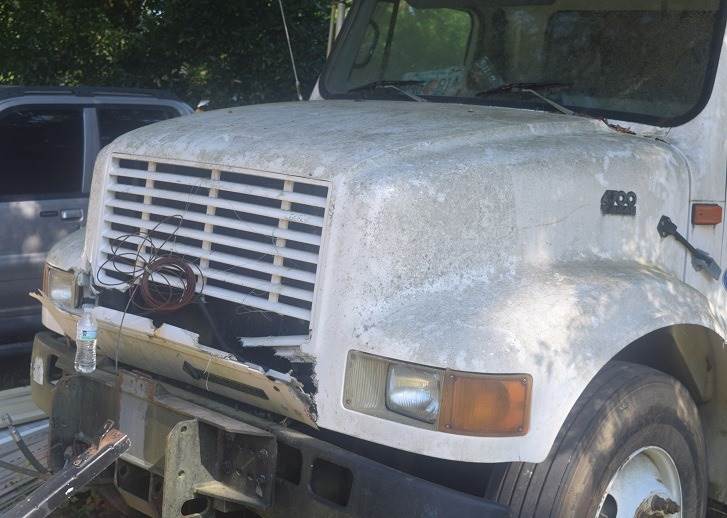

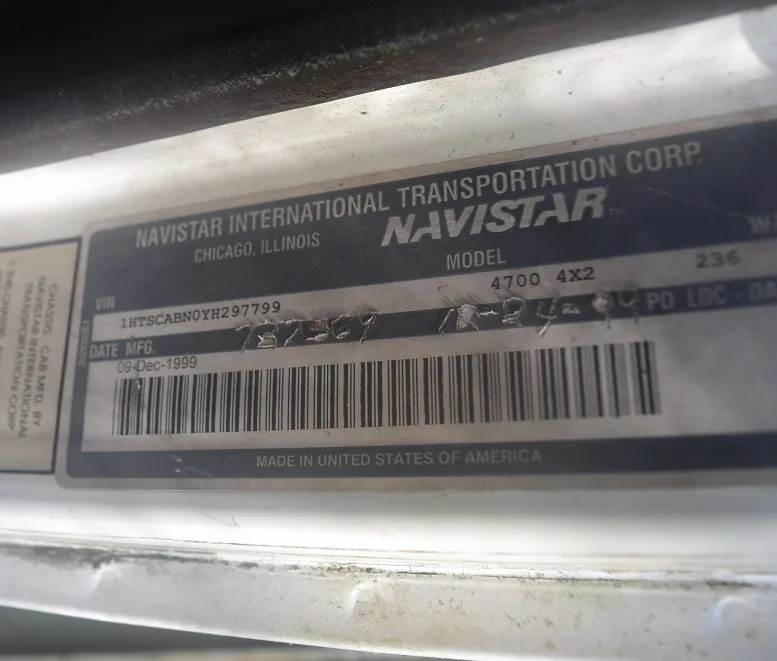

2000 Terex BT3470 Truck Mounted Crane, 17-ton Terex BT3470 has a 34, 000 lb (13 607 kg) maximum lifting capacity and an 80’ (24.38 m) maximum sheave height and 120’ (36.57 m) maximum sheave tip height with 24-40’ (7.31-12.19 m) jib. 27-70’ (82.30-21.34 m) three-section full power fully synchronized boom. Exclusive color-coded boom and load charts. Easy-to-install optional 24’ (7.31 m) one-stage or 24-40’ (7.31-12.19 m) two-stage telescoping jib. Man baskets or work platforms increase job capacities. Electronic Load Moment Indicator and anti-two-block device standard. Externally located planetary rotation drive for easy accessibility for maintenance. The 2-speed planetary winch has 10, 500 lb (4, 703 kg) maximum permissible 1 part line, 37, 000 Ib (16, 782 kg) breaking strength, 186 ft/min (57 m/min) maximum line speed.Dual control station with direct mechanically controlled hydraulic system. 70 gal (266 L) capacity hydraulic tank.International 4700 is a medium-duty truck model that commonly featured the Navistar T444E engine, also known as the 7.3L Power Stroke. The T444E was an electronically controlled, turbocharged diesel engine known for its robustness and longevity. Power output was 210 hp (157 kW) at 3000 rpm and 425 lb⋅ft (576 N⋅m) at 1600 rpm. Spicer 5-speed transmission.
