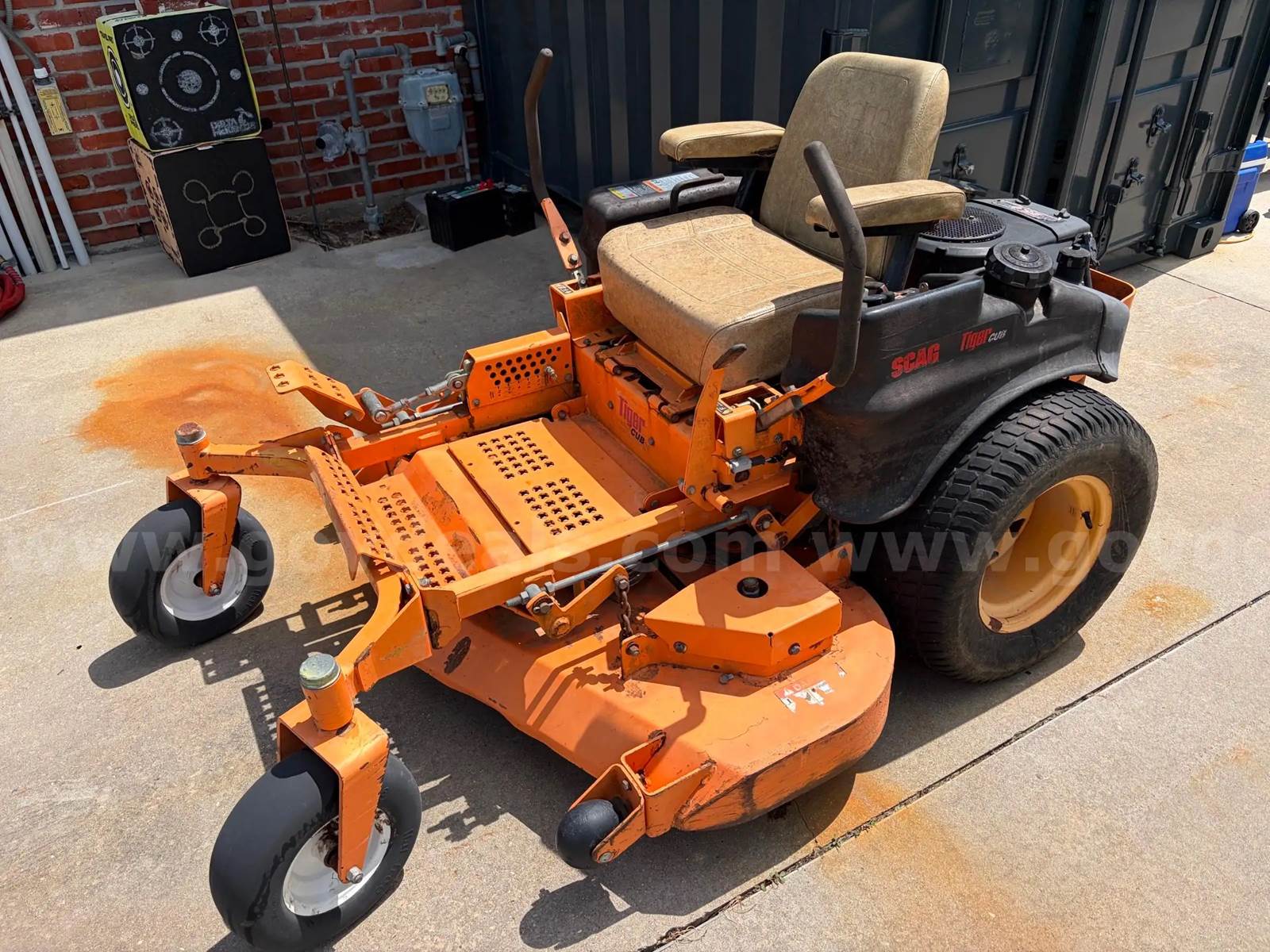

2003 SCAG Tiger Cub Zero-Turn Mower

SCAG Tiger Cub Zero-Turn Mower — Specification SheetManufacturer: SCAG Power EquipmentSeries: Tiger CubModel: STC52A-24HNSerial Number: 8750423Model Year: Approximately 2003Equipment Type: Commercial zero-turn riding mowerEngineManufacturer: HondaRated power: 24 HPFuel type: Unleaded gasoline, minimum 87 octaneConfiguration: Commercial-duty, four-cycle, twin-cylinder engineCooling: Air-cooledStarting system: 12-volt electric startCharging system: Engine-driven alternatorCutting SystemCutting width: 52 inchesDeck type: SCAG Advantage floating commercial deckDeck construction: Heavy-duty fabricated steelDeck skirt: 7-gauge steelNumber of blades: ThreeCutting-height range: 1 to 5½ inchesHeight increments: ¼ inchDeck adjustment: Foot-operated from the operator’s positionBlade engagement: Electric PTO clutchDischarge: Side discharge with spring-loaded chuteSpindles: Heavy-duty cast housings with tapered roller bearingsAnti-scalp protection: Deck-mounted anti-scalp wheelsDrive SystemDrive type: Dual hydrostaticHydraulic pumps: Two Hydro-Gear BDP-10A variable-displacement pumpsWheel motors: Two cast-iron, high-torque hydraulic motorsSteering: Dual-lever independent wheel controlForward speed: 0–10 MPHReverse speed: 0–5 MPHParking brake: Lever-operated mechanical brake systemCapacities and Running GearFuel capacity: Two 4½-gallon tanks—approximately 9 gallons totalHydraulic reservoir: Approximately 2½ quartsFront tires: 13 × 5.00-6, four-plyRear drive tires: 23 × 9.50-12, four-plyElectrical system: 12 voltsSafety equipment: Operator-presence seat switch, neutral controls, parking-brake interlock and PTO interlockHour meter: Factory-equippedEstimated ProductivityRated coverage: Approximately 23 acres per eight-hour workday under favorable conditionsTransport speed: Up to 10 MPHSerial number 8750423 falls within SCAG’s documented 8750000–8759999 production range for the STC52A-24HN. The applicable SCAG parts publication is dated November 2002, indicating this is most likely a 2003-model Tiger Cub.RUNNING CONDITION UNKNOWN. Been Sitting up for a year. Needs a battery etc. We will assist in loading.
