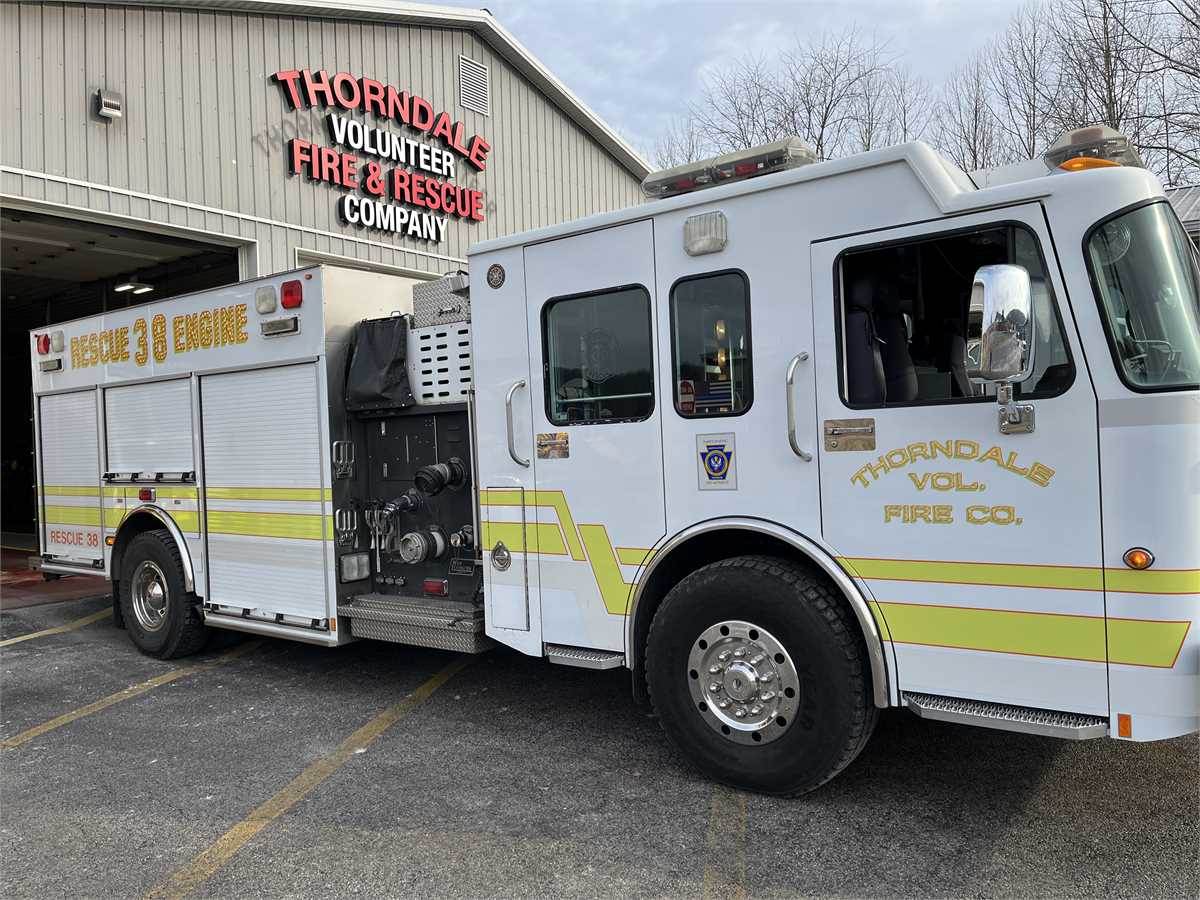

2003 Spartan New Lexington Rescue Engine

Apparatus Overview
2002 Spartan Gladiator Cab/Chassis | 2003 New Lexington Body
Production #: RP-654
This well-maintained engine features a Cummins ISM 500 paired with an Allison HD4060P transmission, showing 51,678 miles, 5,135 engine hours, and 330 pump hours. GVW is 52,500 lbs with an overall length of 33'5".
Cab & Crew

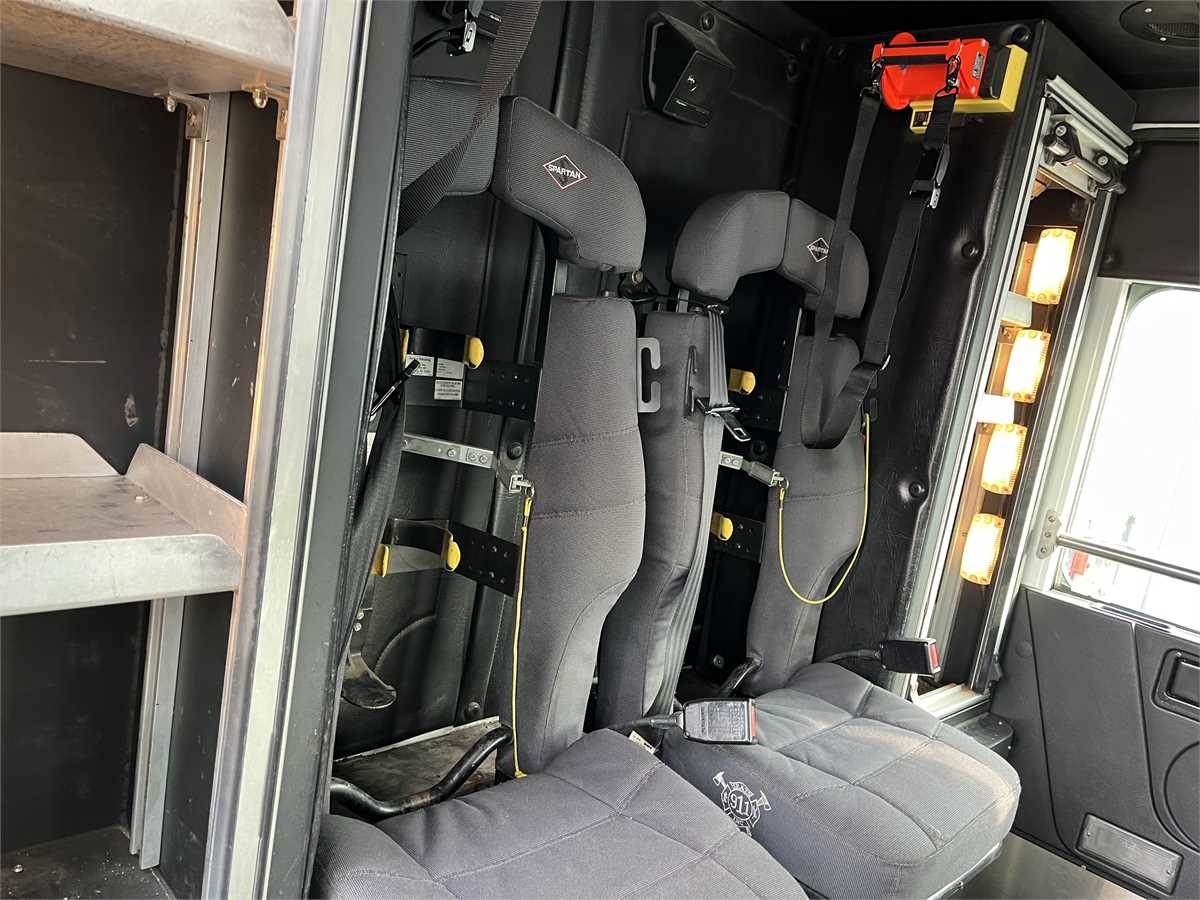

Seating for 6, including 5 SCBA seats.
Pump, Water & Foam
Darley LDM pump – 1,750 GPM (certified June 18, 2025)
660-gallon water tank
Foam system with 30-gallon capacity
Hose & Discharges
Officer side: 1 LDH, 1 × 2.5"
Driver side: 2 × 2.5"
Intakes: LDH both sides
3 crosslays (1 foam-capable)
Deck gun out of service
Power & Auxiliary Systems
30 kW PTO generator
Hurst Octo-Flow hydraulic system with 7 hose reels
6 pre-piped hydraulic lines
Will-Burt light tower, scene lighting, Federal Q siren
Condition & Maintenance
PM completed June 2025
New drive and steer tires (last 2 years)
New brakes, drums, seals, and front shocks
Pump testing and full service by Glick Fire Equipment – June 2025
OOS since 9/28/25, checked weekly
Known Issues: intermittent electrical dash/headlight issue, tank-to-pump leak, electric siren and Rotor-Ray motor non-operational.
Equipment Included
Includes ladders, fans, generators, lighting, forcible entry tools, winch, hose, and assorted hand tools.
Documentation
All original manuals and complete digital maintenance history included.
