This is a complete, factory-engineered central mix concrete batch plant built by Turmac (a division of Columbia Machine, Inc., Vancouver, WA). The plant was fully engineered, fabricated, and erected on site but has never been put into production- no concrete has ever been batched or mixed through it. It has been sitting complete and idle, which is why it shows only the light surface oxidation typical of structural steel stored outdoors for several years, not wear from use. Mechanically and electrically, this is a new plant.
Plant overview
Manufacturer: Turmac, a division of Columbia Machine, Inc. (Vancouver, WA)
Product line / model:central-mix batch plant, Columbia part no. 100-10765-99
Engineered: 2007–2008, designed for Seismic Zone 4 and 80 mph wind loading
Control system: Columbia Batchmatic Millennium PLC control panel with dedicated Motor Control Panel (MCP), laptop/PLC connection ports, and separate valve panels for cement and aggregate
Condition: Complete, unused, never batched — normal outdoor-storage surface weathering only
Mixer

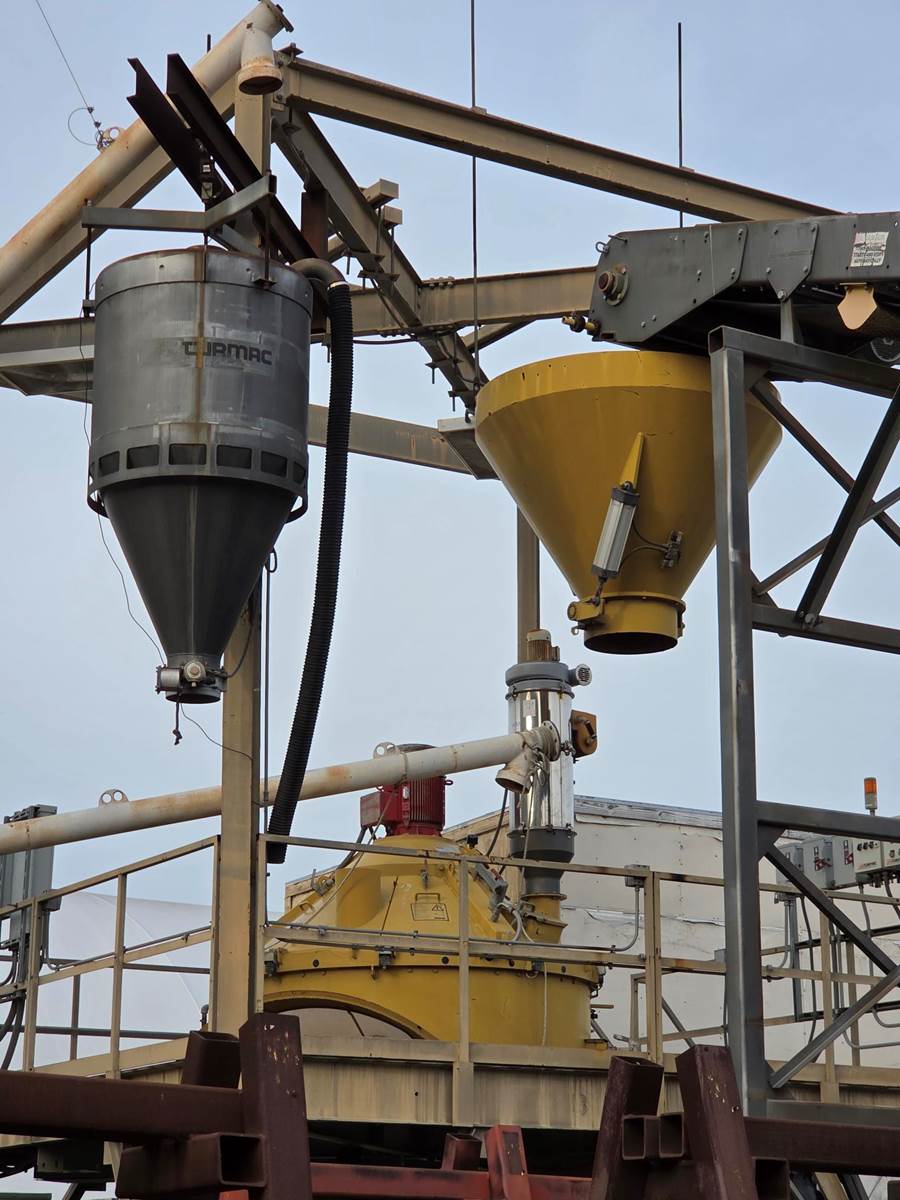

Haarup Model 1125L planetary mixer (approx. 1,125-liter / ~1.5 cu. yd. batch capacity)

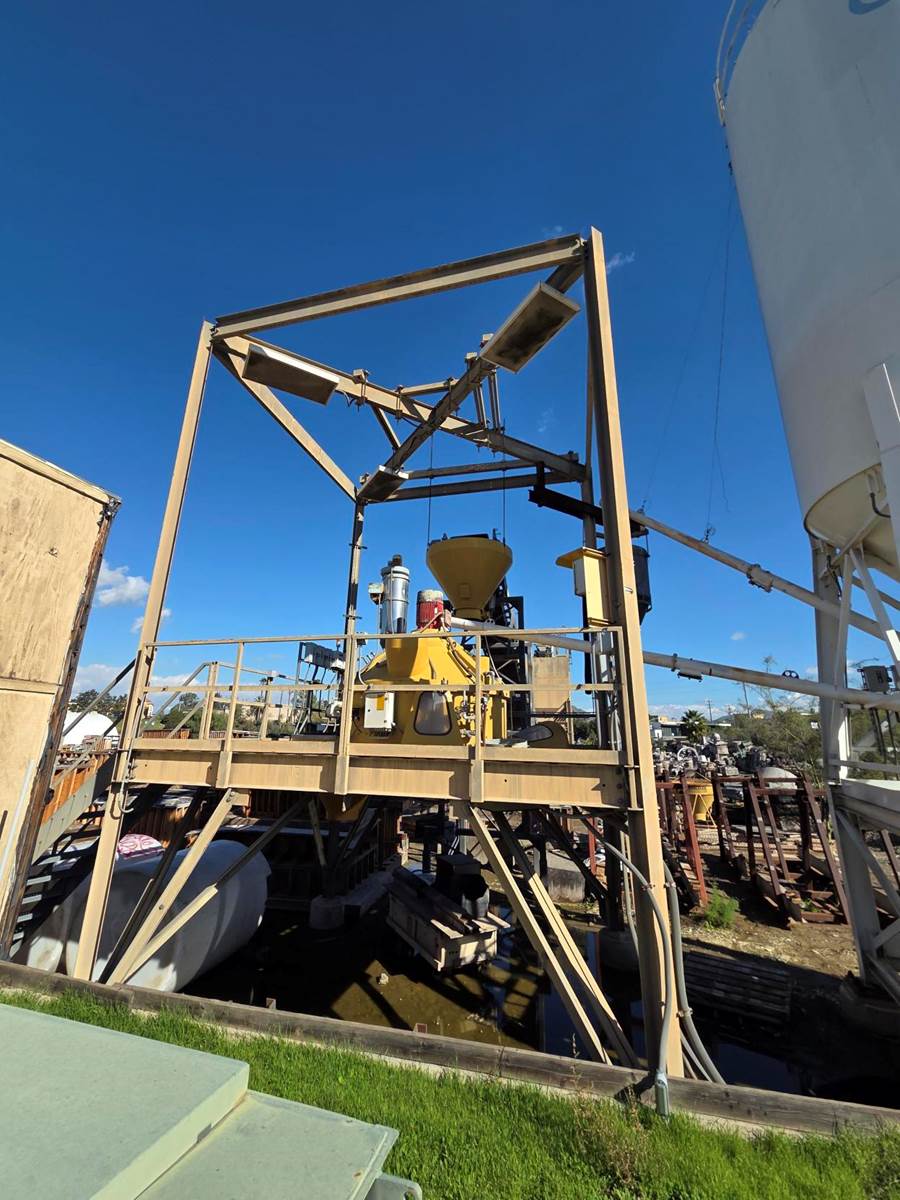

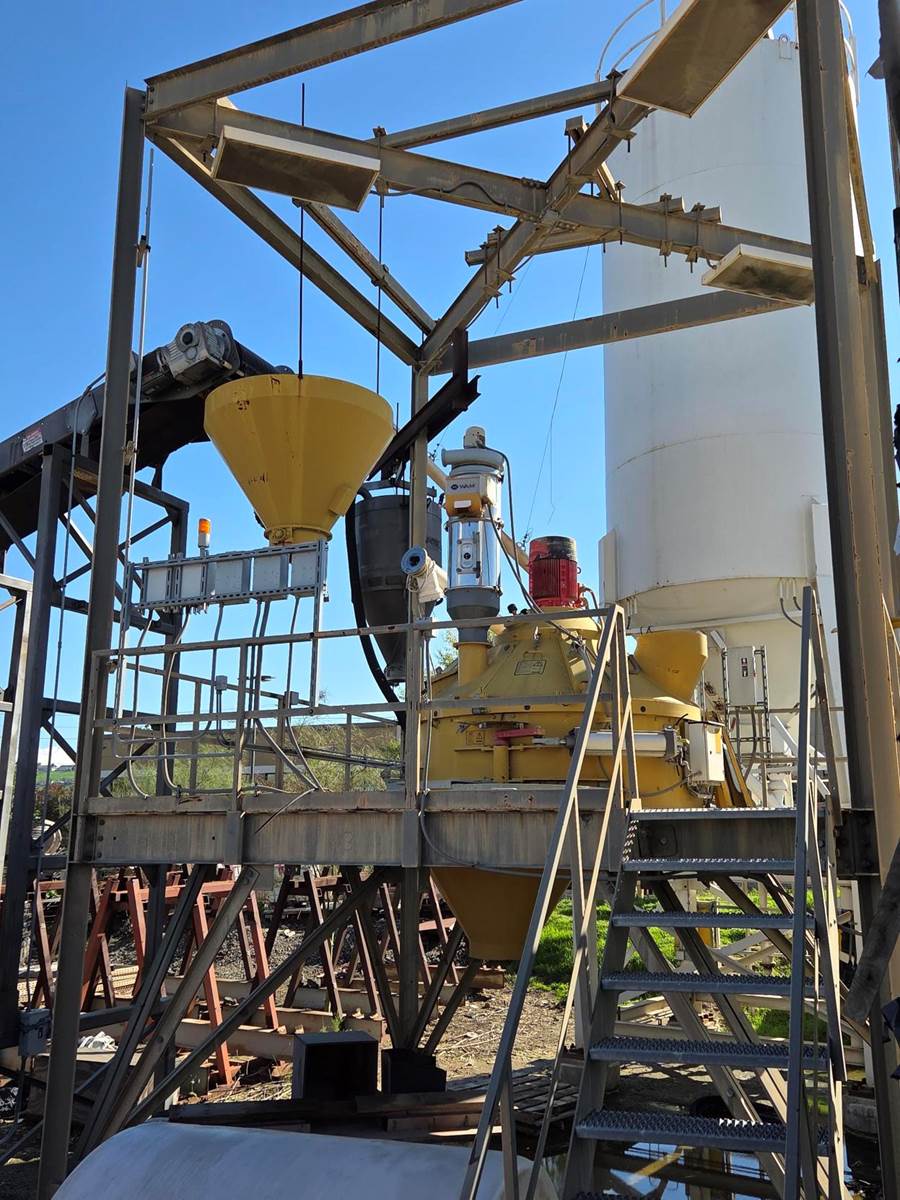

Full mixer platform with stairway, handrails, and batcher support structure

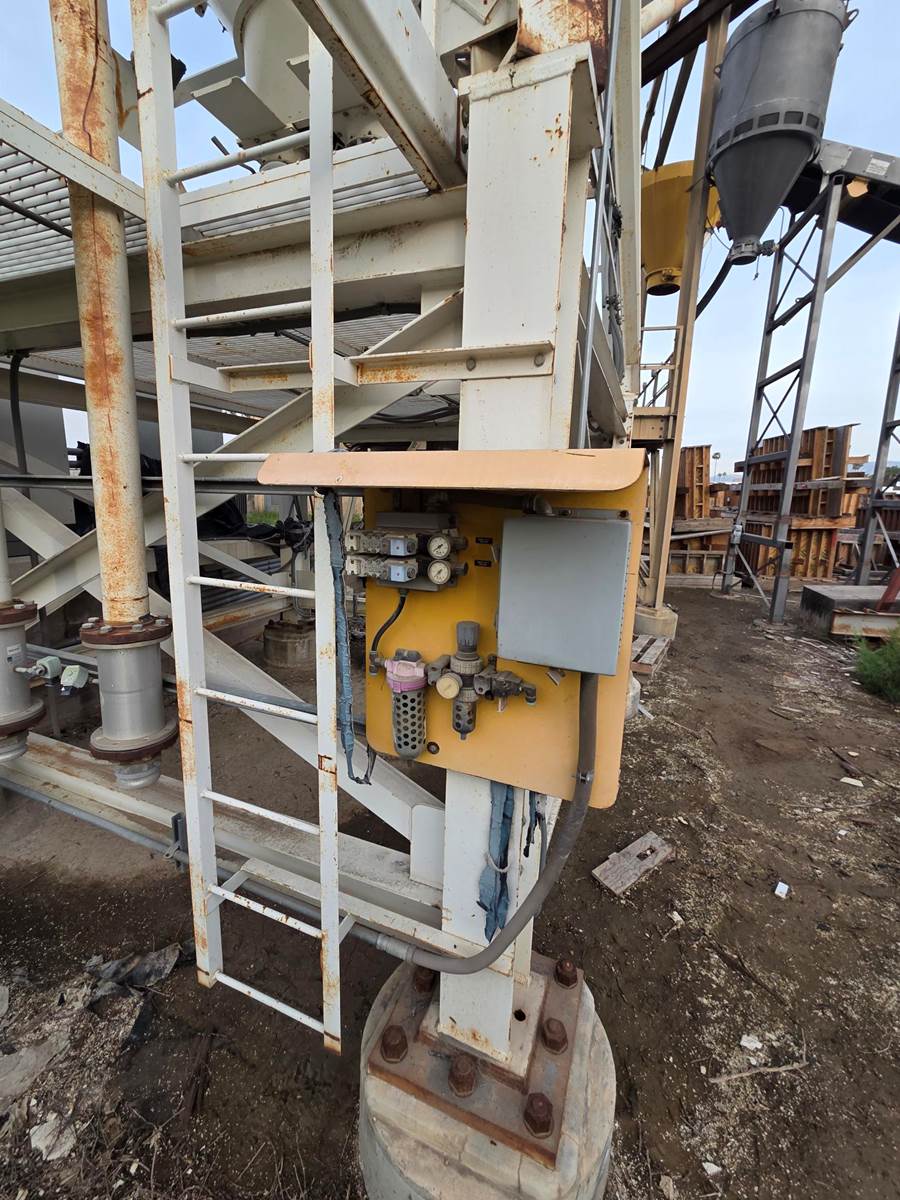

Mixer dust collector, mixer remote control panel and valve panel
Badger 2" magnetic water meter, three bottled-admix injection ports, washout pump
Cement storage & delivery

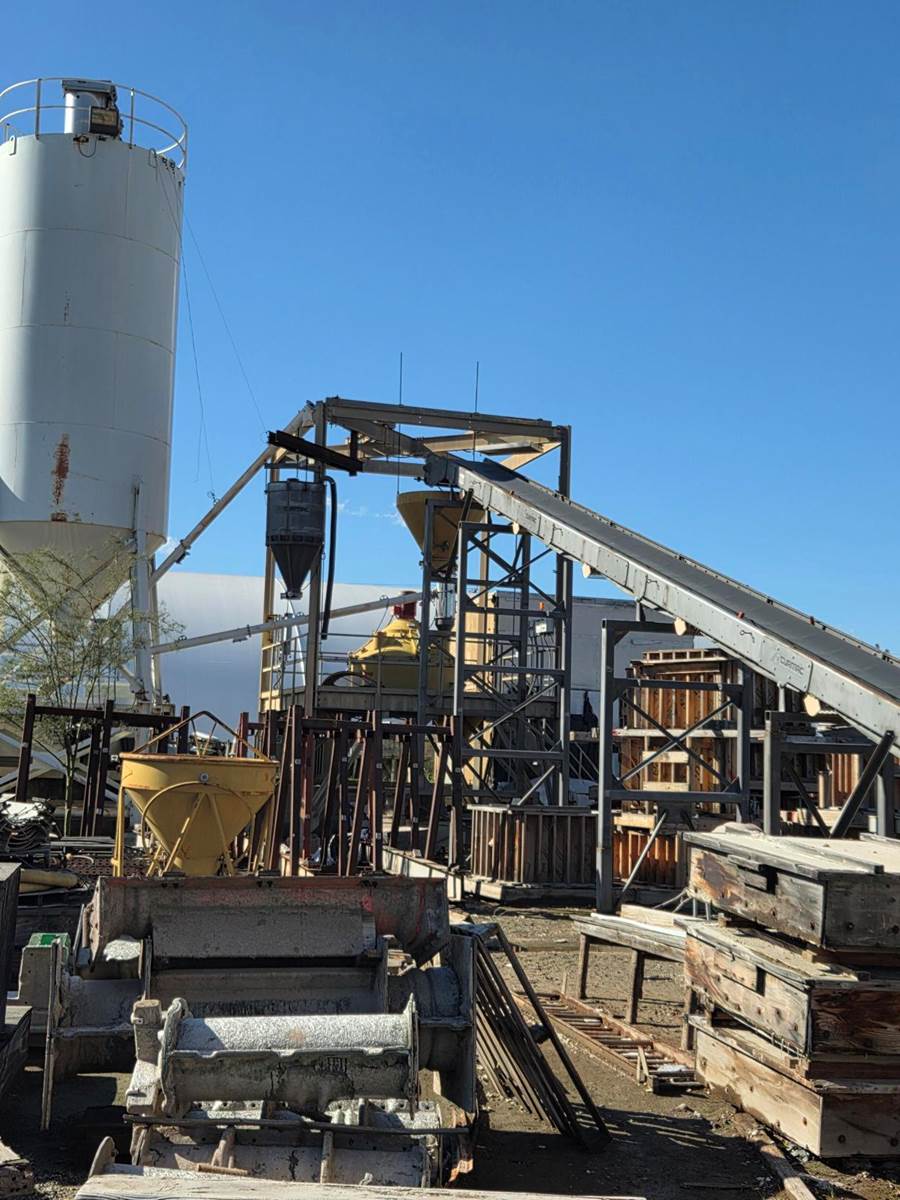

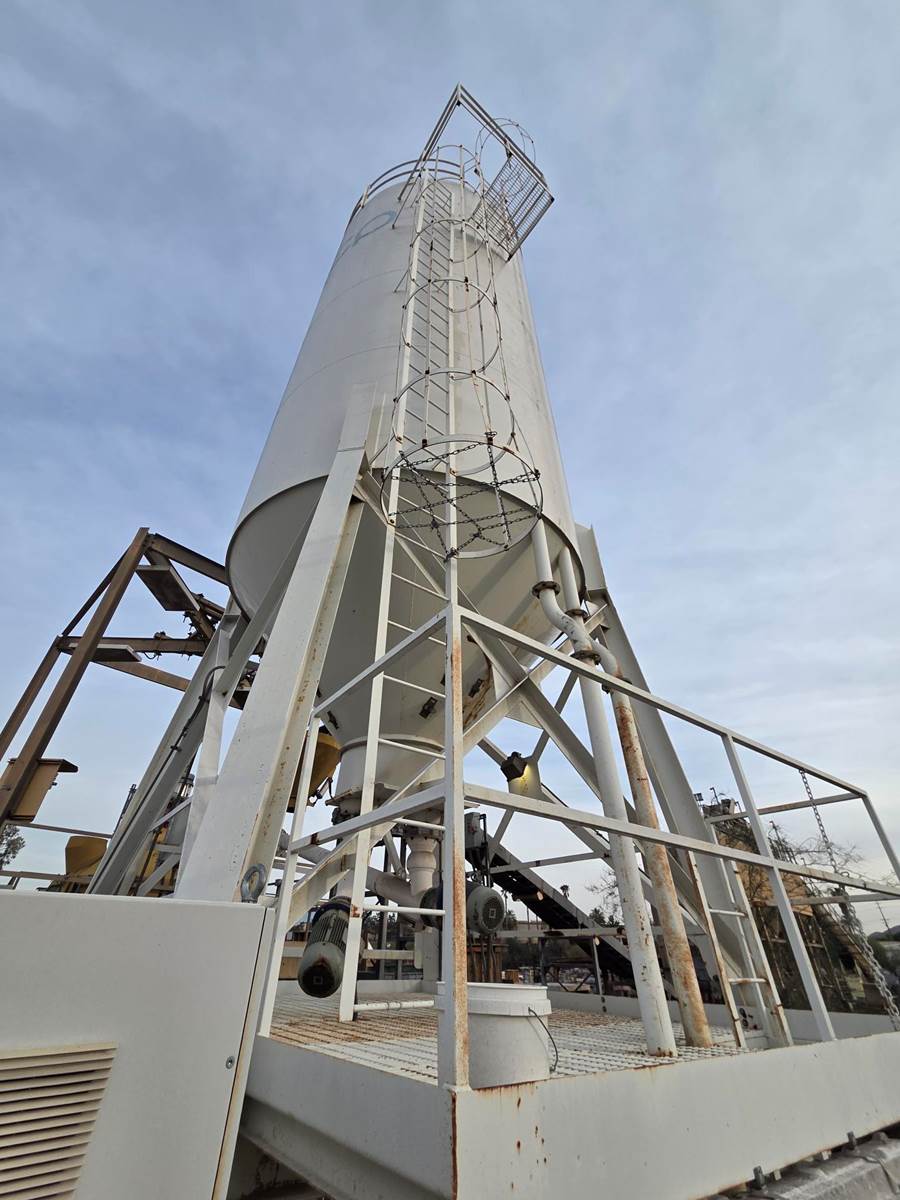

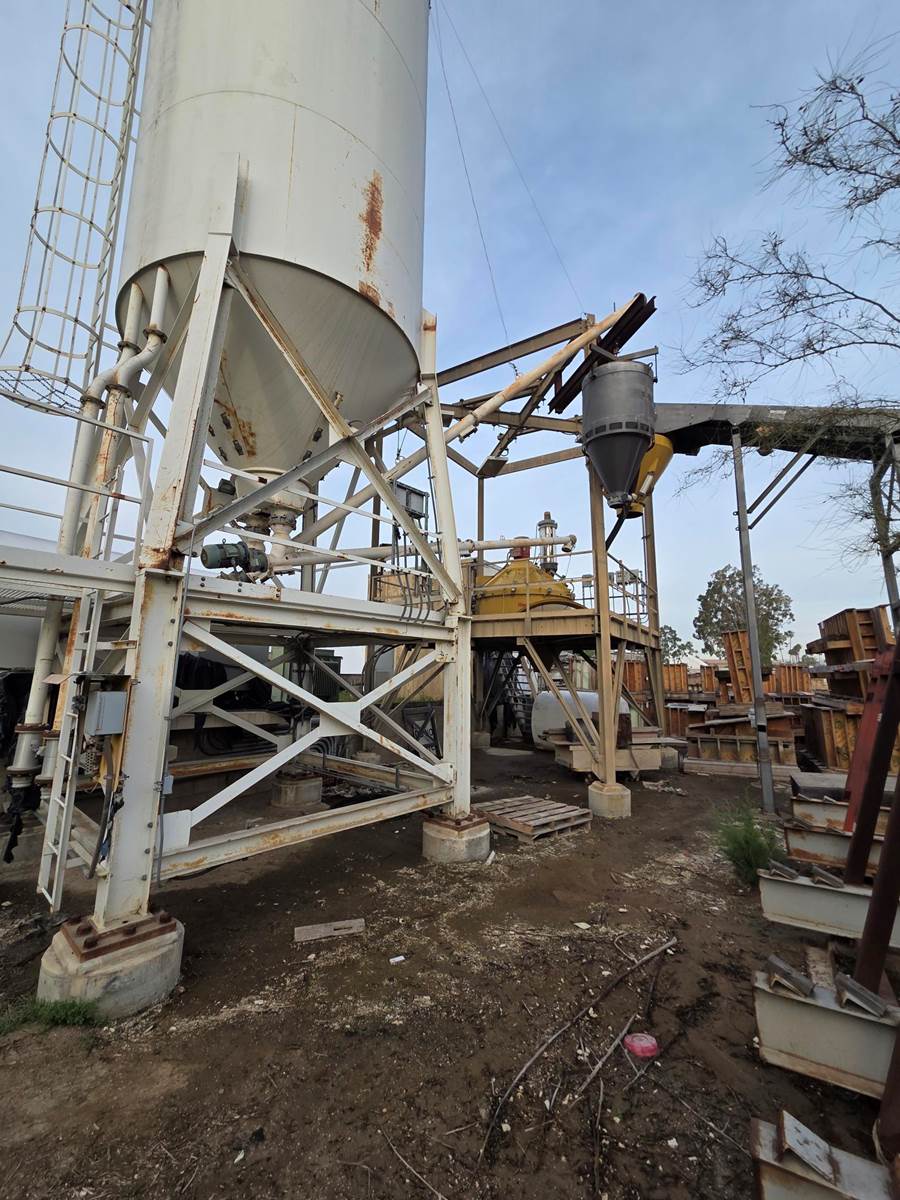

700-barrel split cement silo (approx. 482-bbl / 238-bbl compartments), rated for Seismic Zone 4 / 80 mph wind
Two WAM silo-top dust collectors (264 sq. ft. each) with anti-overfill devices

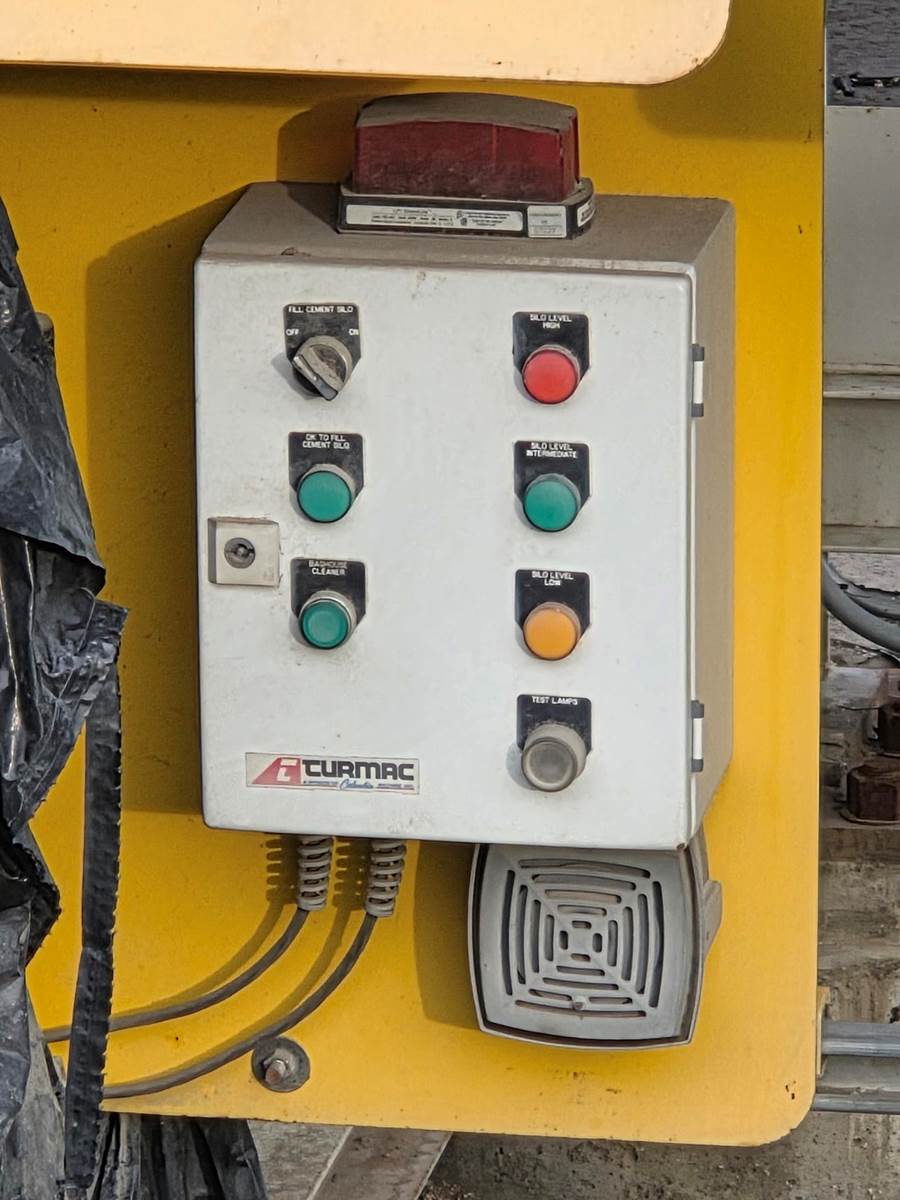

Capacitance-style high/low level indicators on each compartment

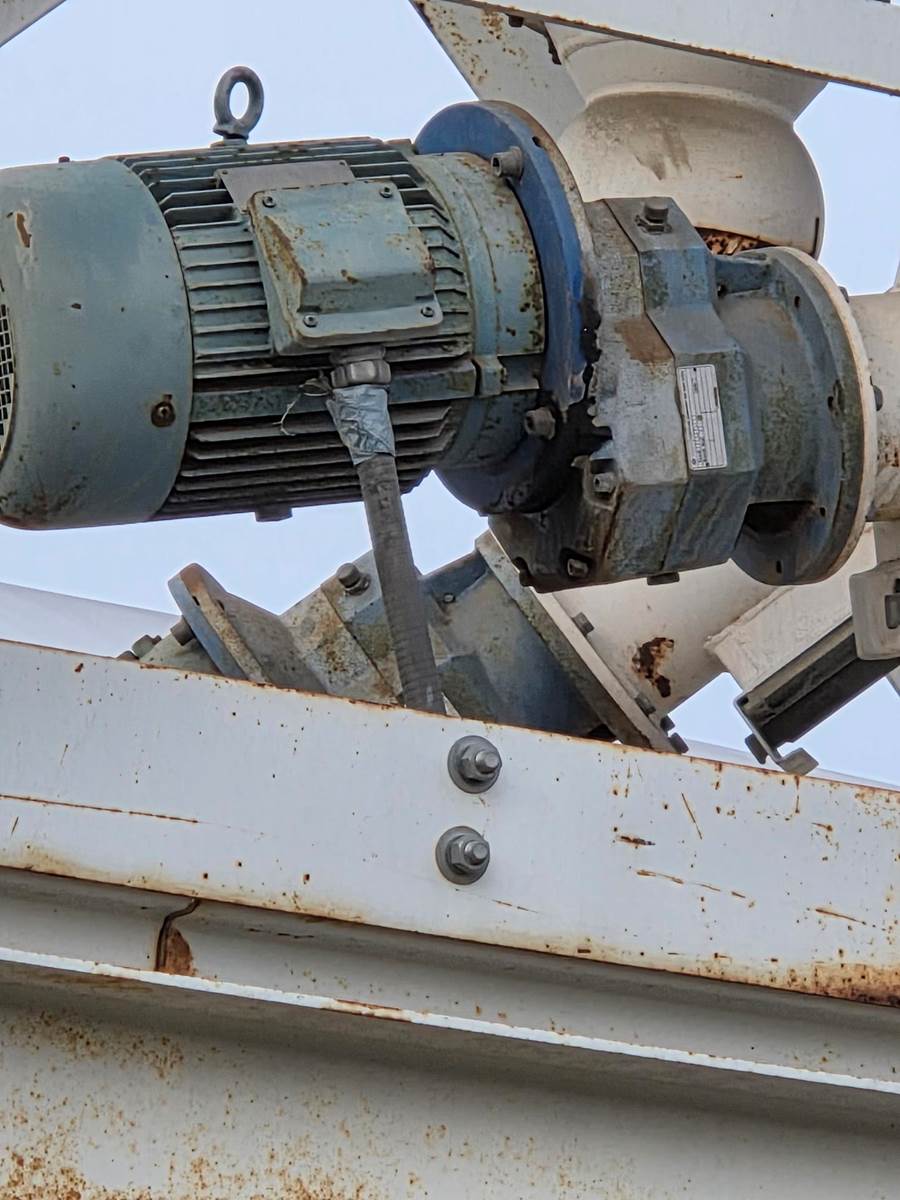

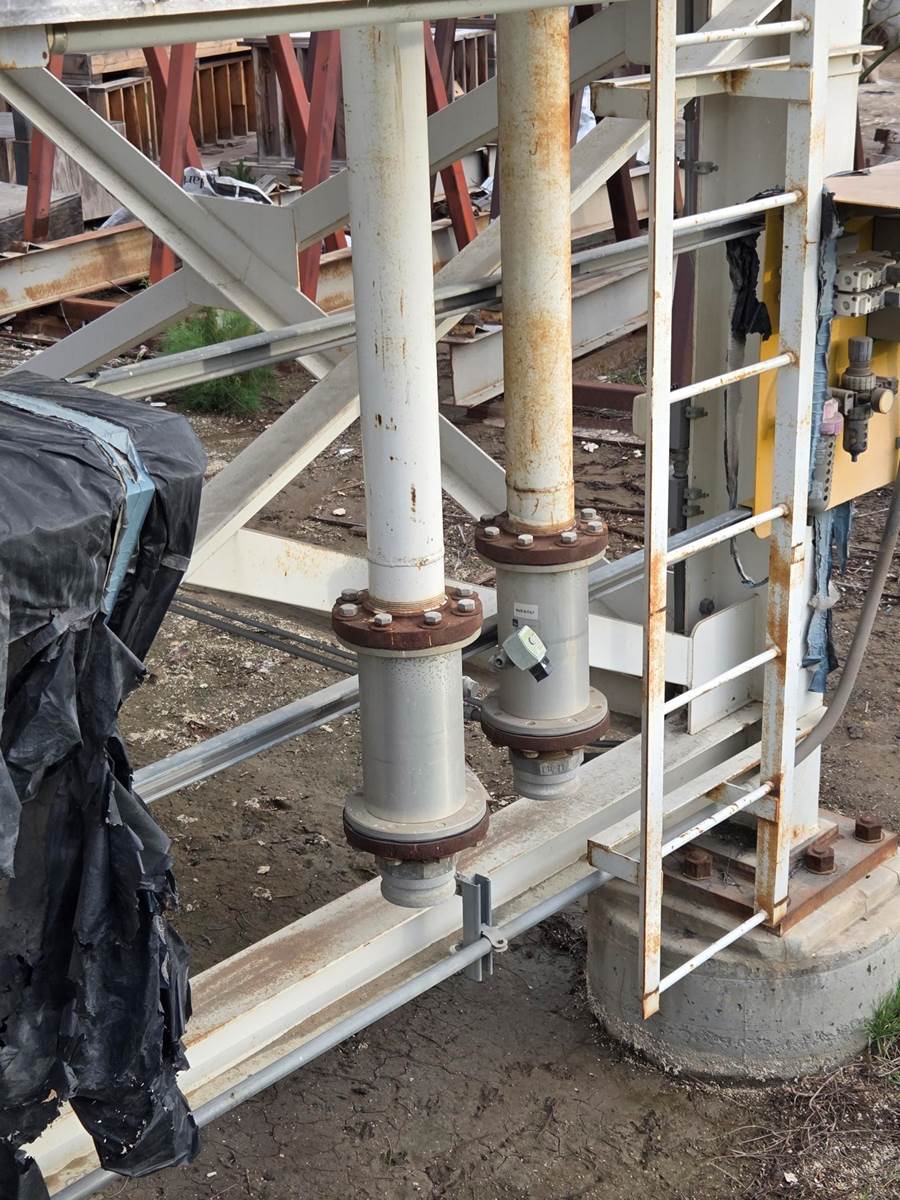

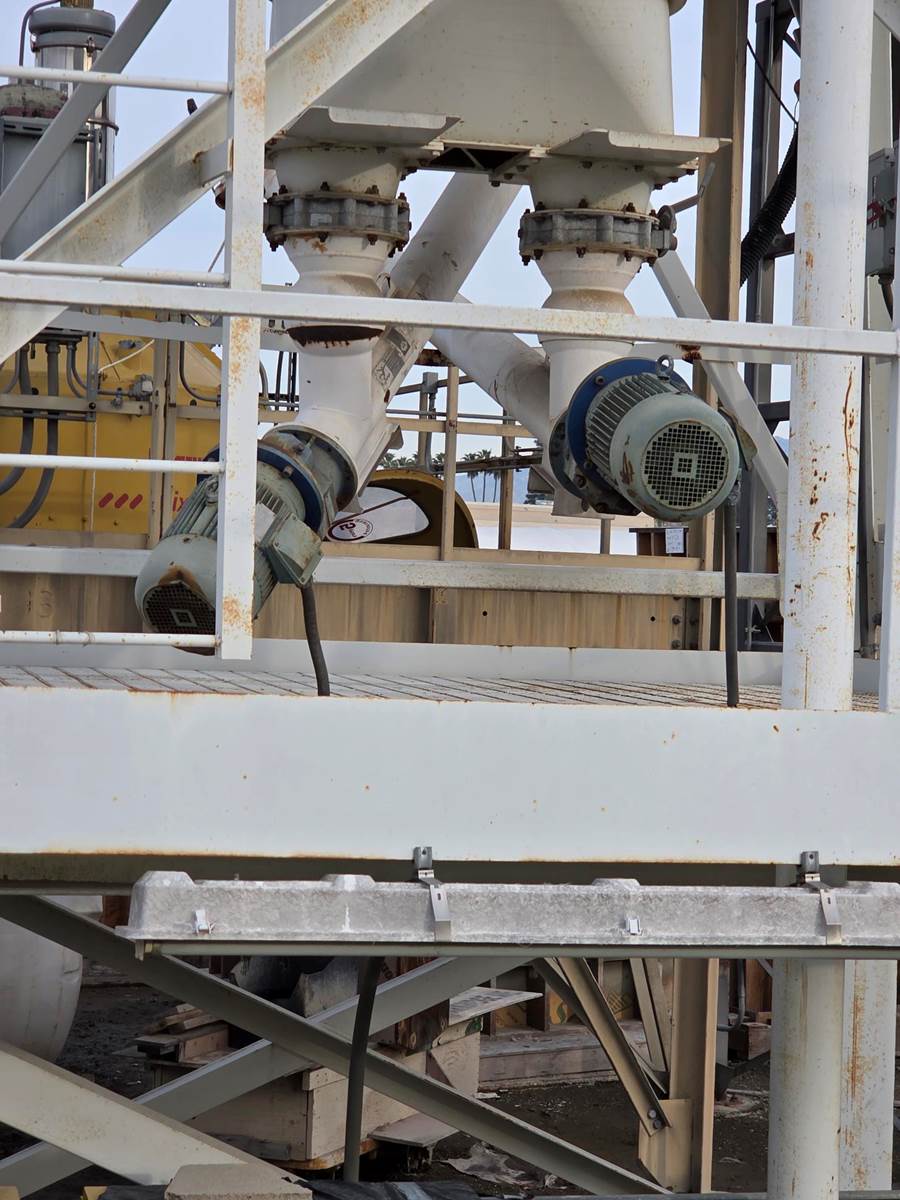

Twin 6", 7.5 HP cement screw conveyors feeding a 40 cu. ft. cement batcher with load-cell weighing and weight display
Aggregate storage & handling

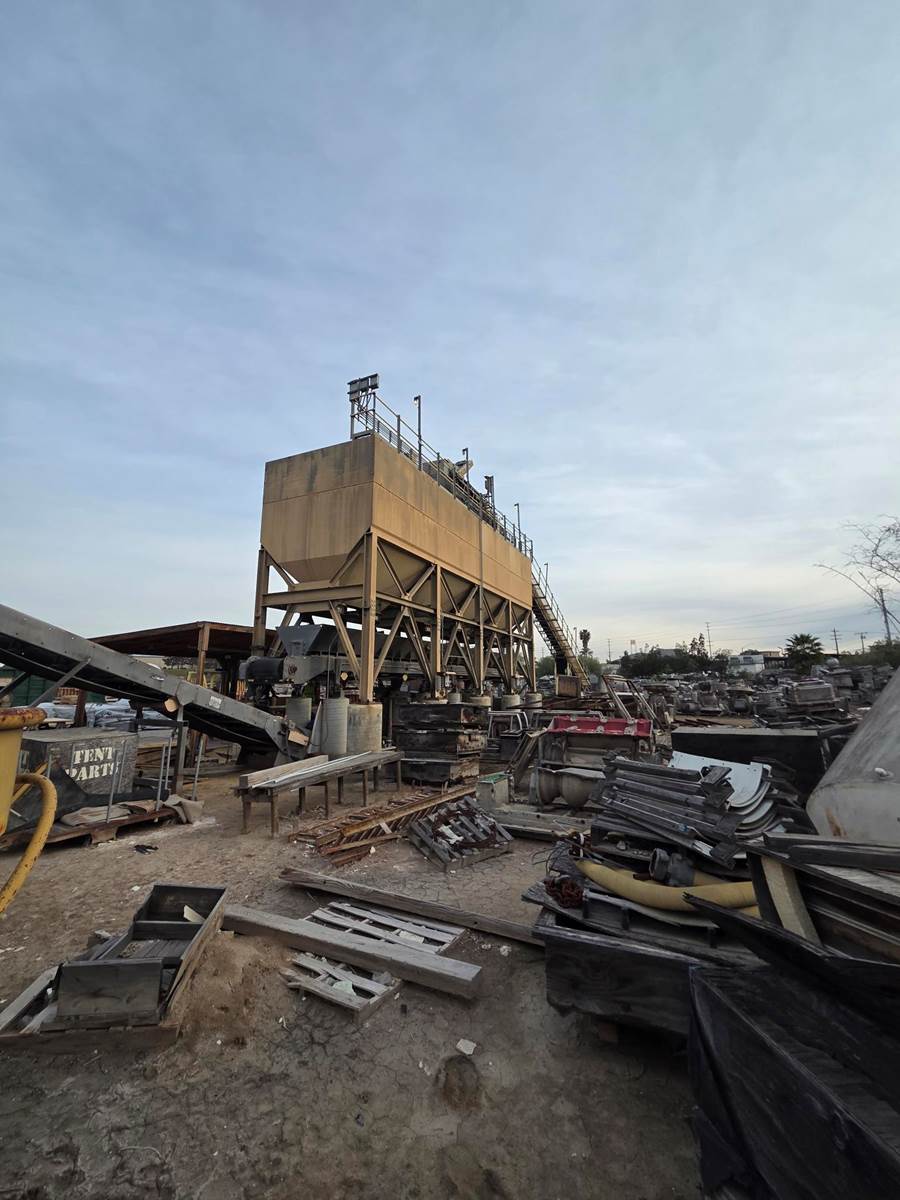

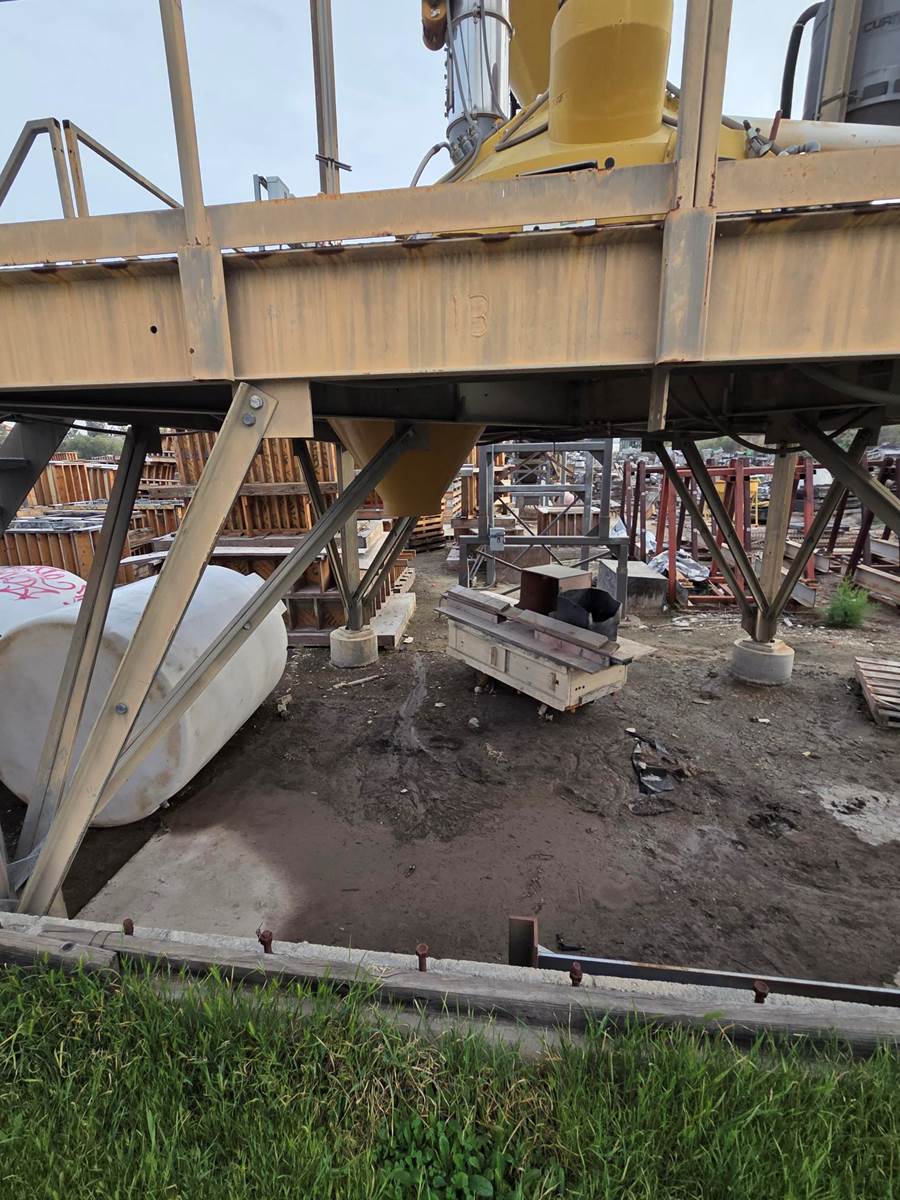

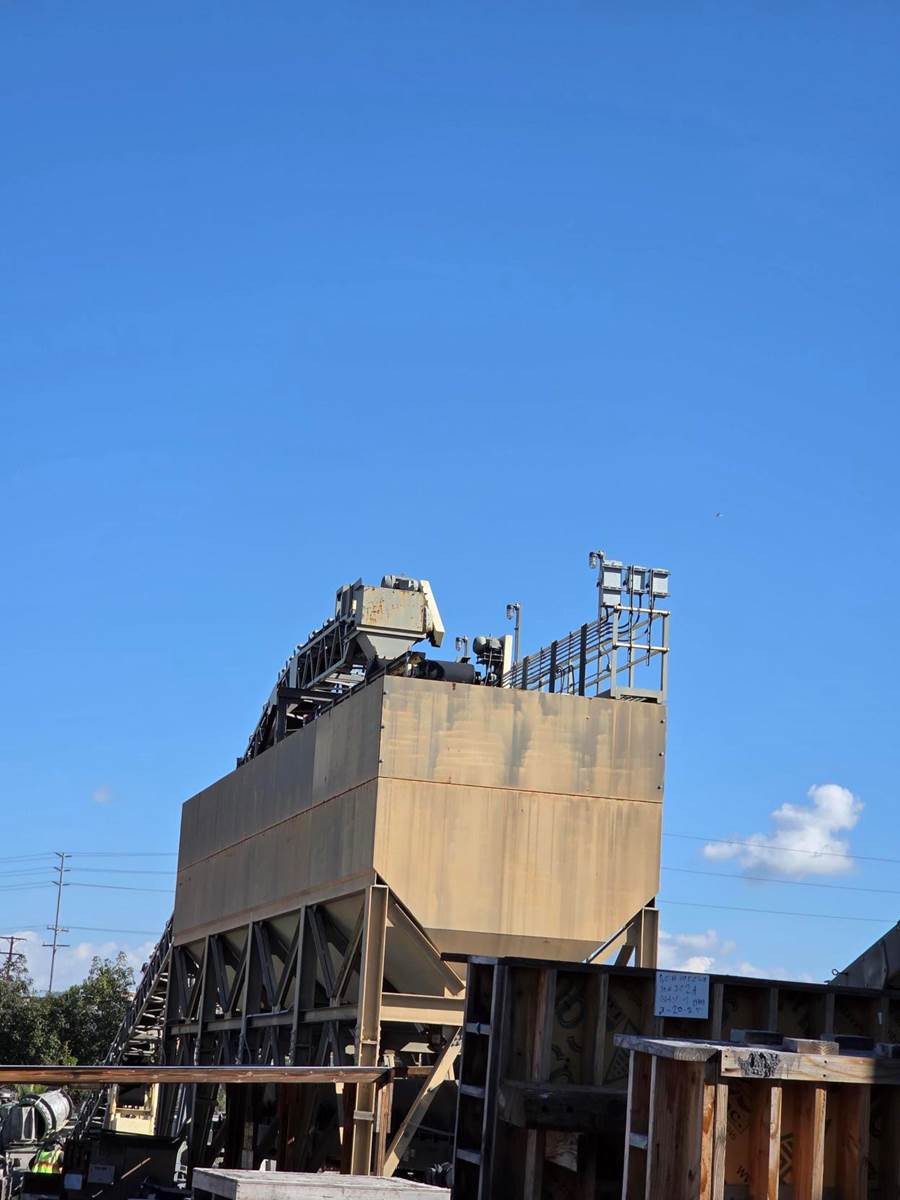

Five-compartment aggregate bin system on four structural bin frames: three 65-ton bins plus one 65-ton bin split into two 32-ton compartments (rock/sand configuration)

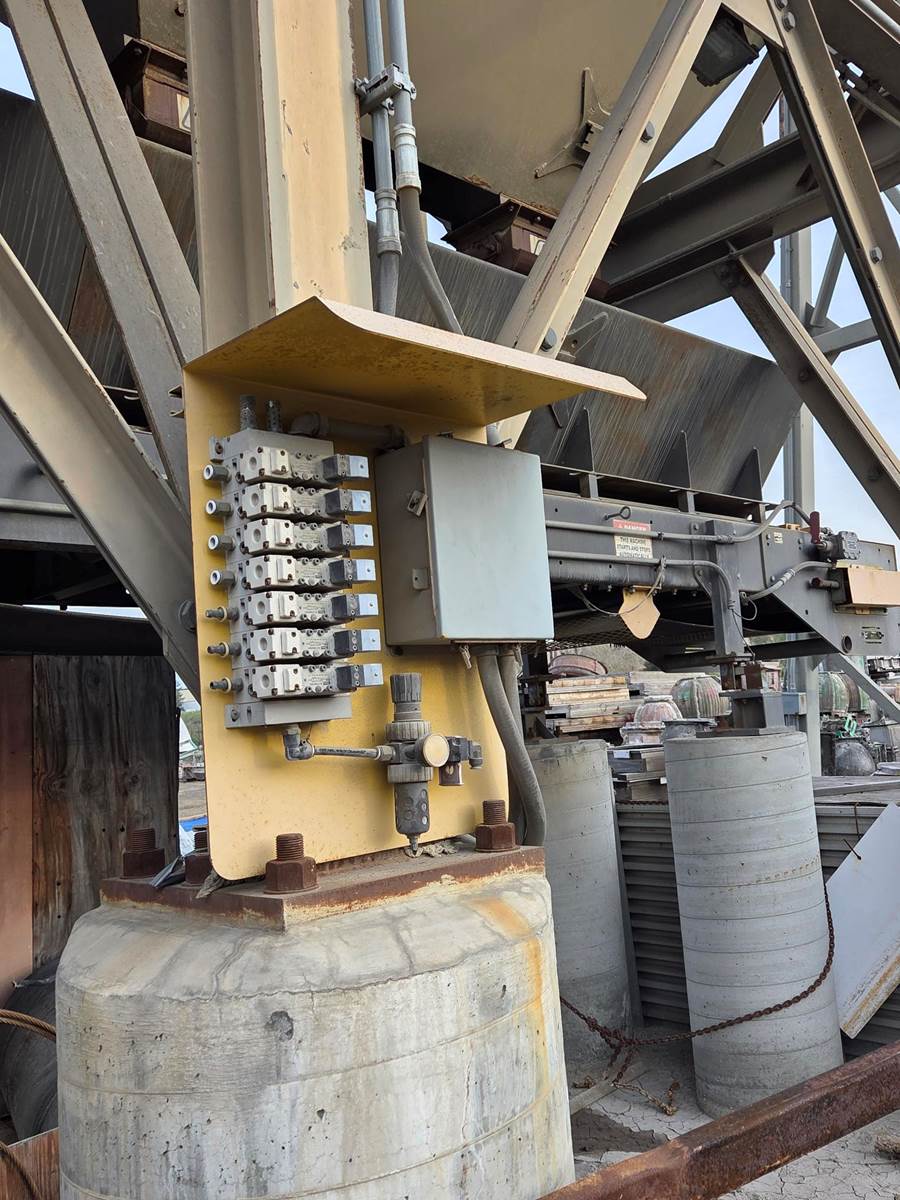

Pneumatic slide gates, bin vibrators, and hi/low level probes on every compartment
Hydraulic aggregate moisture compensation system with microwave moisture probe

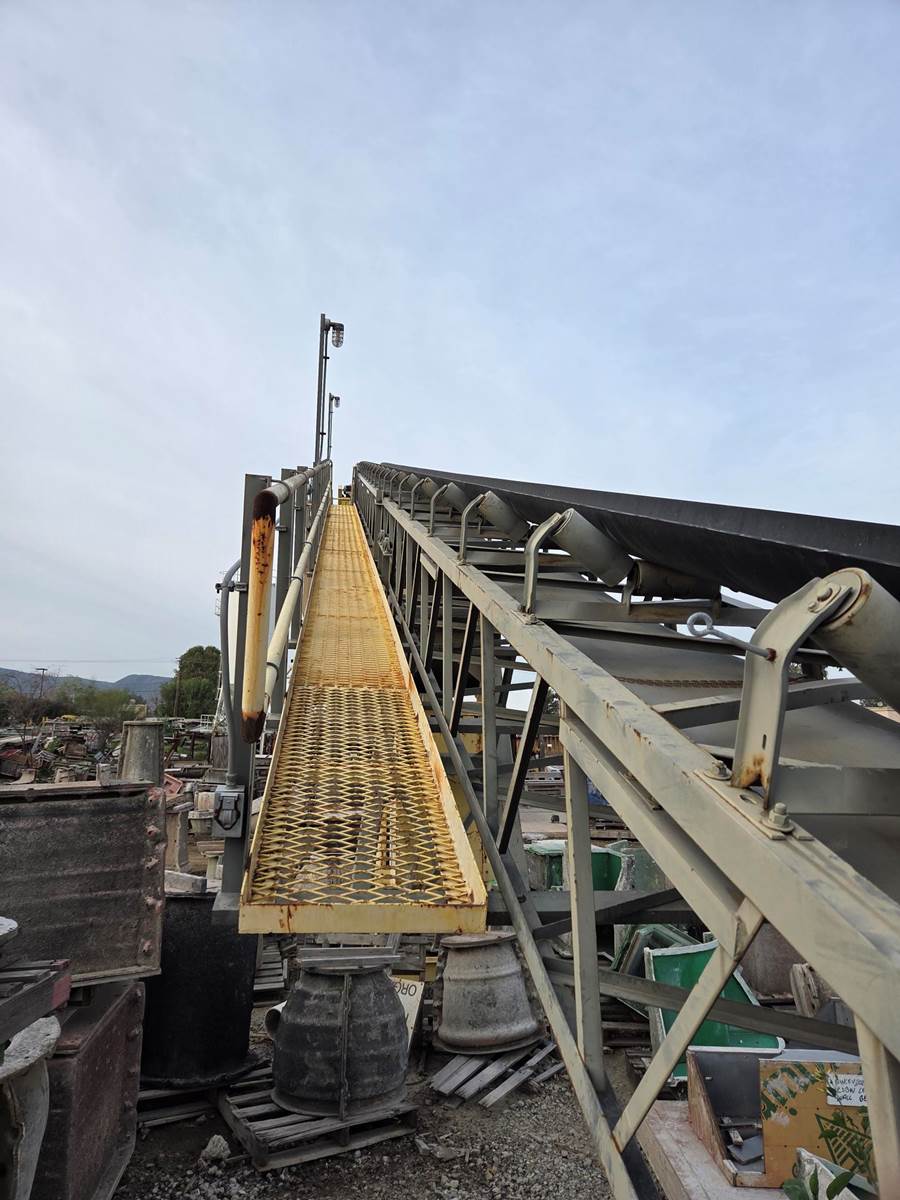

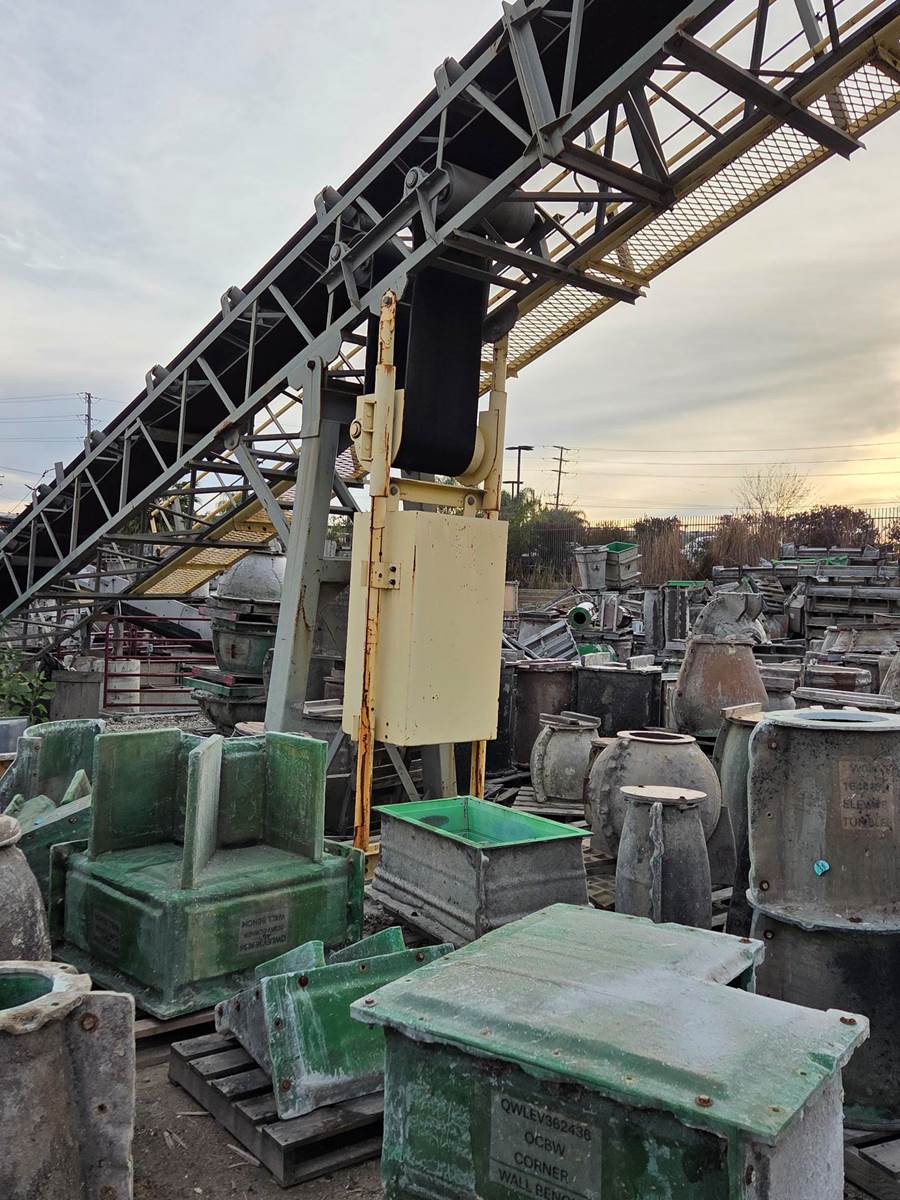

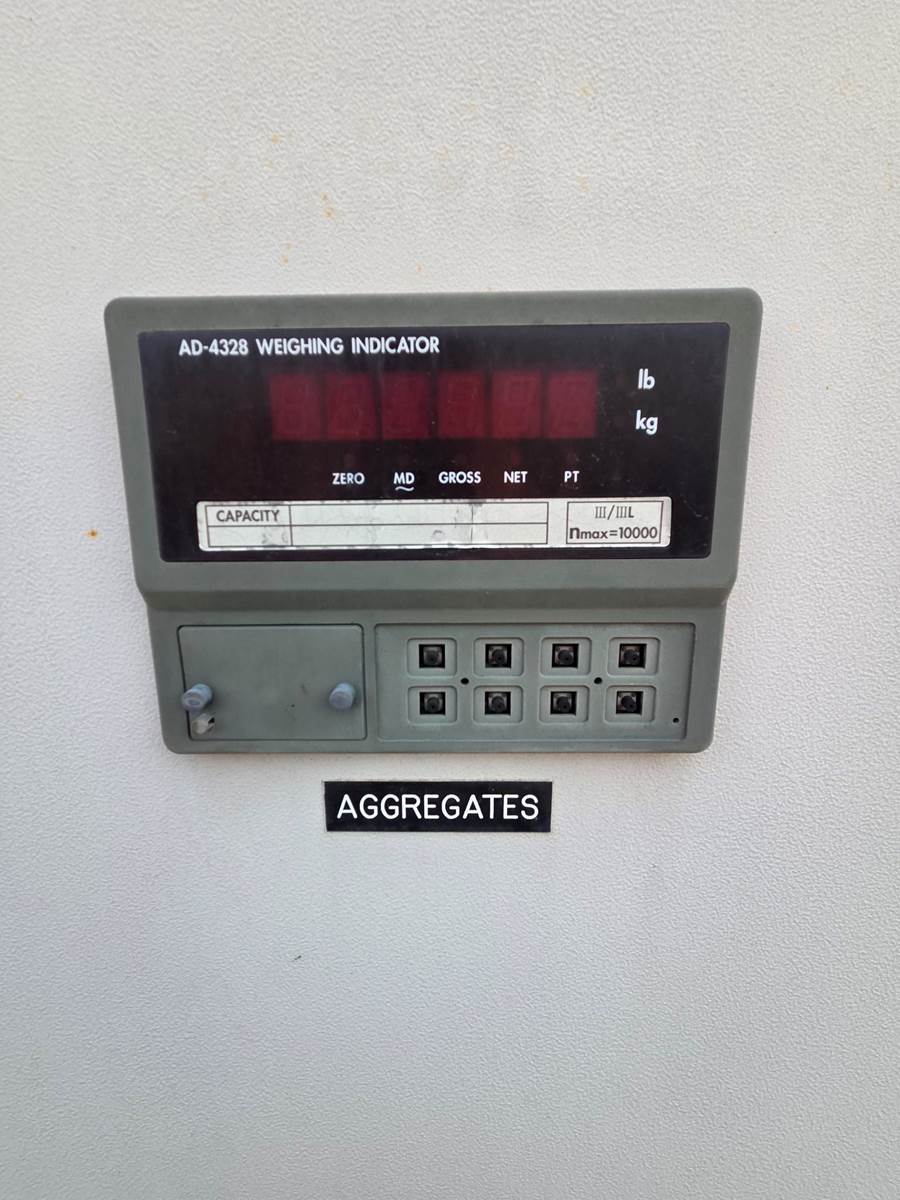

30" x 52'-6" aggregate weigh conveyor with load cells and weight display, plus 30" x 13'-6" reversing conveyor and 30" x 66'-6" inclined charging conveyor

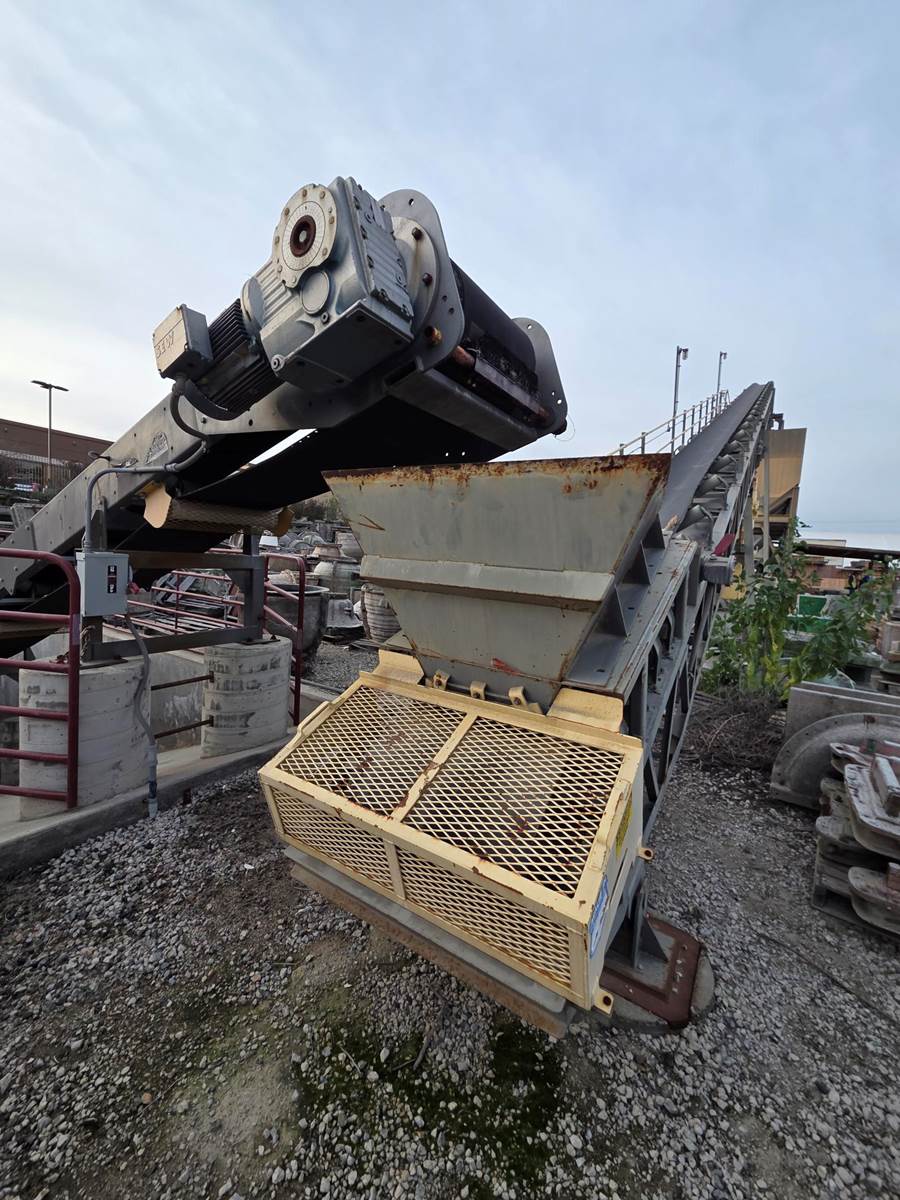

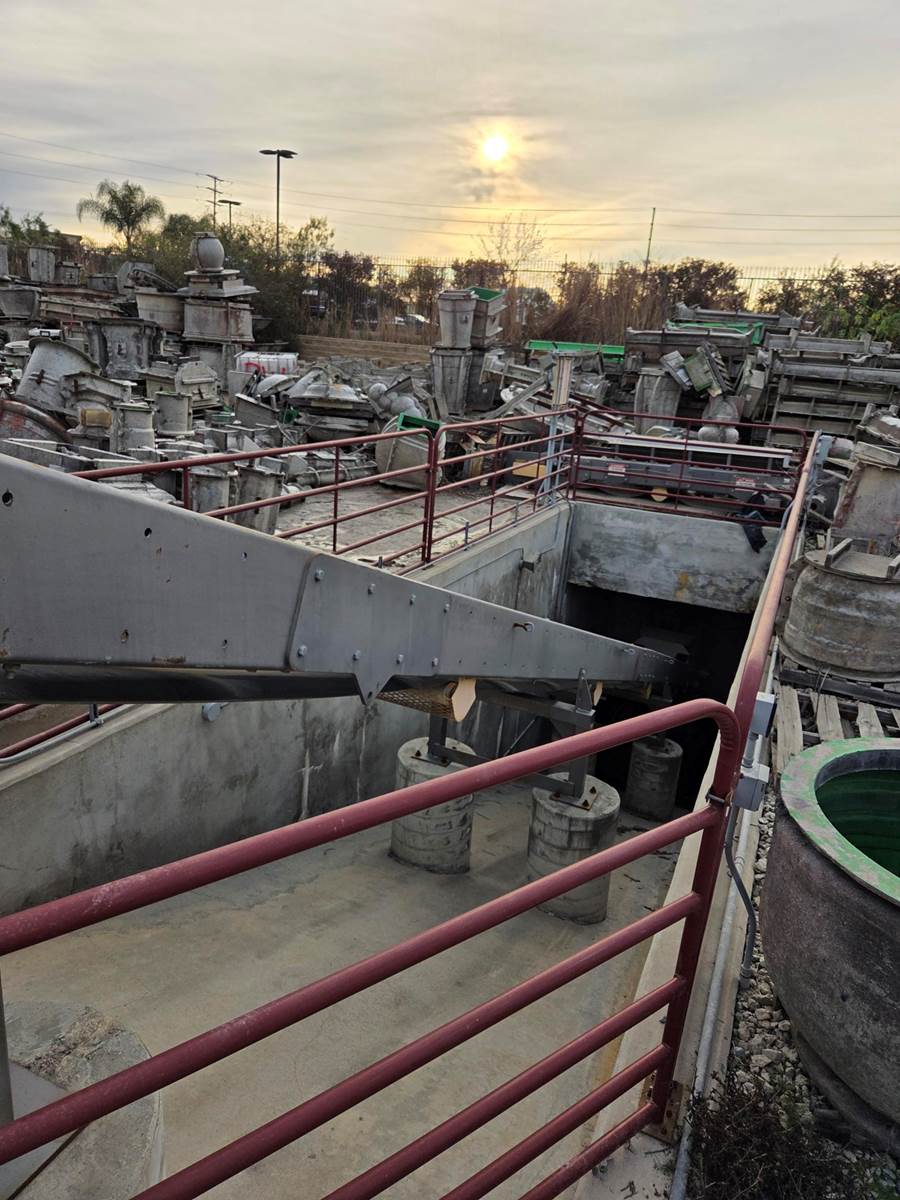

Two truck-dump stations, each with drive-over grizzly, vibrating hopper, and inclined dump conveyor (24" x 53'-6" and 24" x 108'-6"), feeding a shuttle conveyor and indexing bin-fill system
Motors (installed, per electrical schedule)
Mixer drive (40 HP), aggregate incline conveyors (25 HP and 15 HP), aggregate incline belt (20 HP), aggregate weigh belt (20 HP), charging belt (10 HP), washout pump (9 HP), twin cement screws (7.5 HP each), shuttle belt (7.5 HP), shuttle index (2 HP), plus dust collector and vibrator motors.
Included documentation

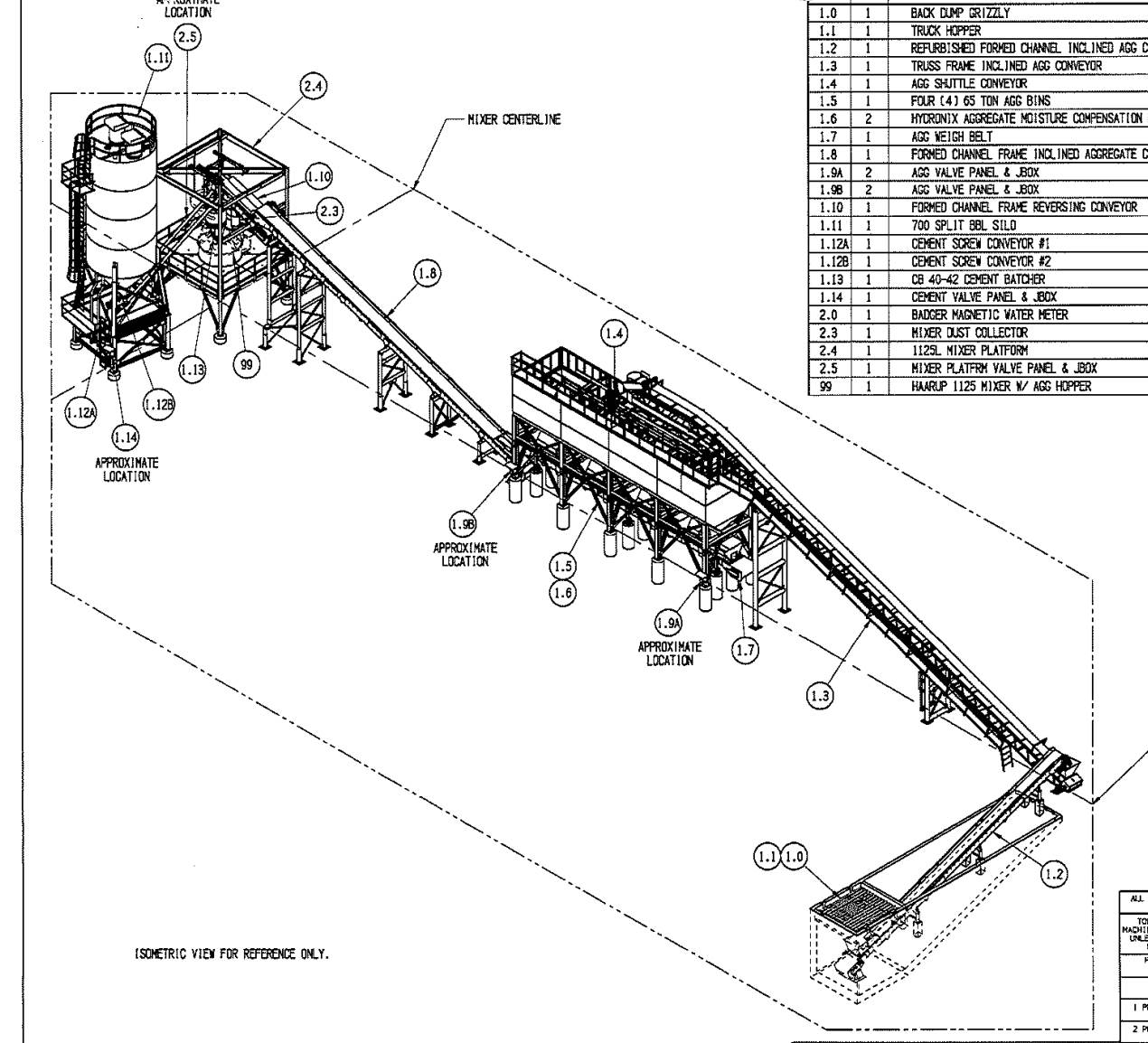

The sale includes the complete set of Columbia Machine engineering drawings for this plant: general arrangement and foundation/anchor bolt drawings with full loading tables, structural fabrication drawings for every bin, conveyor, and platform, the process flow/P&ID diagram, and the full electrical field-wiring schematic for the Batchmatic Millennium control system. This documentation makes re-erection and permitting at a new site straightforward for any qualified rigger or contractor.
Terms
Price: $225,000, as-is / where-is, in Norco, CA
Buyer is responsible for disassembly, loadout, and shipping/transport from the current location
Serious inquiries welcome- full drawing package available for review prior to purchase
