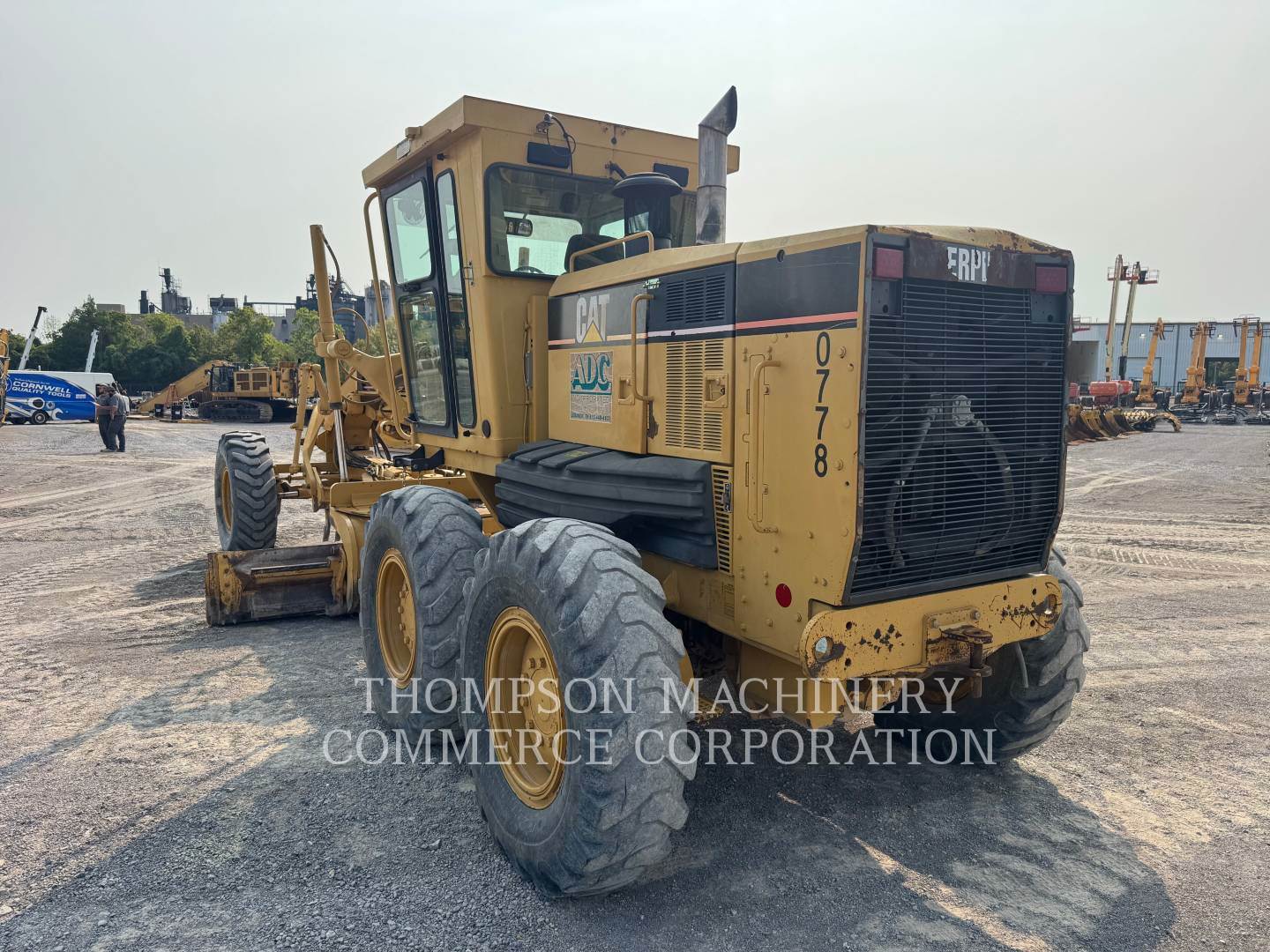

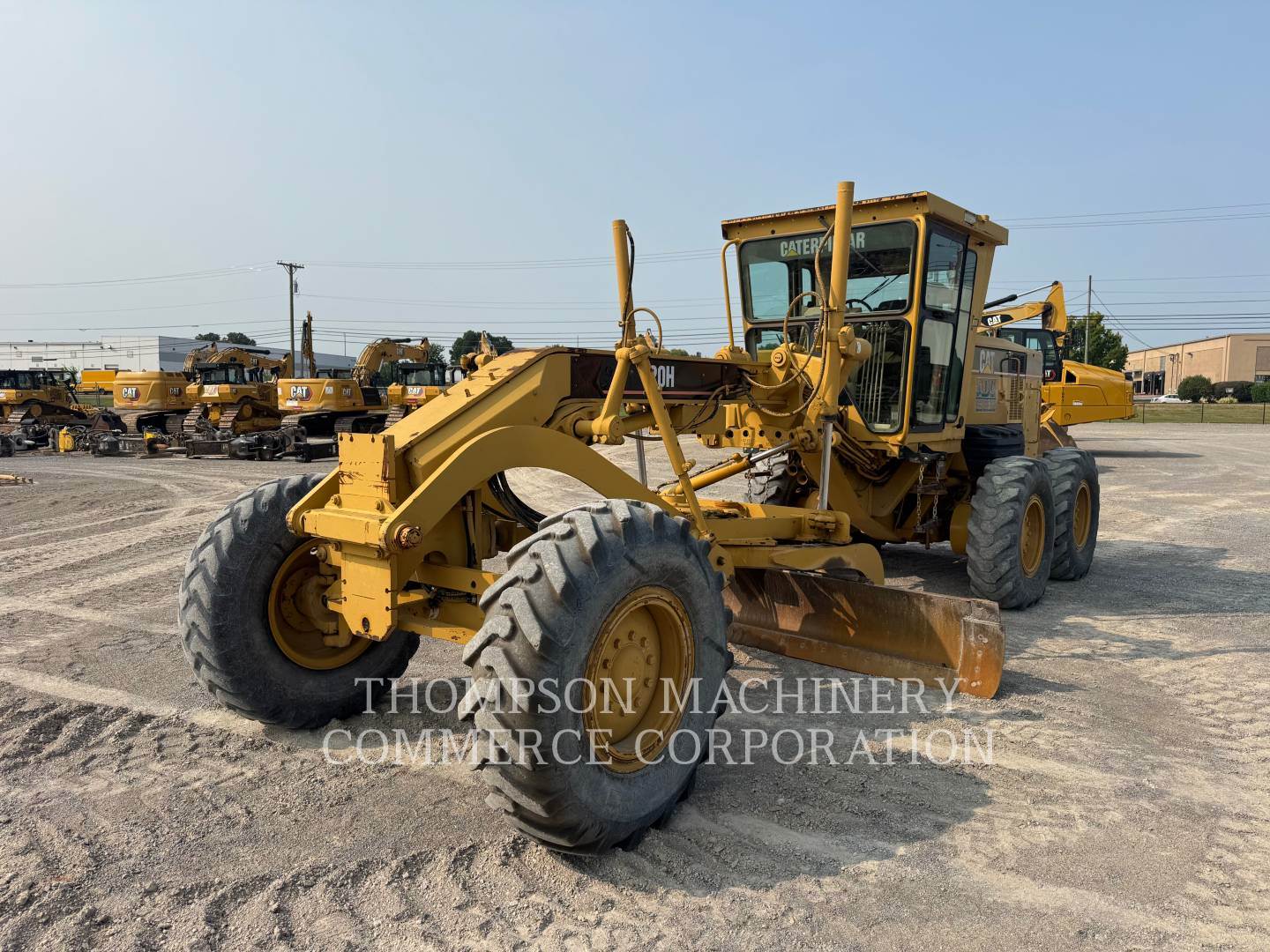

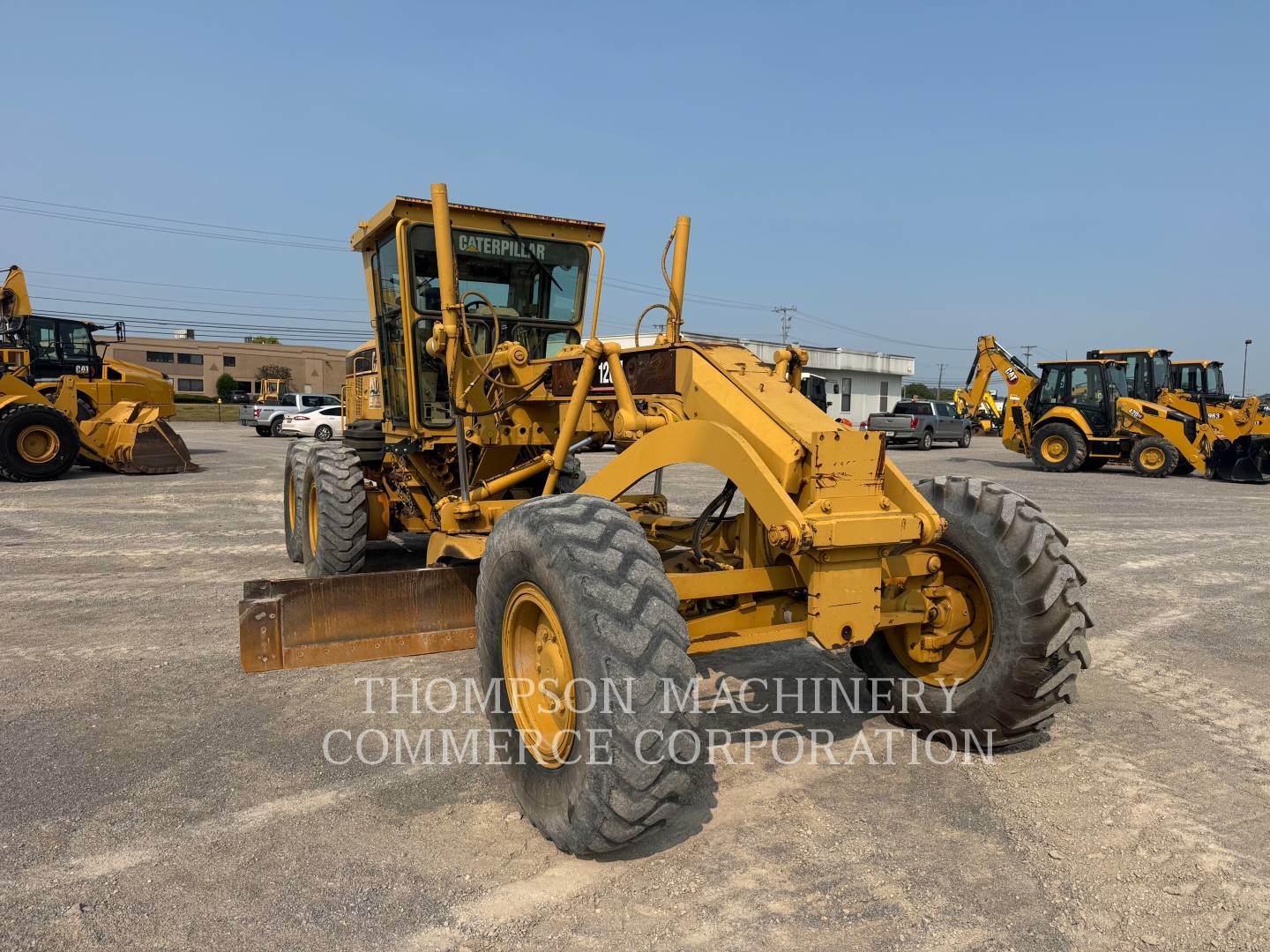

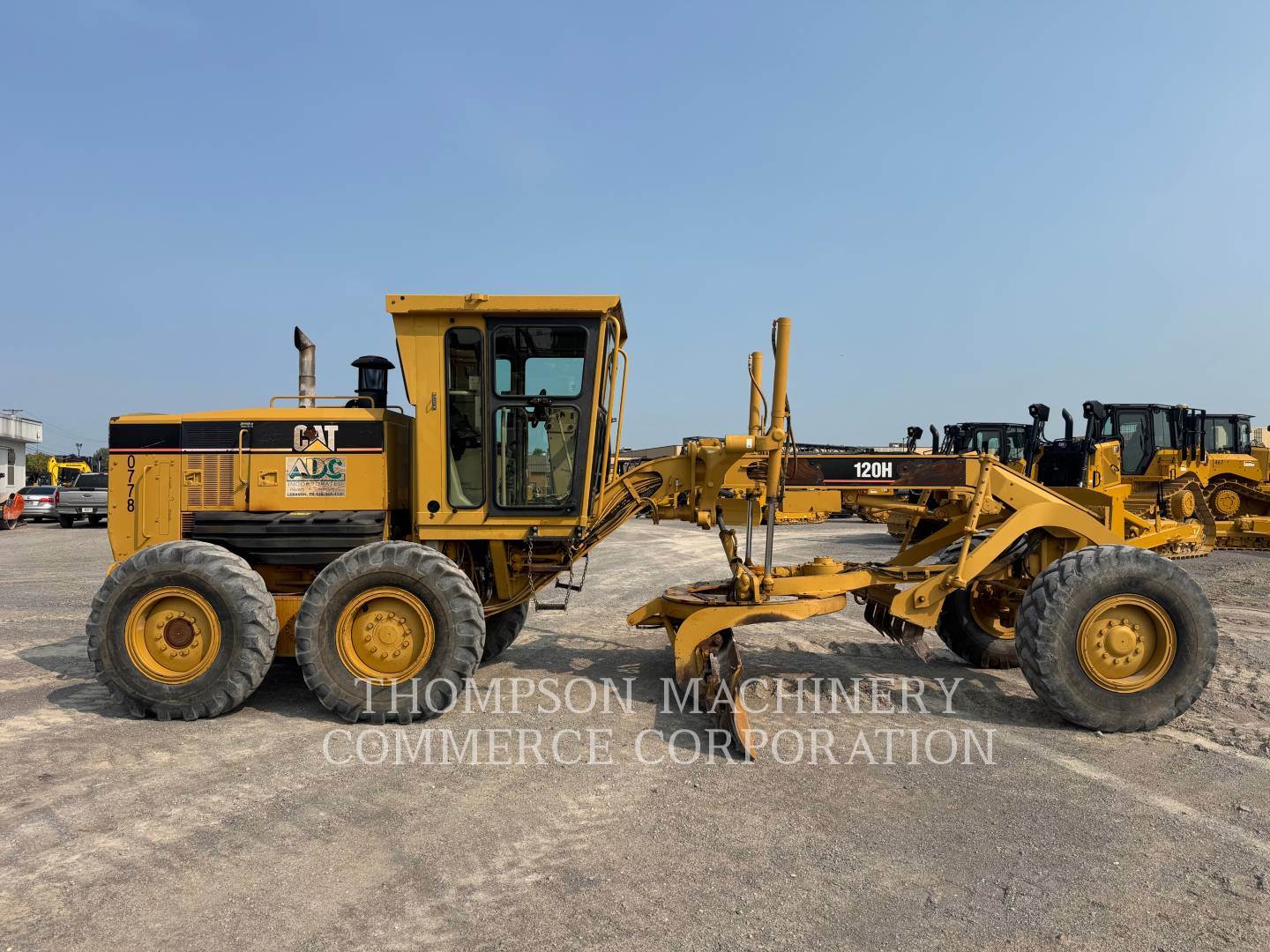

2006 Caterpillar 120H NA Motor Grader For Sale, 10,504 Hours | Lavergne, TN | 13850702

Year	2006
Category	Motor Graders
Manufacturer	Caterpillar
Model	120H NA
Condition	Used
MLS Number	13850702

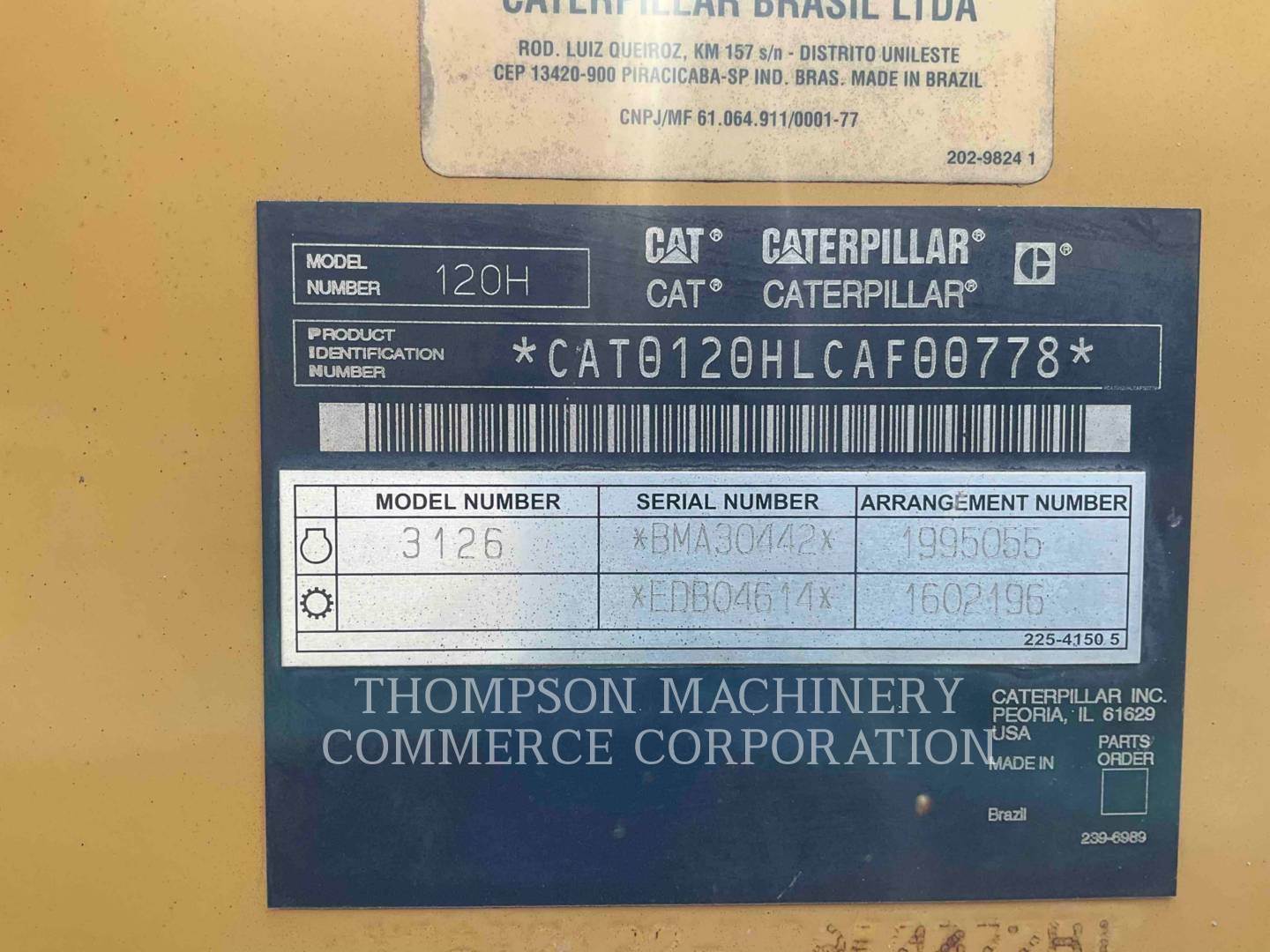

Serial Number	CAF00778
Usage	10,504 Hours

Year

2006

Rating	As-Is

Inspection Report

GENERAL CONDITION

ET Product Status Report Download	Yes
Logged / Active Codes	Yes
Machine Starts and is Operable	Yes
Tires are Aired Up and Drivable	Yes
Visible Oil Leaks	Yes
Body	Good
Frame - GENERAL CONDITION	Good
General	Good

GENERAL APPEARANCE

Cleaning Required	Yes

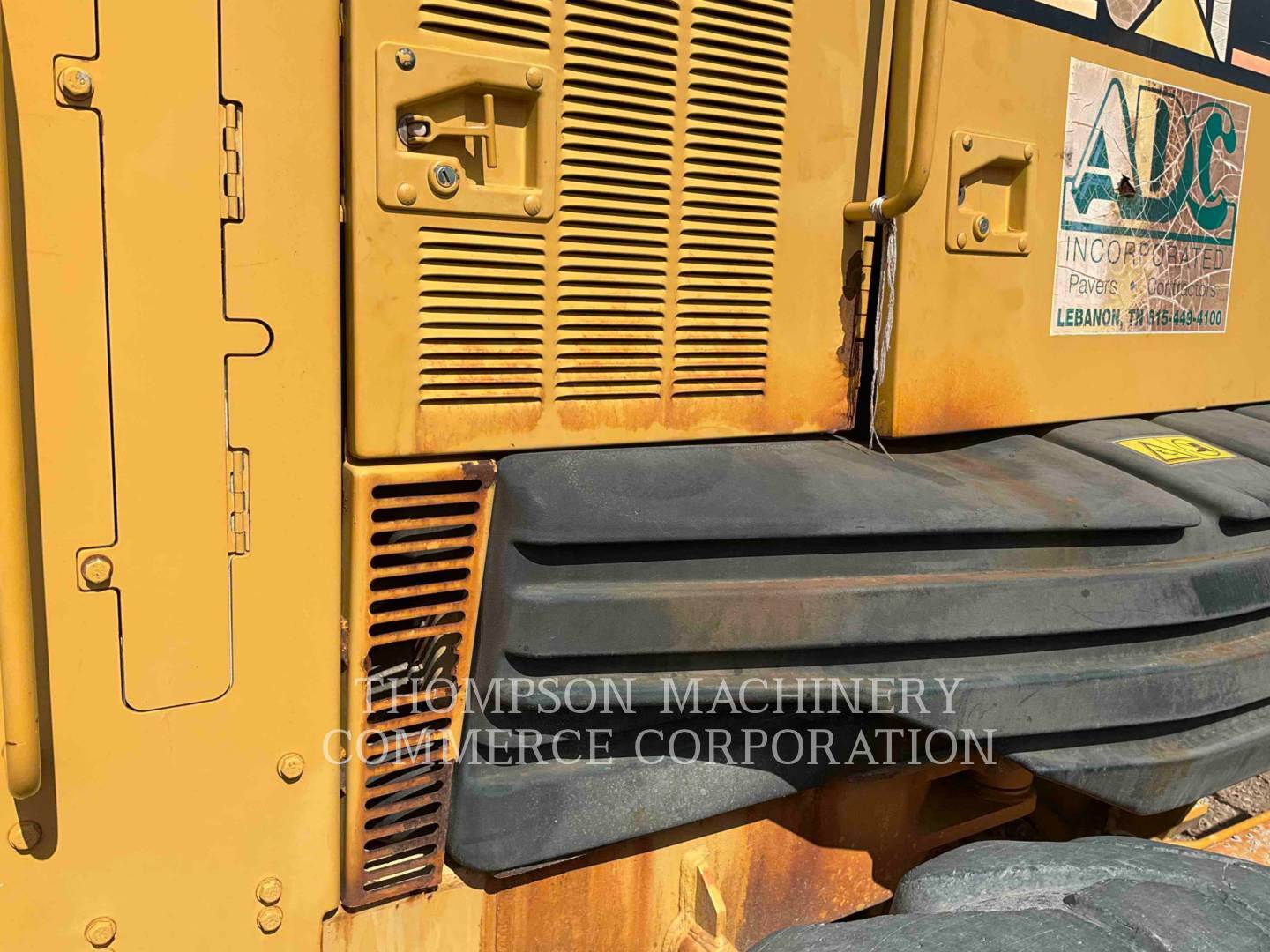

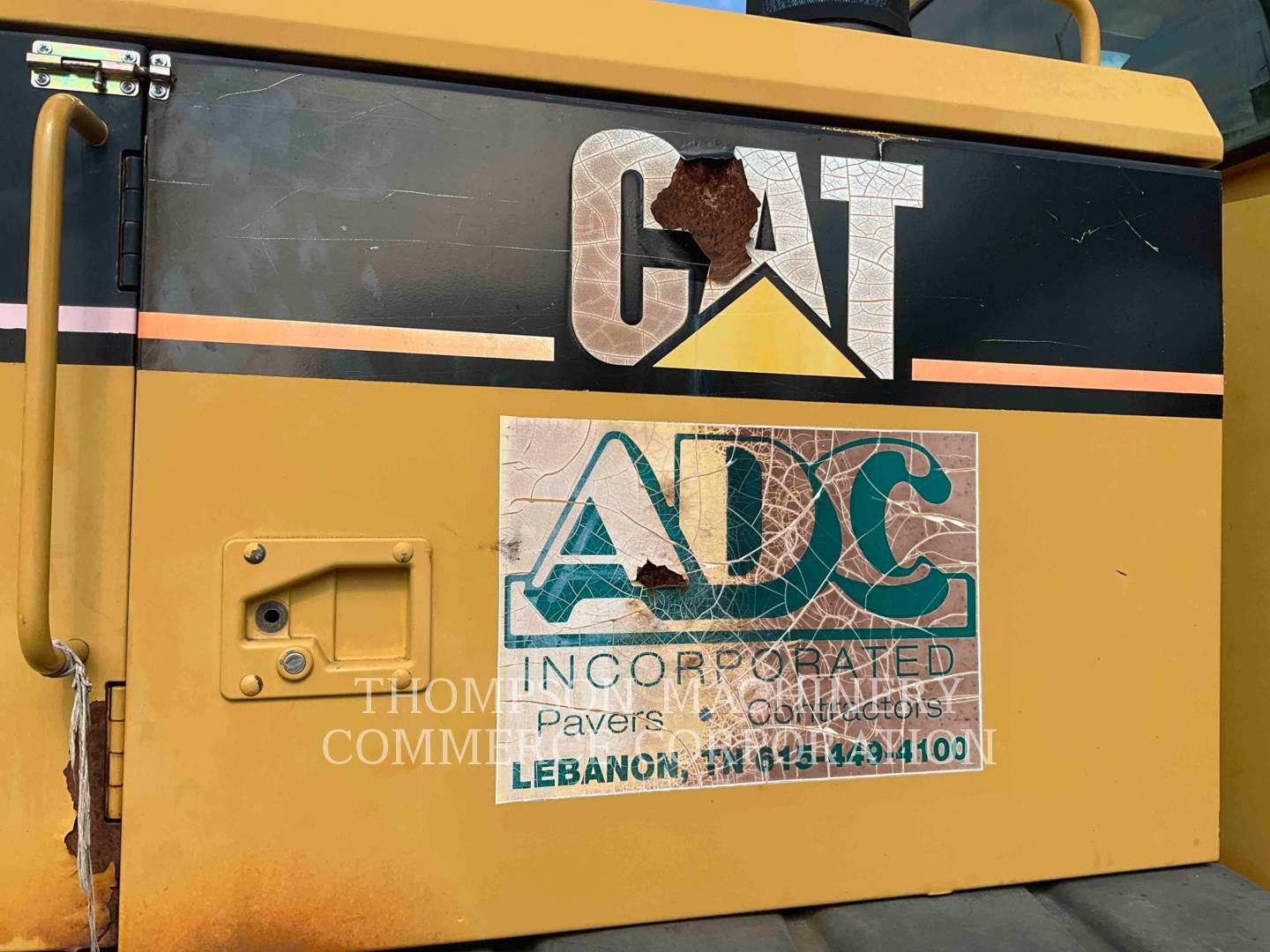

Notes - GENERAL APPEARANCE	Has sheet metal damage n different places, paint is faded and has rust in places .
Battery Box	Good
Cab or Canopy	Good
Crankcase Guard / Transmission Guard	Good
Decals	Fair
Draw Bar	Good
Engine Enclosures	Good
Front Frame Welds	Good
Fuel Tank	Good
Grab Irons	Fair
Hood	Good
Paint	Fair
Pre-Cleaner Bowl	Good
Radiator Grill	Good
Rear Frame Welds	Good
Sheet Metal	Fair
Steps / Ladder	Good

SAFETY ITEMS

Parking Brake Functioning	No
ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
Safety Locks / Pins	Yes
Service Brakes Functioning	Yes
Notes - SAFETY ITEMS	Service brake is working but seems to be a little weak.
Back Up Alarm	Fair
Horn	Poor
ROPS	Good
Seat Belt / Date	Fair
Secondary Exit	Good

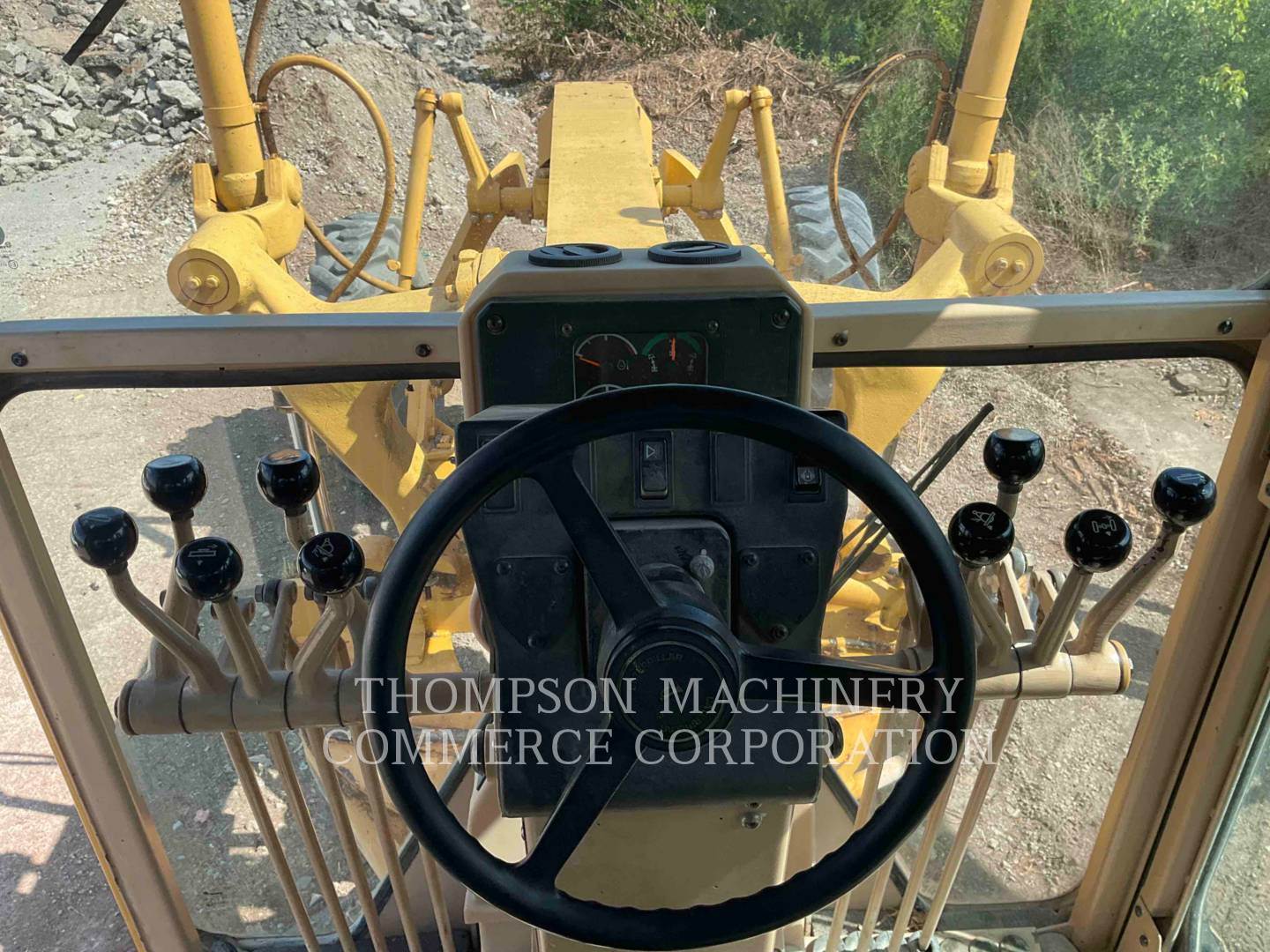

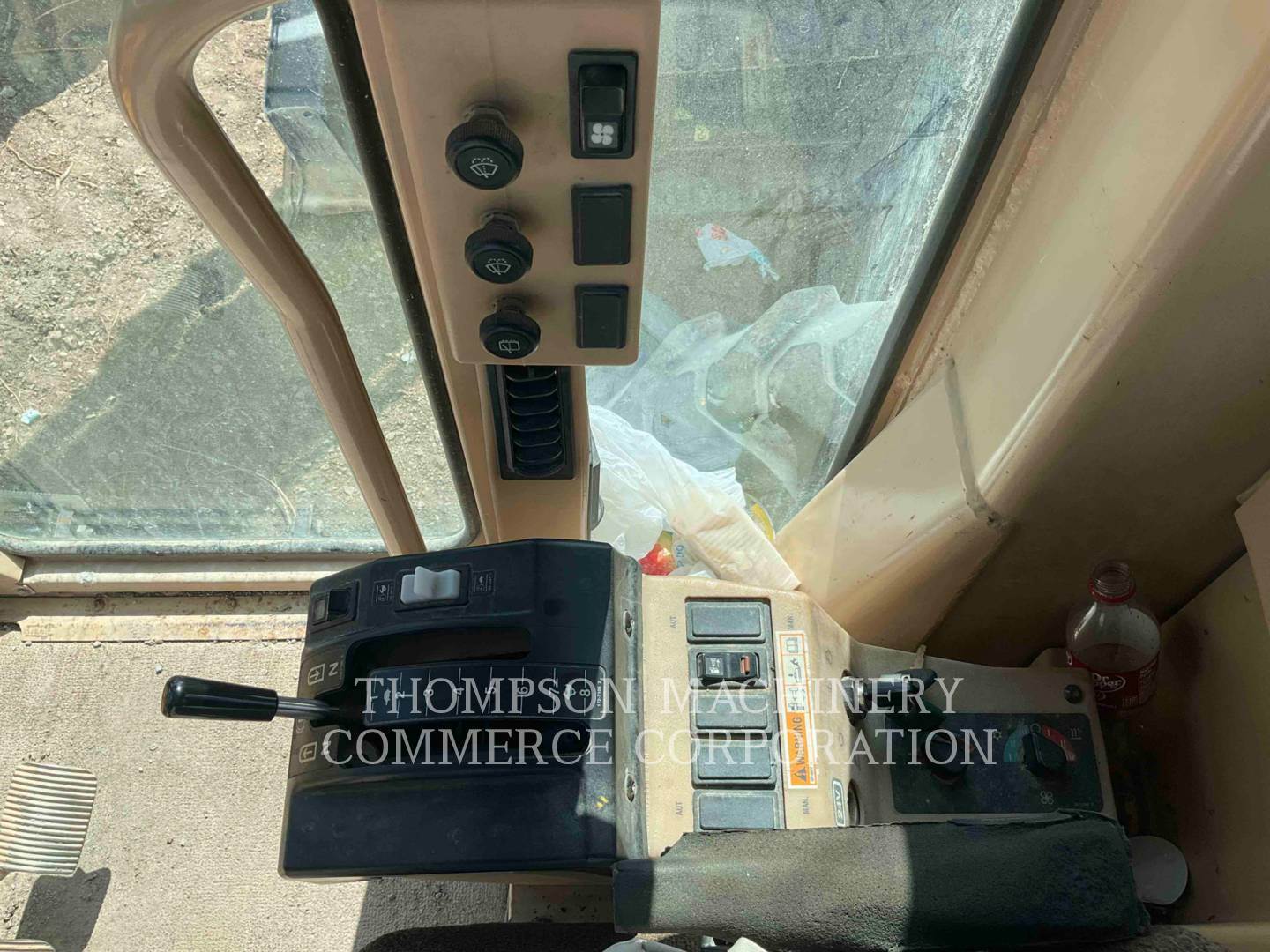

OPERATOR STATION

Fuel Level - OPERATOR STATION	Low

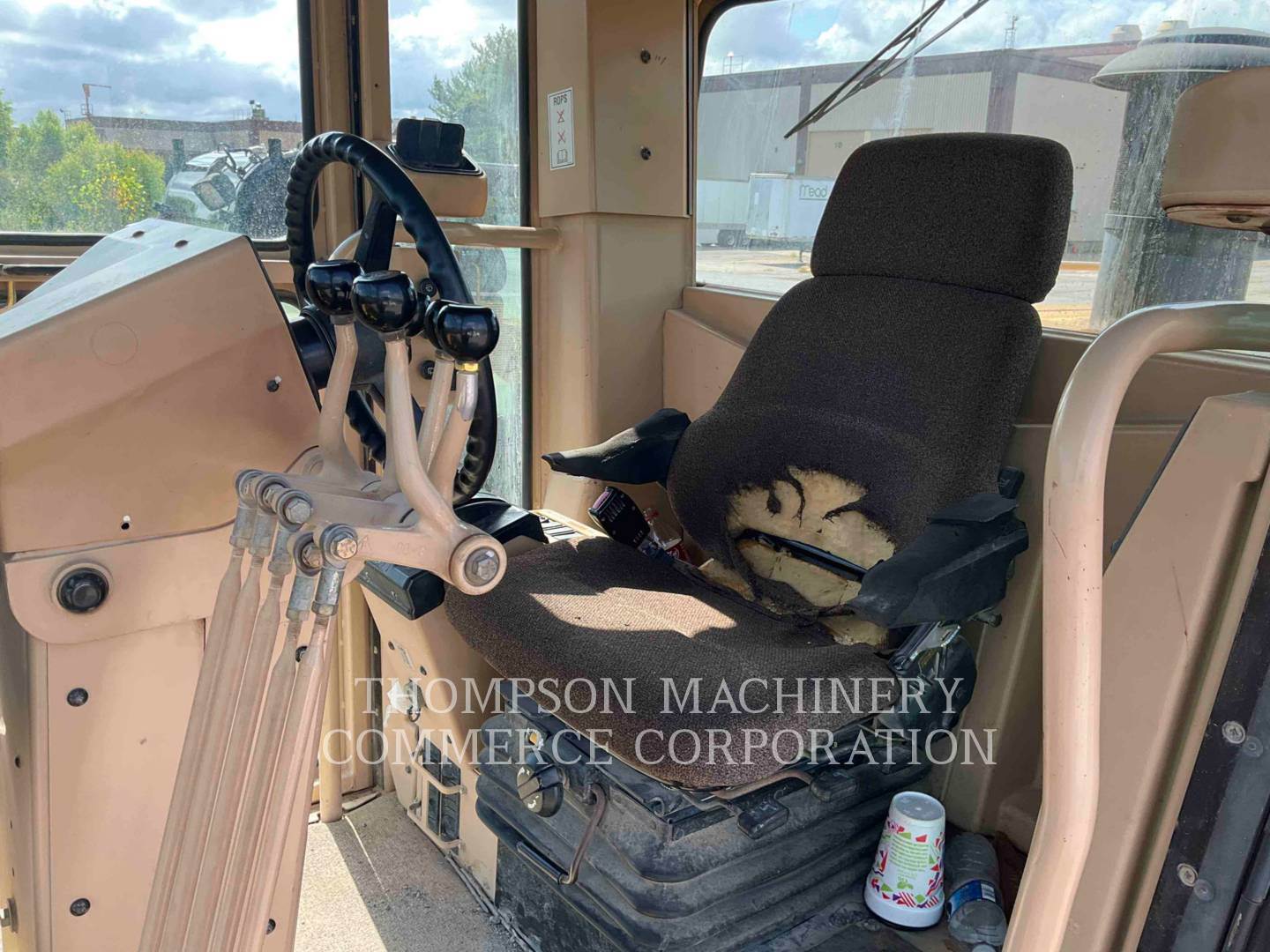

Notes - GAUGES, OPERATOR STATION, CONSOLE	AC is cool not cold, seats ripped.
Air Conditioner	Fair
Dash Console	Good
Door Latches / Hinges / Seals	Good

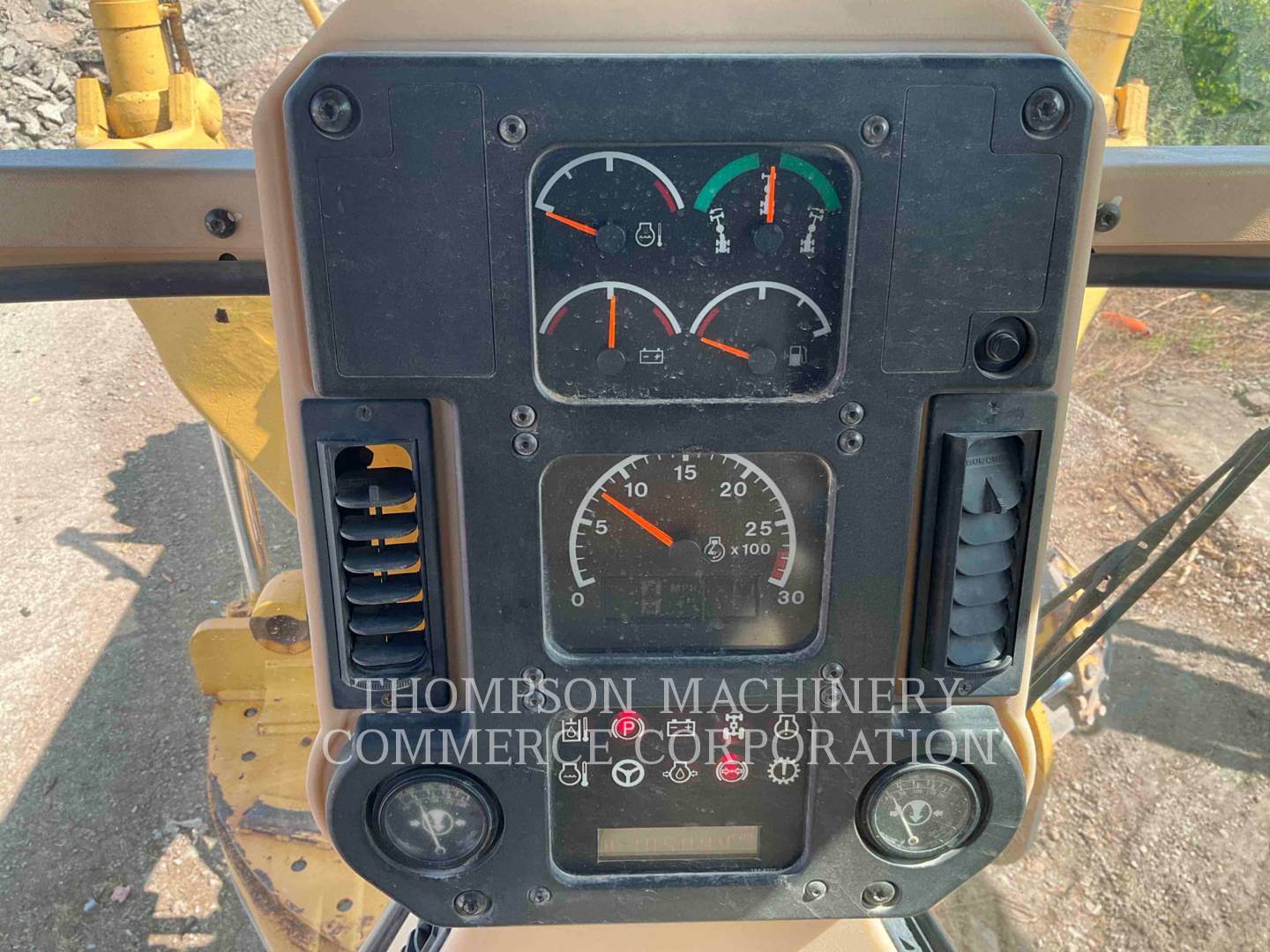

Gauges	Good
Headliner	Good
Heater / Defroster	Good
Hour Meter - GAUGES, OPERATION STATION, CONSOLE	Good
Hydraulic Controls	Good
Interior Lights	Good
Interior Plastic / Fabric	Good
Mirrors	Good
Monitoring Display	Good
Pans/Guards	Good
Seat Cushions / Suspension / Type	Fair
Switches	Fair
Transmission Controls	Good
Windows	Good
Windshield Wipers	Fair

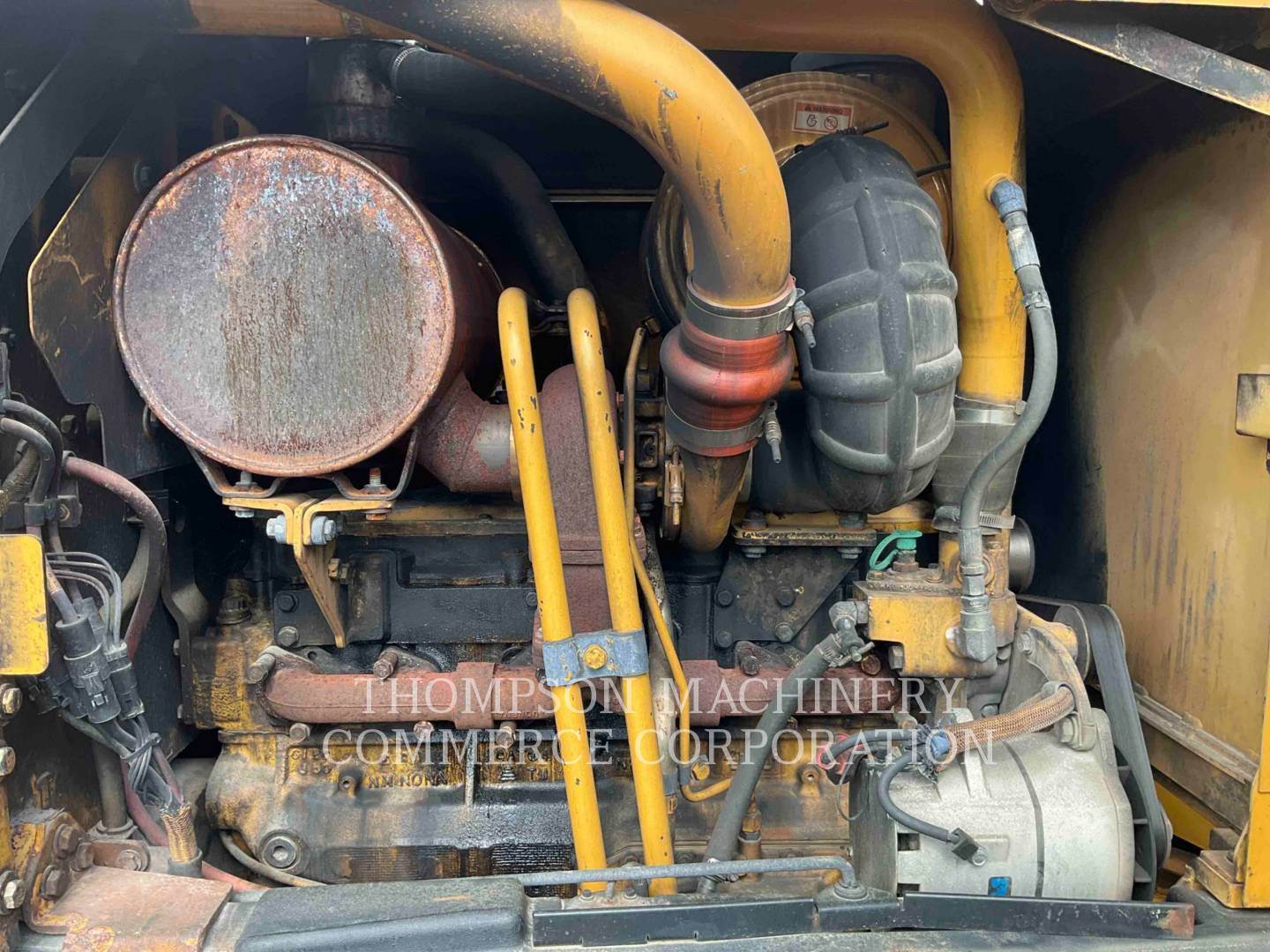

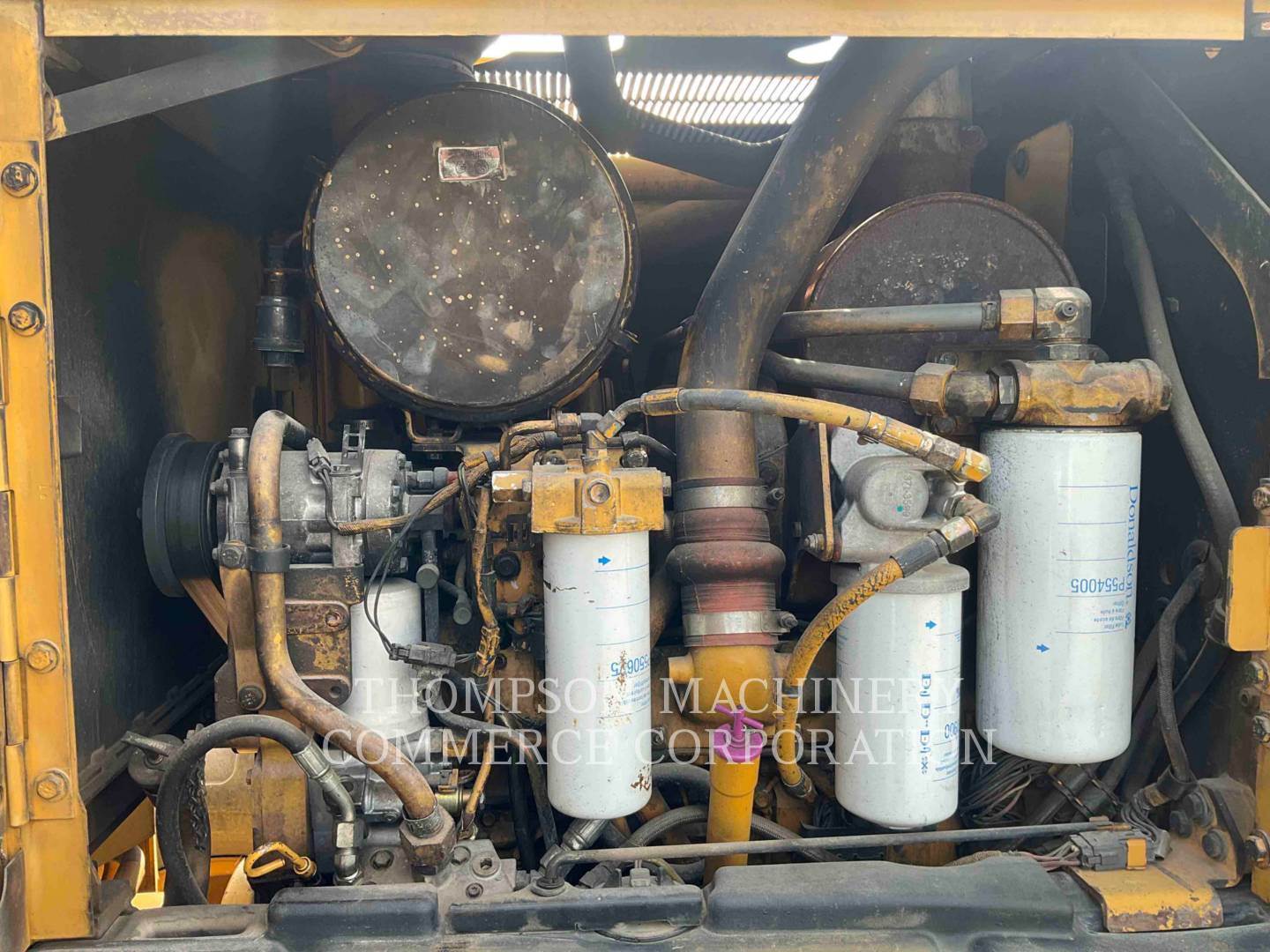

ENGINE

Fuel Leaks	No
Oil Leaks	Yes
Water in Oil	No
Notes - ENGINE	Looks to have an exhaust leaks.
Oil Pressure (H/L/N)	Good
Smoke Color (B/D/L/W)	Grayish brown under a load
Belts / Pulleys - ENGINE	Fair
Engine Oil Level / Condition	Good
Exhaust / Muffler / Stack	Fair
Fuel Injection System	Good
Governor	Good
Intake / Air Filters	Good
Operating Condition - ENGINE	Good
Turbocharger / Blower	Good

COOLING SYSTEM

Compression in Radiator	Yes
Coolant Leaks	No
Folded Core Radiator	No
Modular Radiator	No
Oil in Anti-Freeze	No
Sand Blast Grid	No
Standard Radiator	Yes
Notes - COOLING SYSTEM	Coolant looks low.
Anti-Freeze Level / Color / Condition	Good
Belts / Pulleys - COOLING SYSTEM	Fair
Coolers	Good
Fan	Good
Fan Drive / Type	Good
Fan Shrouds / Guards	Good
Hoses / Tubes	Good
Radiator	Good
Water Pump	Good

ELECTRICAL, STARTING AND CHARGING SYSTEM

Active Codes	Yes
Signal Lights	Yes
Alternator	Good

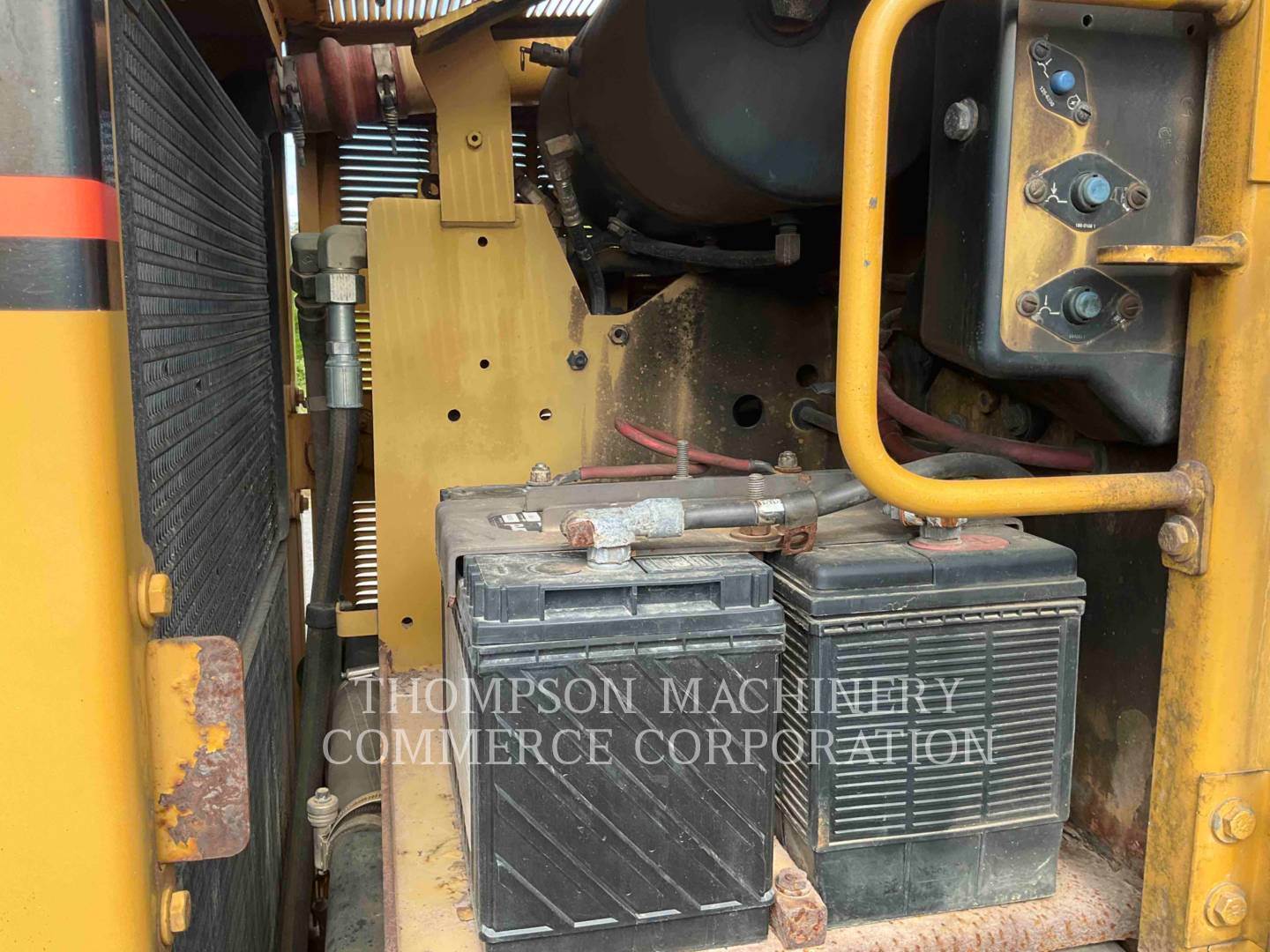

Batteries / Cables	Good
Starter	Good
Wiring	Good

TRANSMISSION

Auto Shift	No
Leaks - TRANSMISSION	No
Powershift	Yes
Transmission - Noisy	No
Notes - TRANSMISSION	Couldn’t get the transmission past 4 th because of room. Pulls through the brakes in 1st and 2nd forward and reverses
Case - TRANSMISSION	Good
Controls - TRANSMISSION	Good
Cooler	Good
Lines / Fittings - TRANSMISSION	Good
Operating Condition - TRANSMISSION	Good
Pump - TRANSMISSION	Good
Seals	Good
Temp / Pressure Gauges	Good
Transmission - Forward Shifts	Good
Transmission - Reverse Shifts	Good
Transmission Oil Filter Condition / Service Hours	Good
Valves	Good

STEERING

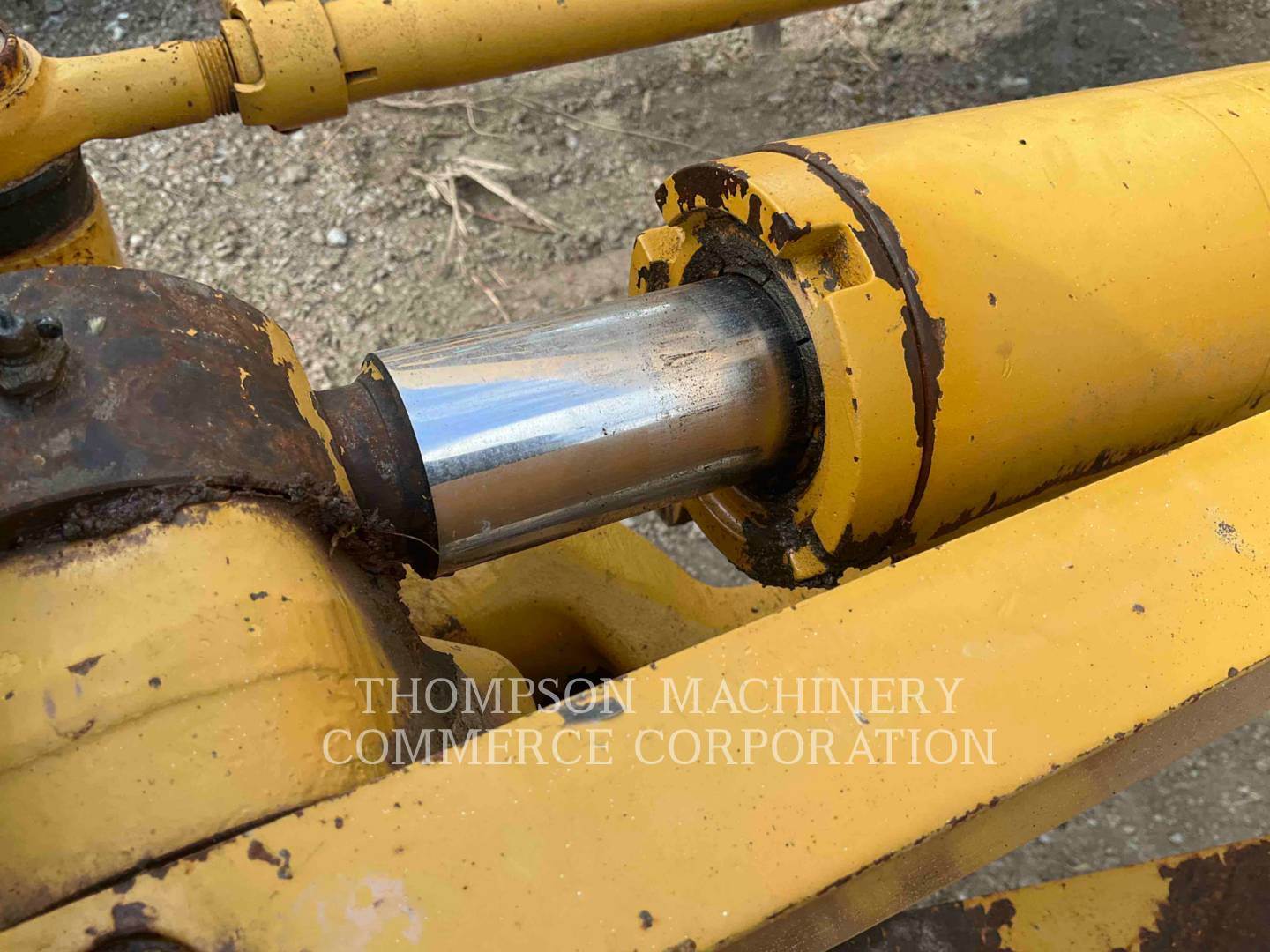

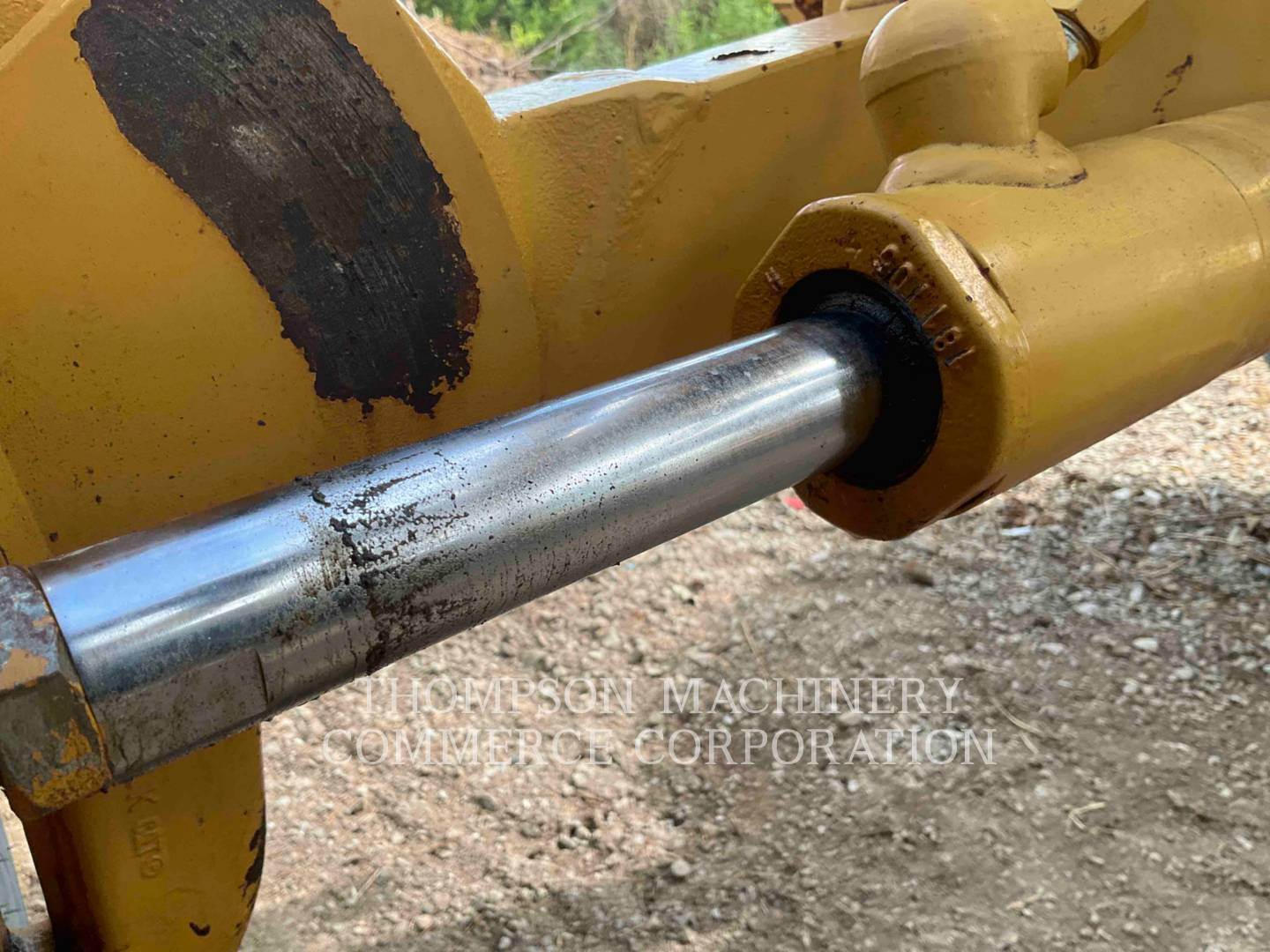

Notes - STEERING	Has leaks on some hoses and at the wiper seals on the cylinders
Articulate P & B	Good
King Pins	Fair
Lines / Fittings	Fair
Steering Column / Tilt	Good
Steering Cylinder	Fair
Steering Frame	Good
Steering Linkage	Good
Steering Operating Condition	Good
Steering Pump	Good
Steering Valve	Good
Tie Rods / Rod Ends	Good
Wheel / Joystick	Good
Wheel Lean Cylinder - STEERING	Good

BRAKE

Notes - BRAKE	Parking brake is not holding, service brake seems to be weak. Transmission Pulls through the brakes in 1st and 2nd forward .
Accumulators	Good
Brake Linkage	Good
Compressor	Good
Control Valve	Good
Lines	Good
Parking Brake Operation	Poor
Pedal	Good
Service Brake Operation	Fair

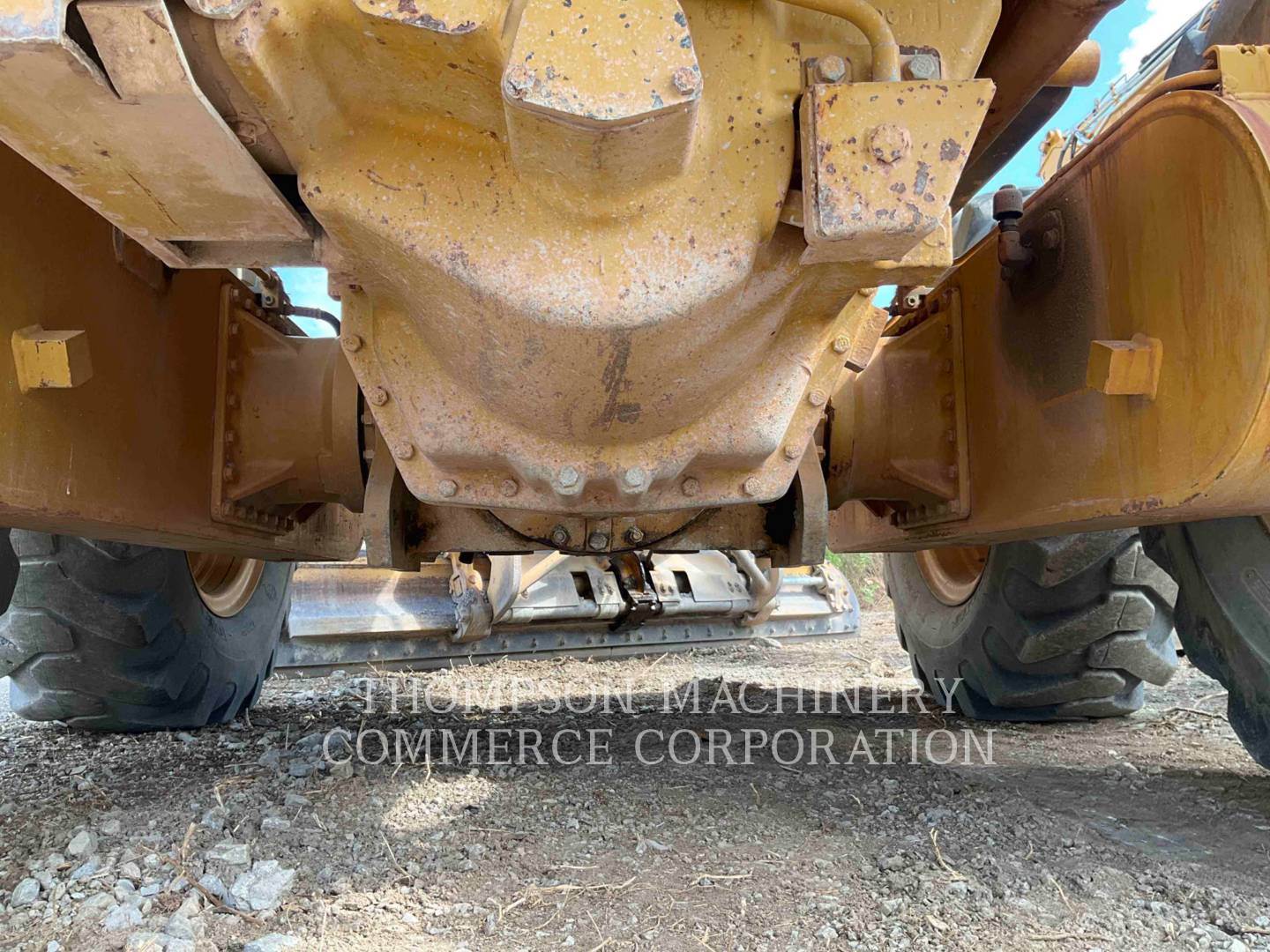

DRIVECHAIN / TANDEMS

Differential	Good
Differential Lock / Operation	Good
Drivetrain / Tandem Leaks	Good
Planetary	Good
Tandem Housing / Drive Chains	Good
Wheel Lugs & Rims	Good

HYDRAULICS

Leaks - HYDRAULICS	Yes

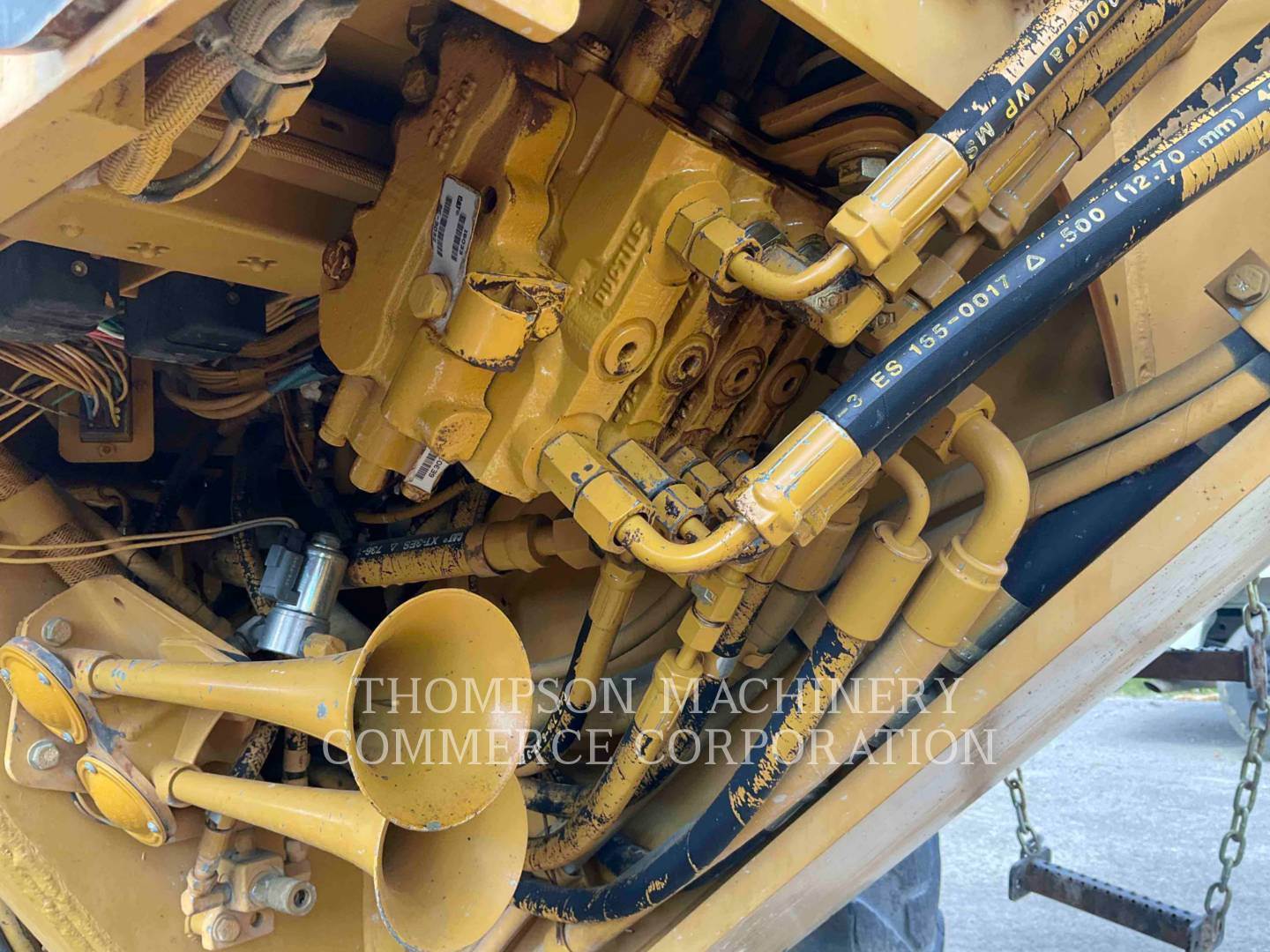

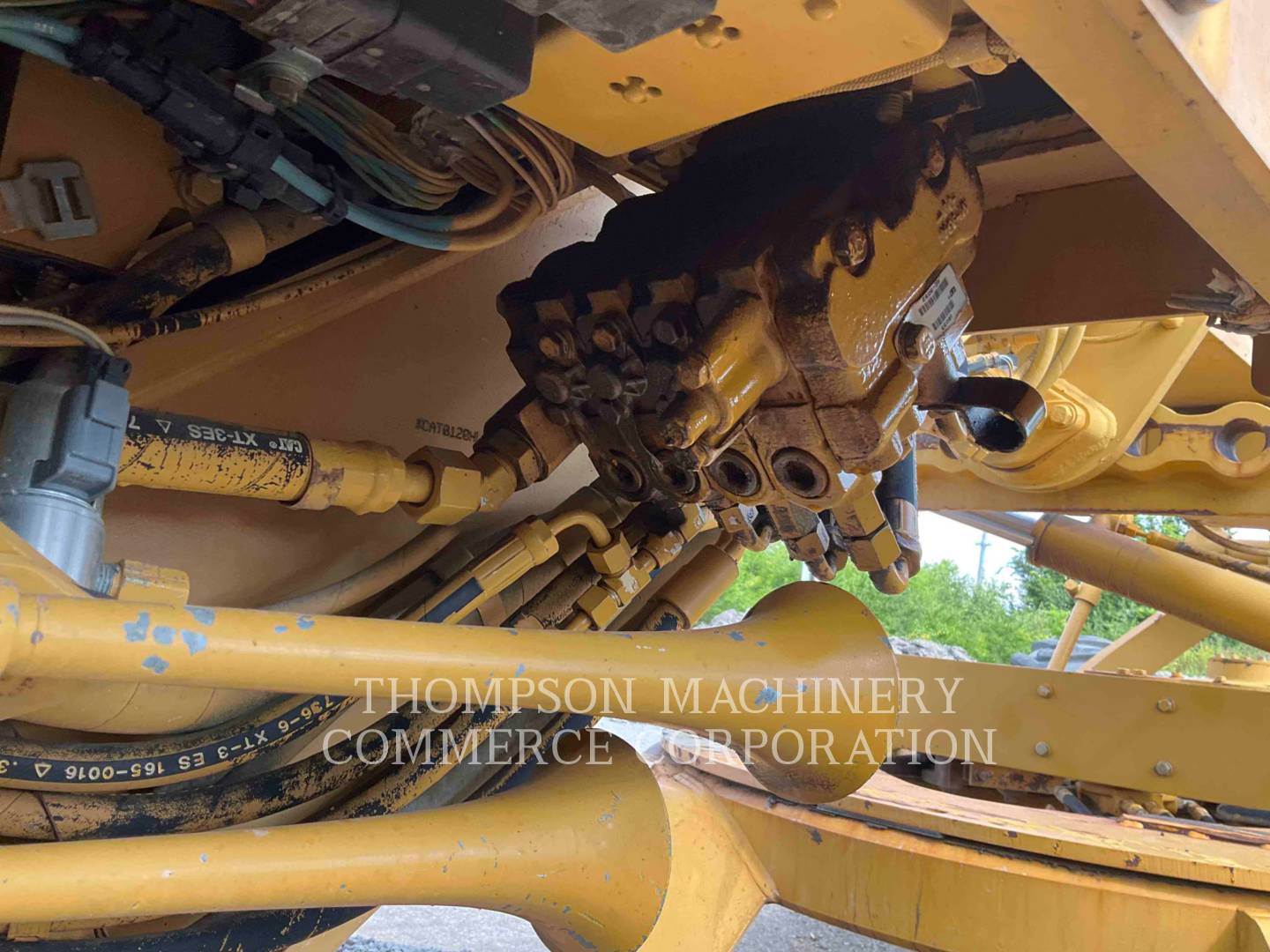

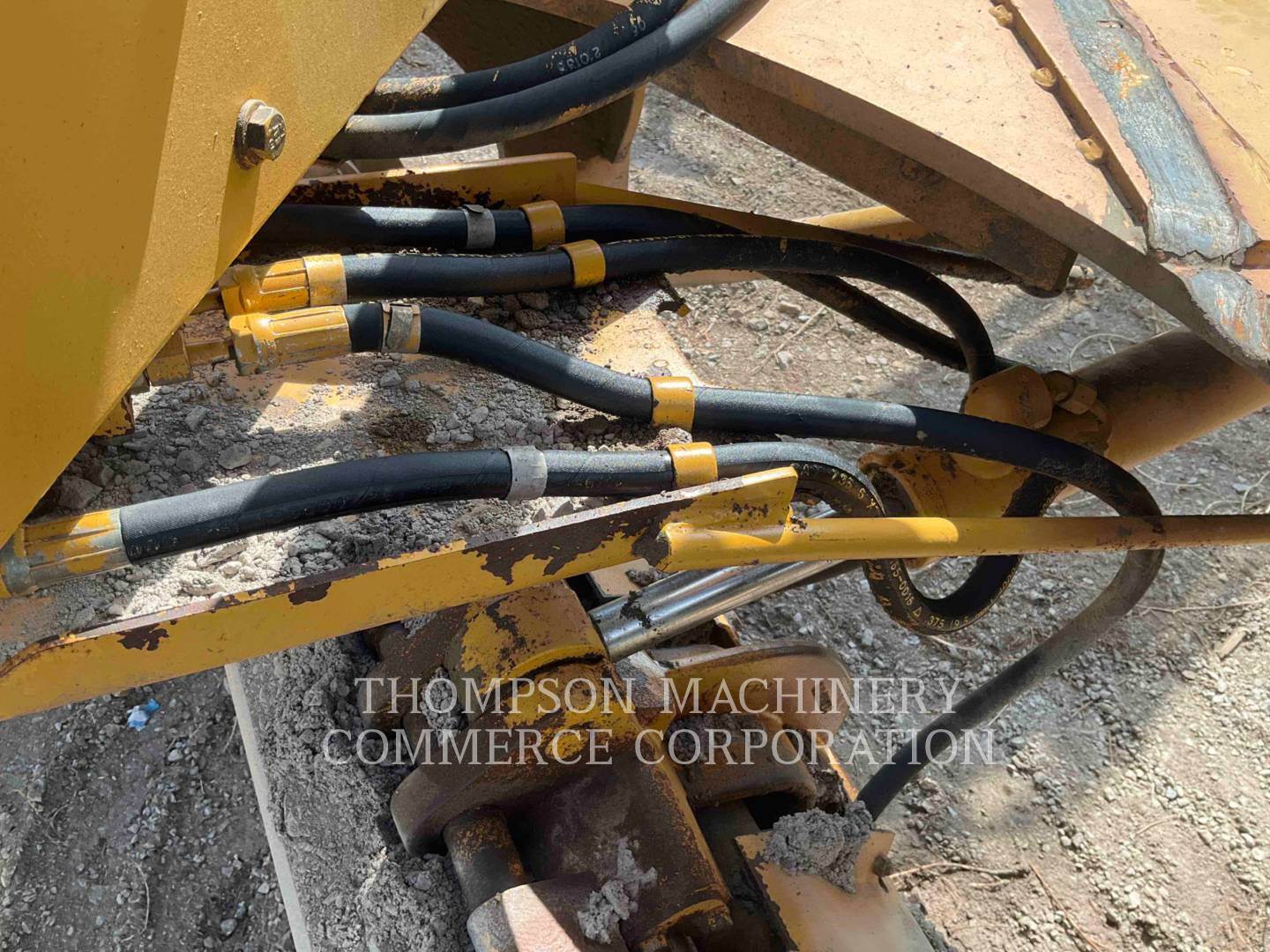

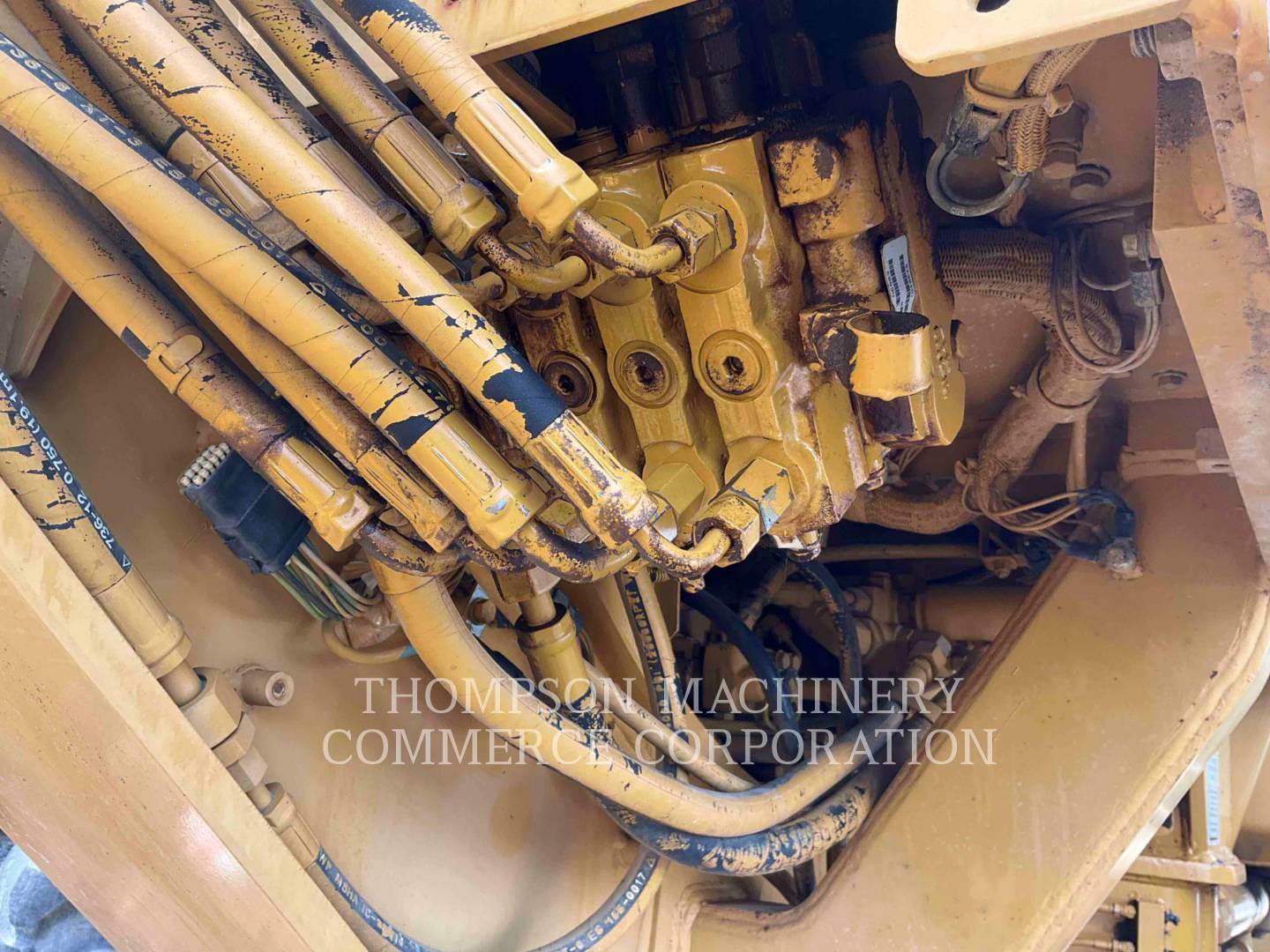

Notes - HYDRAULICS	Has several leaks on the valves, cylinders, hoses, and play in the pins , bushings and mounts.
Blade Cushion	Good
Circle Side Shift Cylinder	Good
Cylinder Mounts / Pins	Fair
Hydraulic Lines / Fittings	Fair
Hydraulic Pump	Good
Hydraulic Valves	Good
Lift Cylinders	Good
Linkage	Good
Operating Condition - HYDRAULICS	Good
Pump Drive Shaft	Good
Side Shift Cylinder	Good

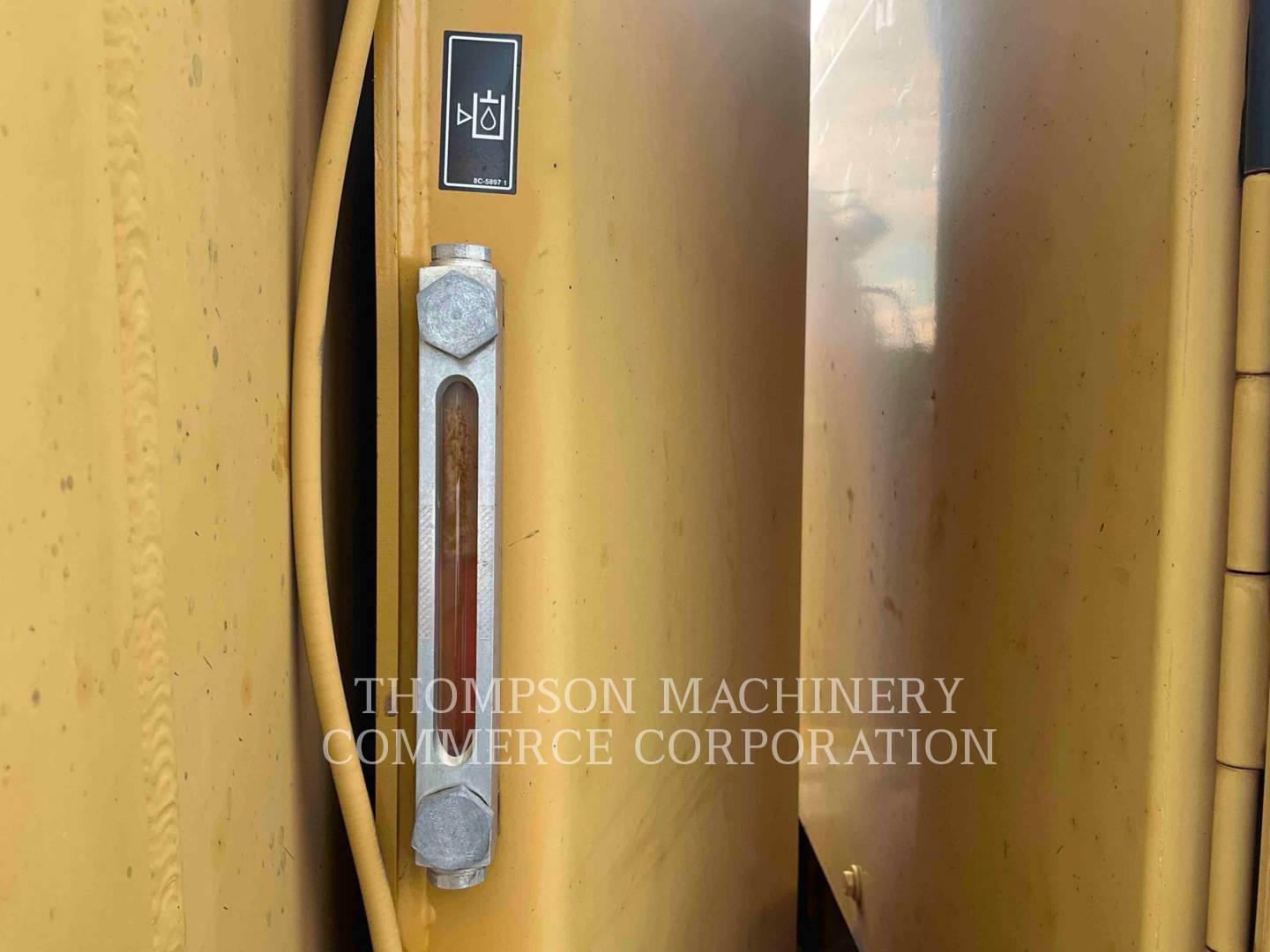

Tank / Sight Glass / Cap	Good

BLADE

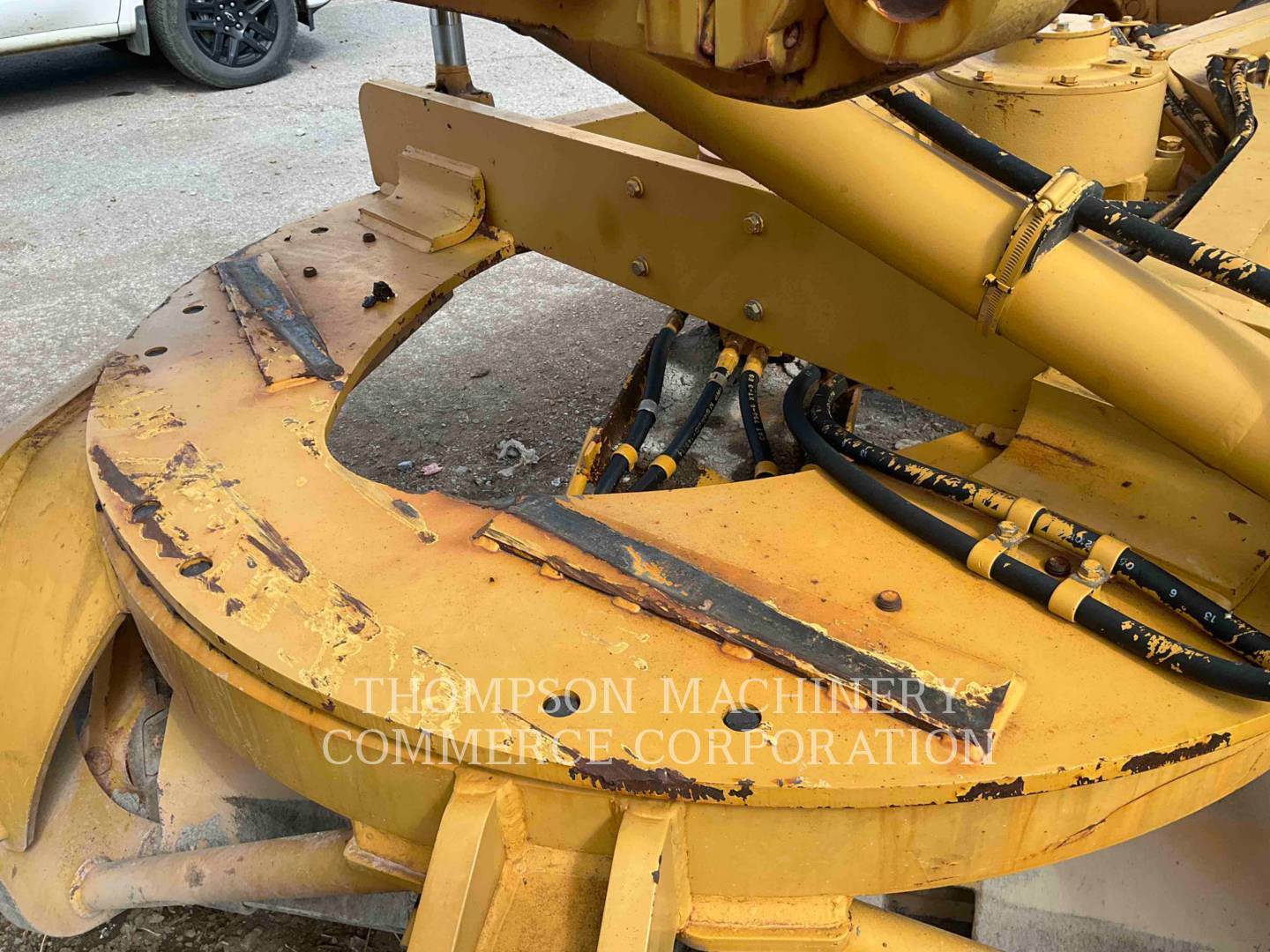

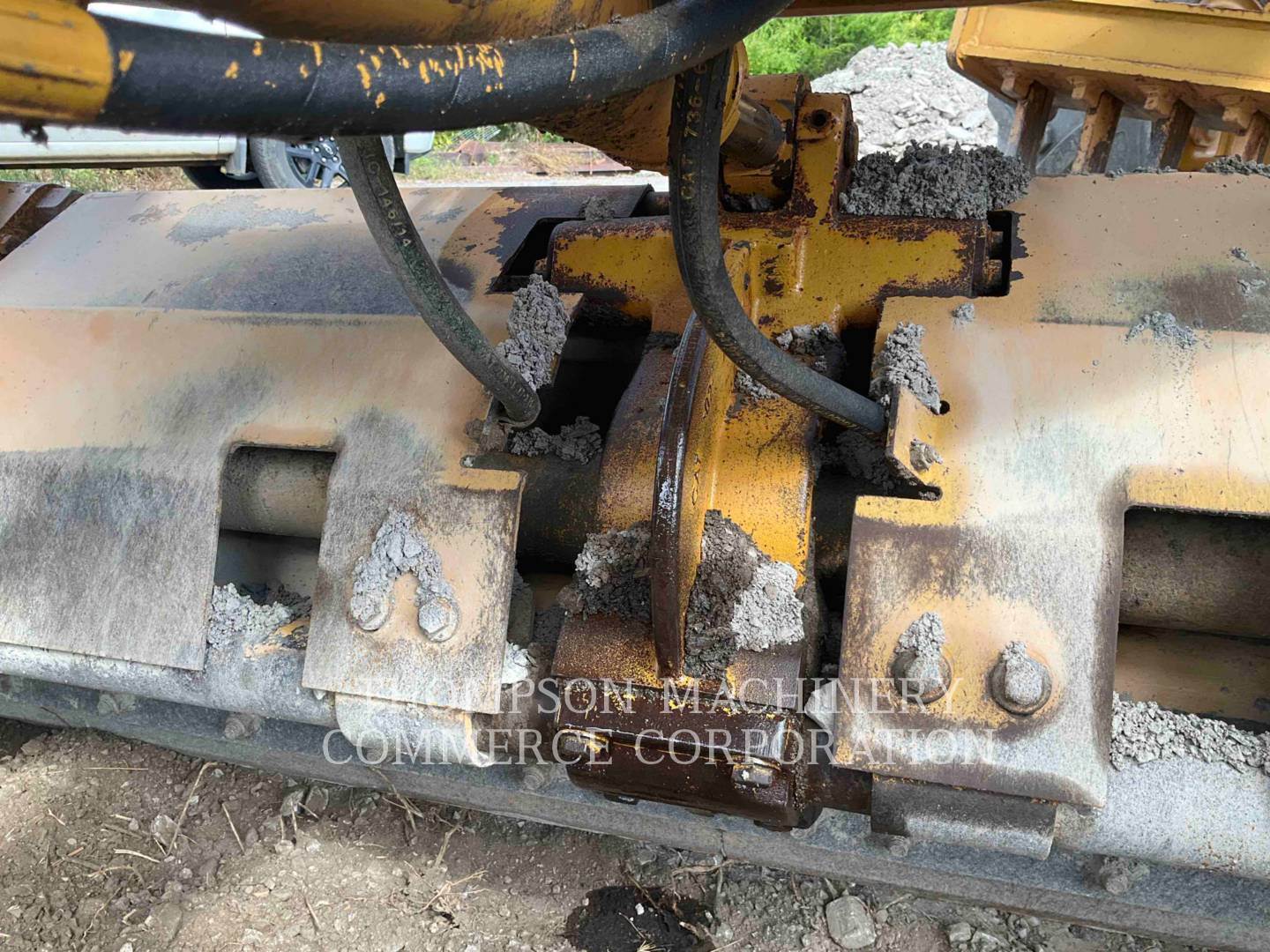

Notes - BLADE	Has play in the mounts pins and bushings, play in the circle mount when rotating.
Circle A Frame	Fair
Circle Frame	Fair
Circle Shoes / Inserts	Good
Cutting Edge	Good
Cylinder Balls / Caps	Good
Face / Moldboard	Good
Frog / Base Edge	Good
Moldboard Tip Brackets / Inserts	Good
Ring Gear	Good
Saddle	Good
Tip Bracket Pivots / Bearings	Good

SCARIFER

Scarifier Type	Has shanks missing.
Brackets / Studs - SCARIFER	Good
Front Mount	Good
Lines / Fittings - SCARIFER	Good
Mid Mount	Good
Pins & Bushings - SCARIFER	Good
Scarifer Beam	Good
Scarifer Cylinders	Good
Scarifer Frame	Good
Shanks / Scarifier GET	Fair

TIRES

Average Life Remaining - TIRES	5 to 45% , see pics.
Tire Size - TIRES	14.00-24
Left Center Tire
Make / Serial Number
Life Left	10%
Left Front Tire
Make / Serial Number
Life Left	45%
Left Rear Tire
Make / Serial Number
Life Left	10%
Right Center Tire
Make / Serial Number
Life Left	20%
Right Front Tire
Make / Serial Number
Life Left	5%
Right Rear Tire
Make / Serial Number
Life Left	10%

COMMENTS, MISC. REPAIRS, GENERAL REMARKS

comment 1	The machine starts and runs. Has leaks in several places from the engine and hydraulic system. Parking brake doesn’t work and the brakes are a little on the week side. AC is cool not cold. Seats ripped. Sheet metal damage in several places.

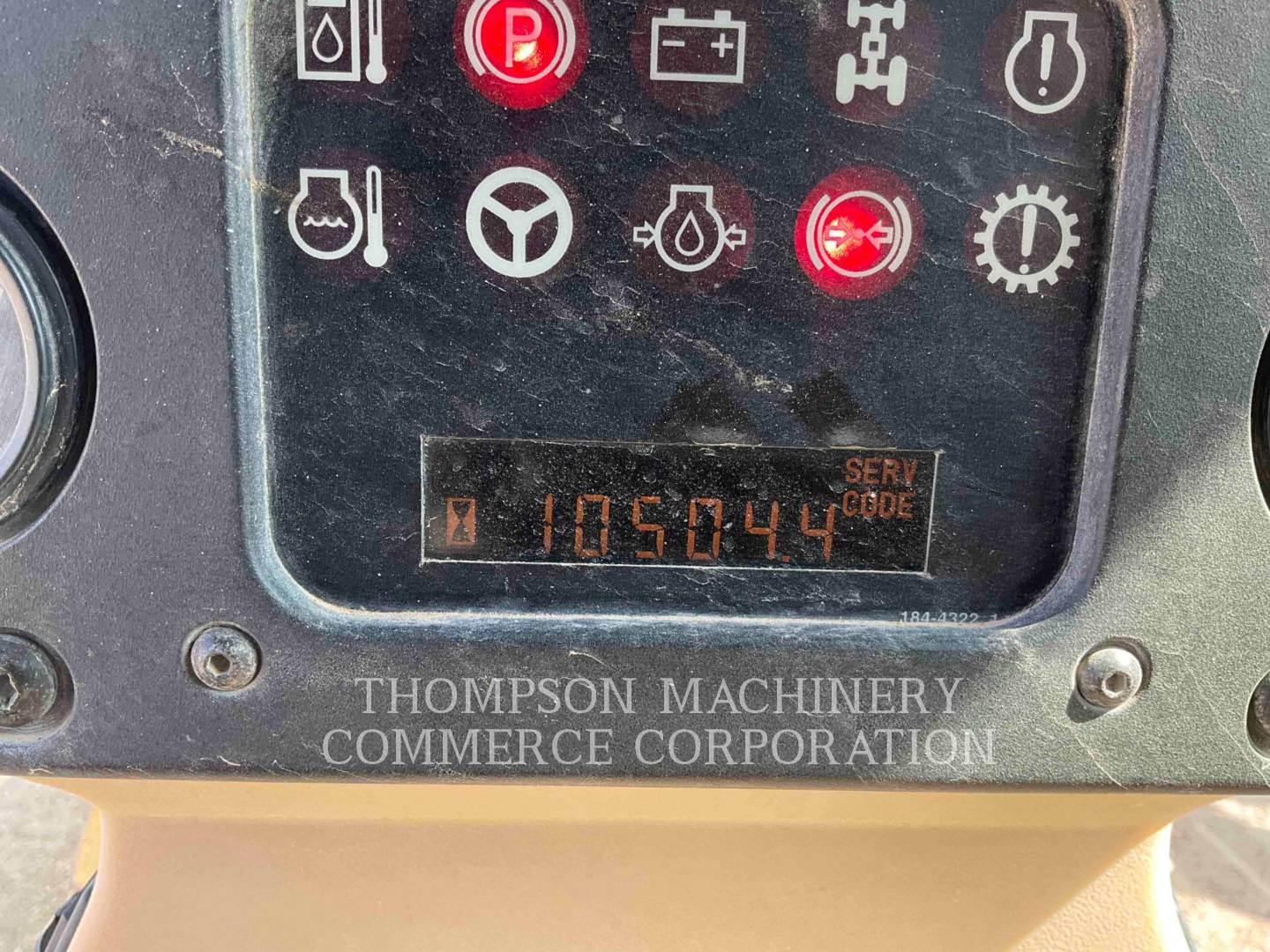

comment 2	Play in all the pins, bushings, and mounts. Has a service code on the dash so a PSR was pulled. Couldn’t get the transmission past 4 th because of room.

2006 Caterpillar 120H NA Motor Grader

Product Specifications

Product Description

$49,500 USD

Located in Lavergne, TN, US
