2007 Case IH Steiger 485 QuadTrac Tractor

GovDeals is an Online Auction – LOT#12217-406 Auction Ends 10/17/2025. To see full details, additional photos and current bid, please use this link- https://govdeals.bid/3WvkoeX


2007 CASE IH STEIGER 485 QUADTRAC


**NO SCREENING** Tractor is in storage no access to screen property.

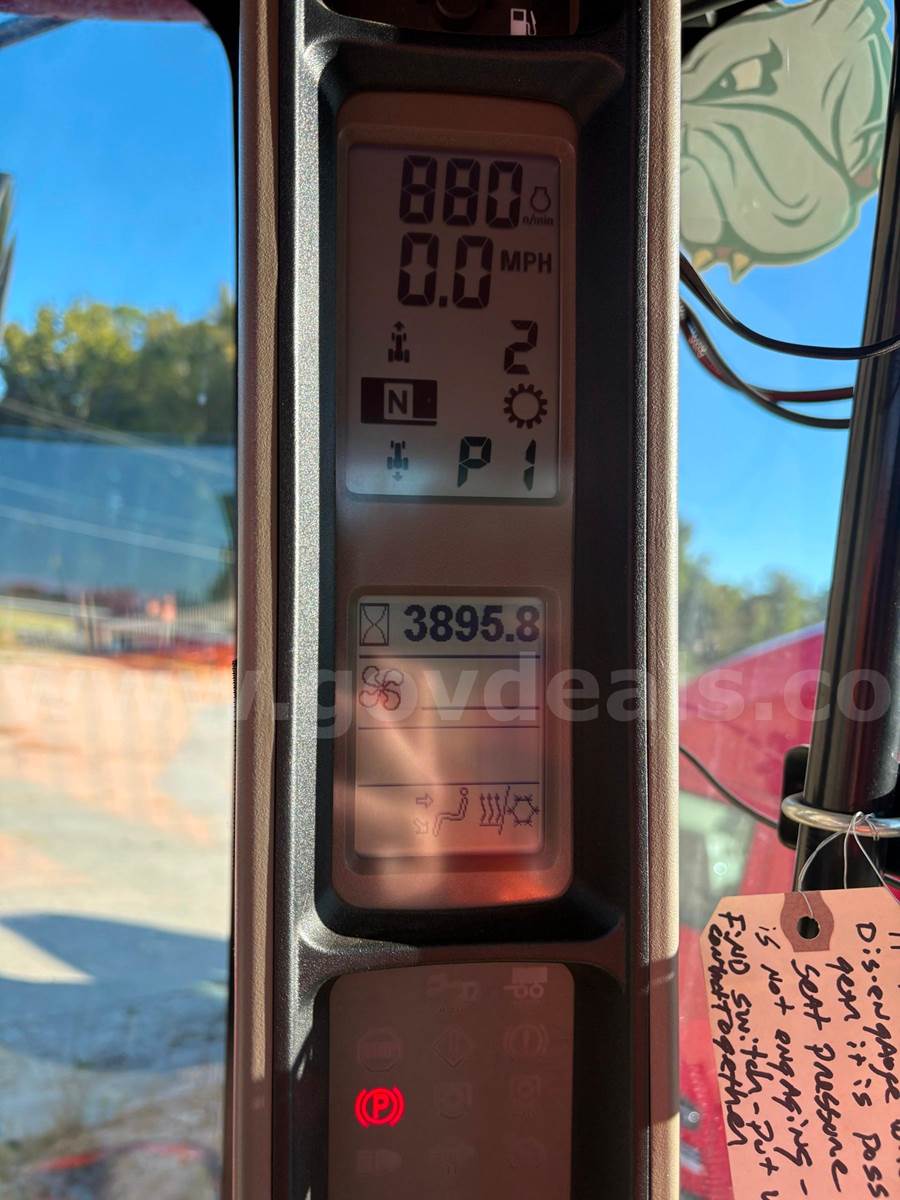

Hours: 3895

Model number: 485STX

Serial number: Z7F108632

MFG: CASE IH

Engine Horsepower: 485 hp
Engine:
Iveco 12.9L 6-cyl diesel

Fuel tank 300gal 1135.5 L

Transmission: 16-speed

Engine: 485 hp, 361.7 kW

PTO (claimed): 429 hp, 319.9 kW

Mechanical:
Drive articulated crawler
Steering hydrostatic power

Hydraulics:
Valves 4 to 5

Total Flow:
40 gpm
151.4 lpm
55 gpm (High-Flow)
208.2 lpm
90 gpm (Twin-Flow)
340.7 lpm

Tractor Hitch:
Rear Type 4N
Rear lift (at 24"/610mm) 19,728 lbs 8948 kg

Dimensions and Tracks:
Wheelbase 154 inches 391 cm
Weight 49,000 lbs 22226 kg

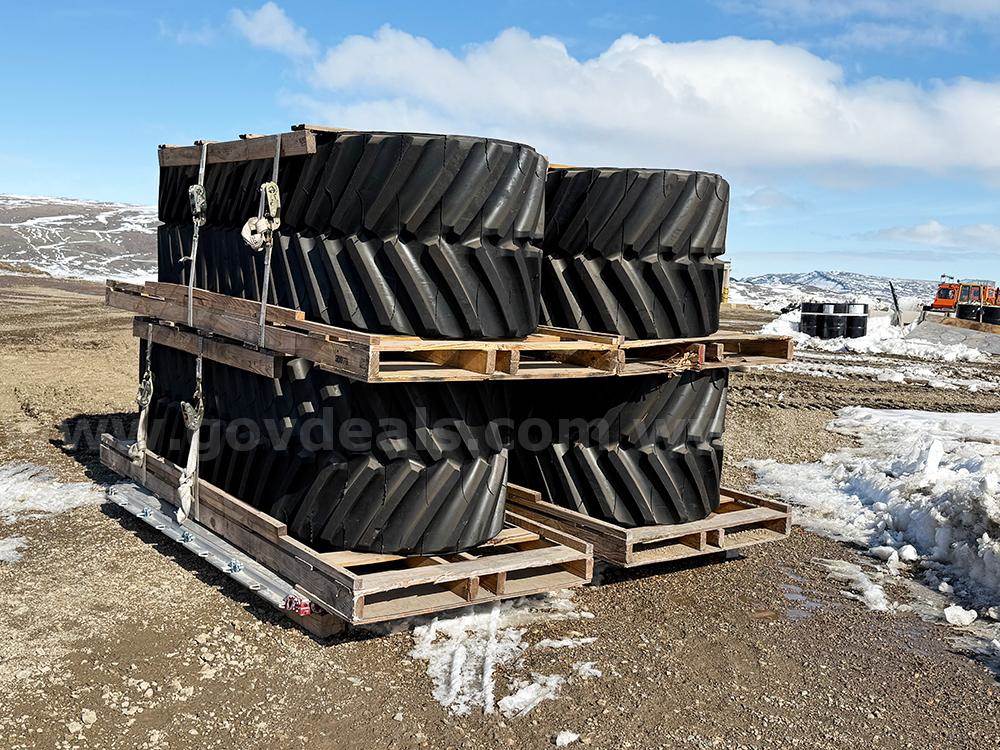

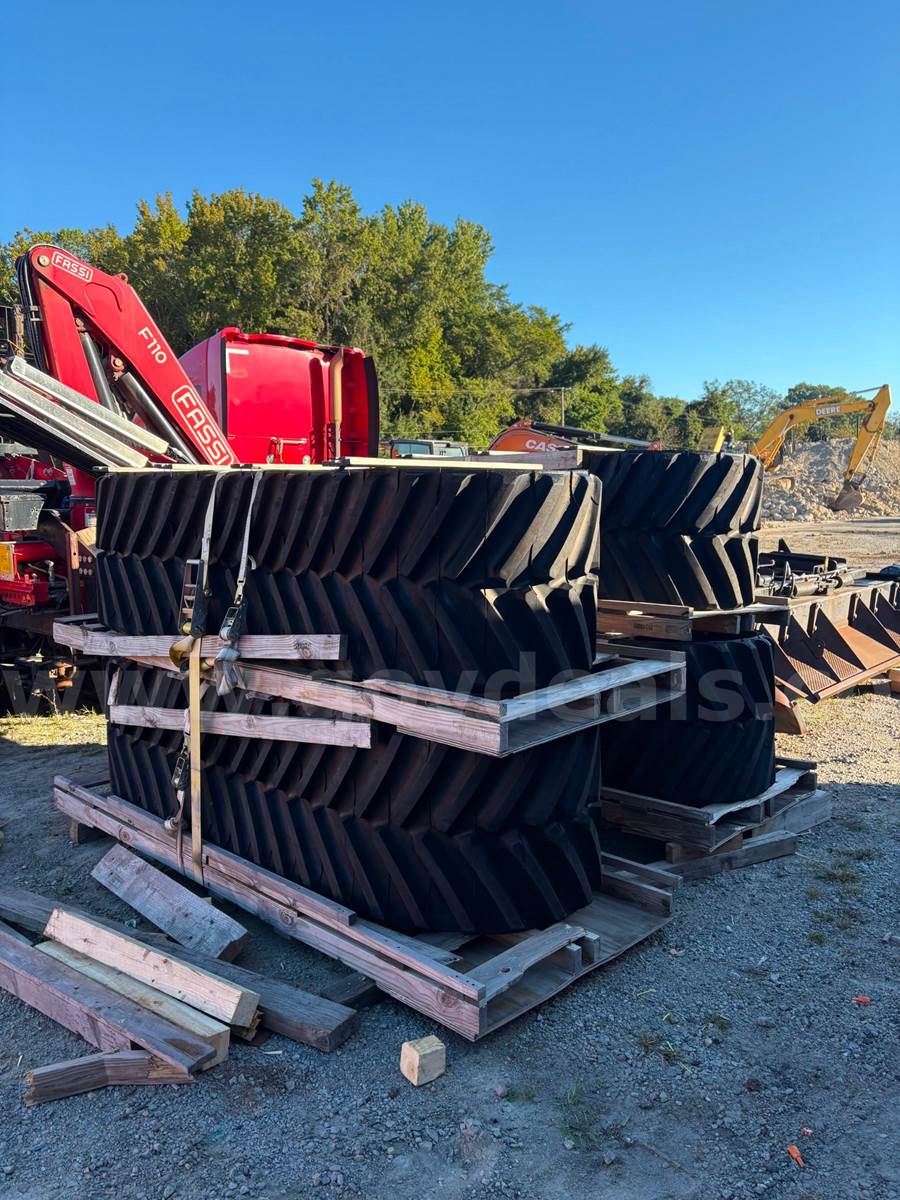

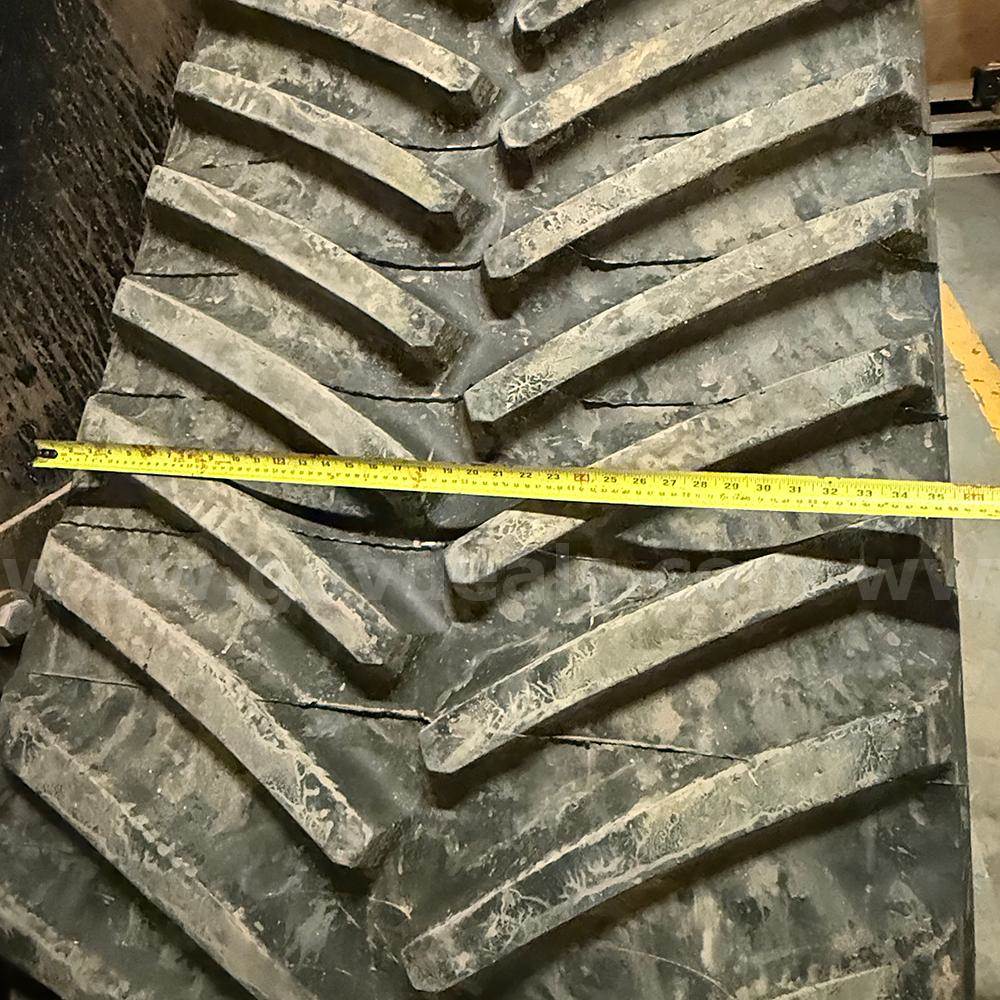

30-inch tracks

Electrical:
Ground negative
Charging system alternator
Charging amps 175
Batteries 2
Battery CCA 1000
Battery volts 12


CASE STX 485/COMPONENT SERIAL NUMBERS

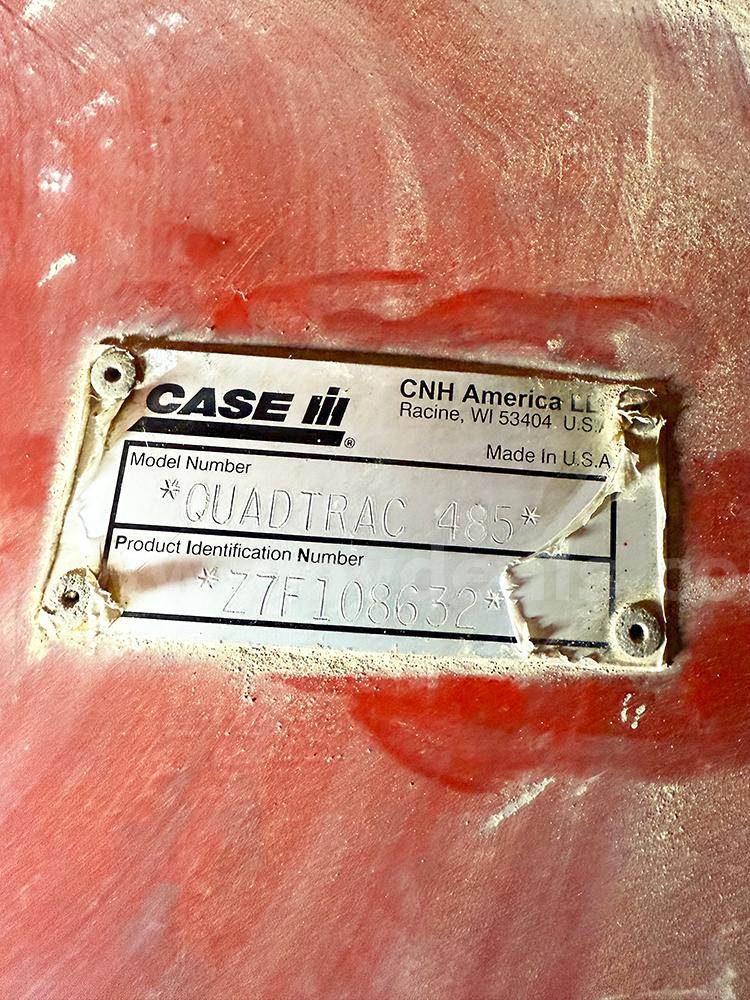

CASE STX 485 QUADTRAC SERIAL # Z7F108632

IVECO ENGINE 12.9L SERIAL # 24R-031273

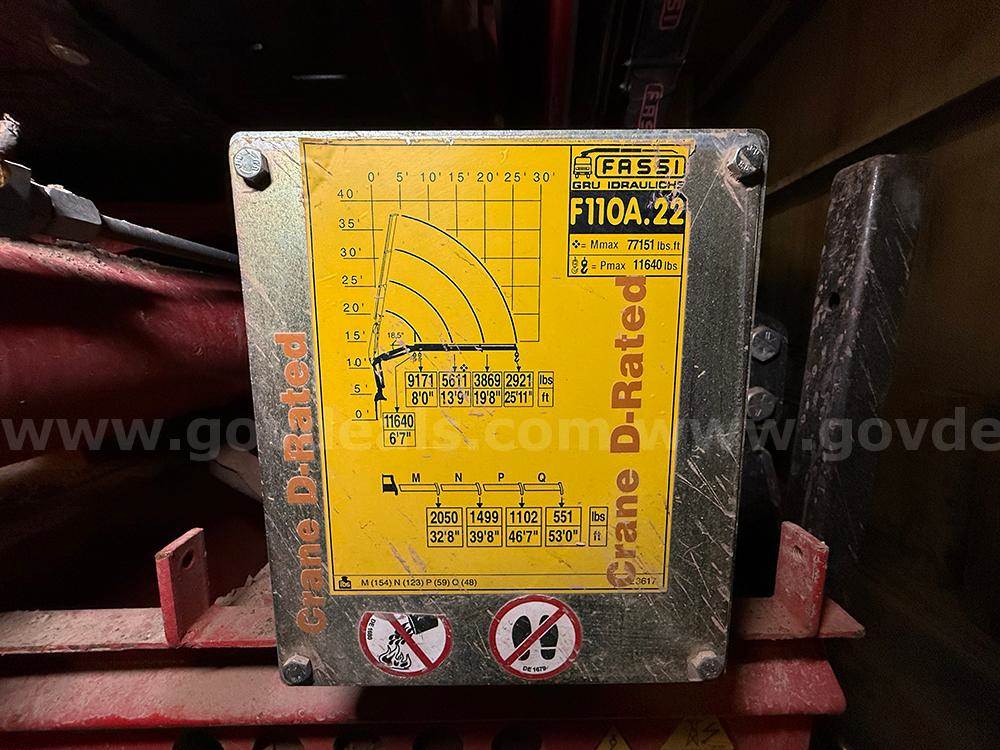

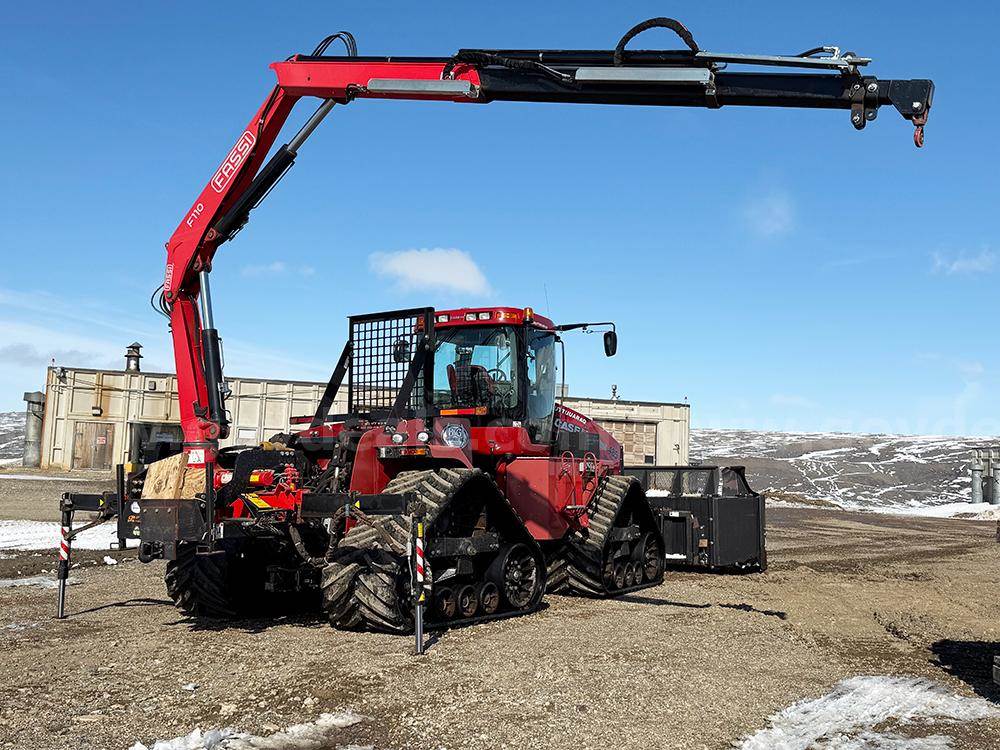

FASSI CRANE F110A22 SERIAL # 7885

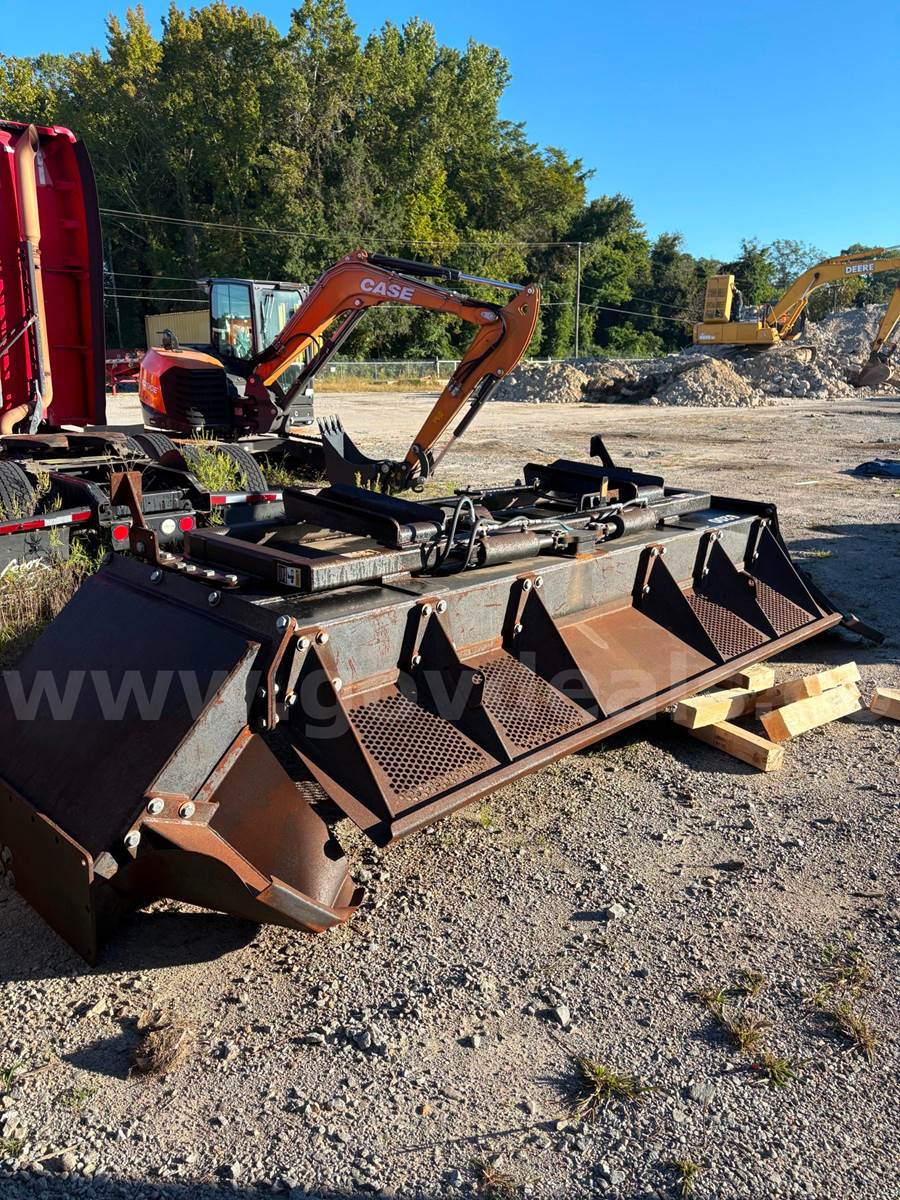

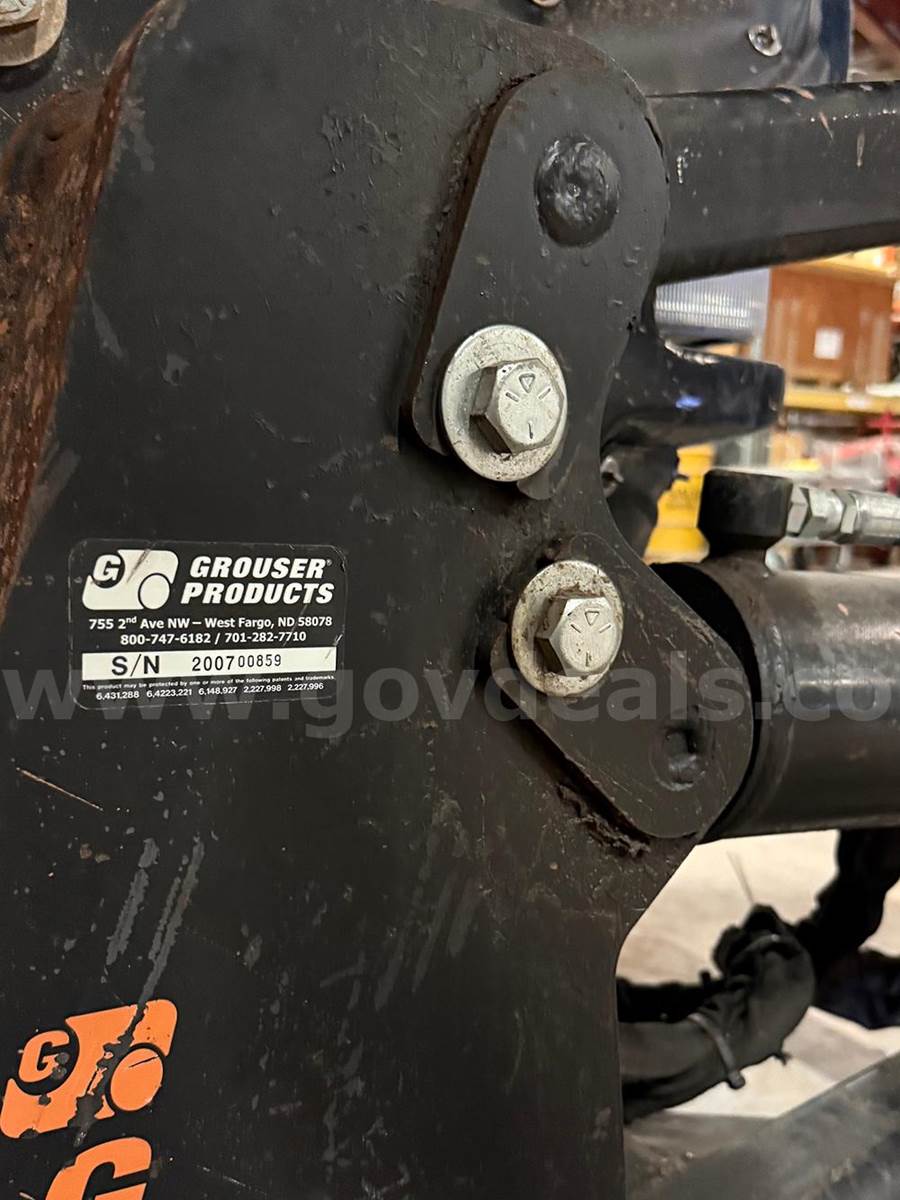

GROUSER BLADE/FRAME, 6200 BLADE, SERIAL # 200700859

QUADTRAC FRAME/BODY #Z7F108631

ENGINE, IVECO F3E0684B E003-105355 WITH VOITH COMPOUND TURBO

16SPEED POWERSHIFT TRANSMISSION # L71146

Dimensions:
Tracks 120”x98”x70”
Blade (the implement and lifting arms to the front of the tractor proper) 193"x75"x69"
Tractor 316”x128”x152”

Case Description:

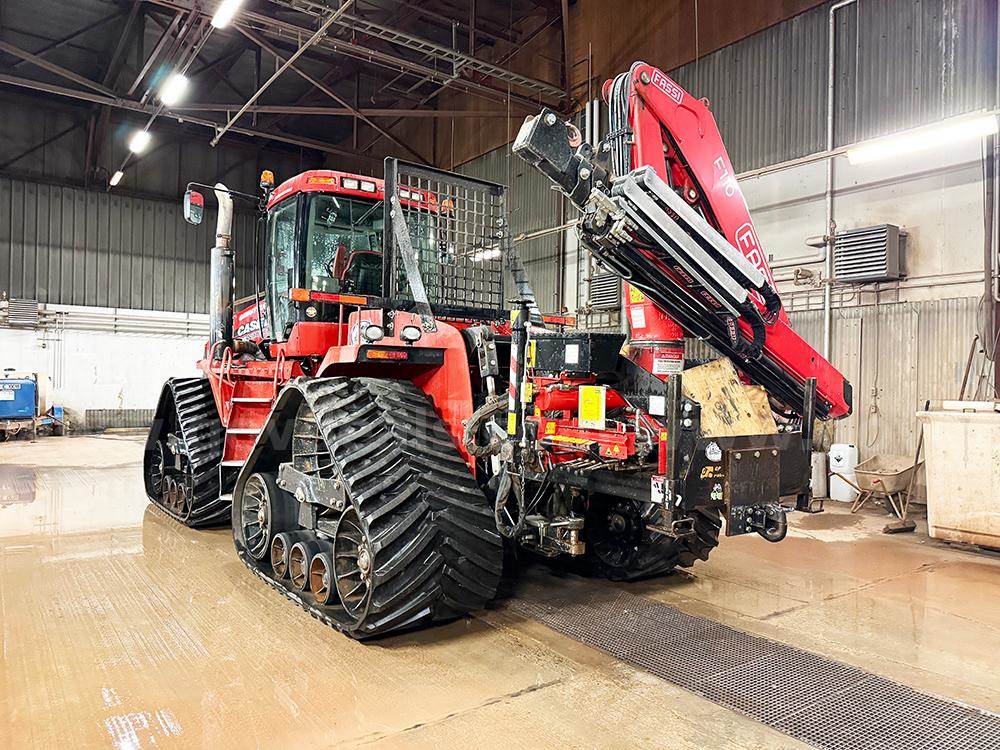

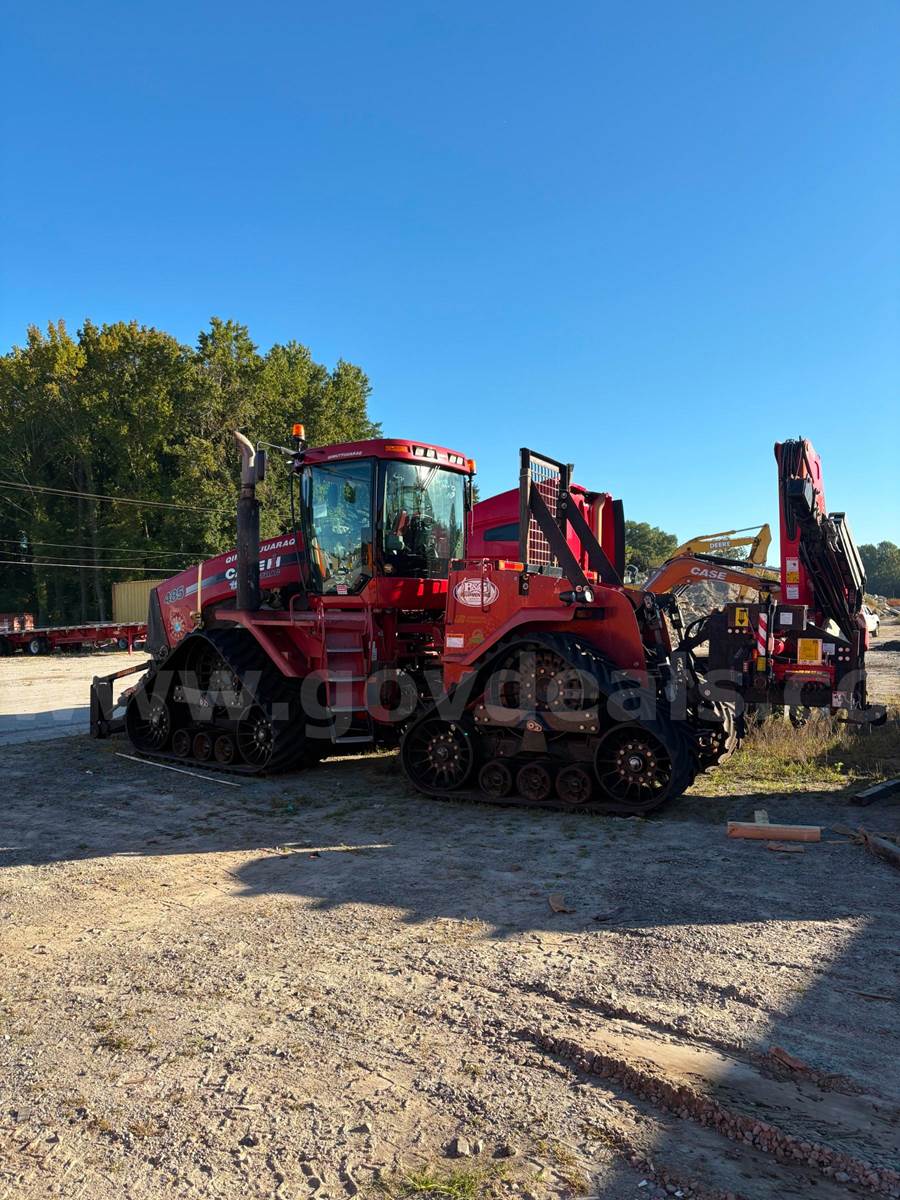

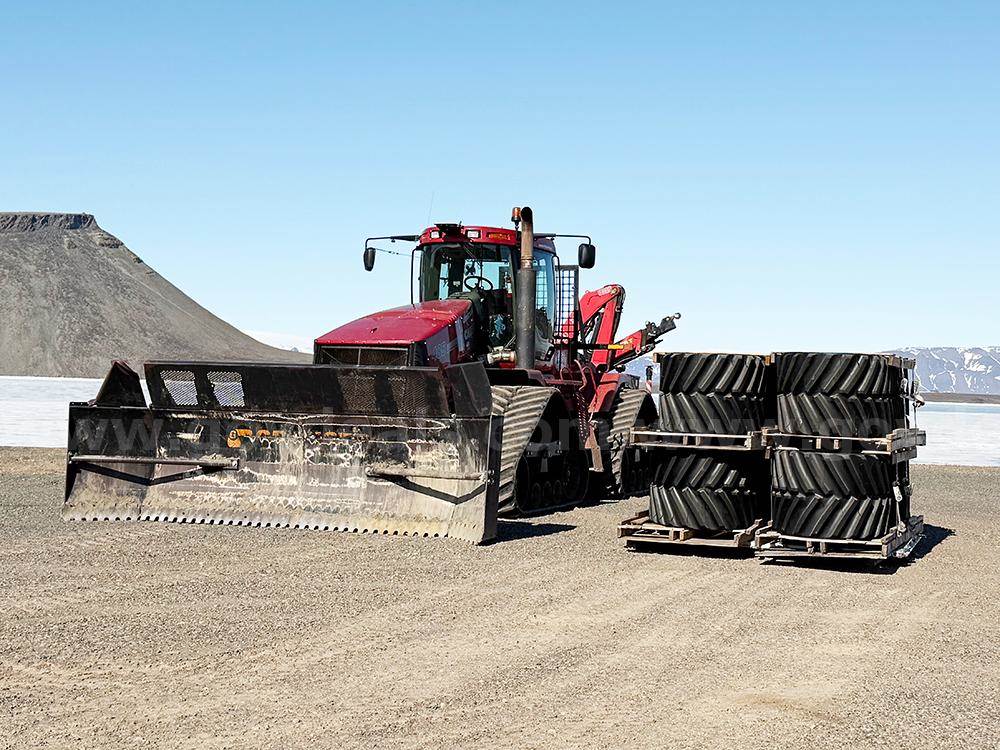

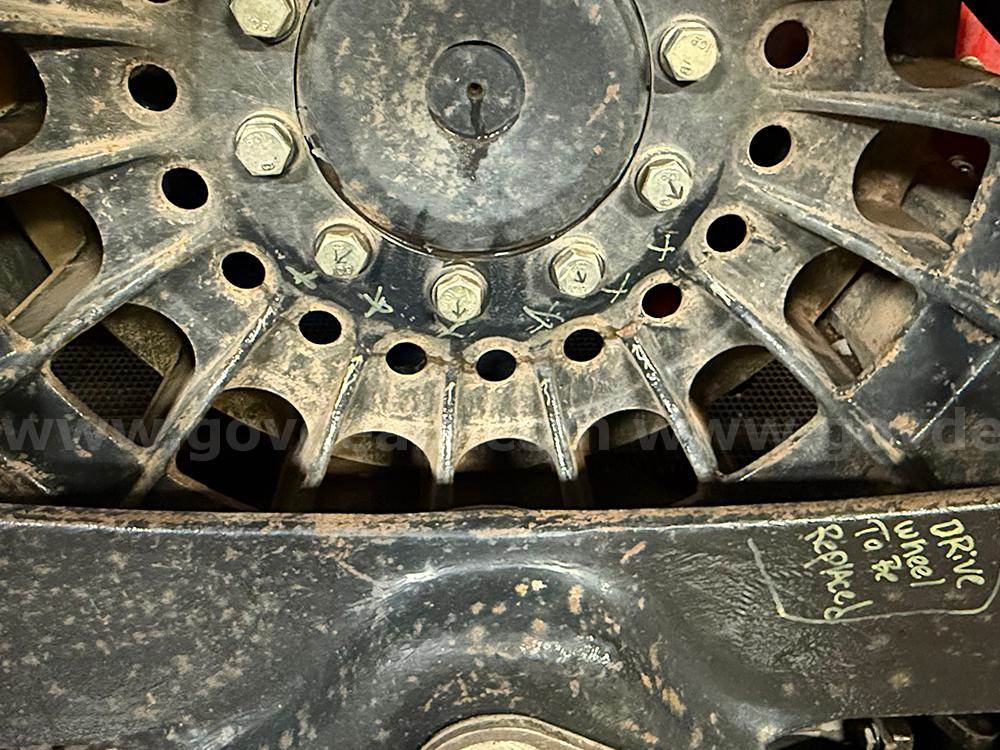

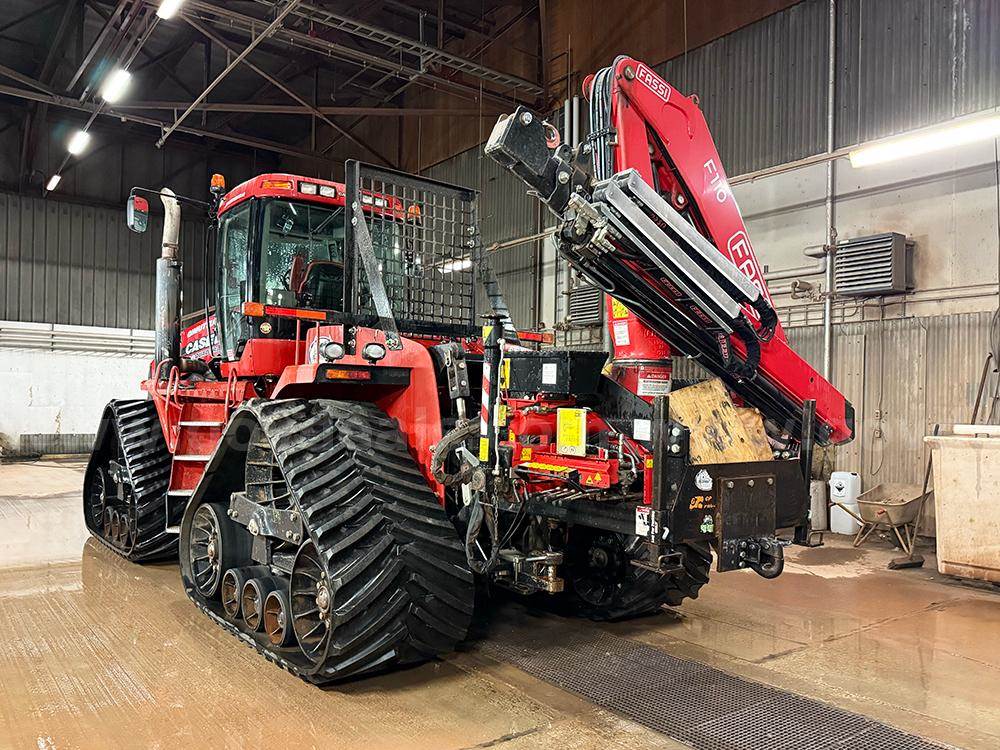

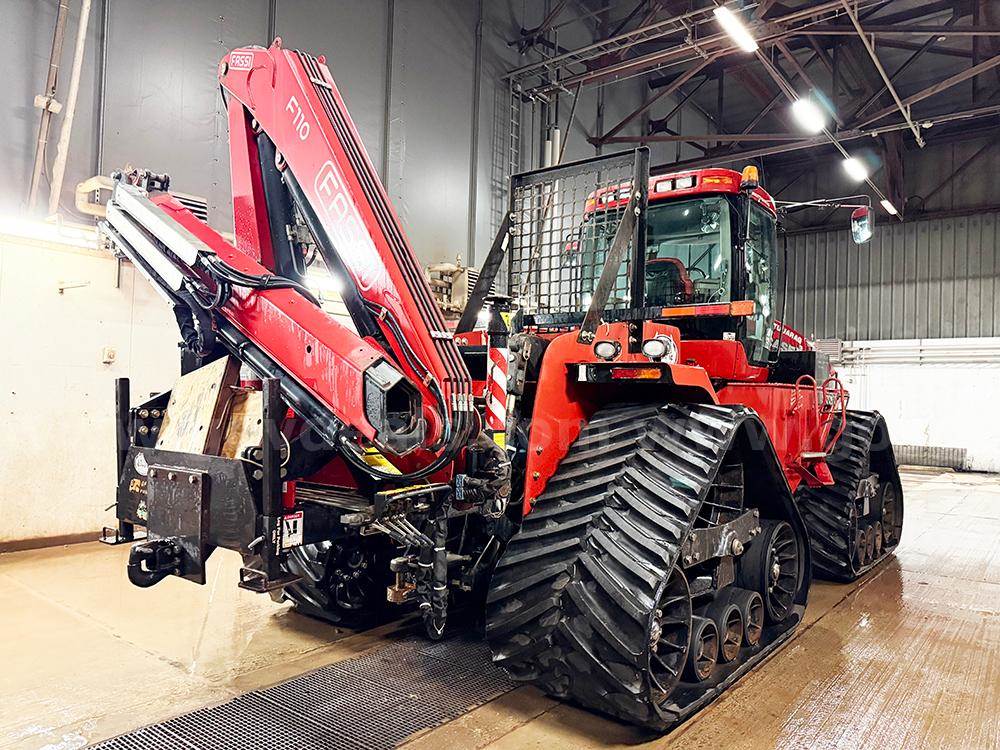

2008 Case Quadtrac 485 with push frame & blade and Fassi crane rear mounted to the 3-point hitch. This 2008 Quadtrac currently has a problem with internal engine seals failing from the last several years of cold storage, it is leaking coolant into the engine oil crankcase and some coolant going into the fuel system. Oil filters and engine oil were changed out when brought out of cold storage in May 2025 (essentially in cold storage since fall 2016). The engine still runs well but long-term engine damage will be the result if this machine is used for any length of time without the engine being repaired. The left rear drive wheel has some cracks in the steel casting; this drive wheel should be replaced before the tractor is put into working service.


Condition Code: Used / Repairs

**NO SCREENING ALLOWED** Tractor is in storage no access to screen property.

Property Location:
525 Finney Avenue
Suffolk, VA 23434

Hours of operation 7:30 AM – 4:30 PM ET (Eastern Time).


**NAMES OR BRANDS ARE LISTED AS MARKED OR AS THEY APPEAR, WE MAKE NO CLAIMS OF AUTHENTICITY**ALL ITEMS ARE BEING SOLD AS- IS WHERE IS**

Seller will answer all questions via the Q&A when you click Ask a Question below. No phone calls or emails please
