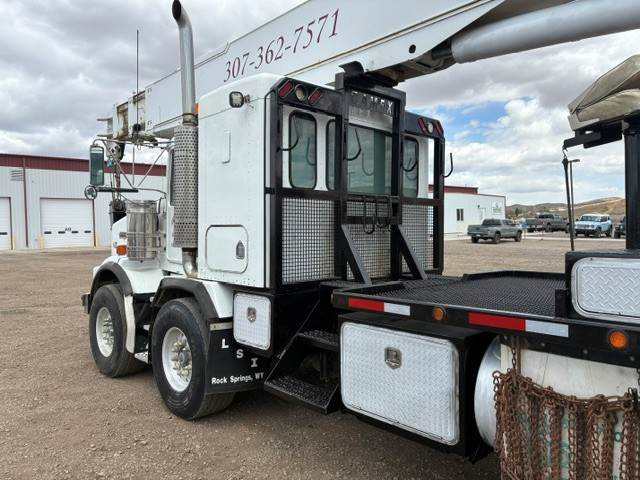

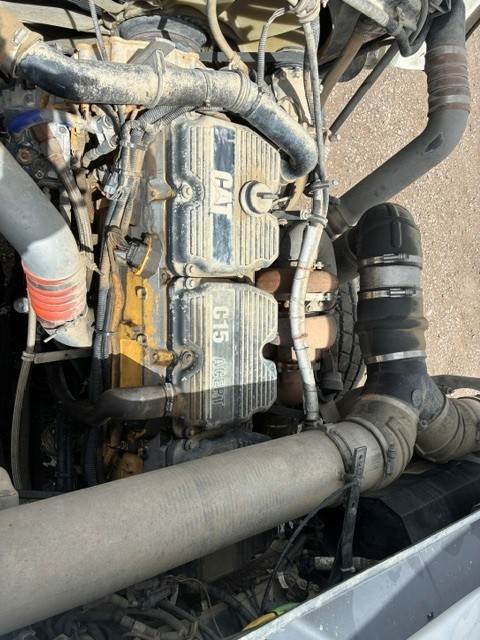

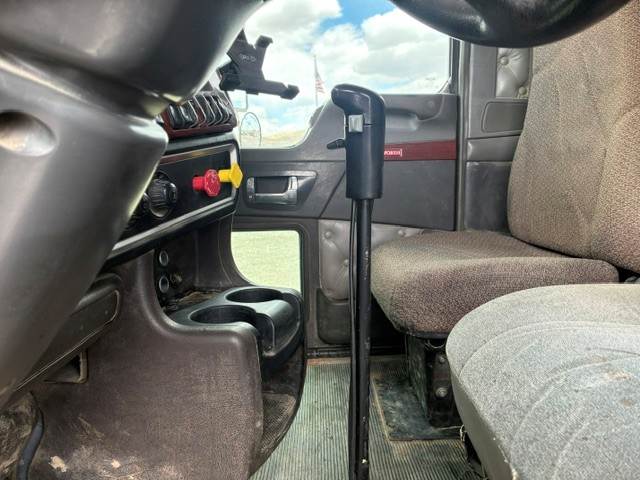

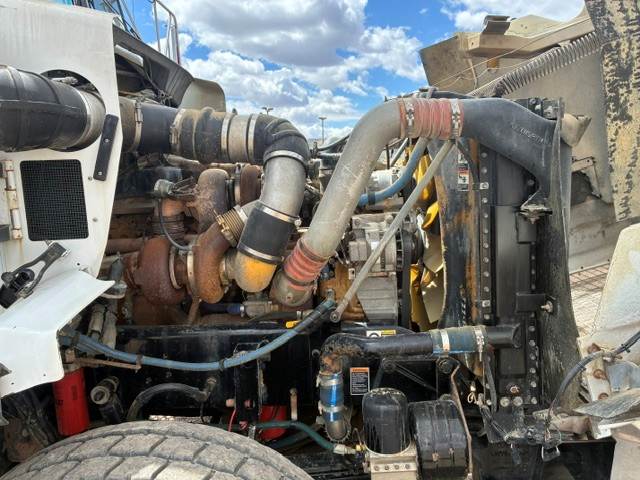

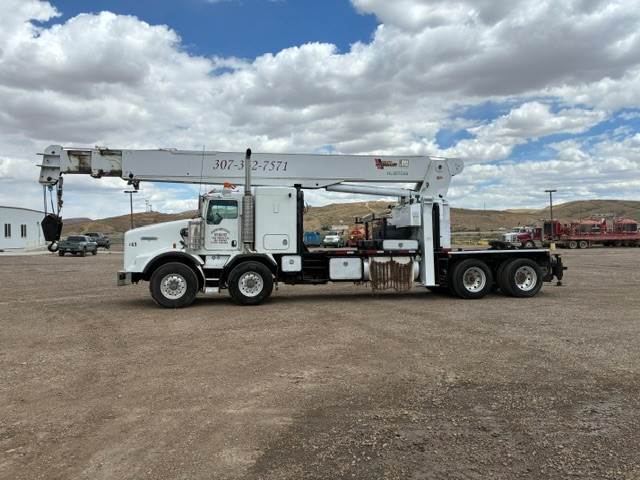

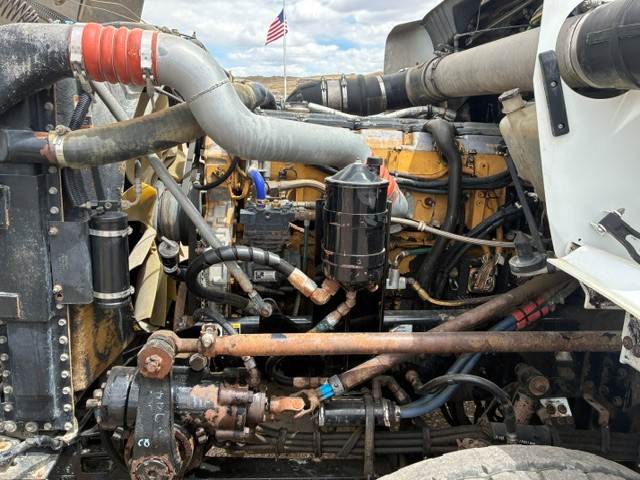

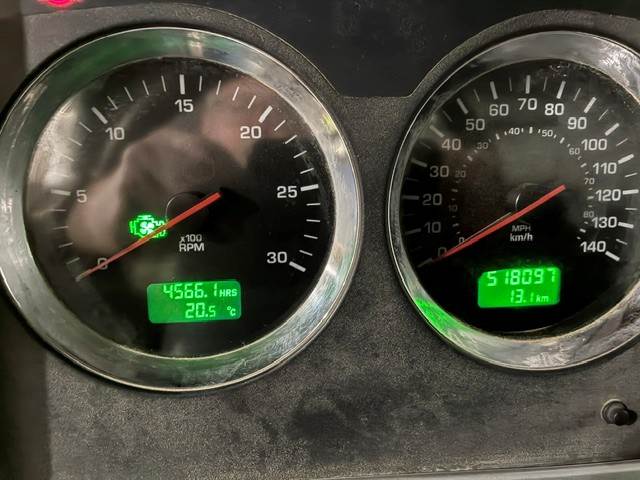

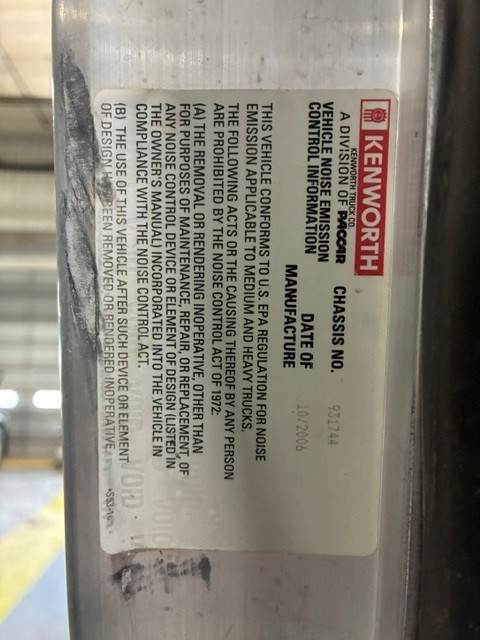

2007 Kenworth T800 – Truck Specifications General Specifications Make/Model: Kenworth T800 Year: 2007 VIN: 1XXDDBEX97R931744 Mileage: 321,930 miles (518,097 km) (subject to change) Hours: 4,566 (subject to change) Configuration: Tandem Steer Axle / Tandem Drive Axle Build: Canadian-built oilfield specification Application: Heavy-duty tractor / crane or oilfield support Powertrain Engine: Caterpillar C15 ACERT Diesel Serial No.: NXS15507 Horsepower: 550 HP Torque: 1,850 ft-lbs. Transmission: Eaton Fuller Manual 18 speed Rear Axle: Meritor-Rockwell Model: RTLO-170H Ratio: 4.30

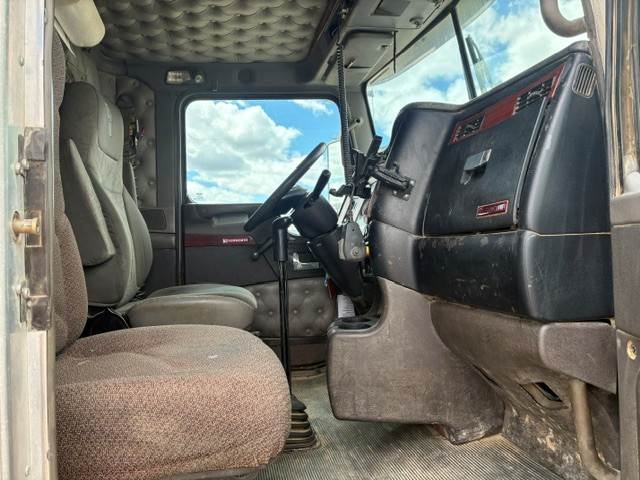

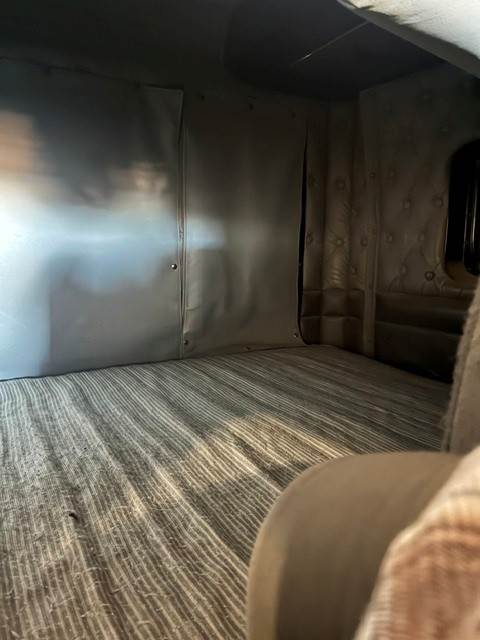

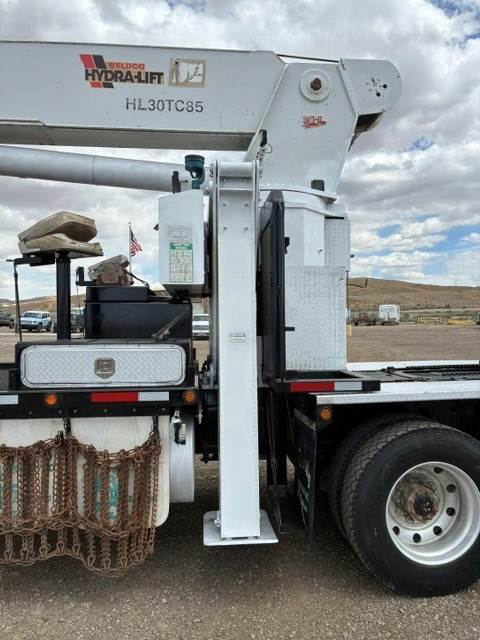

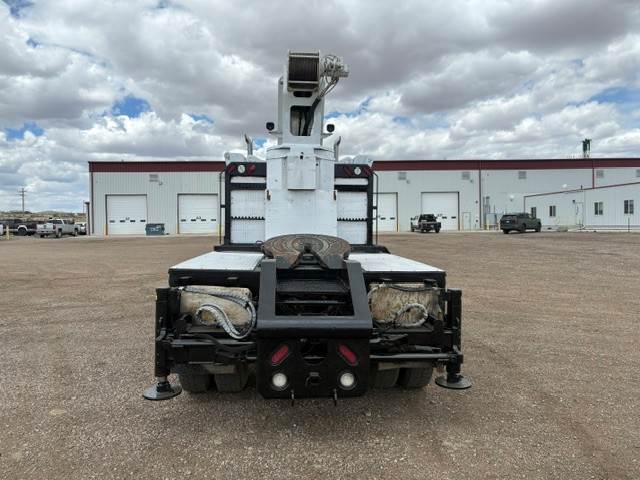

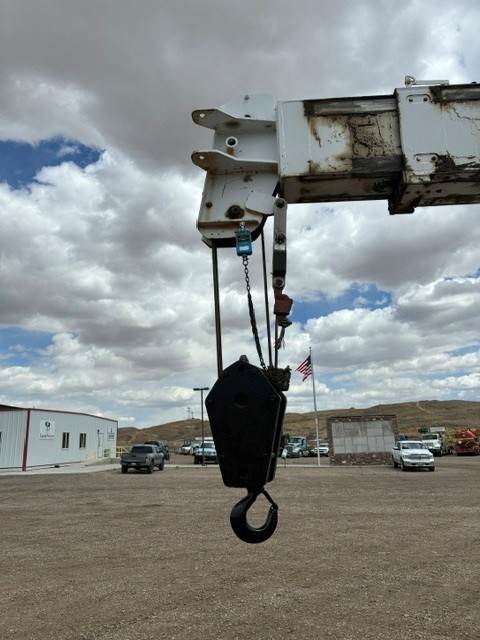

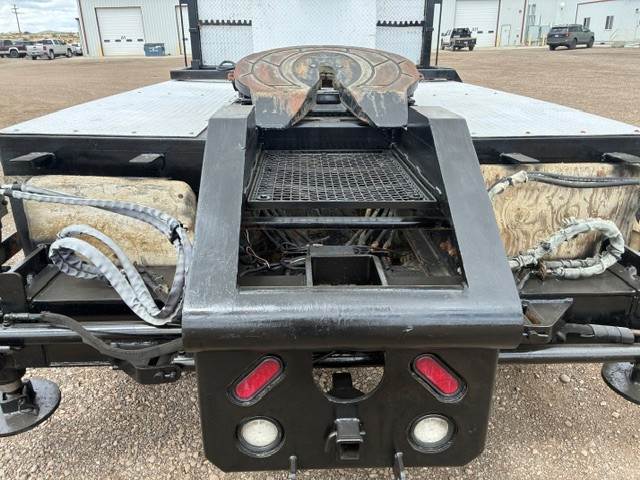

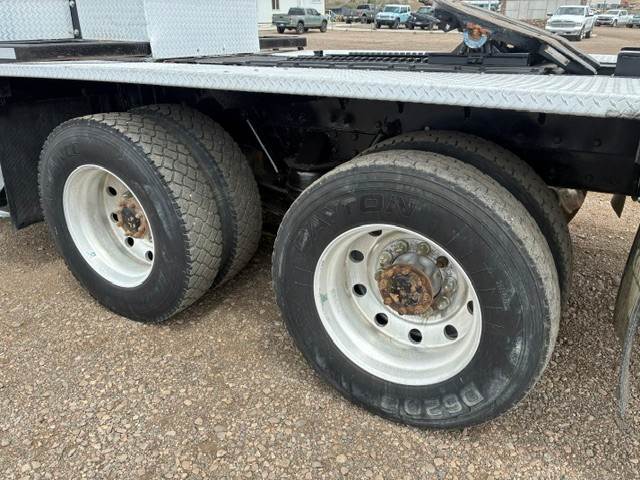

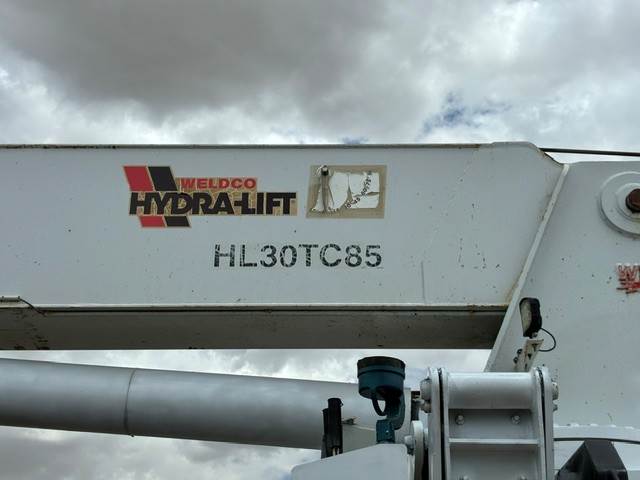

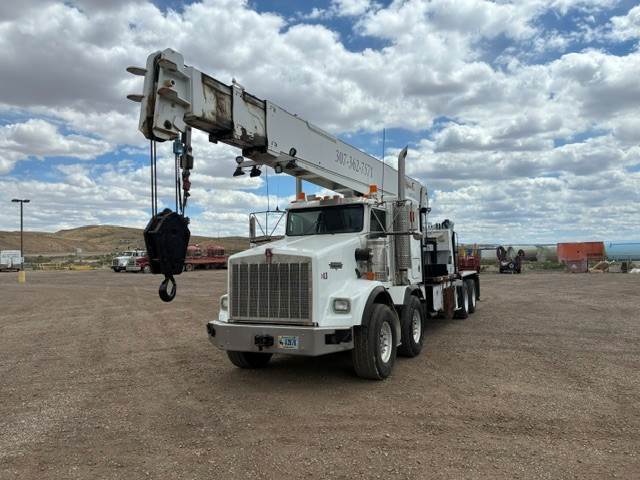

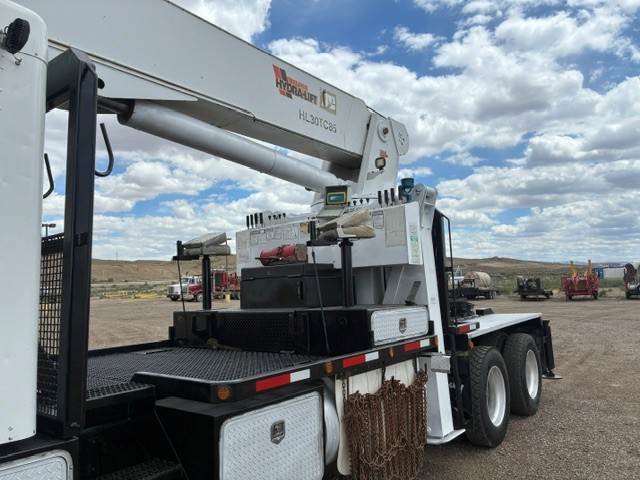

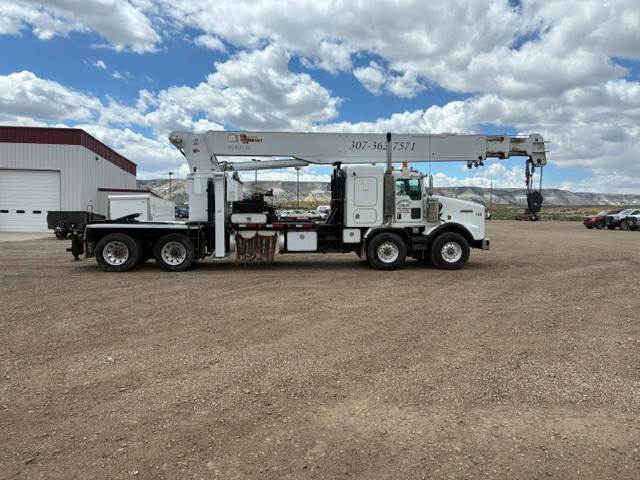

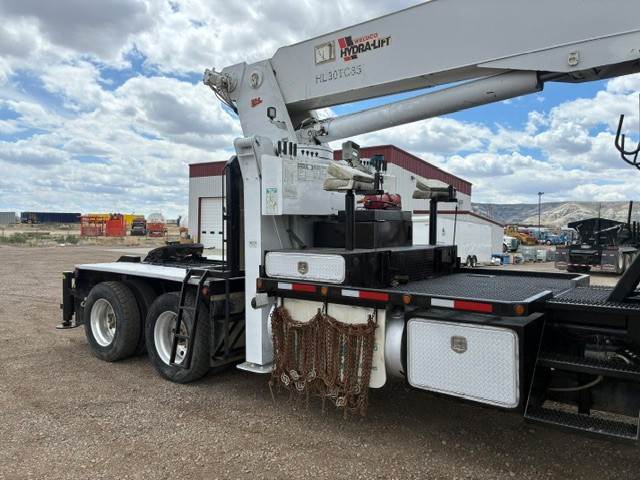

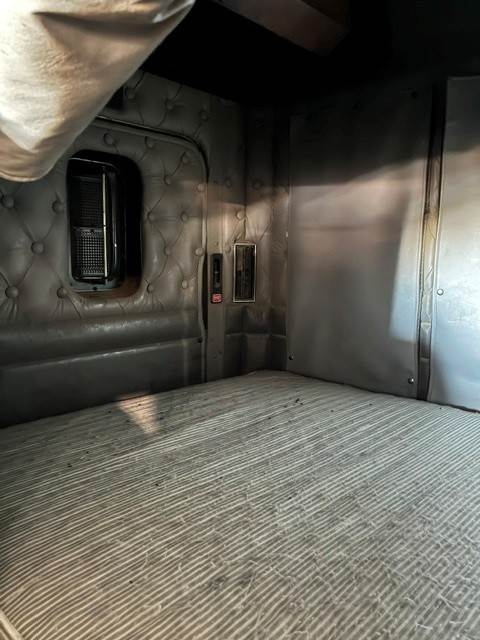

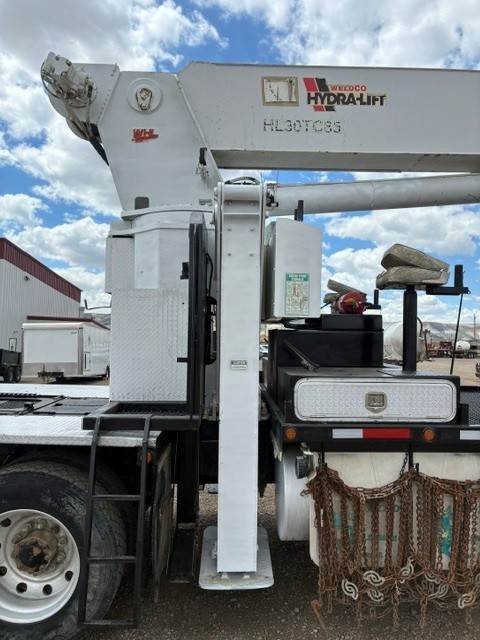

Axles & Weight Ratings Front Axles: Tandem Steer 44,000 lbs. Rear Axles: Tandem Drive 46,000 lbs. GVWR: Approx. 80,000 lbs. GCWR: 80,000 lbs. highway / 150,000+ lbs. permitted oilfield Chassis & Suspension Frame: Double frame rail Front Suspension: Heavy-duty multi-leaf spring Rear Suspension: Air ride Configuration: 4-Axle (no tag axle) Dimensions Wheelbase: Approx. 370” Cab Configuration: Sleeper cab Sleeper Size: 60” x 38” Fifth Wheel Type: Sliding fifth wheel plate Application: Lowboy / oilfield hauling Adjustment Range: Approx. 48” travel Estimated Weights Heavy Tandem Steer Configuration: 22,000 – 30,000 lbs. Weldco Hydra-Lift HL30TC85 Crane Specifications General Specifications Model: Weldco Hydra-Lift HL30TC85 Serial No.: 3-95847-1 Capacity Class: 30 Ton Rated Load@10 ft Radius: 40,100 lb. Maximum Lift Capacity: 60,000 lb. Max Sheave Height: Approx. 85 ft Boom Type: 3-section telescopic Boom & Reach Boom Length: Approx. 30 ft retracted to 75 ft extended Maximum Working Radius: Approx. 60 ft Optional Jib: Has mounts but no jib Winch & Hoisting Winch Capacity: 15,000 lb. planetary winch Multi-part line capability for increased lifting capacity 25-Ton McKissick 4-part block 5/8” Non-rotating wire rope Drum/Winch Brake: Integral brake system for load security Rotation & Structure Rotation system: 360° planetary gear box swing drive Rotation: Optional continuous rotation Slew Ring: Heavy-duty Rotek-style bearing (oilfield-grade) Boom Construction: High-strength welded box boom design Outriggers & Controls Outrigger Type: A-frame link style main outriggers Control Stations: Dual operator control stations/platforms Optional: Tractor-mounted control package (rear operated) Safety Features Audible: Capacity alert system Outrigger warning alarm Anti-Two-Block: Crane Smart System (wireless system) Load Charts: Load rating decals, charts, & hand signals Typical Applications Oilfield rig moves Equipment setting (tanks, skids, pumps) Heavy lifting and service truck work Pipe handling and structural lifting Disclaimer This specification sheet is provided for reference purposes only. Actual specifications may vary based on original build configuration, installed options, and modifications. All information should be verified from manufacturer documentation. Always follow OEM load charts and operator manuals for safe crane operation.
