GovDeals is
an Online Auction for Government Surplus – LOT#10185-890, Auction Ends 9/15/2026. To see
full details, additional photos and current bid, please use this link
- https://govdeals.bid/46aHlsZ

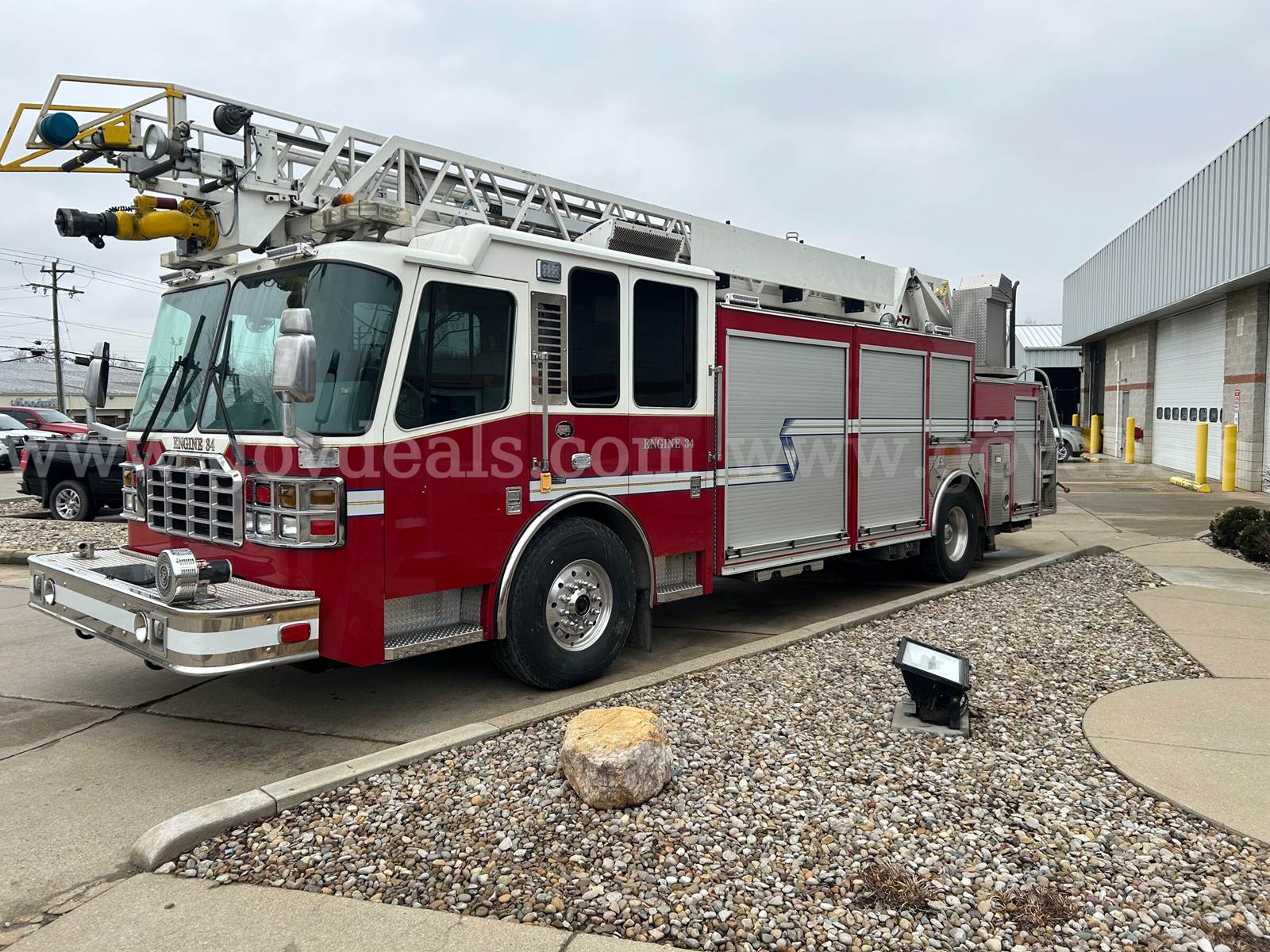

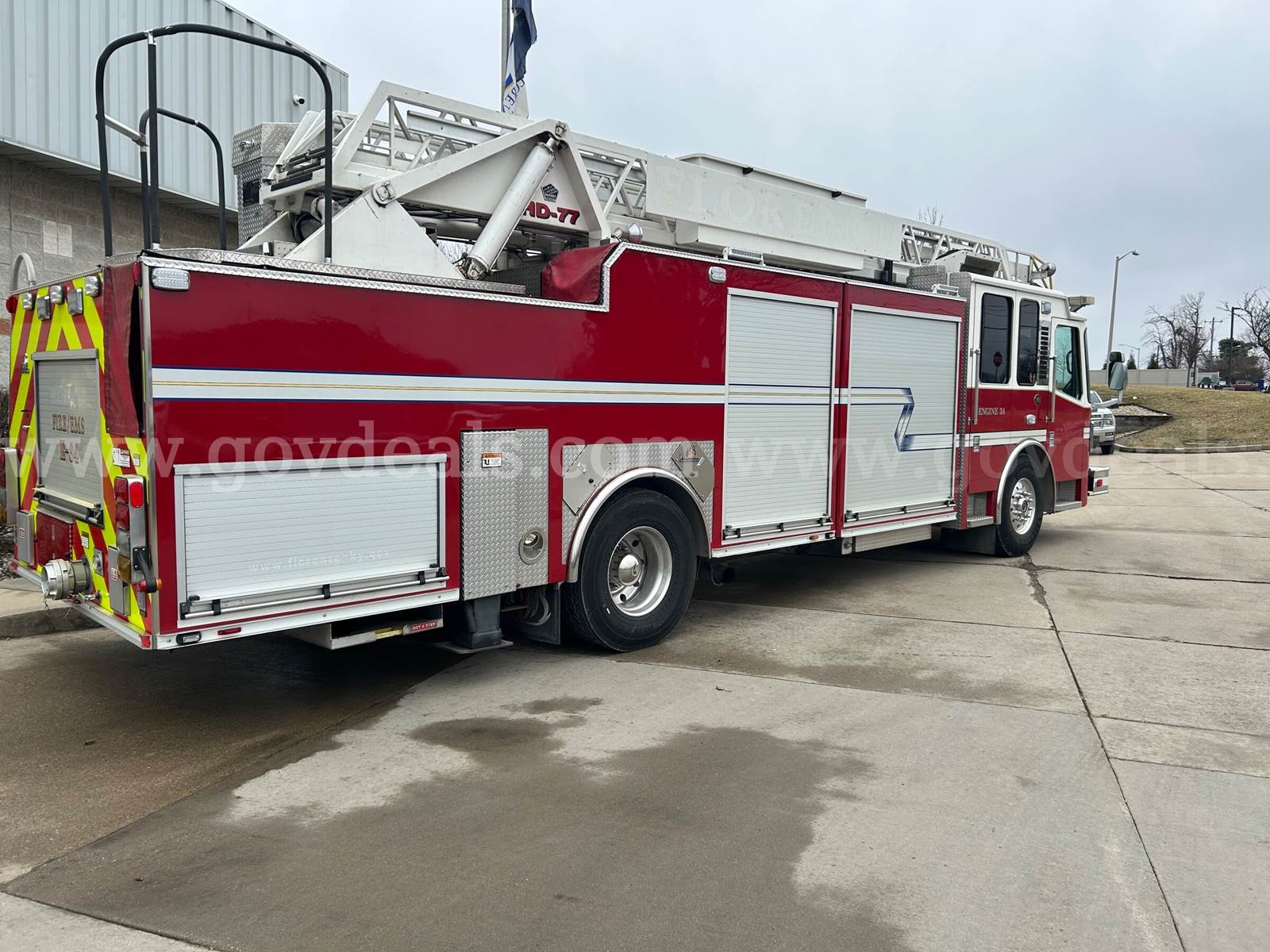

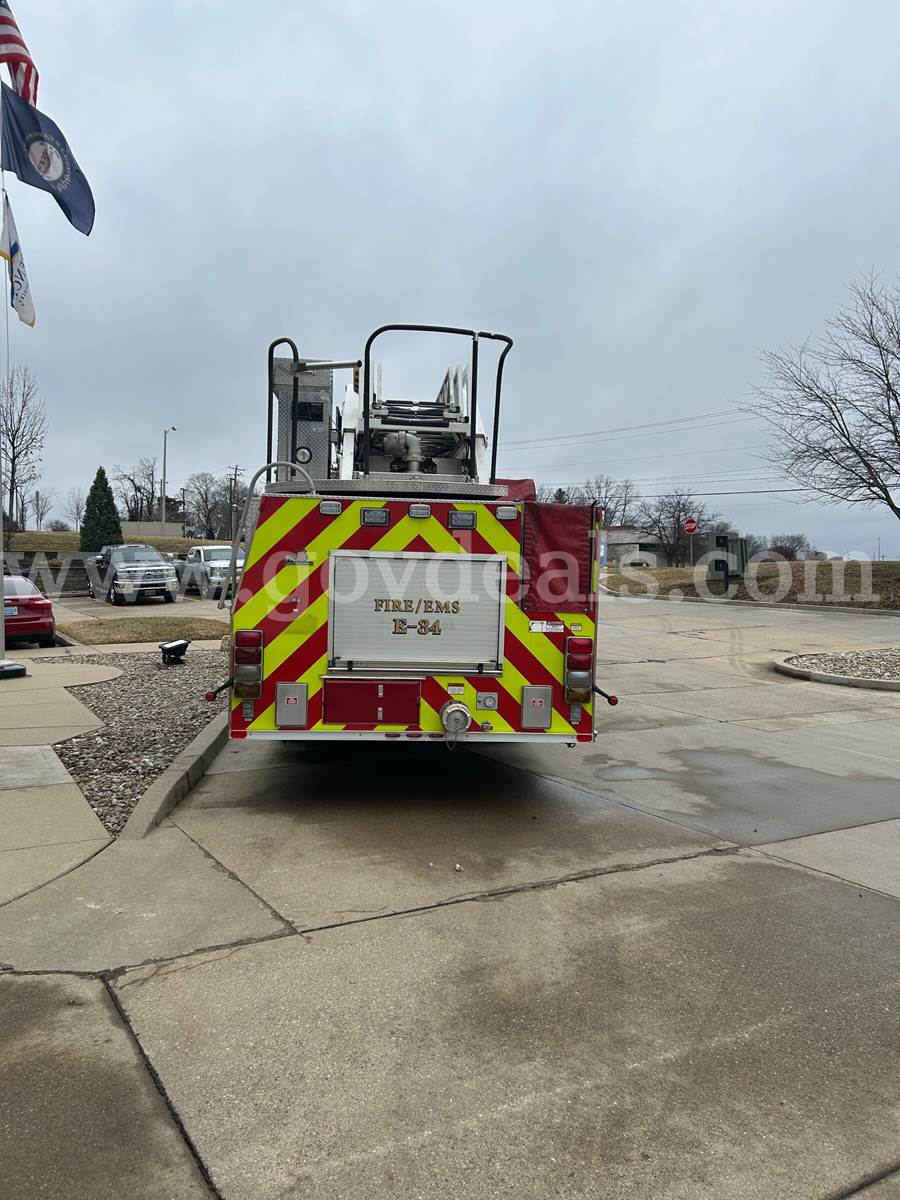

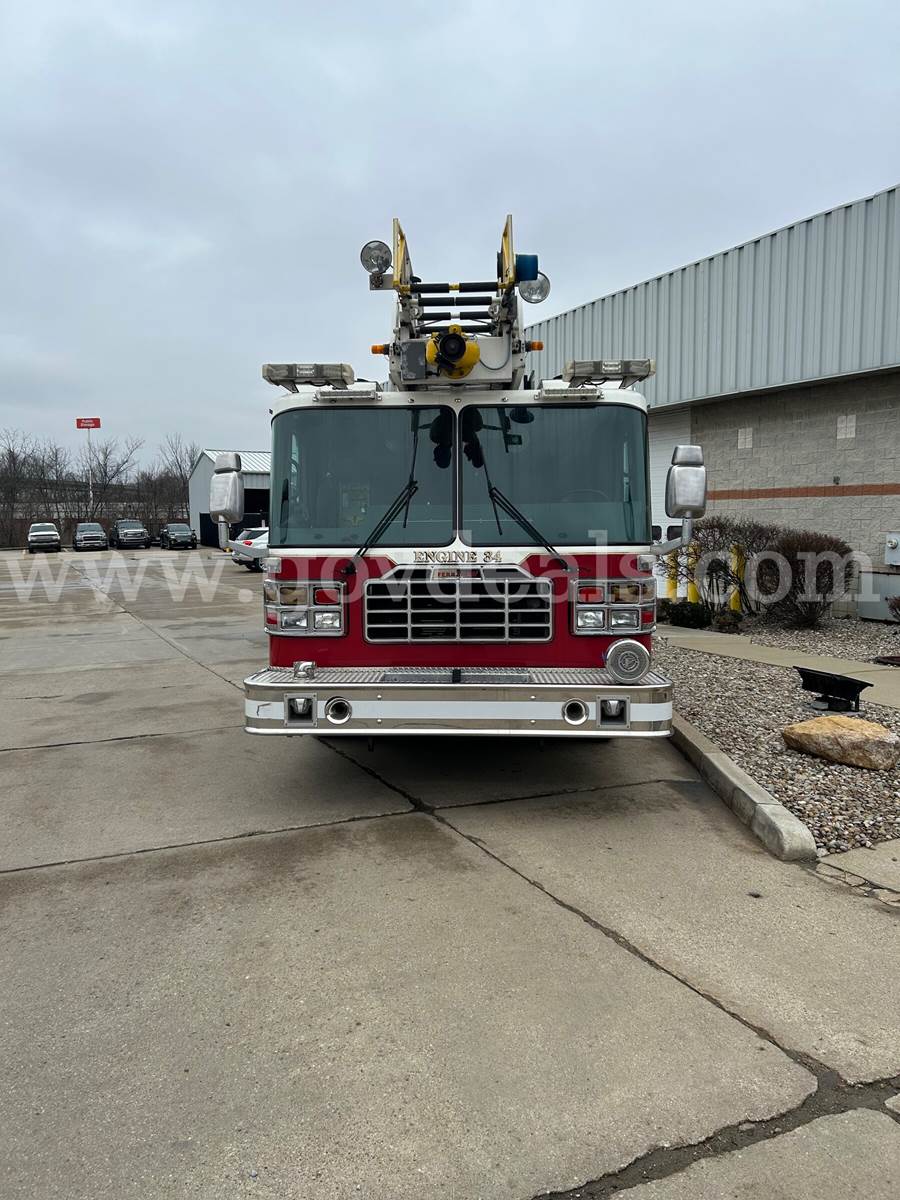

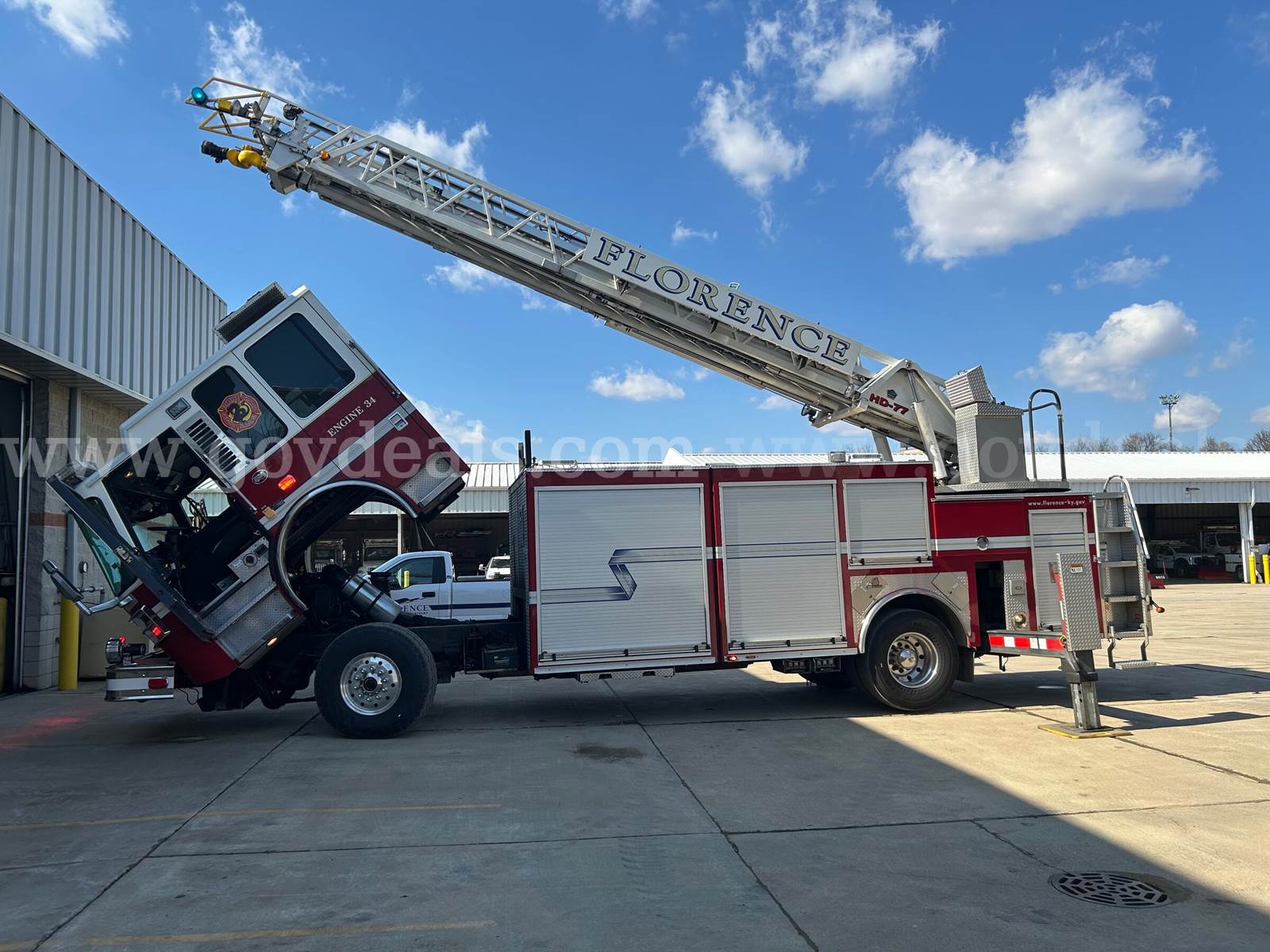

2010 Ferrara Inferno 77’ aerial ladder truck. Unit is currently in running condition and is capable of moving forward and reverse. To the best of our knowledge, the aerial ladder is operational; however, no load testing or certification is provided.
No current aerial ladder certification is included with this unit. The ladder has not been recently tested or certified, and it is the buyer’s responsibility to inspect and certify prior to use.
This is a retired municipal unit and should be considered used with known defects.
Known Issues (per previous PM services):
Cab lock cylinder leaking in the unlock position
Driver-side cab lift cylinders leaking
Engine oil leak (suspected rear main seal)

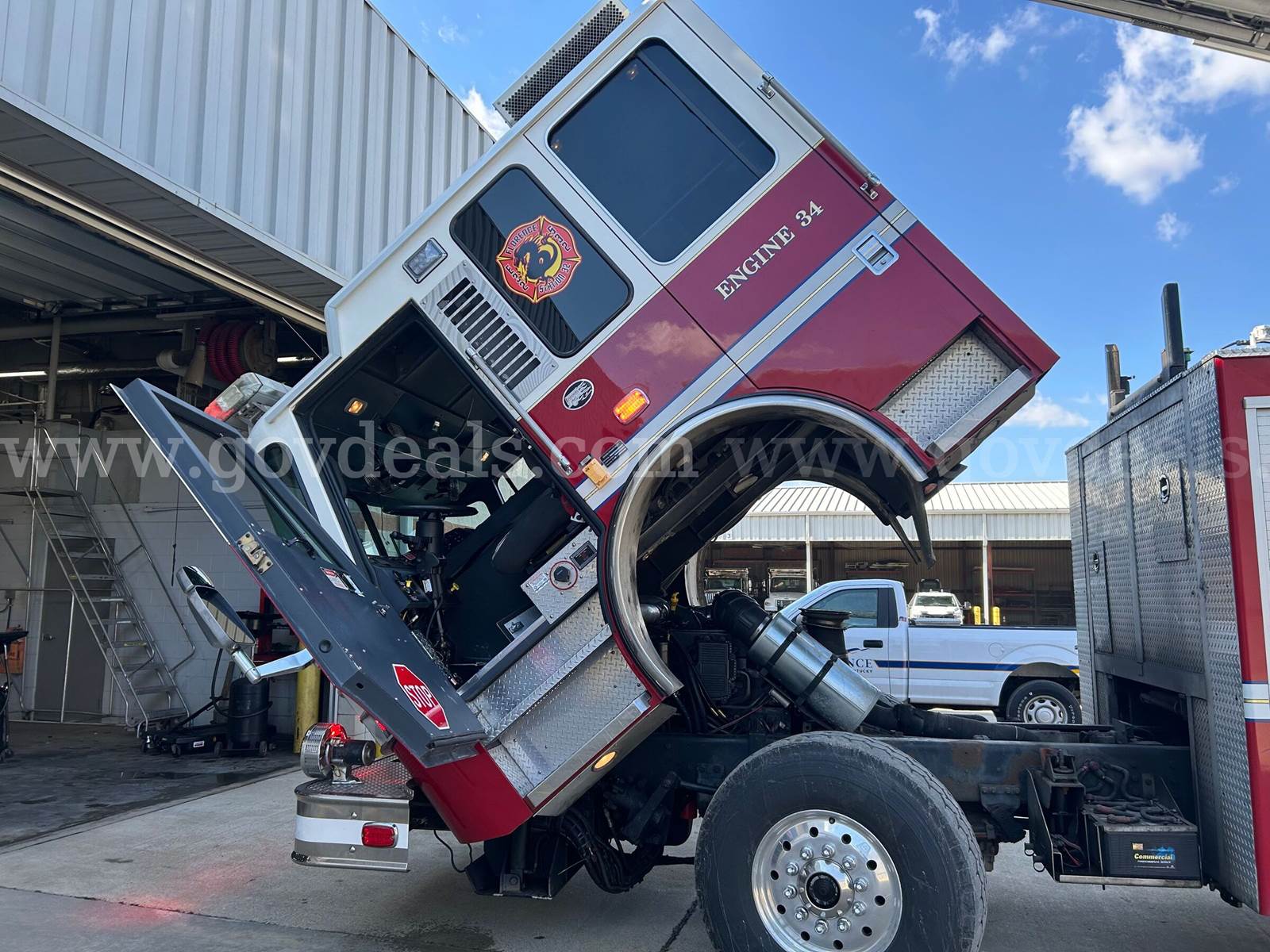

Cab mount pivot points show excessive wear
Power steering reservoir leaking
Tires / Brakes:
Front tires: approximately 70%
Rear tires: approximately 90%
Front and rear brakes: approximately 70%
Specifications General:
Make/Model: Ferrara Inferno Aerial
Ladder: 77’ Steel, 3-section
Tip Load: 500 lbs

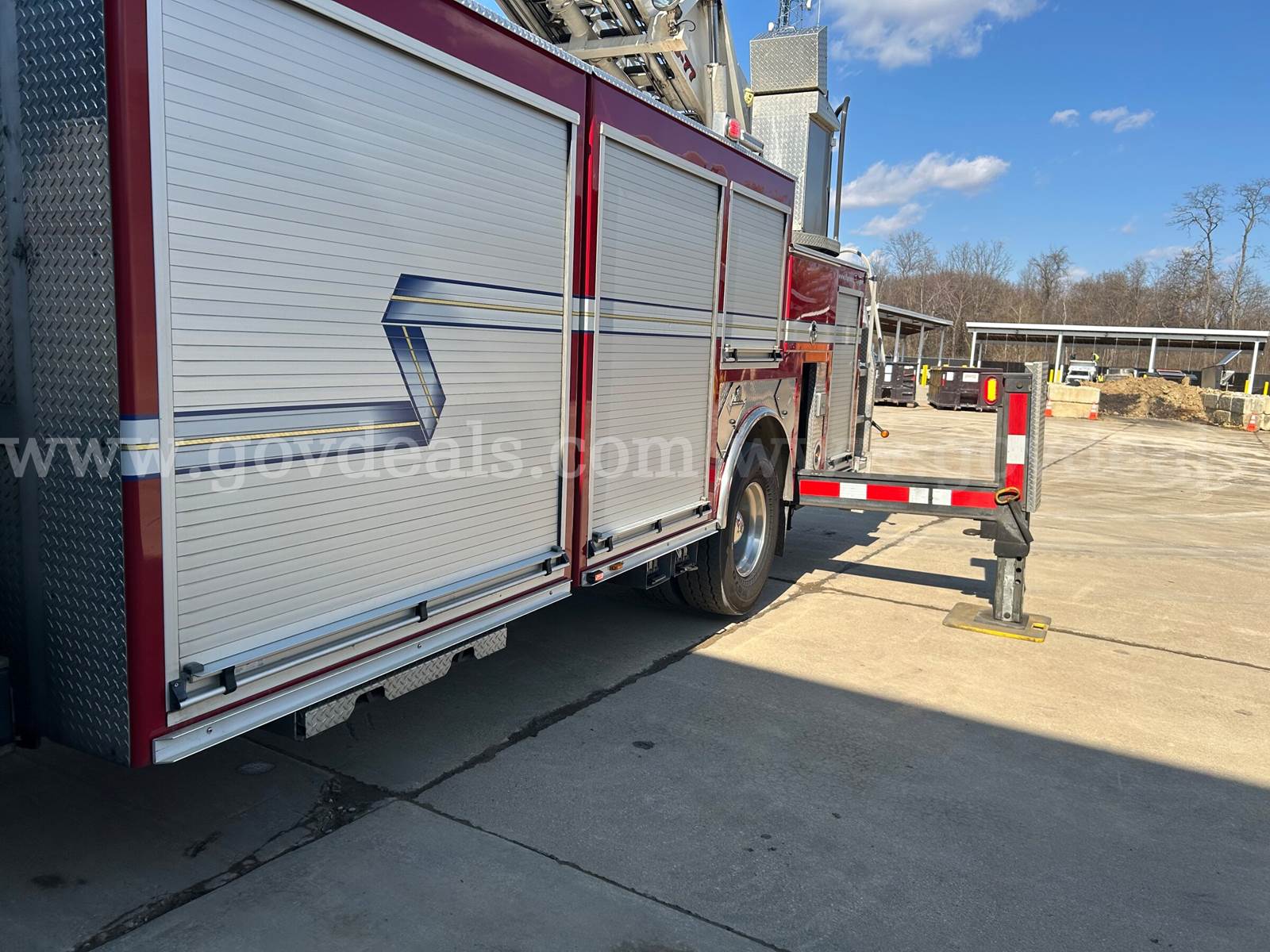

Outrigger Spread: 18’
Dimensions:
Height: 11’6”
Length: 37’6”
Wheelbase: 234”
Body Width: 100”
Front Bumper Extension: 21”
Engine / Transmission:
Engine: Cummins ISM 500 (500 HP @ 2000 RPM)
6 Cylinders
Transmission: Allison EVS 4000 Automatic
Jake Brake: High / Medium / Low
Fuel Capacity:
Diesel – 65 gallons
Generator:
Onan 15KW
Pump:
Waterous CSU/C20C – 2000 GPM
Serial #: 137924
Single stage
Electric/Rotor primer
Pressure governor set at 150 PSI
Water Tank:
Poly tank – 500 gallons
Foam System:
Foam-Pro 2001
30-gallon Class A
Class B system (Phos-Chek 3x6% Fluorine Free AR Concentrate)
Axle / Weights:
Front Axle Rating: 19,840 lbs
Rear Axle Rating: 27,000 lbs
GVWR: 55,500 lbs (27.75 tons)
Approx. weight with water (no equipment): 49,000 lbs
Equipped with On-Spot tire chains
Tires:
Front: 425/65R22.5 – 120 PSI
Rear: 315/80R22.5 – 130 PSI
Lug Nut Torque: 500 ft-lbs
Fluids
Engine Oil: 15W40 – 40 qts
Coolant: Shell Rotella ELC – 64 qts
Transmission: Transynd – 51 qts
Power Steering: Dexron III – 3 qts
Drive Axle: 90W – 18 qts
Cab Tilt: Dexron III – 6 qts
Pump Gearcase: HP80W90 – 4 qts
Generator Oil: AFT – 12 qts
A/C Refrigerant: 134A – 3.5 lbs x2
A/C Oil: PAG – 8 oz
Aerial Hydraulics: Telus – 140 qts
Additional Notes:
Decal impressions, holes from removed emergency equipment (light bar, antennas, etc.) may be present
Minor cosmetic wear consistent with prior service use
