2011 Godwin HL110M Pump

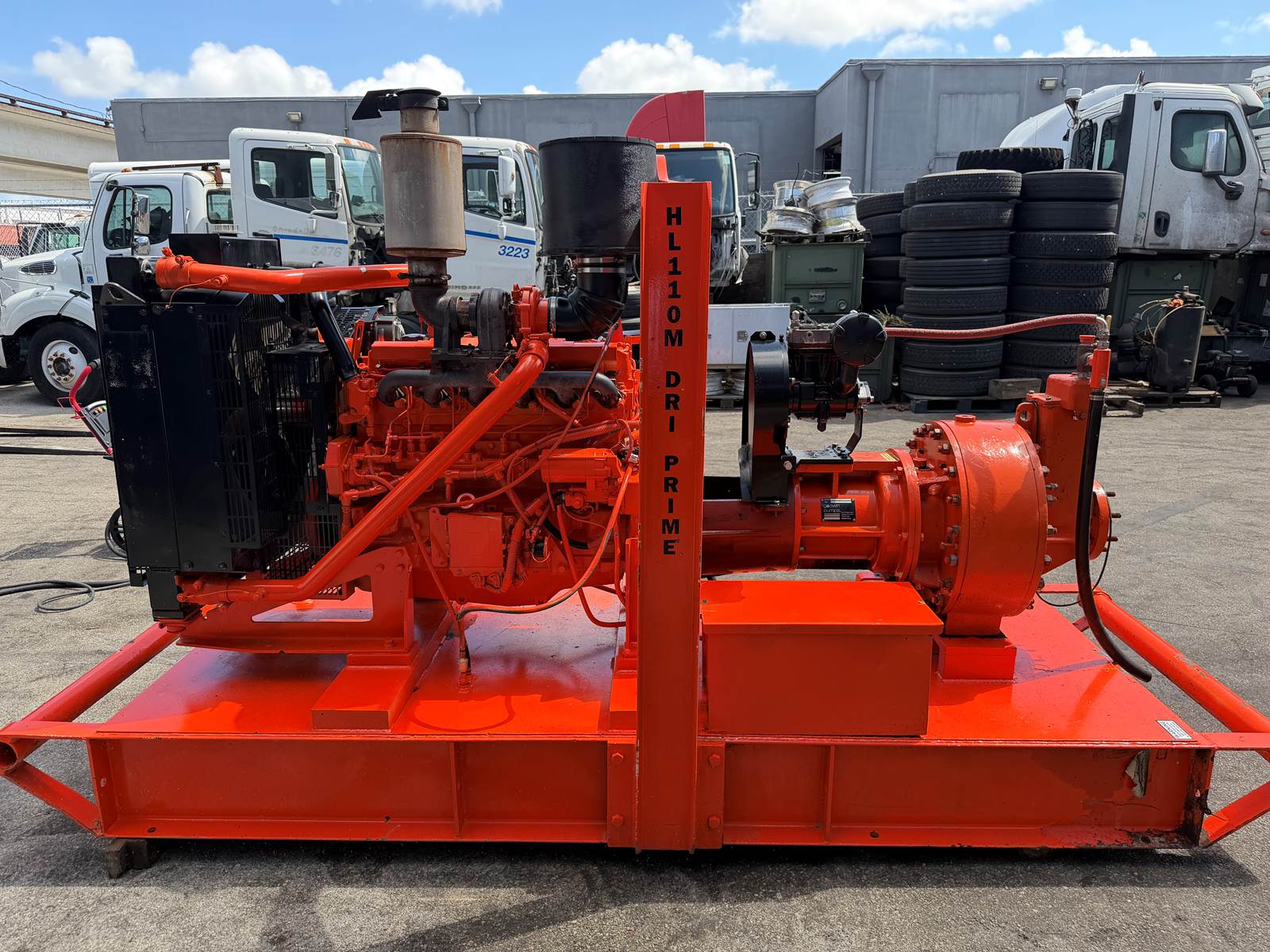

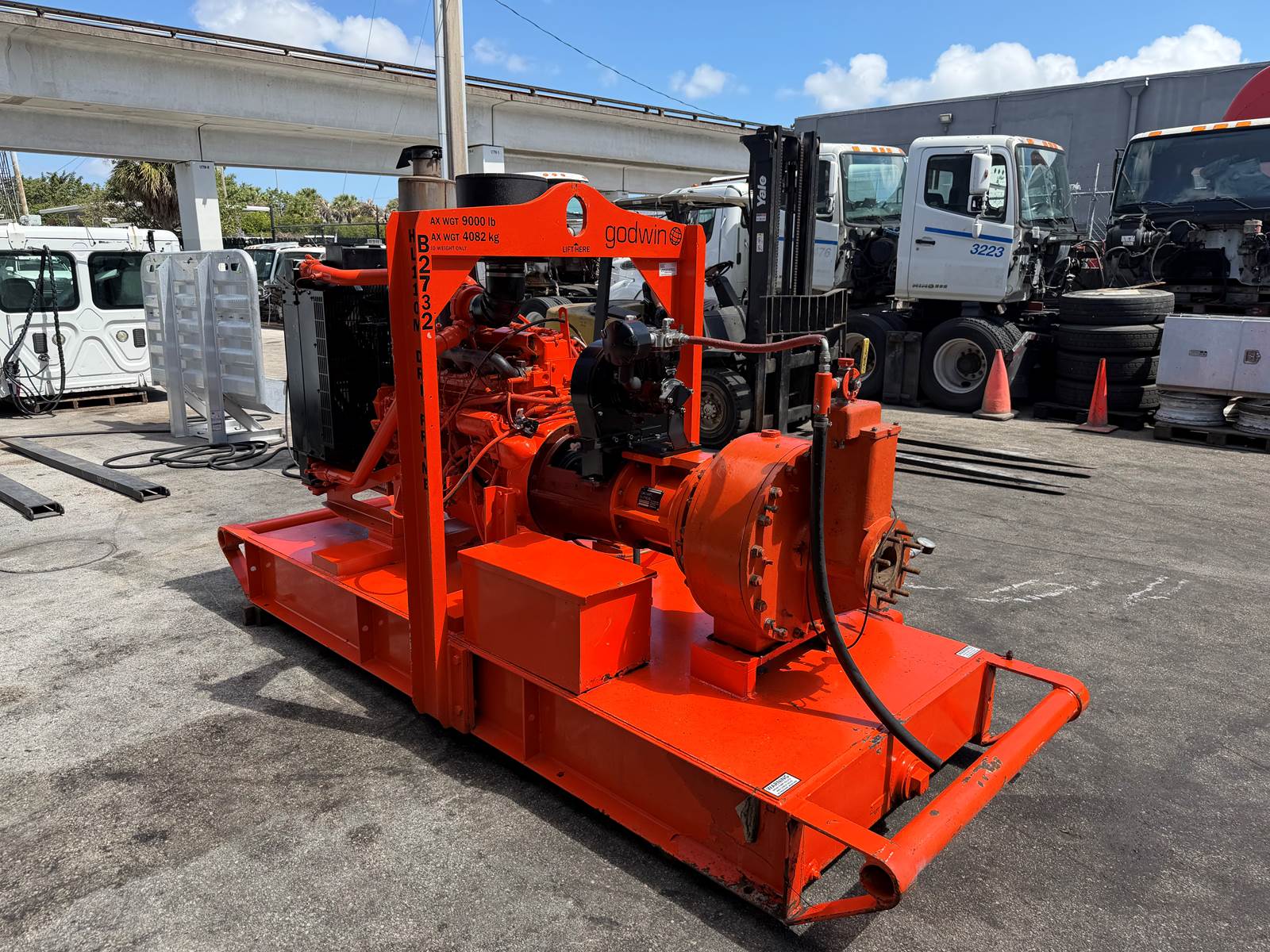

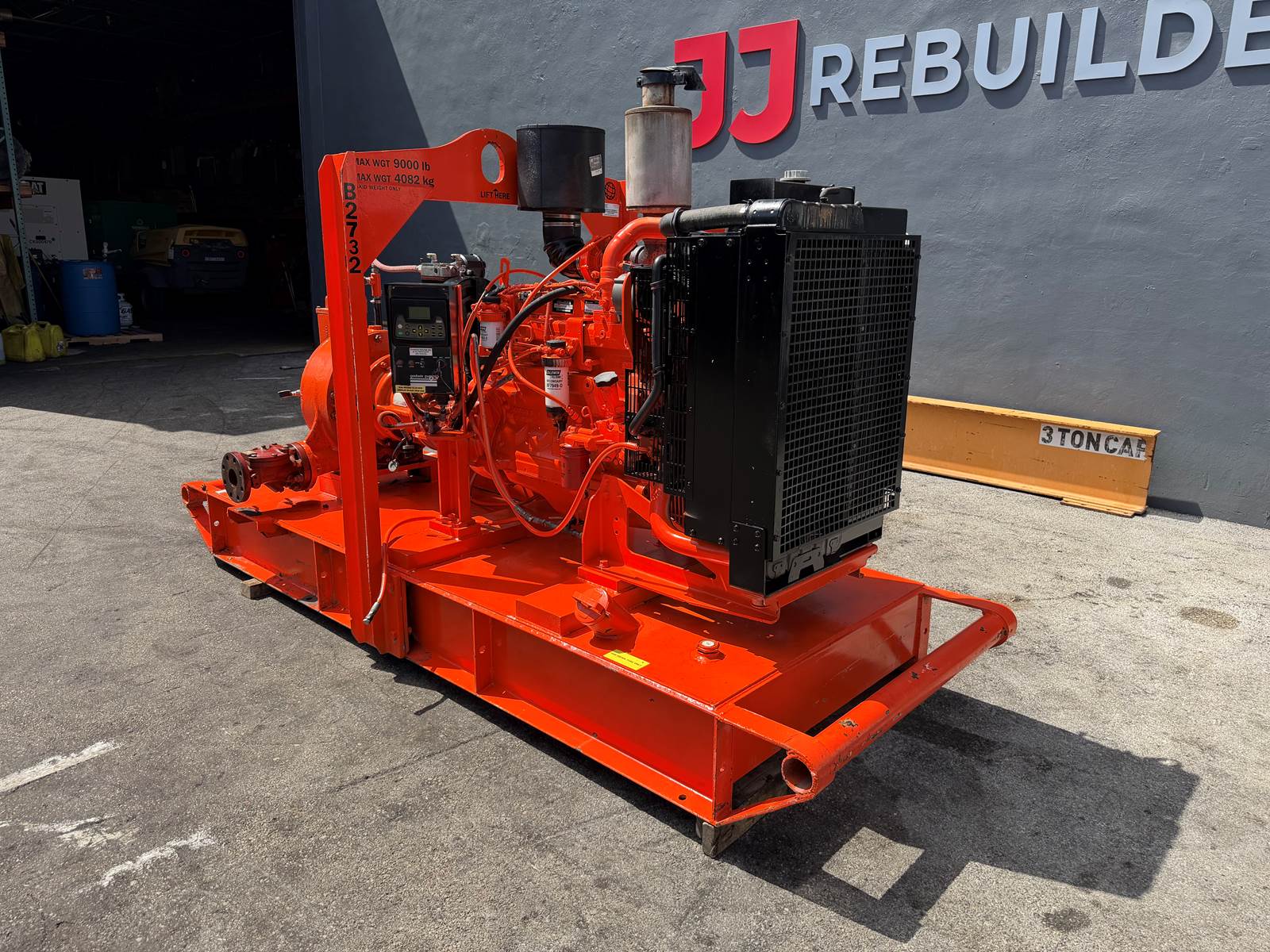

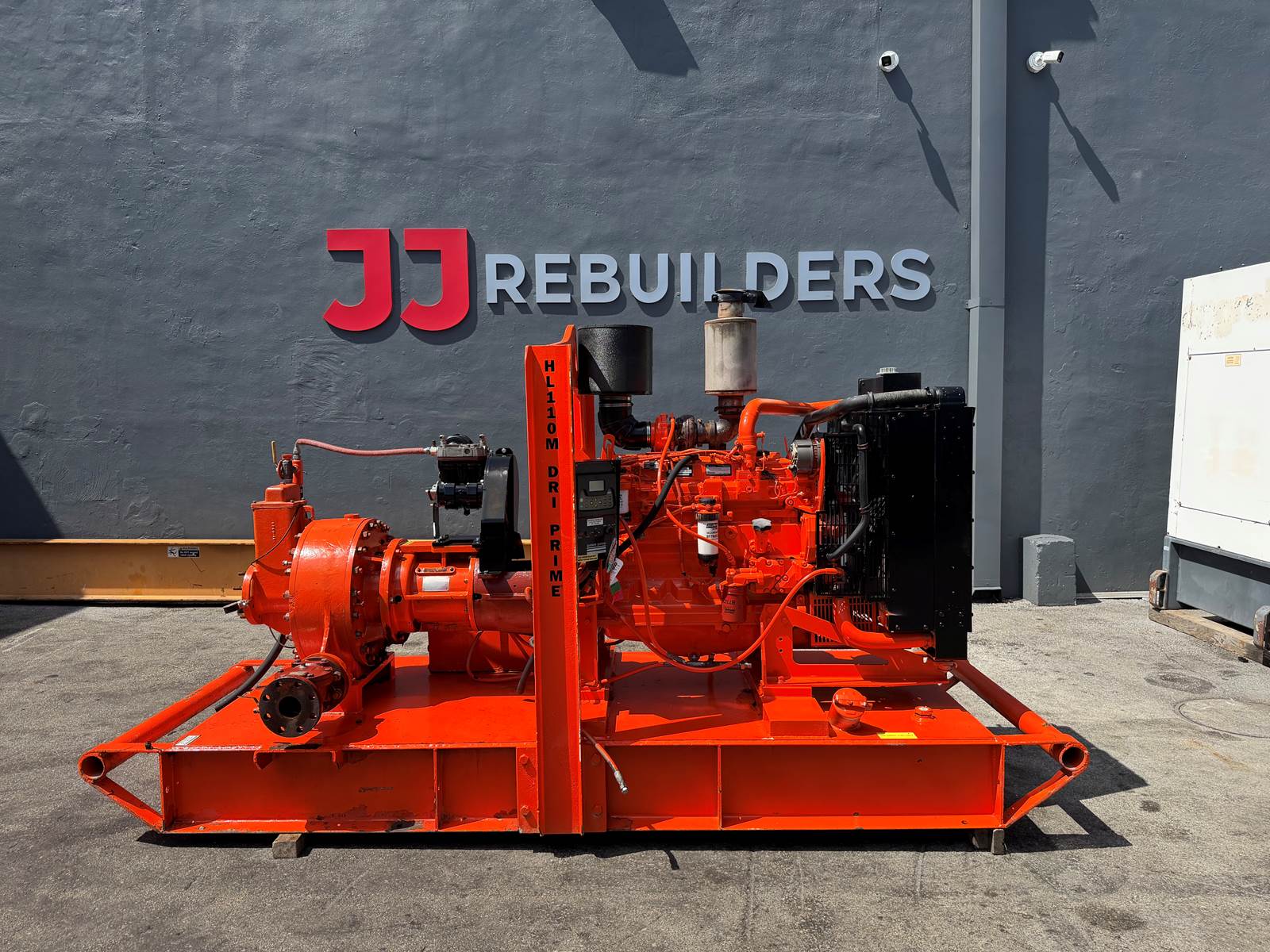

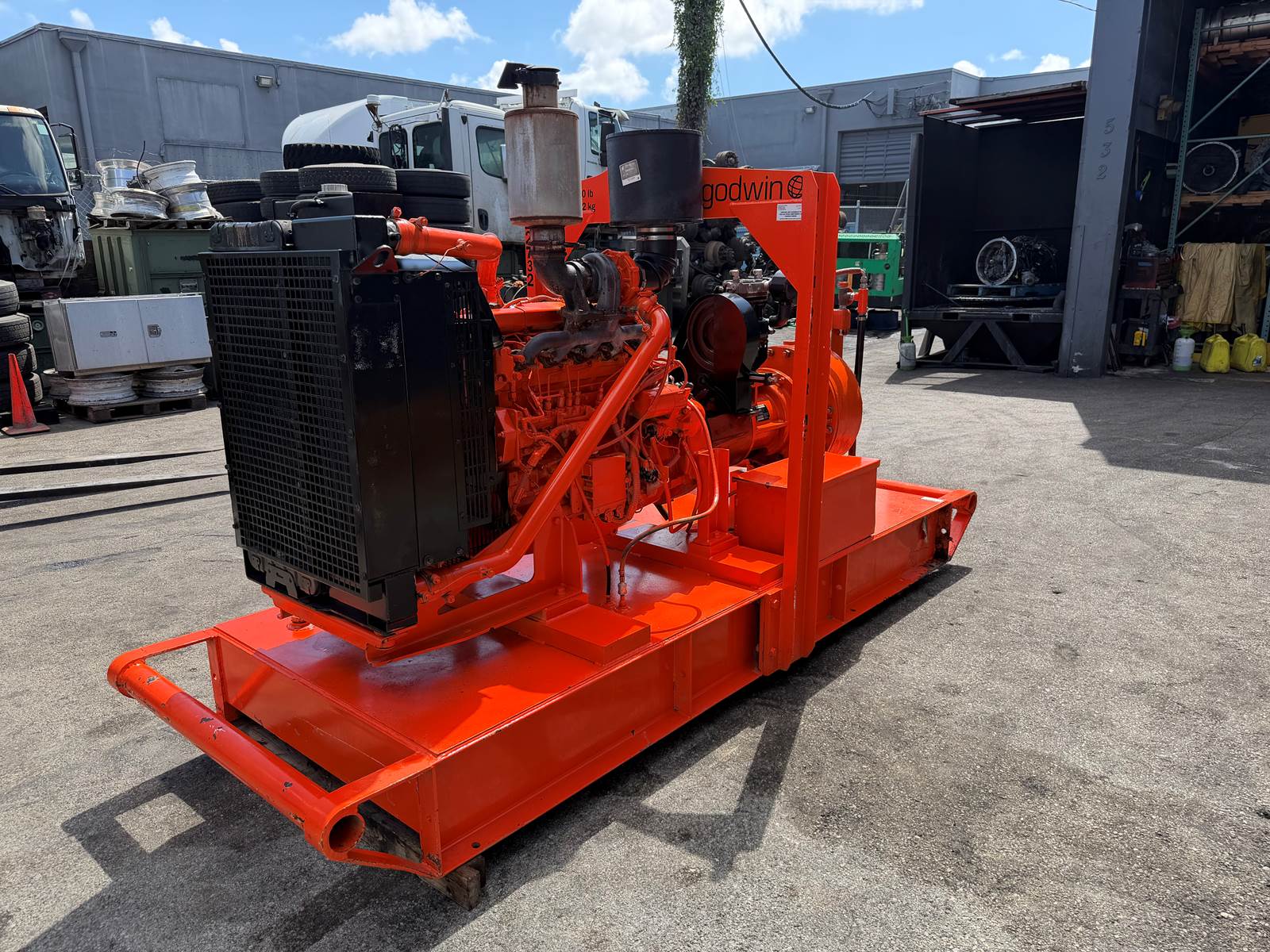

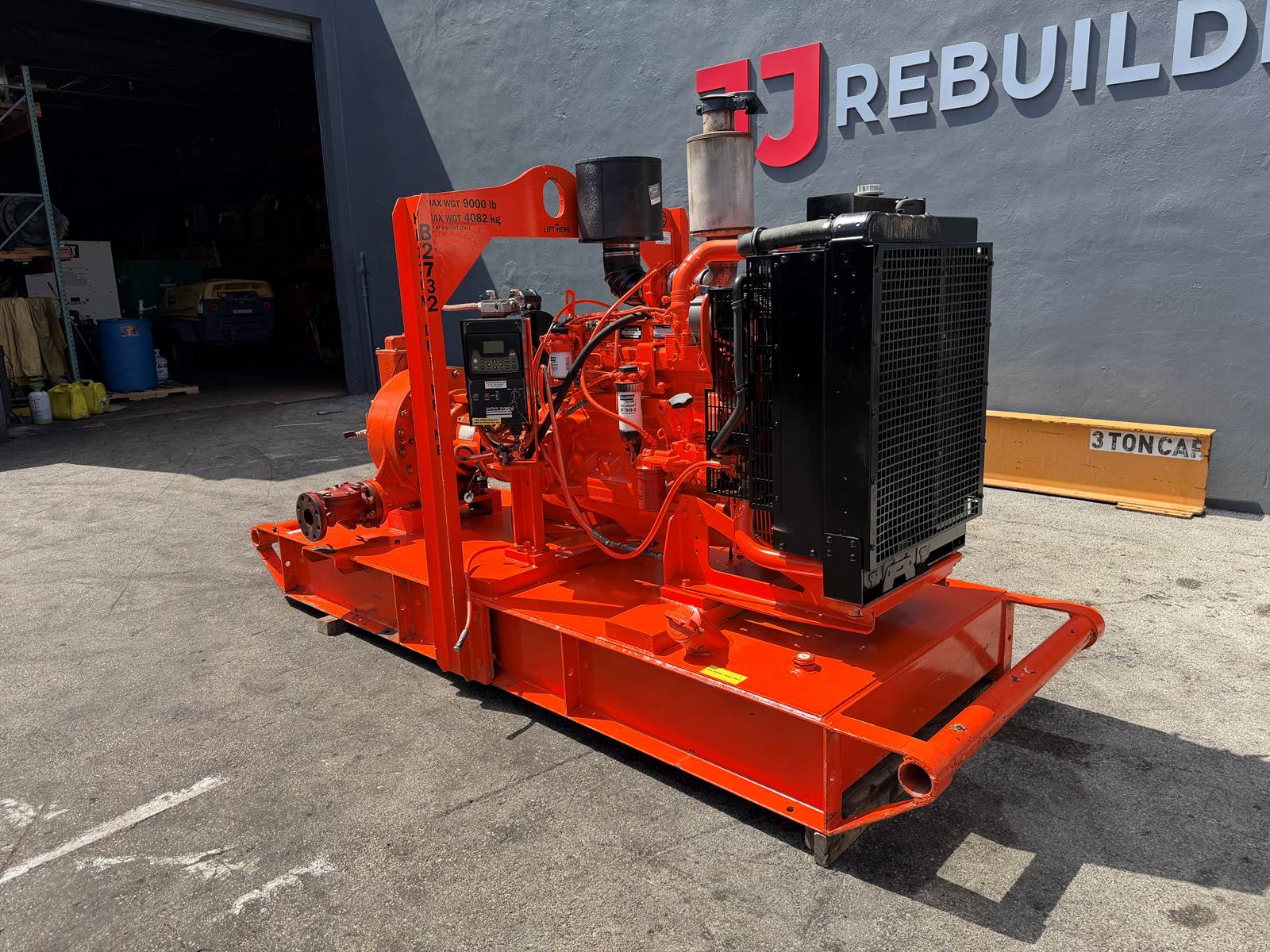

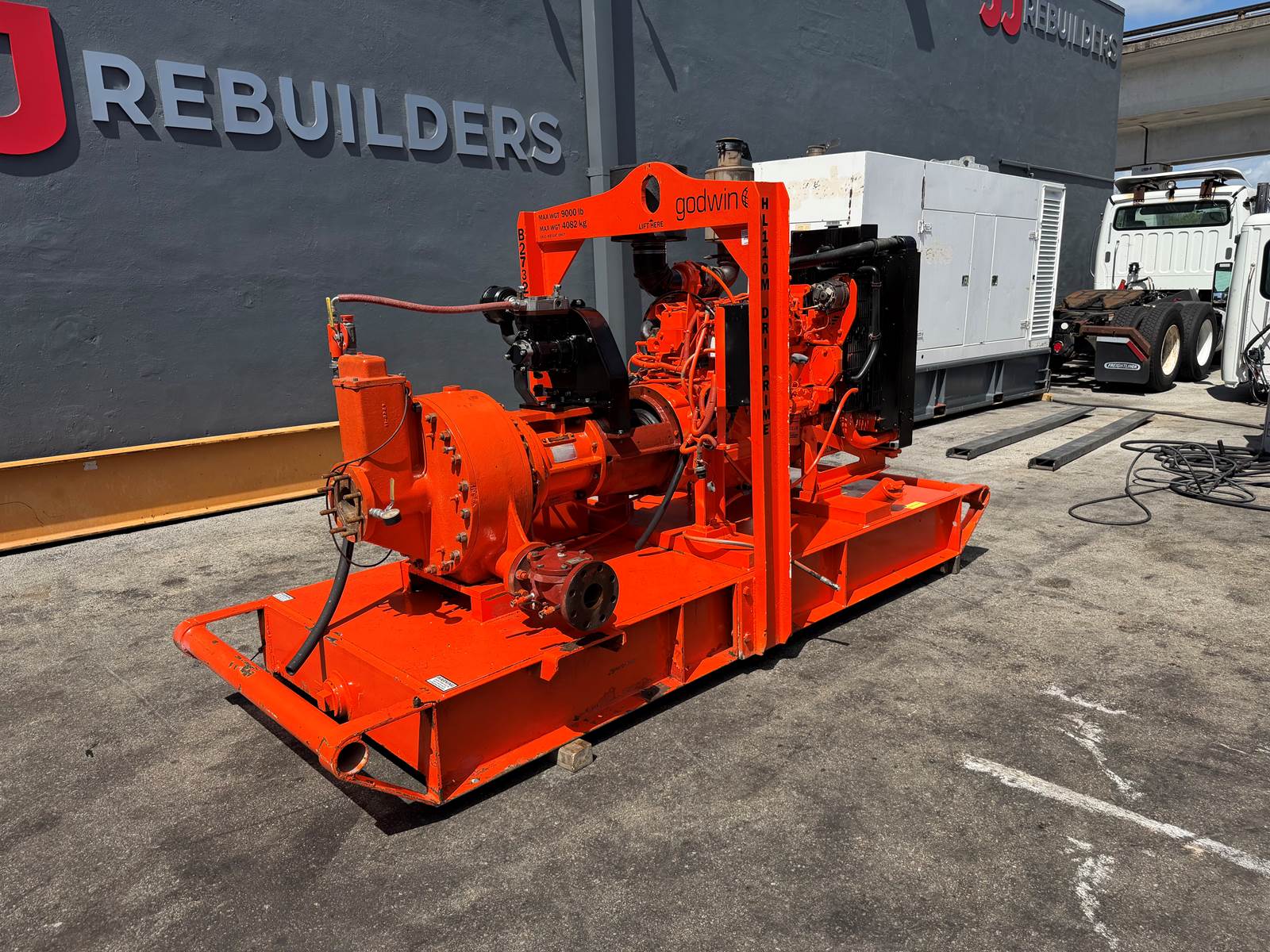

2011 Godwin HL110M Dri-Prime, Skid Mounted Water Pump
High-Capacity Dewatering Pump – 500 GPM – John Deere Diesel Powered

JJ Rebuilders is offering a Godwin HL110M Dri-Prime® skid mounted water pump, a powerful and reliable self-priming centrifugal pump designed for heavy-duty dewatering, industrial pumping, and emergency water transfer applications.

The HL110M is engineered to automatically prime up to 28 feet of suction lift, making it ideal for construction sites, municipal bypass pumping, mining operations, and flood control. With the ability to move up to 500 gallons per minute and deliver up to 265 PSI discharge pressure, this pump is built for demanding environments where reliability and performance are critical.

Mounted on a rugged steel skid and powered by a John Deere 6068 Tier 3 diesel engine, this unit is ready for jobsite deployment and continuous operation.

Key Specifications

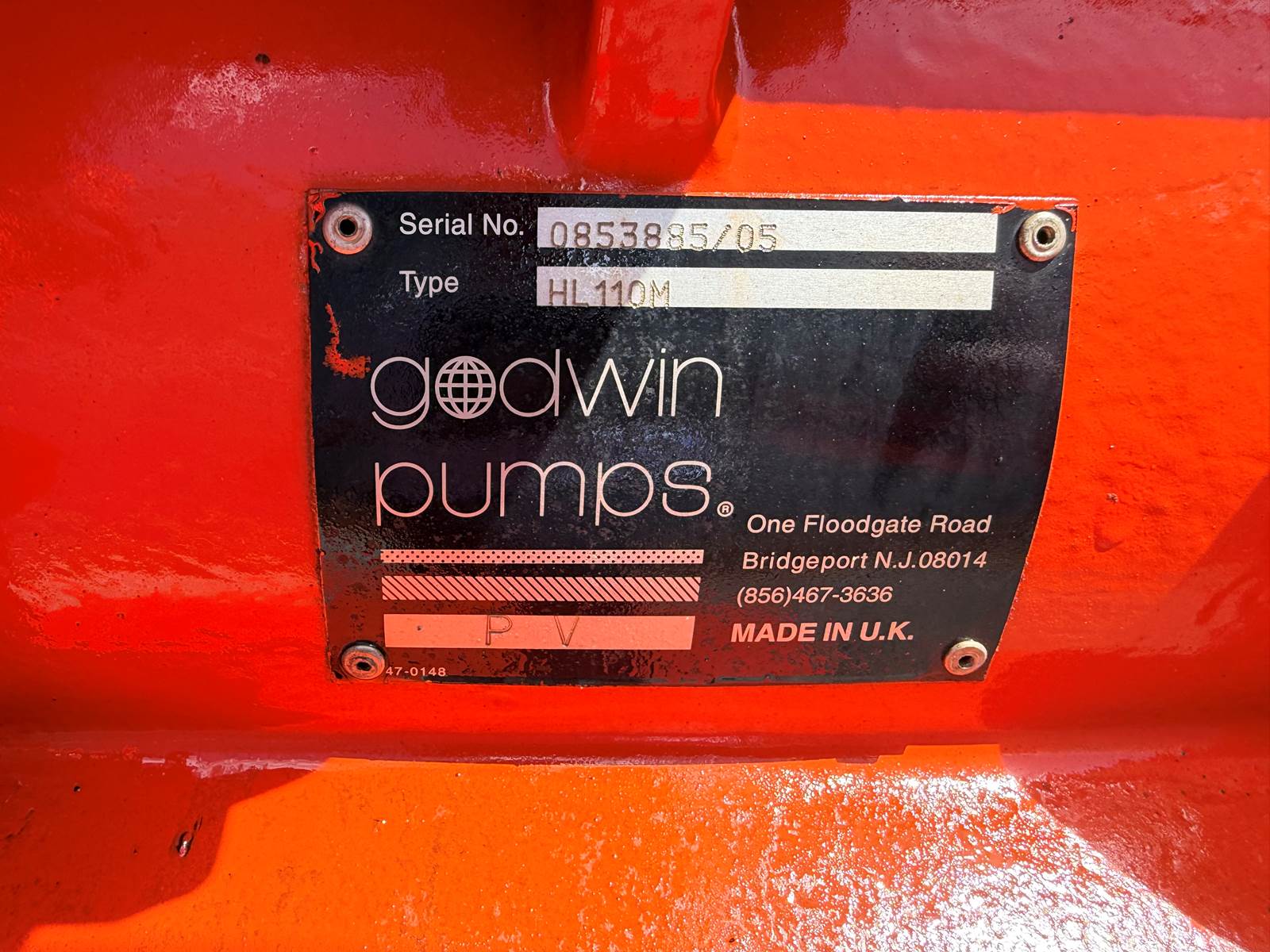

Manufacturer: Godwin (Xylem)
Model: HL110M Dri-Prime®
Pump Type: Self-Priming Centrifugal Pump
Mounting: Skid Mounted

Pump Performance

Maximum Flow: 500 GPM

Maximum Discharge Pressure: 265 PSI

Maximum Suction Lift: 28 ft

Maximum Operating Speed: 2200 RPM

Maximum Solids Handling: 0.8 in

Maximum Working Temperature: 176°F

Connections

Suction Connection: 4" ANSI B16.5

Discharge Connection: 3" ANSI B16.5

Engine

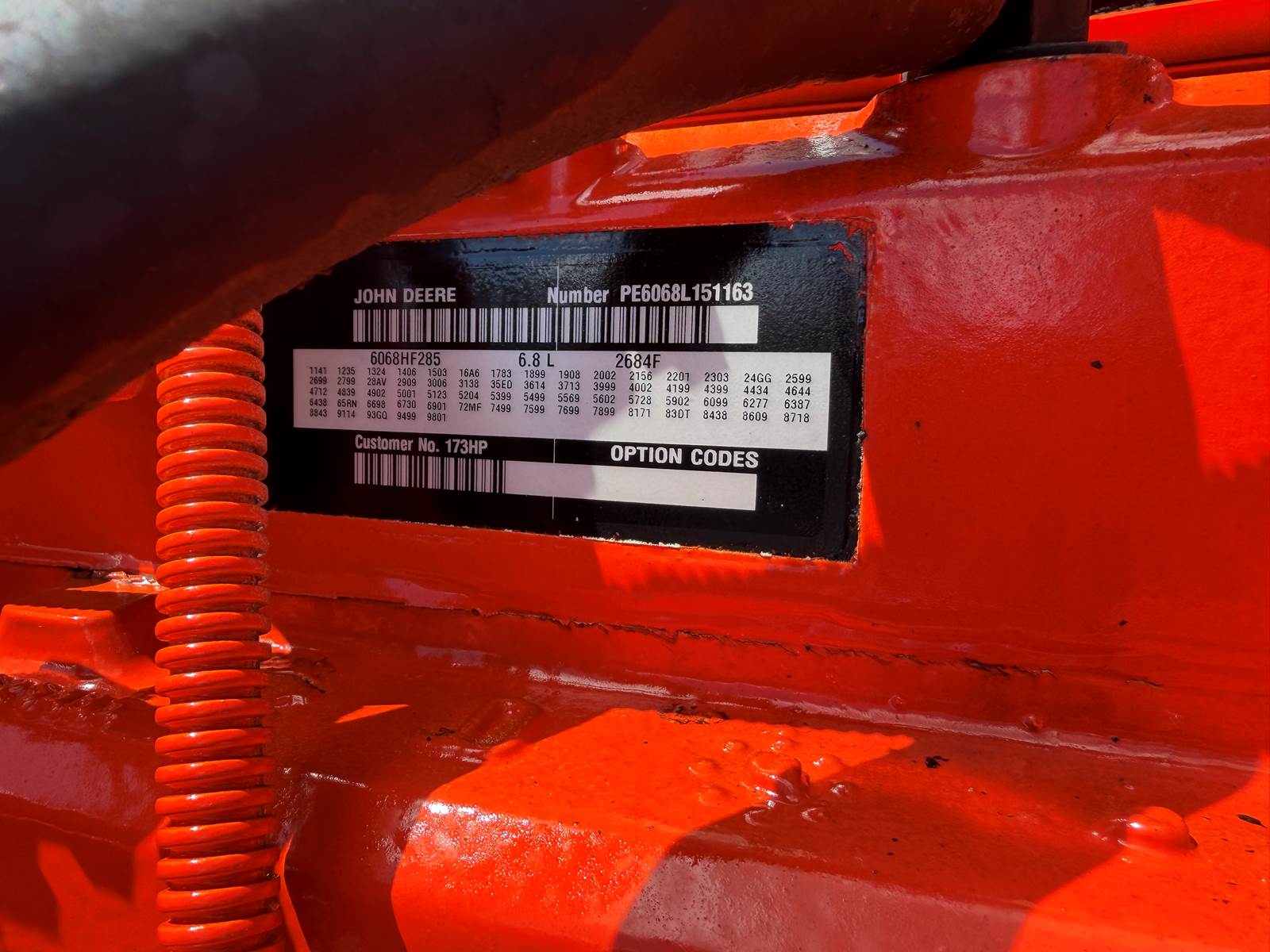

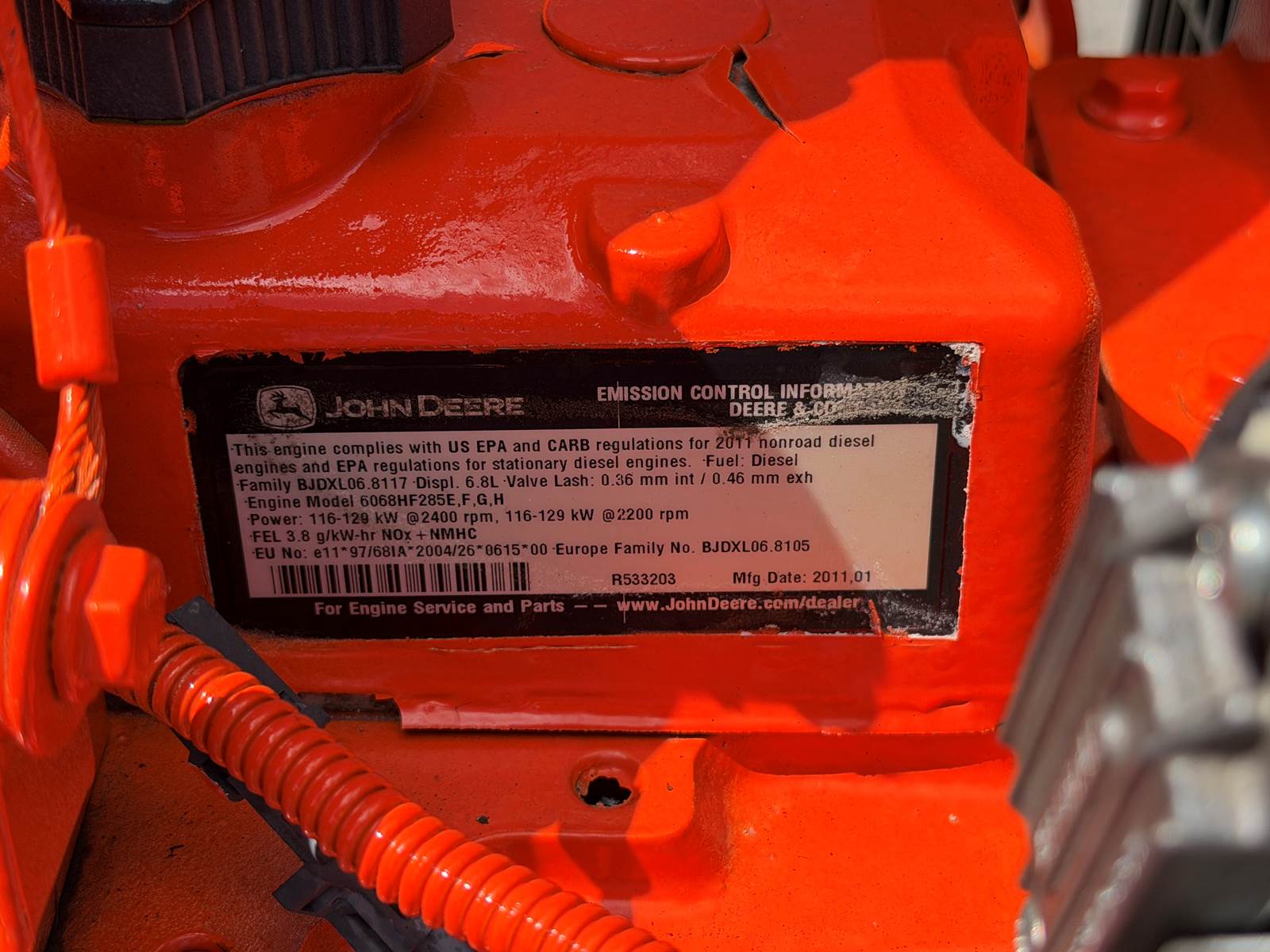

John Deere 6068HF285 (Tier 3 Flex)

Approx. 156 HP @ 2200 RPM

Fuel consumption approx 8.3 – 7.5 gallons per hour

Fuel tank capacity: 180 gallons

Construction

Cast steel pump casing

Hardened high chrome wear plates

Stainless steel mechanical seal body

Silicon carbide seal faces

Close-coupled centrifugal pump design

Dimensions & Weight

Length: 138 in

Width: 53 in

Height: 84 in

Dry Weight: approx. 6,710 – 6,950 lbs

Typical Applications

Construction site dewatering

Municipal bypass pumping

Mining and quarry pumping

Industrial water transfer

Emergency flood pumping

Fire protection backup systems

 Available now from JJ Rebuilders
 Located in Miami, Florida
 Nationwide and international shipping available

Contact JJ Rebuilders today for pricing and availability.
