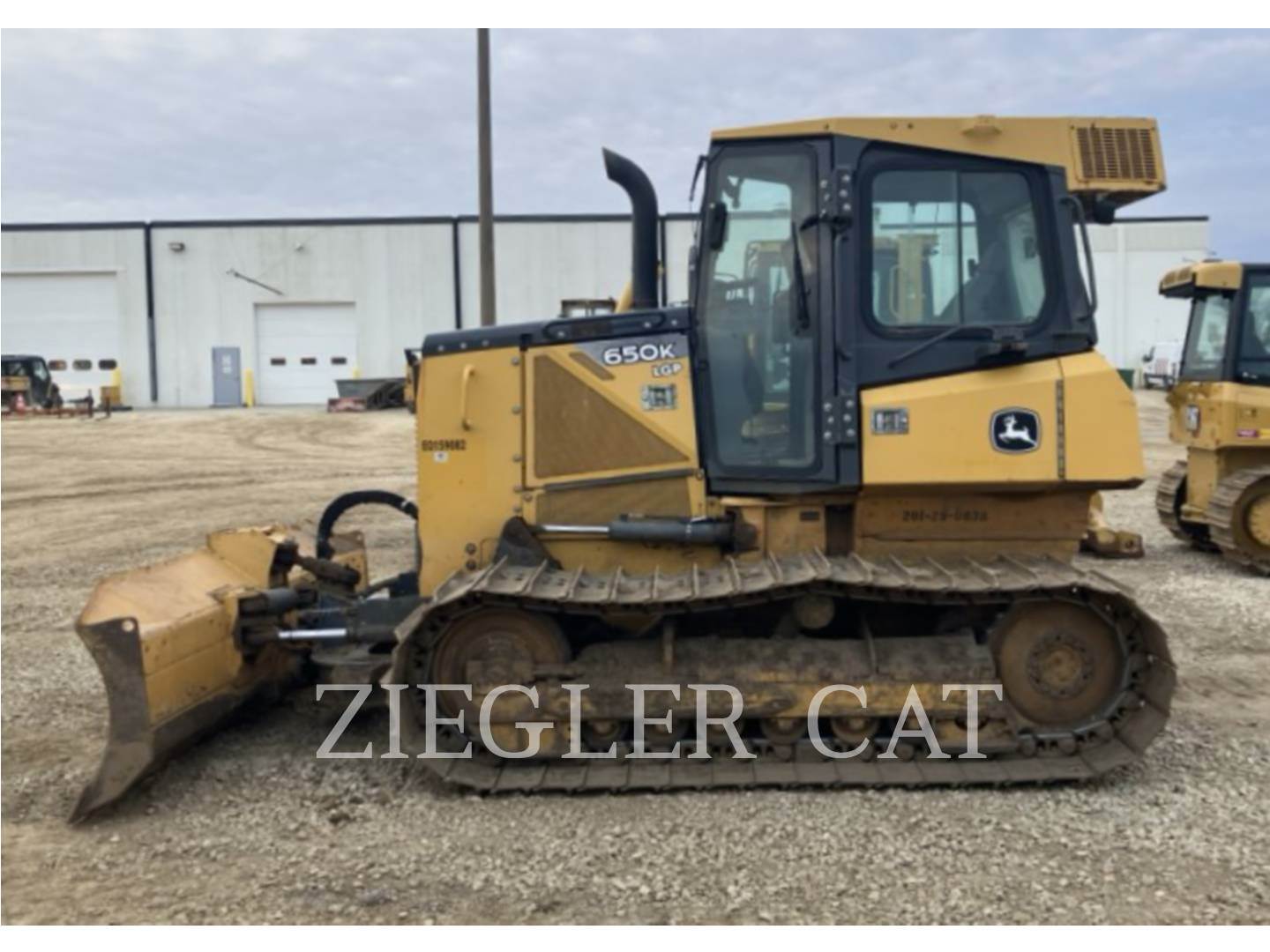

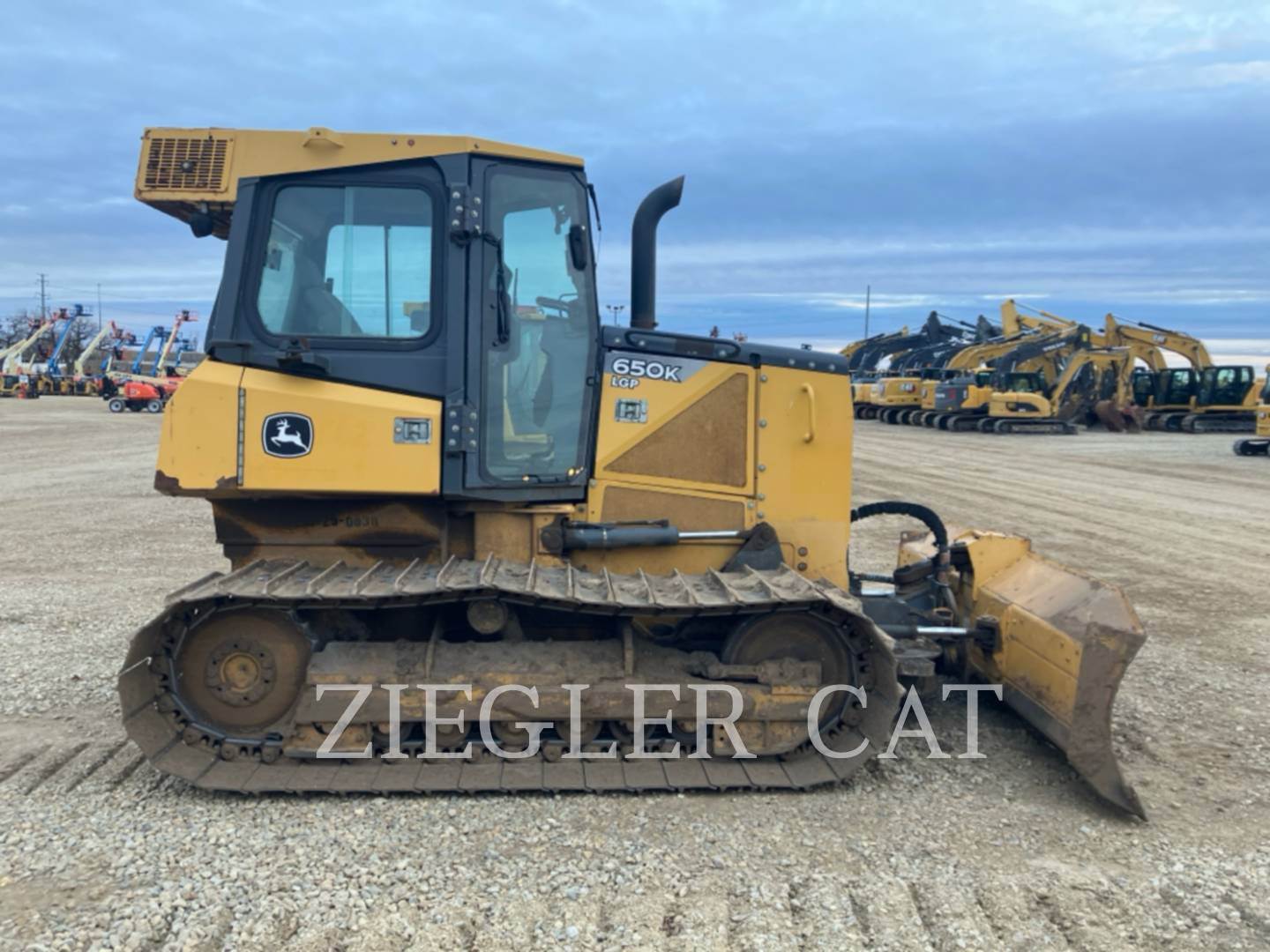

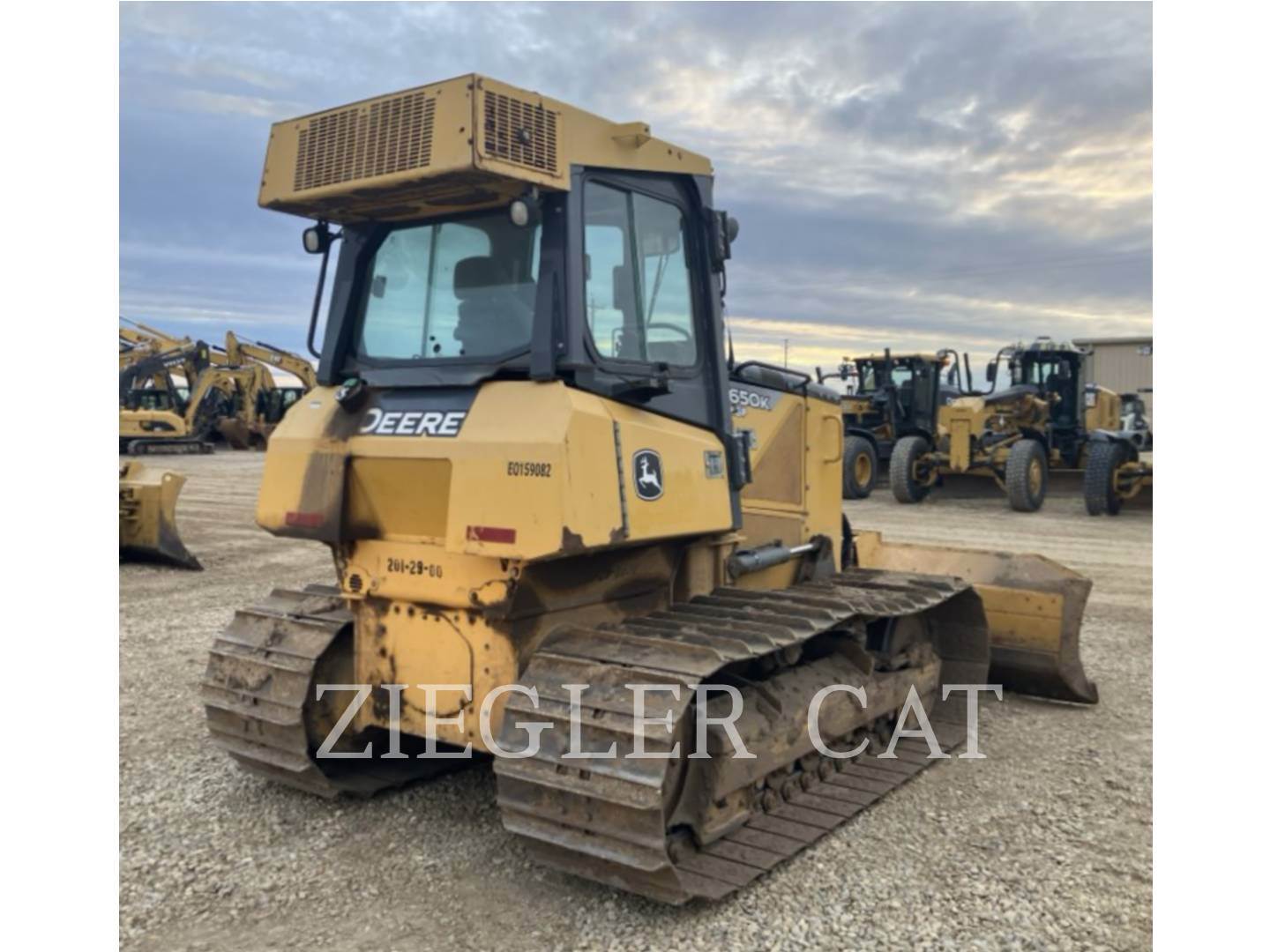

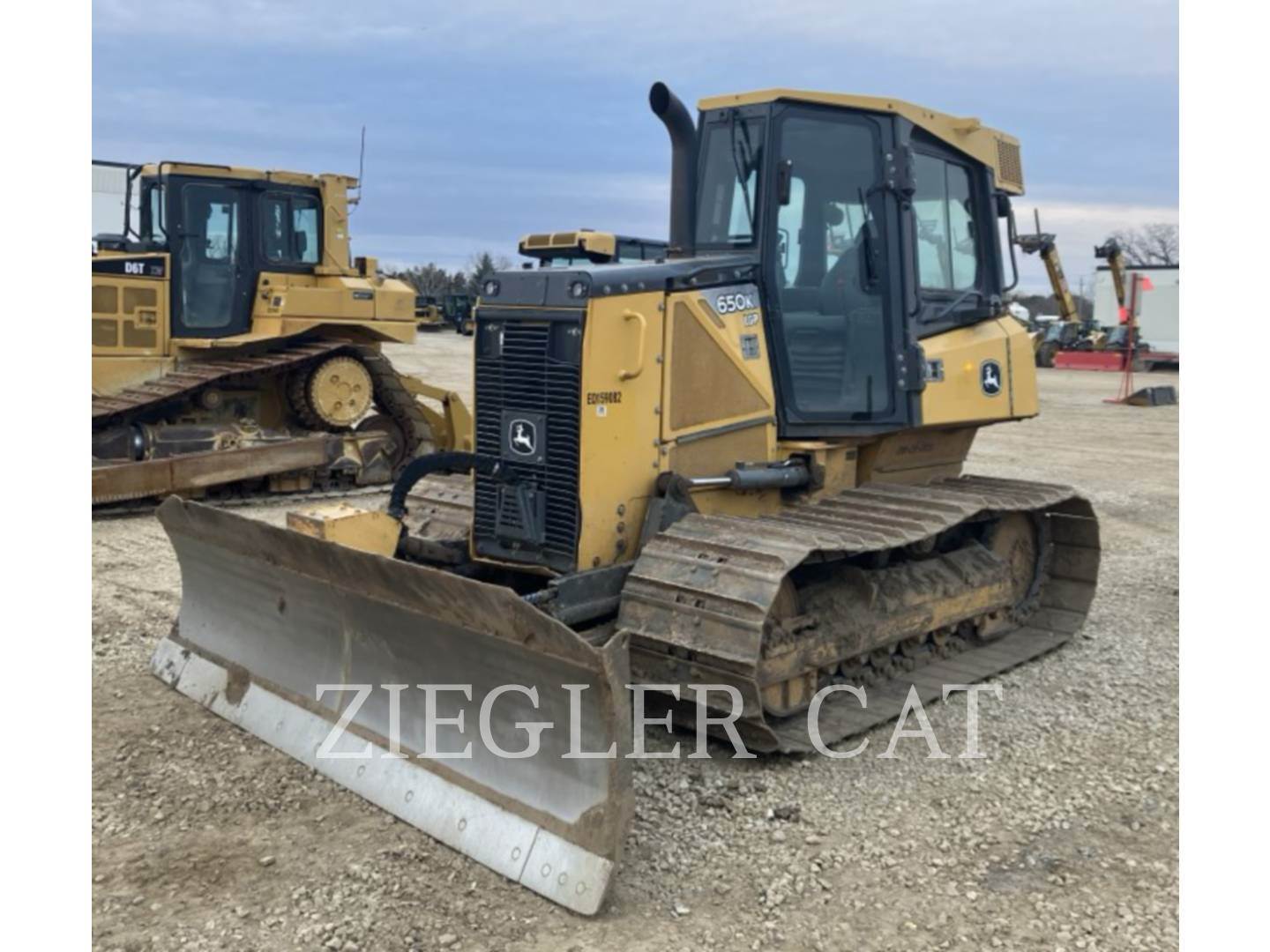

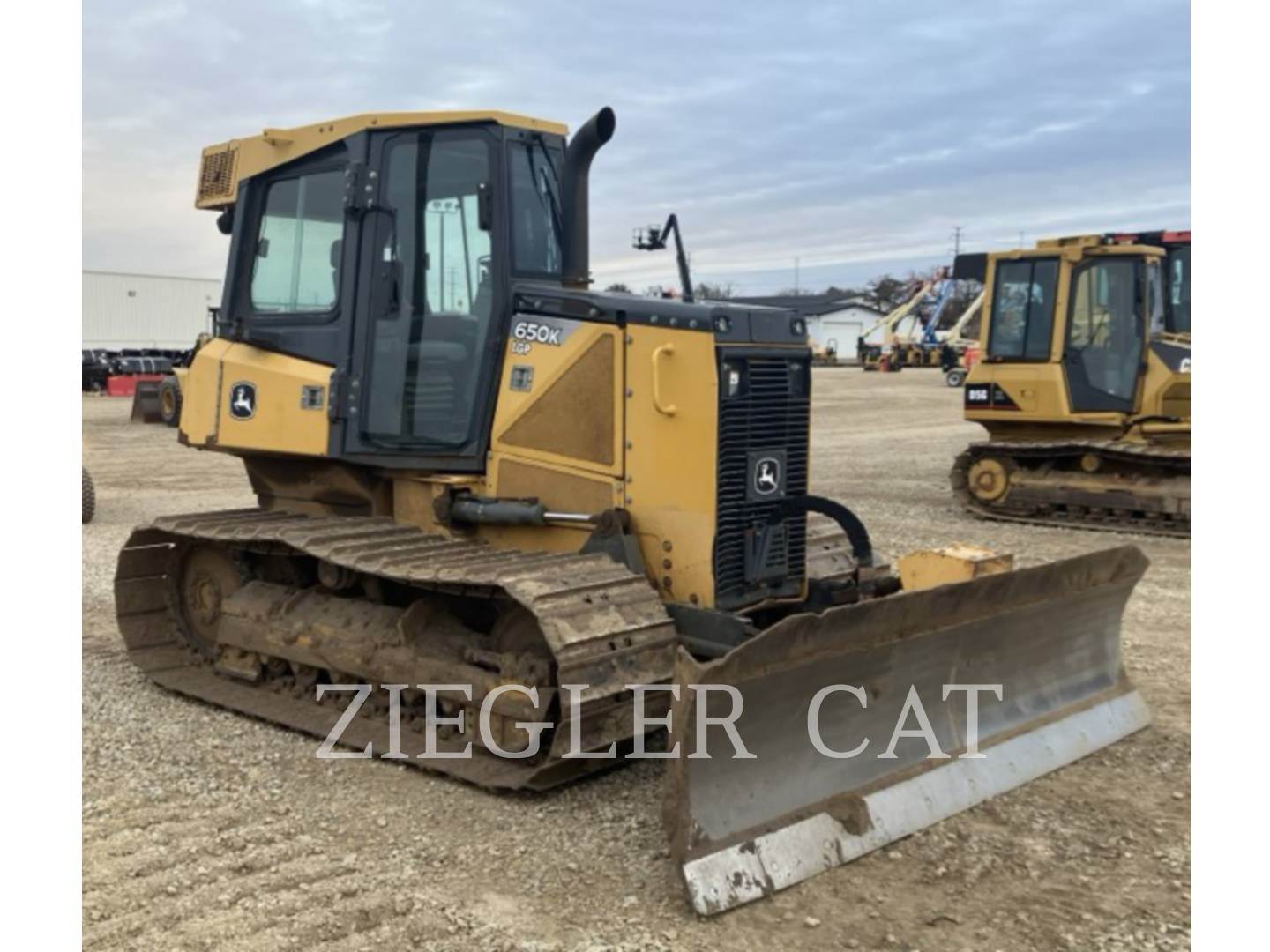

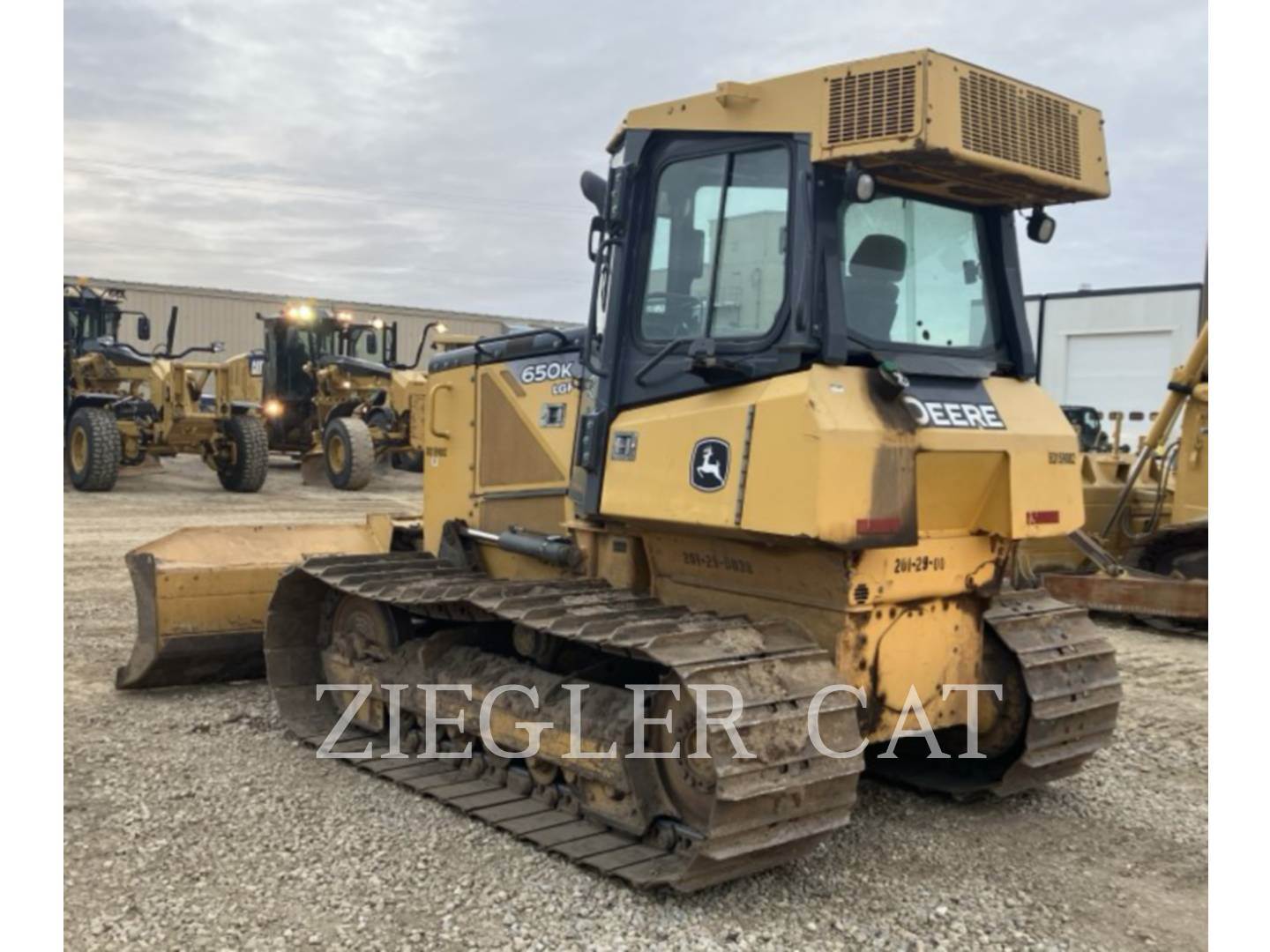

2013 John Deere 650K LGP Dozer

Buyer Activity

Viewed

1 time

Shared

Not yet

Saved

Not yet

Product Specifications

Year	2013
Category	Dozers
Manufacturer	John Deere
Model	650K LGP
Condition	Used
Stock Number	EQ0159082
MLS Number	13997758

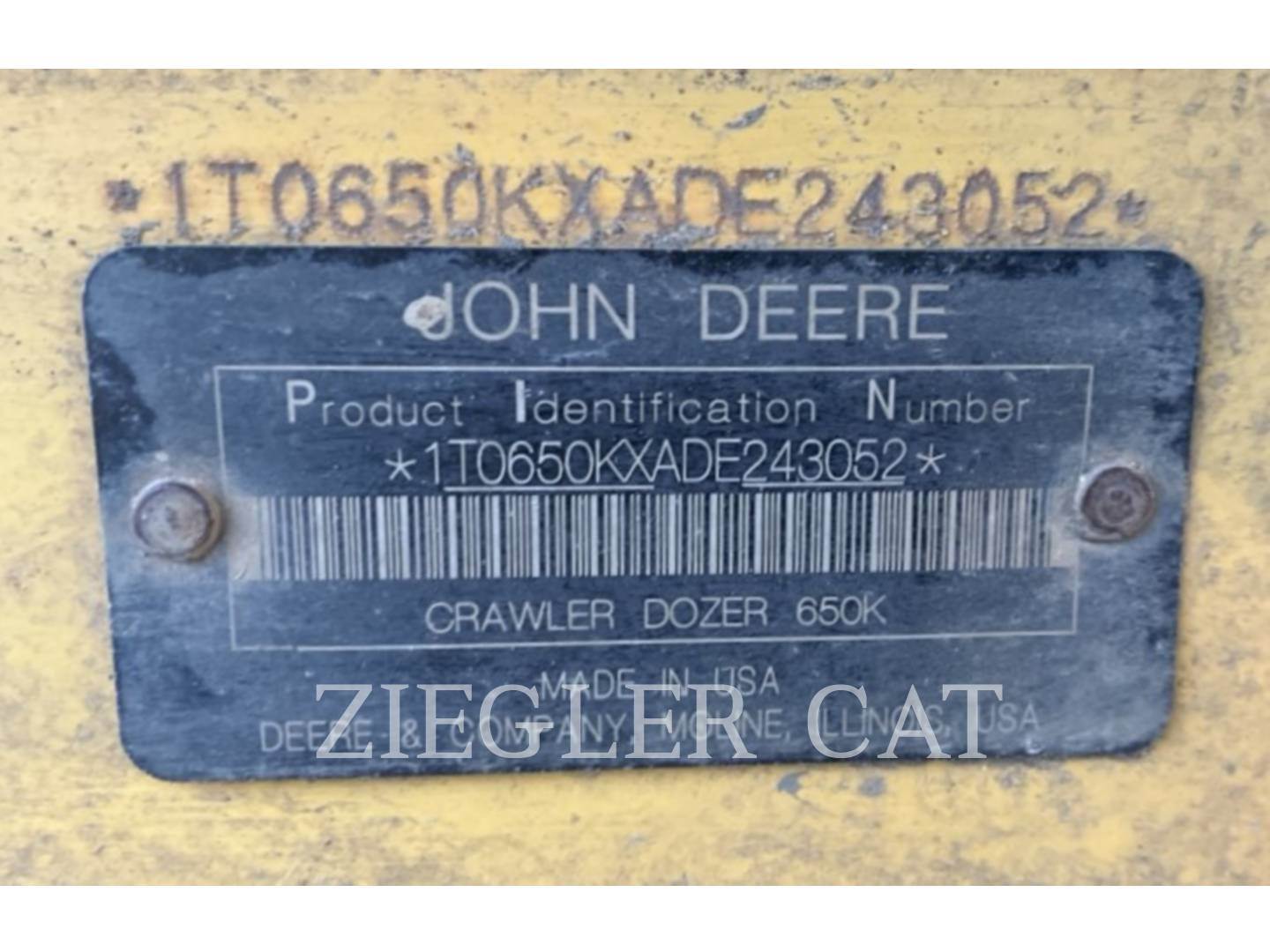

Serial Number	1T0650KXADE243052

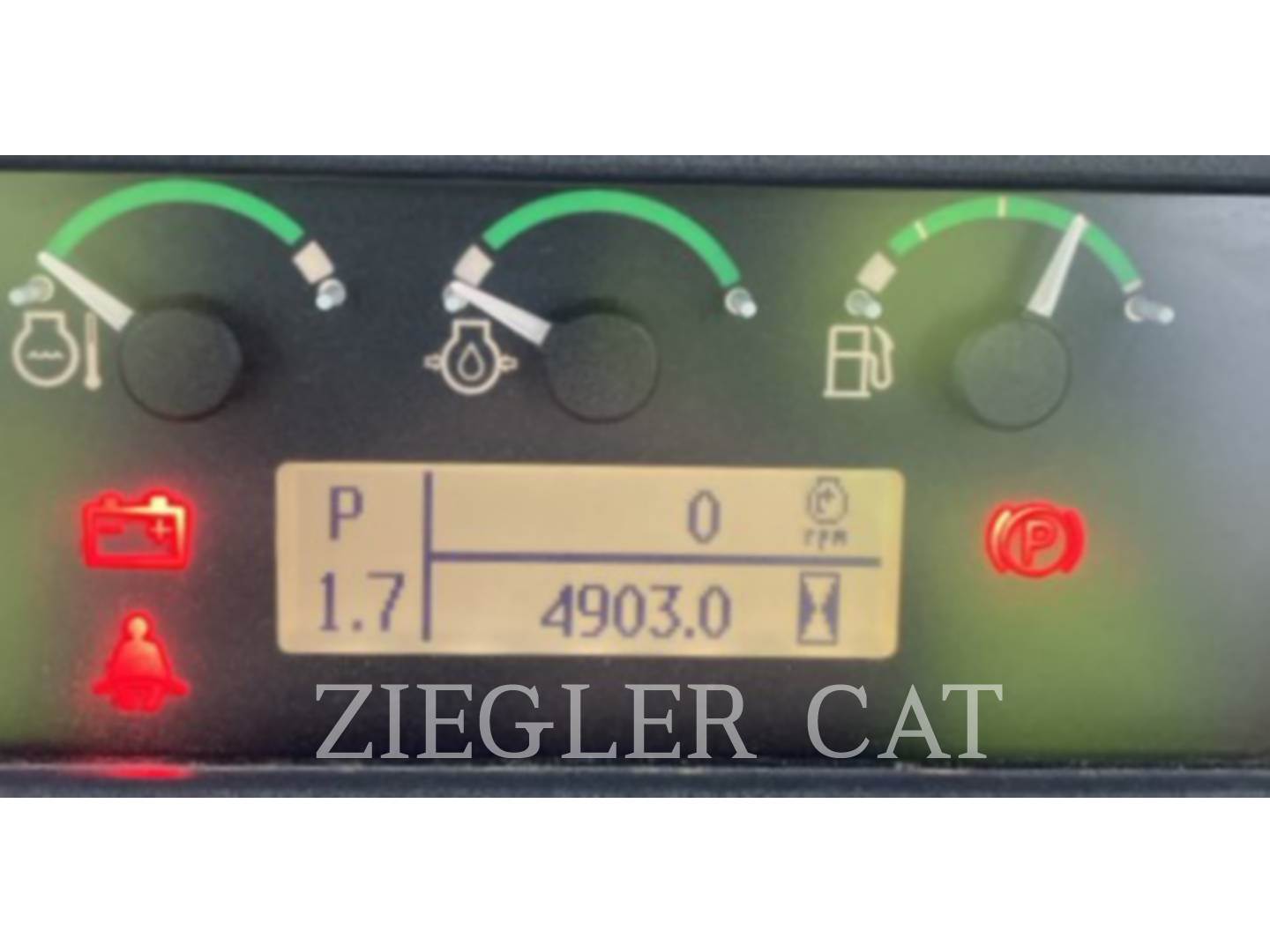

Usage	4,903 Hours

Additional Details

Rating	As-Is

Product Description

Air Conditioner
Air Suspension Seat
Blade Tilt - Single Tilt
Blade Type - Pat
Drawbar
Emissions Level
Engine Enclosures
Lighting
Pressure, Low Ground (LGP)
Radio - AM FM Radio
ROPS - Enclosed
Steering Type - Joystick
Ultra Low Sulfur Diesel Fuel

$58,000 USD

Located in Shakopee, MN, US

Email Seller (855) 952-___ SHOW
NUMBERCall Seller

Seller Information

Ziegler CAT

720 3rd Ave SW
Crookston, MN 56716
United States

+18559525674

Get Directions

View all Inventory (604)

Notes

Get Shipping Quotes Save Price Alert Send to a Friend Print Listing

Inspection Report

GENERAL CONDITION

Logged / Active Codes	Yes
Machine Starts and is Operable	Yes
Visible Oil Leaks	Yes
Body	Good
Frame	Good
General	Good

GENERAL APPEARANCE

Notes - GENERAL APPEARANCE	THE MACHINE IS OVERALL STRAIGHT
Belly Pans	Good
Cab or Canopy	Good
Decals	Fair
Draw Bar	Good
Engine Enclosures	Good
Fuel Tank	Good
Grab Irons	Good
Hood	Good
Main Frame Welds	Good
Paint	Fair
Pre-Cleaner Bowl	Fair
Radiator Grill	Good
Sheet Metal	Good

SAFETY ITEMS

Parking Brake Functioning	Yes
ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
Back Up Alarm	Good
Horn	Poor
ROPS	Good
Seat Belt / Date	Good

OPERATOR STATION

Fuel Level - OPERATOR STATION	75%
Air Conditioner	Fair
Armrests	Good
Cab Filter / Heat Vent Louvres	Fair
Dash Console	Fair
Door Latches / Hinges / Seals	Good
Floor Boards / Mats	Good
Gauges	Good
Headliner	Good
Heater / Defroster	Good
Hour Meter - GAUGES, OPERATION STATION, CONSOLE	Good
Interior Lights	Good
Interior Plastic / Fabric	Good
Monitoring Display	Good
Radio	Good
Seat Cushions / Suspension / Type	Fair
Switches	Good
Windows	Good
Windshield Wipers	Fair

ENGINE

Blow By	Yes
Emissions Decal Legible	Yes
Fuel Leaks	No
Knocking	No
Oil Leaks	No
Water in Oil	No
Notes - ENGINE	THE ENGINE IS RUNNING SMOOTH WITH NORMAL POWER.
Oil Pressure (H/L/N)	NORMAL
Smoke Color (B/D/L/W)	NORMAL
Engine Oil Level / Condition	Good
Engine Supports / Mounts	Good
Exhaust / Muffler / Stack	Good
Fuel Injection System	Good
Governor	Good
Intake / Air Filters	Good
Operating Condition - ENGINE	Good
Turbocharger / Blower	Good

EMISSIONS

Aftertreatment System Codes	No
Notes - EMISSIONS	THE EMISSIONS SYSTEM IS FUNCTIONING NORMAL.
Diesel Particulate Filter (DPF) Condition / Service Hours	Good

COOLING SYSTEM

Compression in Radiator	No
Coolant Leaks	No
Oil in Anti-Freeze	No
Standard Radiator	Yes
Notes - COOLING SYSTEM	THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 40 DEGREE WEATHER.
Anti-Freeze Level / Color / Condition	Good
Belts / Pulleys - COOLING SYSTEM	Fair
Coolers	Good
Fan	Good
Fan Drive / Type	Good
Fan Shrouds / Guards	Good
Hoses / Tubes	Good
Radiator	Good
Water Pump	Good

ELECTRICAL, STARTING AND CHARGING SYSTEM

Active Codes	No
Block Heater	Yes
Ether Aid	Yes
Alternator	Good
Batteries / Cables	Good
Starter	Good
Wiring	Good
Work Lights	Good

TRANSMISSION

Hydrostatic	Yes
Leaks - TRANSMISSION	No
Transmission - Noisy	No
Notes - TRANSMISSION	THE HYDROSTATIC DRIVE IS FUNCTIONING NORMAL THROUGHOUT ALL SPEED SETTINGS.
Controls - TRANSMISSION	Good
Cooler	Good
Lines / Fittings - TRANSMISSION	Good
Operating Condition - TRANSMISSION	Good
Pump - TRANSMISSION	Good
Seals	Good
Temp / Pressure Gauges	Good
Valves	Good

STEERING

Notes - STEERING	THE MACHINE IS STEERING NORMAL.
Steering Operating Condition	Good
Steering Valve	Good

BRAKE

Parking Brake Operation	Good
Service Brake Operation	Good

HYDRAULICS

Leaks - HYDRAULICS	Yes
Notes - HYDRAULICS	THE IMPLEMENT HYDRAULICS ARE FUNCTIONING NORMAL.
Angle Cylinder	Good
Control Linkage - HYDRAULICS	Fair
Hose Lines	Good
Hydraulic Valves	Poor
Lift Cylinders	Fair
Overall Operating Condition	Good
Pumps	Good
Tank / Sight Glass / Cap	Good
Tilt Cylinder	Fair

BLADE

Notes - BLADE	THE DOZER IS IF IN GOOD OVERALL FUNCTIONAL CONDITION.
Back of Blade	Good
C Frame / Mounts / Bearings	Good
Cutting Edge & Bits	Good
Face / Moldboard	Good
Pins	Good
Stabilizer Link	Good
Trunnions	Good

UNDERCARRIAGE

Pins & Bushings Turned?	No
Bottom Rollers	THERE IS AT LEAST ONE BOTTOM ROLLER LEAKING.
Link / Brand / Part Number	ITM PRO 4 SALT LINKS
Notes - UNDERCARRIAGE 1	THE U/C IS NEARING A POINT OF TURN ON THE BUSHING
Track Shoes Width / Type	27.5 INCH SINGLE GROUSER.
Guiding Guard - Left	Fair
Guiding Guard - Right	Fair
Track Frame - Left	Good
Track Frame - Right	Good
Carrier Rollers Front
Left	145MM / 30% Worn
Right	144.5MM / 28% Worn
Idlers Front
Left	17.5MM / 10% Worn
Right	19.5MM / 30% Worn
Pins & Bushings (External)
Left	51.75MM / 71% Worn
Right	51.75MM / 71% Worn
Pins & Bushings (Internal)
Left	685MM / 1% Worn
Right	685MM / 1% Worn
Segments
Left	/ 75% Worn
Right	/ 75% Worn
Track Roller 7
Left	AVE 176.5MM / 30% Worn
Right	176.5MM / 30% Worn
Track Shoe Grouser Height
Left	46MM / 12% Worn
Right	46MM / 12% Worn

FINAL DRIVES

Notes - FINAL DRIVES	BOTH DRIVE OILS ARE LEVEL WITH NORMAL APPEARING COLOR.
Housings, Left	Good
Housings, Right	Good
Planetaries / Differential, Left	Good
Planetaries / Differential, Right	Good

COMMENTS, MISC. REPAIRS, GENERAL REMARKS

comment 1	THE MACHINE IS BEING USED EACH DAY WITH SMOOTH ENGINE AND NORMAL PERFORMING HYSTAT. THE DOZER IS OVERALL TIGHT WITH SOME PLAY IN THE TILT CYLINDER JOINTS.
