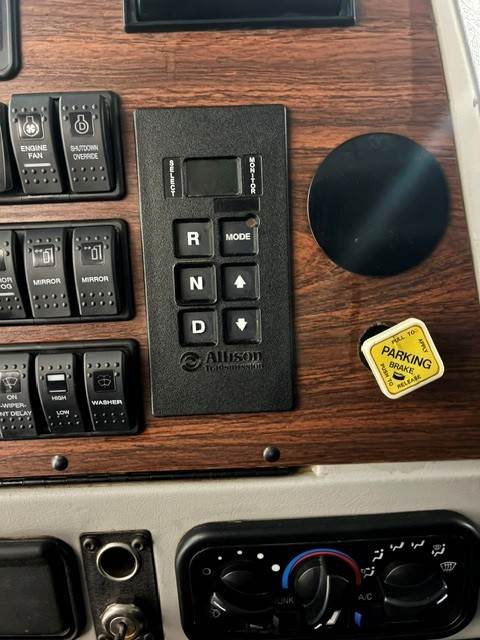

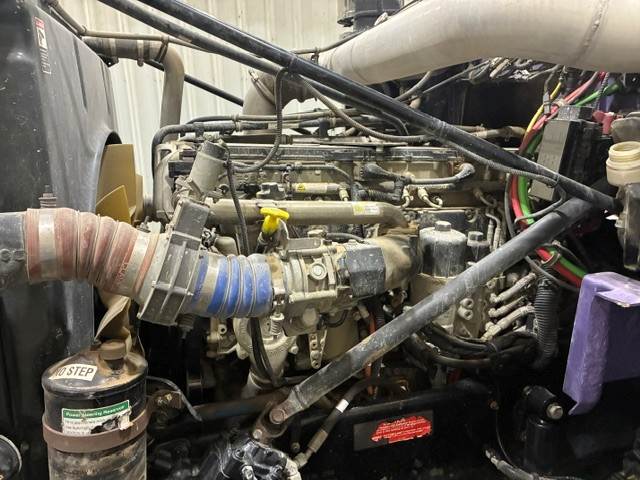

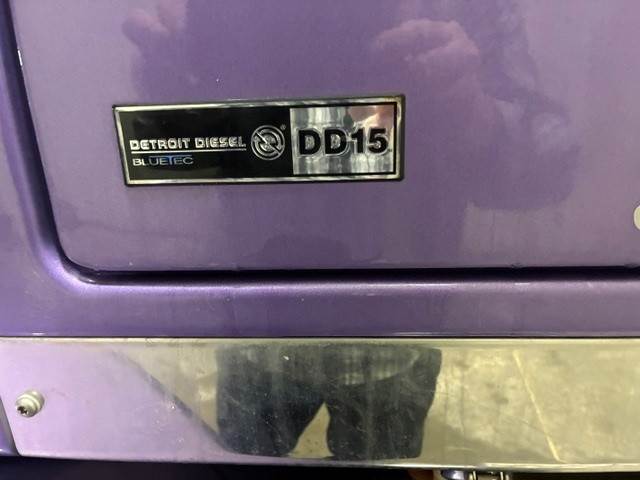

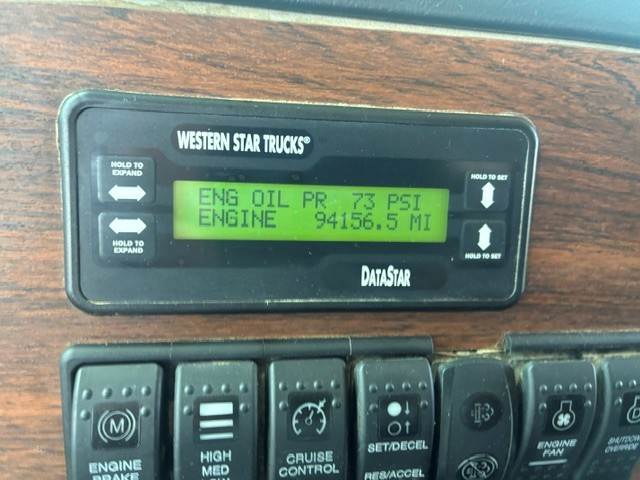

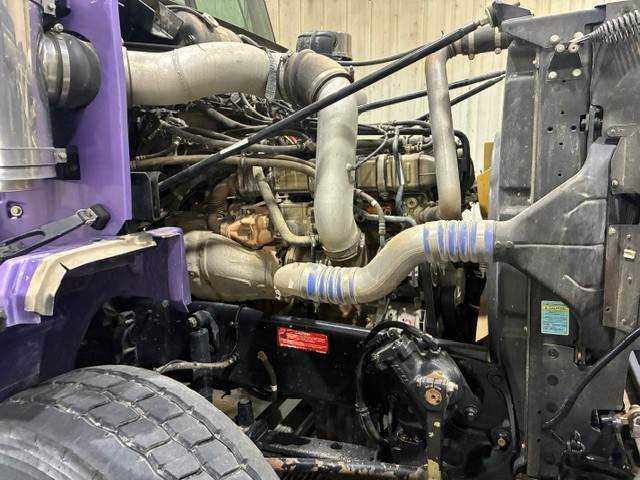

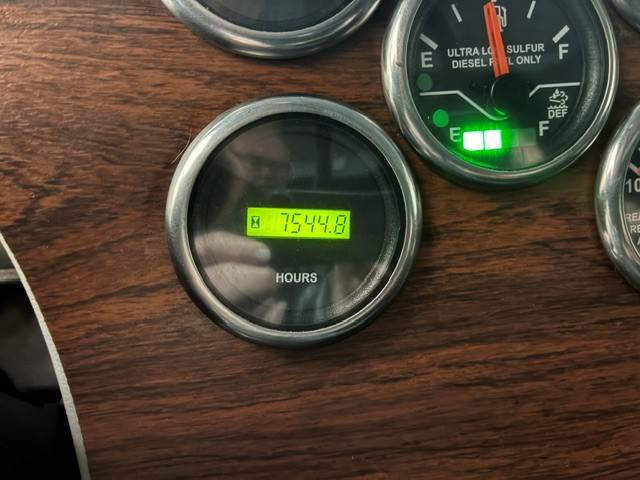

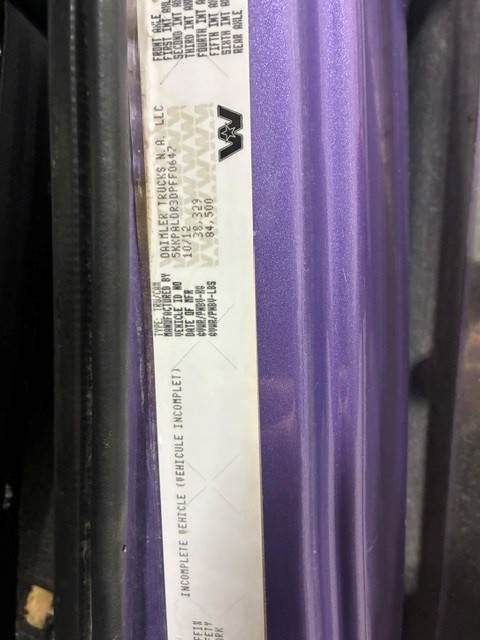

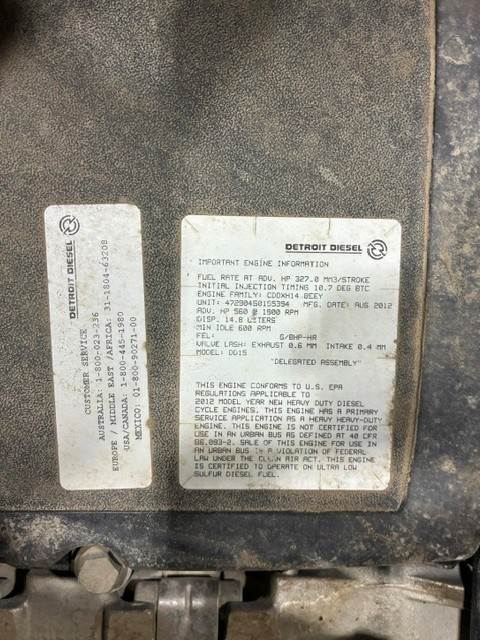

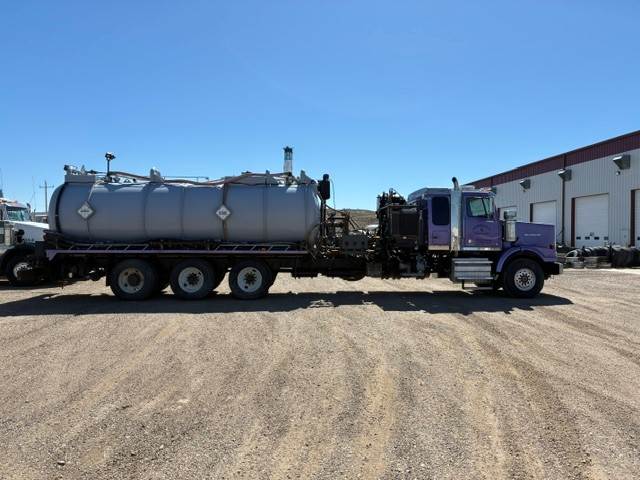

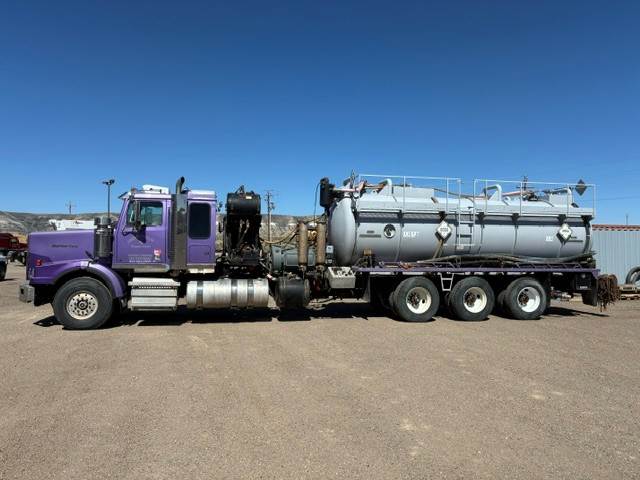

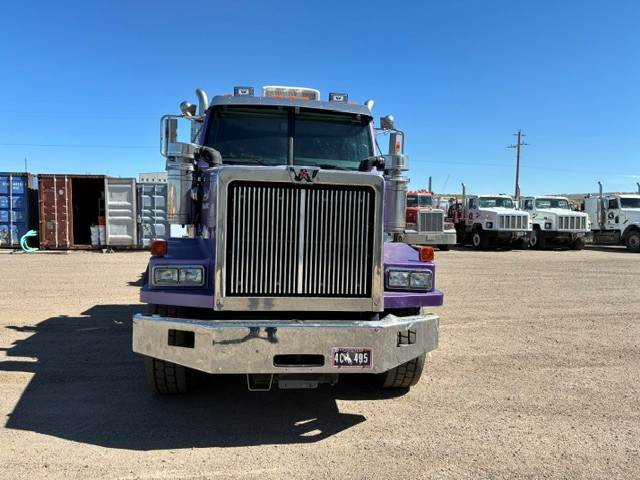

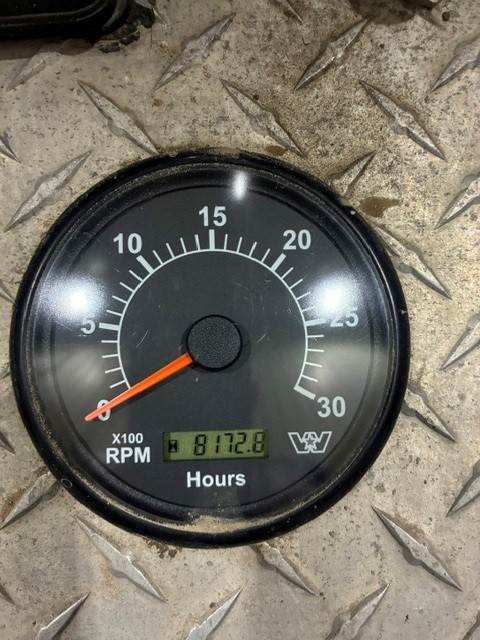

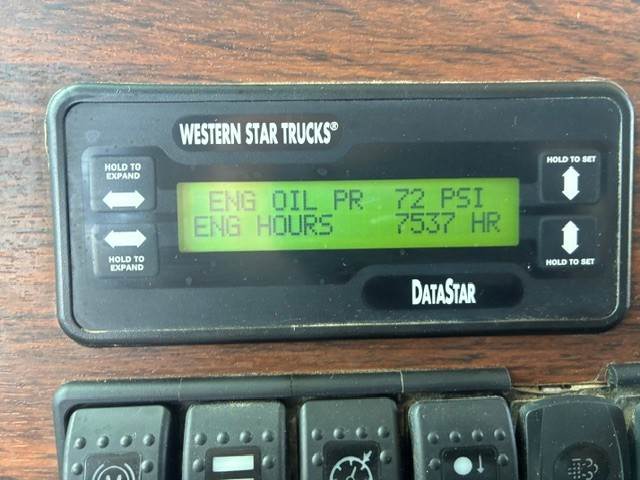

Truck General Specifications Make/Model: Western Star 4900 Series-Base Model Year: 2013 VIN: 5KKPALDR3DPFF0647 Mileage: 94,156.4 miles (subject to change) Hours: 7,544.8 (subject to change) Configuration: Single Steer Axle / Tri-Drive Build: Daimler Trucks North America-Portland, OR Application: Heavy-duty tractor / oilfield support Powertrain Engine: Detroit DD15 TC Diesel (14.8 L) Serial No.: 47294S0155394 Horsepower: 530 HP @1800 RPM Torque: 1,850 ft-lbs. Transmission: Allison 4700 OFS Automatic 7-Speed Rear Axle: Meritor Model: RZ-166 R-Series Tridem Ratio: 4.89

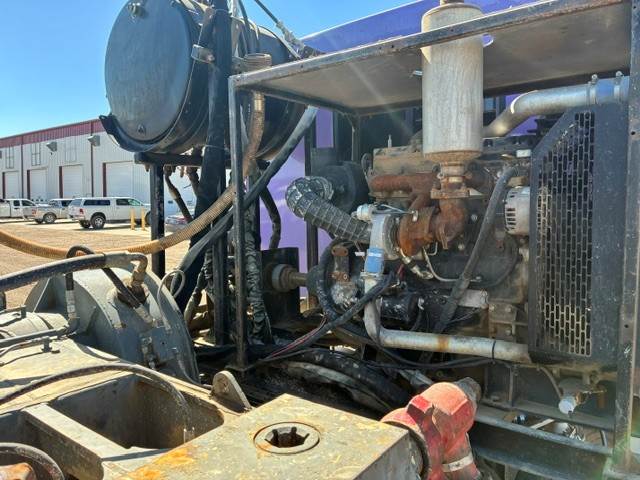

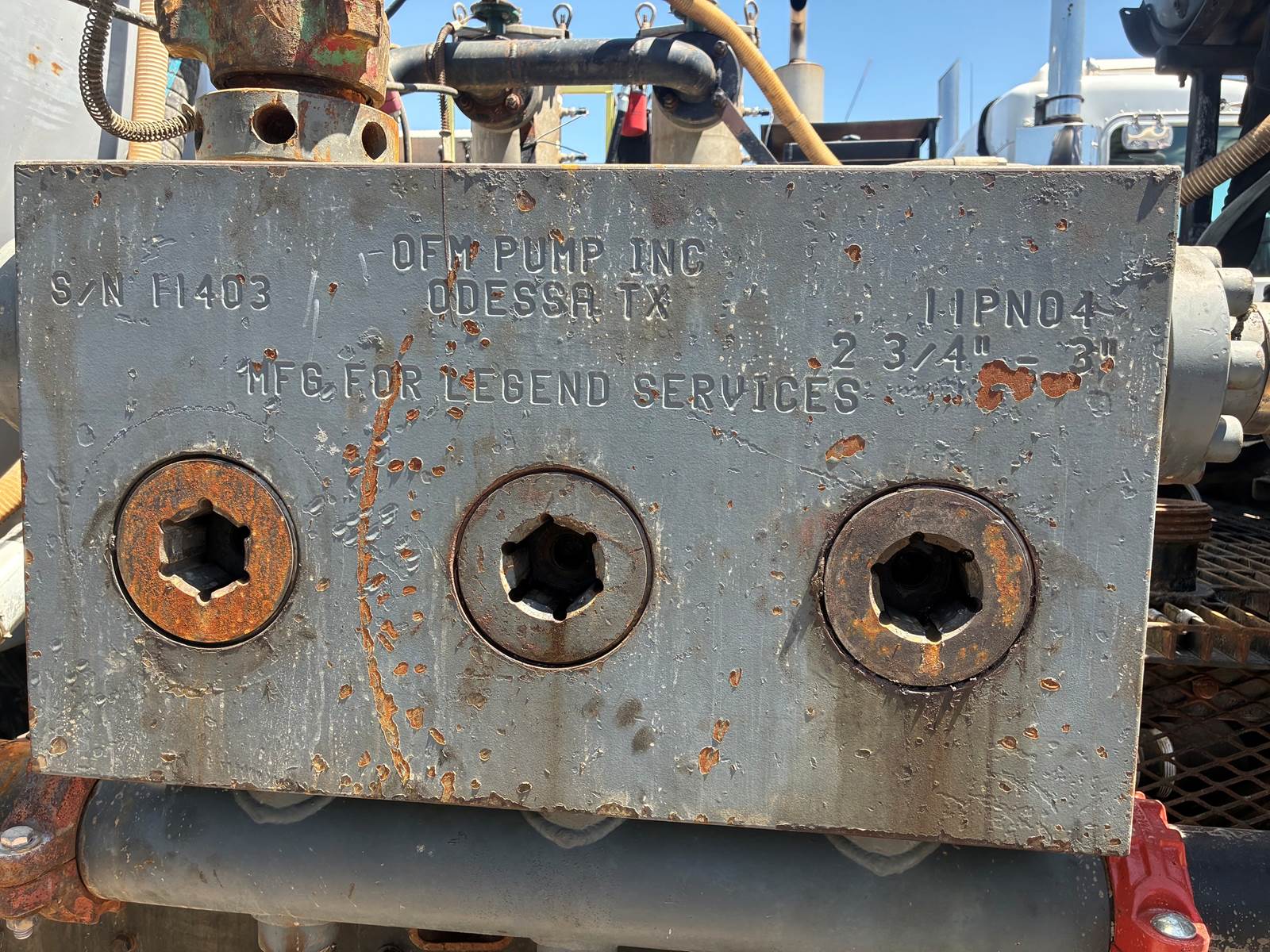

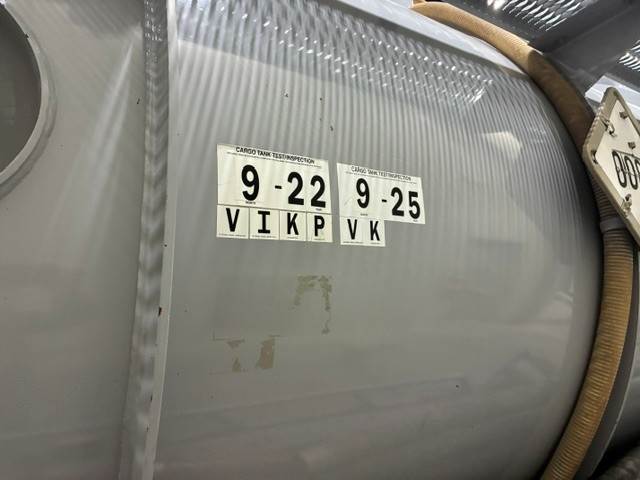

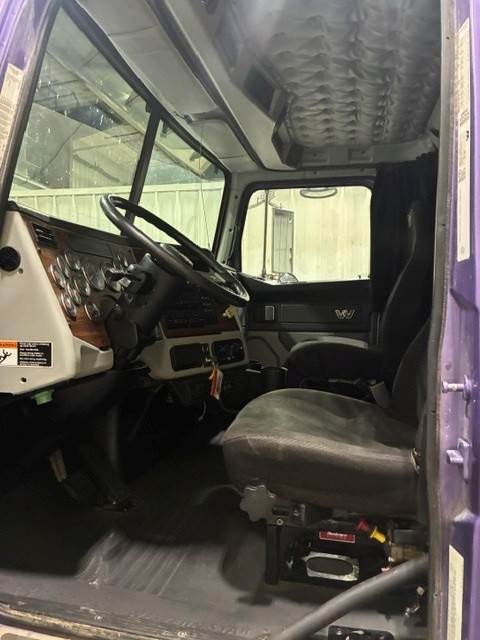

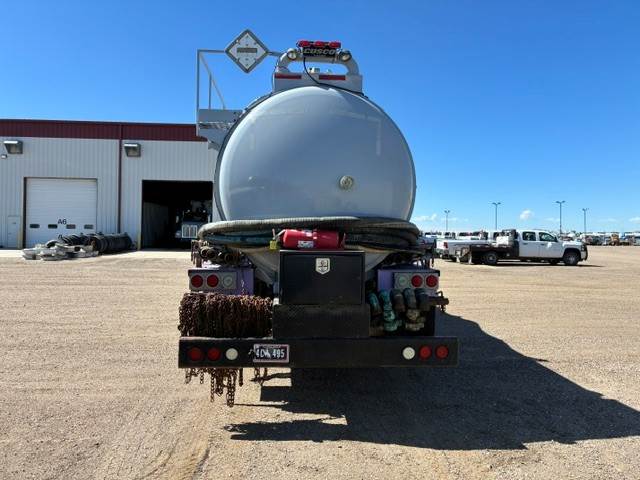

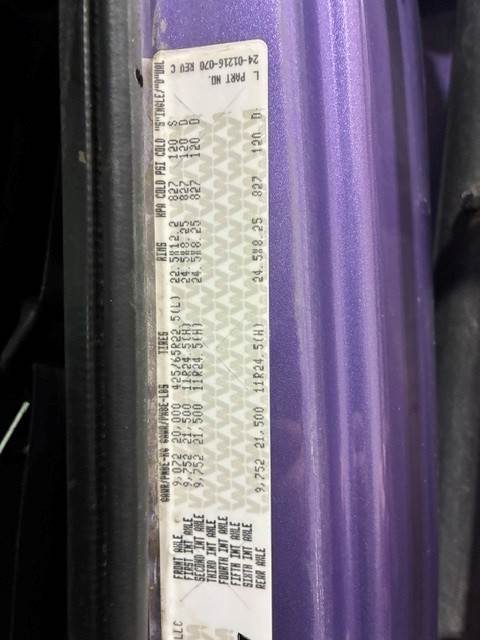

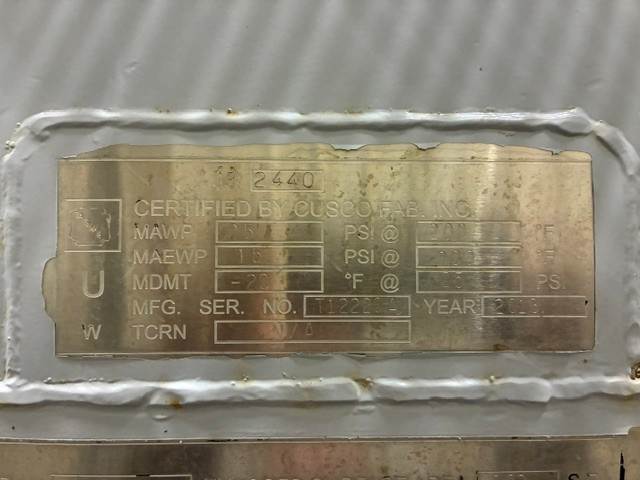

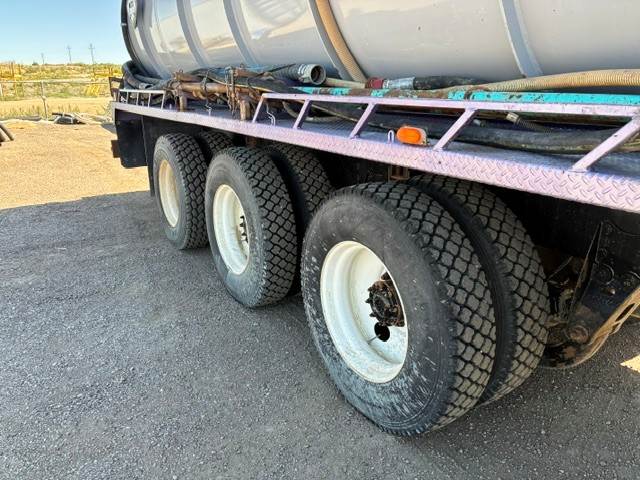

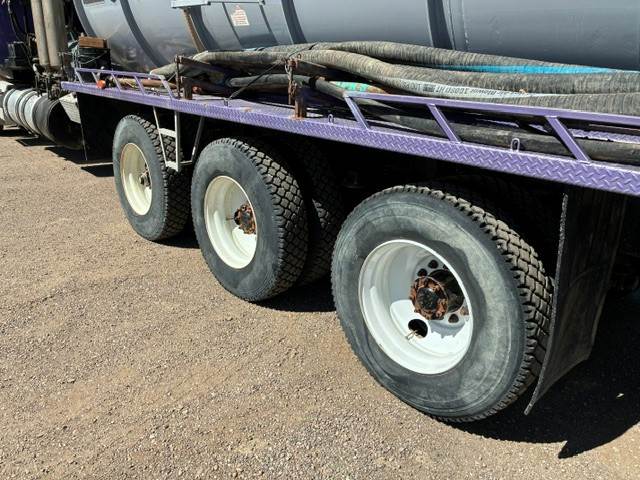

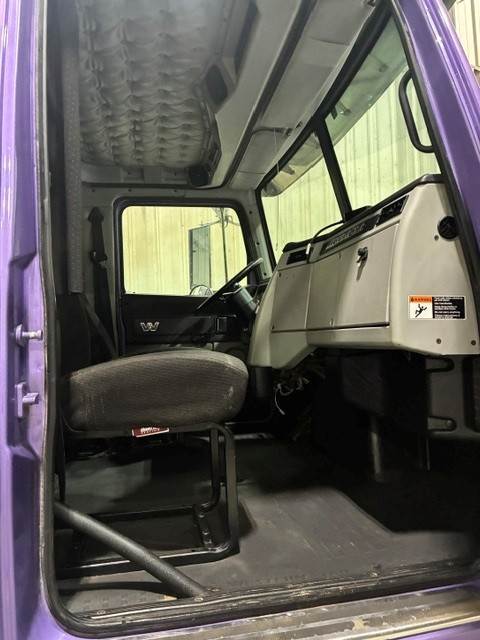

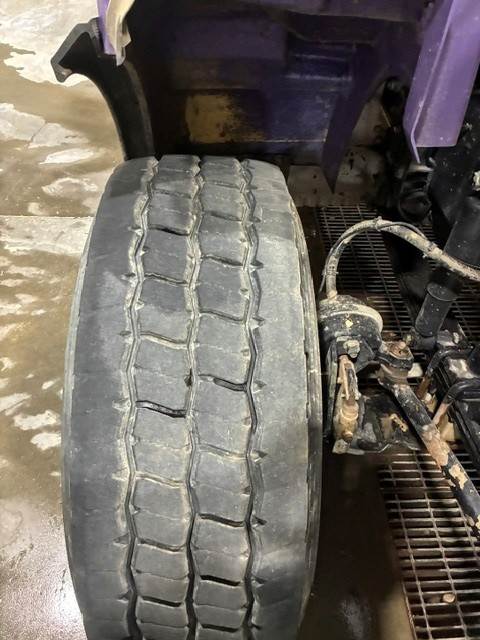

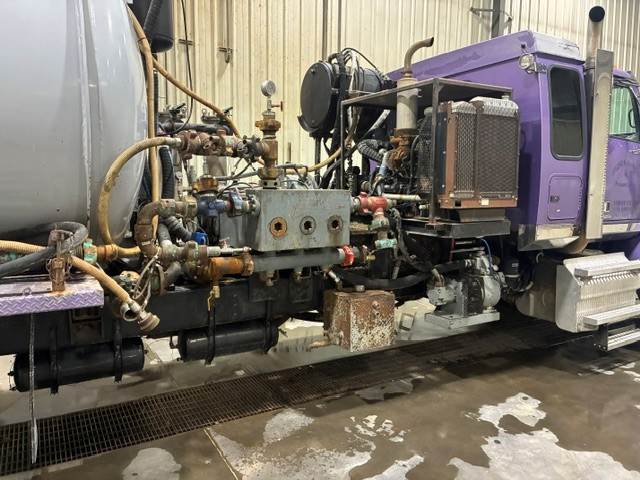

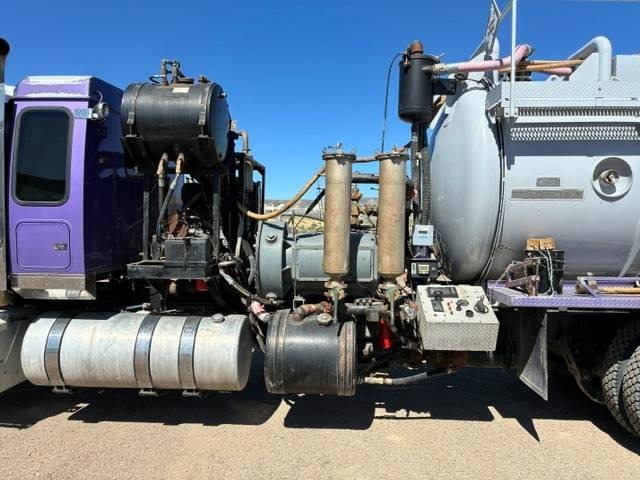

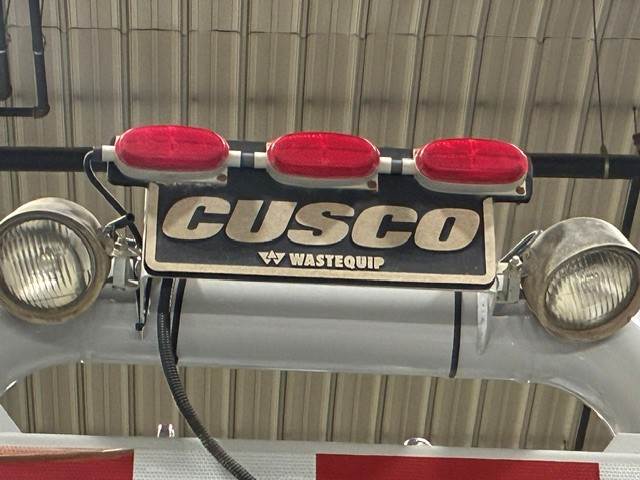

Axles & Weight Ratings Front Axles: Steer 20,000 lbs. Taperleaf Rear Axles: TRI- Drive 69,000 lbs. Registered GVWR: 62,000 lbs. TARE WGT: 27,893 lbs. Chassis & Suspension Frame: Double frame rail Front Suspension: Heavy-duty multi-leaf spring Rear Suspension: Air ride Configuration: 4-Axle (no tag axle) Dimensions Wheelbase: Approx. 356” Cab Configuration: Sleeper cab Sleeper Size: 40” OFM Triplex Plunger Pump Specifications OFM-600 HP Triplex Plunger 11PN04 2-3/4” – 3” S/N 11403 Pump Capabilities Water Injection (fresh or produced water transfer and high-pressure injection) Brine Injection (saltwater / produced water service) Well Killing & Circulation Fluids Reverse Circulation Operations Acidizing / Chemical Injection Light to Moderate Drilling Fluids (depending on solids content) High-Pressure Transfer Applications Cementing Operations (LSI has never used it for cementing purposes) When properly configured with appropriate fluid end, valves/seats Continuous operation Requires immediate flushing after use Auxiliary Hydraulic Power Engine: Perkins 1104D Drive: WTD Mechanical PTO Hyd. Motor: Sauer-Danfoss Drive Gear: GearTek Vac-Tank Body Cusco Fab Duravac 2440 Tank Capacity: 3,875 USG Pressure Discharge Auxiliary Equipment Masport HXL75W Rotary Vane 2.5” Vacuum/Pressure Pump Hydraulic Driven CFM: 230 Vacuum: ~25" Hg to 27” Hg Pressure: 20 PSI to 35 PSI Peerless 2" × 3" × 13" Horizontal Centrifugal Pump MTP51 Frame Hydraulic Driven GPM: 150-700 GPM Head PSI: 250-300 FT
