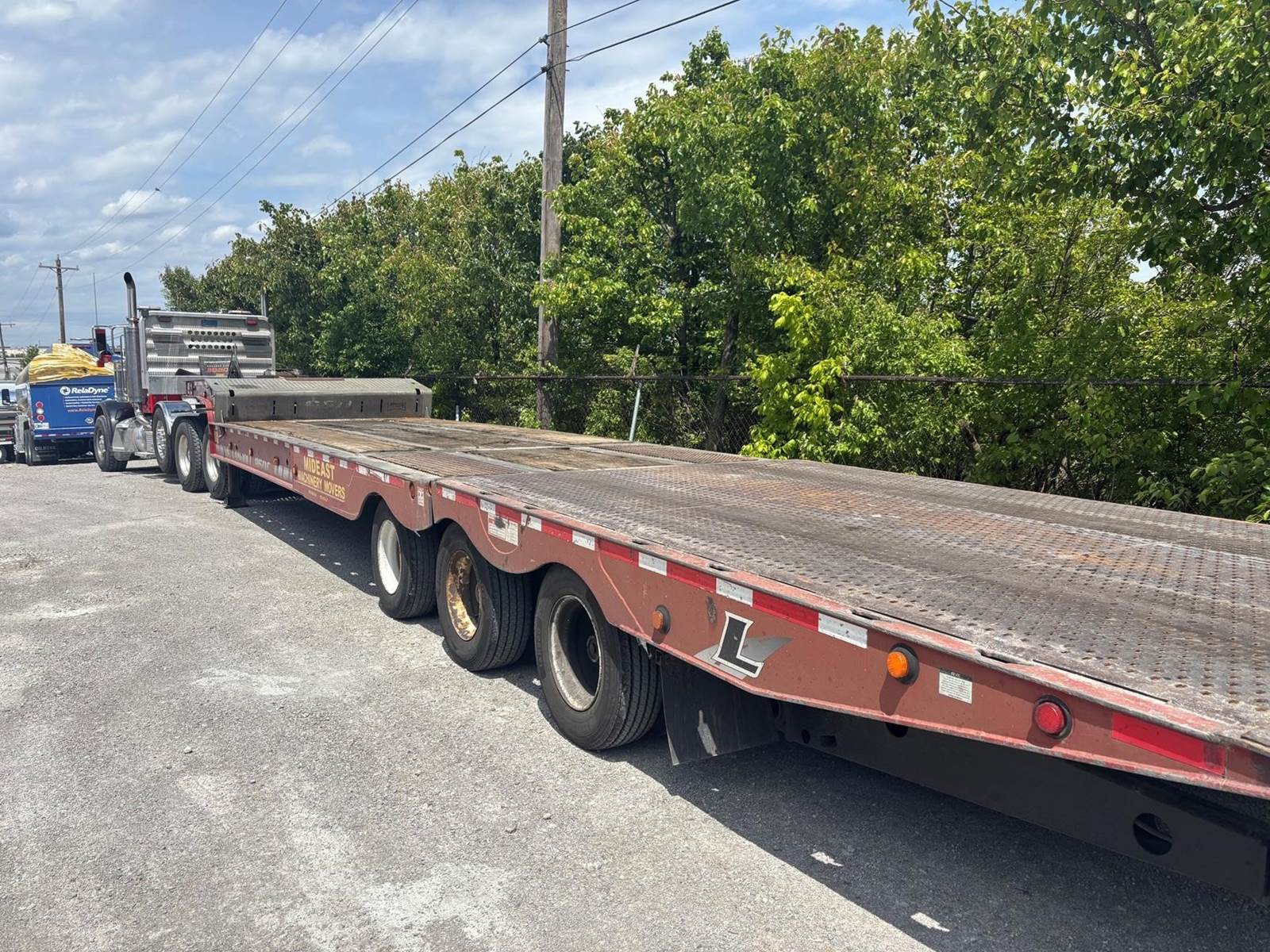

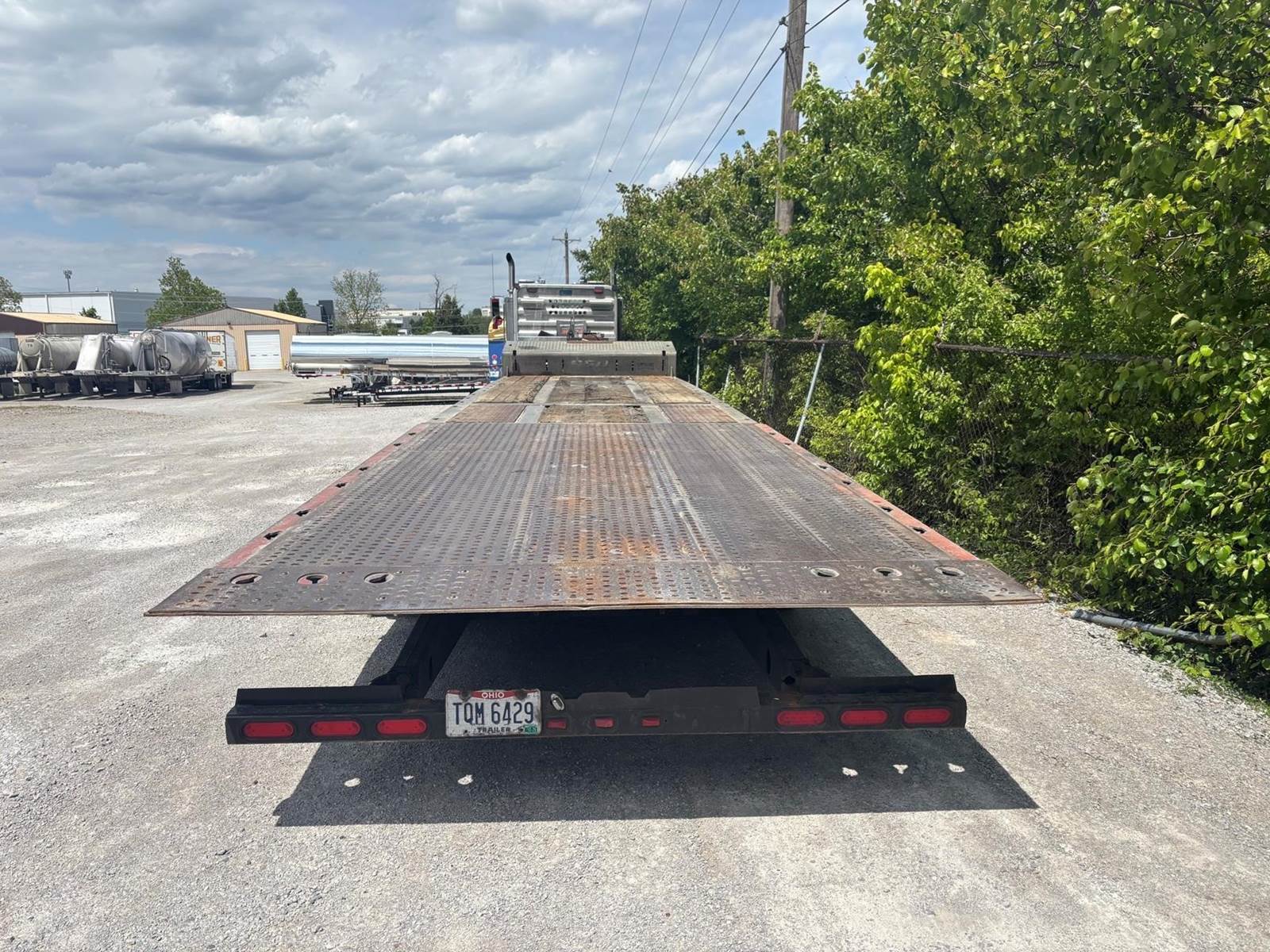

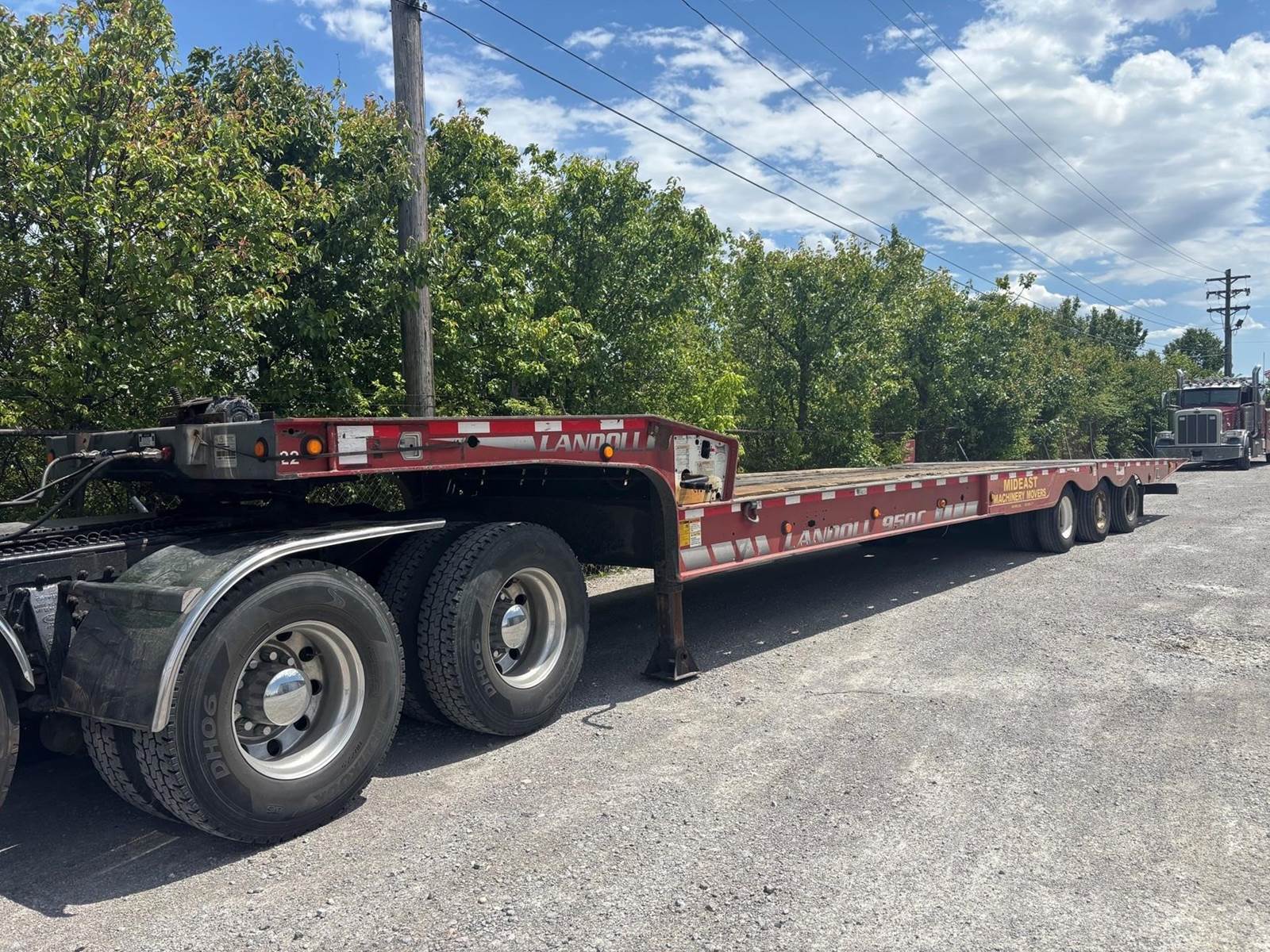

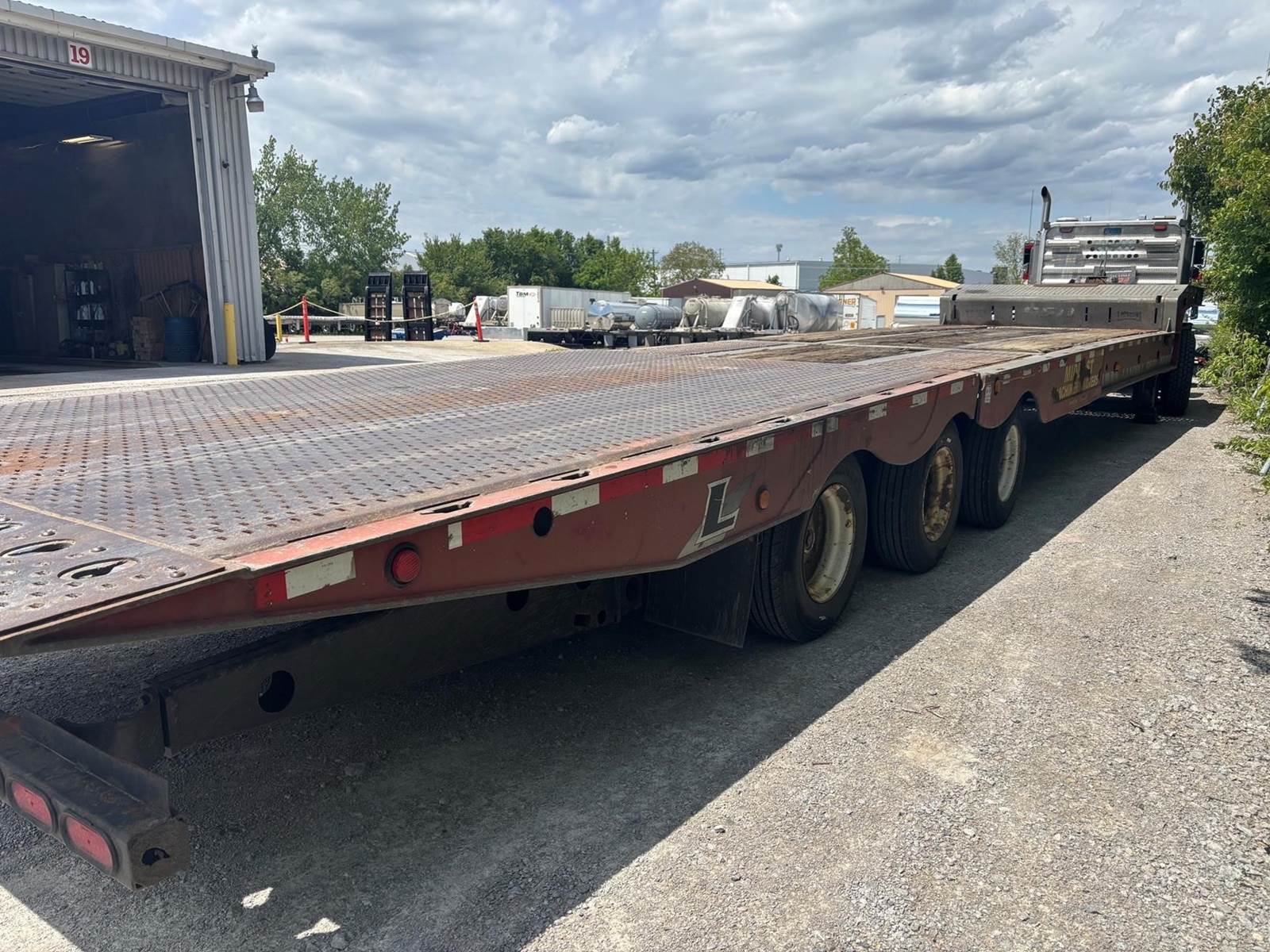

2015 Landoll 950C Traveling Axle Trailer

GALVANIZED TRAILER!
Length 48'
Width 102"

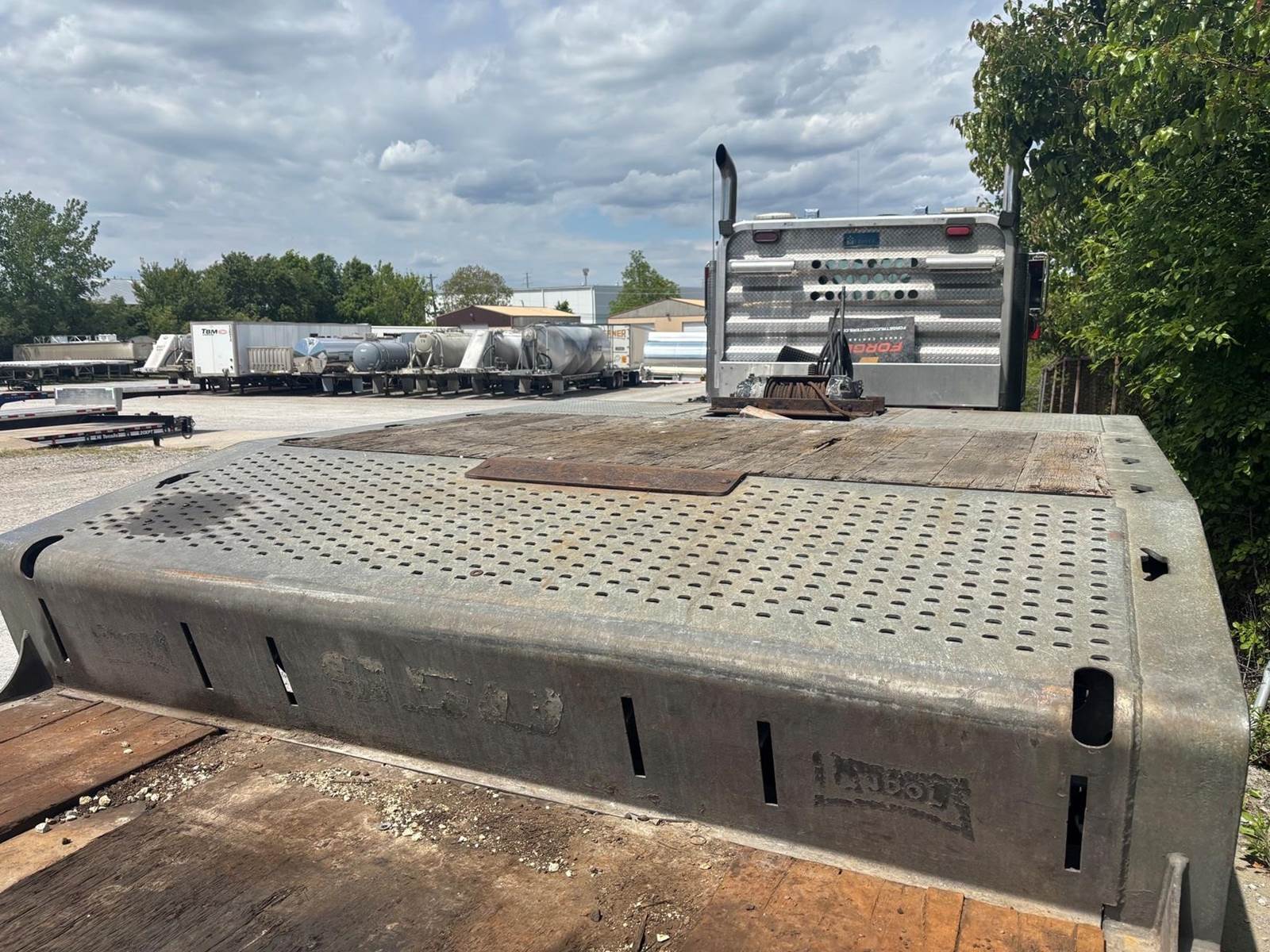

Top Deck Length 9' 7"
Main Deck Length 38' 3"
Main Deck Height 38"
Inspection T-FHWA/6-26
Floor 1 3/8" Apitong
Chain Slots 2 Way Chain Slots on 16" Centers
Hydraulic Tail 15' with 11 Degree Load Angle
Main Tail Length 15'
Tail Height 38"
Tail Capacity Lifting Capacity 24,000lb
Approach Plate Flat with Six (6) Key Hole Tie Downs
Load Angle 11 Degrees
Side Rail Galvanized Steel
Side Rail Lights 9 Lights per Side
Rear Lights (3) Stop/Tail, (3) Clearance
Hydraulic Hook Up Quick Couplers
Hydraulic Valve Body Rexroth 20GPM at Controls, 50 GPM Max
Tilt Cylinders Two - 6"x30"
Undercarriage Cylinders 4"x100" & 4"x126" - 50'
Hydraulic Winch WARN Winch, 20,000 lbs.
Cable 85' of 1/2" Cable
Suspension Type Air Ride
Suspension Brand Neway RLU228, 22,500 lb. Capacity
Suspension Setting Sliding Suspension-Traveling Tail
Tire Size 235/75R17.5
Tire % 75%
Wheels Steel Disc 10 Stud 17.5
Brake % 80%
UnderFrame-Galvanized
King Pin Setting 18" with 84" Swing Clearance
5th Wheel Condition Good
Cross Member Center 8" Centers
Landing Gear Two Speed
Paint Red
Paint Condition Fair
Weight Ratings 110,000 Lbs Distributed 70,000 Lbs. in 10'
New Suspension Hangers, Bushings.
New Brakes on 2 Axles, with New Cams
Wood Floor Repair
2 New Tires
READY FOR WORK!
LOCATED CINCINNATI, OH (We can deliver)
