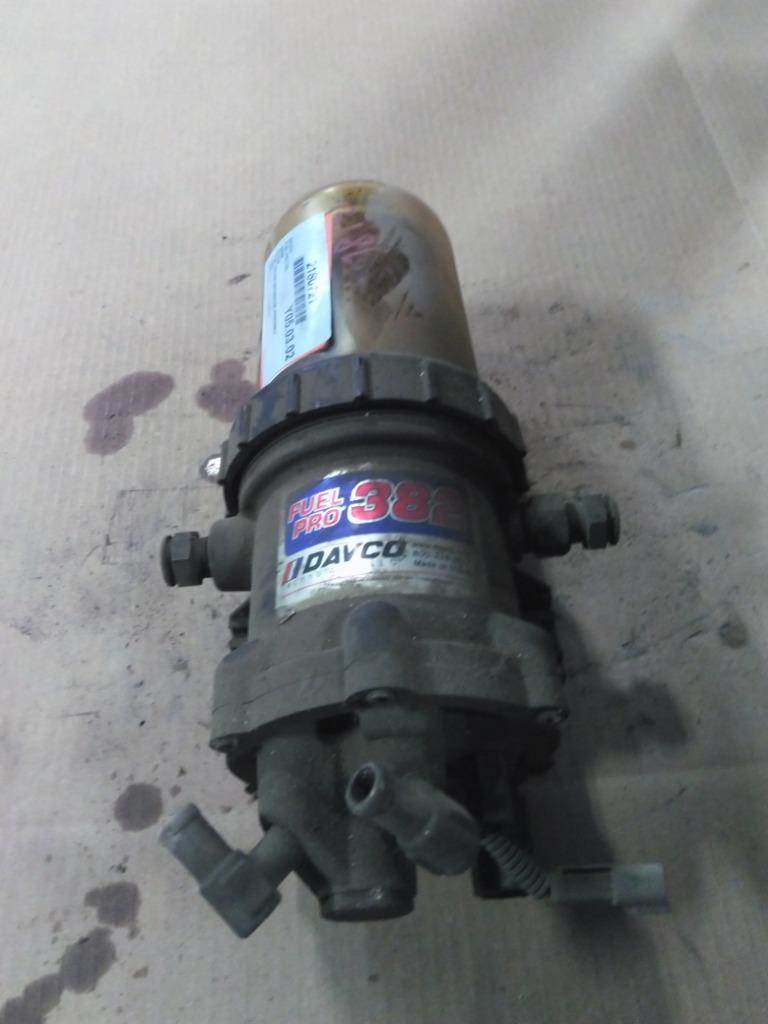

2016 Davco Fuel Pro 382 Fuel / Water Separator

Specifications
Height, Overall (Unheated) 15.5 in. (393.6 mm)
Height, Overall (Coolant/Return Fuel) 16.25 in. (412.8 mm)
Depth, Overall 6.63 in. (168.5 mm)
Width, Maximum 7.3 in. (185.2 mm)
Weight, Dry Approx. 8-12 lbs
Filter Service Clearance, Minimum 1.5 in. (38.1 mm)
Fuel Flow, Maximum 180 gph
Pre-heater 12VDC, 195W, 155W
24VDC, 195W
Overnight heater 120VAC, 75 W, .65 A
Filtration Performance (100 GPH)
Micron Coarse Water
Removal (%)
Emulsified Water
Removal (%)
Dirt Holding
Capacity (grams)
7 99.4 >95 56
10 99.9 >95 64
25 99.6 >95 110
50 97 <20 90
Port Interface
Fuel In ½"-14 NPTF
Fuel Out ½"-14 NPTF
