2016 Dynapac Construction Equipment

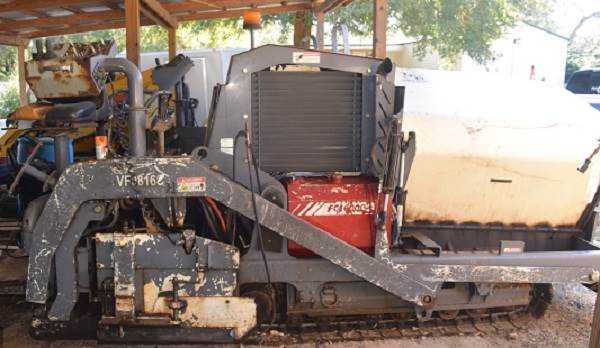

2016 DYNAPAC FC16000 Mass (tractor) 14,000 lbs Paver weight (incl. standard screed) 18,500 lbs Dimensions Basic width 8 ft Working width, max. 18 ft Working width, hydraulic extendable 15.50 ft Working width, minimum (Cut Off Shoe) 1 ft Front ramp angle 11° Capacity Theoretical placement capacity 600 t/h Paving thickness (max/min) 6 in /0 in Material hopper Capacity 16,000 lbs Dumping height, center 21 in Hopper width, internal 120 in Propulsion Paving speed 0-140 fpm Transport speed 3 mph Engine Manufacturer/Model Cummins QSB 3.3 Emissions according to EPA T3/EU3A Rated power, SAE J1995 74 kW (99 hp ) @ 1400 rpm Electrical system 12V Fuel tank capacity 22 gal Engine alternator capacity 120 Amps Heating generator capacity 16 kW, 240V 1 phase Undercarriage Type Steel track with poly pad Crawler length 72.0 in Crawler width 12.0 in Final drive Hydrostatic with gear reducer Conveyor Conveyor type Dual slat conveyor Conveyor width 2 x 24 in Conveyor control Automatic with Auger control Auger Auger diameter 9 in Auger control Automatically with ultrasonic sensor Extension auger 9 inches, mounted on screed extensions. Financing Available.
