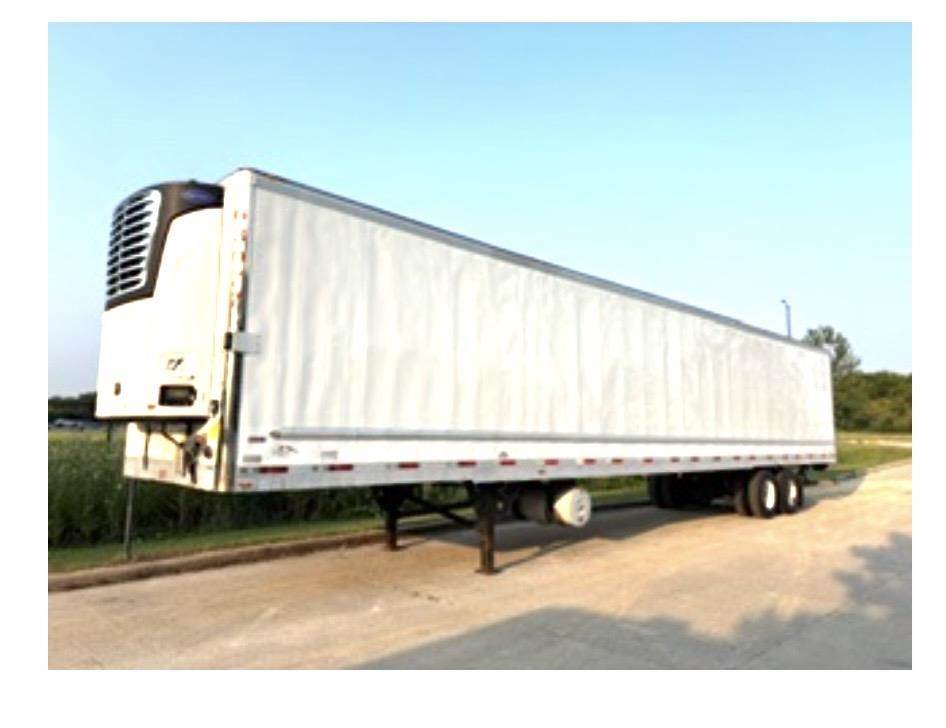

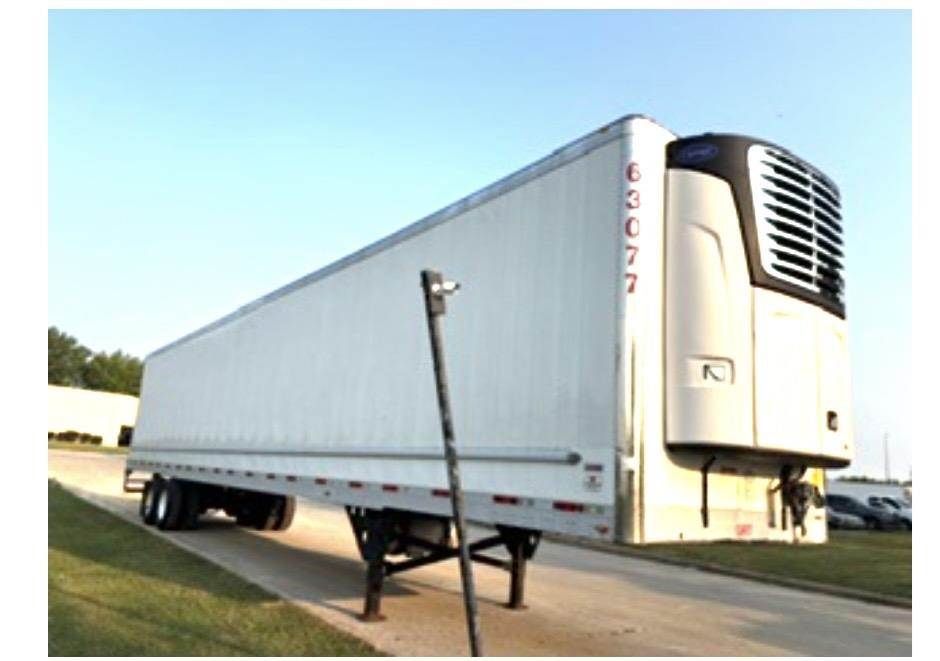

2016 UTILITY 3000R 53 ft Reefer Trailer - Fixed Axle, Roll up Door, Carrier

016 Utility Reefers with roll doors & flat floors
•   53’ x 102”
•   Hendrickson air ride

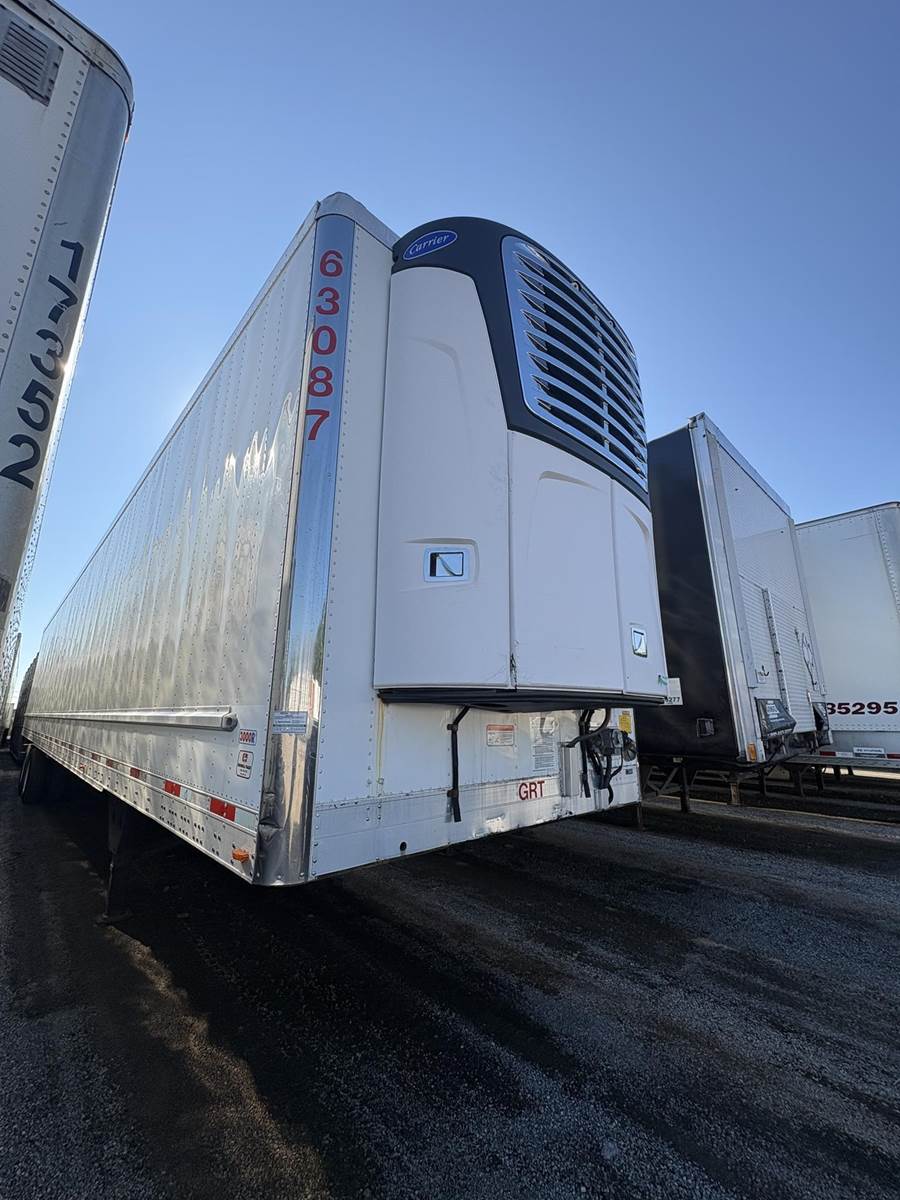

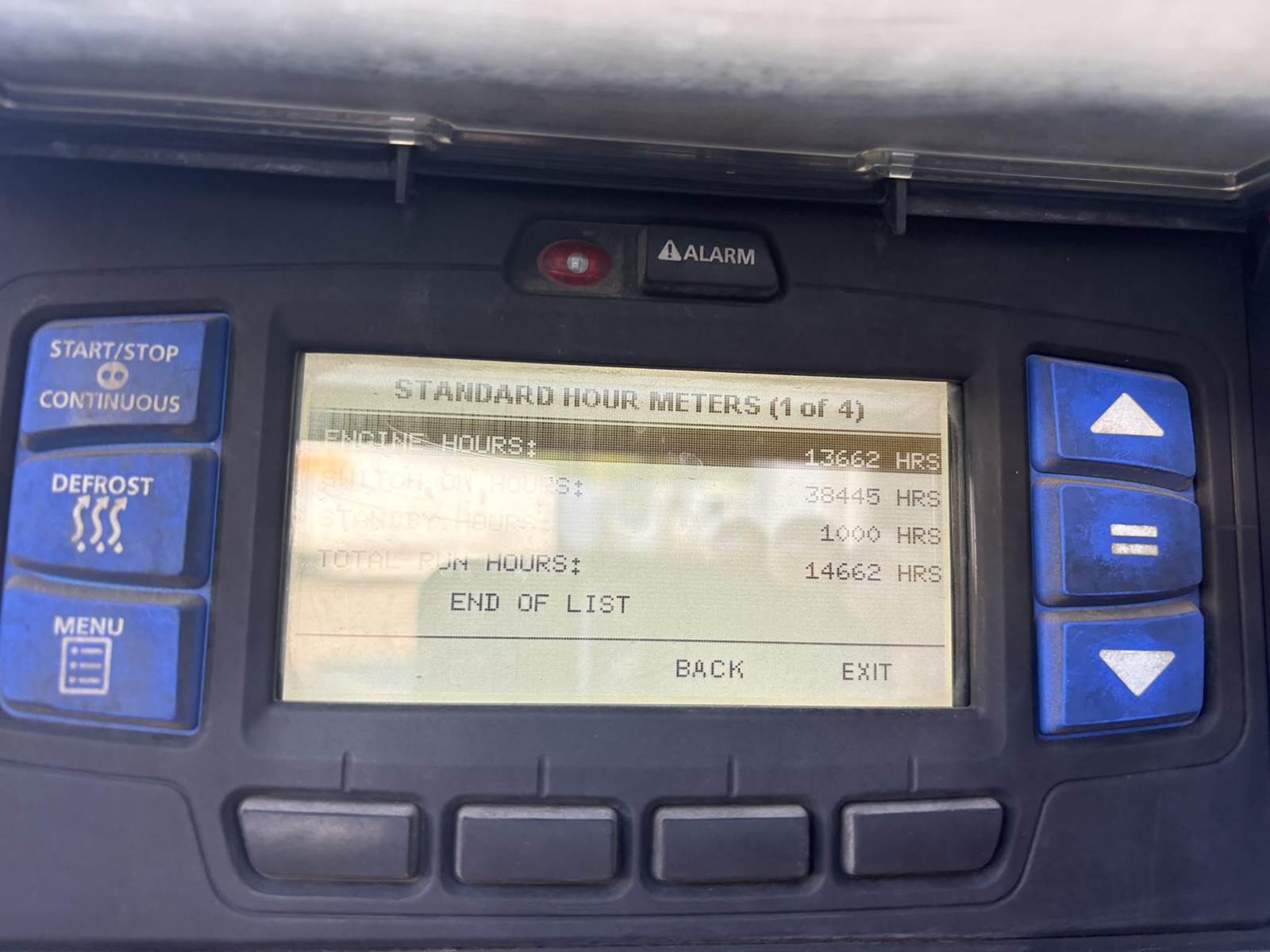

• Carrier 8500 Vector units with shore power at rear of trailer

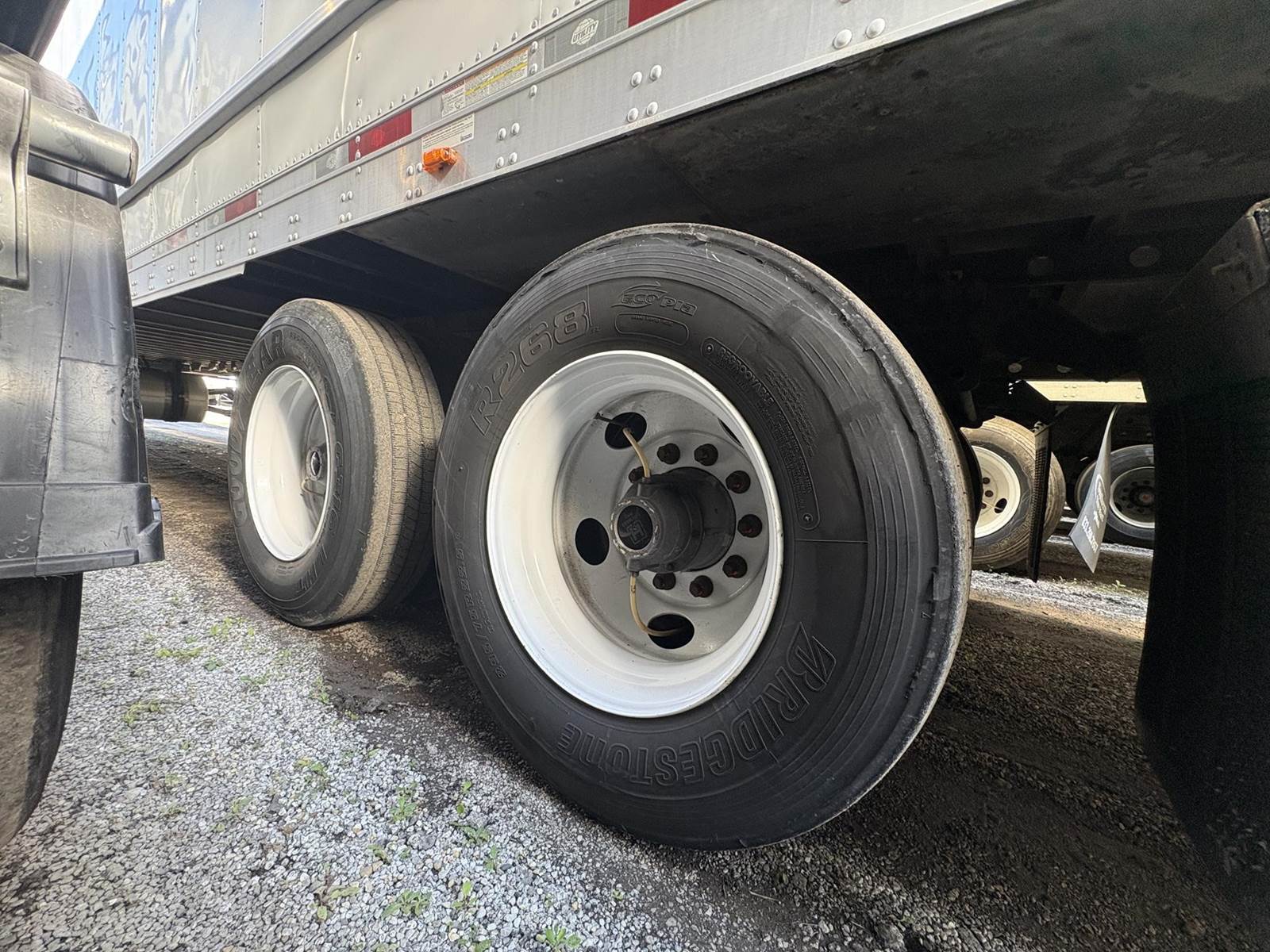

•   Dual tires on steel wheels
•   5/16” high strength steel approach plate. ¼” is standard

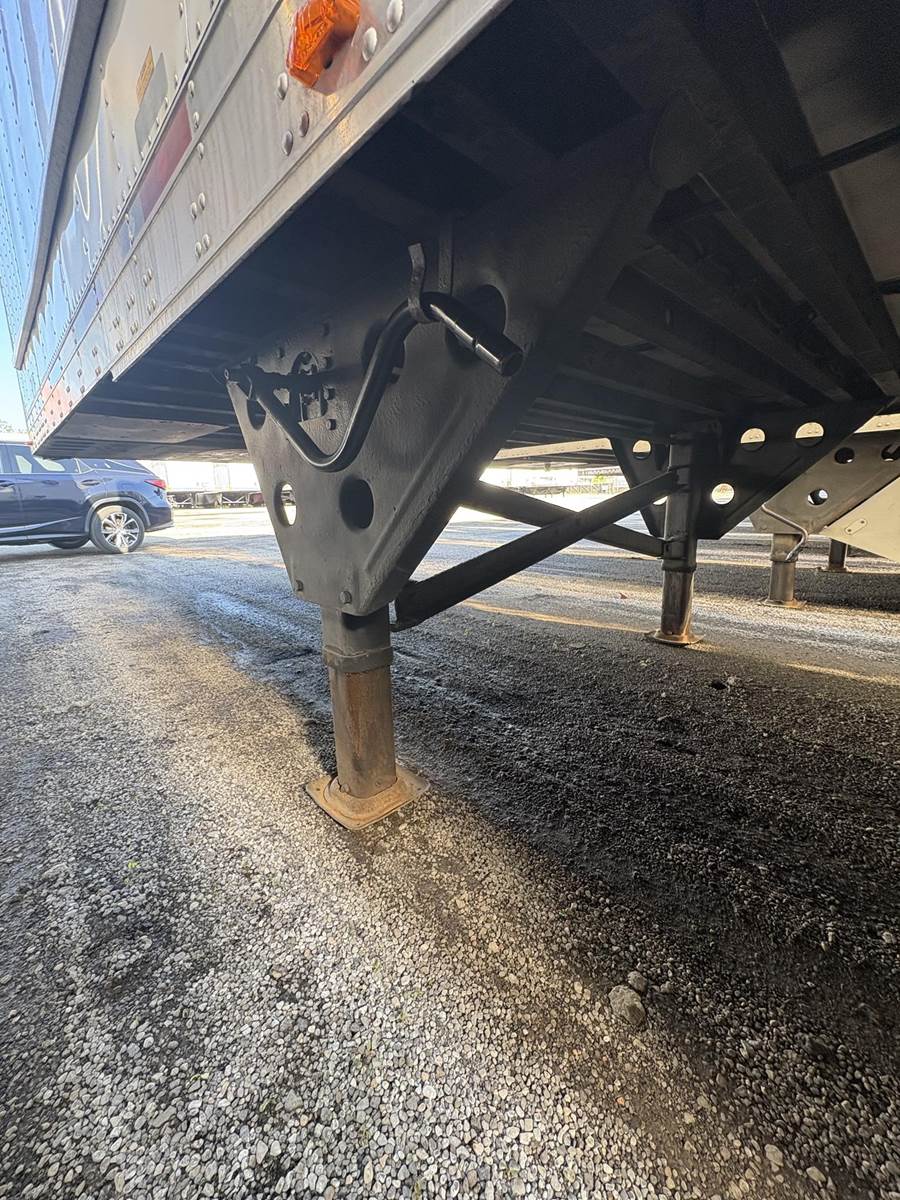

•   Jost Magnum landing gear
•   Two additional cross beams over landing gear
•   22” wide x 36” long tire protector plates
•   Three additional steel cross members in rear 70” to give 6” spacing.
•   22” x 120” tire protector plates centered over slider area

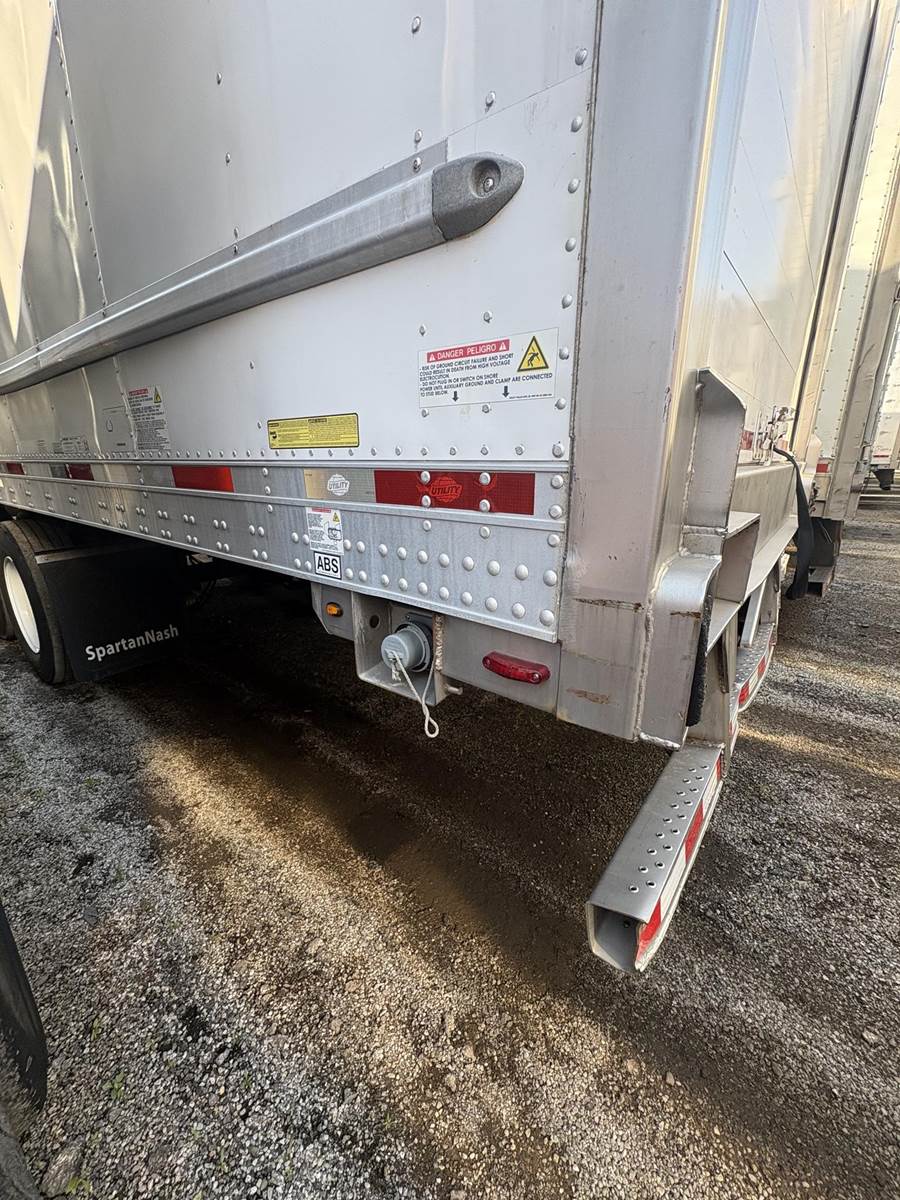

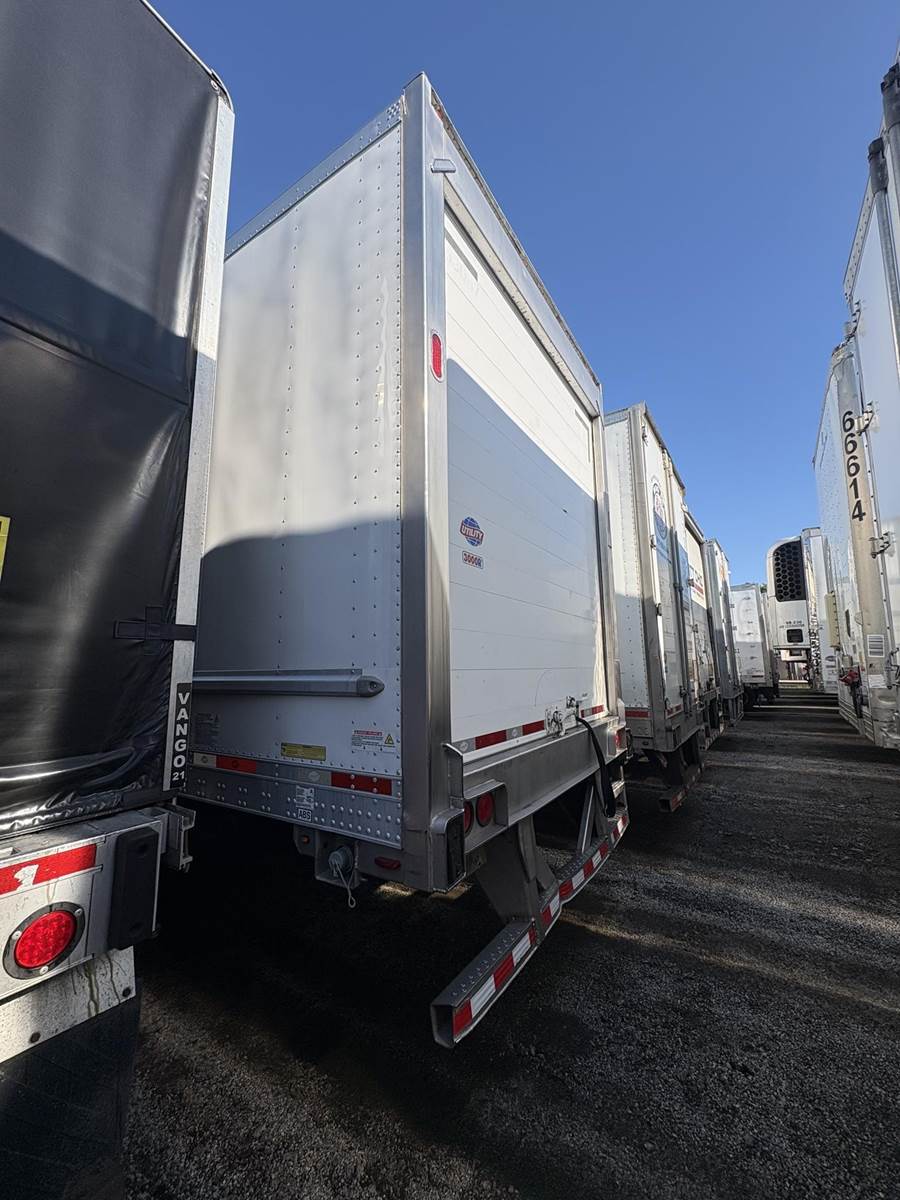

•   “M” reinforcing on rear stainless steel bumper
•   Step built into bumper
•   Grabhandle recessed in rear post on curbside
•   Bendix disc brakes with “P” spindle
•   Hendrickson Tiremaax Pro tire inflation
•   Hendrickson Surelock
•   Push pull valve to actuate Surelock bypass/airspring dump with auto reset.
•   Weatherproof enclosure at front of slider box to house quickdraw valve and dump valve
•   Stainless steel fasteners for gladhands and receptacle assembly
•   Shore power plug at rear roadside corner

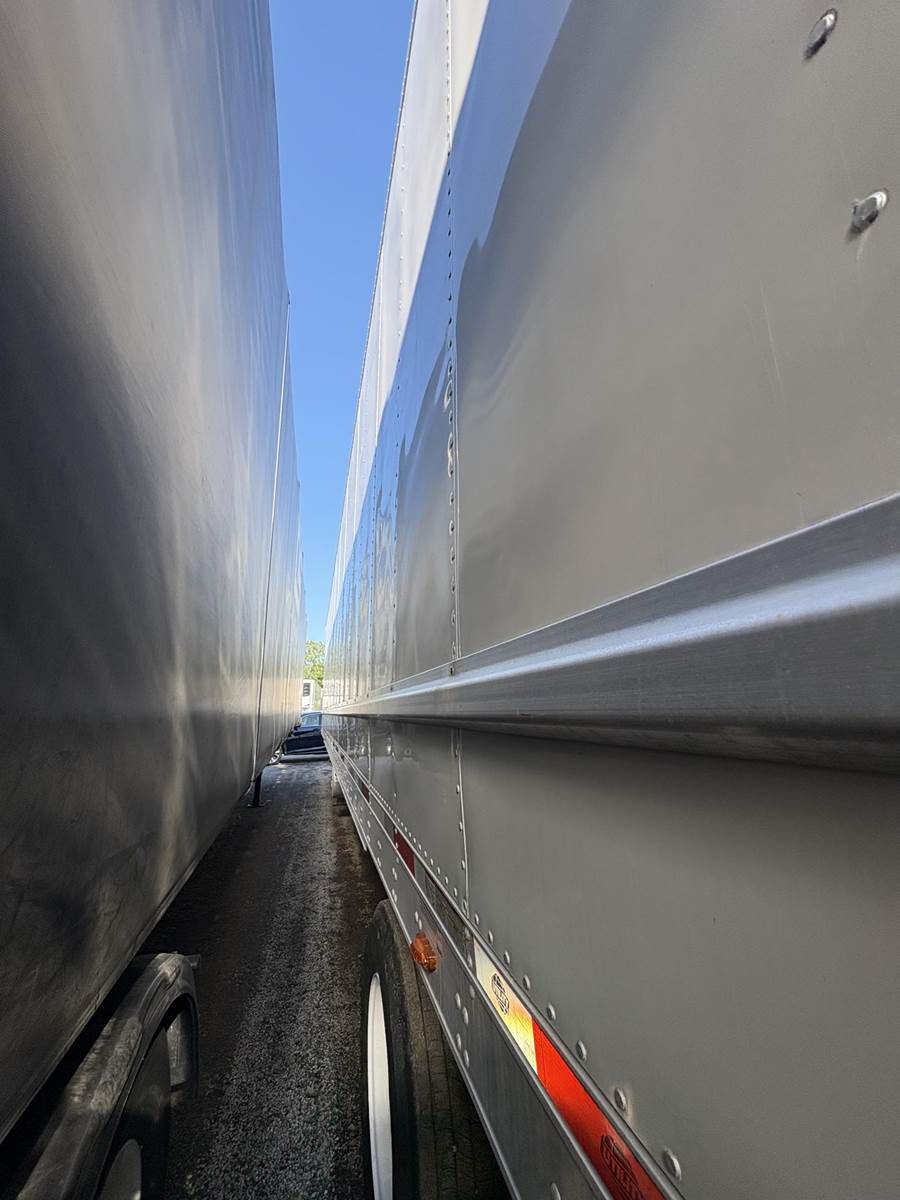

•   .040” exterior flat side walls
•   Low rub protectors
•   Whiting 2” Coldsaver roll doors with stainless steel hinges and shafts and nylon rollers
•   48” track guard for door

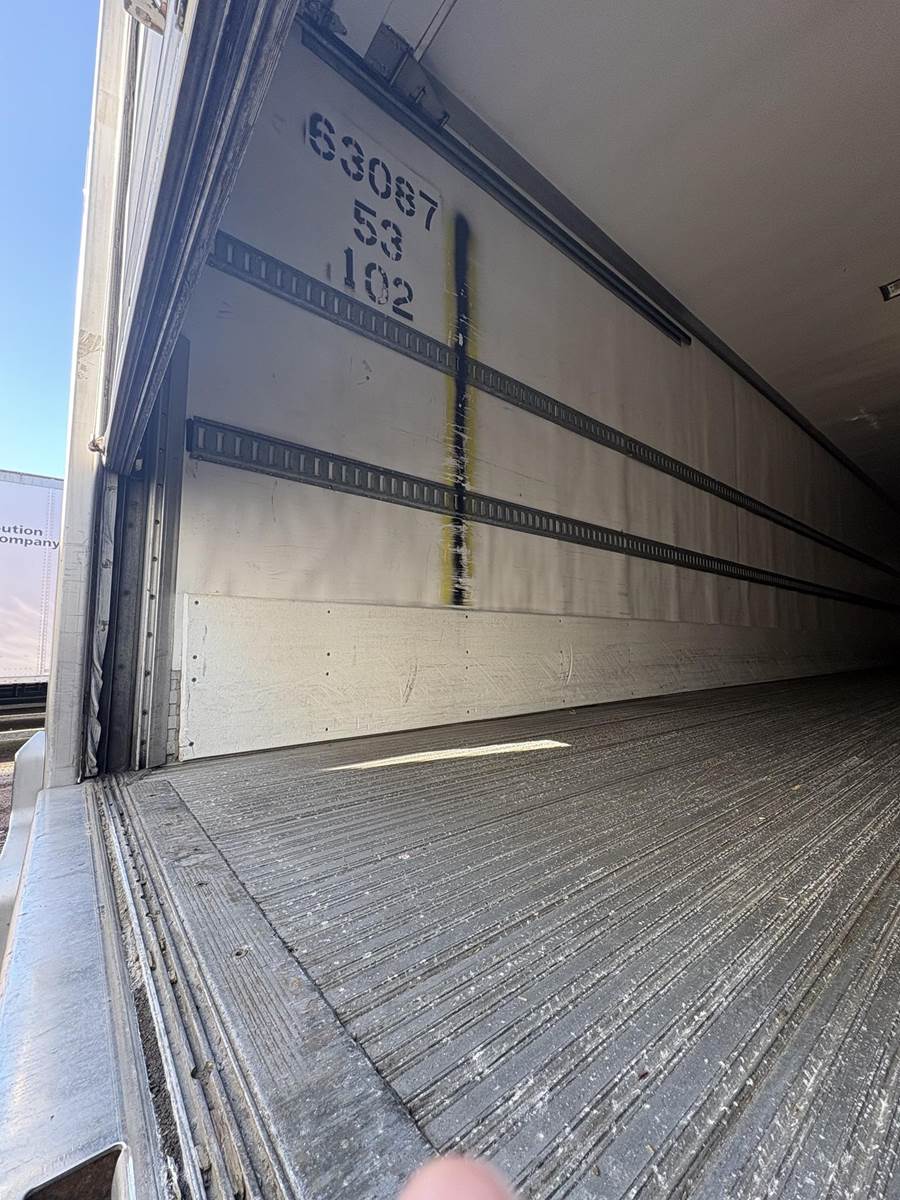

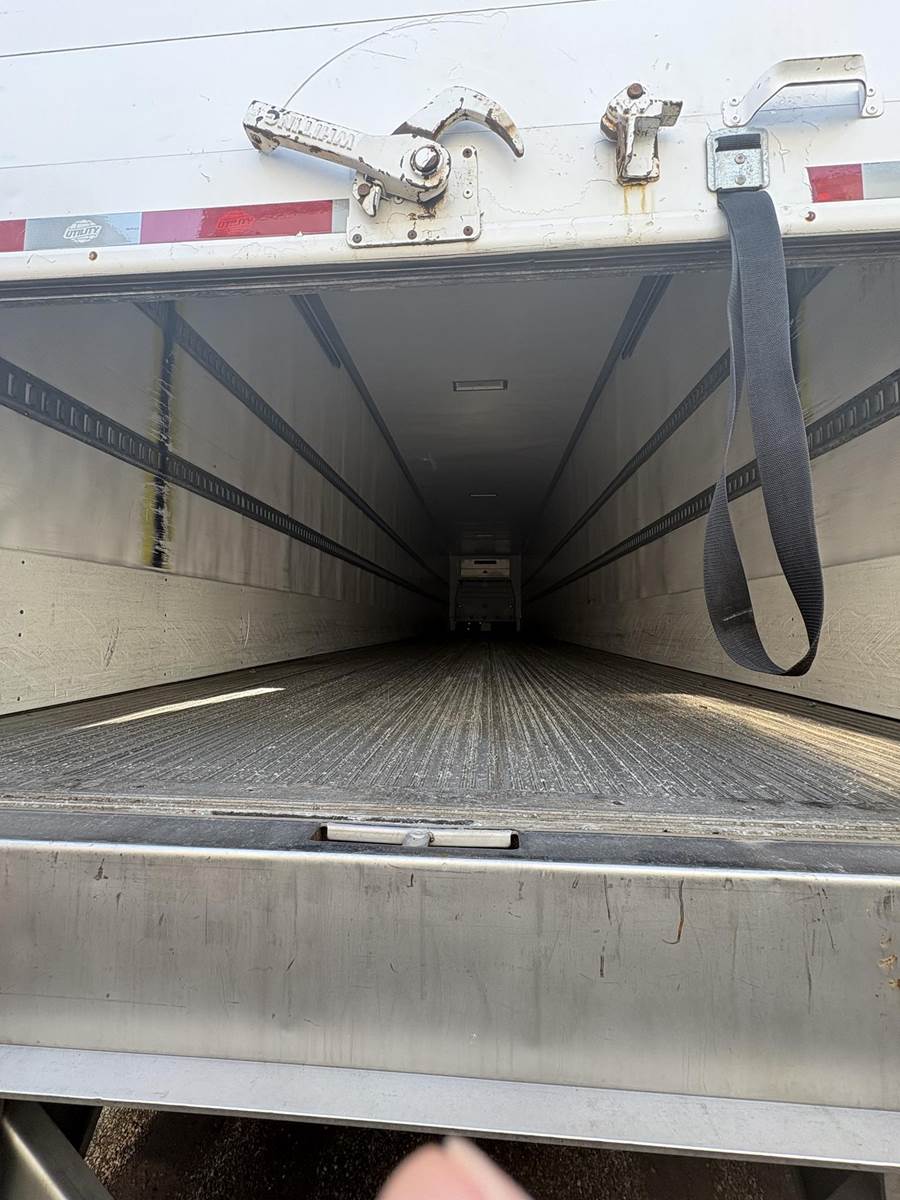

•   1 3/8” knurled flat floor
•   Extruded aluminum “I” shaped cores in rear 72” of floor full width
•   2 ½” insulation
•   5/8” x 18” white HDPE plastic wearband fastened with stainless steel fasteners

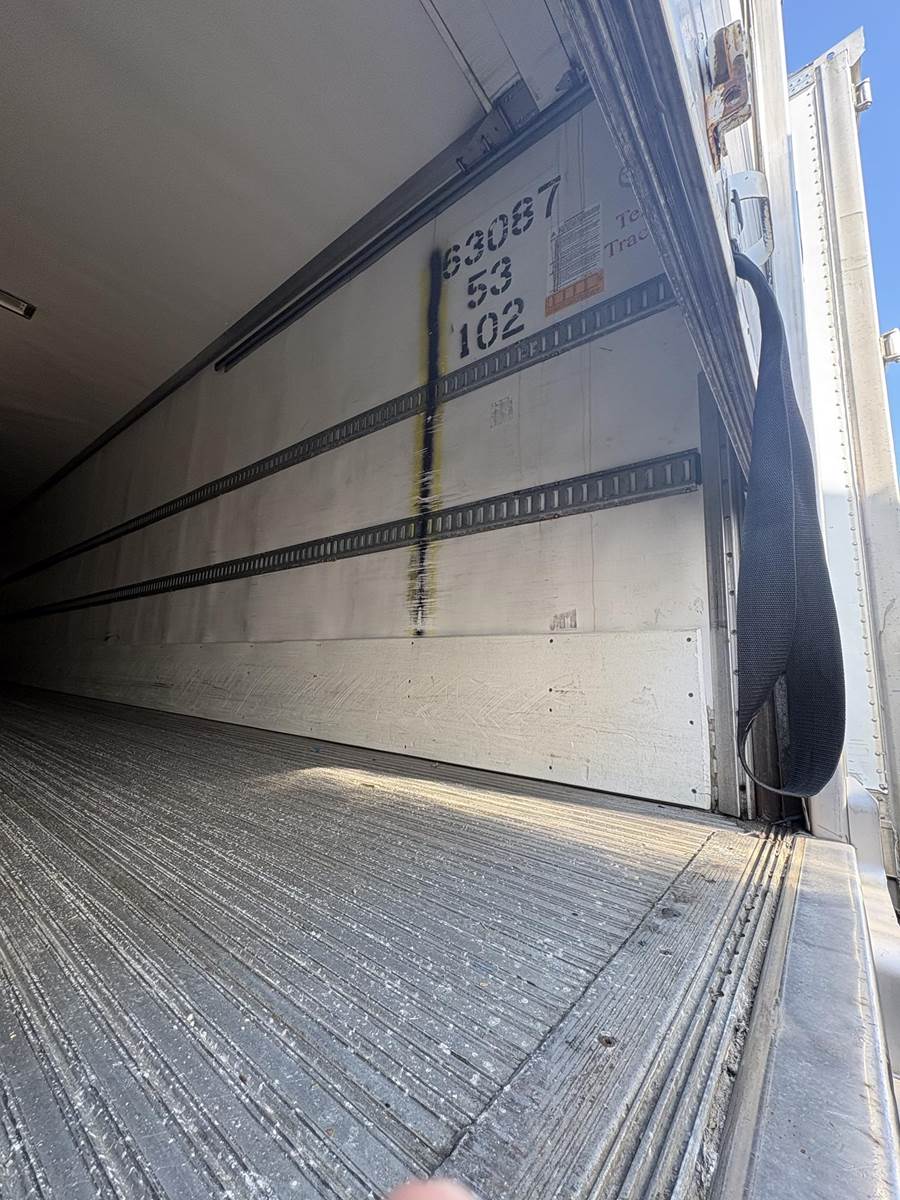

•   Two rows of E-track
•   Three LED ceiling witghts with motion sensors recessed in ceiling
•   Toggle switch for dome lights recessed in interior curbside wall at rear.
•   One oval stop/tail/turn light mounted in each corner post 60” above floor
•   Rear door header lights function as stop and turn signals
•   Round permit holder mounted on front wall

Call Alex for more information
