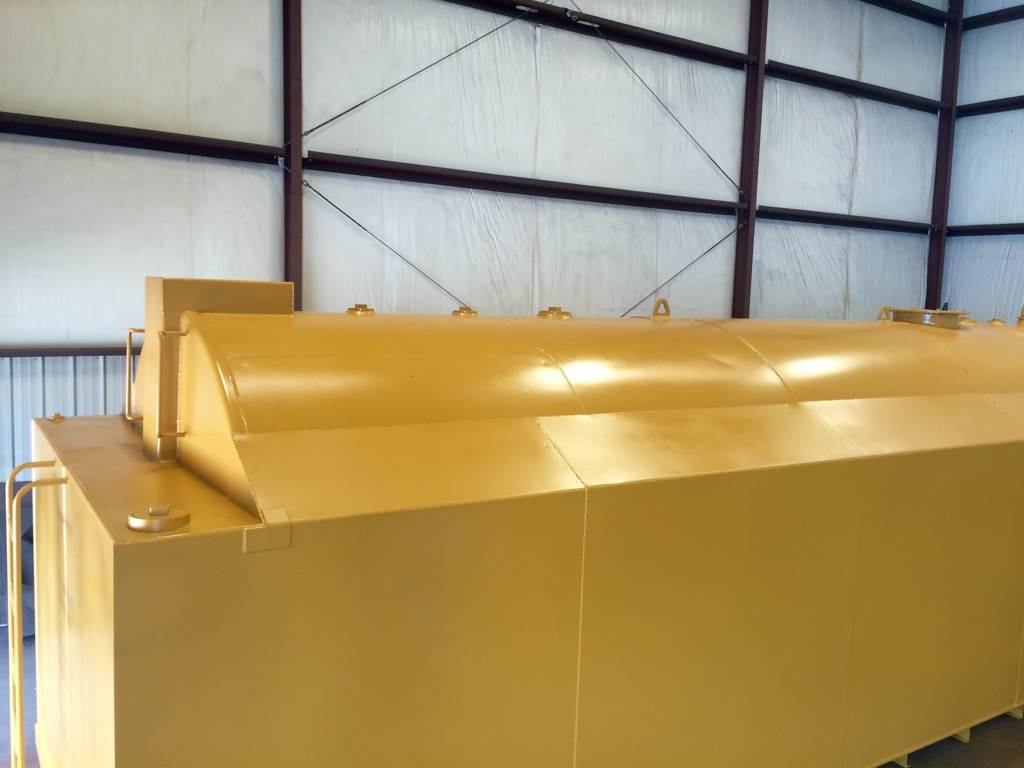

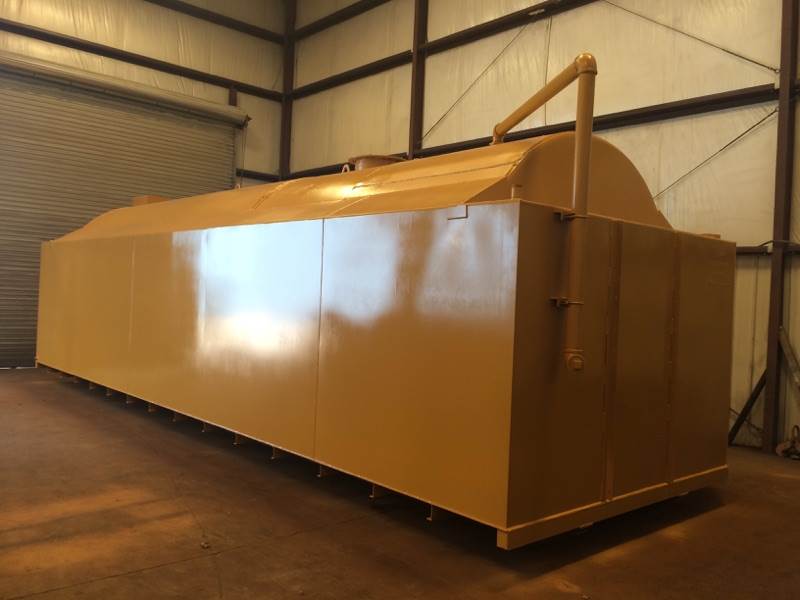

10,000 Gallon above ground self-contained horizontal storage tank on 8" H-Beam skids.

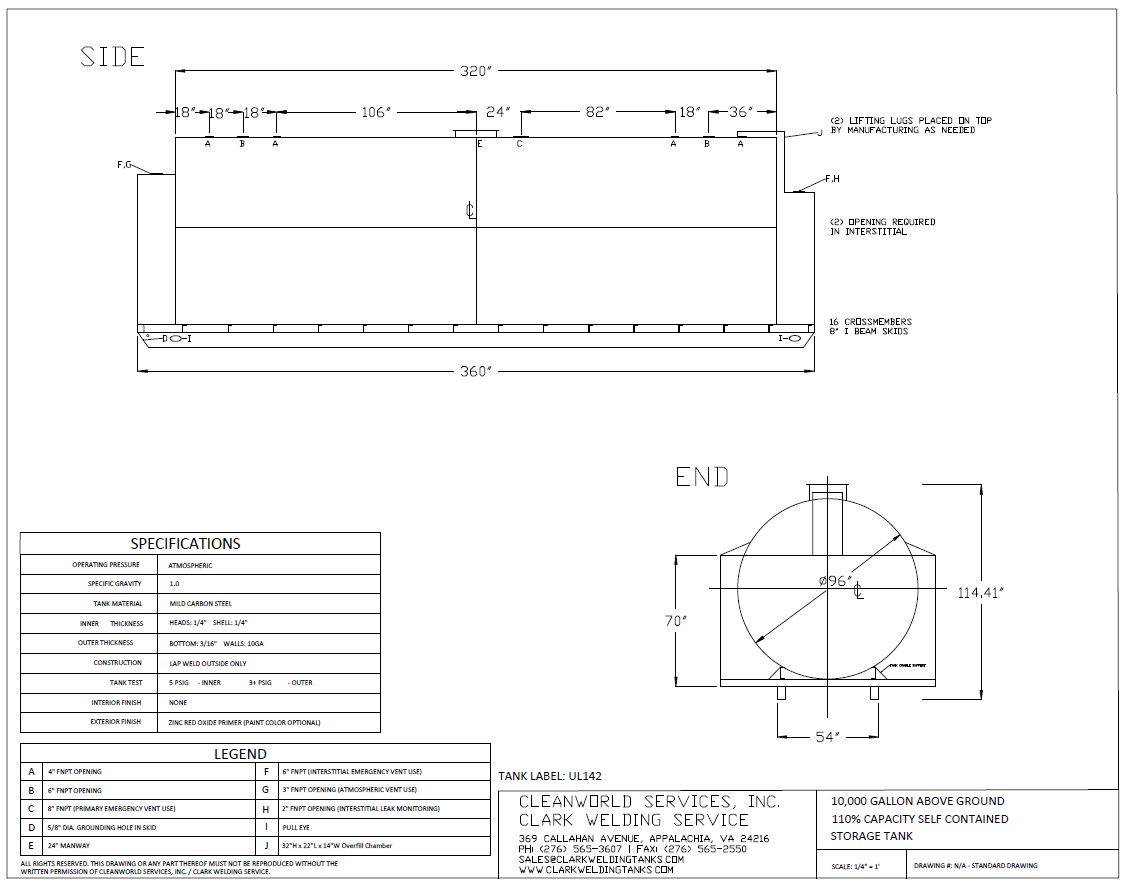

Inner Tank: 96" Diameter x 320" L
UL142
Meets double wall requirement.
Outer Containment: 108" W x 360" L x 70"H
24"

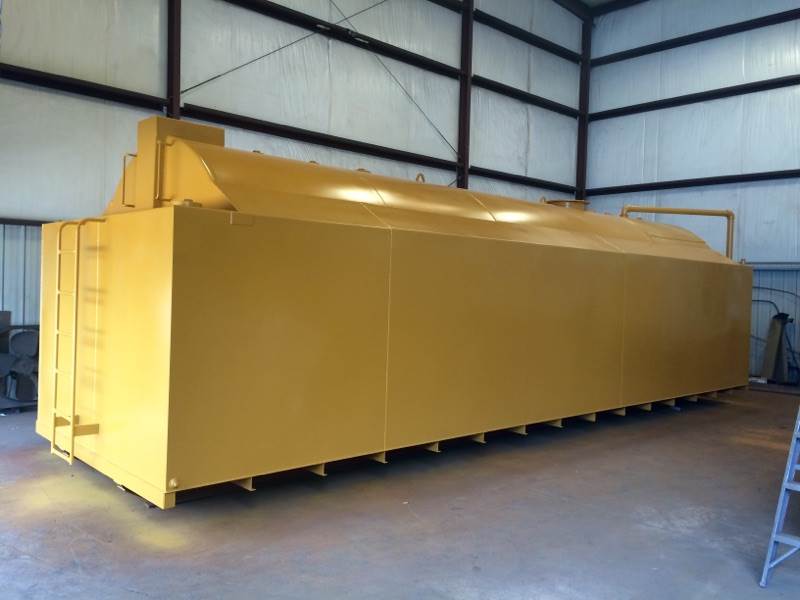

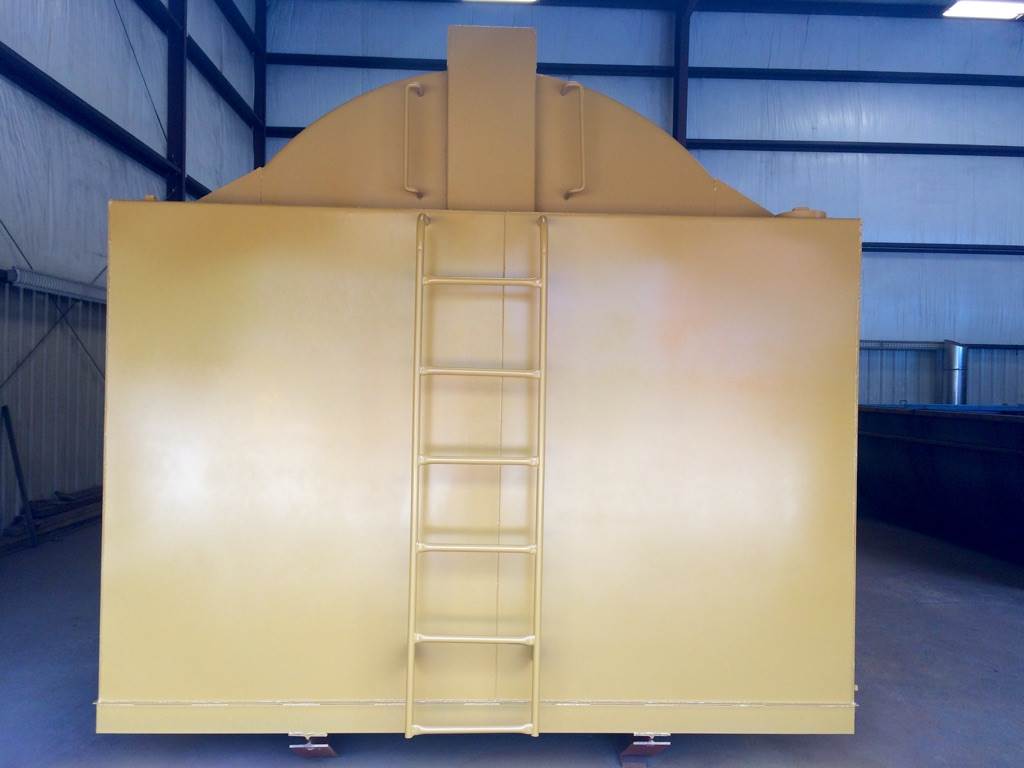

Includes 3” Fill pipe and access ladder.
Manway in inner tank.

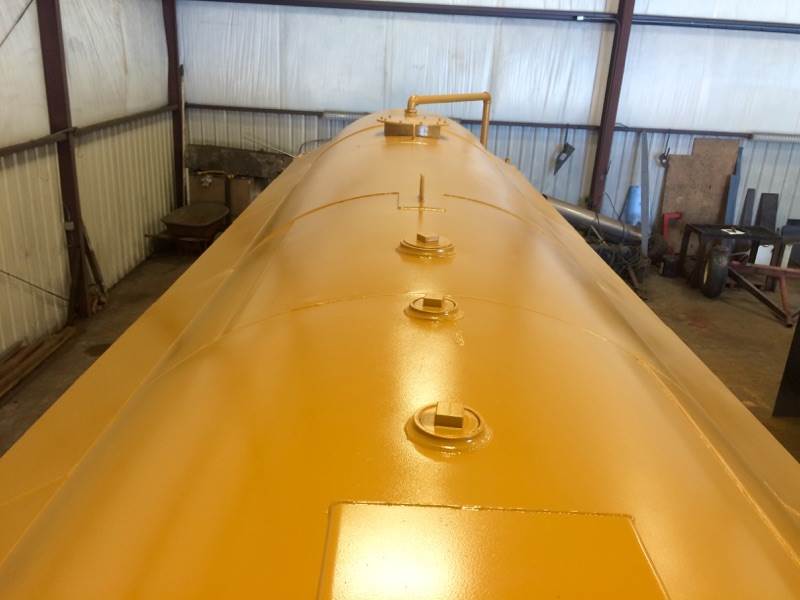

(5) 4" FNPT openings for accessories in tank.
(1) 8" FNPT Opening for emergency vent in inner tank.
(2) 6" FNPT Openings for emergency vents in outer containment.
(2) 3" Atmospheric vents (1) in inner tank (1) in outer containment.
Openings for monitoring (2") and drain (1") in outer containment.
Lifting lugs on top.

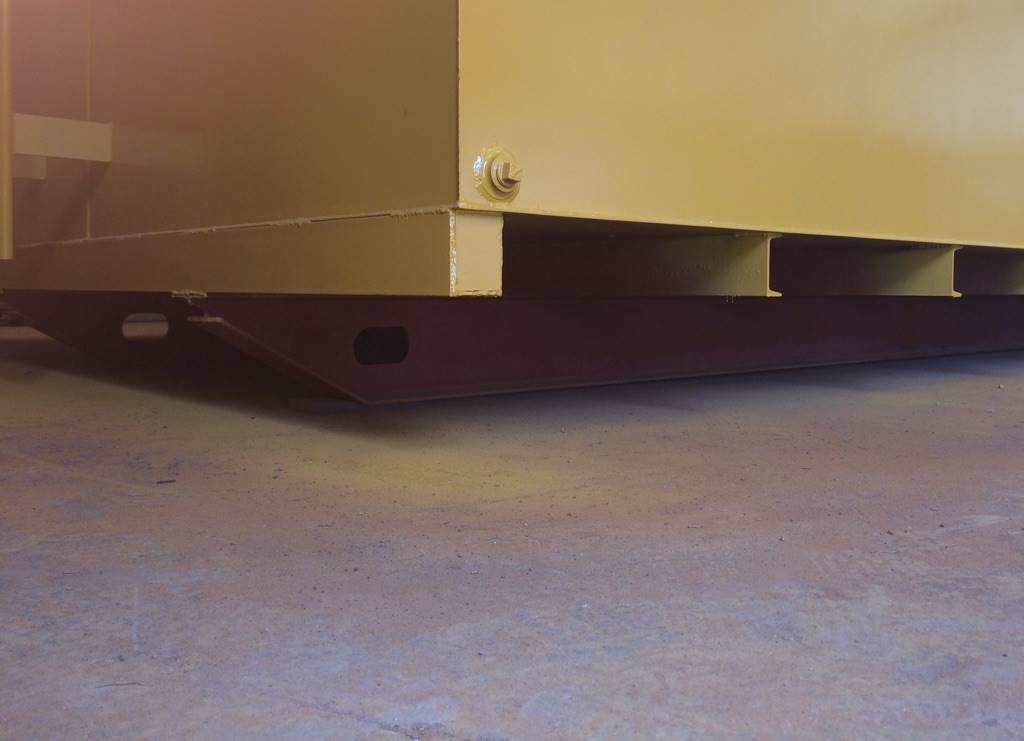

Pull eyes in skids.
Overfill chamber. Diverts overfilled product into secondary containment.
Secondary containment accommodates 110 - 120% of the tank's capacity, is fully enclosed, rain-shielded and seal welded, vented (not an open top containment - no rainwater or debris)
Zinc red oxide primer and topcoat.
Outer secondary containment is new. Inner tank is refurbished, guaranteed new condition with same warranty as new.
