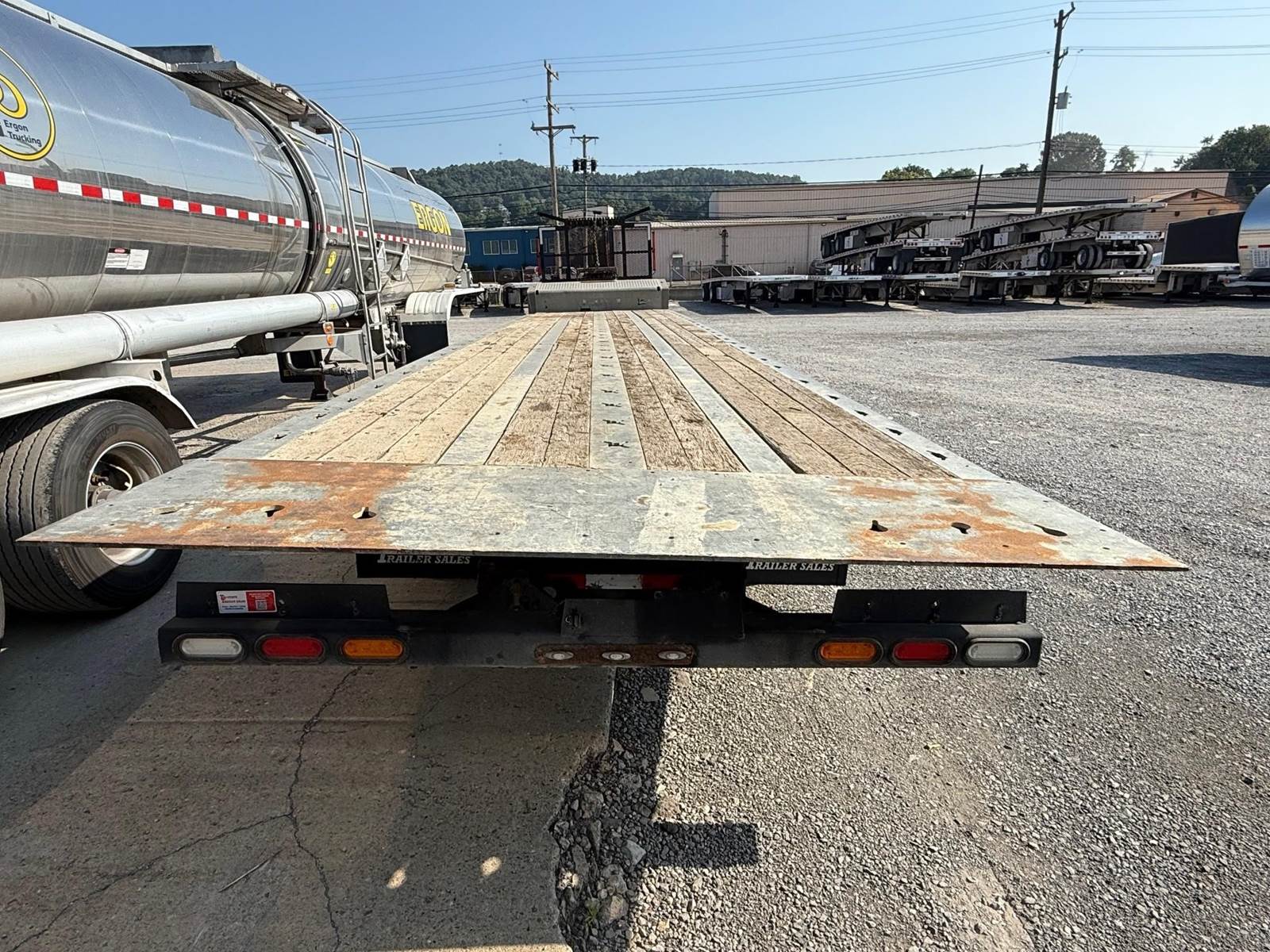

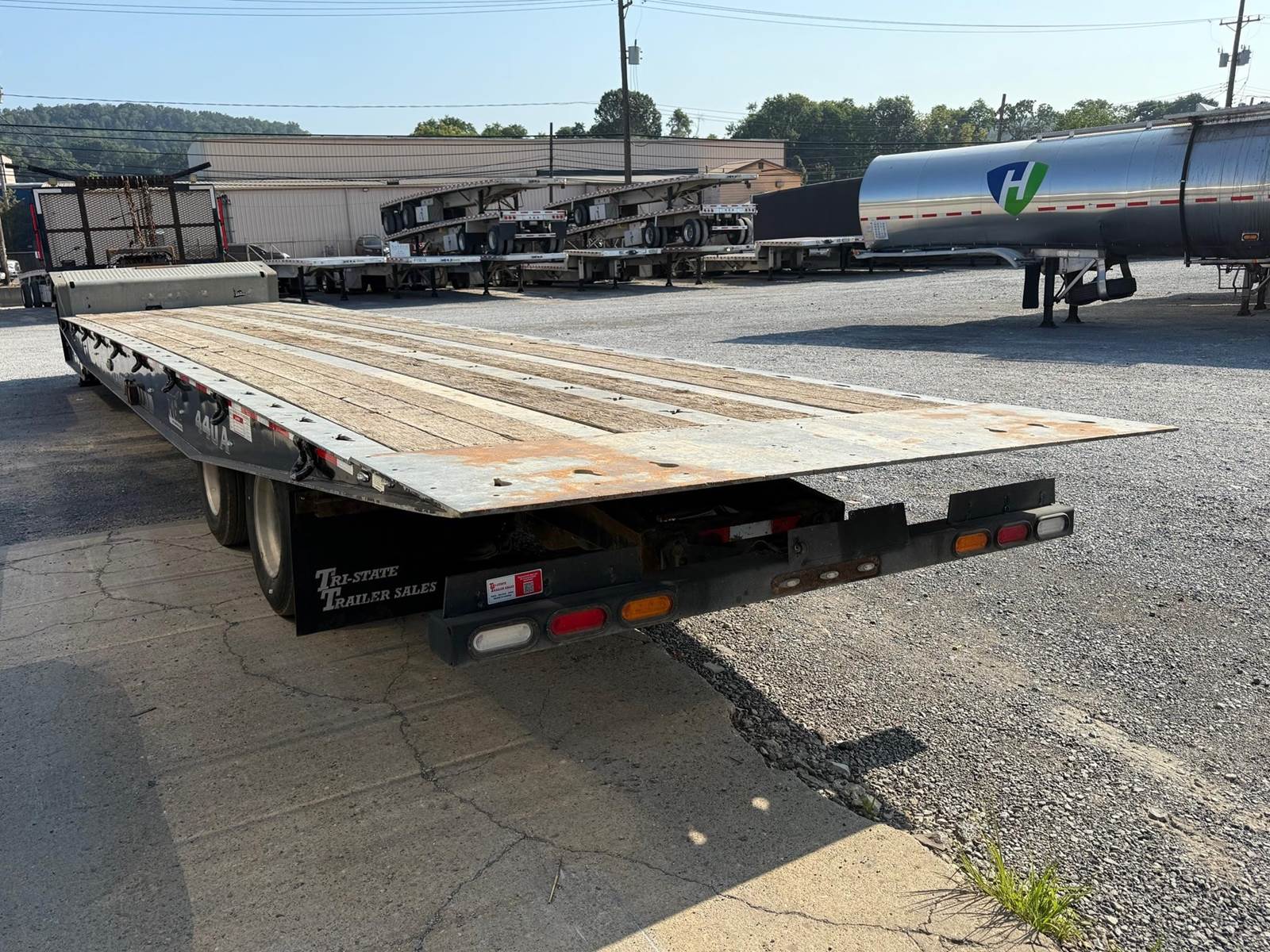

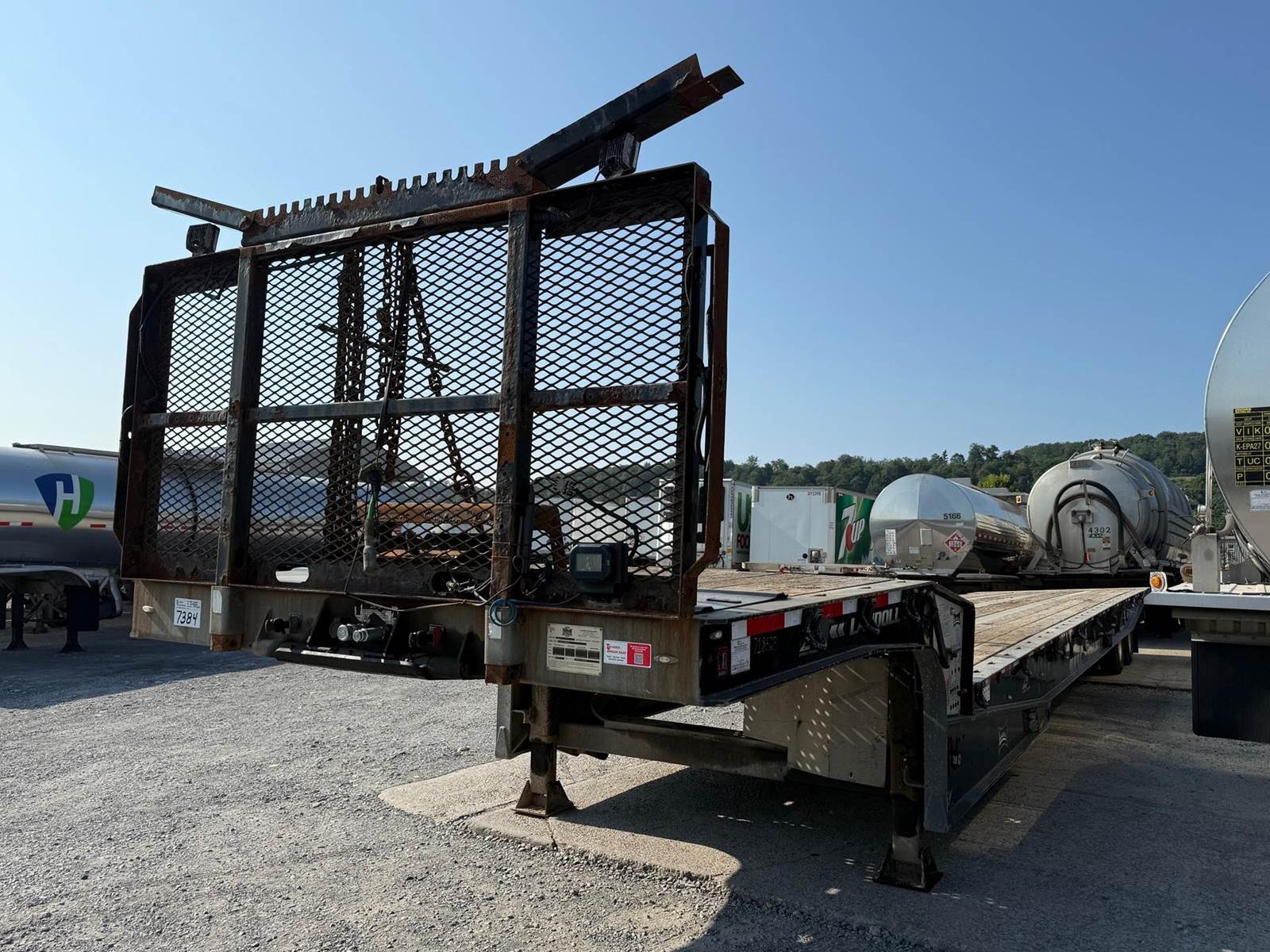

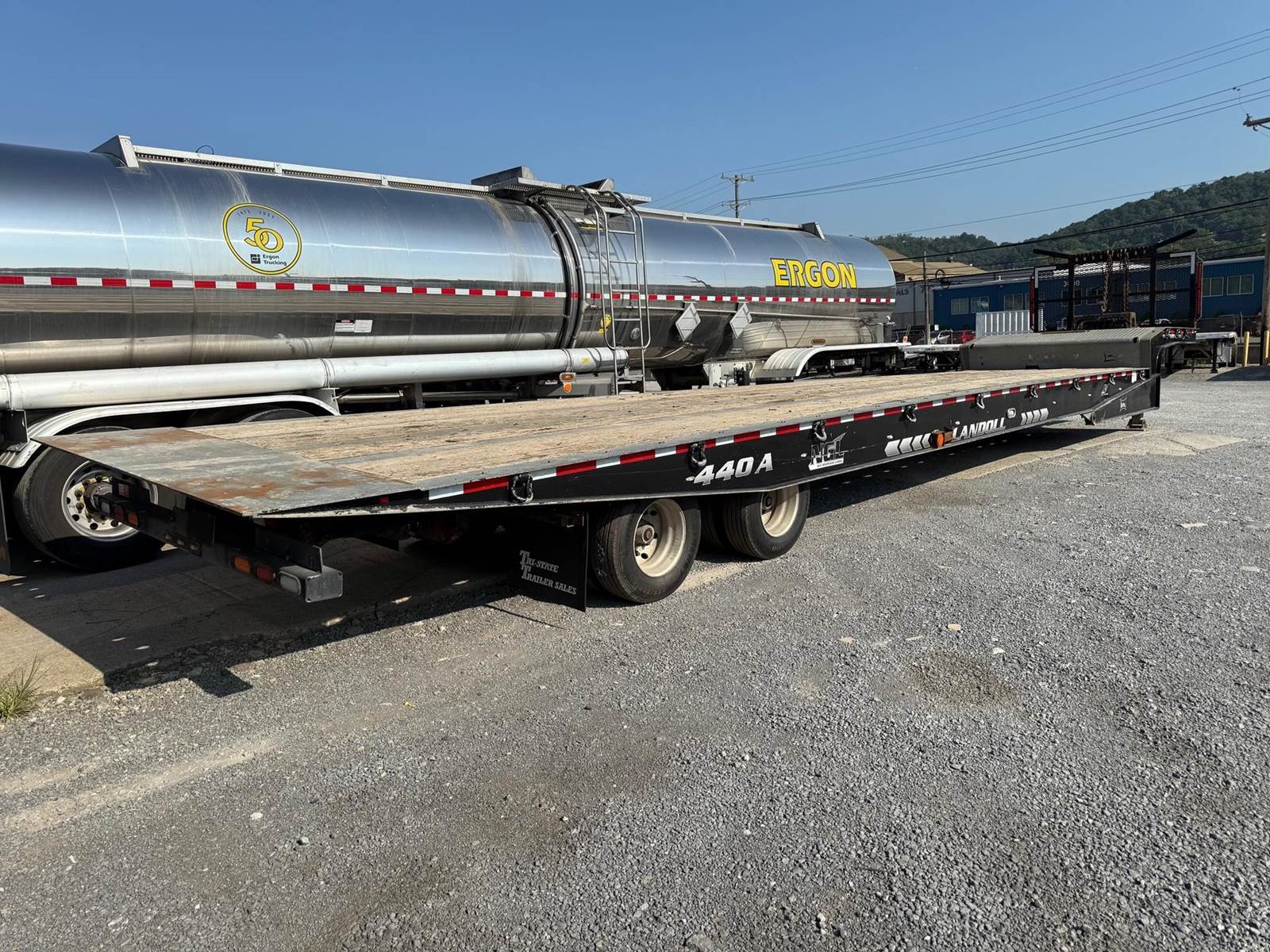

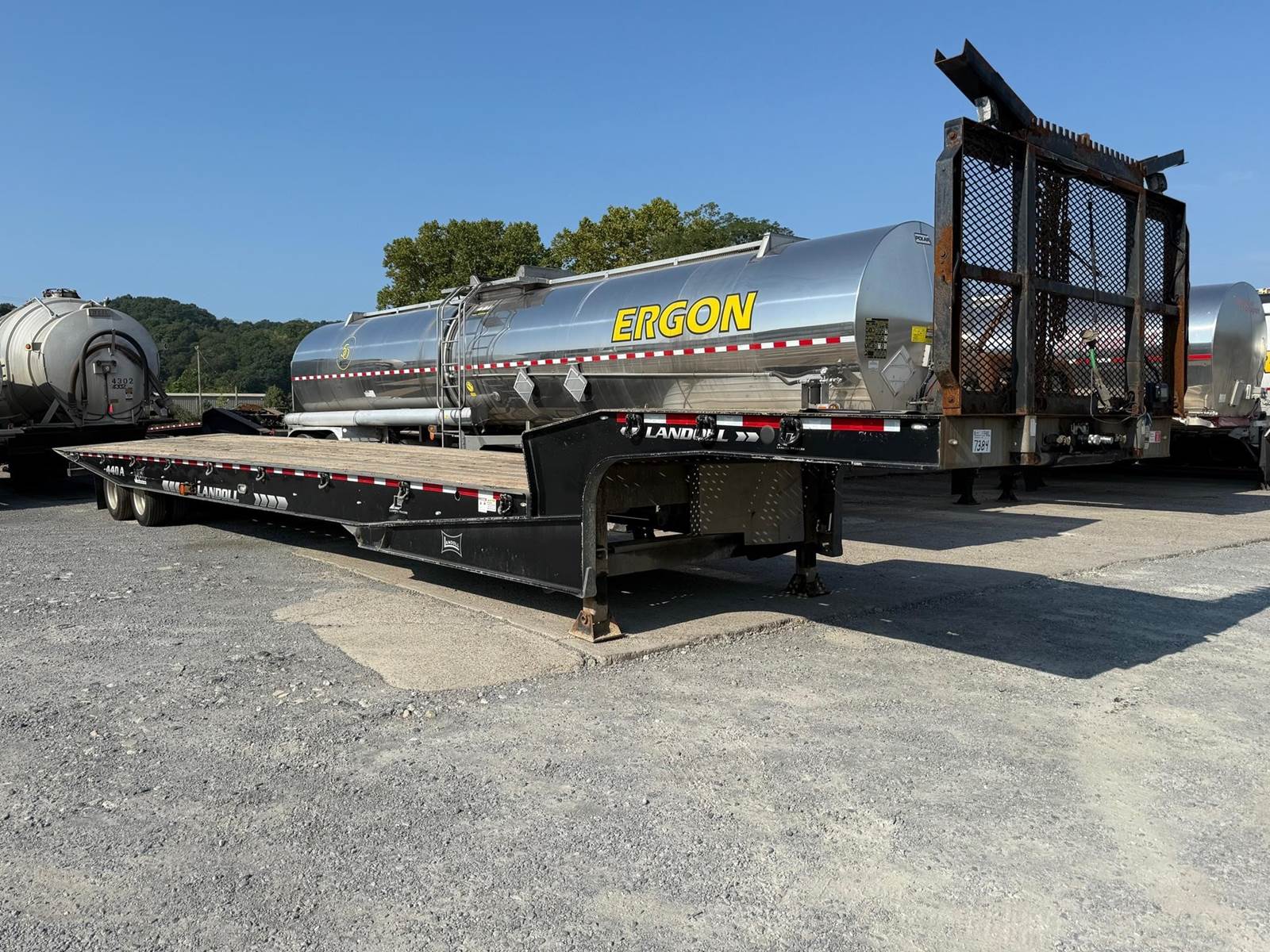

2018 Landoll 440-50CA GALVANIZED Traveling Axle Trailer

TRAILER HAS 8 BRAND NEW TIRES, NEW HYDRAULIC VALVE BODY, AND ALL NEW ROLLERS!

Length 50'
Width 102"
Top Deck Length 9' 8.5"
Main Deck Length 40' 1.5"
Main Deck Height 37"
Weight 19,078 lbs +/-3%
Inspection T-FHWA 8/25
Unit Description 440A-50CA
Flat Body
Floor 1 3/8" Apitong
Chain Slots Double Key Hole on 24" Centers
Approach Plate Flat with Six (6) Key Hole Tie Downs
Load Angle 6.5 Degrees
Side Rail Perimiter Beam - Steel
Toolbox Twin Upper Deck with Lockable Door
Side Rail Lights Twelve (12) per side, LED
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Strobe Light Package in Bumper
Hydraulics
Hydraulic Hook Up Quick Couplers 2500 PSI / 20 GPM
Hydraulic Valve Body Rexroth 20GPM at Controls, 50 GPM Max
Tilt Cylinders Two - 6"x30"
Undercarriage Cylndr 4"x126" & 4"x138" - 50'
Hydraulic Winch Braden Winch, 20,000 lbs.
Cable 85' of 1/2" Cable
Wireless Remote Prince Valve, Controls Winch, Tilt & Axle Travel
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Neway RLU228, 22,500 lb. Capacity
Suspension Setting 49" Sliding Tandem
Tire Size 235/75R17.5
Tire % NEW VIRGINS
Wheels Steel
Brake % 40%
Centralized Grease Centralized Grease System

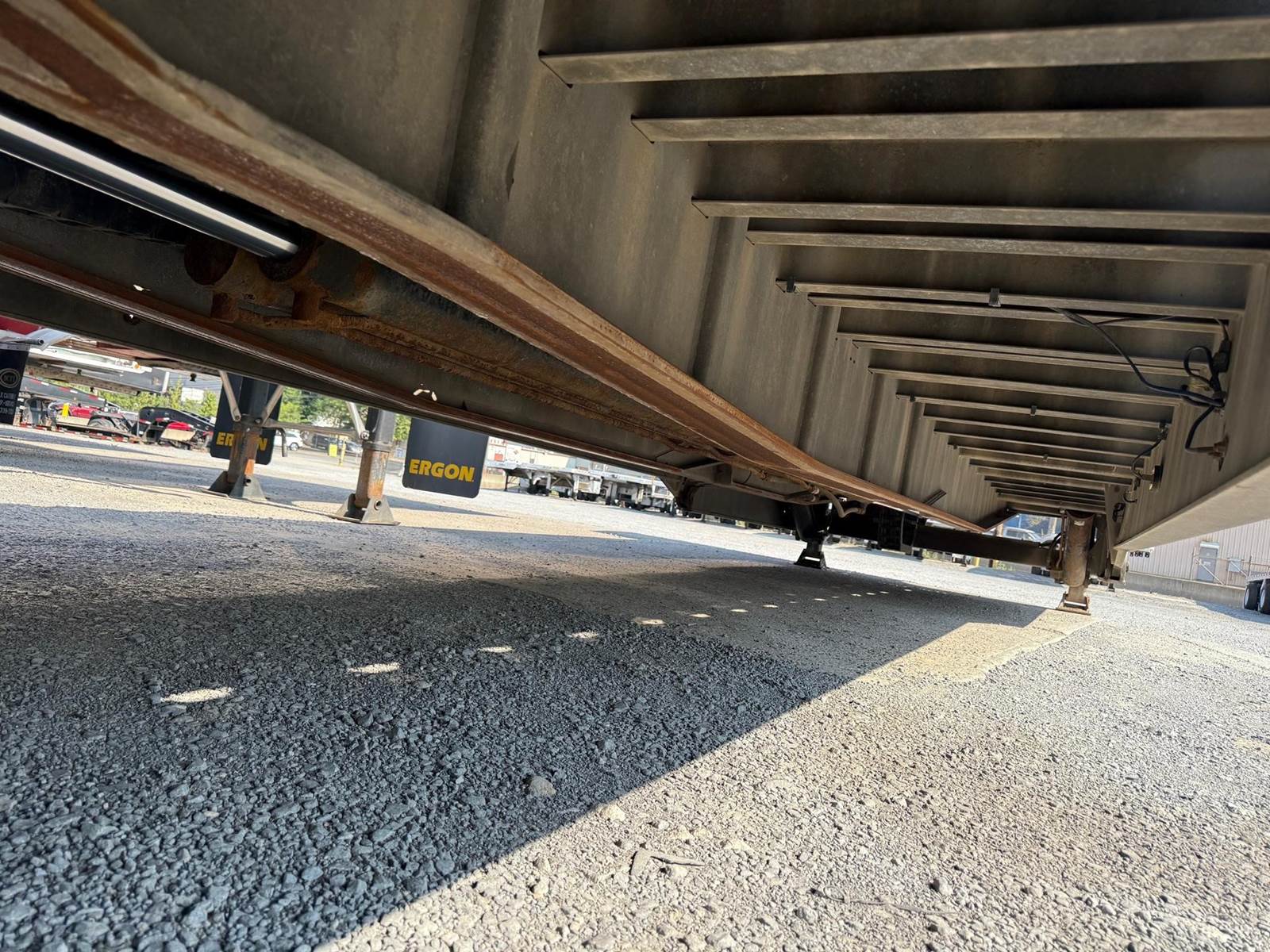

UnderFrame
King Pin Setting 21"
Cross Member Center 8"
Landing Gear Jost, Two-Speed
Paint Entire Trailer Galvanized, Sides Painted Black
Weight Ratings 40 Ton Overall, 50,000 lbs. in 10'
