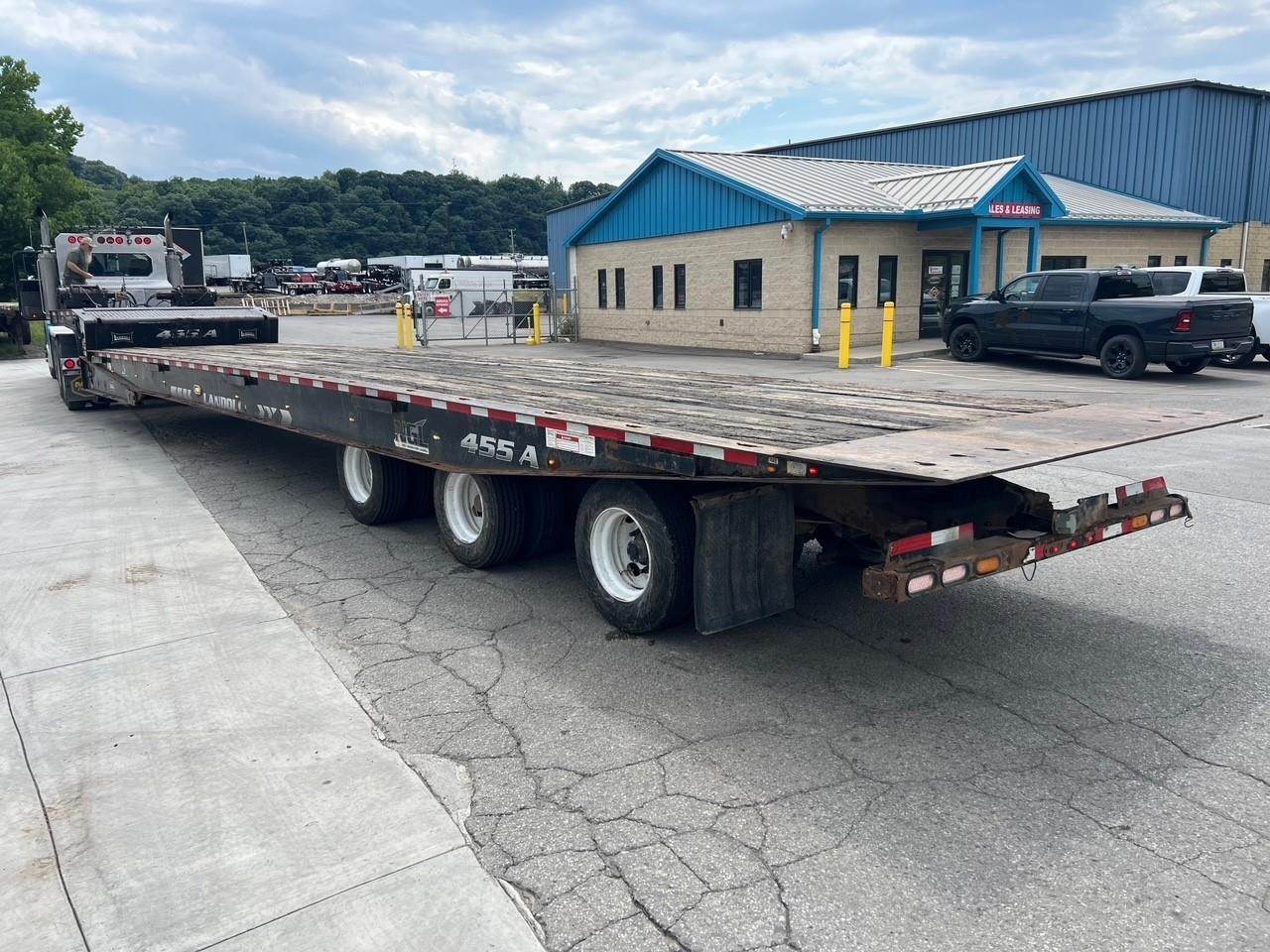

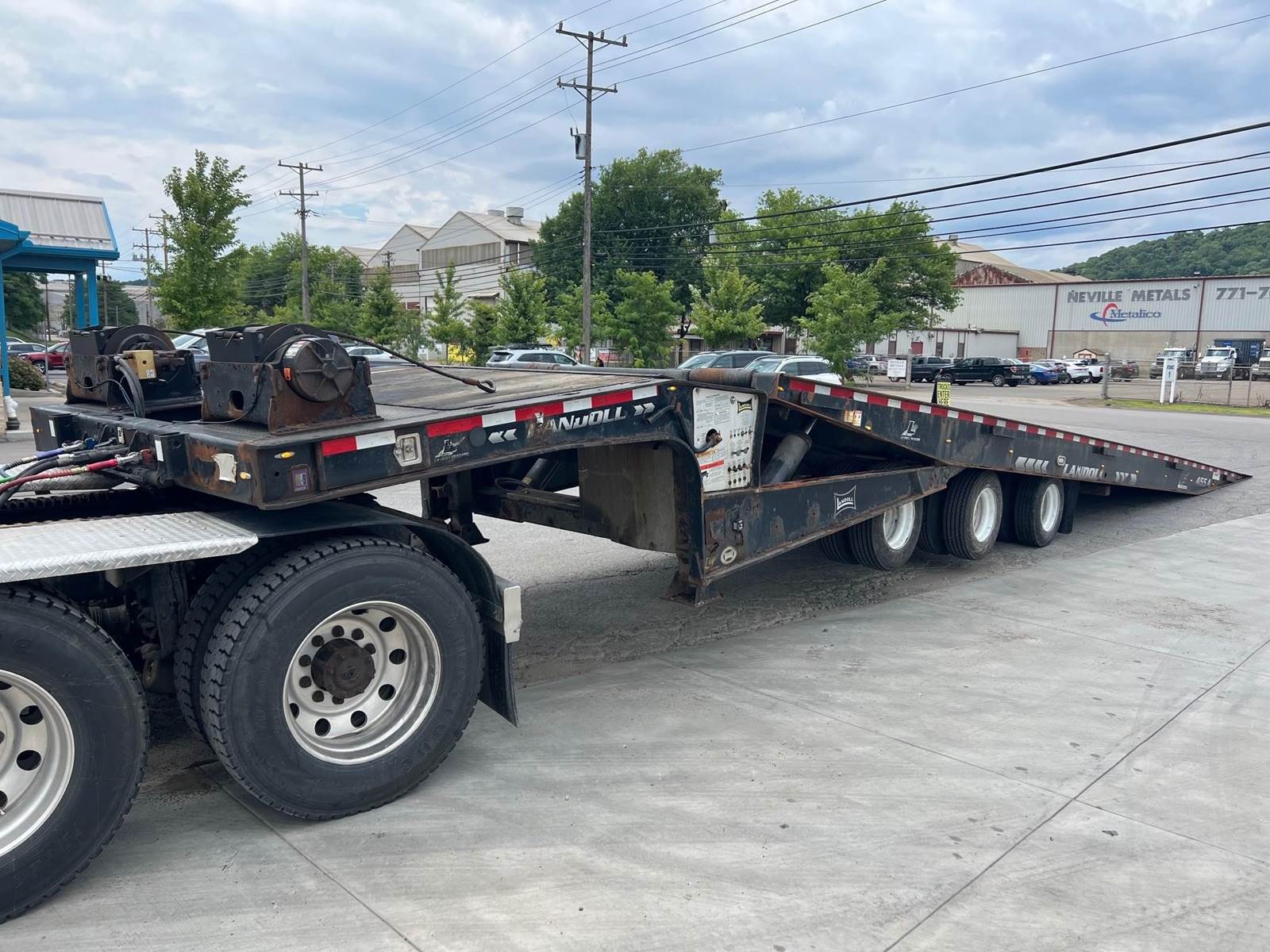

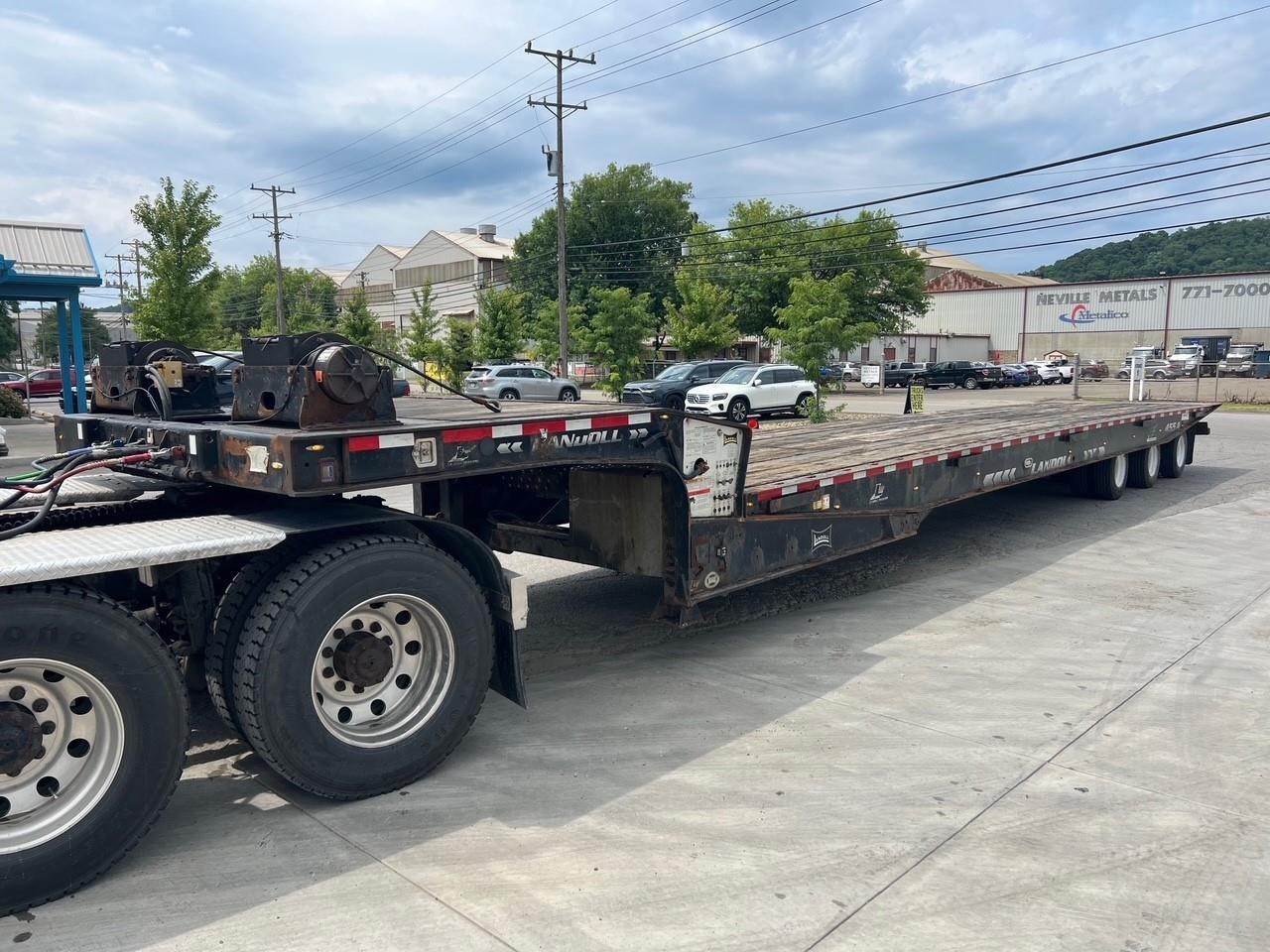

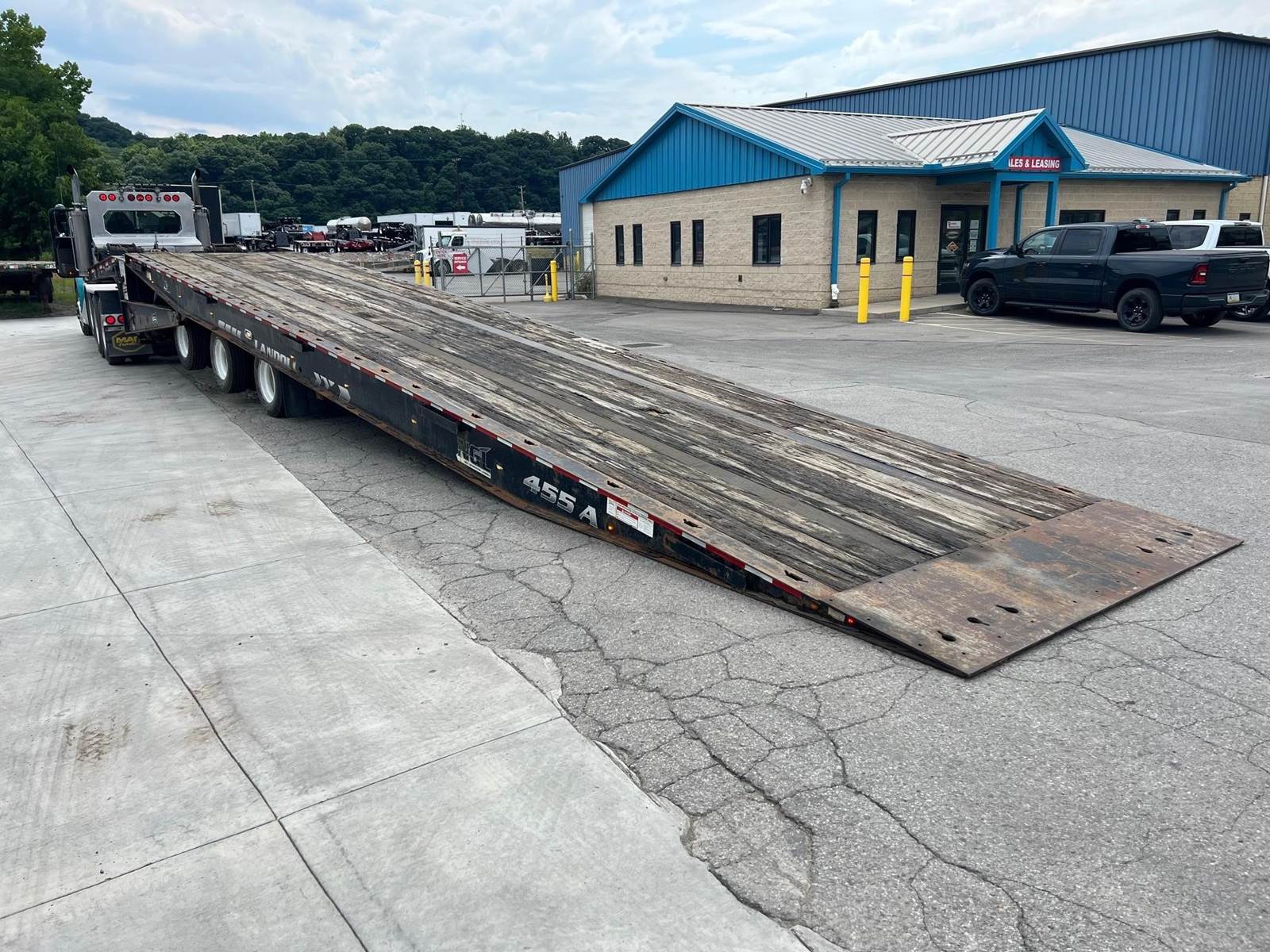

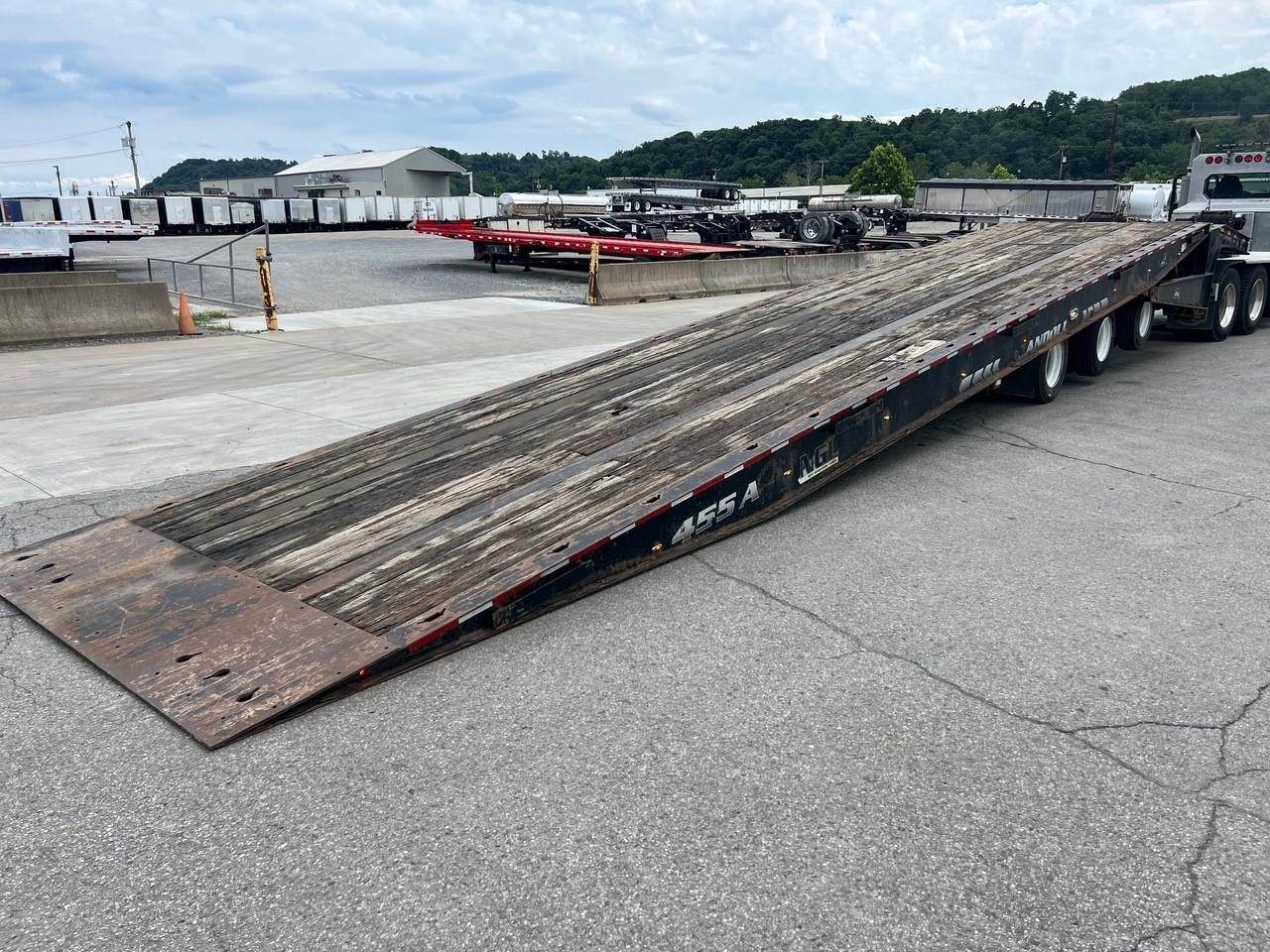

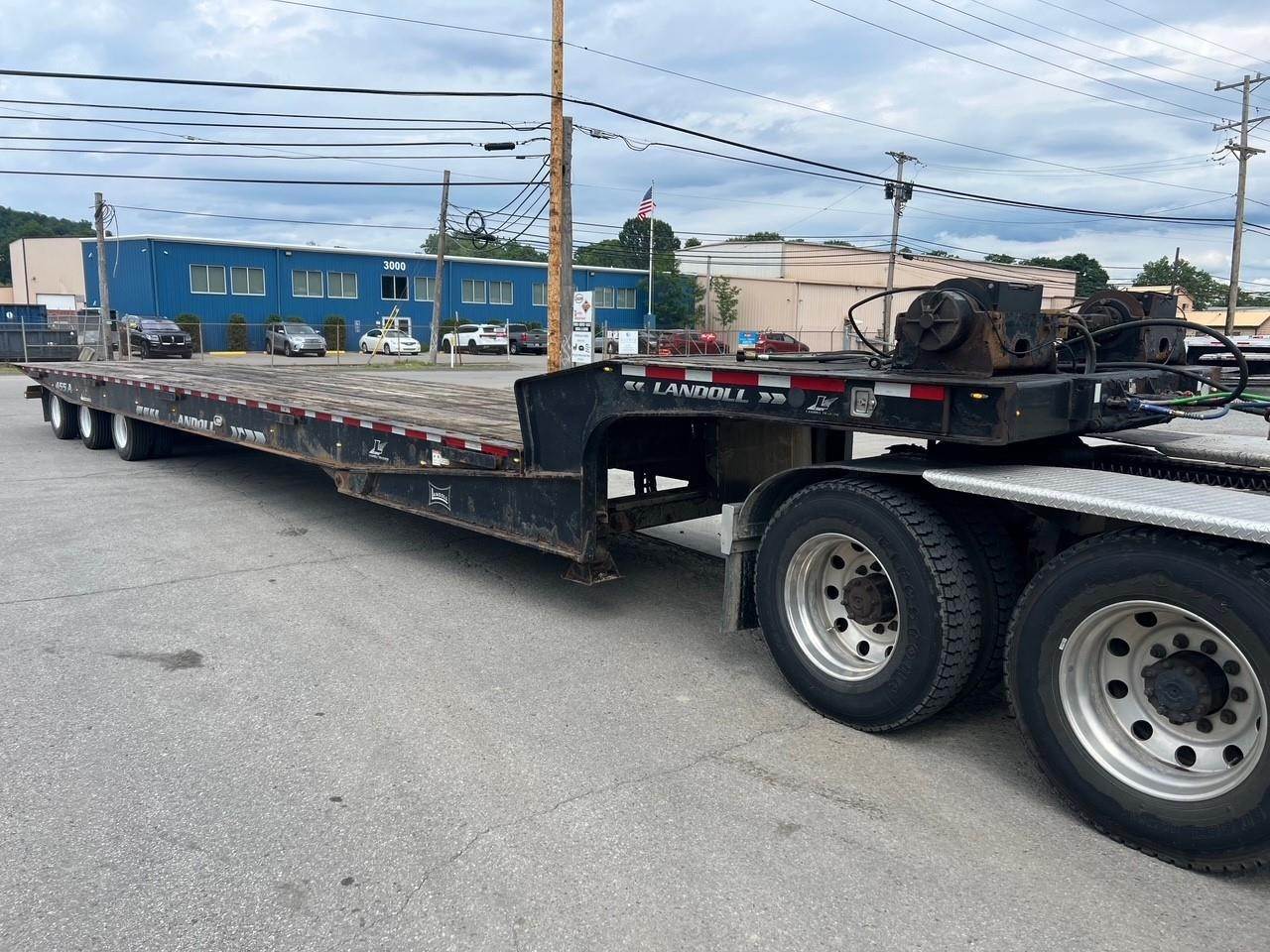

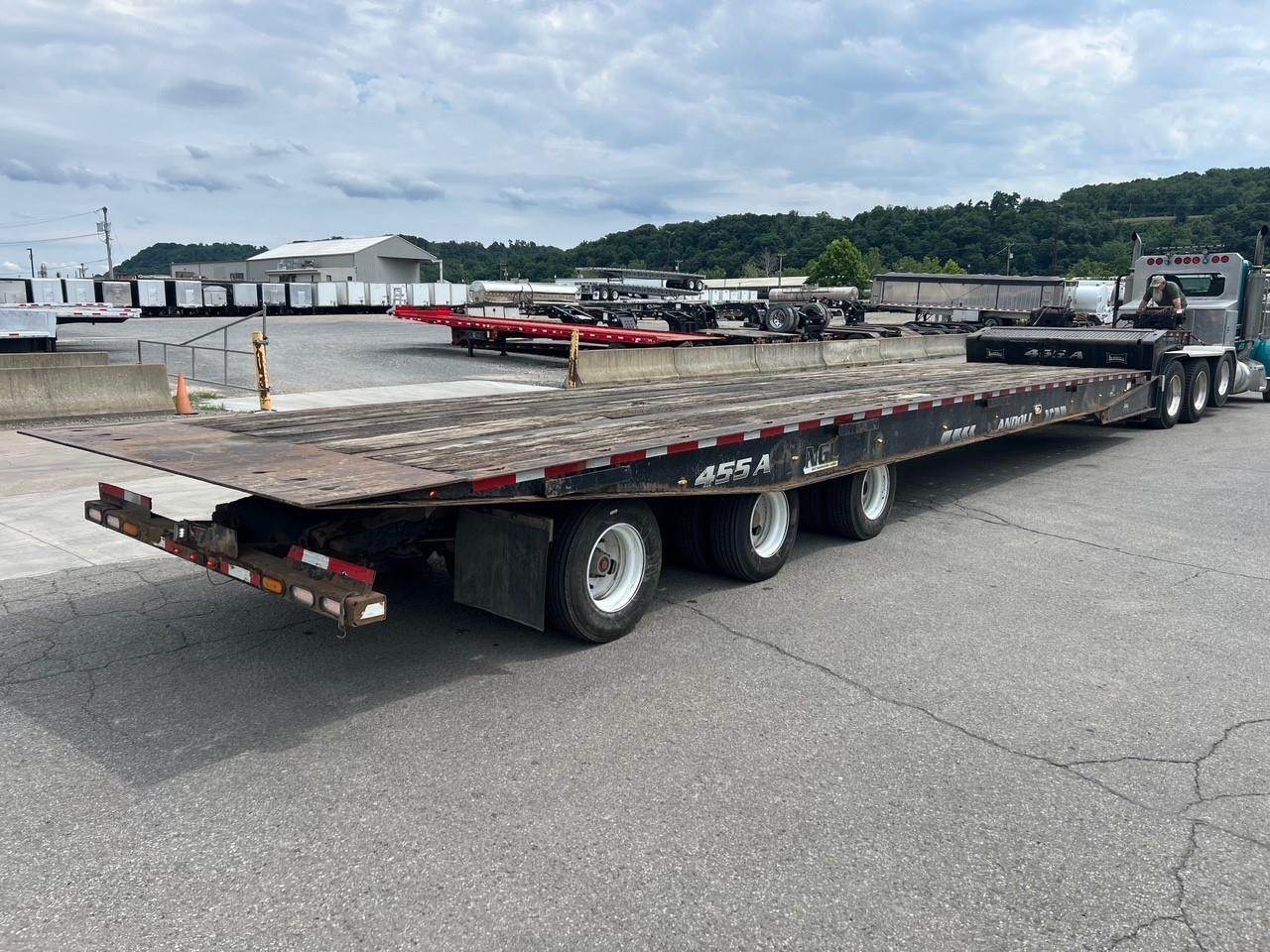

2018 Landoll 455A-53 Traveling Axle Trailer

Length 53'
Width 102"
Top Deck Length 9' 8 1/2"
Main Deck Length 43' 1"
Main Deck Height 37"
Inspection C-PA 9/26

Floor 1 3/8" Apitong
Chain Slots Double Key Hole
Approach Plate Flat with Six (6) Key Hole Tie Downs
Load Angle 6.5 Degree
Side Rail Perimiter Beam - Steel
Toolbox Two Side Opening Boxes at Front

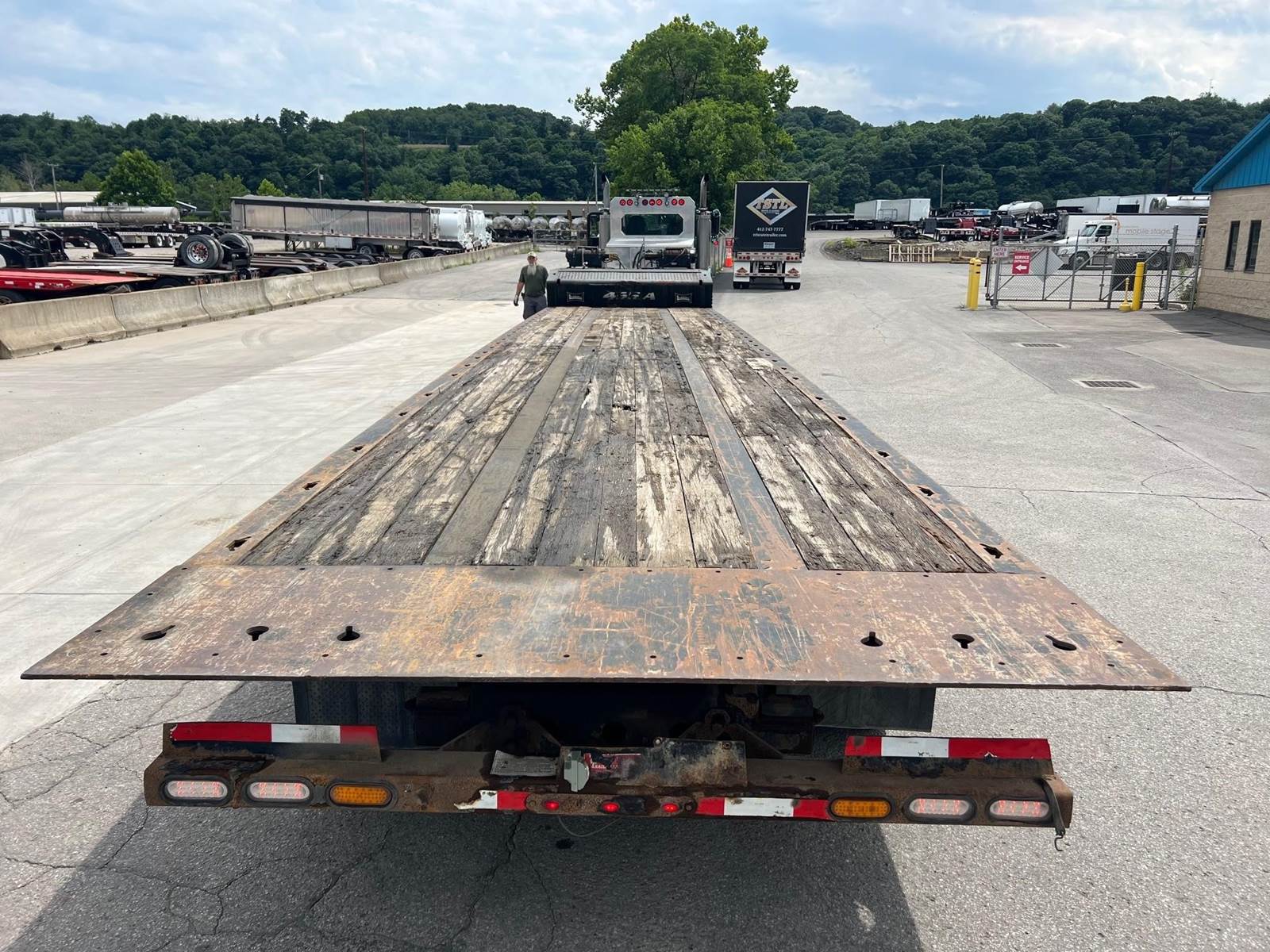

Rear Lights (2) Stop/Tail, (3) Clearance
Strobe Lights Strobe Light Package in Bumper

Hydraulic Winch WARN Winch, 30,000 lbs., Planetary
Cable 85' of 1/2" Cable
Wireless Remote Prince Valve, Controls Winch, Tilt & Axle Travel

# of Axles 3

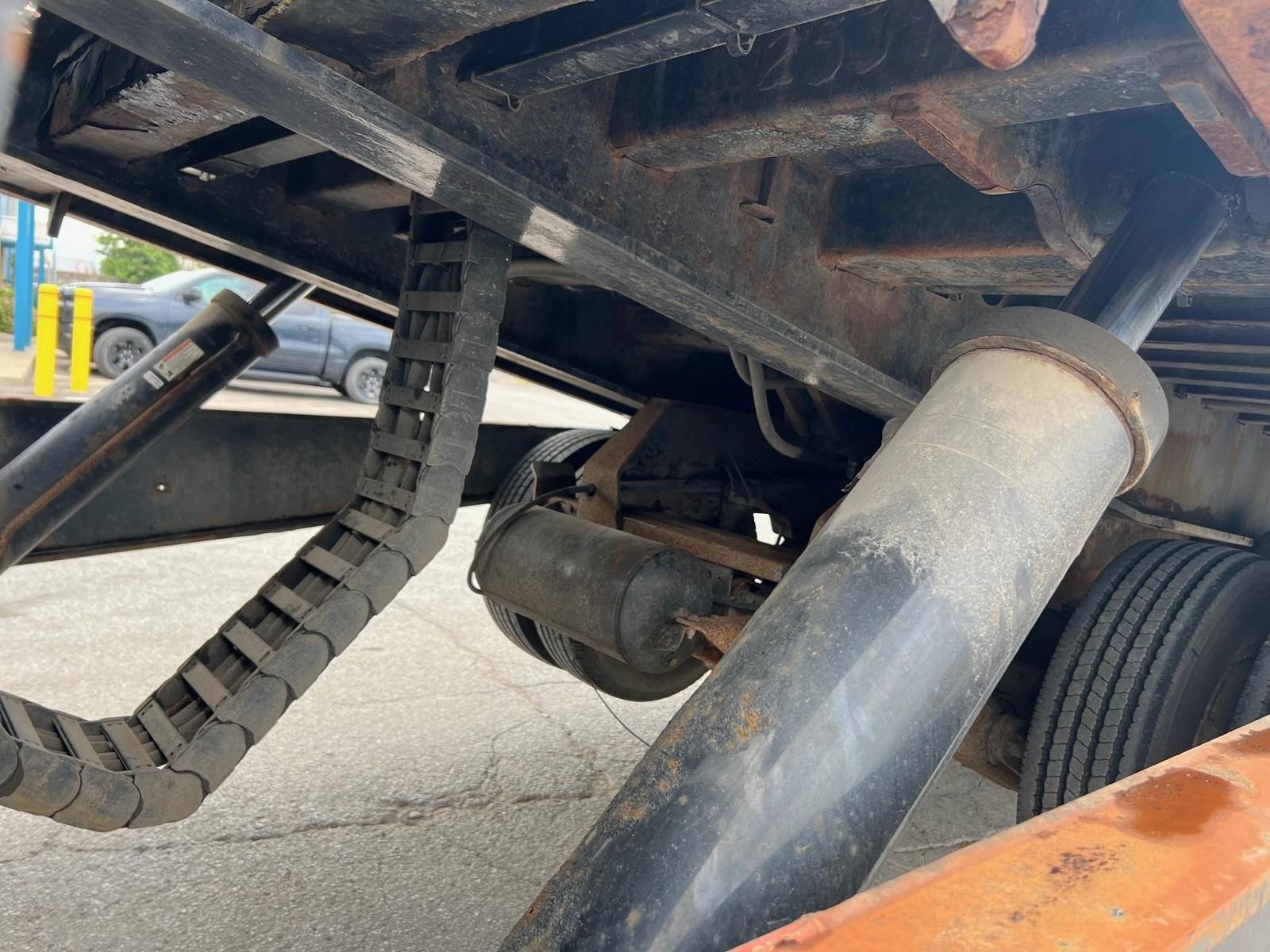

Suspension Type Air Ride
Suspension Brand Neway RLU228, 22,500 lb. Capacity

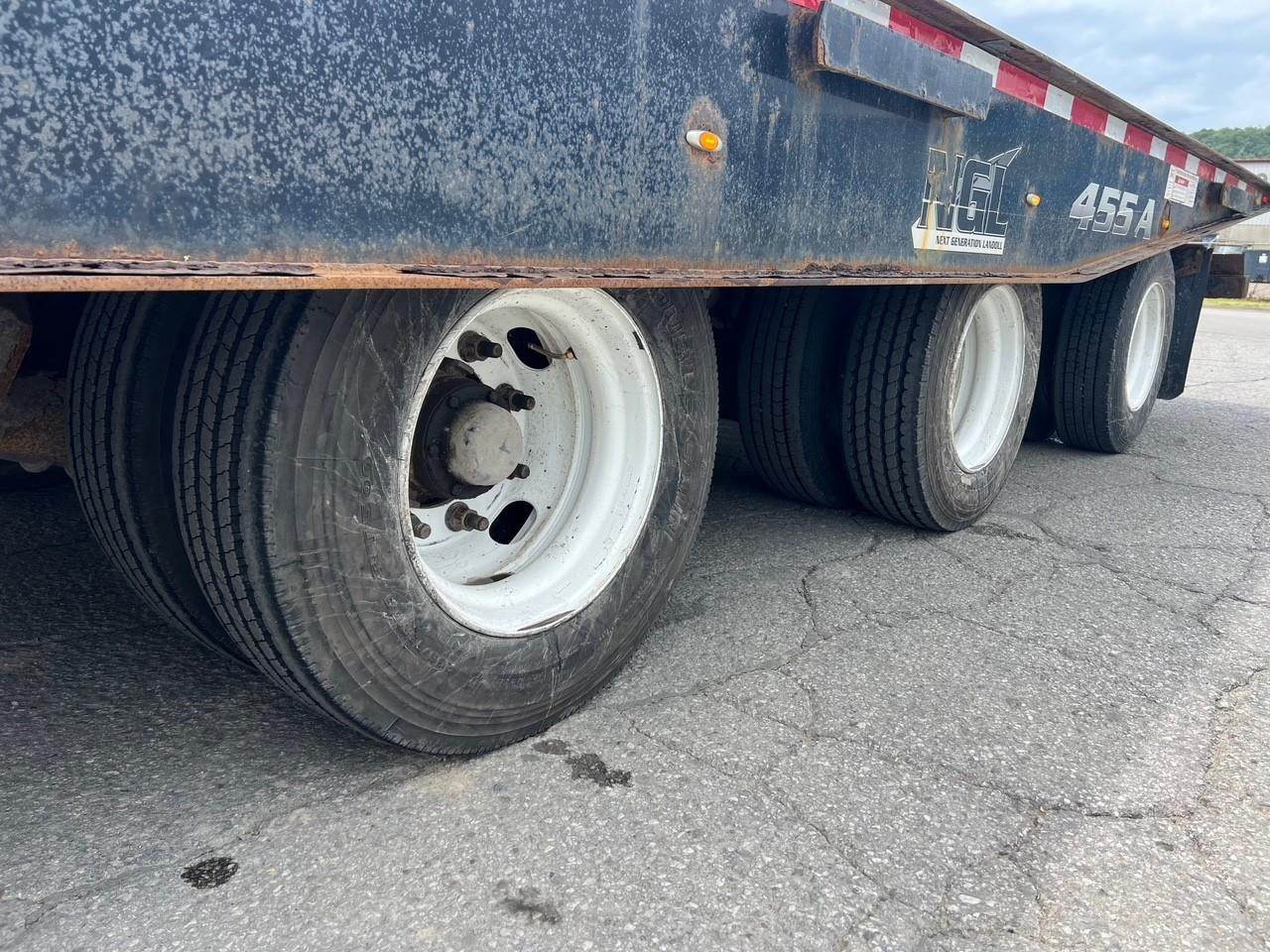

Tire Size 235/75R17.5
Tire % 10-80%, 2-50%
Wheels Steel
Brake % Front-40%, Center & Rear-70%
Centralized Grease Centralized Grease System

King Pin Setting 21"
5th Wheel Condition Good

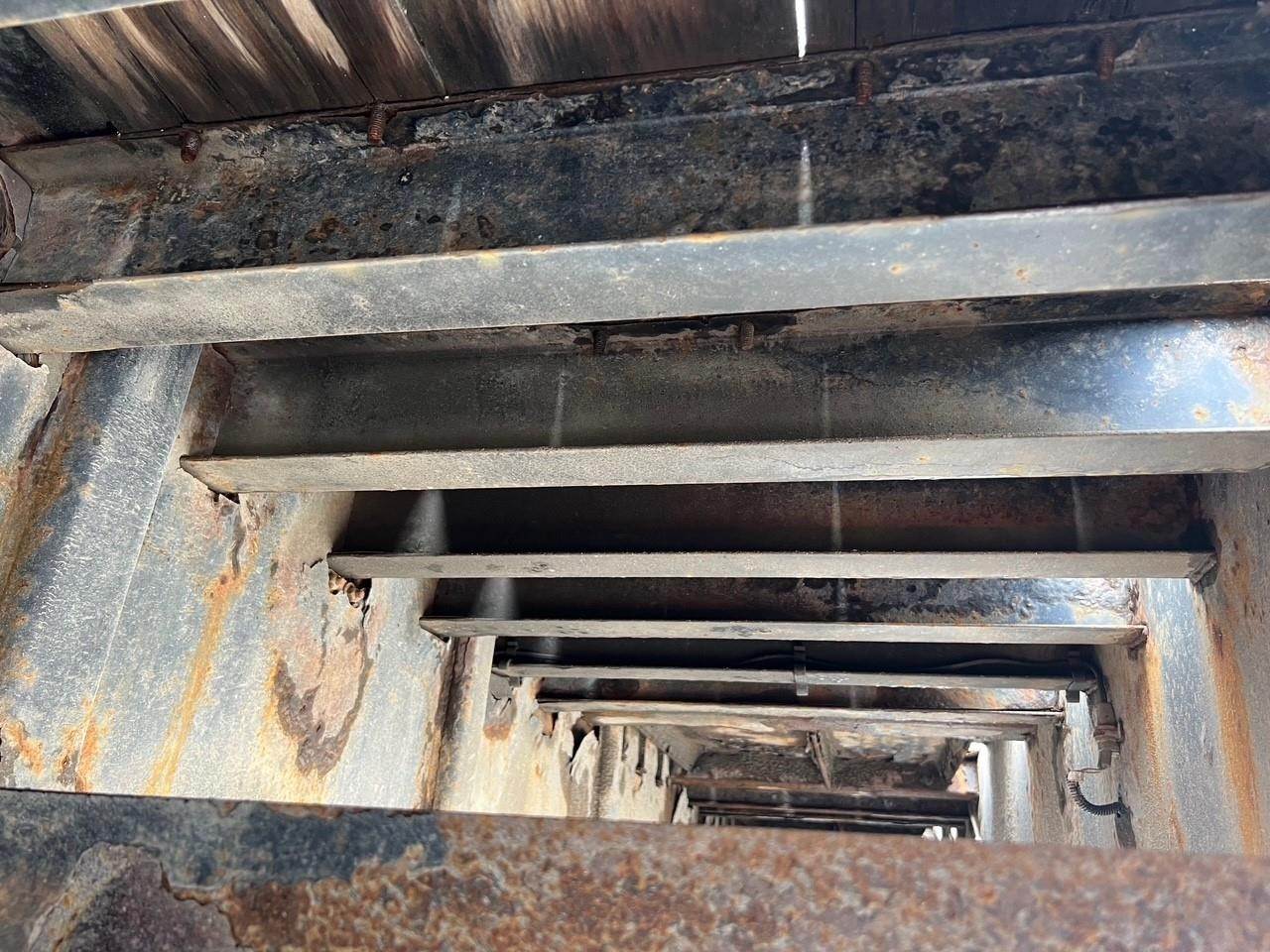

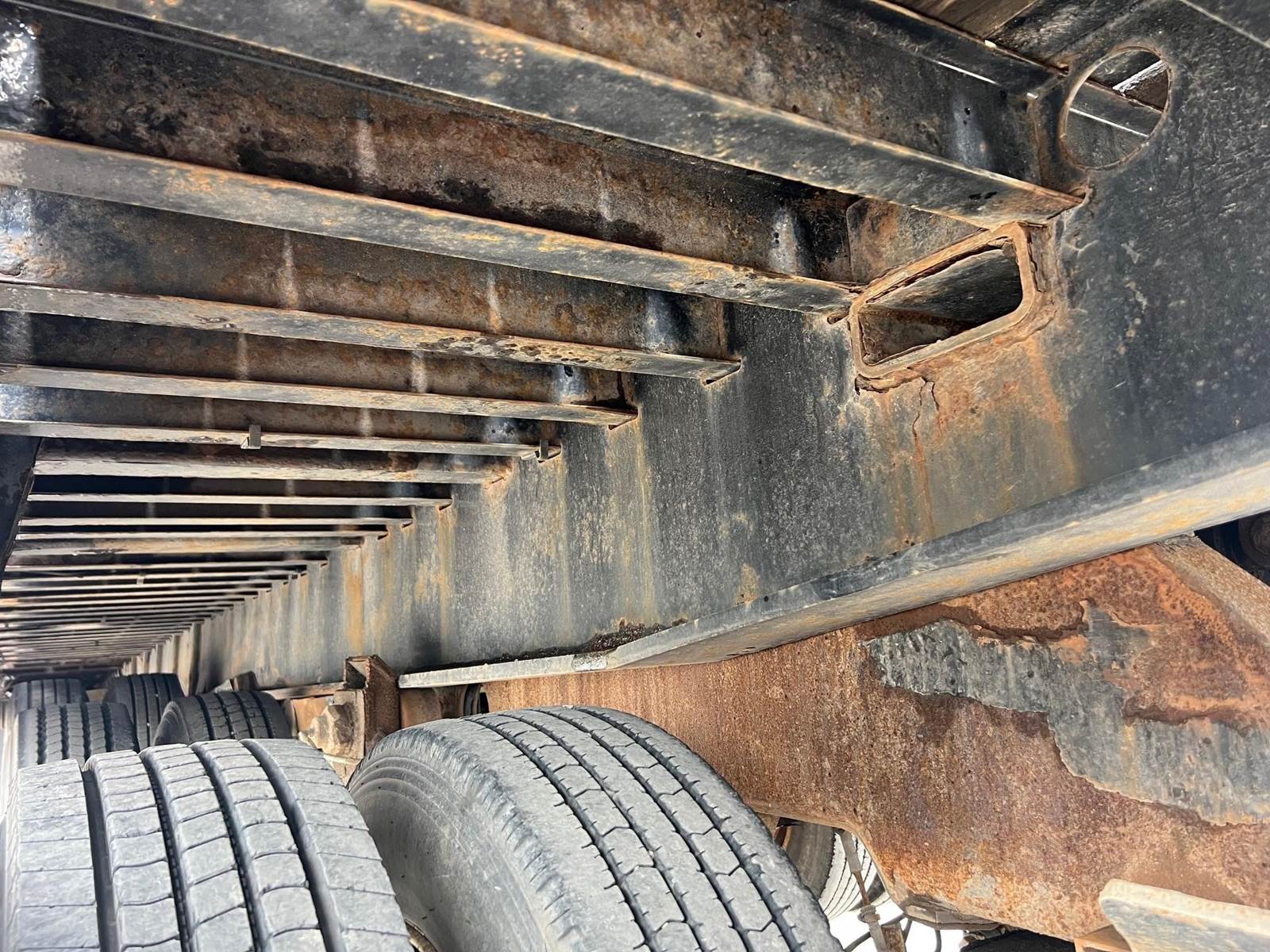

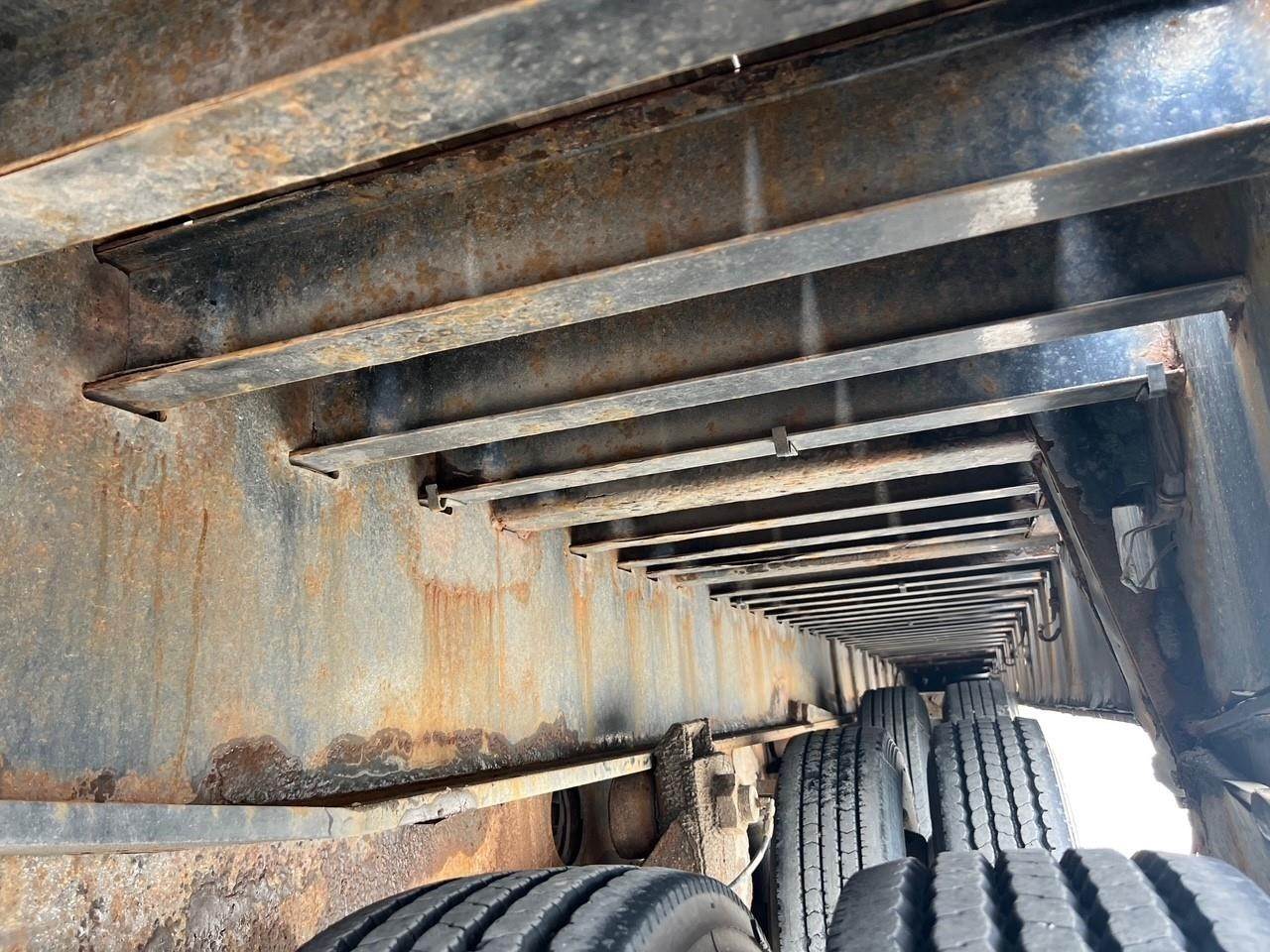

Cross Member Center 4" Junior I-Beam on 8" Centers
Landing Gear Two Speed
Paint Black
Paint Condition Fair
Weight Ratings 110,000 Lbs Distributed, 70,000 Lbs. in 10'

Second WARN 30K Winch (Upper Deck)

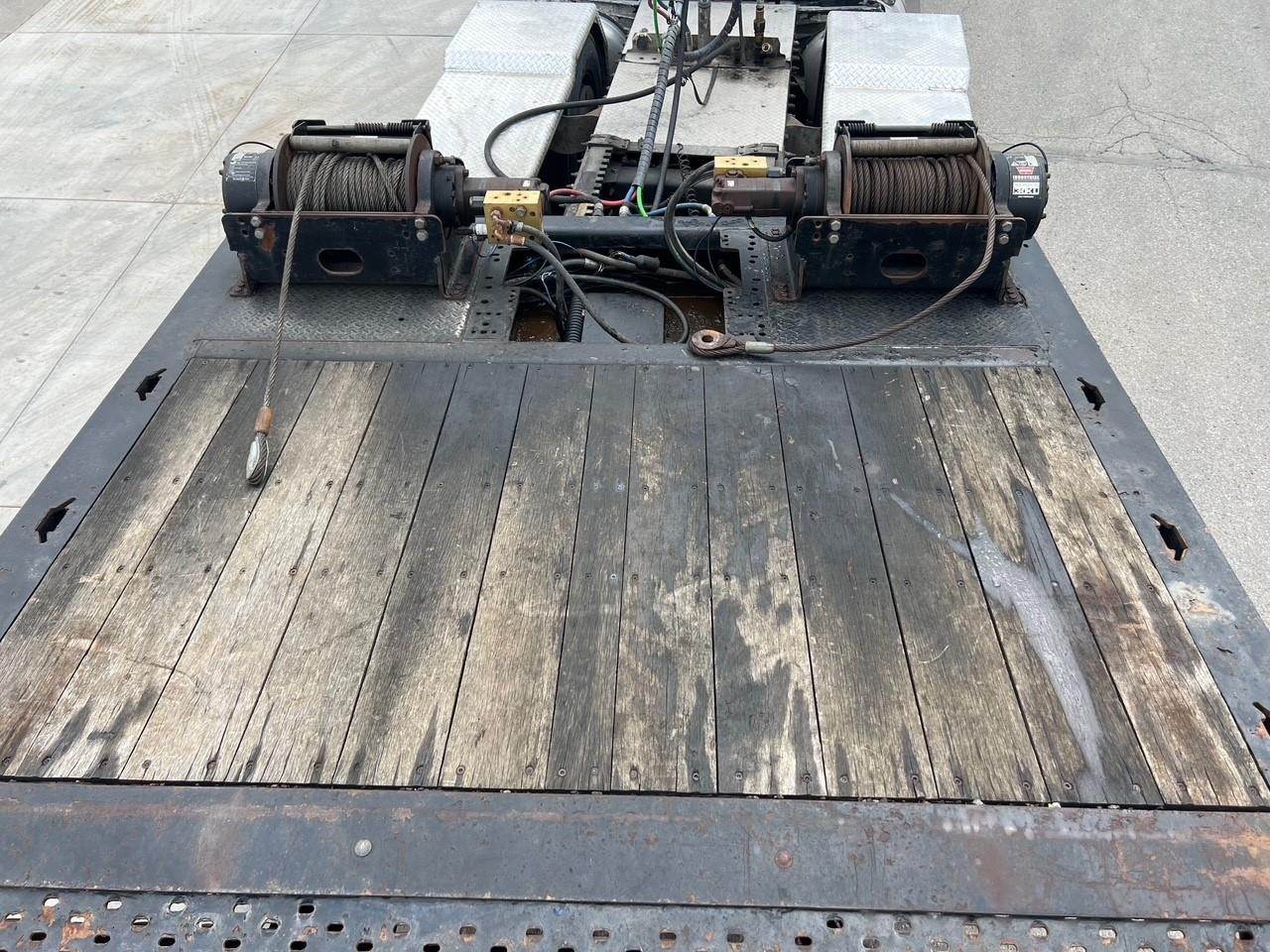

Upper Deck Side by Side Dual Mounting Winches
Air Release Winches
Special Electrical Shut-Down for Trailer Electrical
Water Proof Trailer Brake Components
Grease Hub Axles
24" Rub Rail Sections on Lower Deck - FIve (5) per Side
