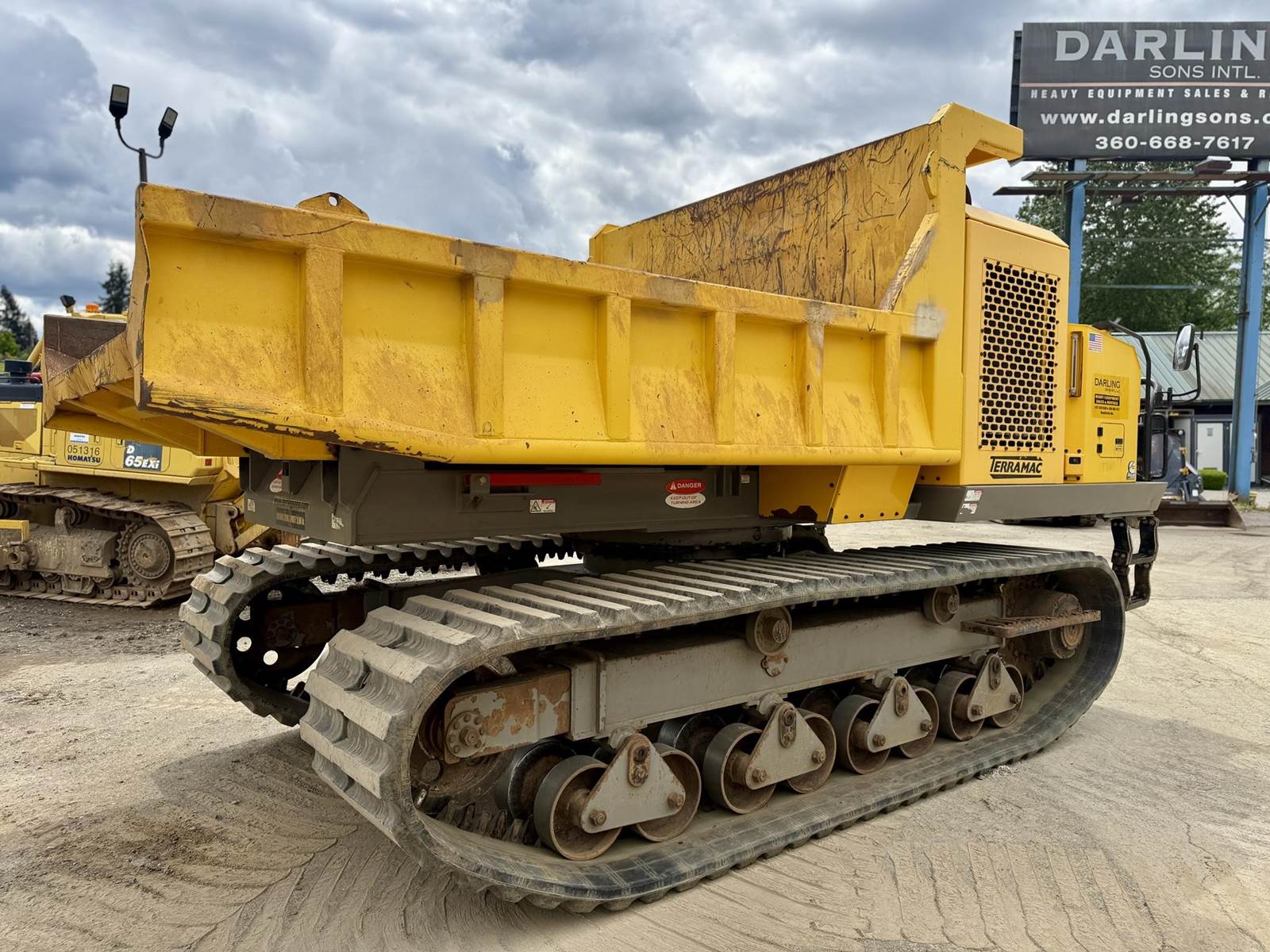

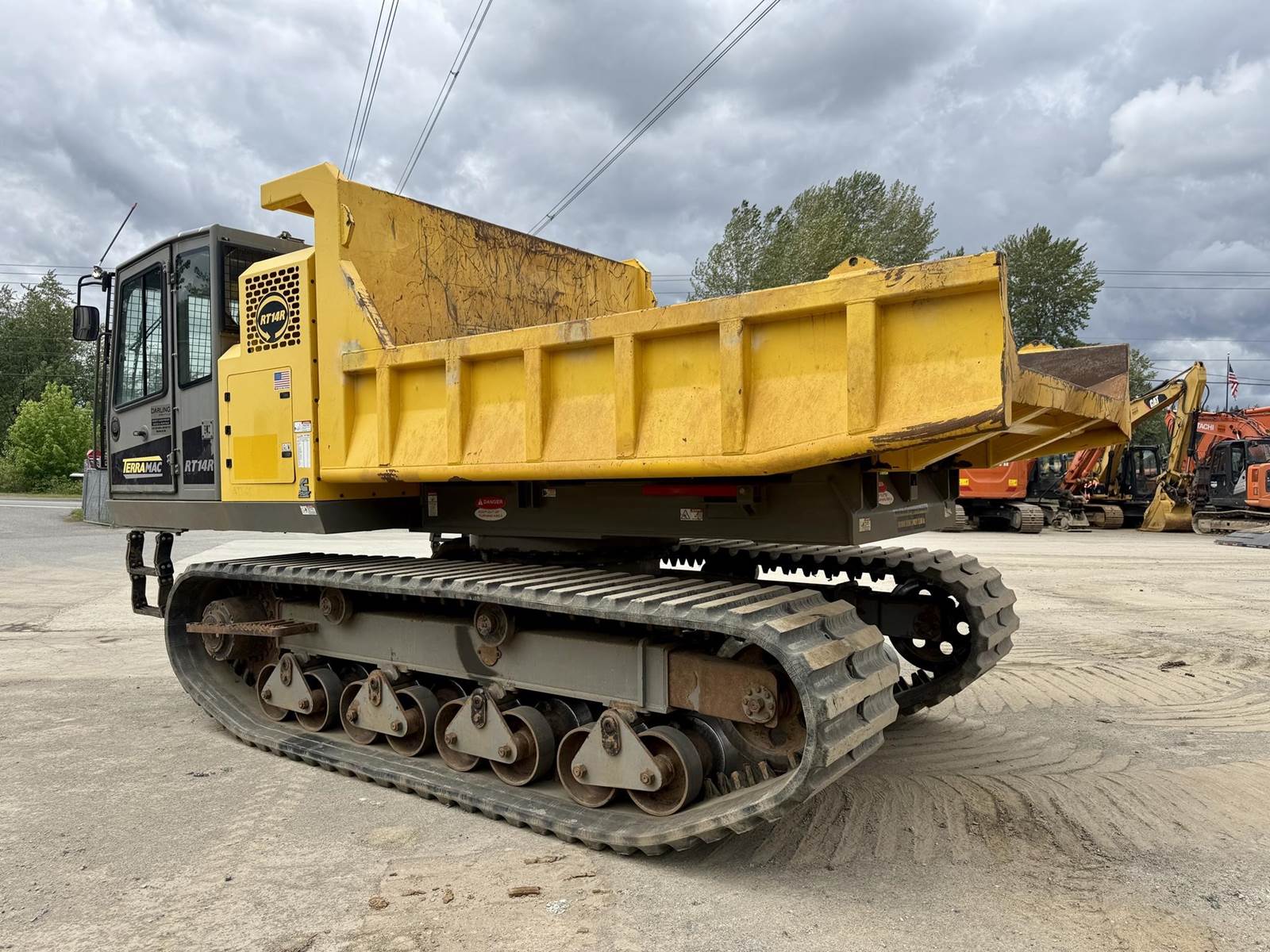

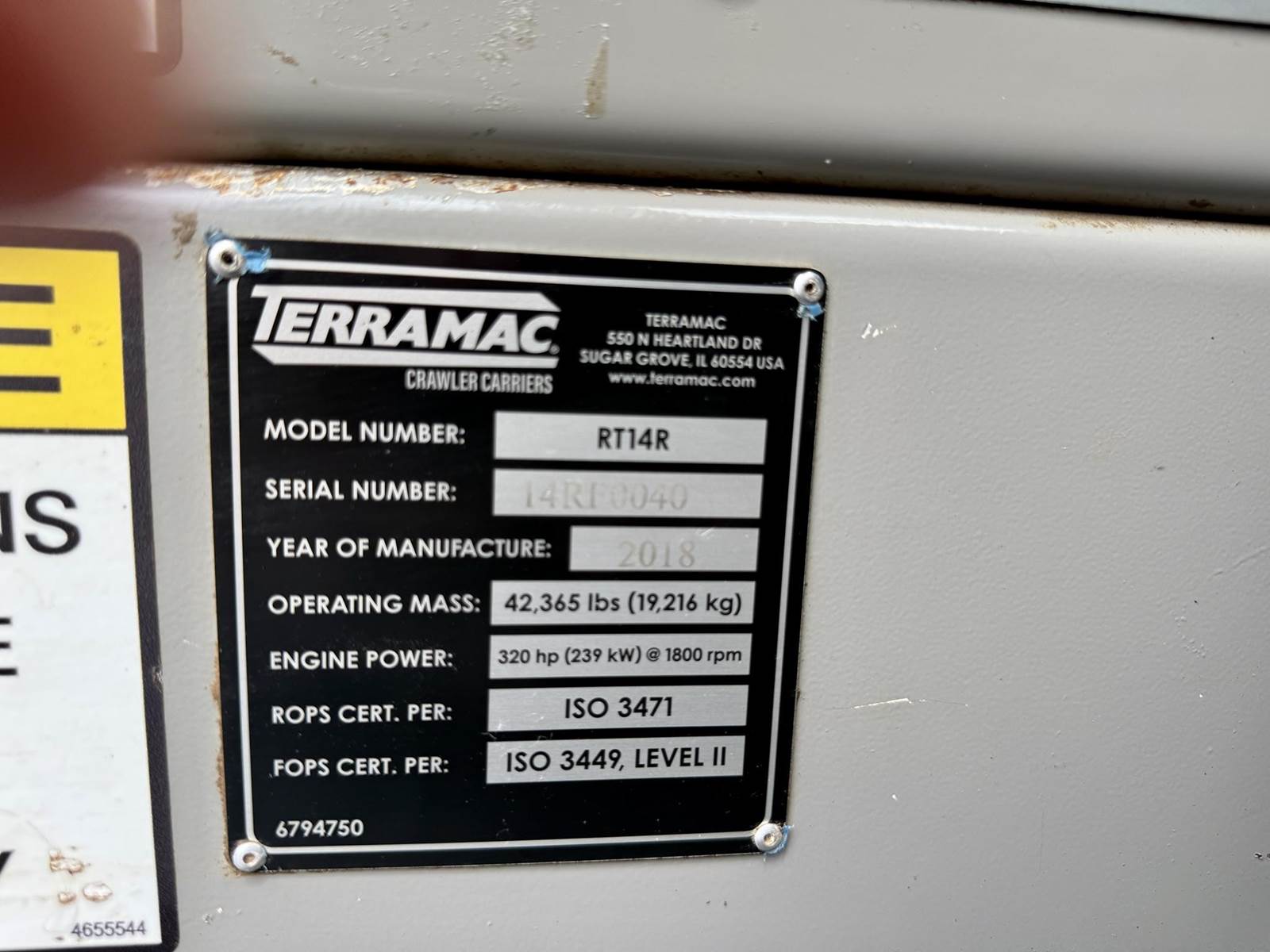

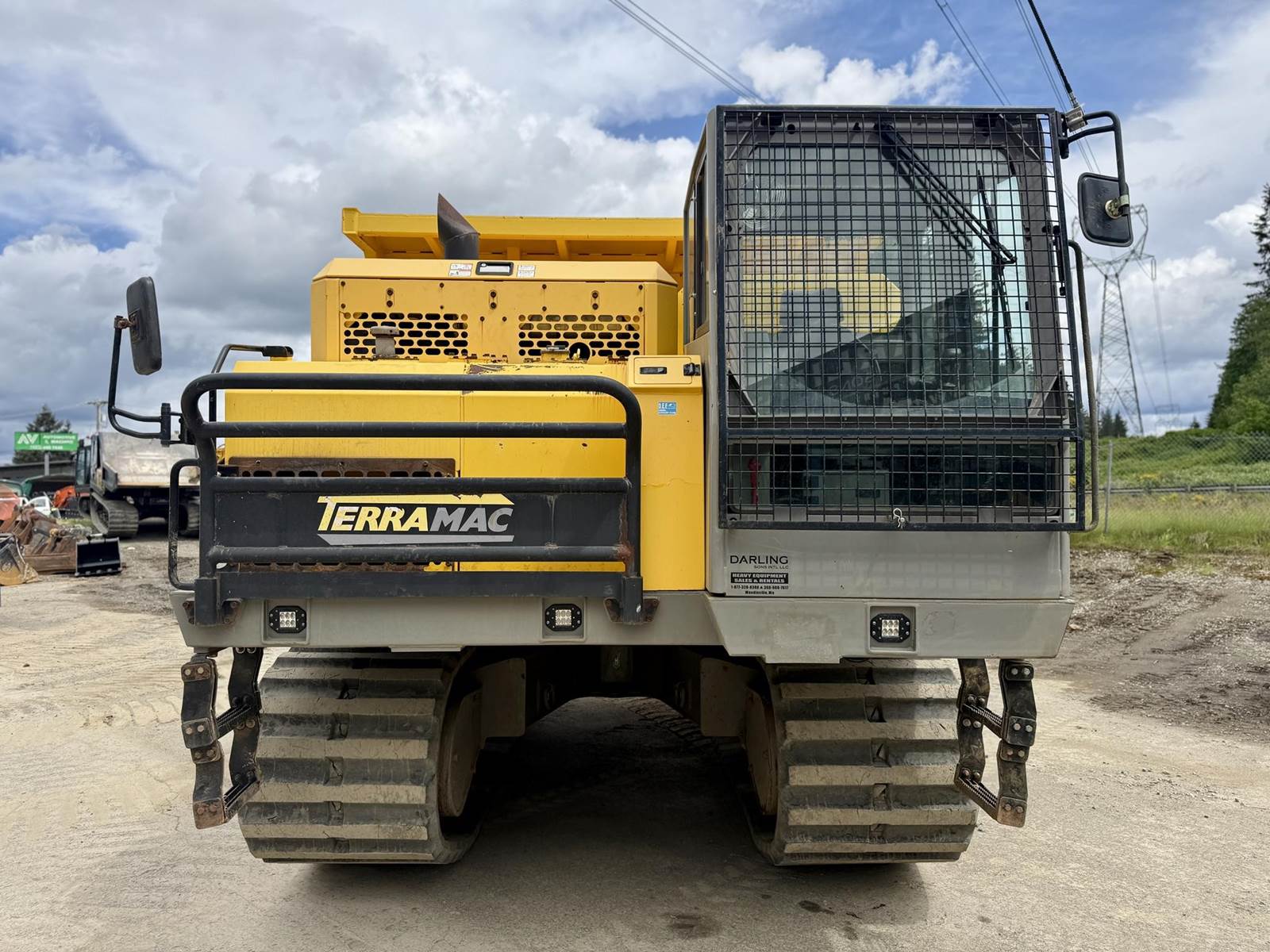

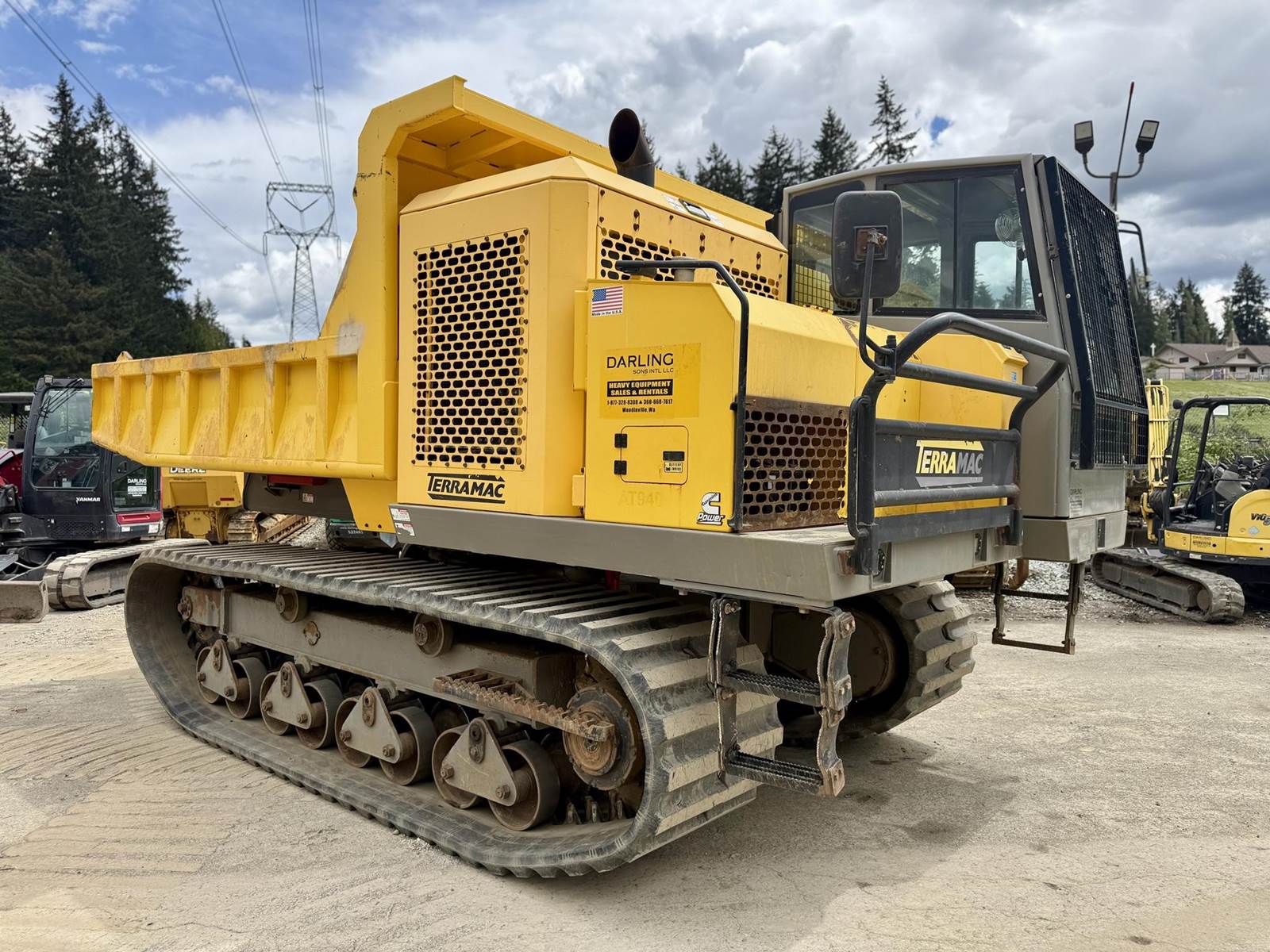

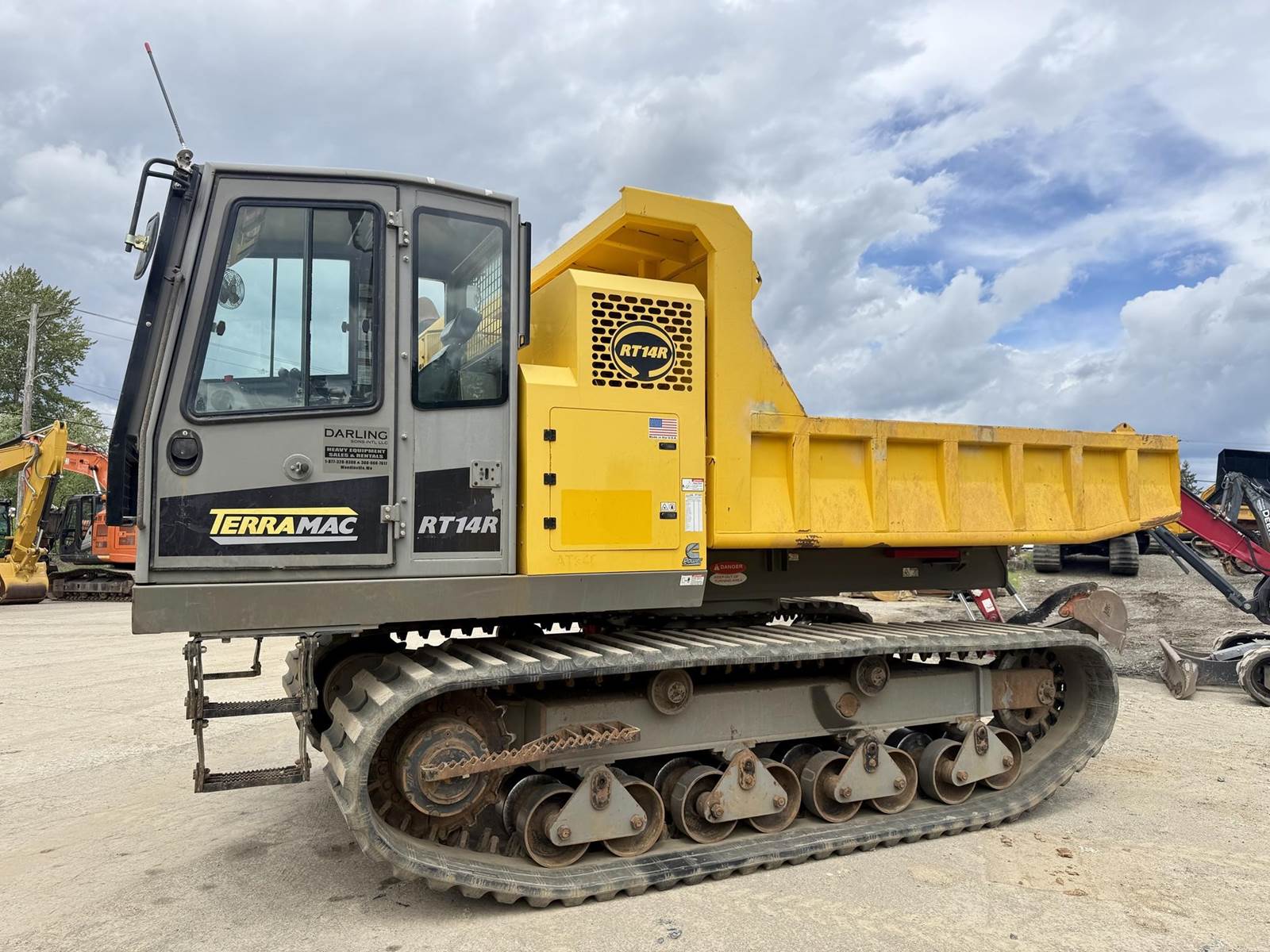

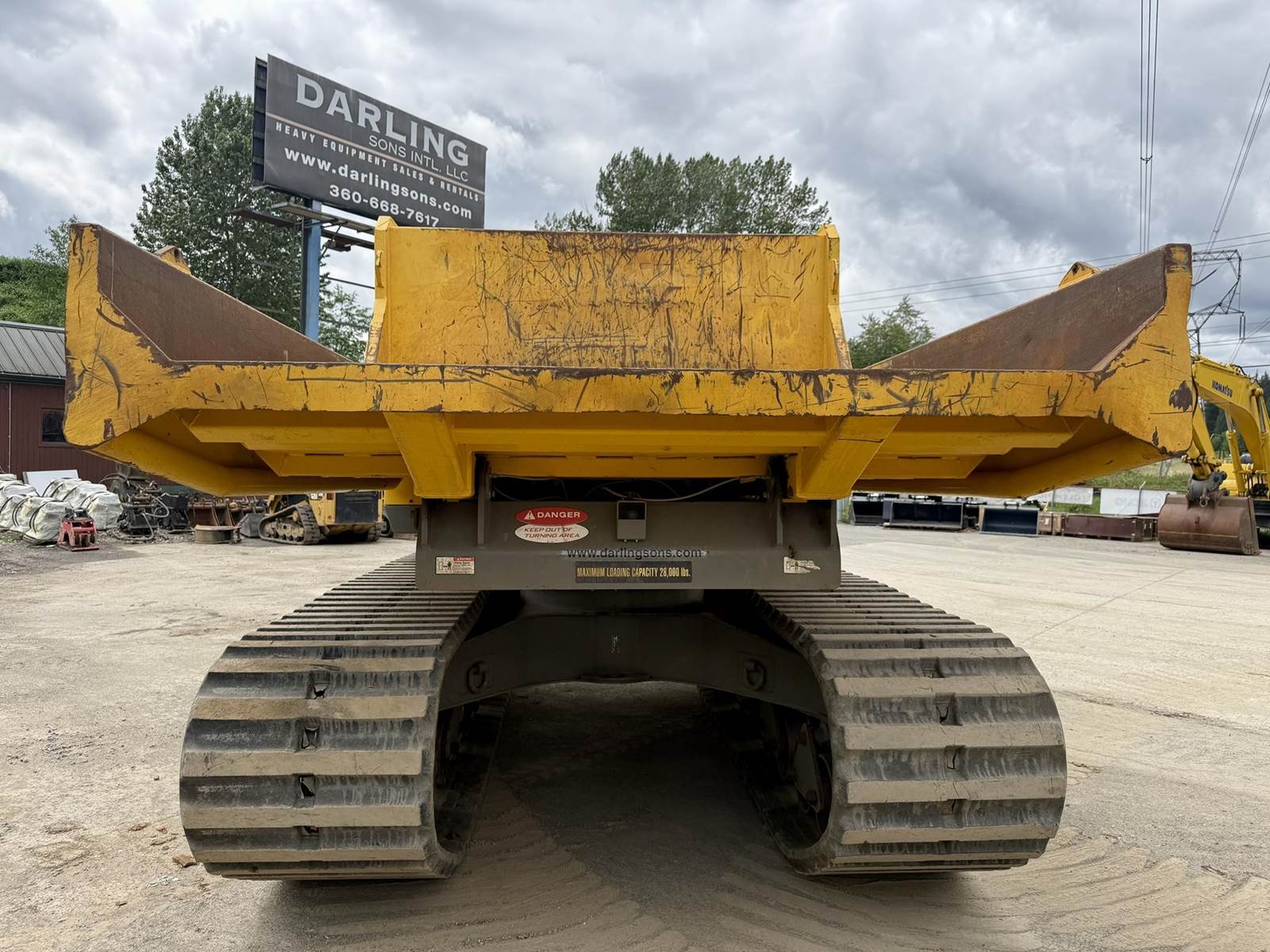

2018 TERRAMAC RT14R Crawler Carrier

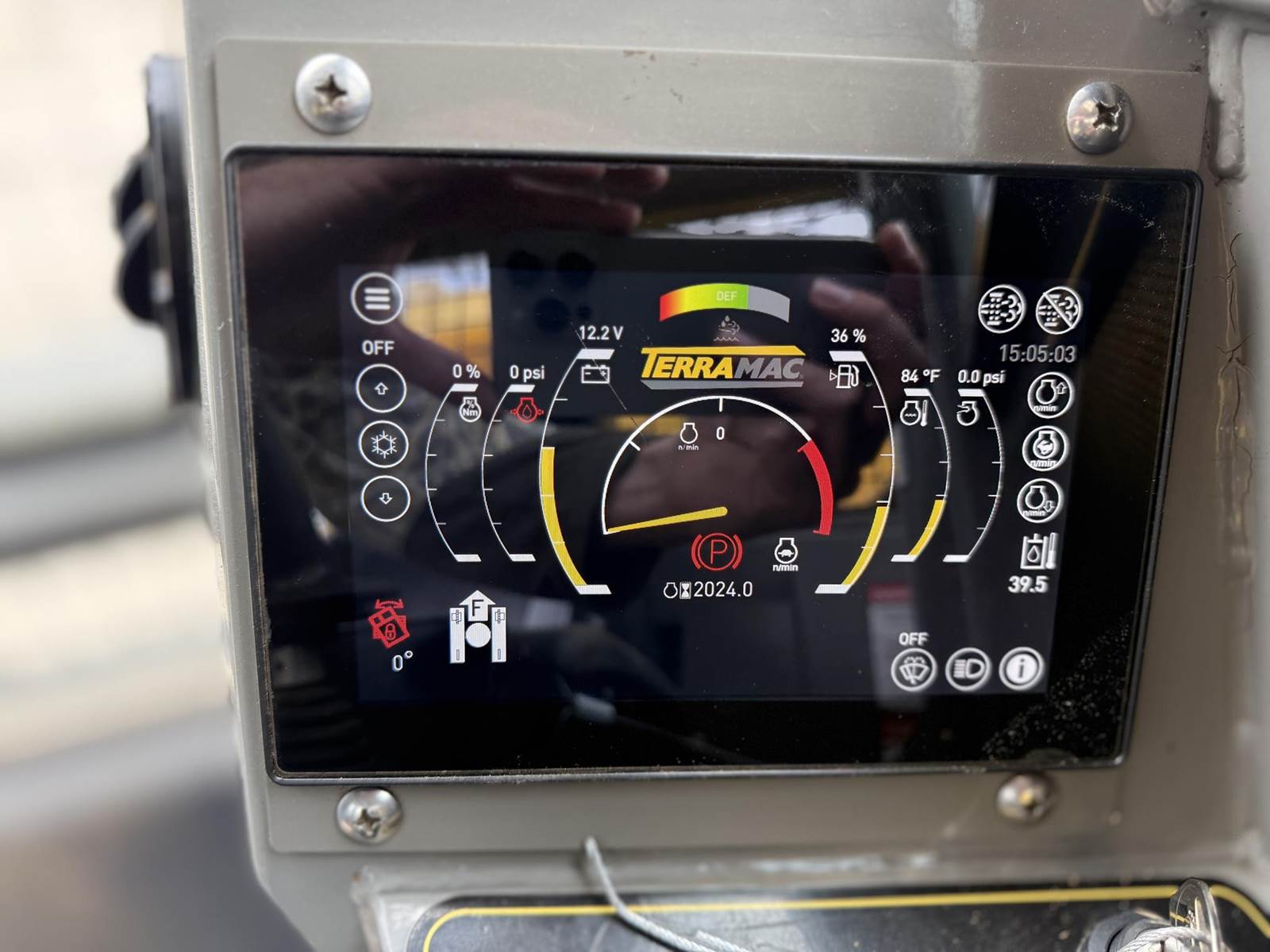

2025 HOURS

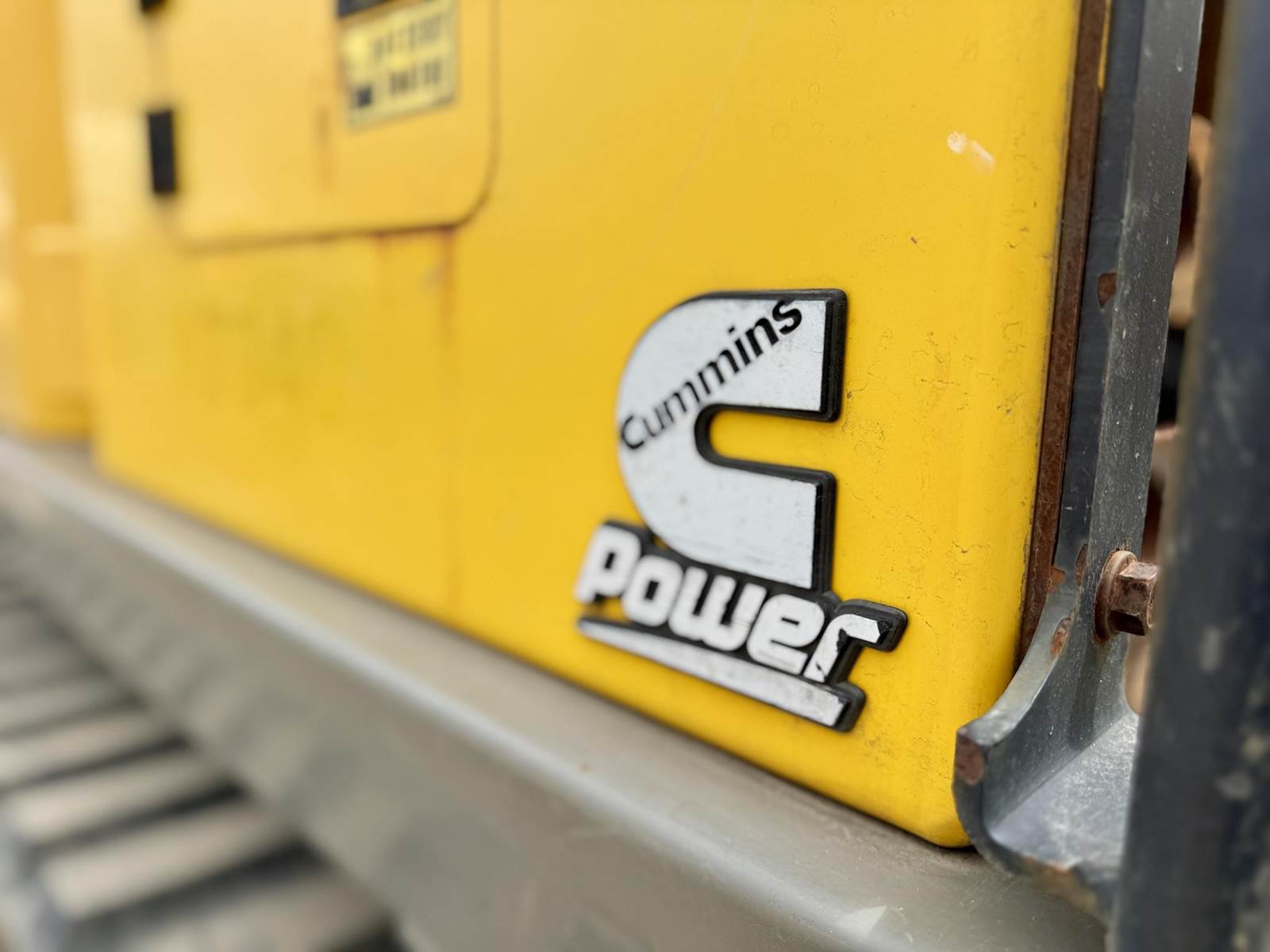

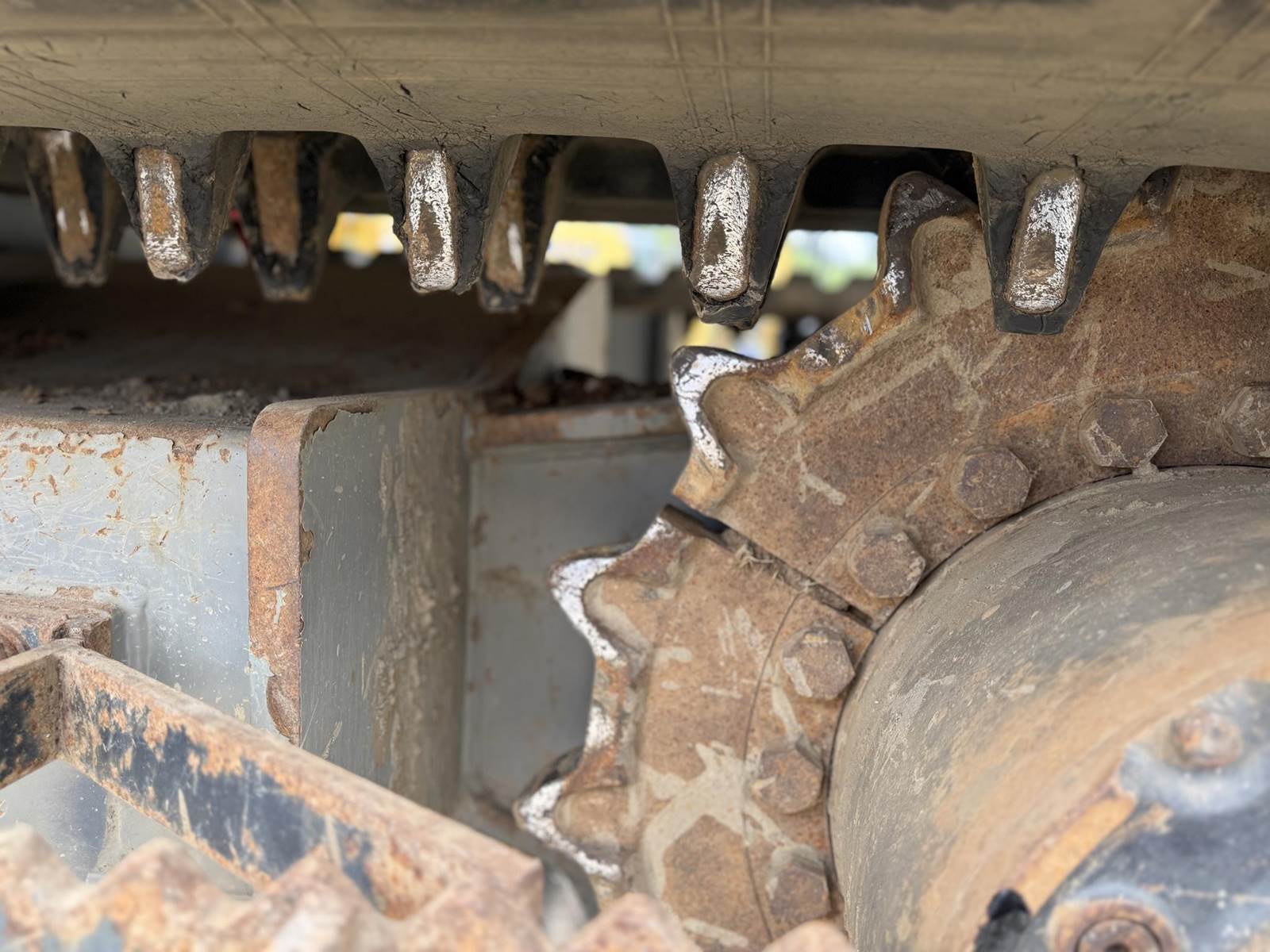

DIMENSIONS Full Length 20’ Full Height 10’ 11” Width Over Tracks 9’ 8” Min Ground Clearance 24” Front Overhang 3’ 11.5” Track Gauge (Center-to-Center) 7’ Track Width 31.5” Undercarriage Length (Idler to Drive Hub) 12’ 11” Dump Bed Loading Height Over Side 7’ 6” Height of Rock Bed Side (Vessel) 21” Length of Rock Bed (Vessel) 11’ 1” Width of Rock Bed (Vessel) 8’ 11.5” Dumping Angle 60° Machine Weight (with bed) 43,000 lbs. ENGINE Manufacturer Cummins Model QSL9 T4F Displacement 543 cu. in. Horsepower 320 HP @1800 RPM Electrical System 12 VDC Battery (2) GRP 31,1125 CCA each Fuel Capacity 90 gallons HYDRAULICS Transmission HST Drive Pump Max Flow (x2) 64 gpm / side Drive Pump Max Pressure 6,090 PSI Tandem Gear Pump Max Flow Front Section (Aux Output) 20 gpm @ 3000 PSI Rear Section (HST Drive) 24 gpm @ 500 PSI PERFORMANCE Max. Carrying Capacity 28,000 lbs. Travel Speed - 1st Gear 3.6 mph Travel Speed - 2nd Gear 6.8 mph Gradability 58% (30°) Turning Radius Zero Turn Ground Pressure (loaded) 8.3 PSI Ground Pressure (unloaded) 5.0 PSI
