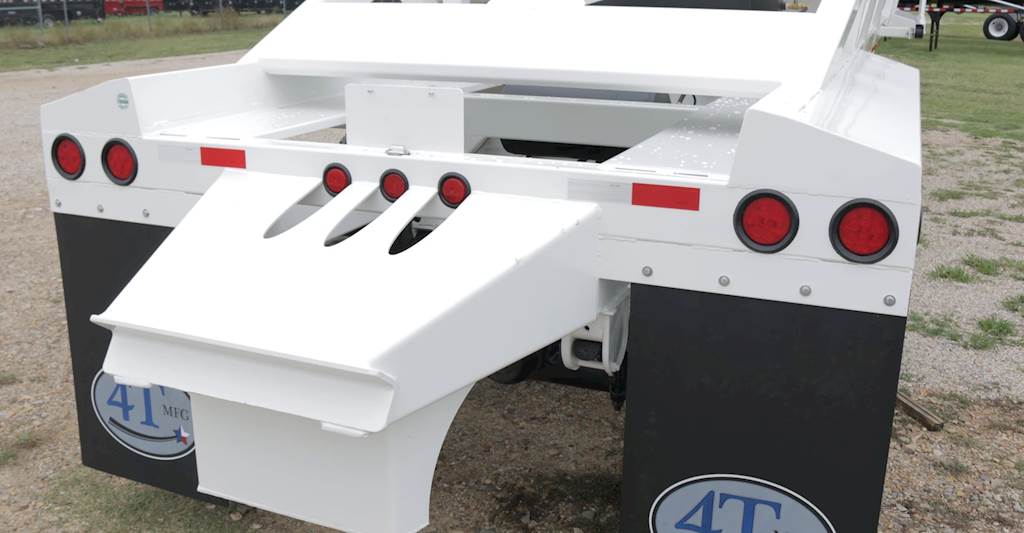

2020 4T MFG 32' BOTTOM DUMP TRAILER

2020 4T MFG BELLY DUMP 42’ ft. with bumper
Width 96”
Height 10’3” with Bang Boards
Sides 59” Tube 6”x4”
Upper Hopper 16’x88” Top Opening, 10g Mild Steel Wall
Lower Hopper 54”x108” Hopper Opening, Mild Steel
Top Rails 4”x6”x3/16” Tube, ASTM A-36
Bottom Rails  4”x6”x3/16” Tube, 70 KSI Hi-Tensile Alloy Steel
Suspension Hutch 9700, 48,000 lbs. Spring Ride
Fifth Wheel Oscillating fifth wheel with King Pin
Axles 25,000 lbs. Tubular
Brakes 16.5”x7” Q Shoes
Tires  11Rx24.5 16 ply Radial
Gate  ASTM A-36 Steel w/Adjustable Slide
Locks 8” Bore Air Cylinders with electric and manual control,
Air System  60 Gallon air reservoir w/Oiler and Water filter, Quick Exhaust
Fenders Front and Rear
Lights  ICC and DOT approved
Landing Gear  Drop Leg, Sq. Tube mounted on the front of doors
Paint  Acrylic Polly Urethane Paint - Custom Colors Available
Rear Bumper  Push Block w/DOT approved under Ride Bumper
Weight  13,460 lbs. (+/-) with bang boards, before tarp options
Capacity  22.8 c.y. with 8” Bang Boards
Options US Elec. Tarp, Air Ride, Single Point. WE WORK WITH ALL TYPES OF CREDIT AND HAVE FINANCE PROGRAMS TO FIT EVERY SITUATION. We make it easy and affordable for you to finance your next truck or trailer quick and easy. Call JEFF ELLISON Today at (972) 210-2142. Hablamos español llamenos hoy para iniciar el proceso para obtener su credito. Aqui aceptamos todos los tipos de credito.
