GovDeals is
an Online Auction for Government Surplus – LOT#27592-12, Auction Ends 5/17/2026. To see
full details, additional photos and current bid, please use this link
- https://govdeals.bid/3Pf45Tz

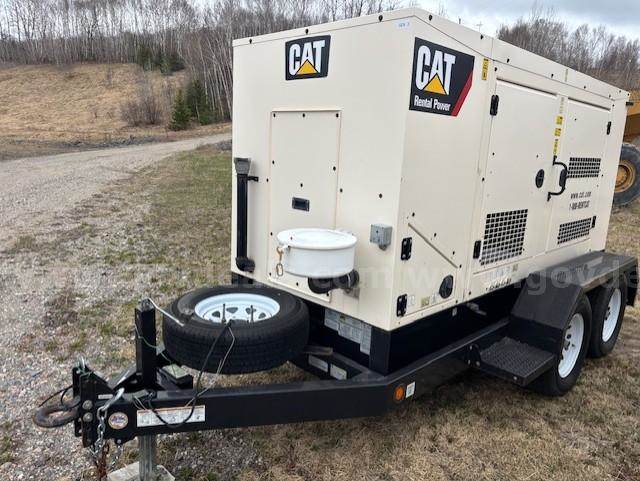

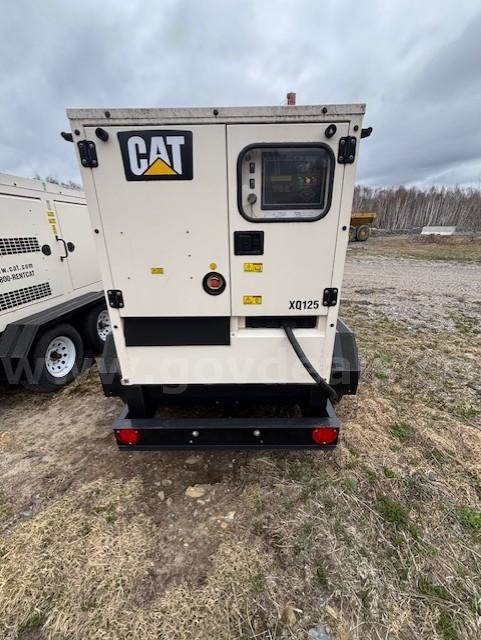

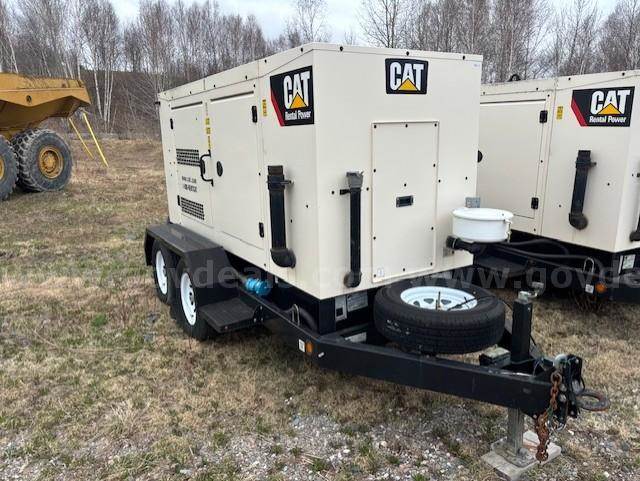

2019 Caterpillar XQ125 Generator
Serial #CK500608
Hours 5,172
Generator Starts and Runs
Generator In Good Condition
Manufacturer's Specifications:
Power Output
Standby Power: 110 kW / 137 kVA
Prime Power: 100 kW / 125 kVA
Frequency: 60 Hz
Speed: 1,800 RPM
Power Factor: 0.8
Phase: 3-Phase
Standard Voltages: 480/277V, 208/120V, 240/120V
Optional Voltage: 600/349V
Emissions: EPA Tier 4 Final / CARB Certified

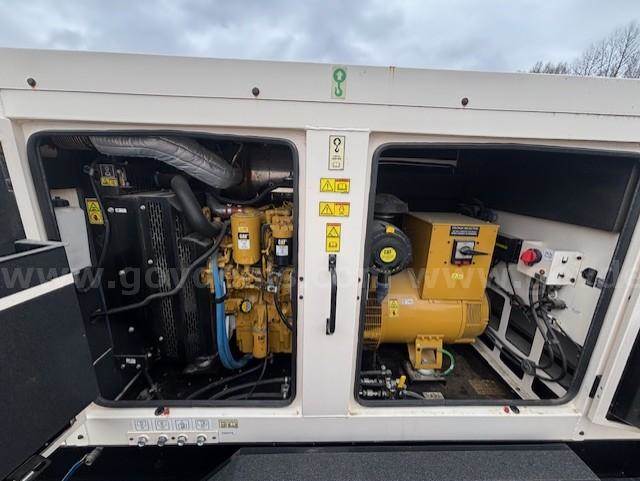

Engine — Cat C4.4 ACERT
Configuration: 4-Cylinder, Inline, 4-Stroke, Water-Cooled Diesel
Rated HP: 134 HP
Speed: 1,800 RPM
Governor Type: ADEM (electronic)
Cooling: Engine-Driven Radiator with Vertical Air Discharge
Air Filtration: Cyclonic/Paper with dust cup and service indicator
Starting: 12V Electric Start
Oil Filters: On-engine primary and secondary
Alternator — Cat LC3114F
Frame Size: LC3114F
Pitch: 2/3
Number of Poles: 4
Number of Leads: 12
Excitation: Self-Excited / PMG (Permanent Magnet Generator)
Bearings: Single bearing, close coupled
Insulation Class: H
Enclosure: Drip Proof IP23
Voltage Regulator: 3-phase sensing with volts-per-hertz
Voltage Regulation: Less than ±0.5%
Harmonic Distortion (THD): Less than 5%
Overspeed Capability: 125% of rated
Fuel & Fluids
Fuel Tank Capacity: 150 gallons (UL 142 double-wall)
Fuel Burn at Max Load: 26.1 gal/hr
DEF Tank: 8 gallons
Fuel Tank: Double-wall sub-base with 3-way directional valve

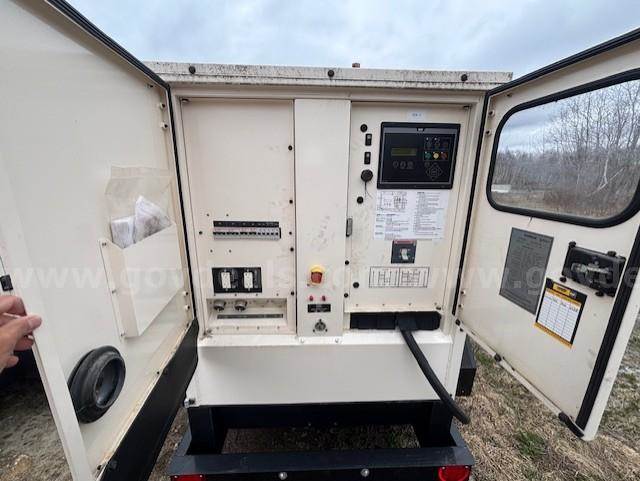

Control & Electrical
Control Panel: EMCP 4.2B Digital
Circuit Breaker: 400 Amp shunt trip, adjustable main-line
Distribution: Multi-voltage connection board
Battery Charger: Sens battery charger
Optional: Coolant heater, synchronizing controls
Dimensions & Weight
Length: 176 in
Width: 78 in
Height: 86 in
Operating Weight: ~6,800–7,311 lbs (with fuel)
Tire Size: 225/75/R15
Transport: Tandem axle trailer, pintle hitch, electric brakes
Noise & Enclosure
Enclosure: Sound attenuated, galvanized steel
Noise Level: 65 dBA at 23 ft (7 meters) at prime rating
