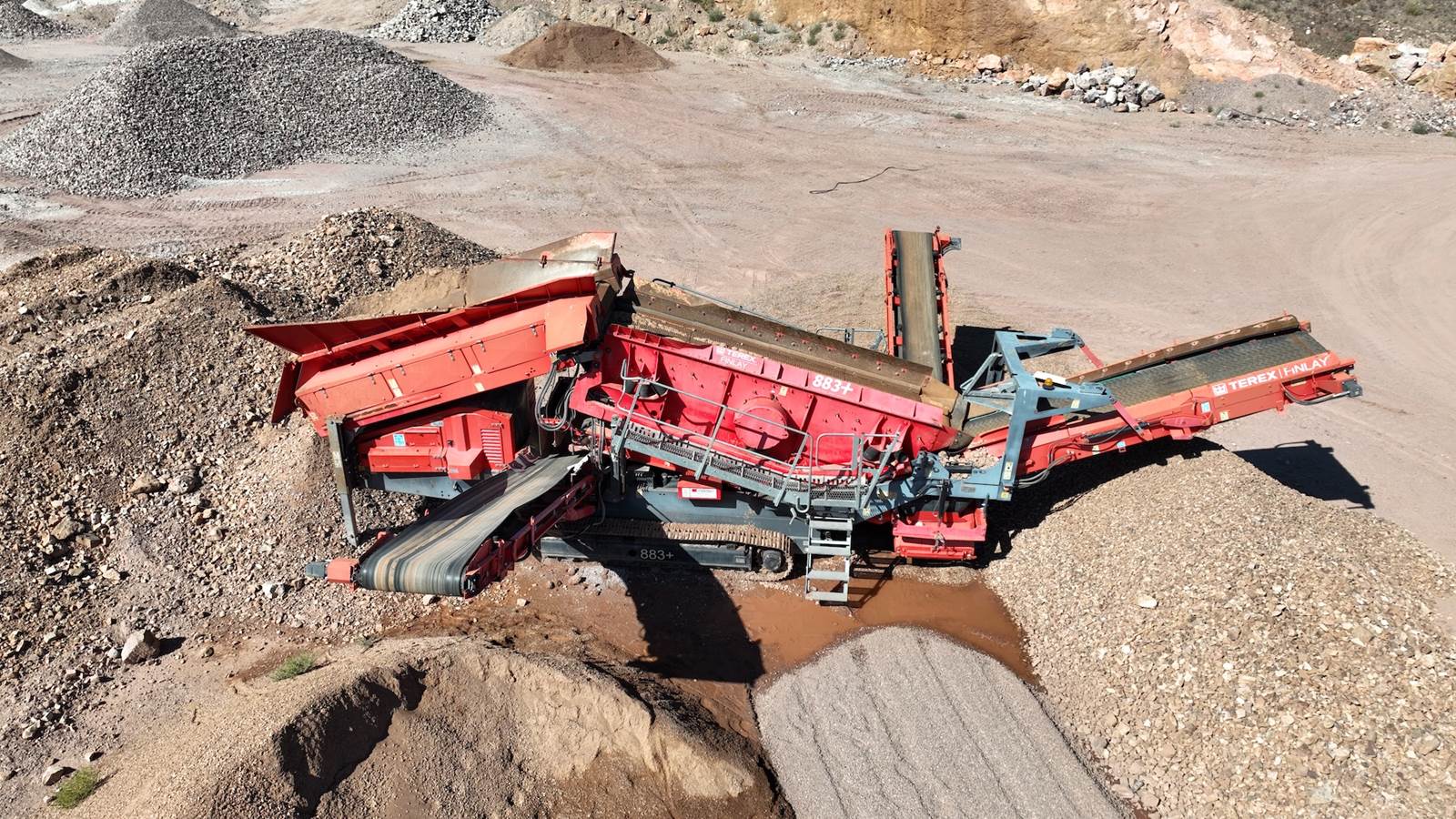

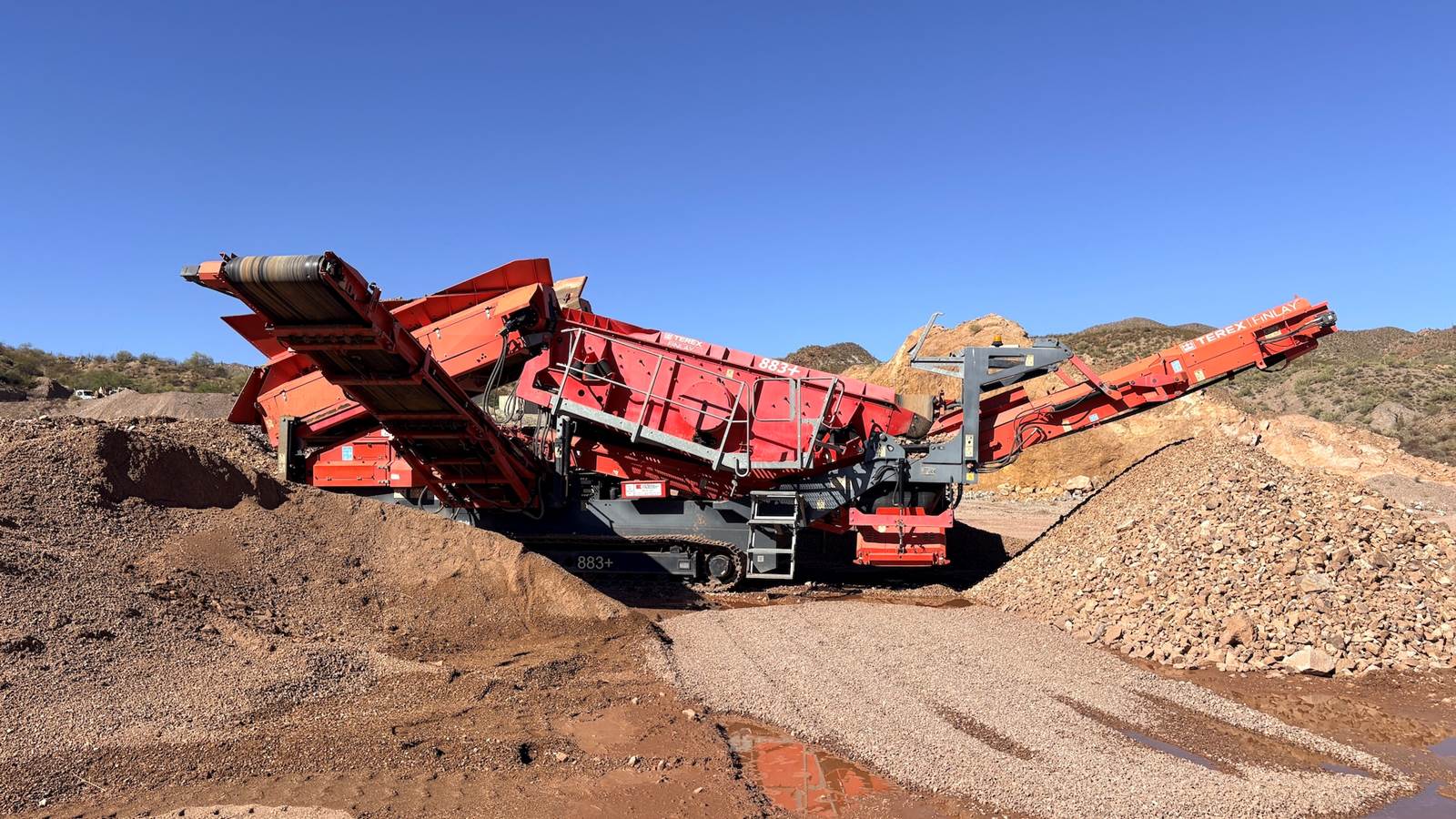

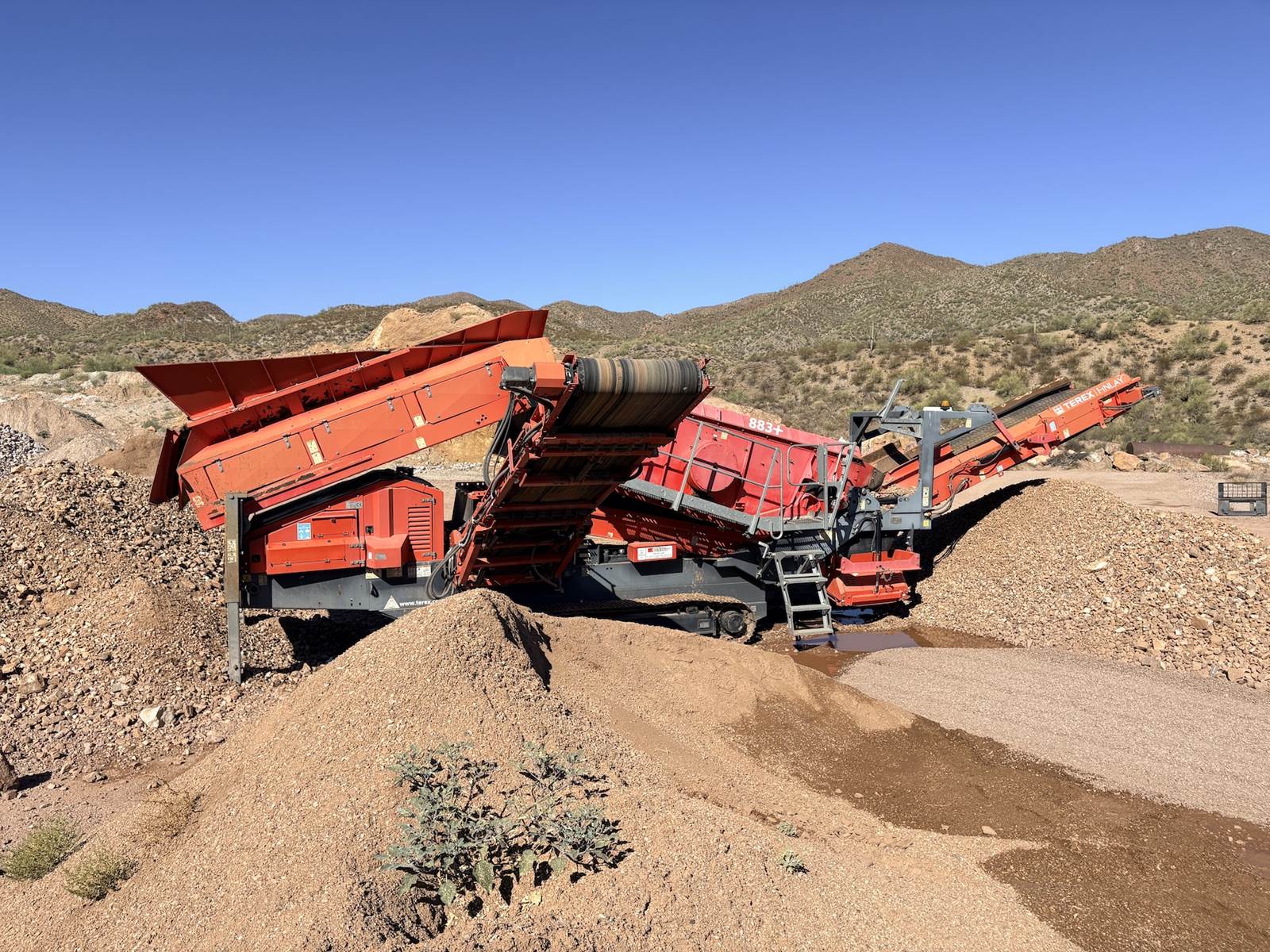

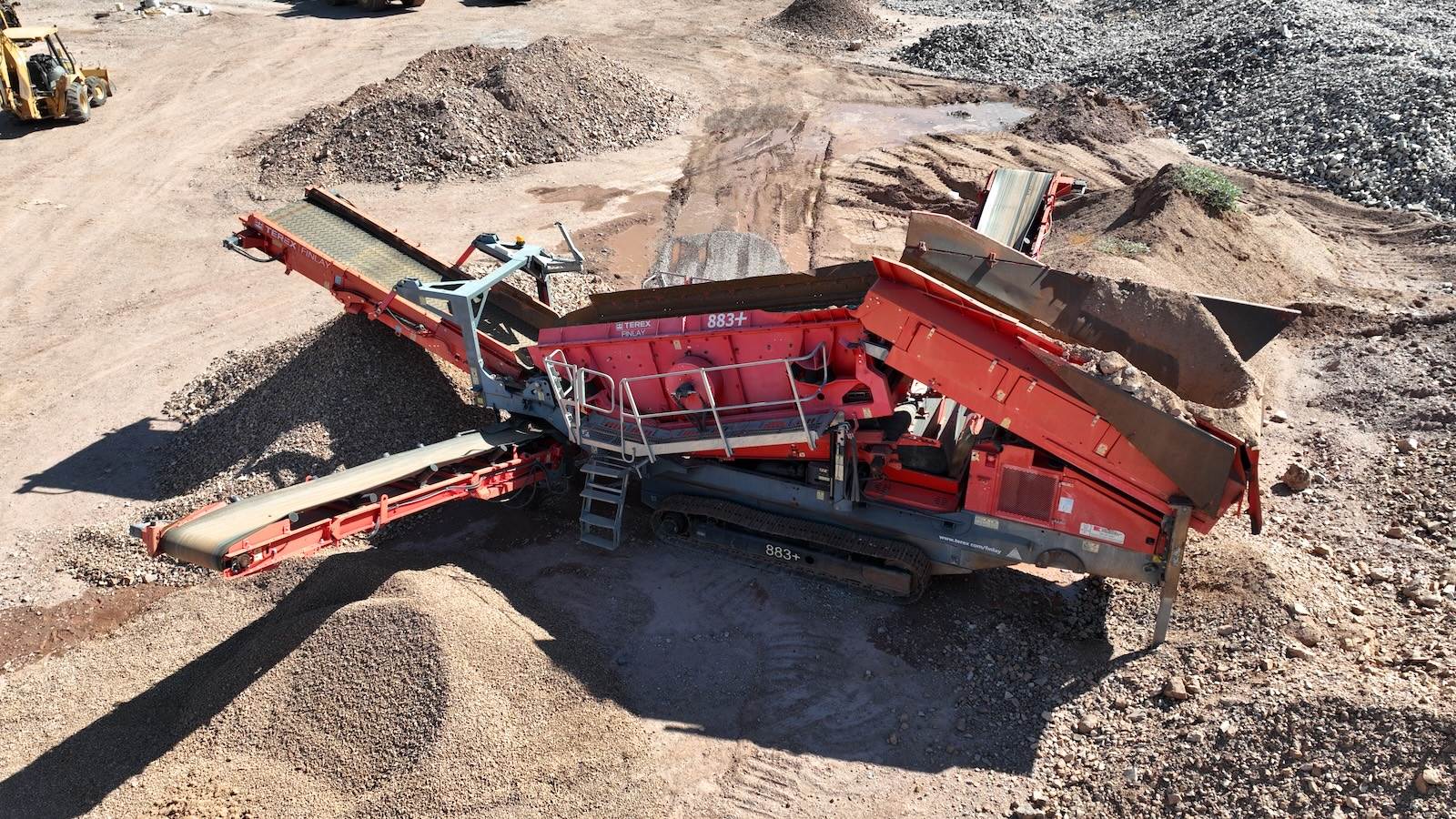

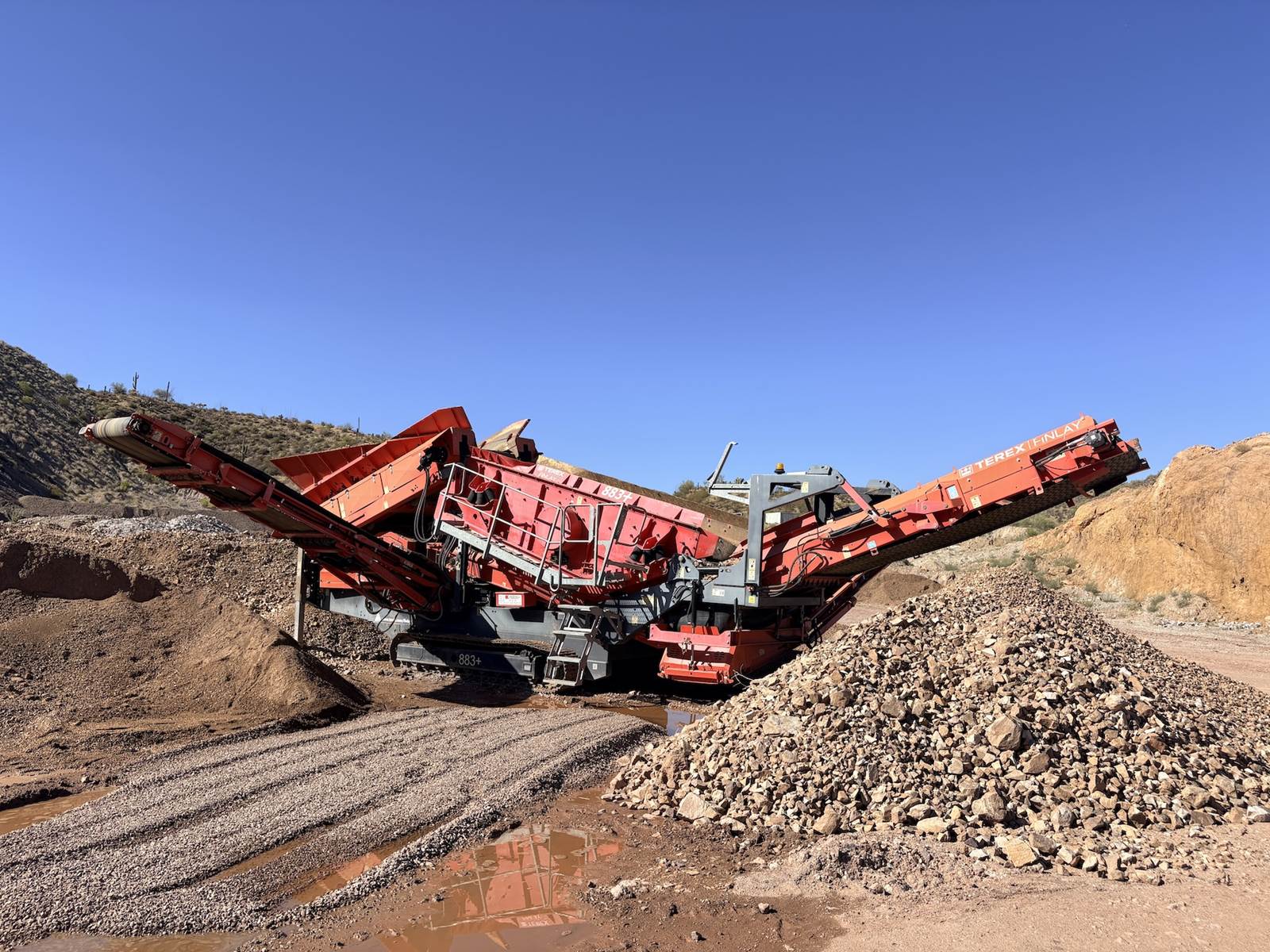

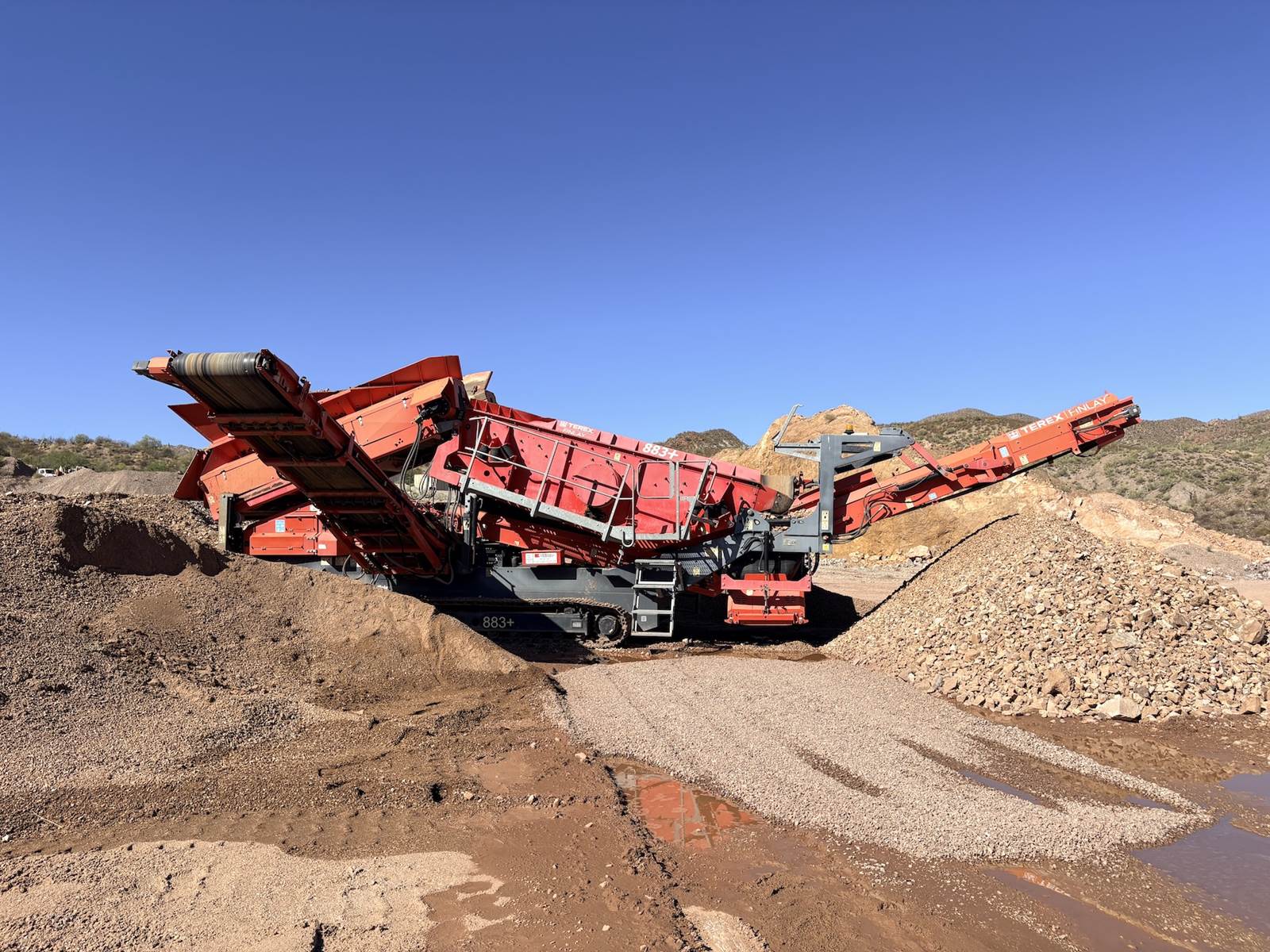

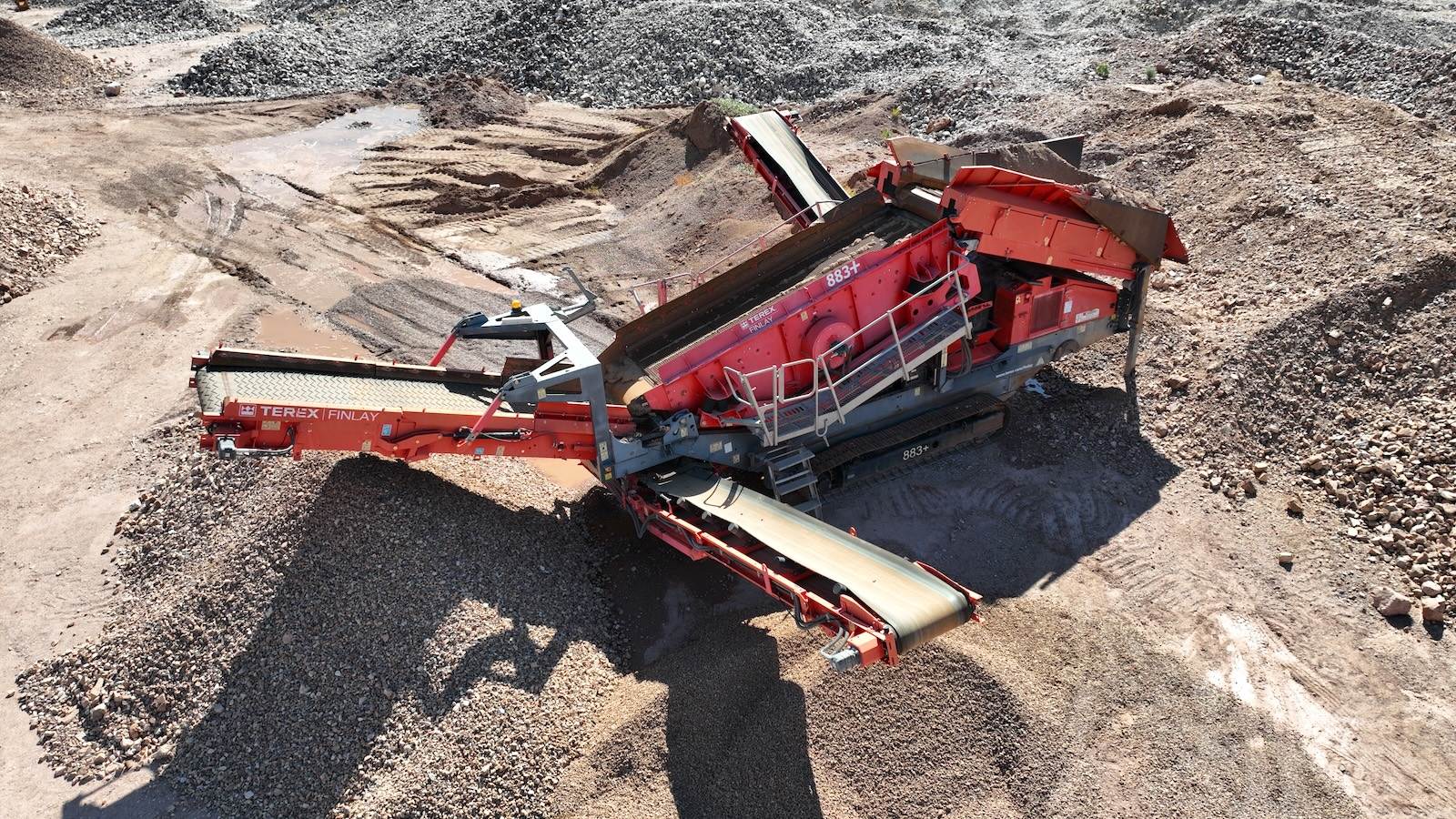

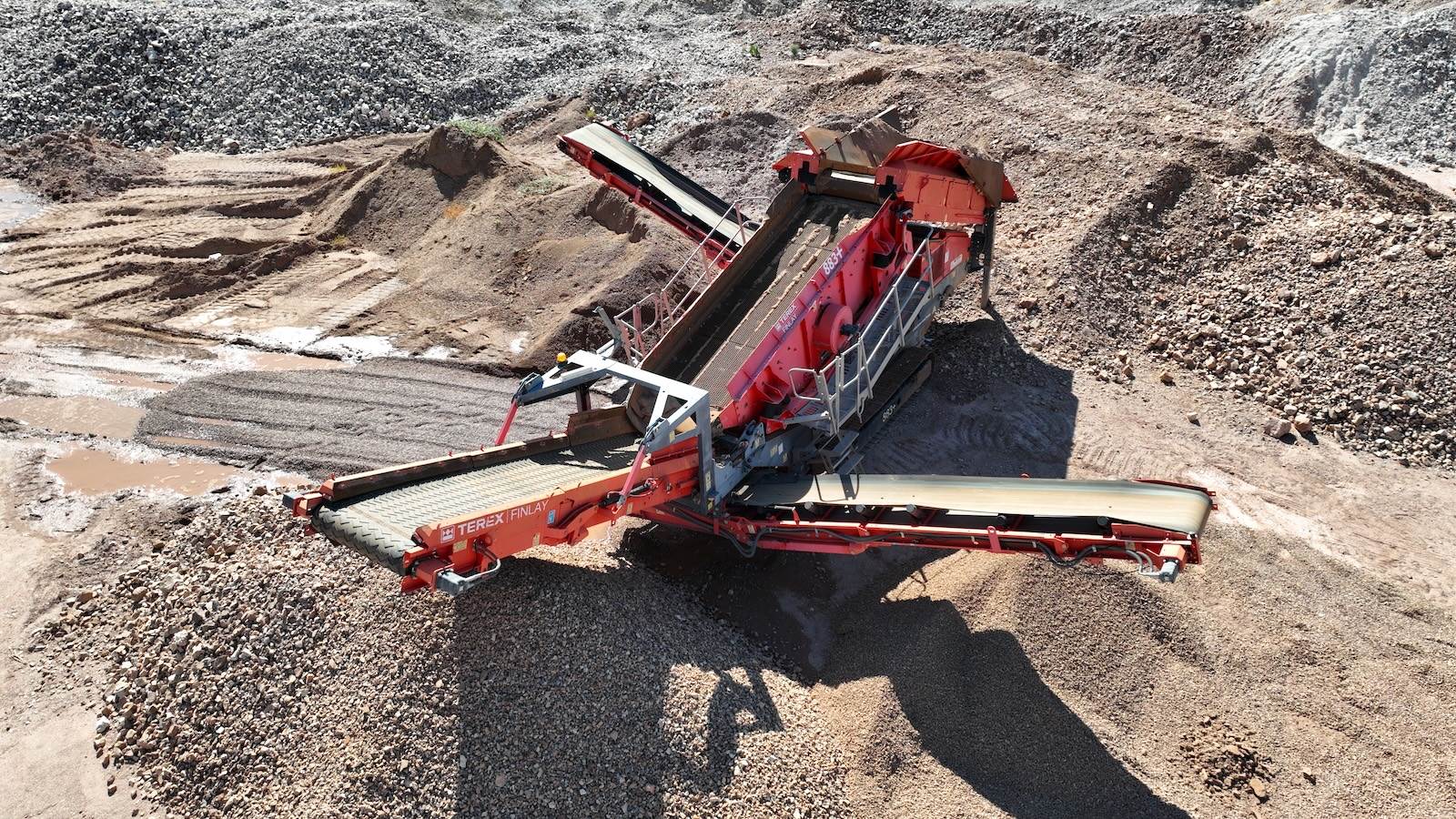

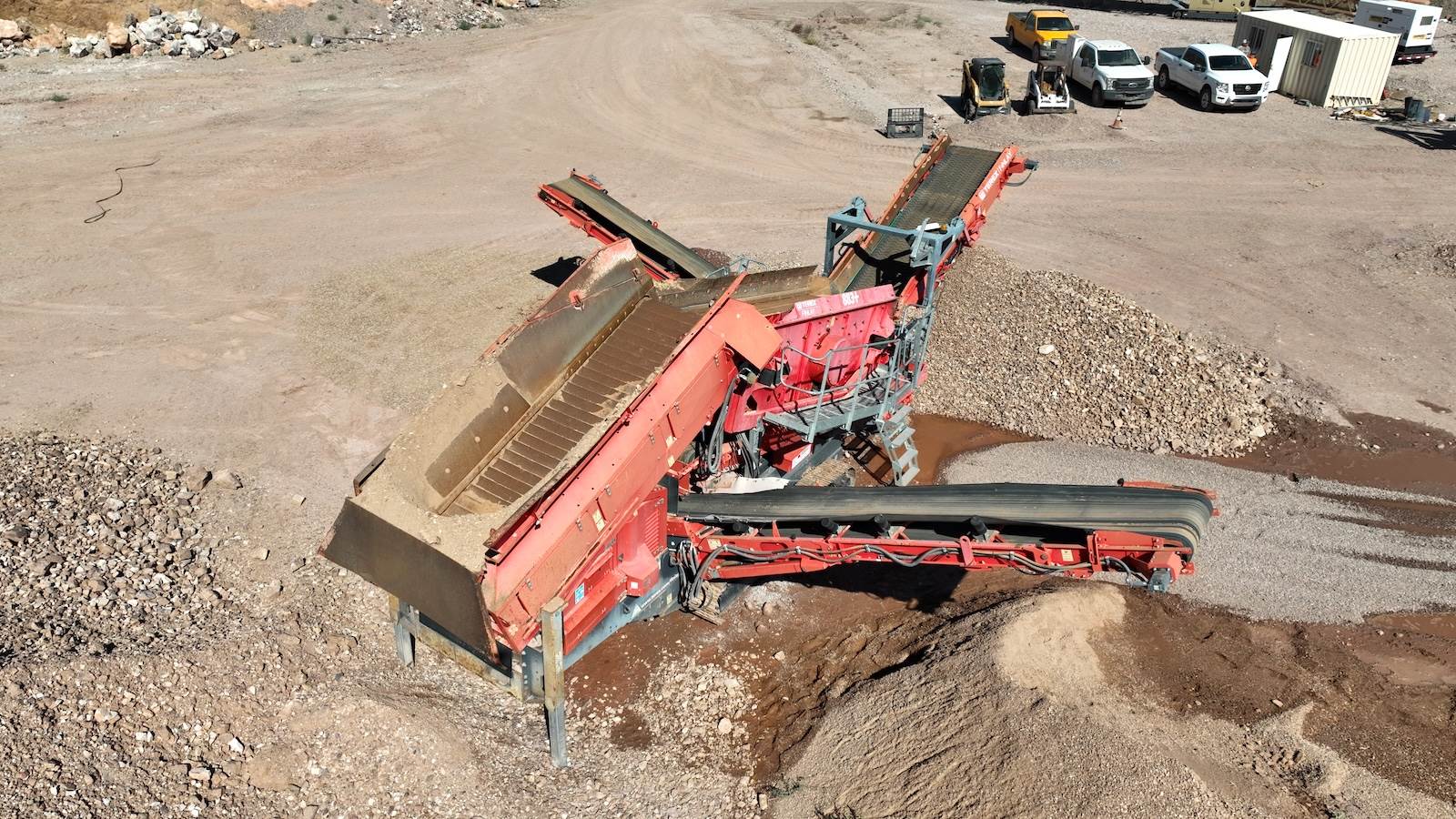

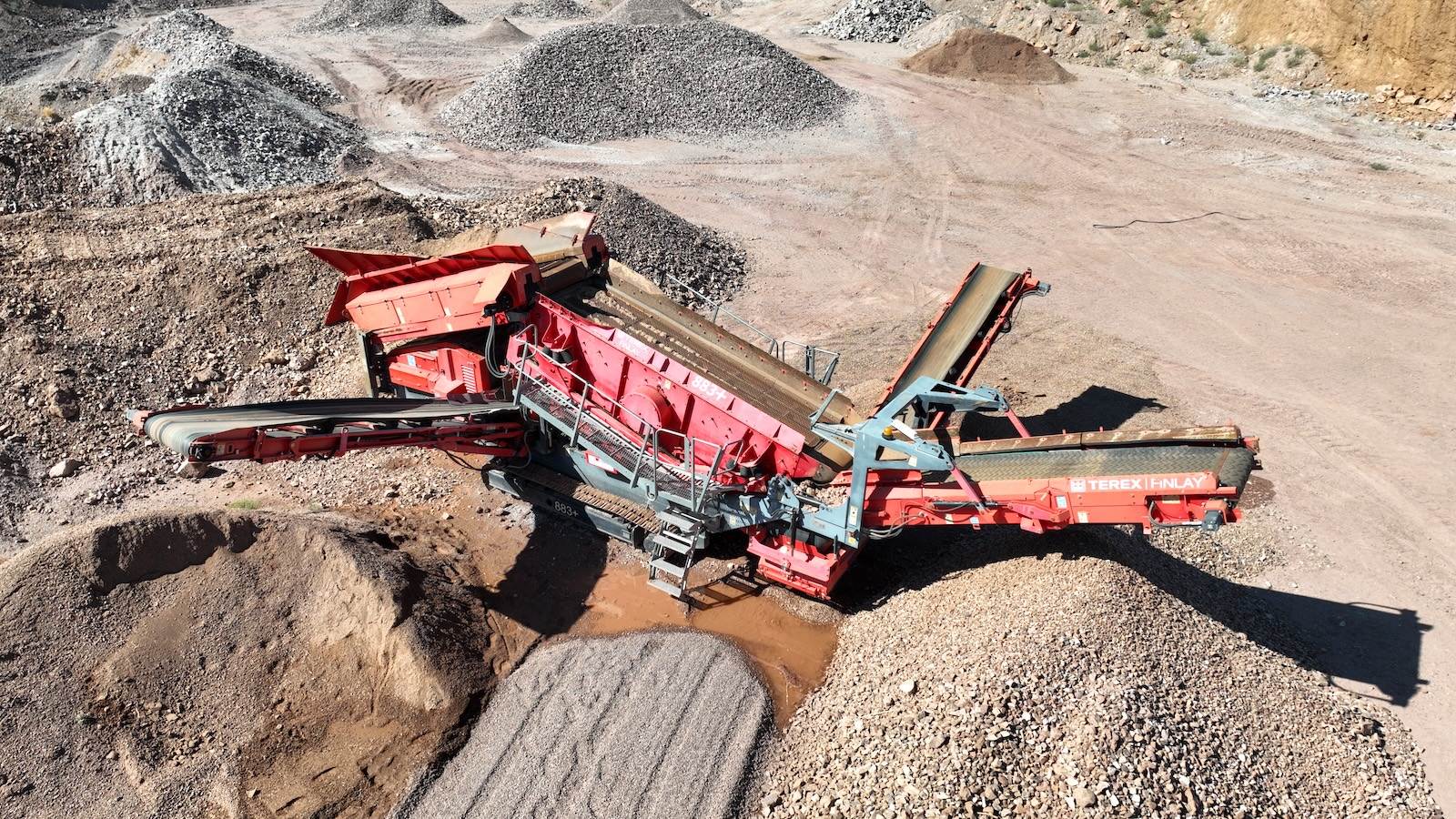

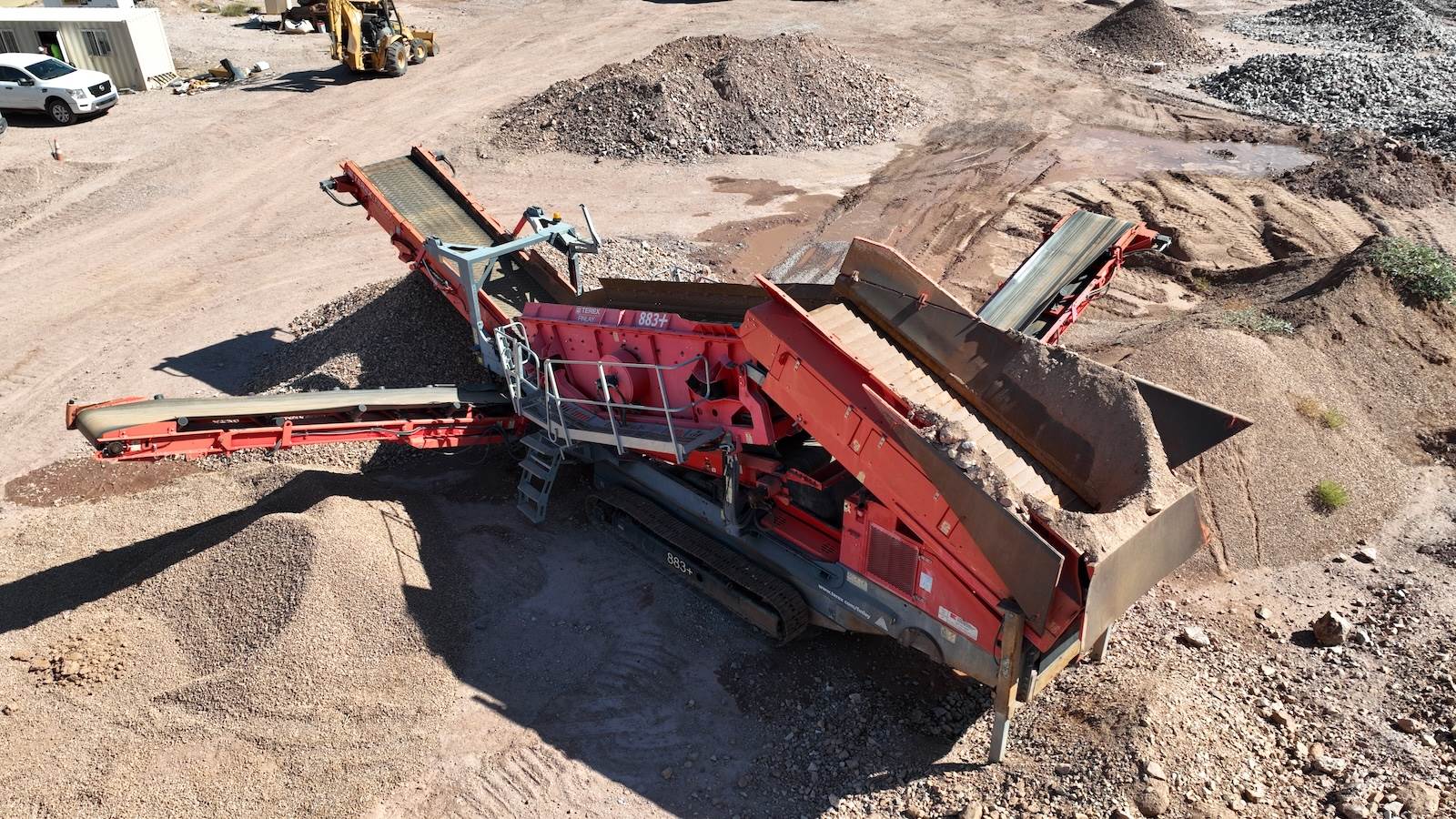

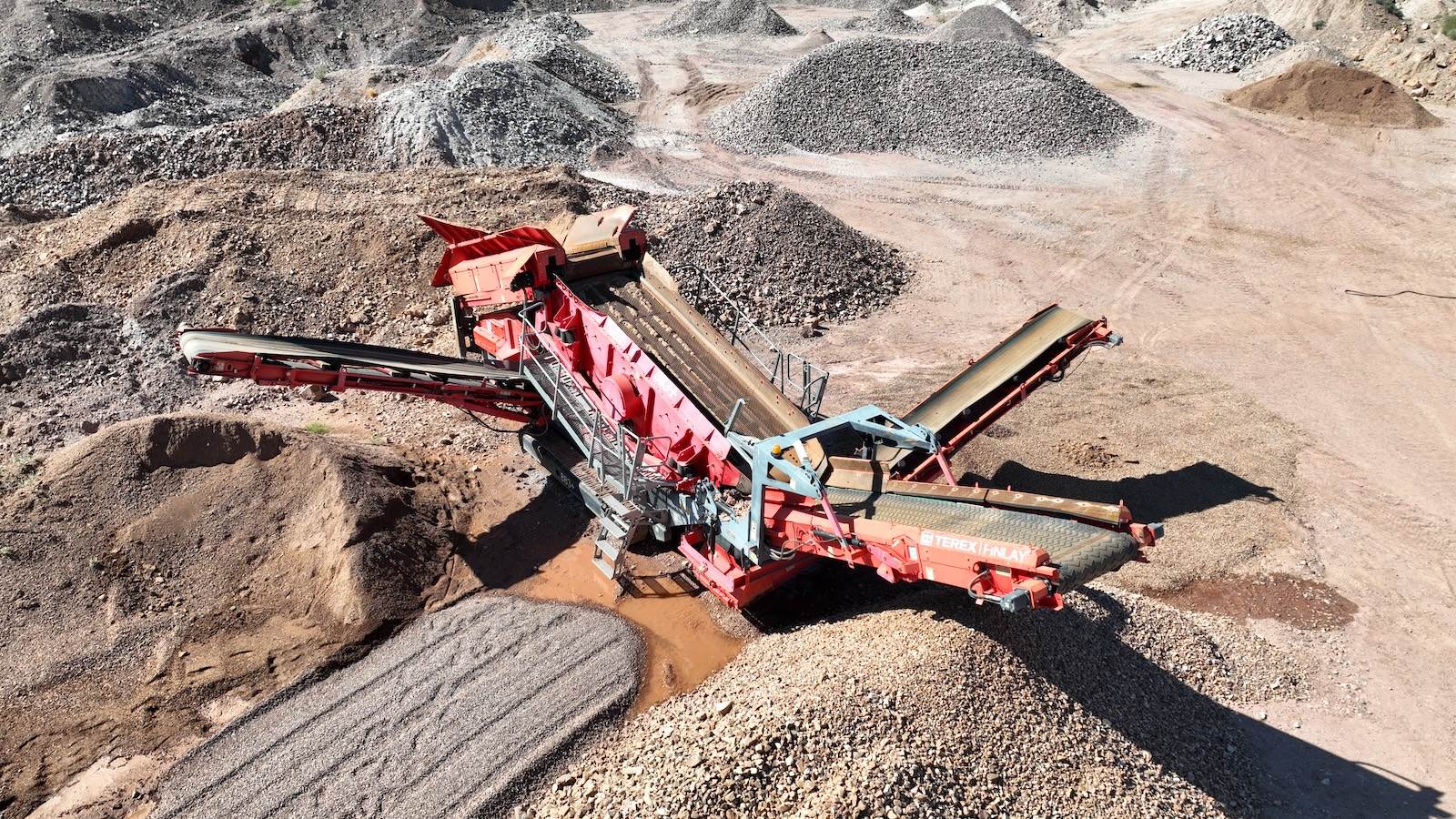

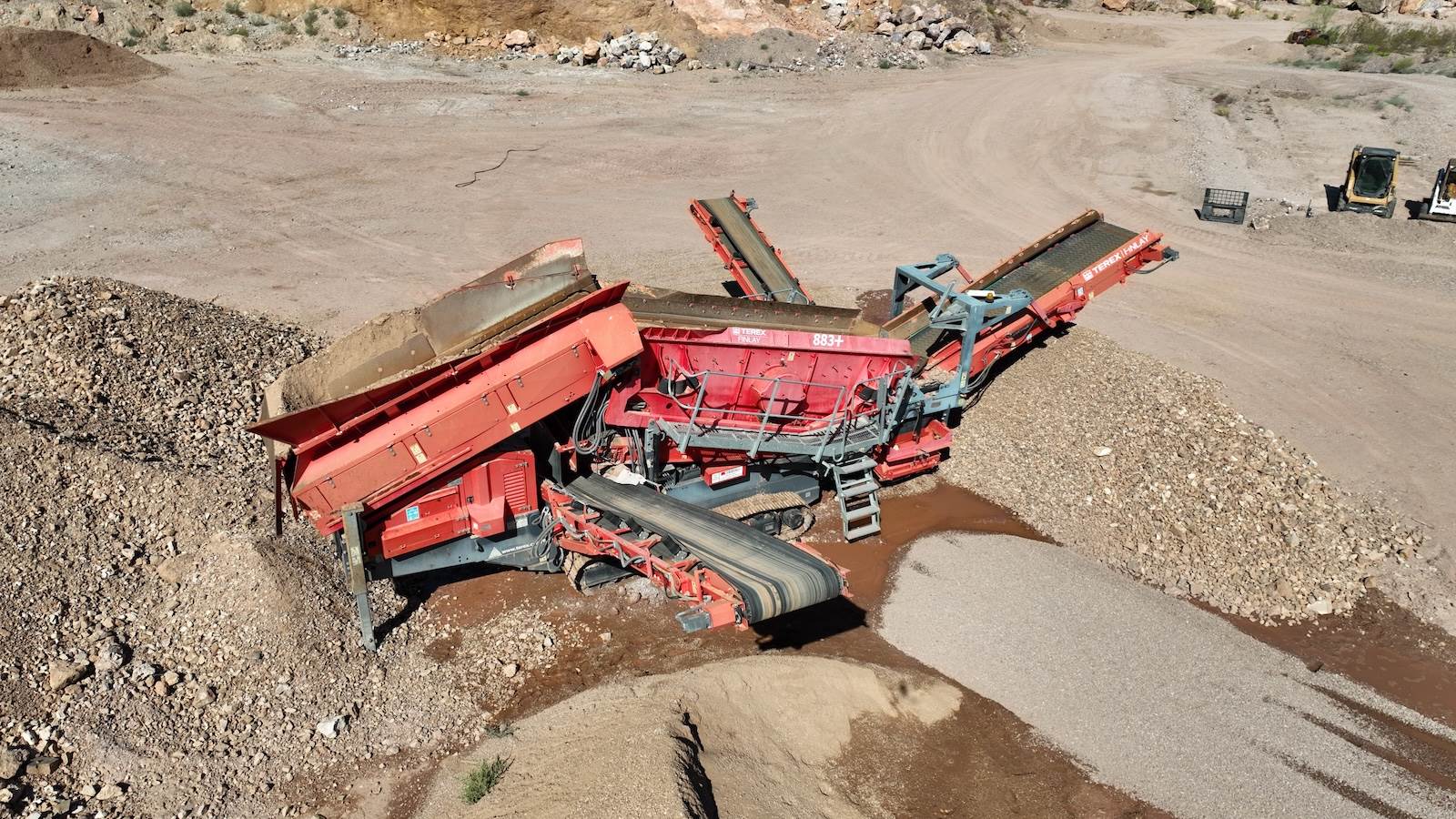

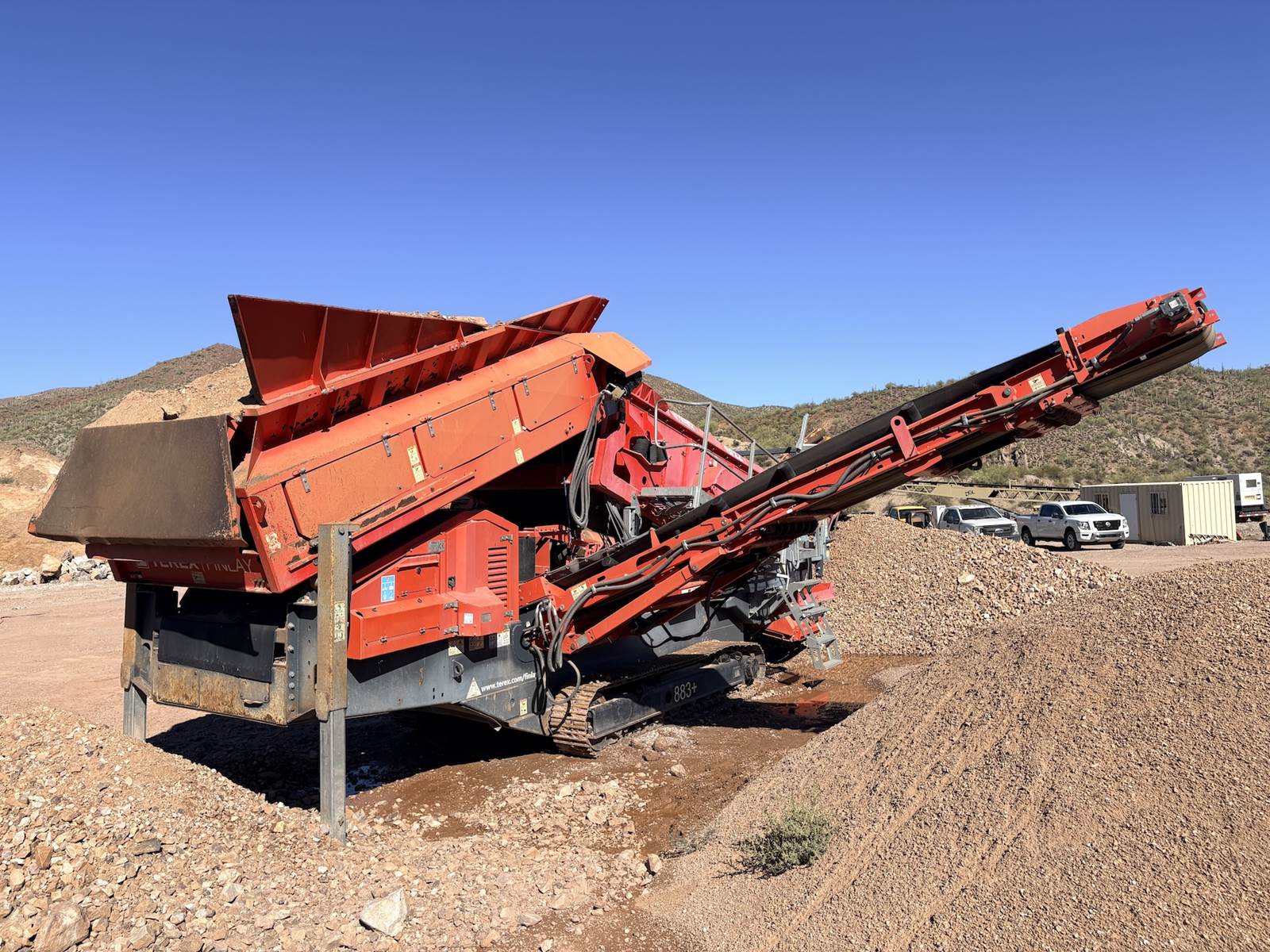

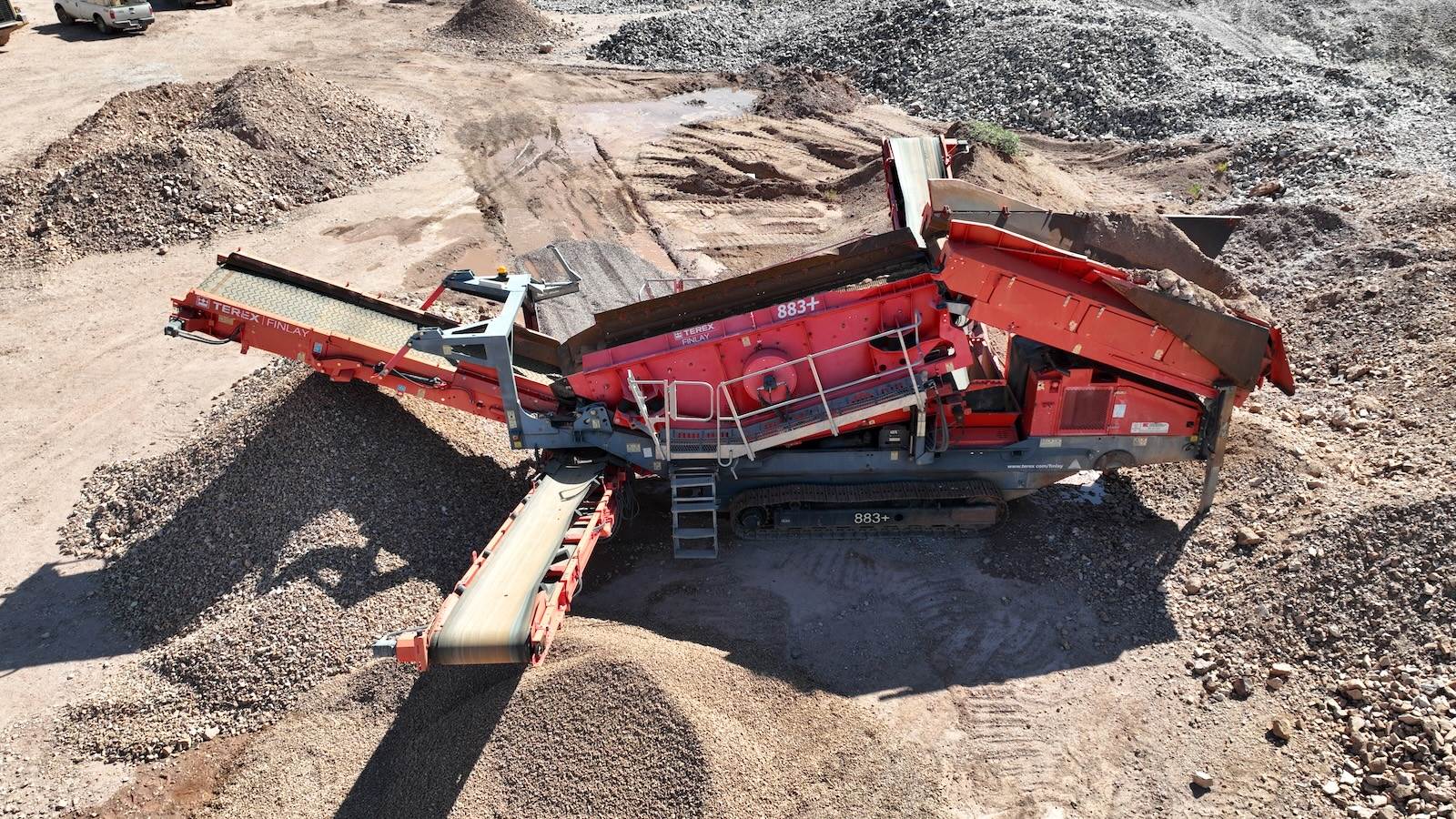

2019 Finlay 883+ Tracked Scalping Screening Plant

For Sale: 2019 Finlay 883+, Tracked Scalping Screener

Terex Finlay 883+ — Key Specs

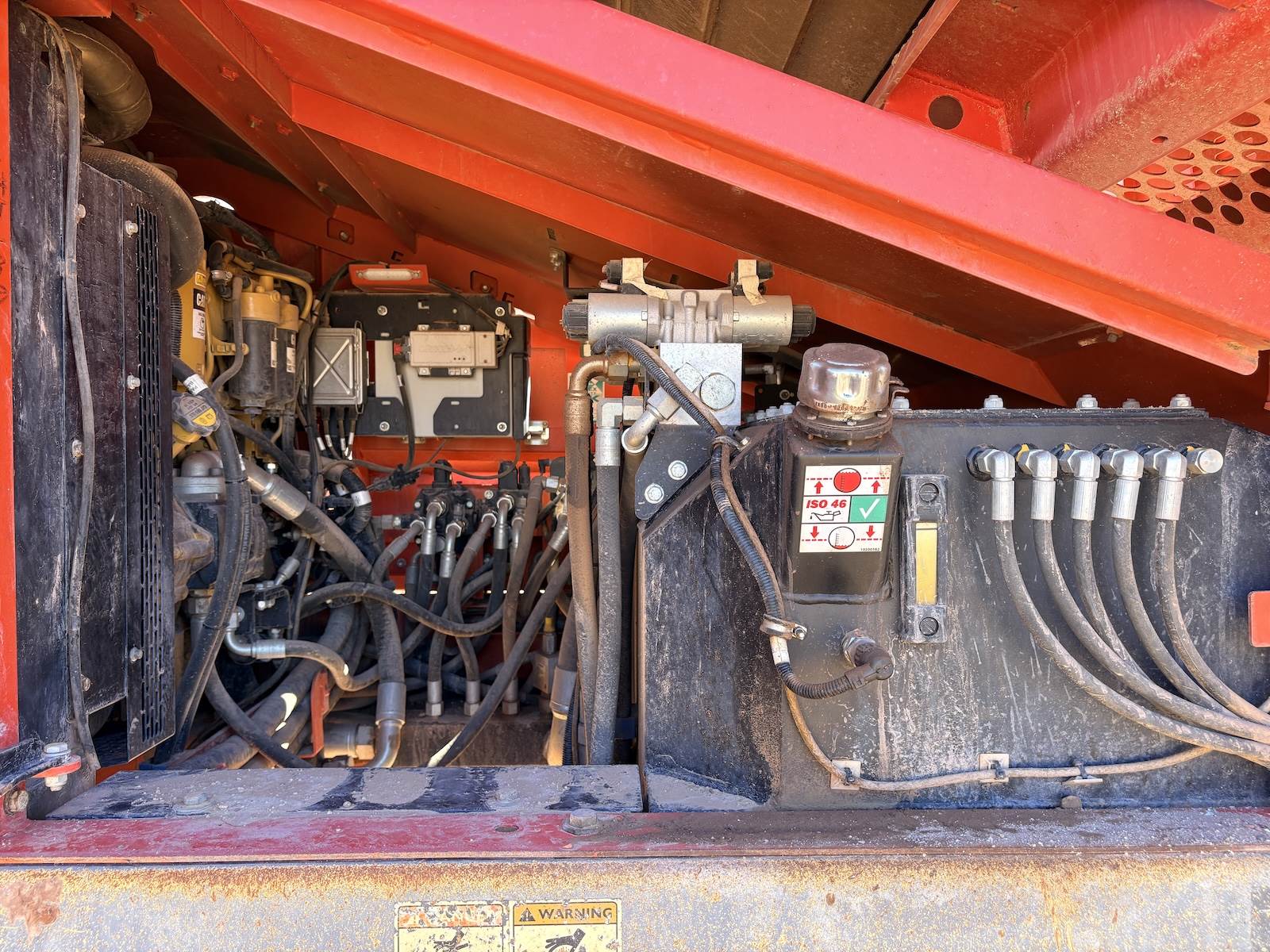

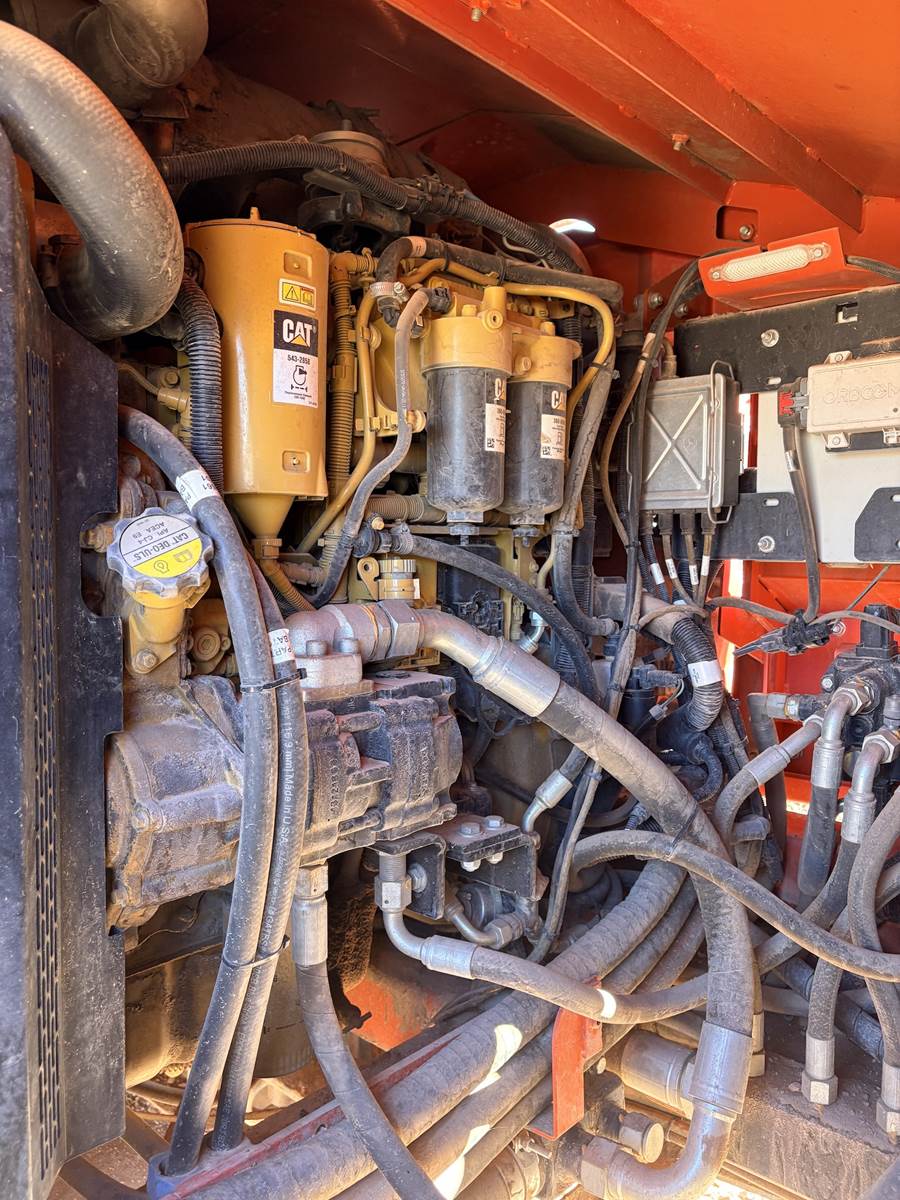

Engine & Power

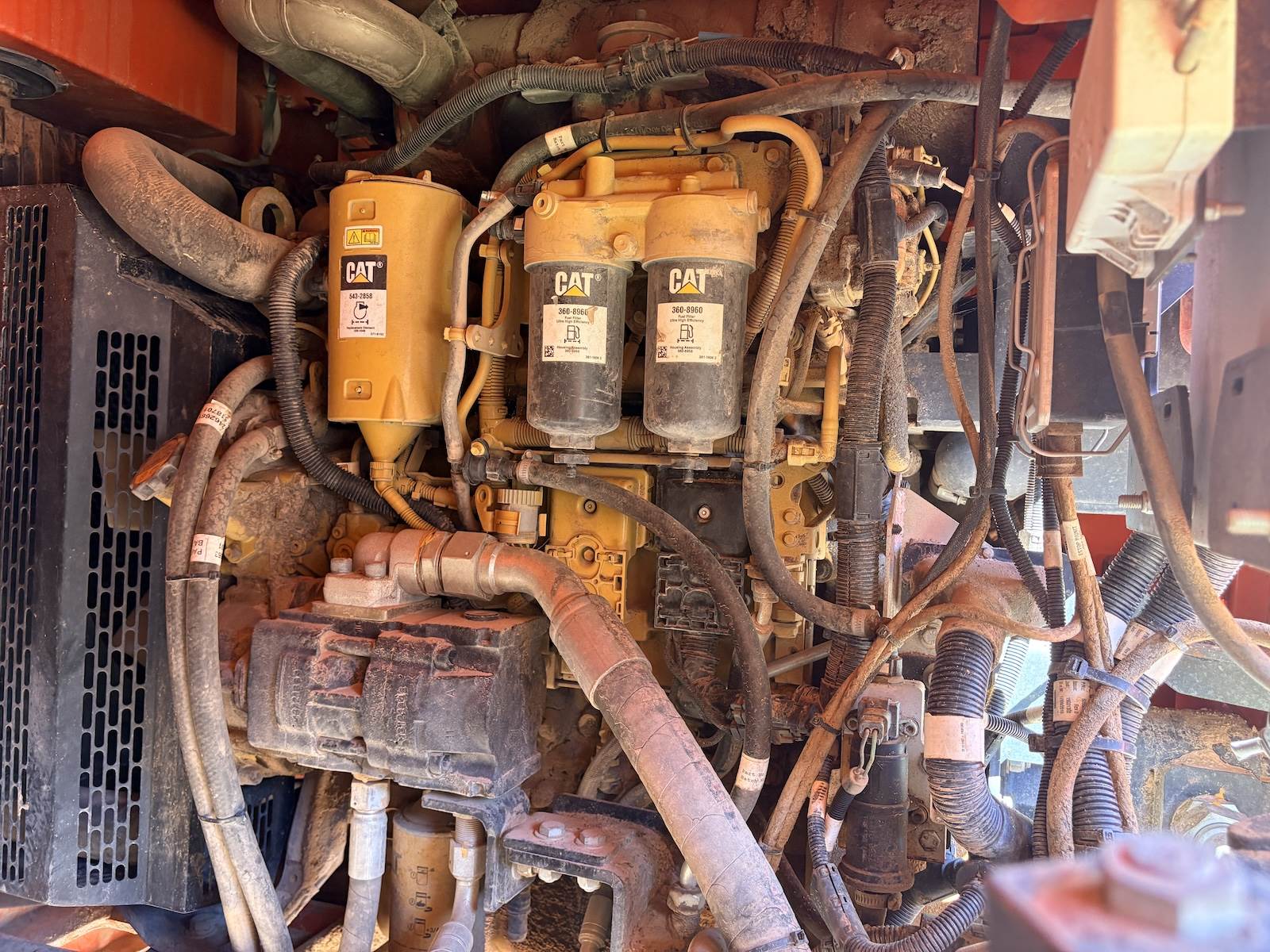

- Cat C4.4 Tier 4F 110hp @ 1800rpm
- Fuel tank 88 gal
- Hydraulic tank 119 gal

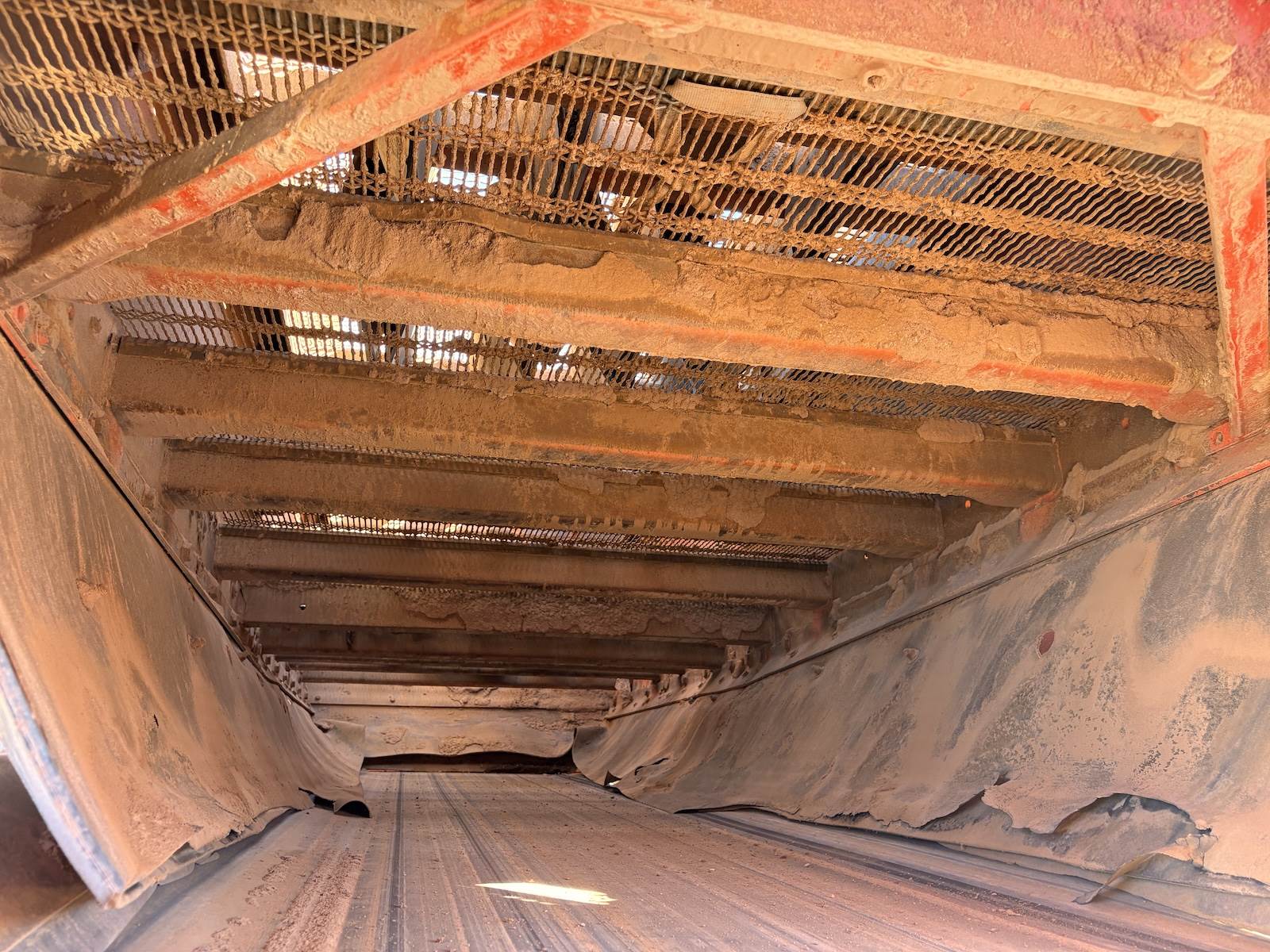

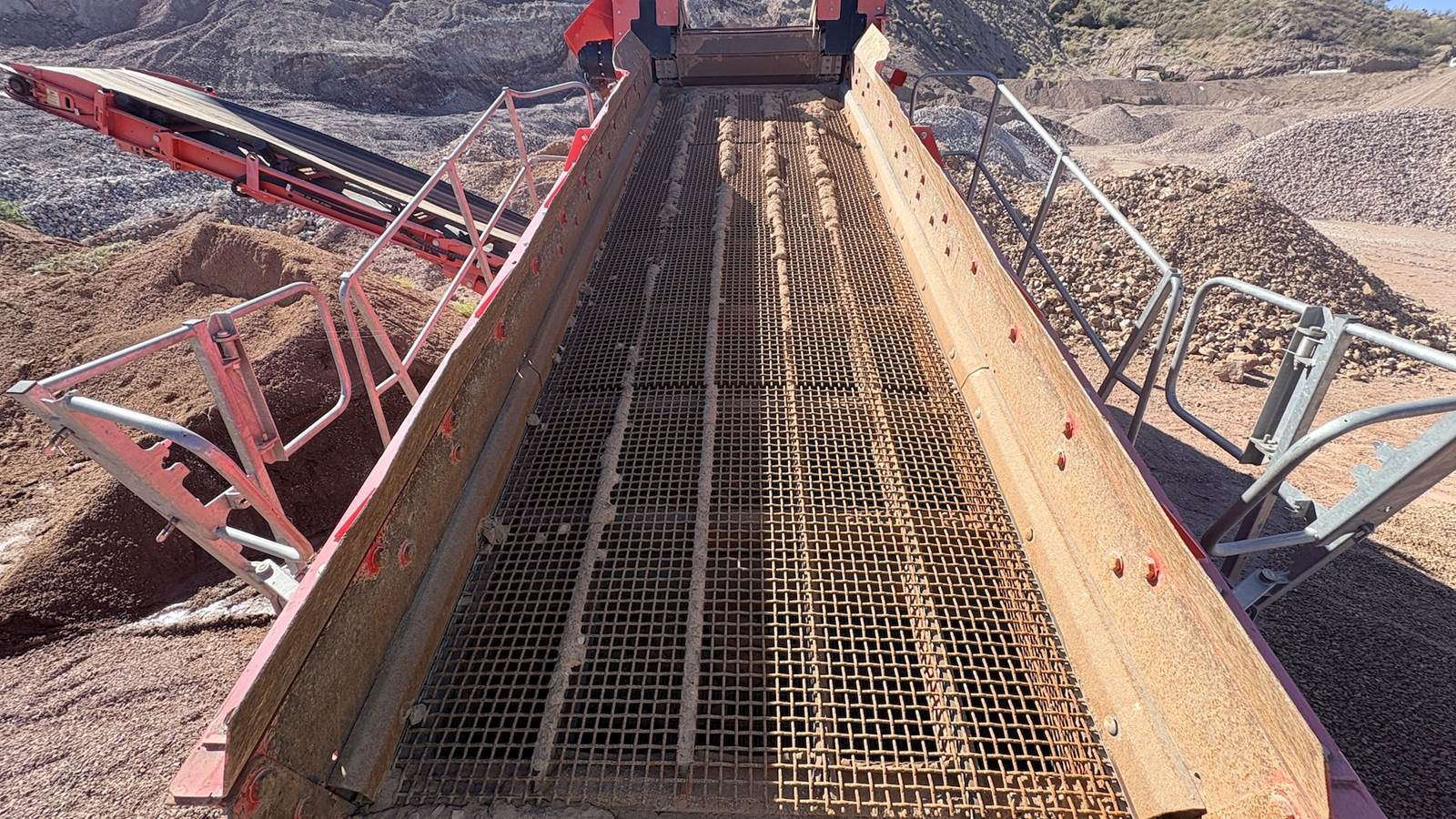

Screen Box
- 5'x16' 2-Deck
- 155ft² total screening area
- Screen angle hydraulically adjustable 13°–19°
- Screen speed 1,000rpm
- Standard stroke 8mm
- Discharge end raises hydraulically 19" for media changes

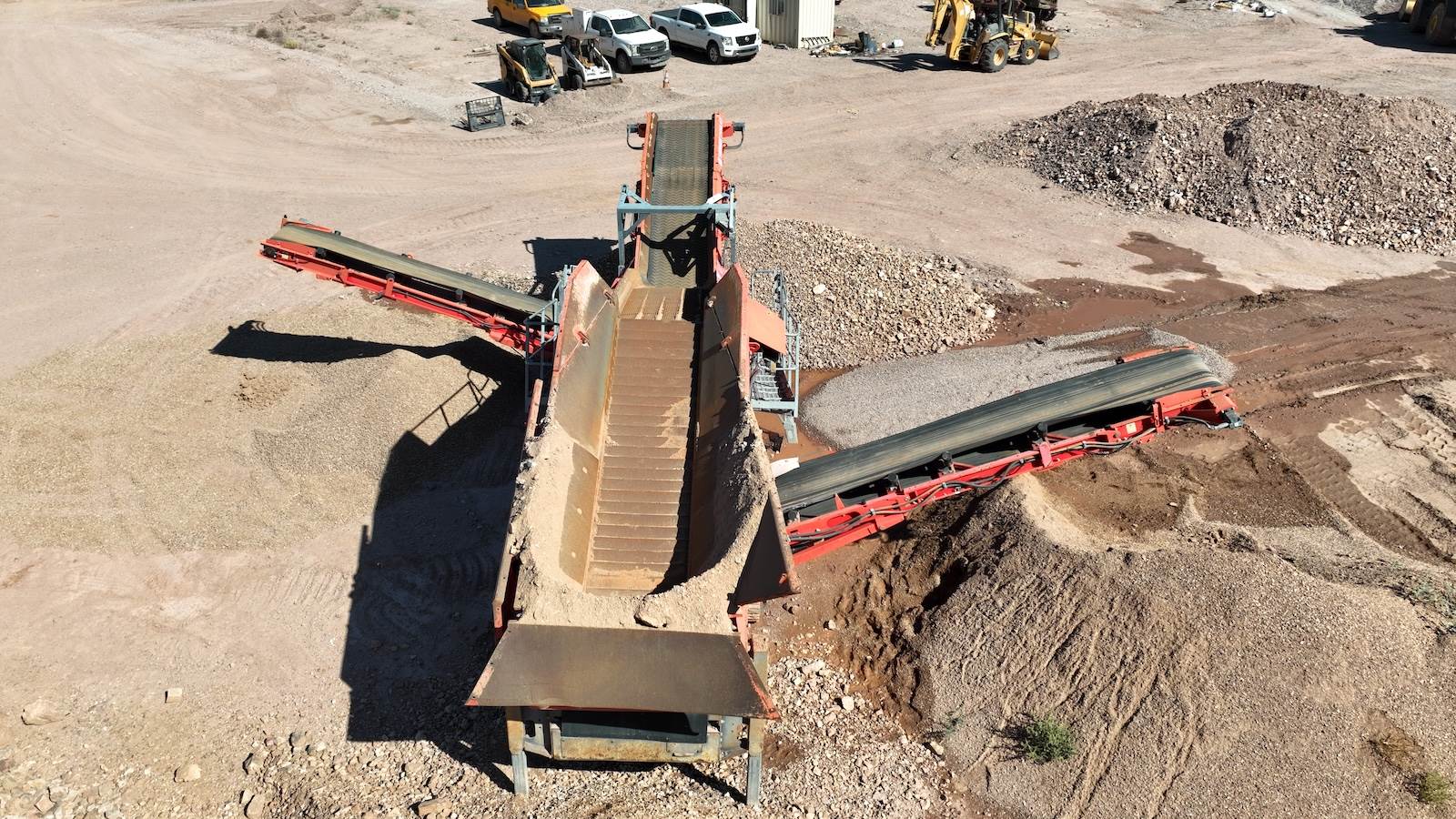

Hopper / Feeder
- 9.16 yd³ hopper capacity
- Feed height 12'1"

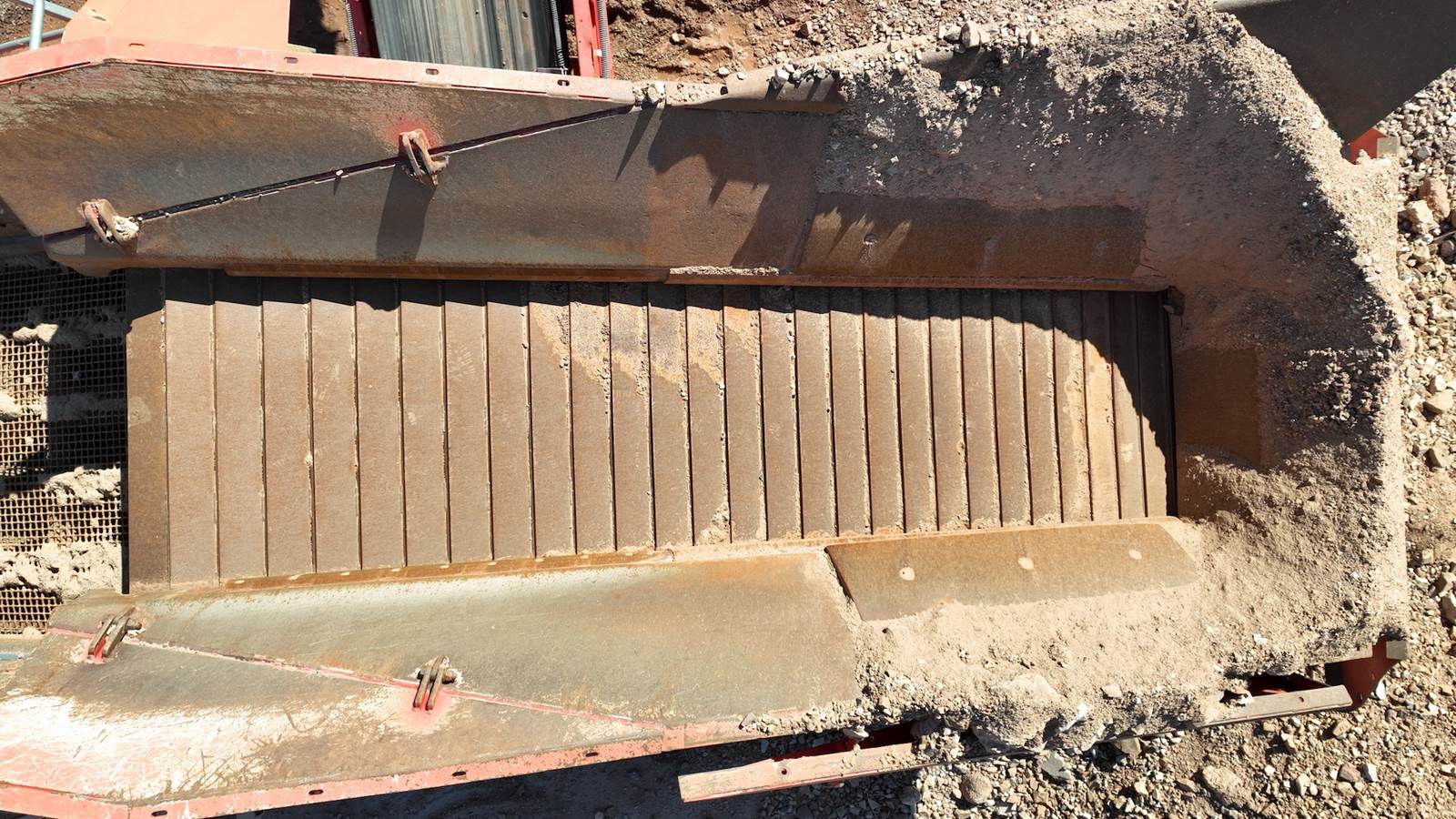

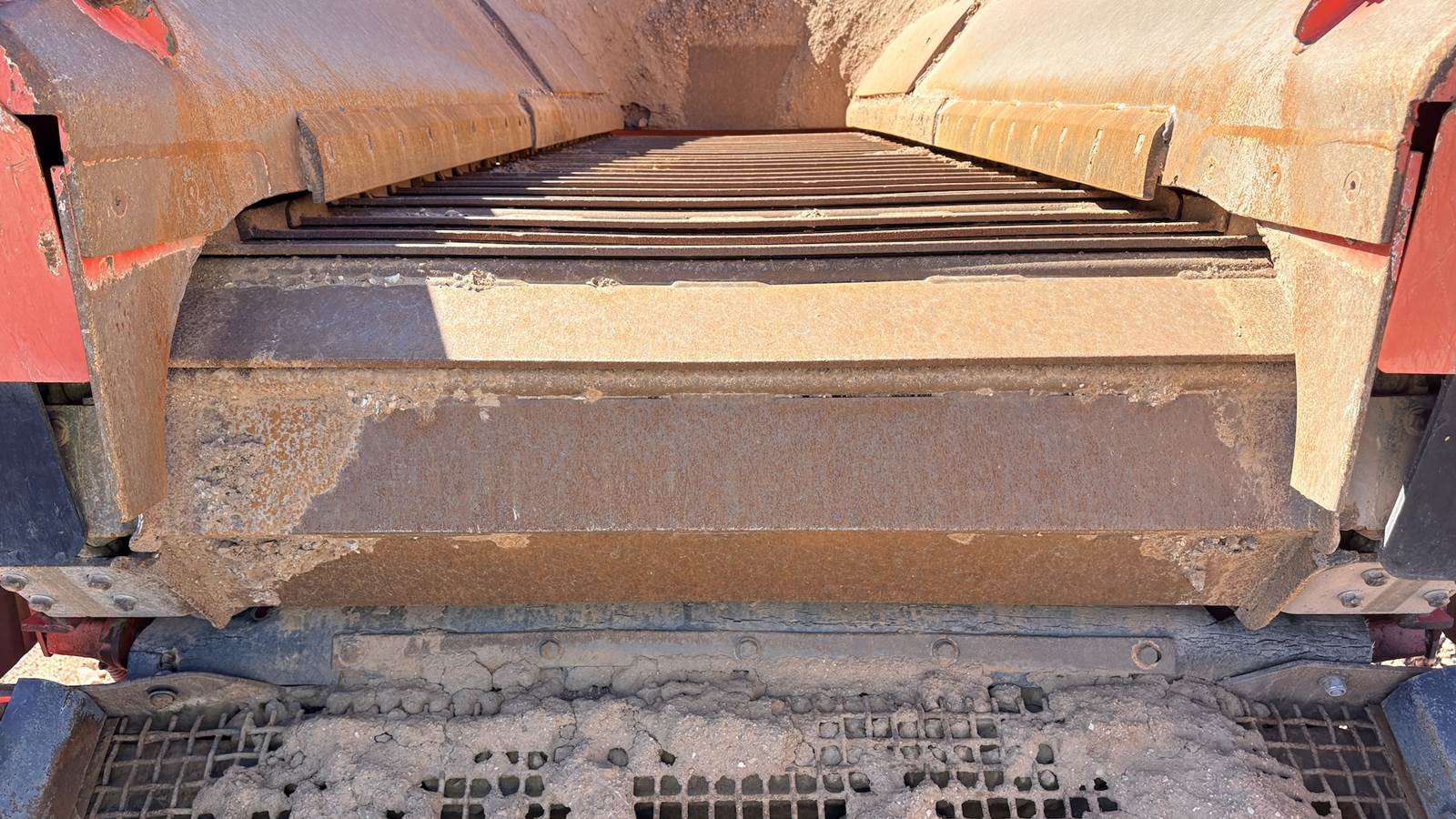

- Apron feeder 12'6"x40" abrasion-resistant steel pan with hydraulic variable speed drive

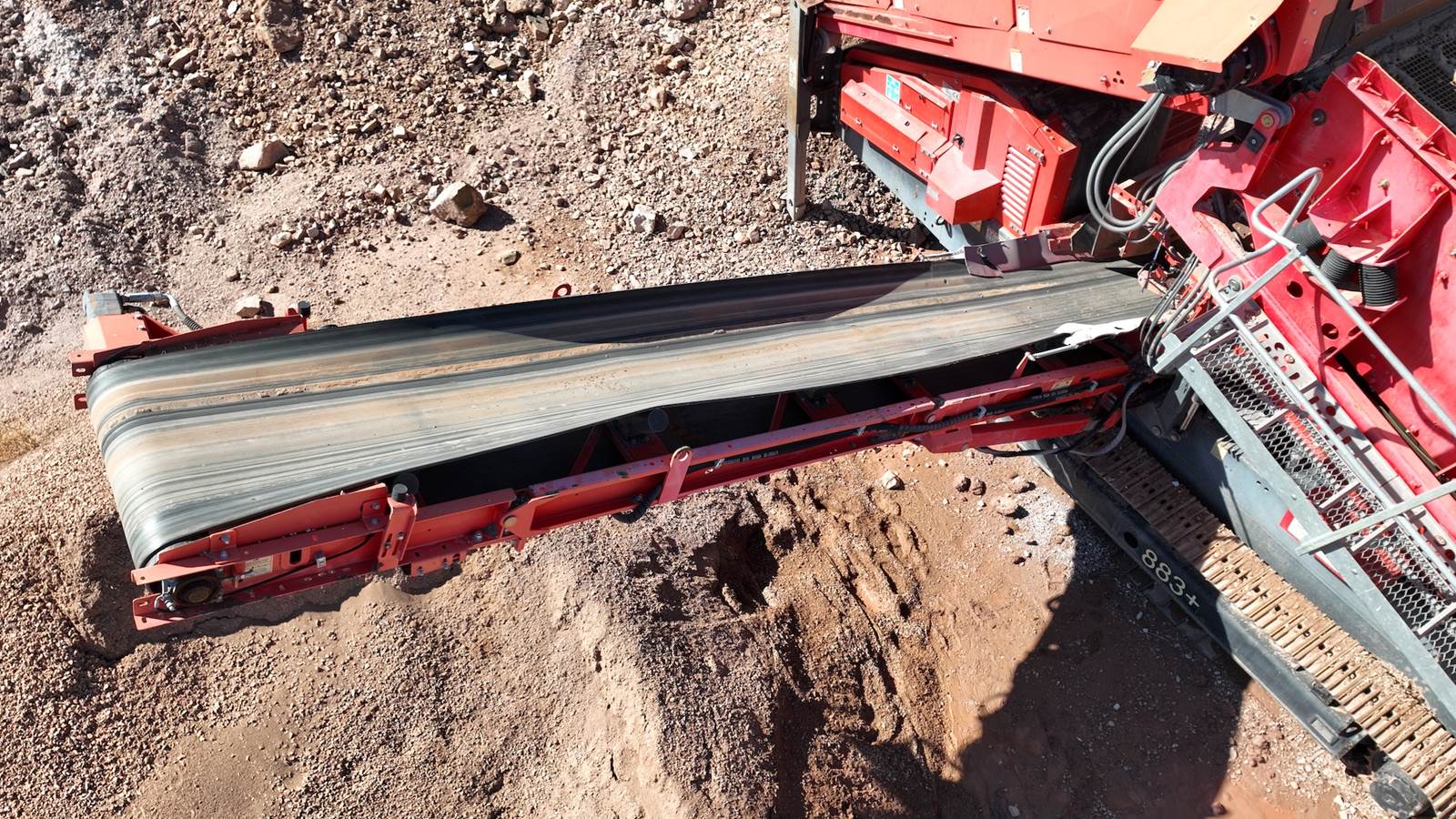

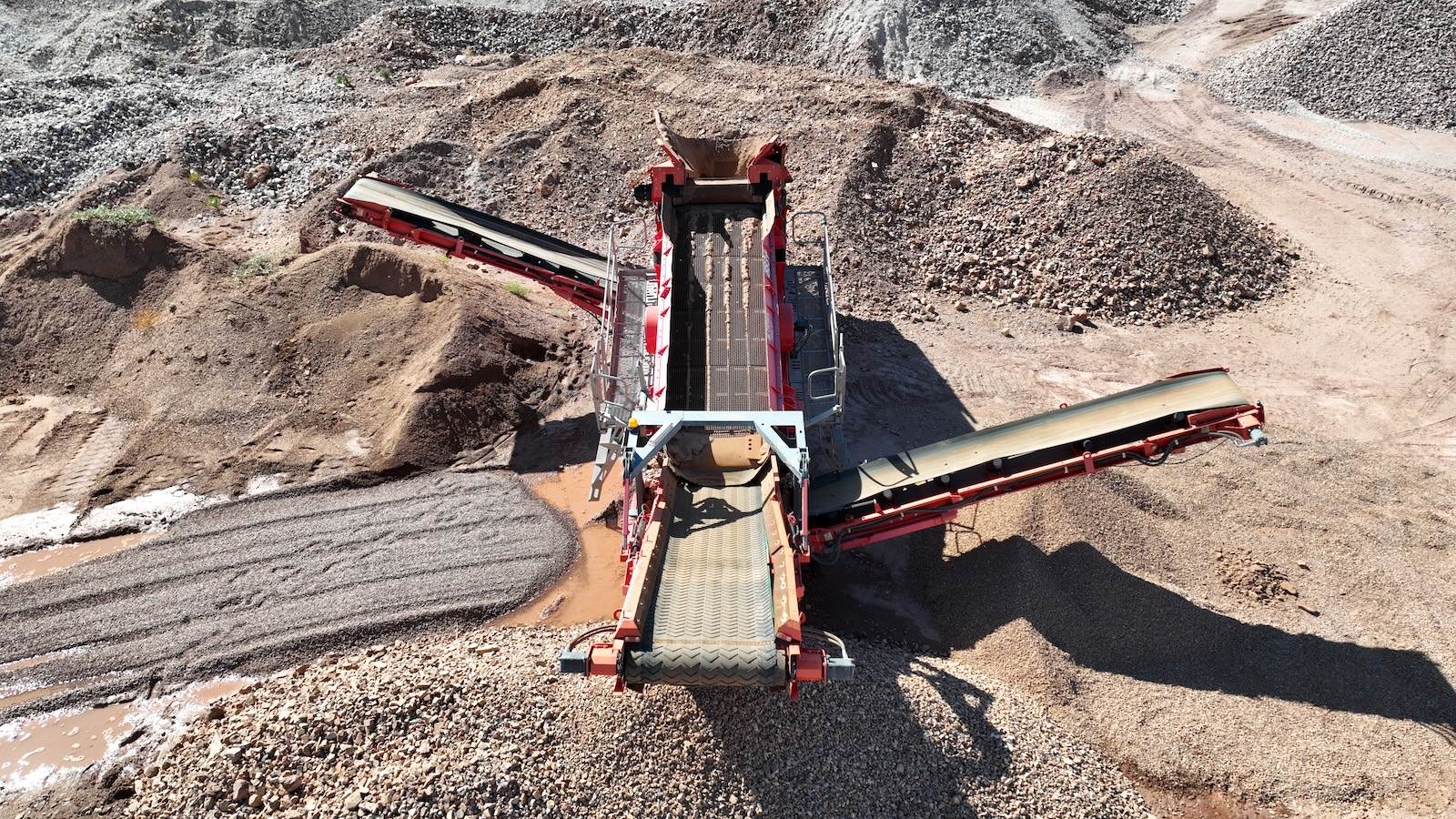

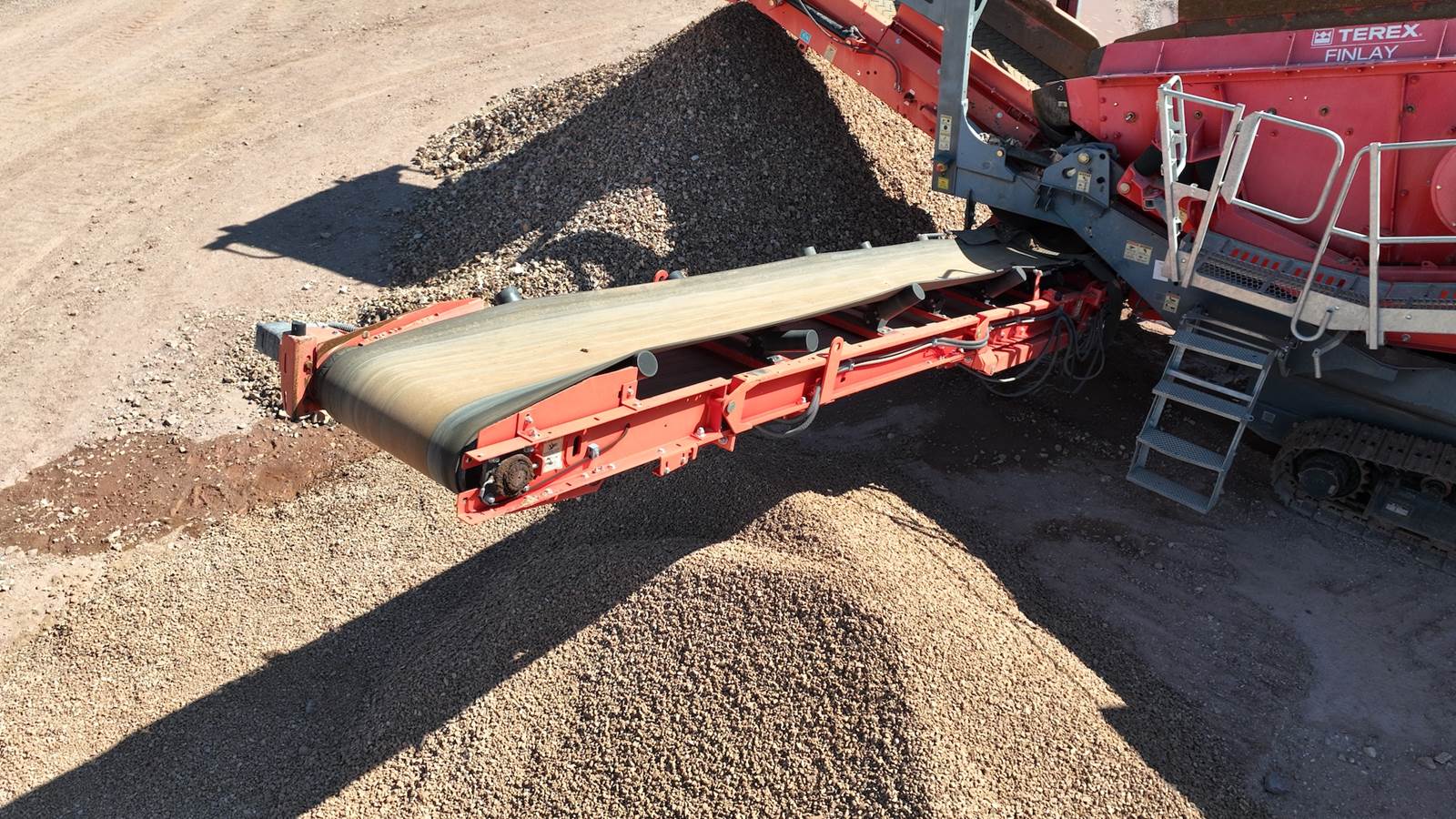

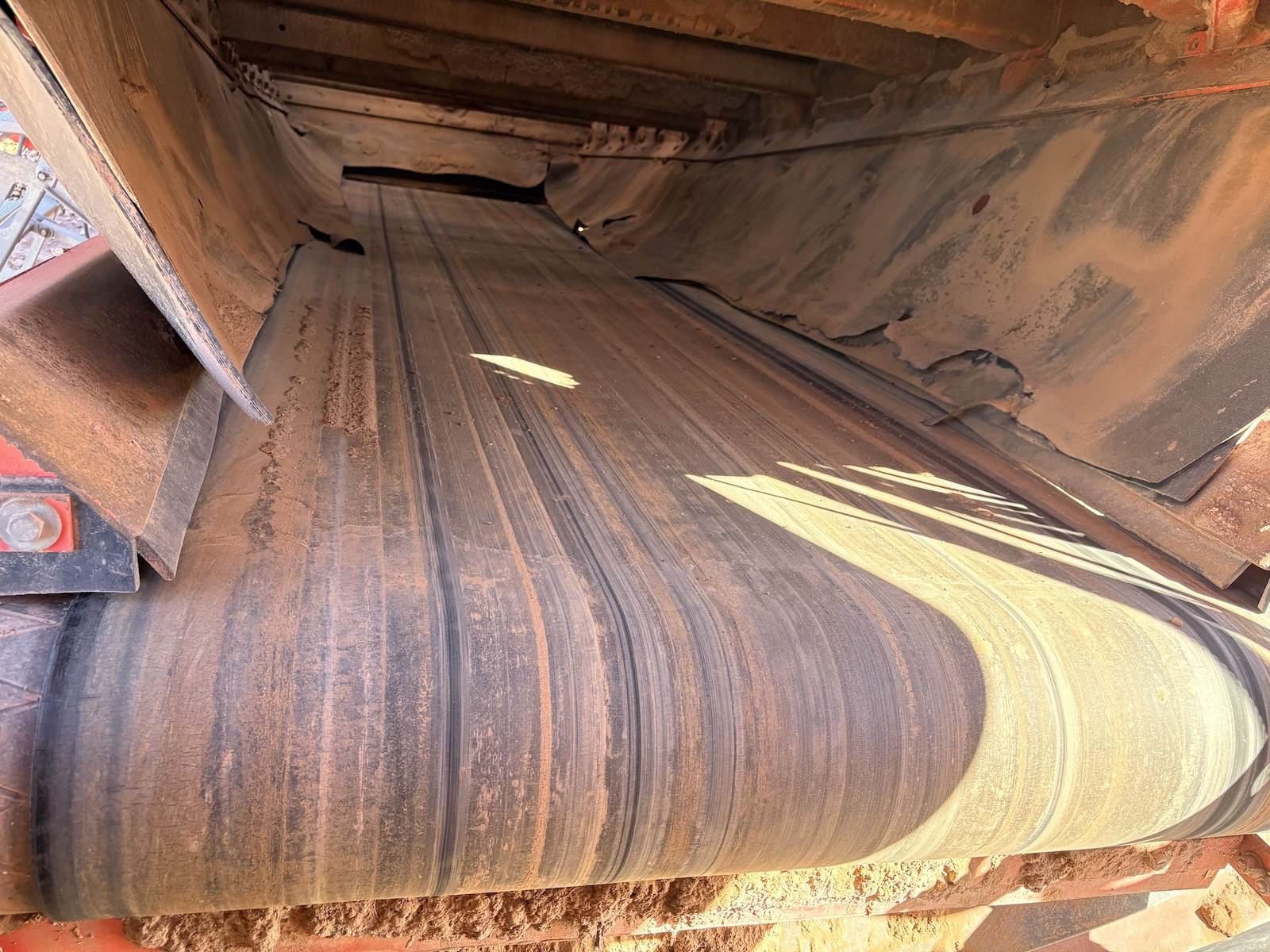

Conveyors (All belts are in good condition)
- Top Deck Oversize: 48" belt, 11'10" discharge height
- Bottom Deck Oversize: 32" belt, 11'2" discharge height
- Fines: 36" belt, 13'1" discharge

Throughput
- Rated up to 600 tonnes per hour *Terex

Undercarriage
- Track shoe width 16"
- Travel speed 0.5 mph

Transport Dimensions
- Length: 49'1"
- Width: 9'10"
- Height 11'2"
- Weight: 68,340lbs
