Power to Platform
Proportional Controls
Fully proportional and simultaneous movements
Vertical arm rise up
Performance & Productivity
Very good working envelope
Basket load capacity 550 lbs
Haulotte Active Screen on board diagnostic tool
Outstanding RT capabilities

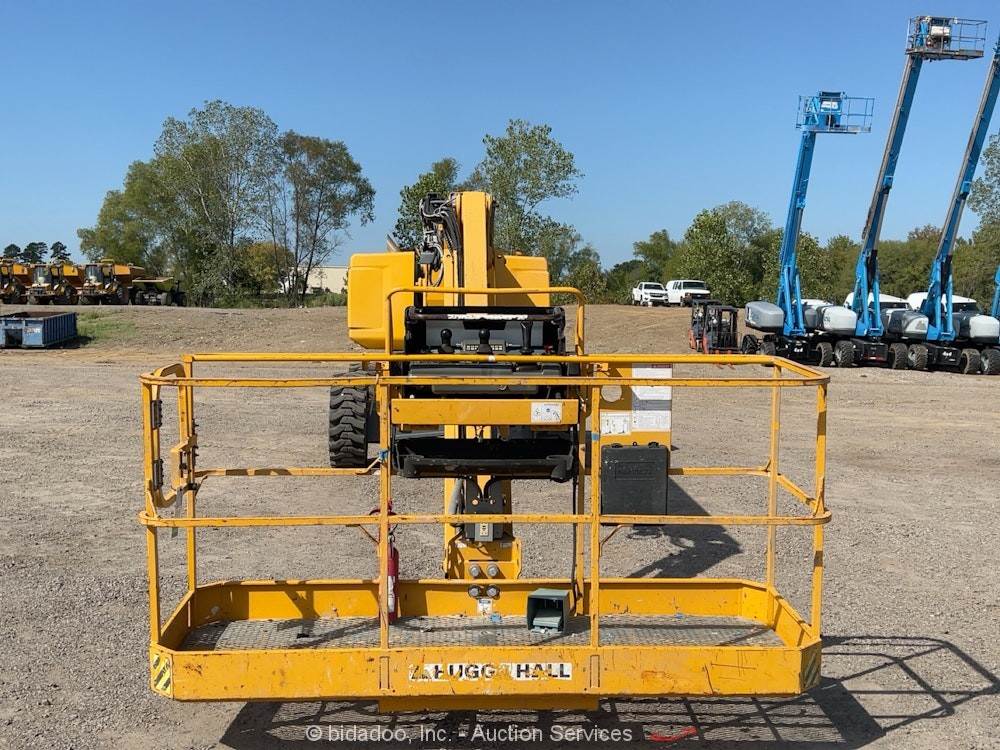

Platform
Height: 80 ft 1 in
Capacity: 770 lb
Size: 96 in
Drive Type: 4WD
Working Height: 86 ft 1 in
Gradeability: 45 %
Horizontal Reach: 57 ft 5 in
Travel Speed: 3.1 mph
Engine
Make: Kubota
Model: V2403
Fuel Type: Diesel
Output: 66 hp
Wheelbase: 110 in
Tire
Size: 40.4 x 14.4 in
Type: Semi-Pneumatic
Ground Clearance: 19 in
Slewing angle: 360 °
Basket Capacity - Maximum Reach: 550 lb
Tailswing: 2 ft 6 in
