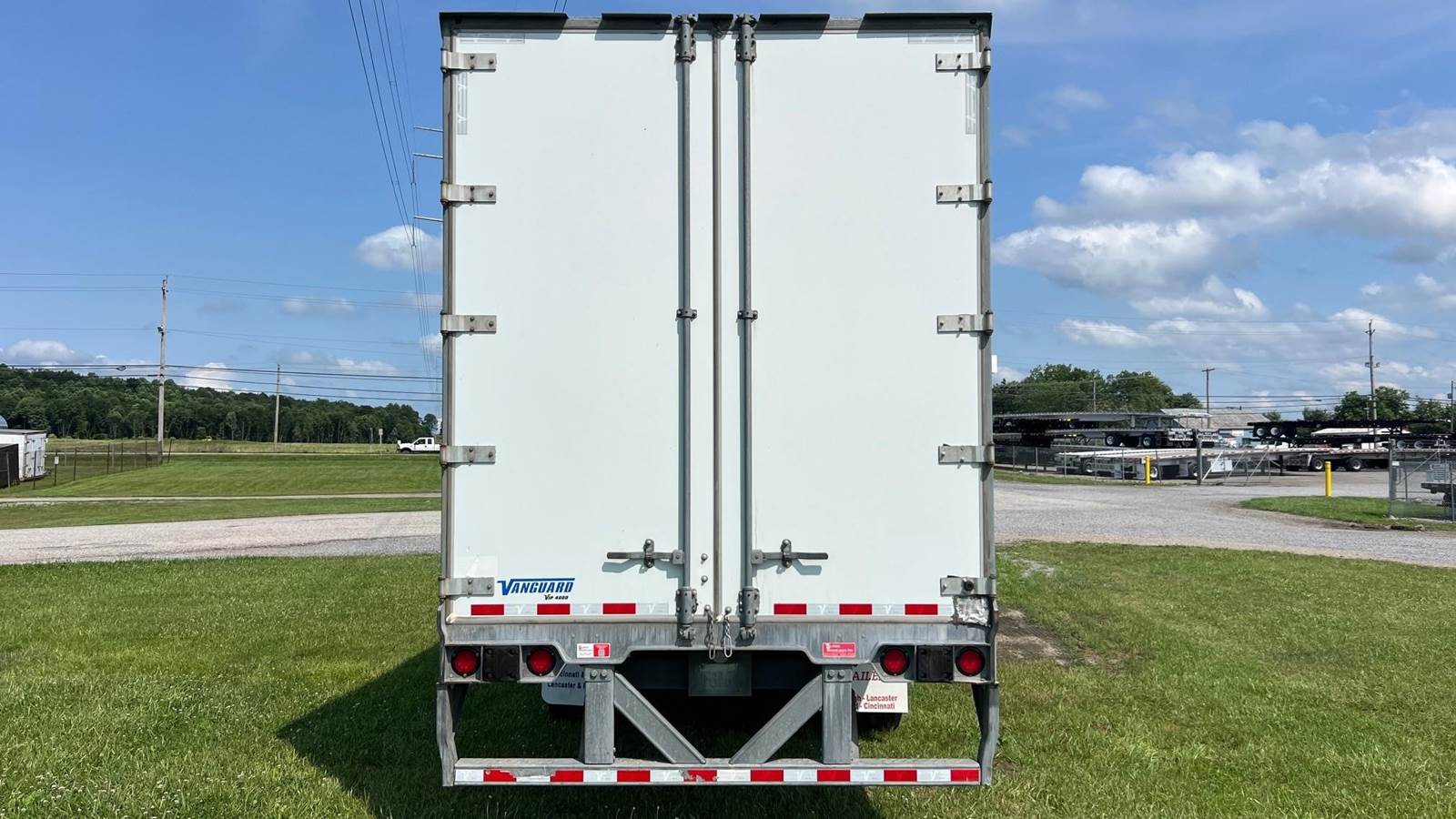

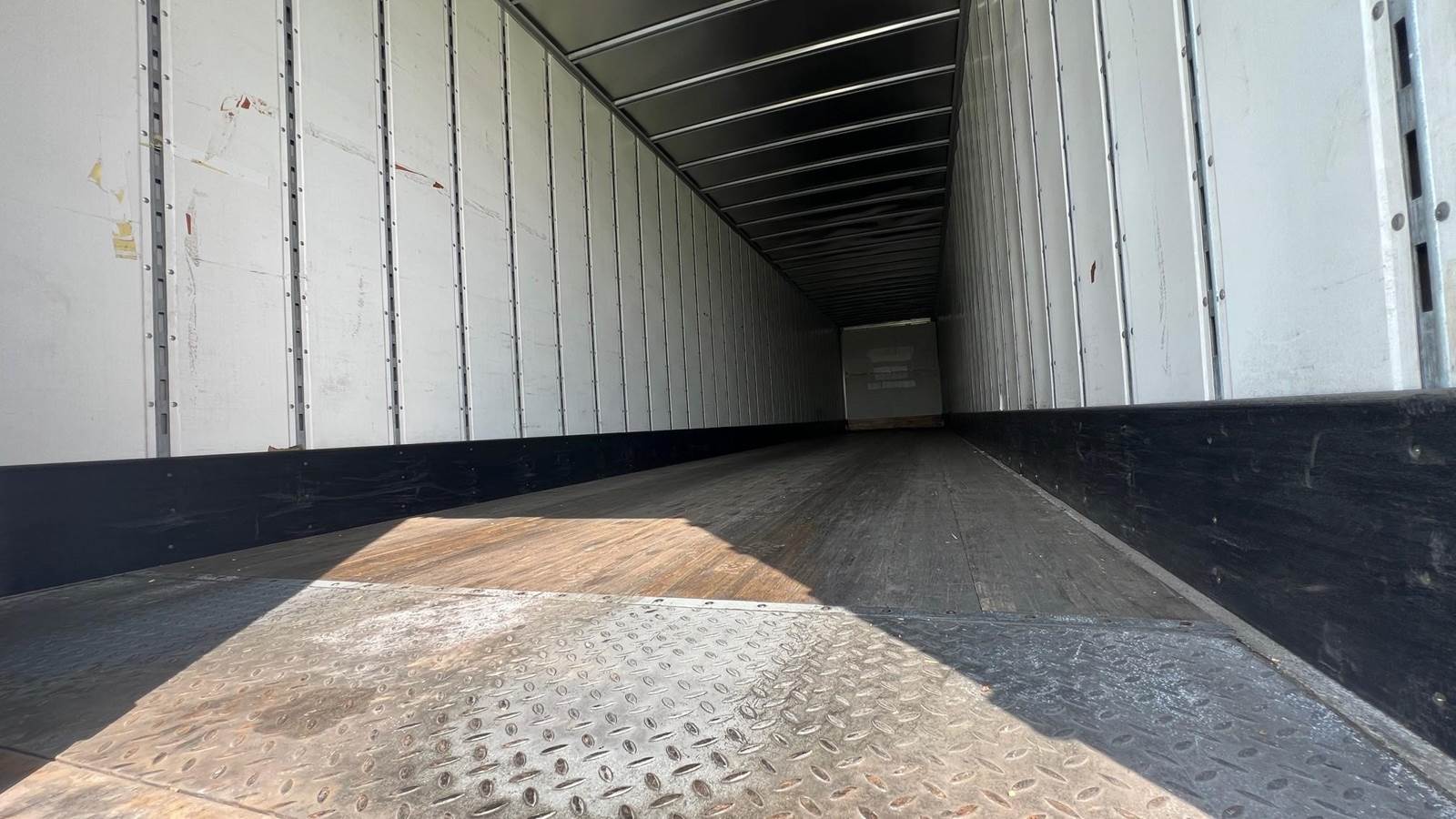

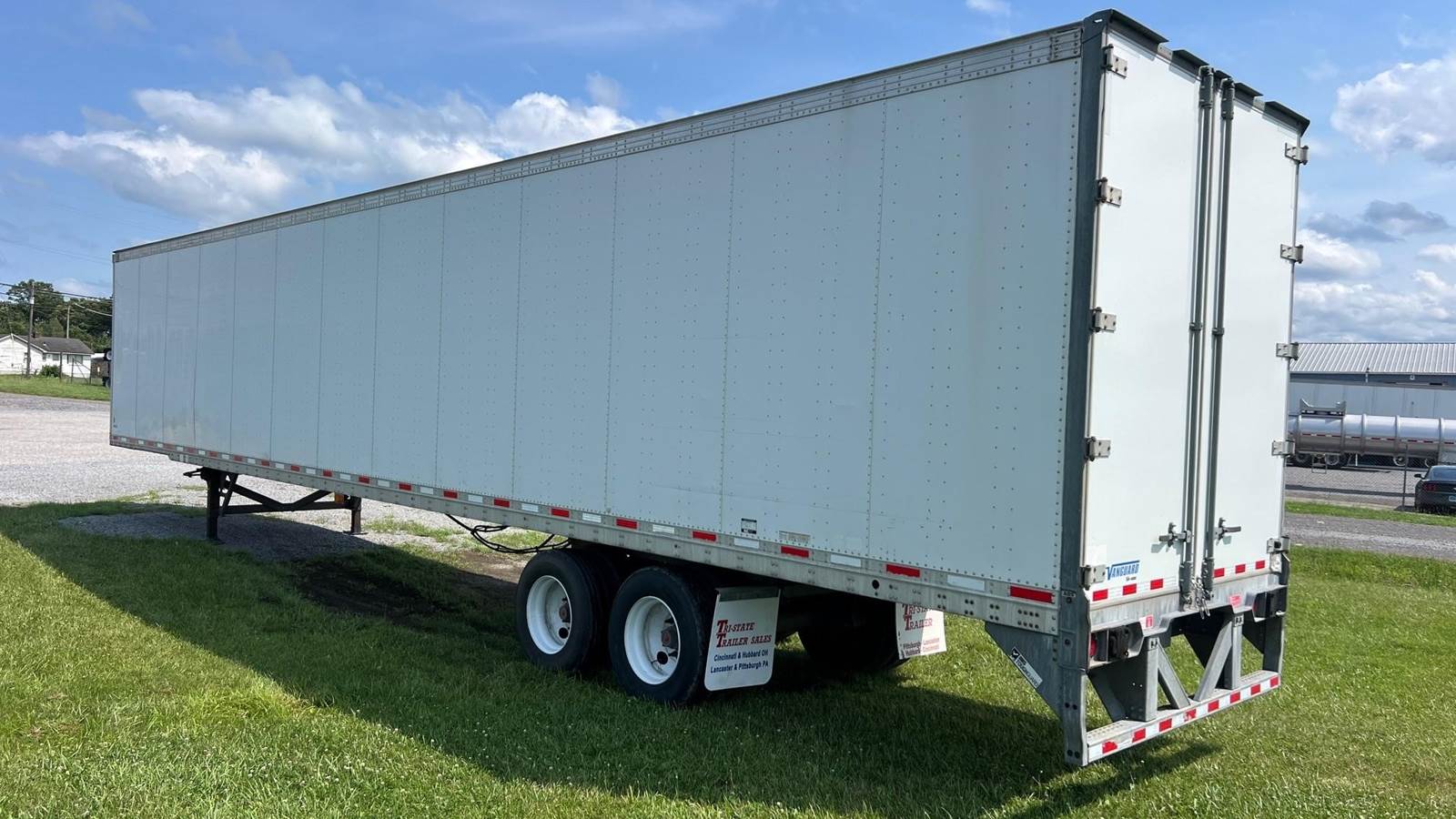

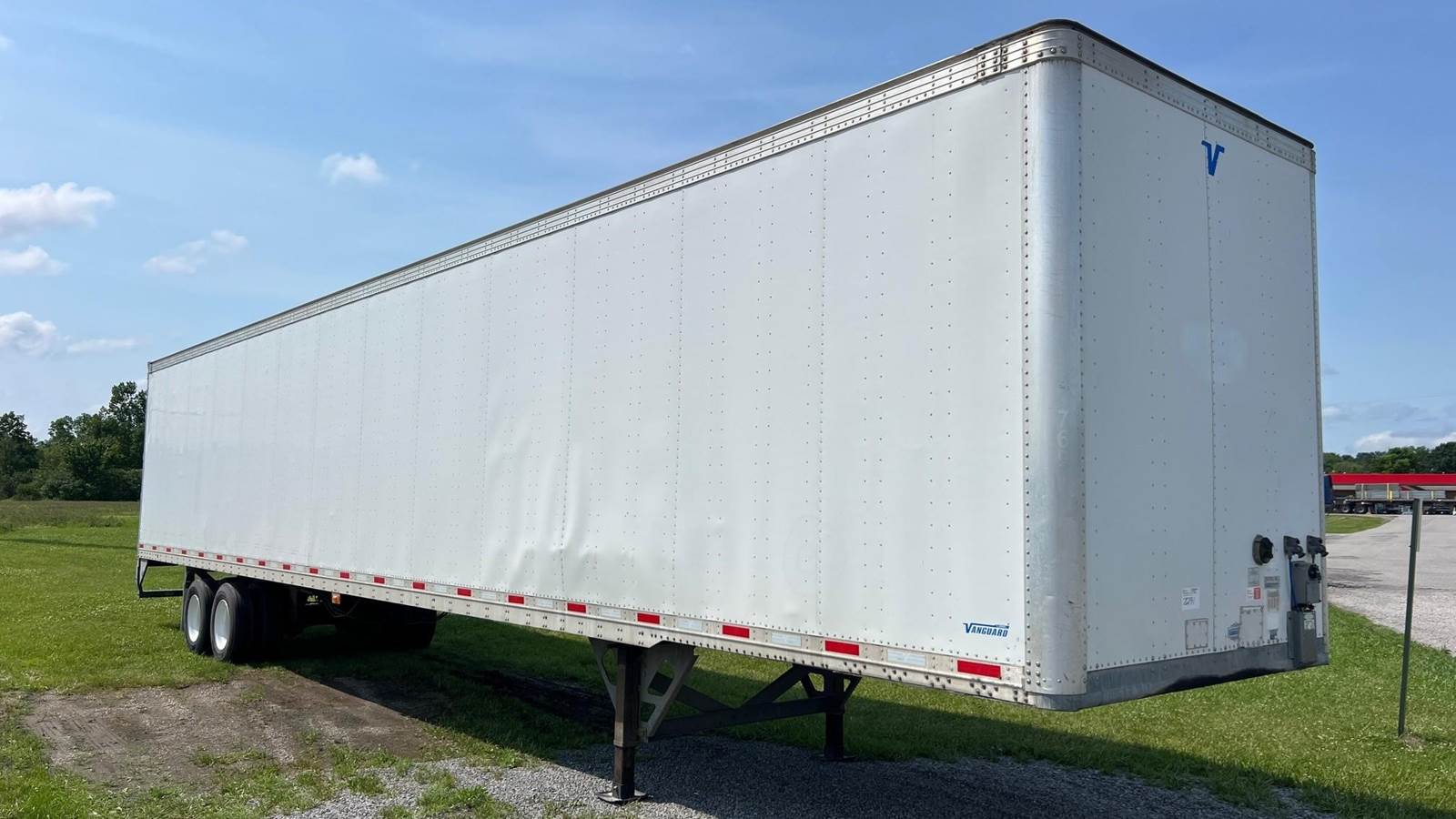

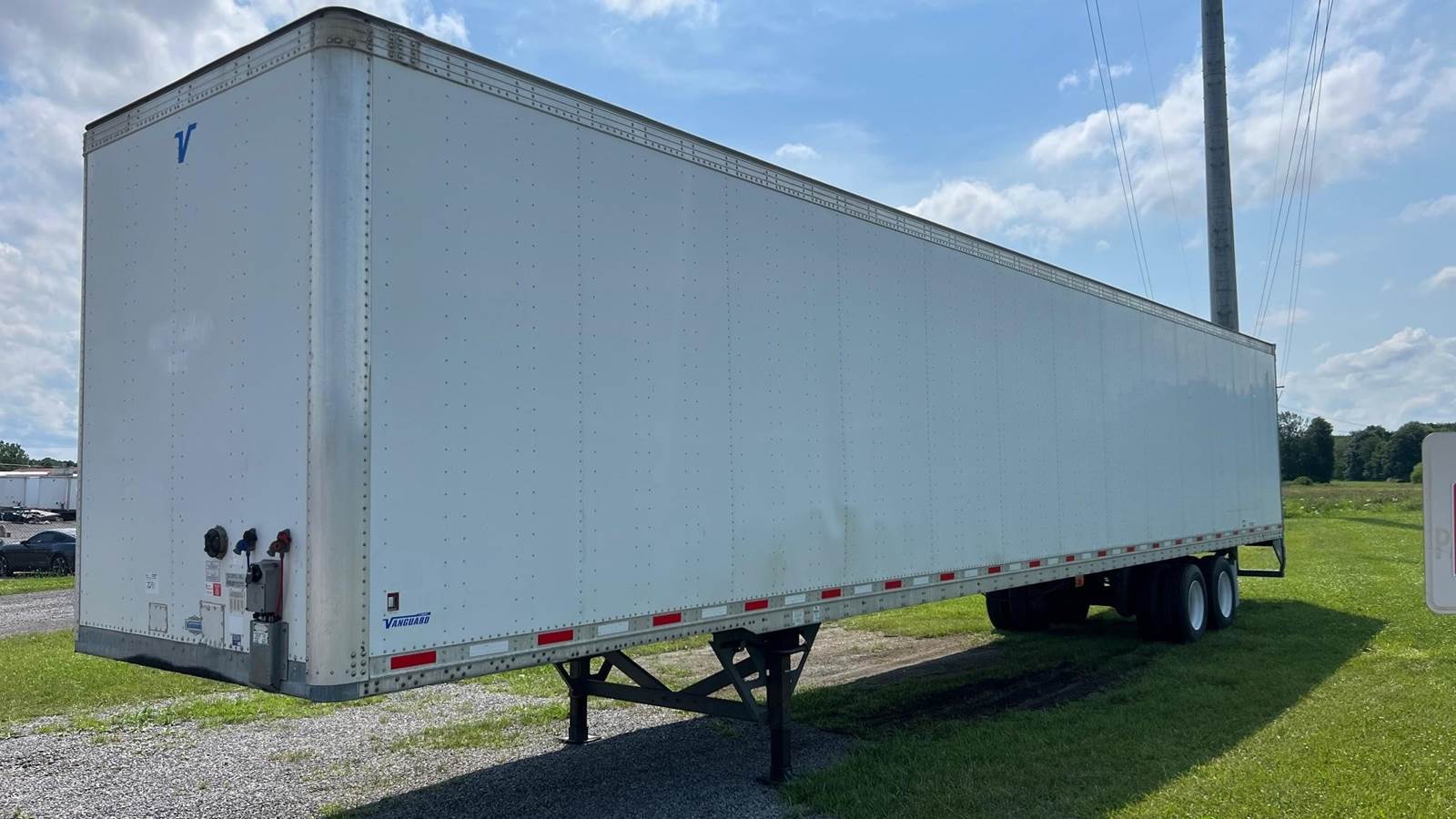

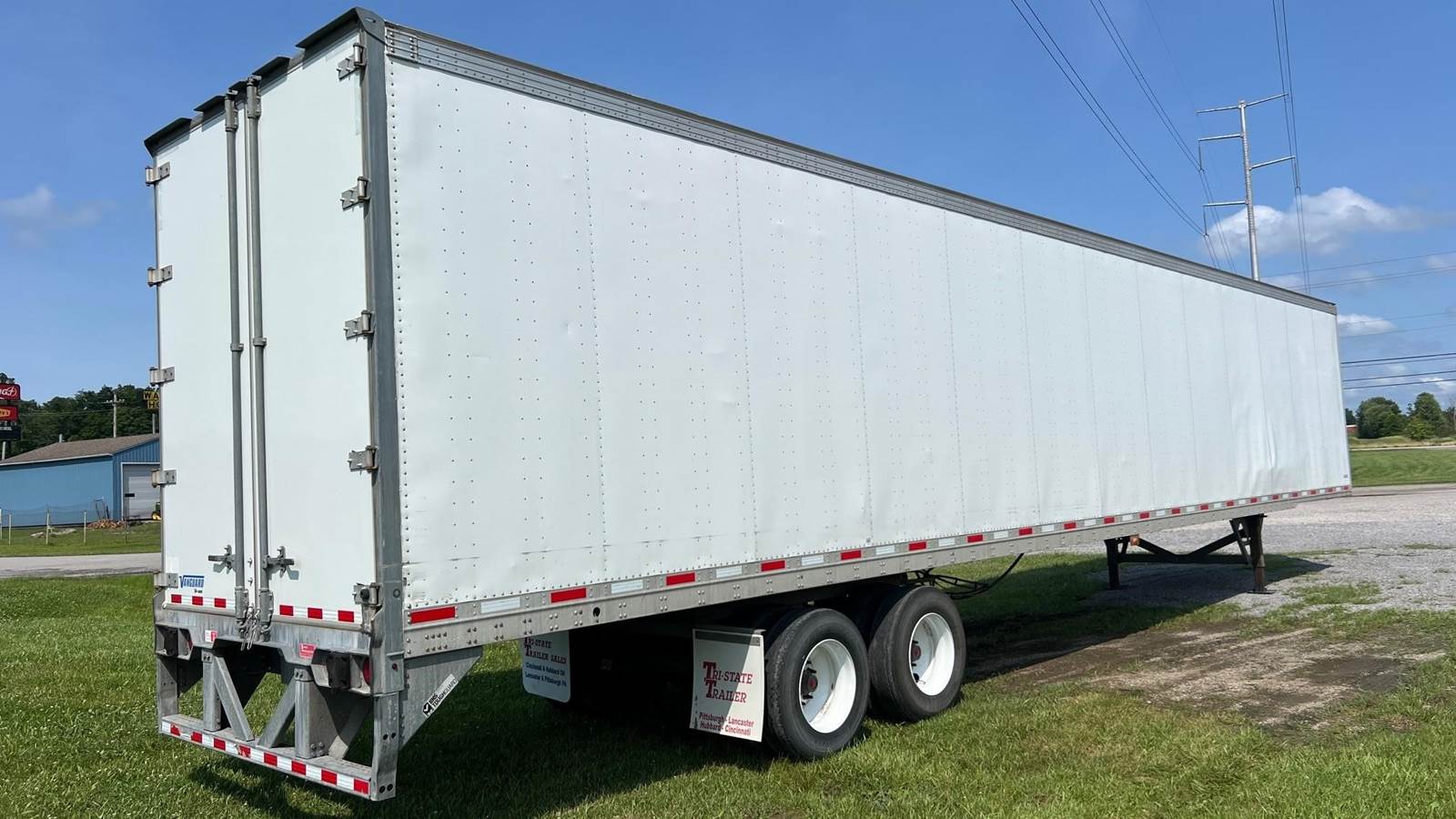

2019 Vanguard VIP 4000 Dry Van Trailer

Length   53'
Width   102"
Height   13' 6"
Inspection T-FHWA 7/25
Inside Width   100"
Inside Height   110"
Door Opening   110"
Sides   .050 Aluminum
Color   White

Type Posts   Series "A" logistics posts
Post Spacing   16"

Side Scuff   12" x 5/8" HDPE Plastic
Side Lining   .065" Versitex Plastic

Nose Lining   .180" Ecotex
Nose Scuff   None
Internal Bulkhead   10 ga x 12" Smooth Steel
Rear Doors   1/2" Composite PPW Galvanized Panels

Roof    Aluminum

Roof Bows   1" Deep Galvanized Anti-Snag on 16"/24"


Rear Frame   GALVANIZED
Bumper   GALVANIZED, Reinforced for Dock-Lock
Rubber Dock Bumpers   One Pair Recessed Between Lights
Van Floor   1 3/8" Oak with Three 5/16" Screws per Board

Threshold Plate   27" Galvanized Steel
# of Axles   2
Suspension Type   Air Ride
Suspension Brand   Hendrickson HKANT40K, SureLok & QuikDraw
Suspension Setting   49" Sliding Tandem, 216" Slide Rails
Tire Size   295/75R22.5

Wheels   Steel, Powder Coated White
Tire %   5-60% 2-50% 1-20%
Brake %   R-80% F-30%
King Pin Setting   36"

Cross Member Center   12"
Landing Gear   Holland Atlas 55, GALVANIZED bracing
