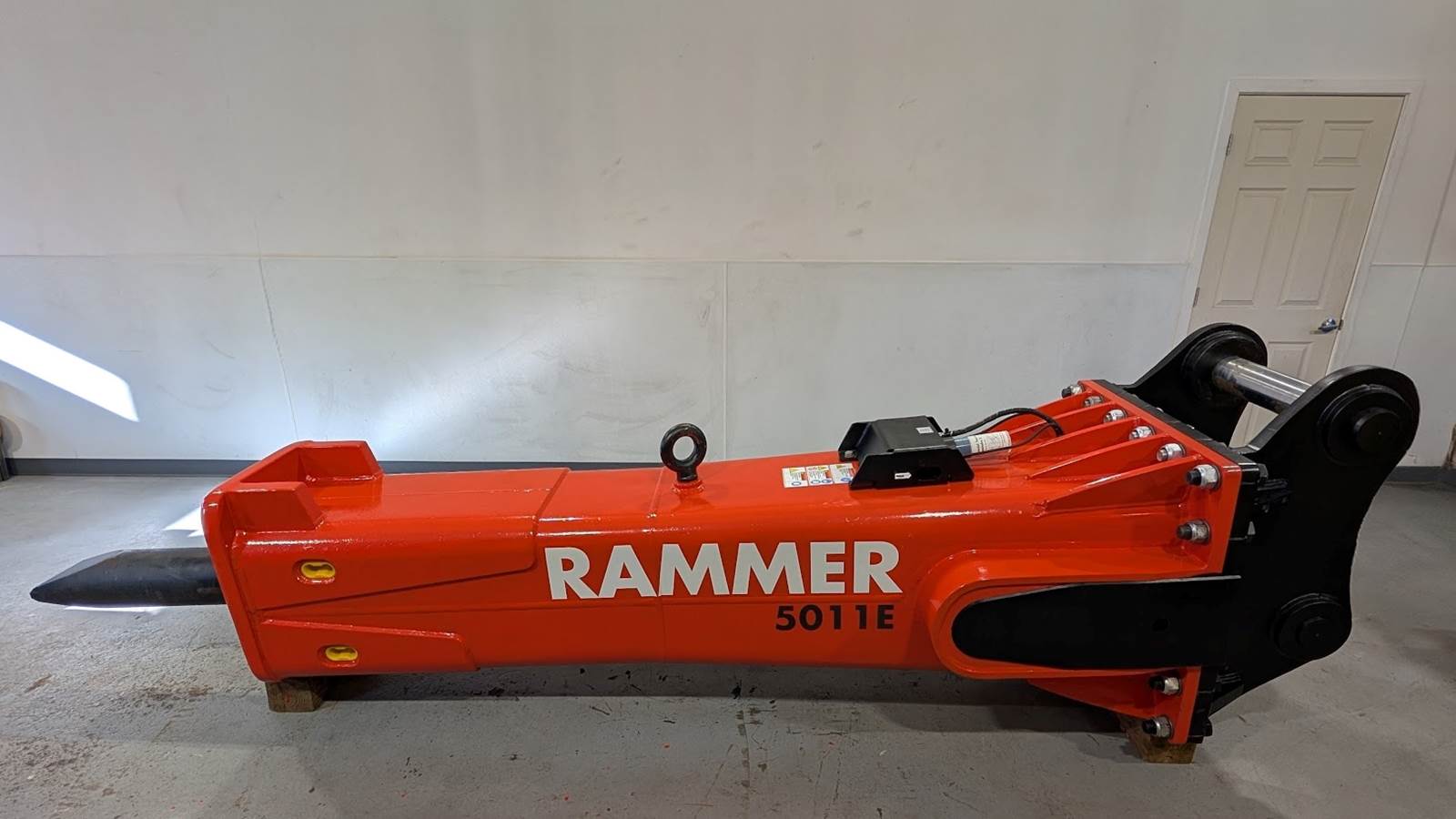

2020 ALLIED RAMMER 5011E Hammer for Excavator

COMPLETELY REBUILT/REFURBISHED

Model: Allied Rammer 5011E Hydraulic Breaker Hammer

High-pressure membrane accumulator
Idle blow protector (prevents hits without material contact)
Indexable power cell (rotate 180° for hose routing)
Fast-change tool system and field-replaceable lower tool bushing

Weight (hammer only): ~3,900 kg (8,600 lb)
Minimum working weight (flange mounted): ~4,750 kg (10,470 lb)
Working length: ~3,329 mm (131.1 in)
Hydraulic & Performance Specs
Operating pressure: 160 – 170 bar (2,320 – 2,465 psi)
Oil flow range: 280 – 380 L/min (74 – 100 gal/min)
Impact rate (long stroke): ~370 – 530 bpm (blows per minute)
Impact rate (short stroke): ~450 – 620 bpm
Impact rating: 13,000 Ft lbs
Pressure relief setting: ~220 bar (3,190 psi)
Maximum pressure relief: ~230 bar (3,335 psi)
Maximum back pressure: ~10 bar (145 psi)
Input power: ~108 kW (145 hp)
Tool diameter: ~190 mm (7.48 in)
