2020 Caterpillar D6 LGP Dozer For Sale, 8,202 Hours | Winsford, United Kingdom | 14420048

Year	2020
Category	Dozers
Manufacturer	Caterpillar
Model	D6 LGP
Condition	Used
MLS Number	14420048

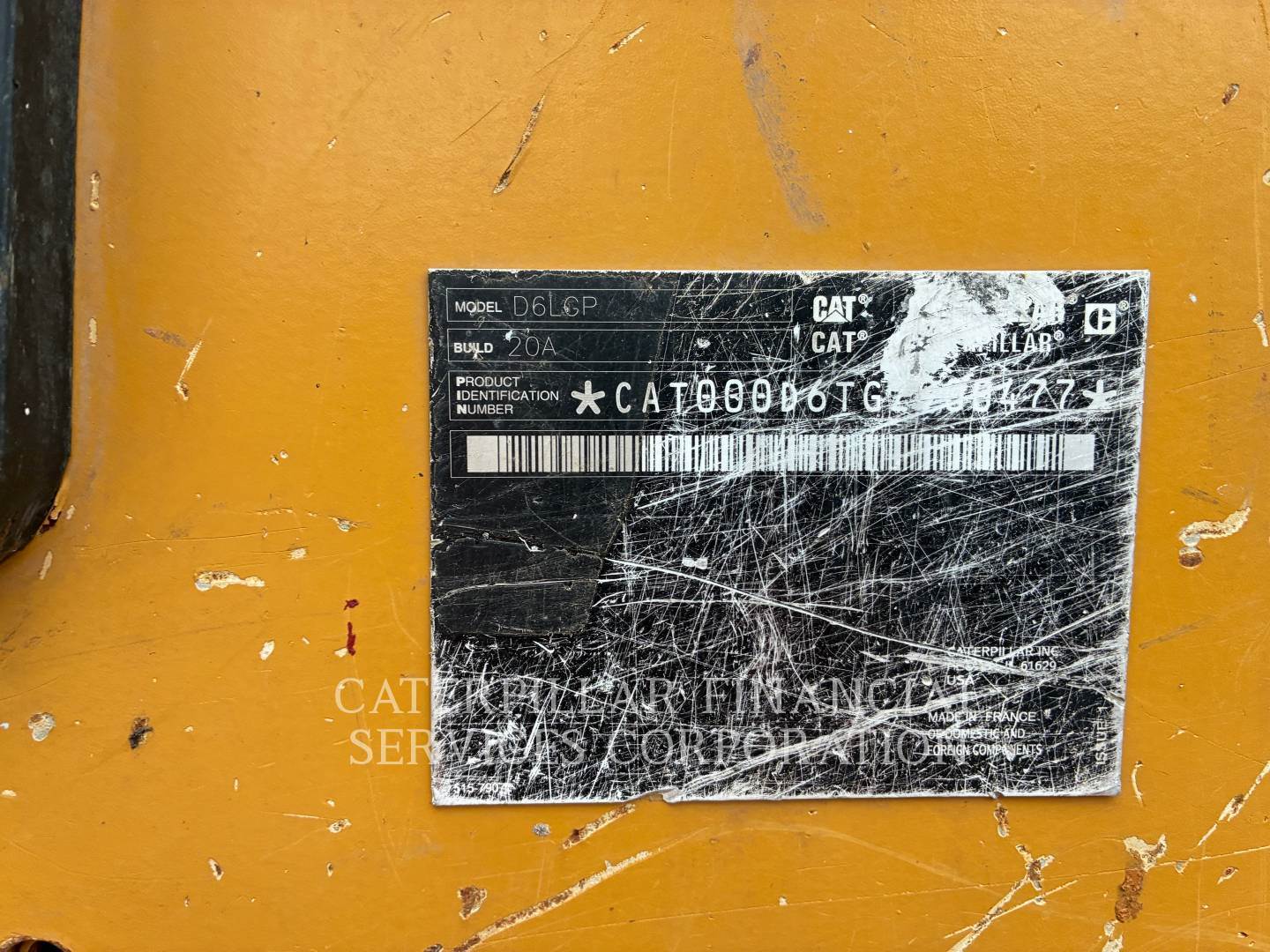

Serial Number	GZ900477
Usage	8,202 Hours

Rating	As-Is

Inspection Report

GENERAL CONDITION

ET Product Status Report Download	Yes
Logged / Active Codes	No
Machine Starts and is Operable	Yes
S.O.S. (All Compartments)	No
Visible Oil Leaks	Yes
Notes - GENERAL CONDITION	Machine would look very good if it had a sand blast and respray and all compartments were steam cleaned and all compartment doors were oiled and unseized.
Body	Poor
Frame	Poor
General	Poor

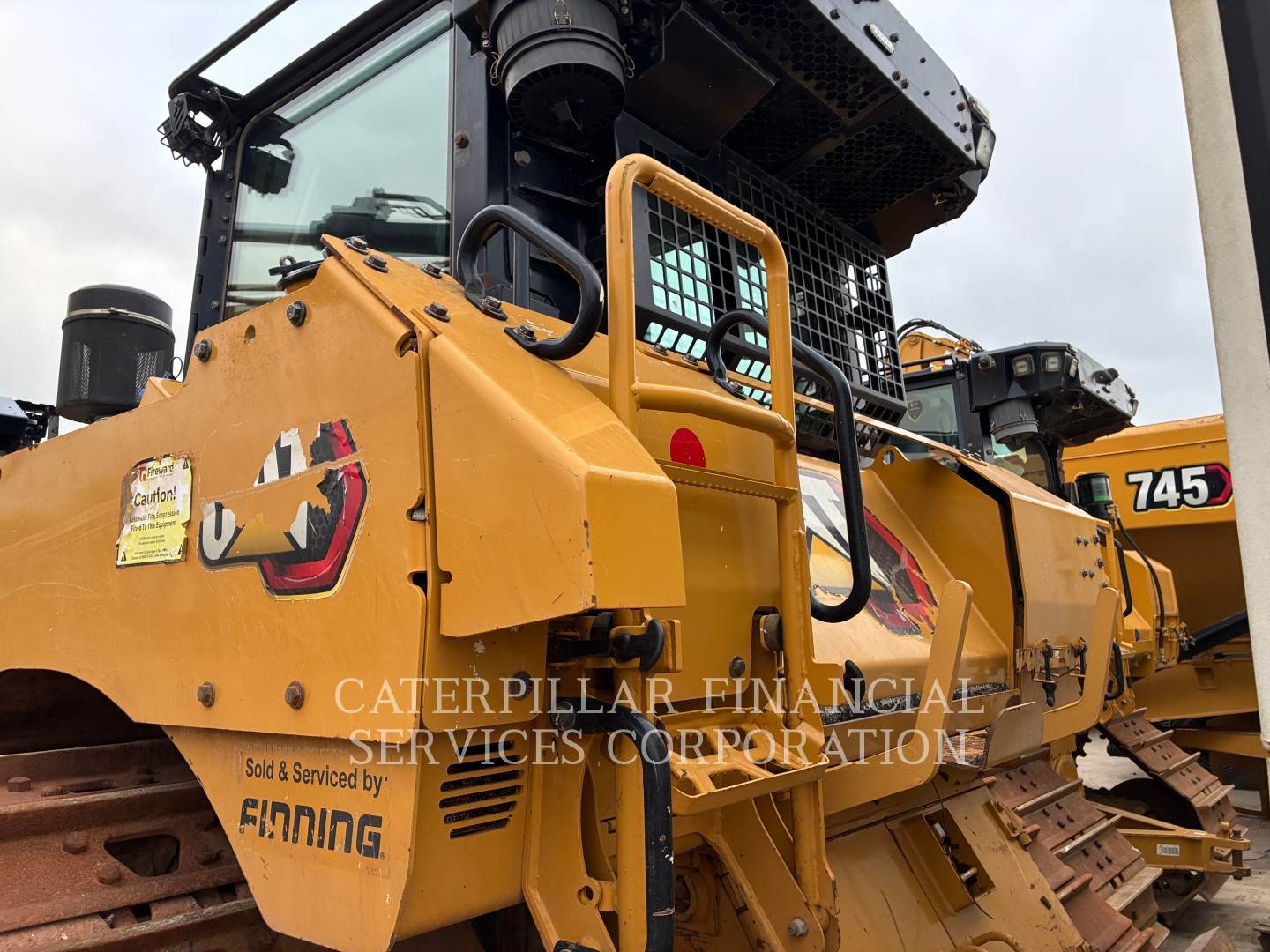

GENERAL APPEARANCE

Cleaning Required	Yes
Notes - GENERAL APPEARANCE	Poor cosmetically.
Battery Box	Poor
Cab or Canopy	Fair
Decals	Poor
Draw Bar	Poor
Engine Enclosures	Poor
Fenders	Fair
Fuel Tank	Good
Grab Irons	Good
Guards	Good
Hard Nose P&B	Fair
Hood	Good
Paint	Poor
Radiator Grill	Good
Sheet Metal	Fair

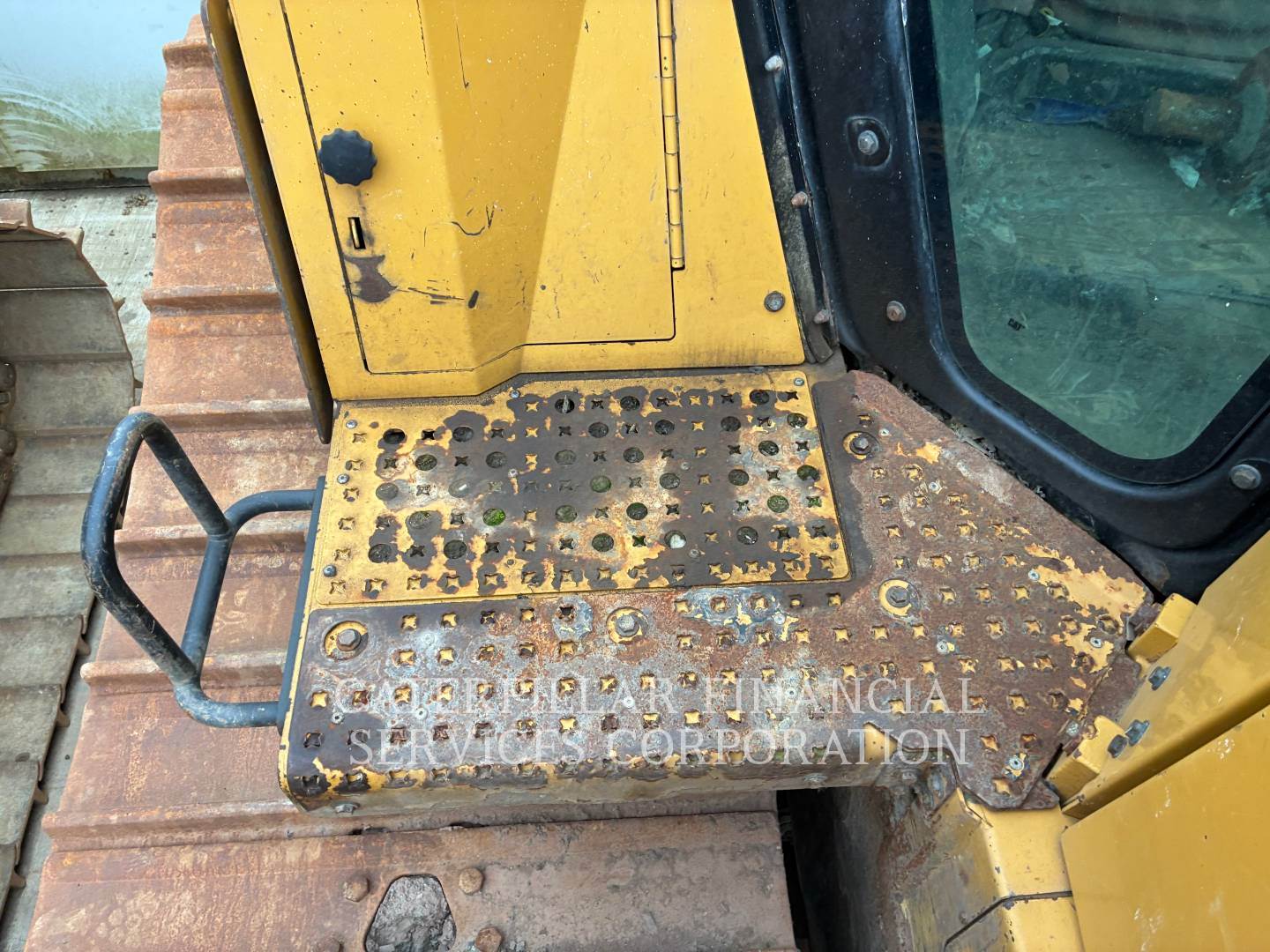

Steps / Ladder	Good
Transmission Guard	Poor

SAFETY ITEMS

ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
Notes - SAFETY ITEMS	Brakes not tested due to location and undercarriage condition.
Camera(s)	Good
Fire Extinguisher	Poor
Fire Suppression System	Poor
Horn	Good
ROPS	Good
Seat Belt / Date	Poor

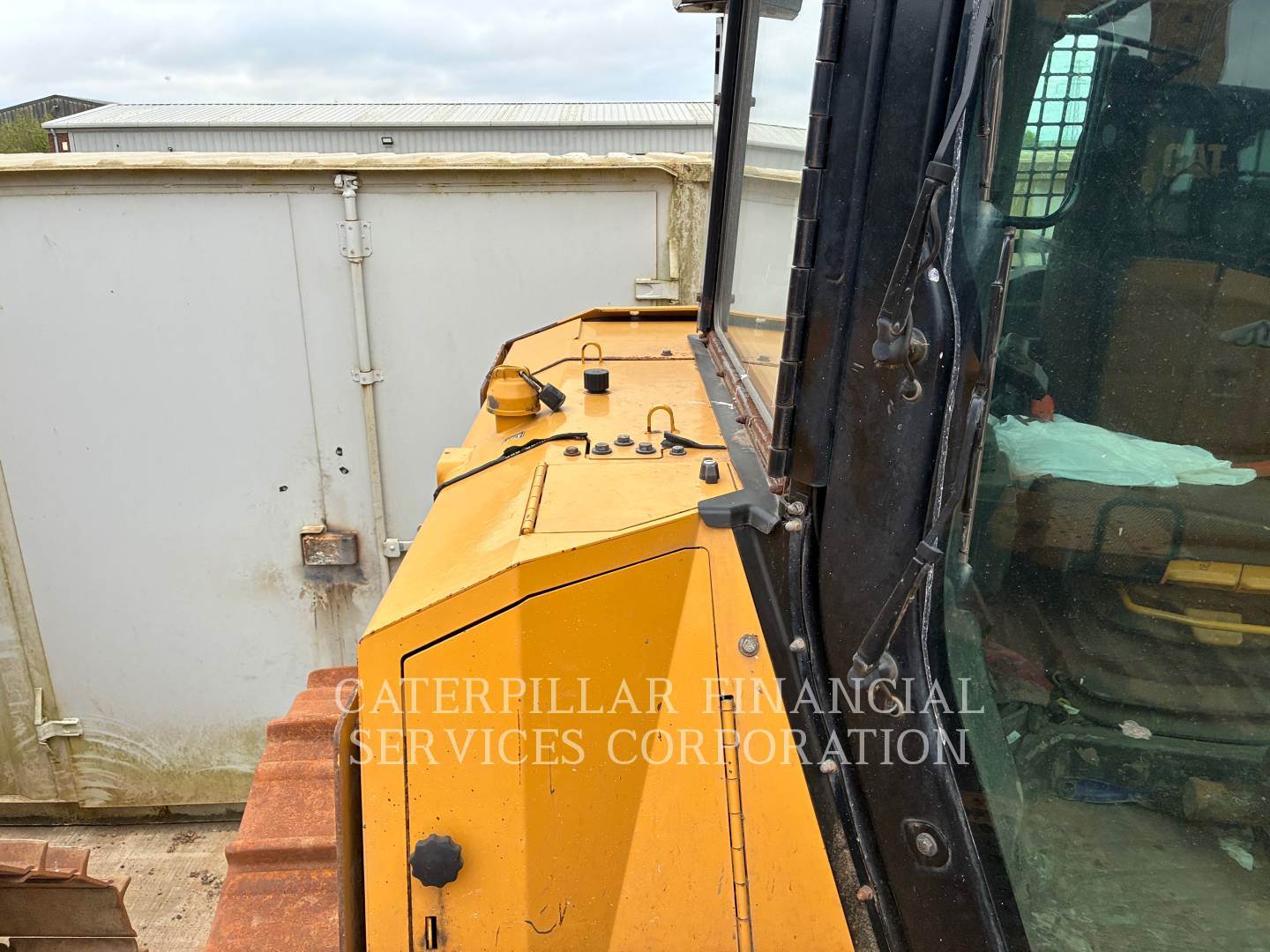

OPERATOR STATION

Current O&MM	Yes
Notes - GAUGES, OPERATOR STATION, CONSOLE	Cab area needs a good wash and valet .
Air Conditioner	Good
Armrests	Good
Cab Filter / Heat Vent Louvres	Good
Dash Console	Good
Door Latches / Hinges / Seals	Poor
Floor Boards / Mats	Good
Gauges	Good
Headliner	Poor
Heater / Defroster	Poor

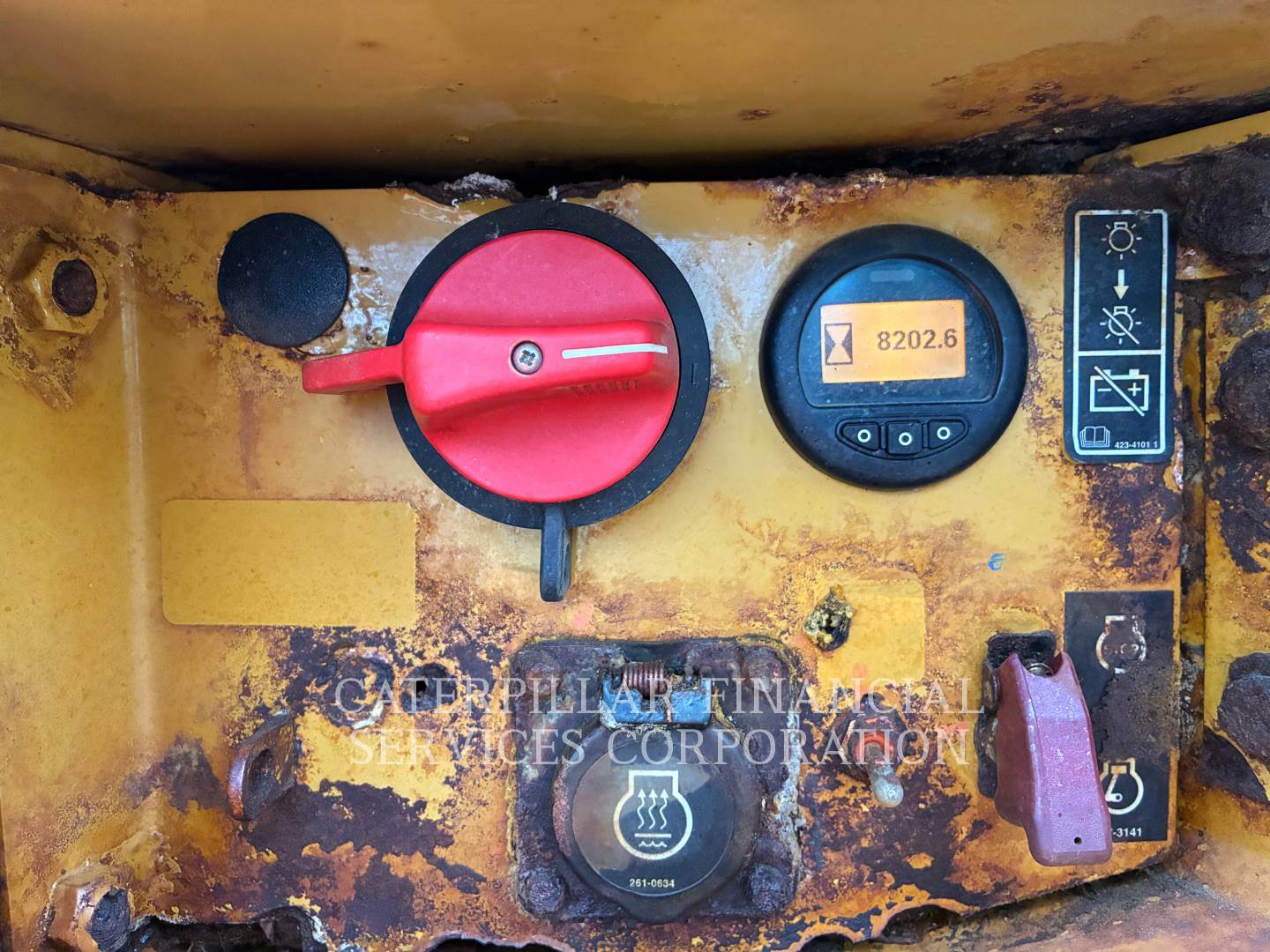

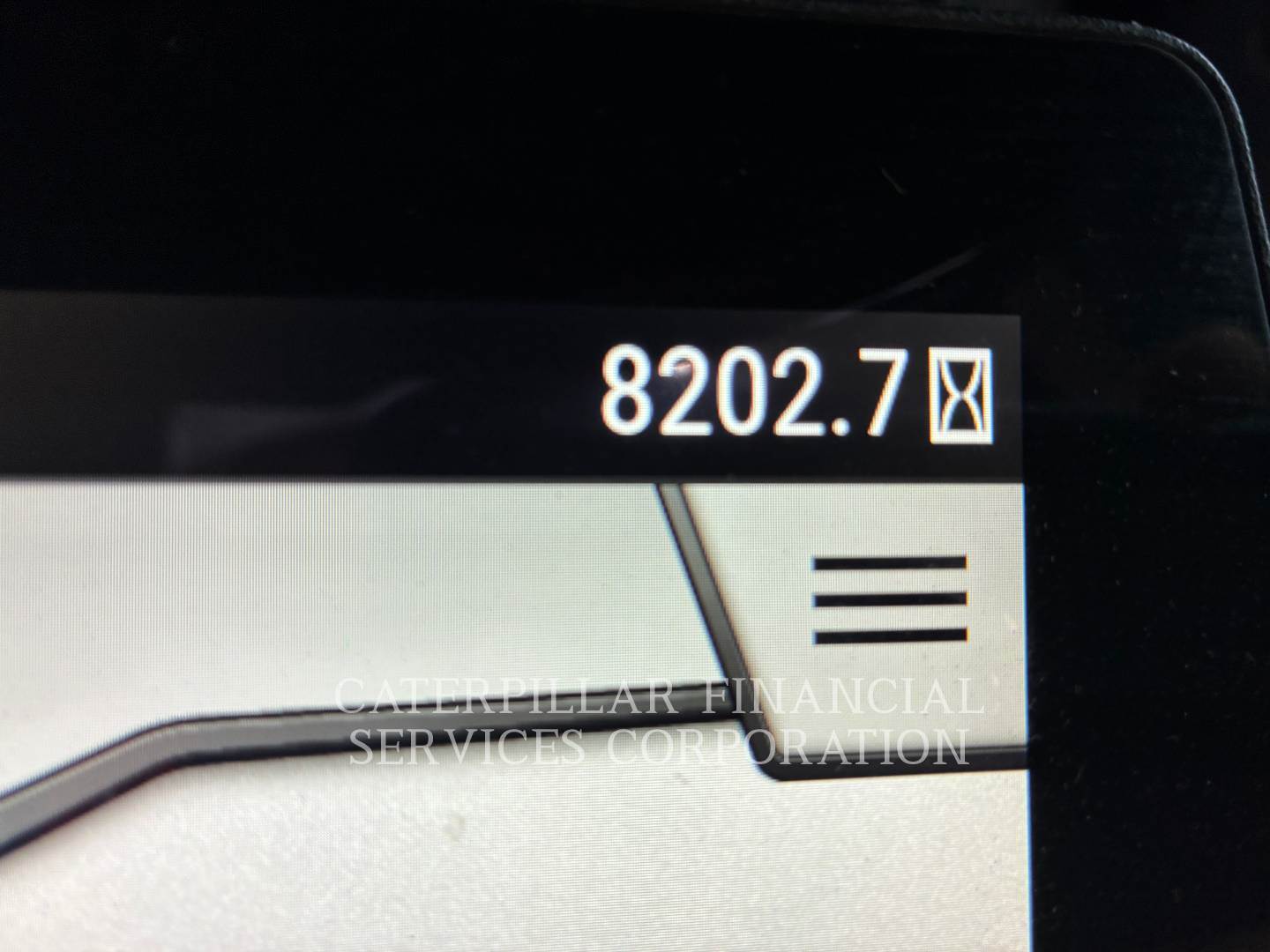

Hour Meter - GAUGES, OPERATION STATION, CONSOLE	Good
Hydraulic Controls	Good
Interior Lights	Good
Interior Plastic / Fabric	Fair
Monitoring Display	Good
Radio	Good
Seat Cushions / Suspension / Type	Good
Switches	Good
Windows	Good
Windshield Wipers	Poor

ENGINE

Apparent Other Engine Damage	No

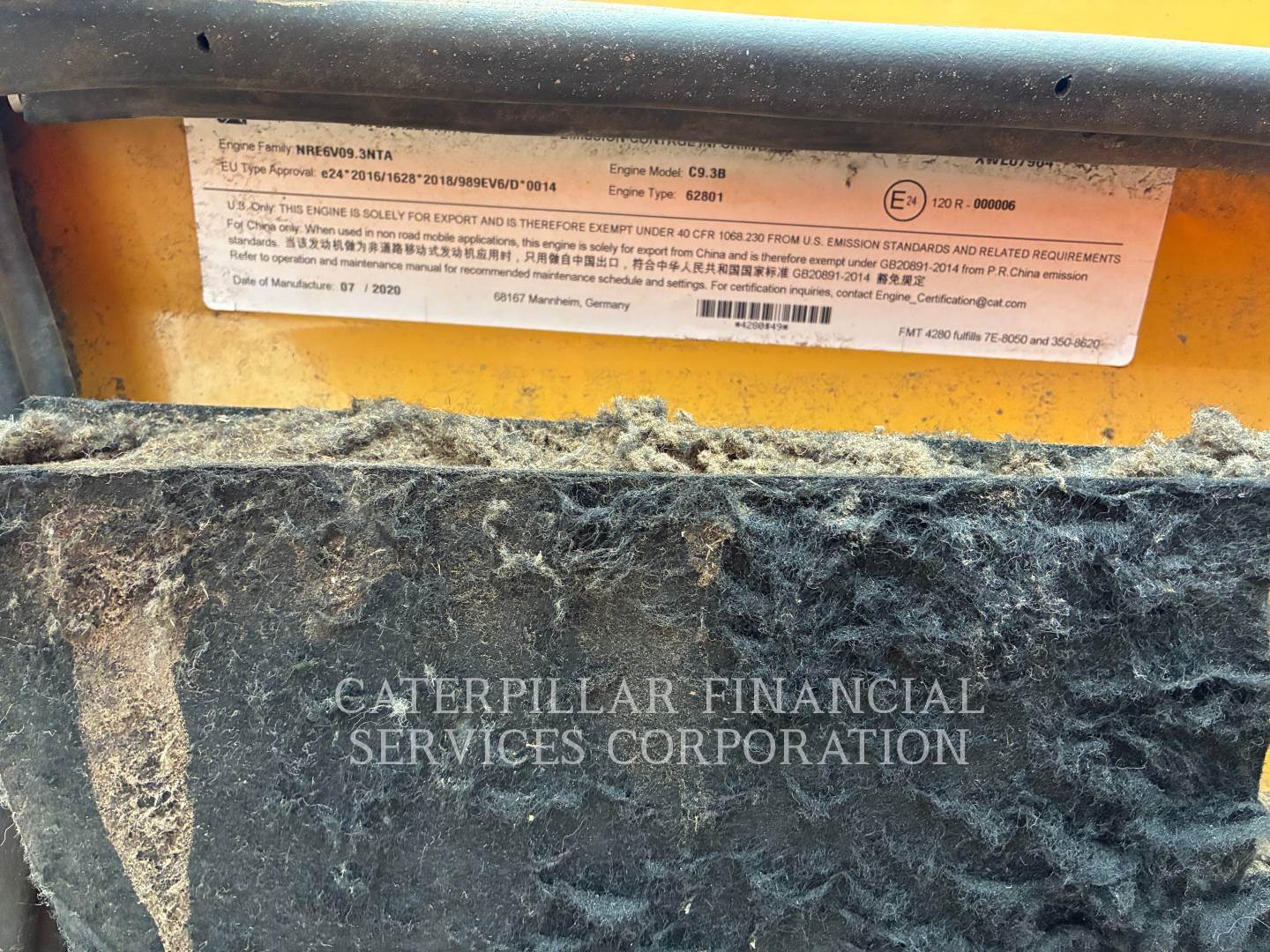

Emissions Decal Legible	Yes
Fuel Leaks	No
Has Engine been rebuilt?	No
Knocking	No
Oil Leaks	Yes
Service Needed	Yes
Water in Oil	No

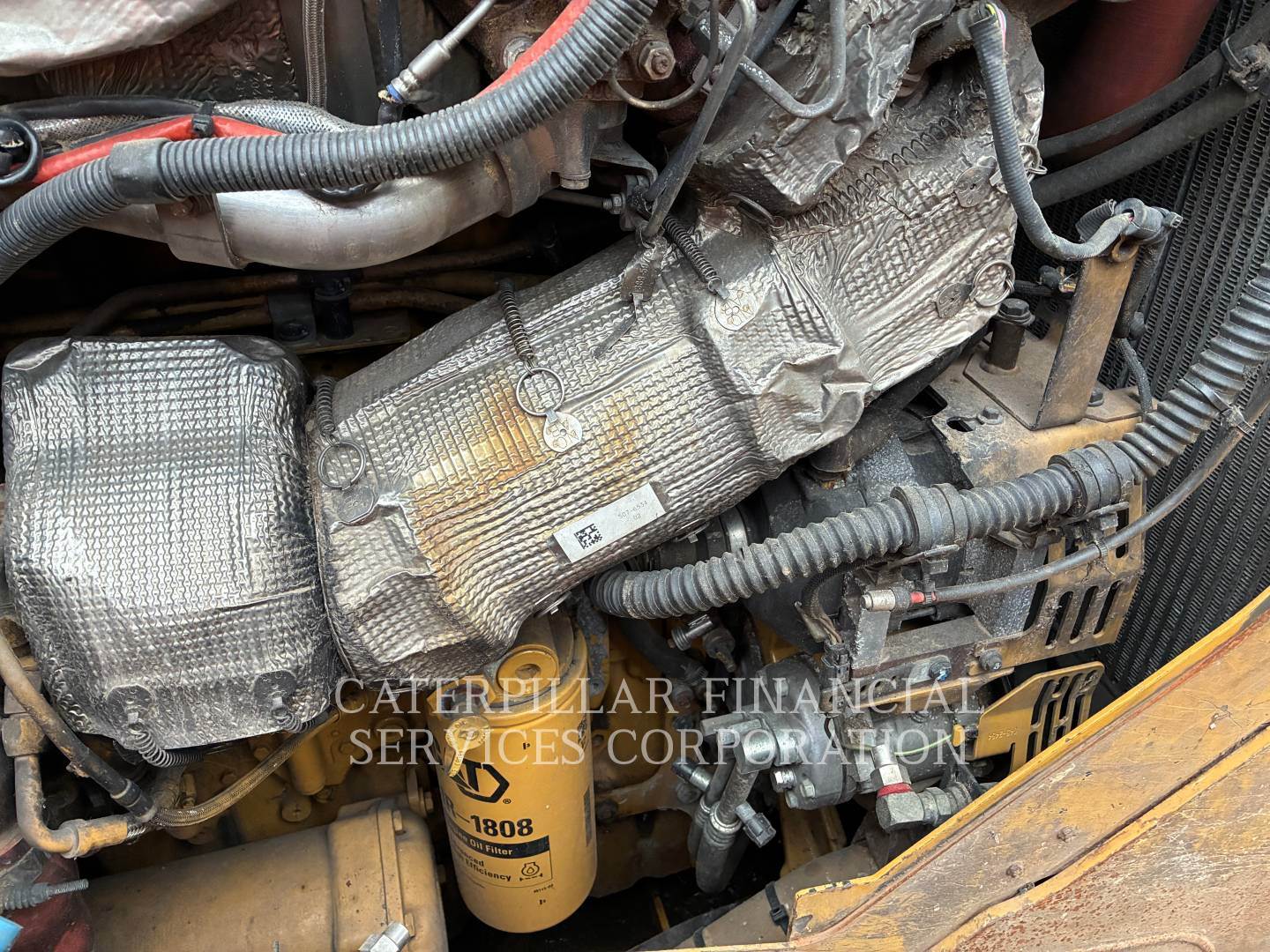

Notes - ENGINE	Engine starts and runs with no knocking heard. belly guards need dropping and steam cleaning underneath to confirm where oil is comming from.
Belts / Pulleys - ENGINE	Good
Engine Oil Level / Condition	Good

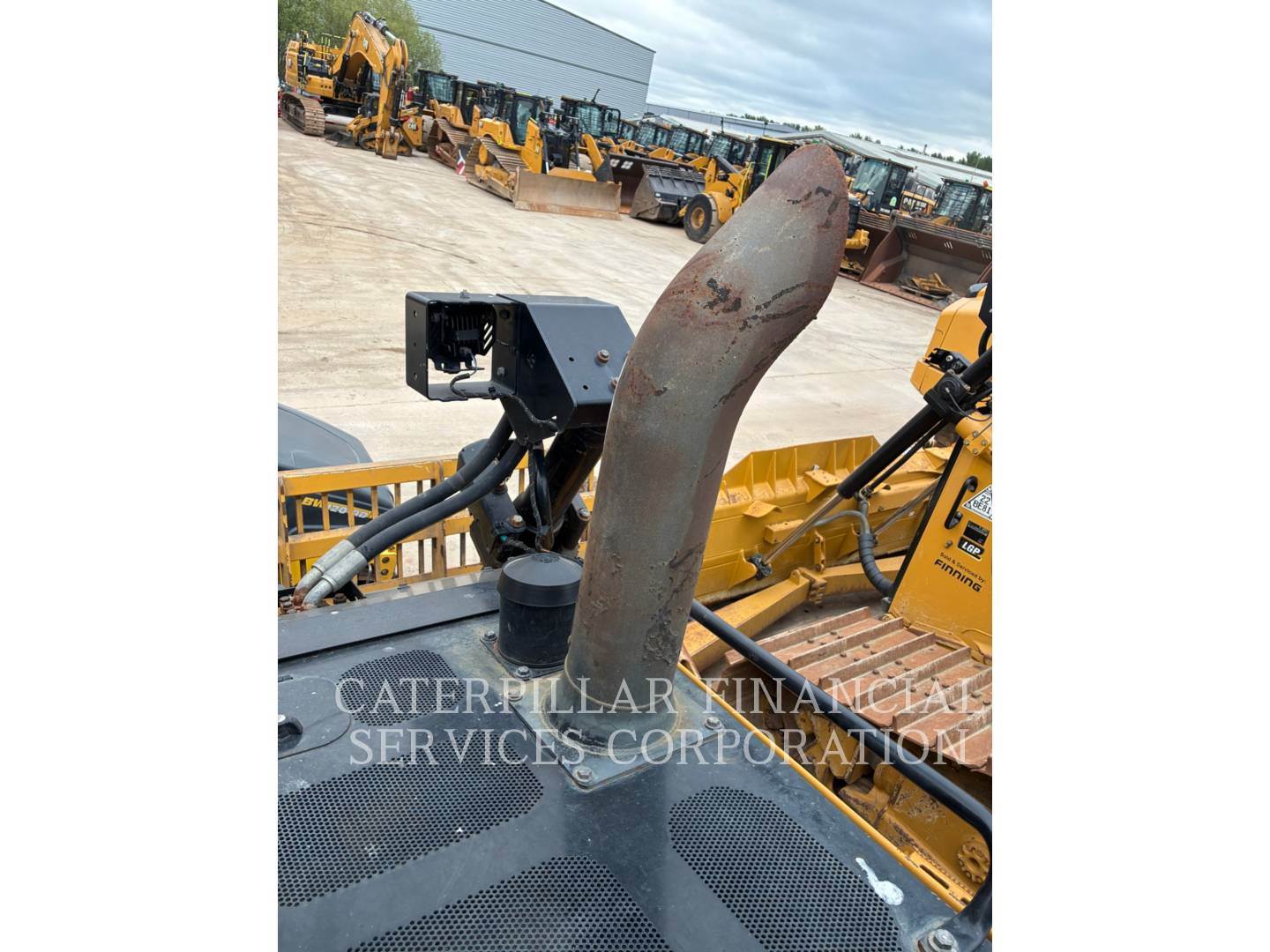

Exhaust / Muffler / Stack	Fair

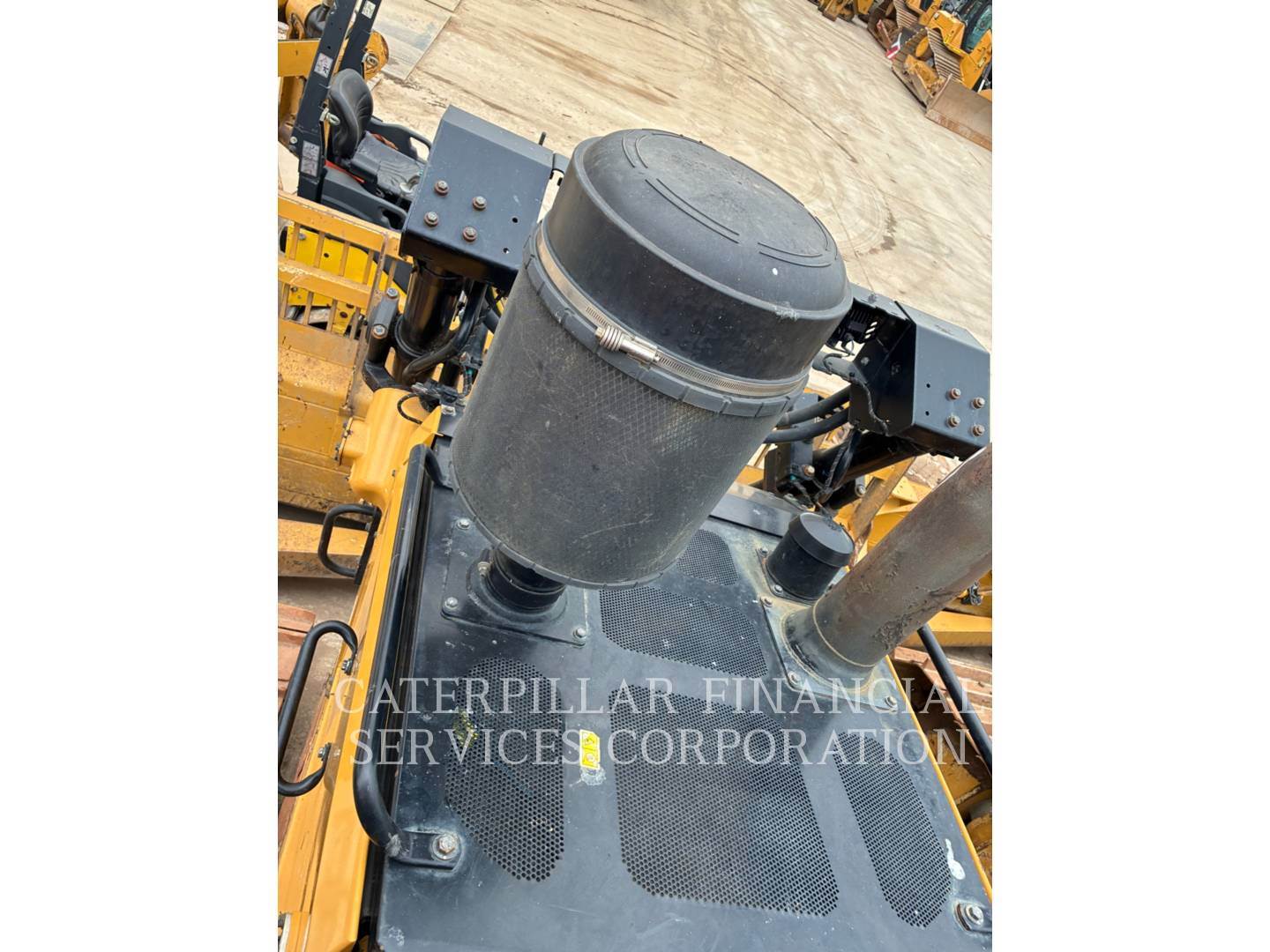

Intake / Air Filters	Poor
Operating Condition - ENGINE	Good

EMISSIONS

Aftertreatment System Codes	No
Leaks / Type	No
Notes - EMISSIONS	No leaks seen with the aftertreatment and no active fault codes on PSRPT.

COOLING SYSTEM

Notes - COOLING SYSTEM	Coolant looks a bit weak for ELC strength...Some hoses need replacing See TA1.
Anti-Freeze Level / Color / Condition	Fair
Belts / Pulleys - COOLING SYSTEM	Good
Fan	Good
Fan Shrouds / Guards	Good
Hoses / Tubes	Poor
Radiator	Good
Water Pump	Good

ELECTRICAL, STARTING AND CHARGING SYSTEM

Active Codes	No
Alternator	Good
Batteries / Cables	Good
Product Link / Condition	Good
Starter	Good

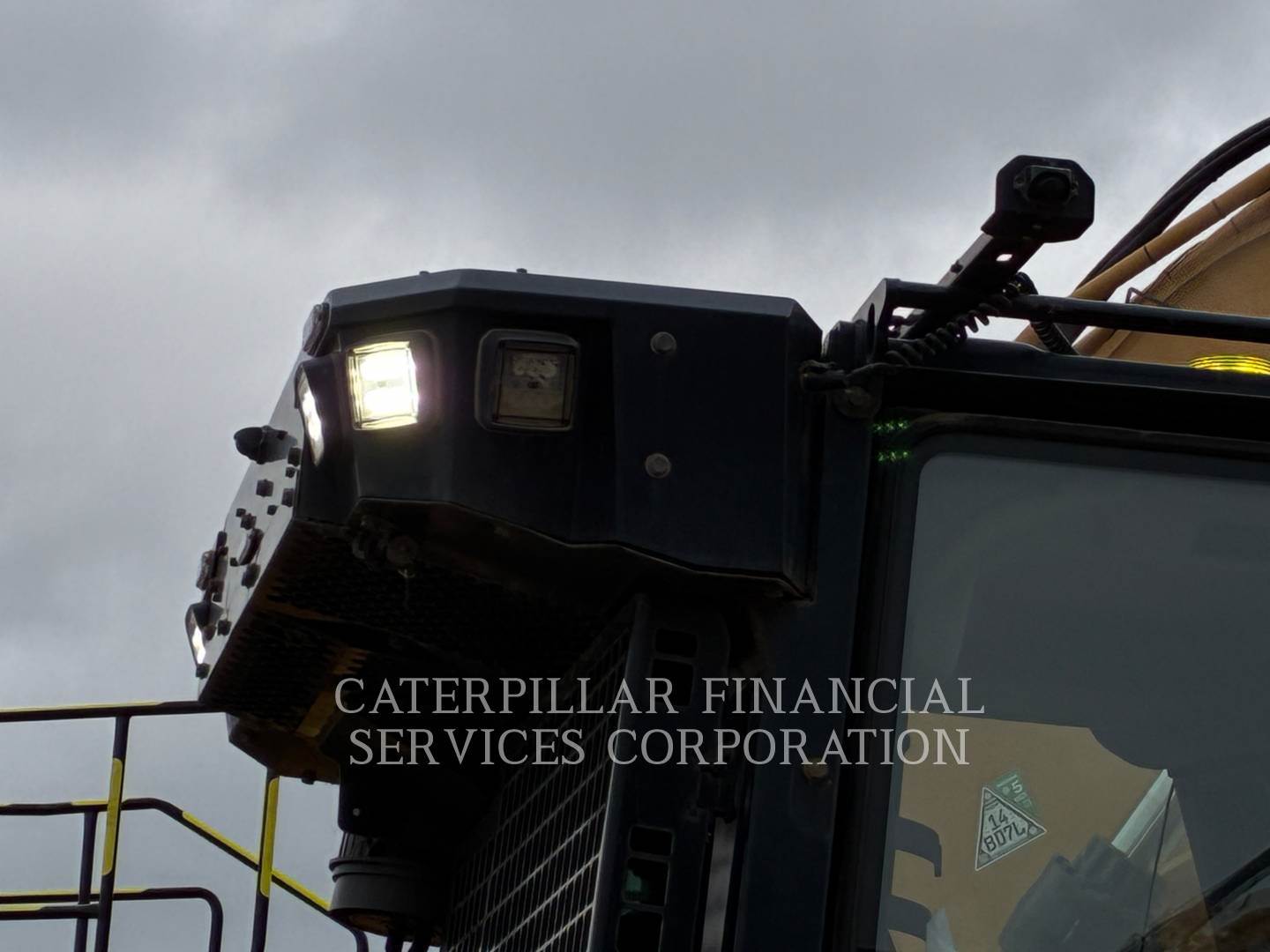

Work Lights	Poor

TRANSMISSION

Leaks - TRANSMISSION	No
Notes - TRANSMISSION	Machine not driven due conditions and undercarriage condition.

HYDRAULICS

Leaks - HYDRAULICS	No
Notes - HYDRAULICS	Hydraulics work as expected but no level seen.
Angle Cylinder	Poor
Hose Lines	Poor
Hydraulic Valves	Good
Lift Cylinders	Poor
Mounts / Yokes	Poor
Overall Operating Condition	Good
Pumps	Good
Tank / Sight Glass / Cap	Poor

BLADE

Notes - BLADE	Blade in a fair overall condition with no damage but trunnion's are in need of shimming out. Cutting edge due replacing.
Back of Blade	Good
Cutting Edge & Bits	Poor
Face / Moldboard	Good
Push Arm	Good
Spill Rack	Good
Stabilizer Link	Poor
Trunnions	Poor

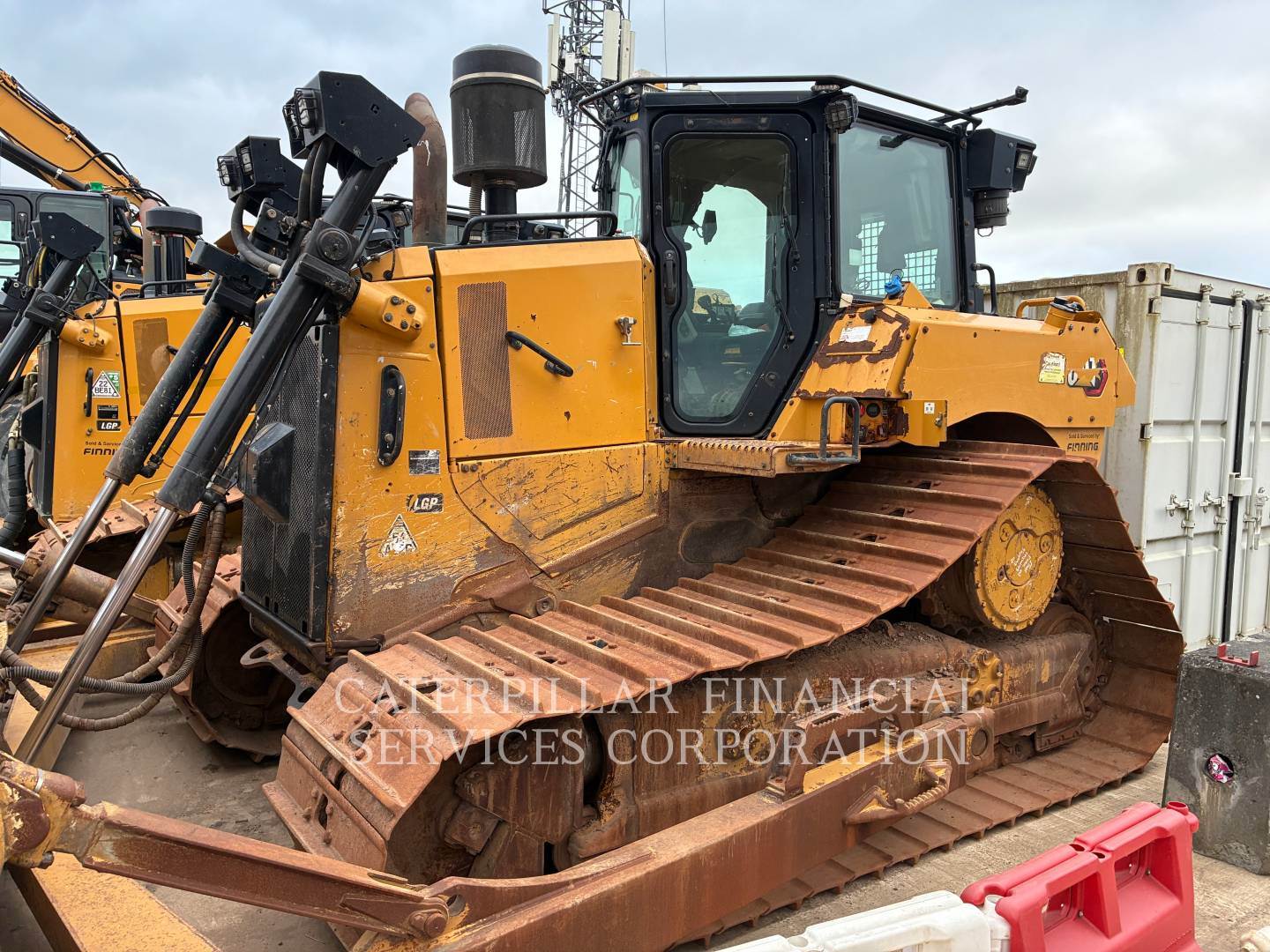

UNDERCARRIAGE

Average Life Remaining - UNDERCARRIAGE	I have added the last track inspection above to this report as a guide.
Bottom Rollers	Bottom rollers are approx 71% worn.
Cannon / Track Adjuster	Cannons appear to be weeping and are quite far out so the internal bushings may be worn.
Carrier Rollers	Carrier roller ripped off.
Equalizer Bar	Equalizer bar has excessive play.
Idlers / Type	Idlers are approx 24% worn.
Link / Brand / Part Number	The links are approx 78% worn.
Notes - UNDERCARRIAGE	Undercarriage needs disassembly to fully inspect for damage to track frame.
Notes - UNDERCARRIAGE 1	Having taken some more measurements I estimate the undercarriage to have 29% wear remaining overall at this time.
Notes - UNDERCARRIAGE 2	The L/H carrier roller has been ripped off so will need the mounting replaced and undercarriage inspecting for consequential damage caused once undercarriage has been dissasembled.
Pins & Bushings (External)	Bushings are approx 76% worn.
Segments	Segments are well over due replacing.
Track Frame - Left	Poor
Bushings (EXT)
Left	9.4 / 56% Worn
Right	10.4 / 48% Worn
Carrier Rollers
Left	189 / 40% Worn
Right	192 / 28% Worn
Frame Extension
Left	110.0 / 0% Worn
Right	115.0 / 0% Worn
Idlers Front
Left	27 / 24% Worn
Right	27 / 24% Worn
Idlers Rear
Left	28 / 32% Worn
Right	26 / 16% Worn
Links
Left	35.2 / 60% Worn
Right	34.8 / 64% Worn
Shoe Width
Left	915.0 / 0% Worn
Right	915.0 / 0% Worn
Sprocket Segments
Left	205 / 93% Worn
Right	207 / 85% Worn
Track Roller 1
Left	36.2 / 65% Worn
Right	37.3 / 61% Worn
Track Roller 2
Left	40.5 / 43% Worn
Right	40.1 / 45% Worn
Track Roller 3
Left	40.6 / 42% Worn
Right	39.9 / 46% Worn
Track Roller 5
Left	39.6 / 48% Worn
Right	38.8 / 52% Worn
Track Roller 6
Left	39.7 / 48% Worn
Right	38.8 / 52% Worn
Track Roller 7
Left	40 / 46% Worn
Right	39.3 / 49% Worn
Track Roller 8
Left	36 / 66% Worn
Right	34.6 / 72% Worn
Track Shoes
Left	65.9 / 58% Worn
Right	64.6 / 61% Worn

FINAL DRIVES

Magnetic Plugs Removed & Checked?	No
Notes - FINAL DRIVES	Oil needs topping up mentioned on TA1.
Housings, Left	Good
Planetaries / Differential, Right	Poor

COMMENTS, MISC. REPAIRS, GENERAL REMARKS

comment 1	Machine in poor cosmetic condition with some damage and rust around also decals missing . Could do with respray and new decals.
comment 2	Undercarriage is poor with the carrier roller ripped off and equalizer bar having excessive play. Also the cannons are weeping. L/H track frame needs stripping and checking for consequential damage caused from the carrier roller being ripped off.
comment 3	TA1 with 38 reds added to this report as machine hasn't been worked since then.
comment 4	The blade trunnions and balls need reshimming as there's to much play. Also the tilt cylinder and Bracing arm possibly need line boring due to excessive play.

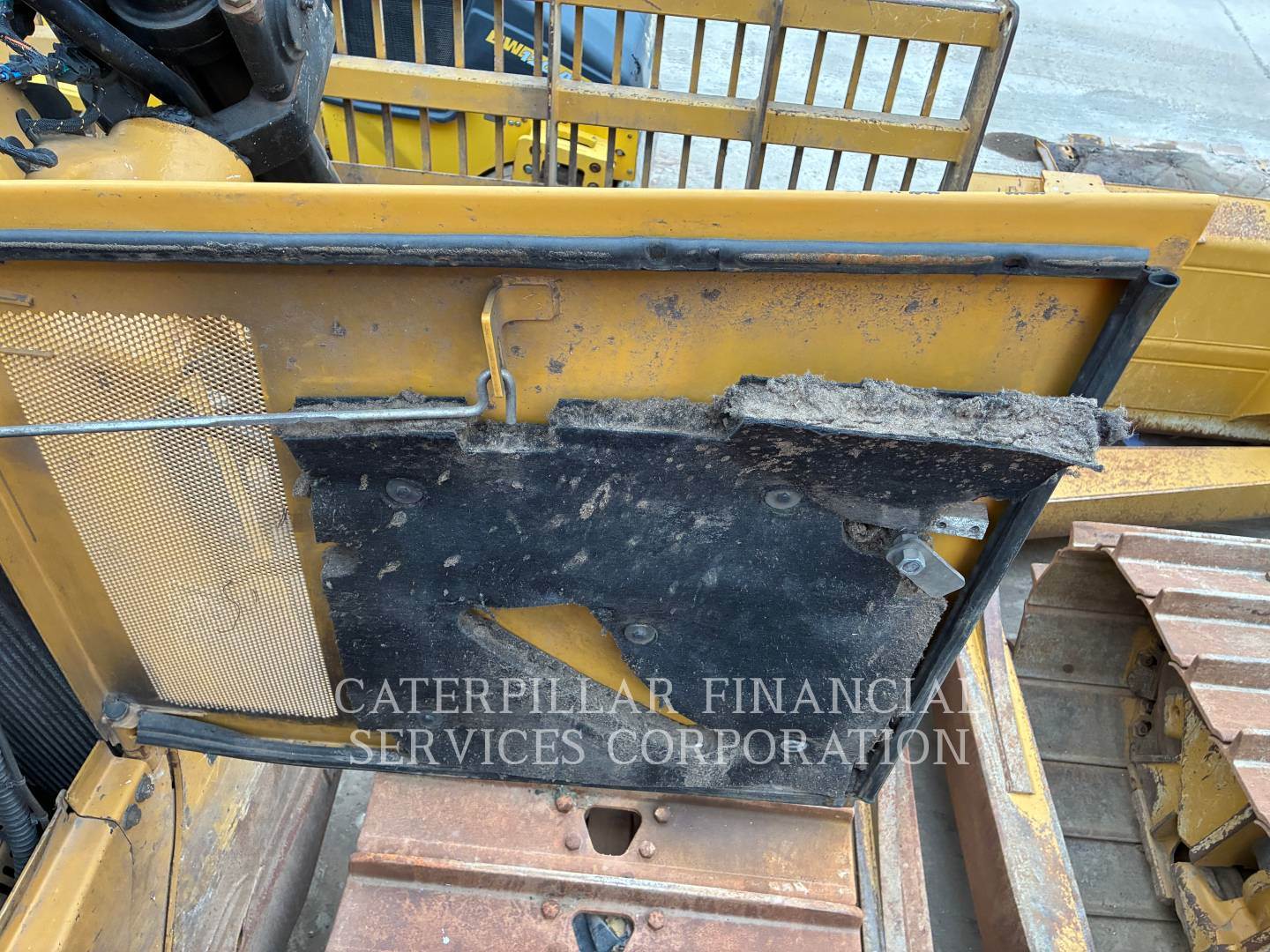

comment 5	There are several doors that have seized shut. The belly guards need removing and underside steam cleaning to find the leaks.
comment 6	There are perished hoses around the blade hydraulics and there is no hyd oil showing in the sight glass so this may indicate a leak.

2020 Caterpillar D6 LGP Dozer

Product Specifications

Product Description

$145,022.81 USD

Located in Winsford, United Kingdom
