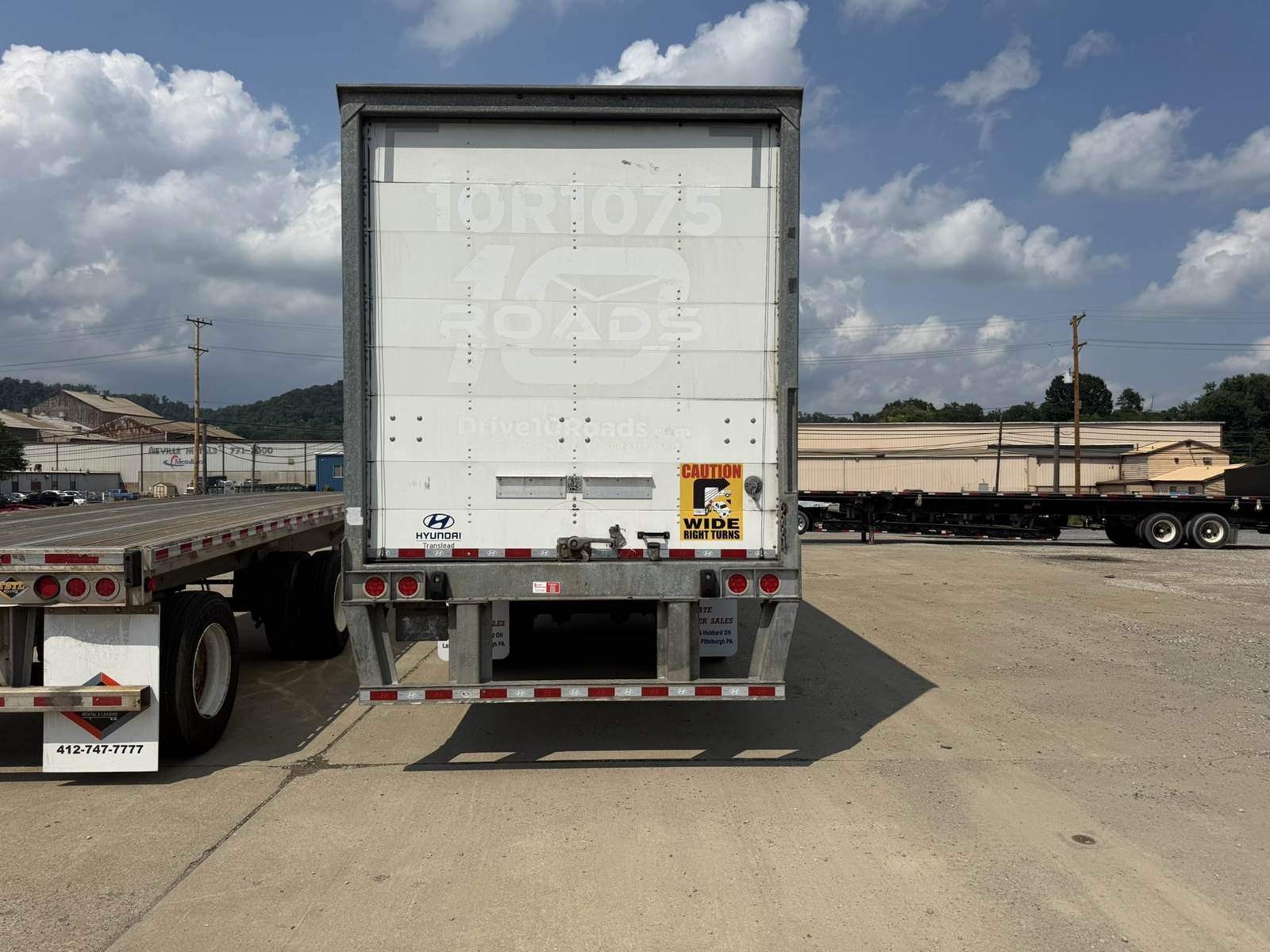

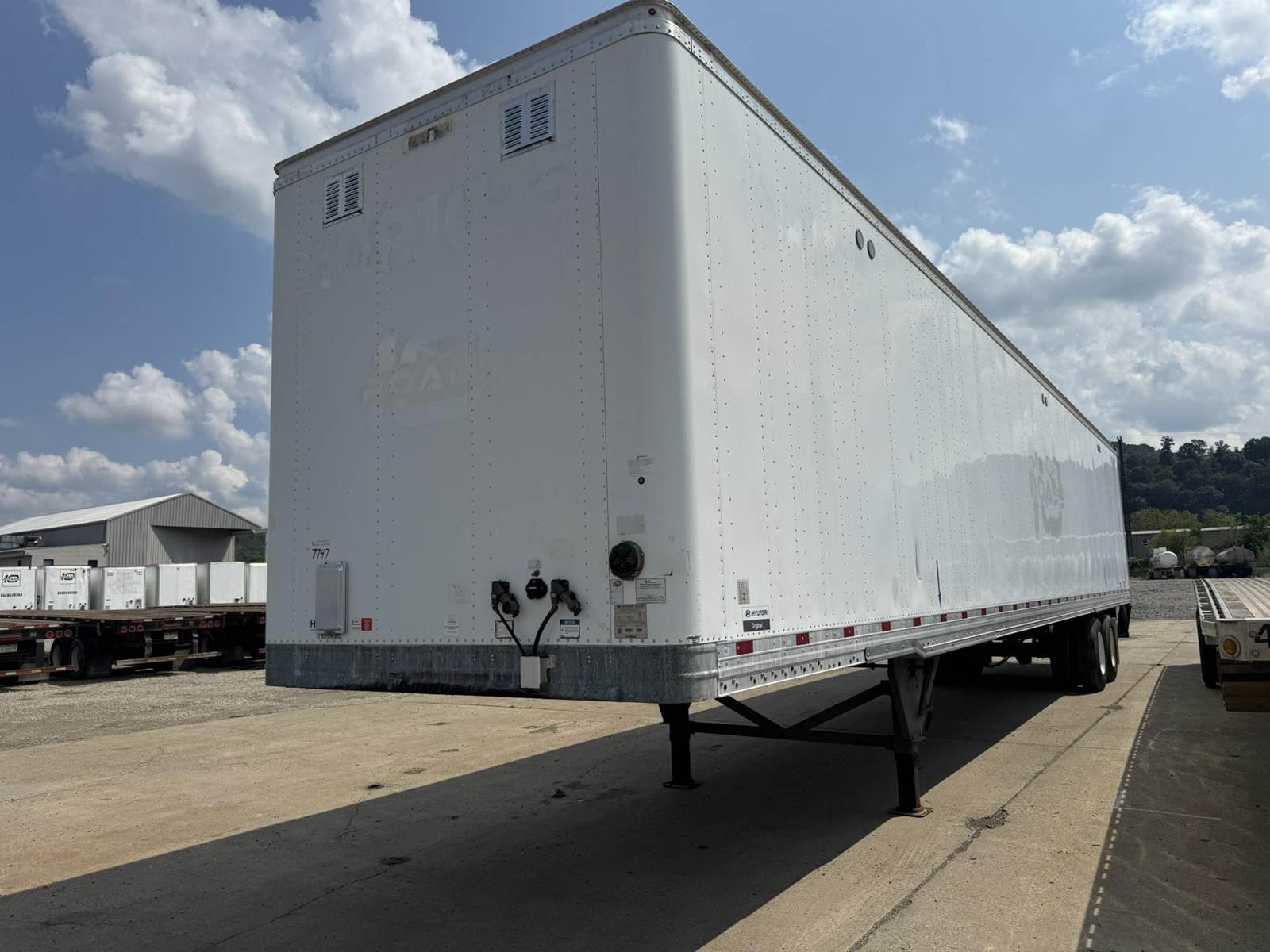

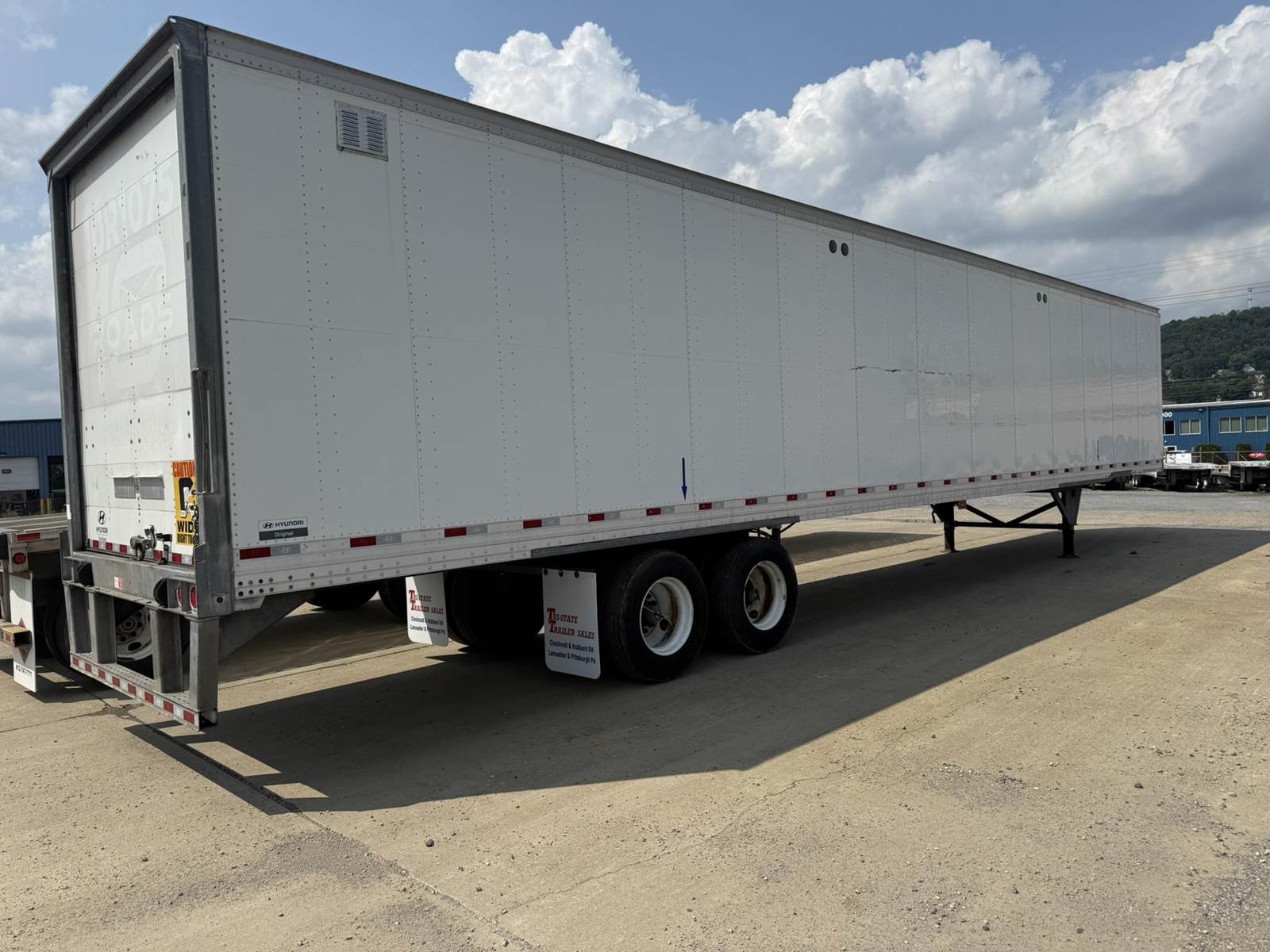

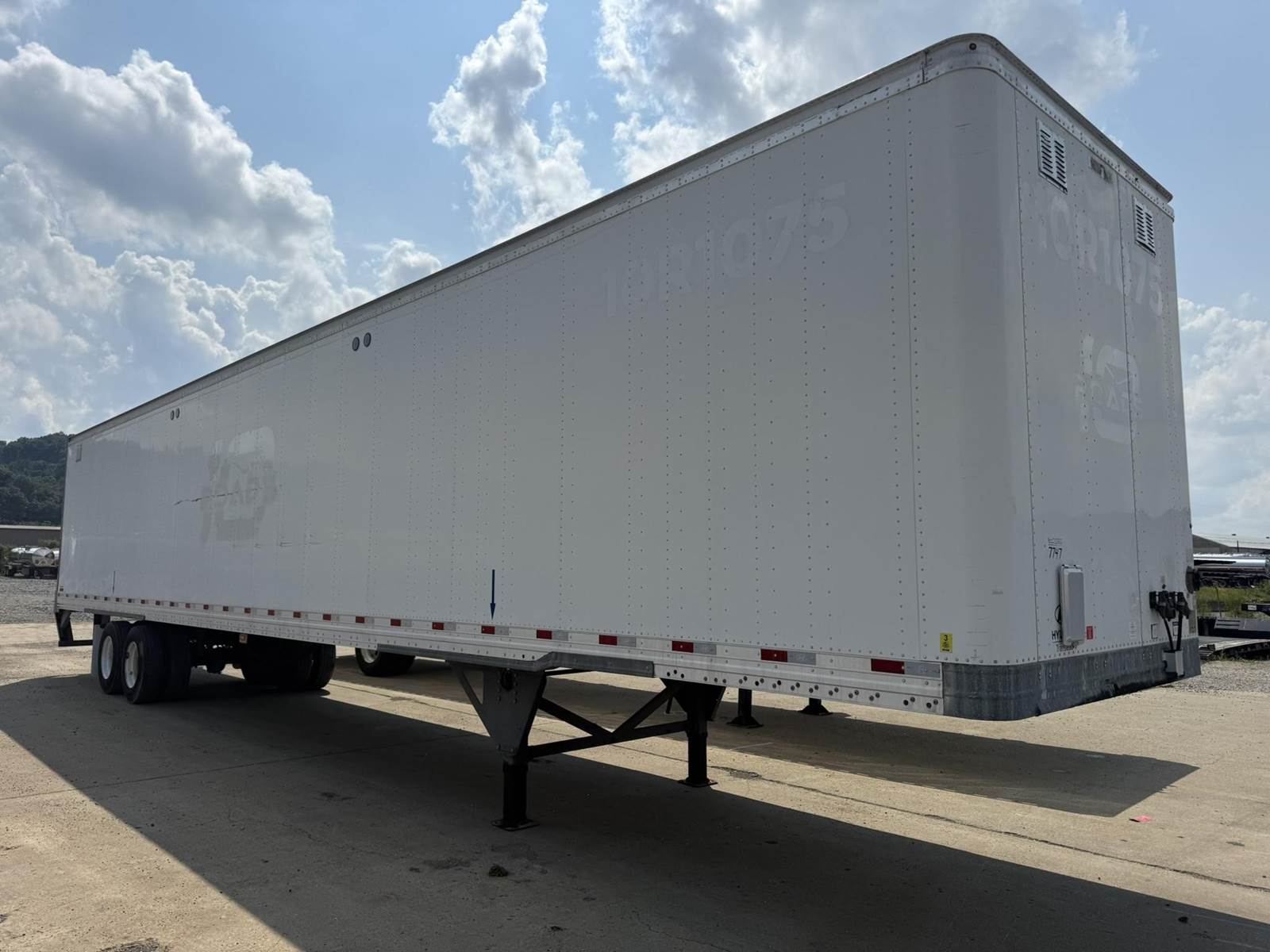

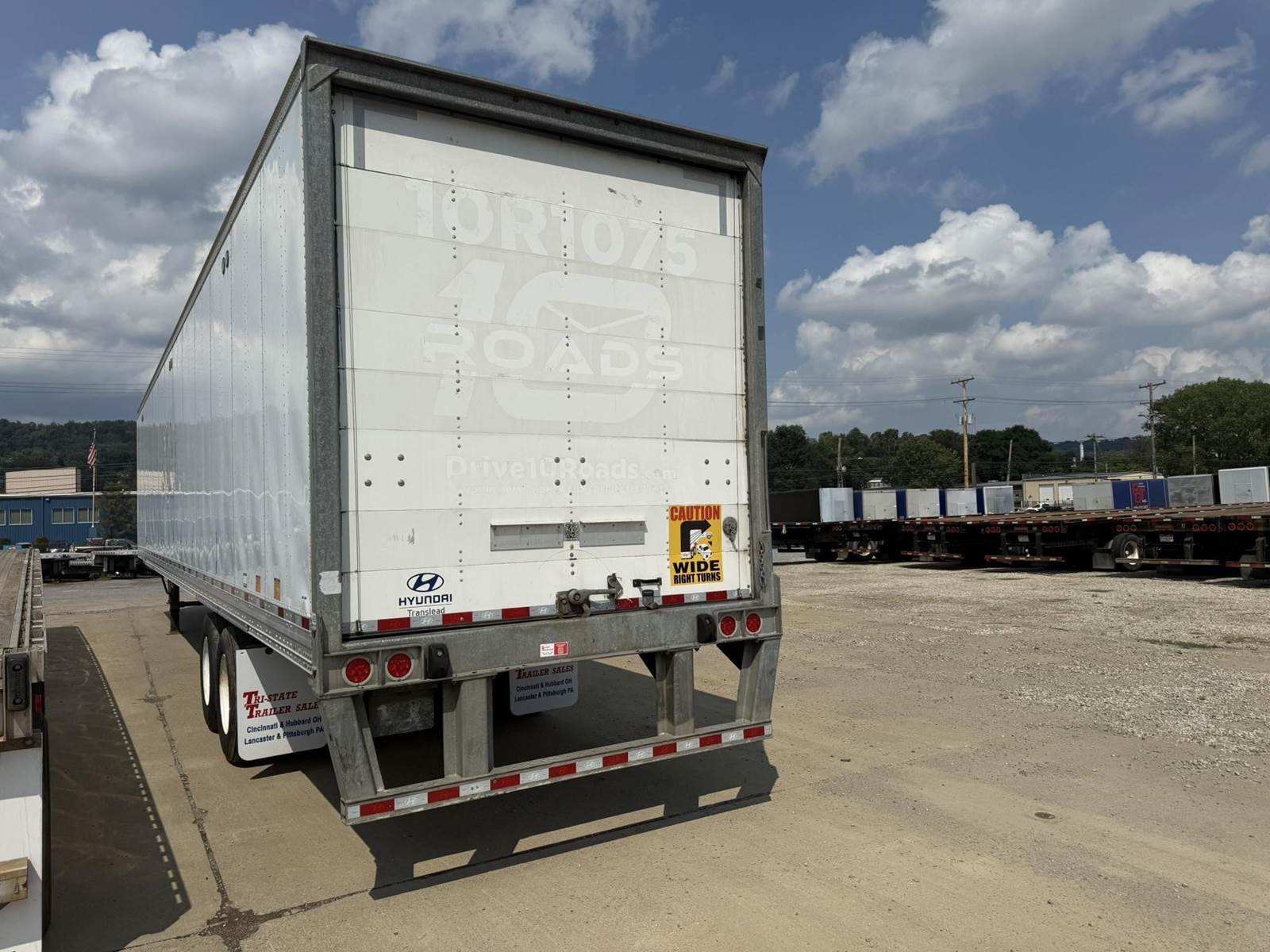

2020 Hyundai 53 ft Dry Van Trailer - Roll up Door, Spring, Sliding Axle

Buyer Activity

Viewed

Not yet

Shared

Not yet

Saved

Not yet

Product Specifications

Year	2020
Category	Dry Van Trailers
Manufacturer	Hyundai
Model	53' ROLL DOOR VAN
Condition	Used
Stock Number	7747
MLS Number	14531992
VIN	3H3V532C0LR999100

Weight & Dimensions

Length	53 ft.
Width	102 in.
Height	158 in.
Internal Height	106 in.
Gross Vehicle Weight	68000 lbs.

Body & Chassis

Door Type	Roll up
Suspension	Spring
Composition	Aluminum
Floor Type	Wood Floor
Roof Type	Aluminum
Lining Type	Plywood
Number of Rear Axles	Tandem Axle
Axle Type	Sliding

Wheels & Brakes

Wheel Type	Steel Disc
Tire Size	LP 22.5
Tire Inflation System	Yes

Addons & Attachments

Liftgate	No
Etrack	Yes
Lift Axle	No
Logistic Posts	No
Mudflaps	Yes
Scale	No
Skirts	No
Threshold Plate	Yes

Additional Details

Insulated	No

Product Description

Length 53'
Width 102"
Height 13'2"
Inspection T-FHWA 7/26
Body

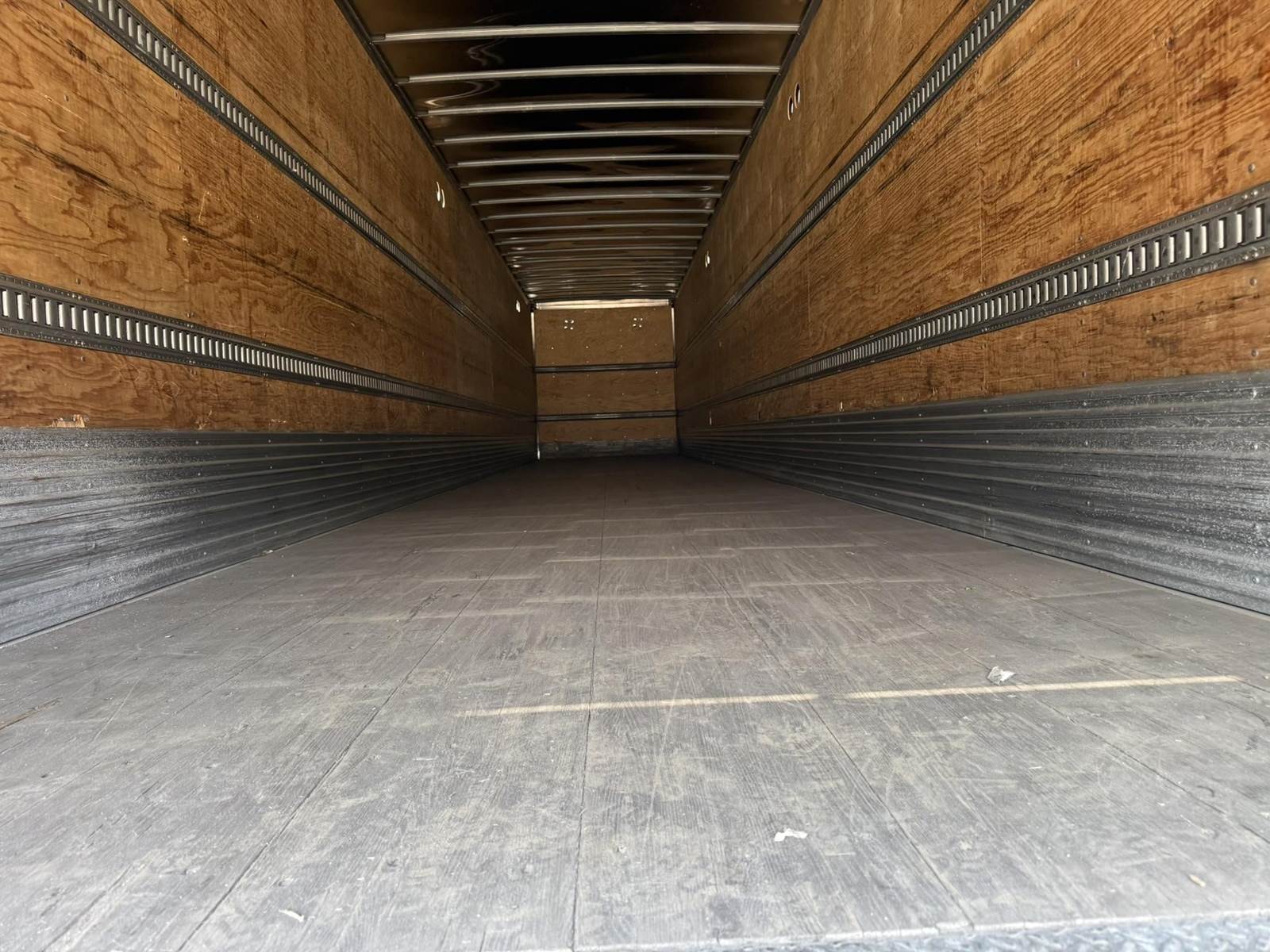

Inside Width 99"
Inside Height 106"
Door Opening 99"
Sides Aluminum
Color White
Type Posts Non Logistic
E-Track 2 Rows - Full Length
Side Scuff 24" Aluminum
Side Lining Plywood
Nose Lining Plywood
Rear Doors Rollup
Roof Aluminum
Vent Doors 2 - Front Nose
Rear Frame Galvanized
Floor/Body
Van Floor Wood
Threshold Plate Steel
Suspension
# of Axles 2
Suspension Type Spring Ride
Suspension Setting 49" Slider
Tire Size 22.5 LP
Wheels Steel - Hub Pilot
Tire % 40%
Brake % 35%
UnderFrame
King Pin Setting 36"
5th Wheel Condition Good
Cross Member Center 12"
Landing Gear Two Speed
