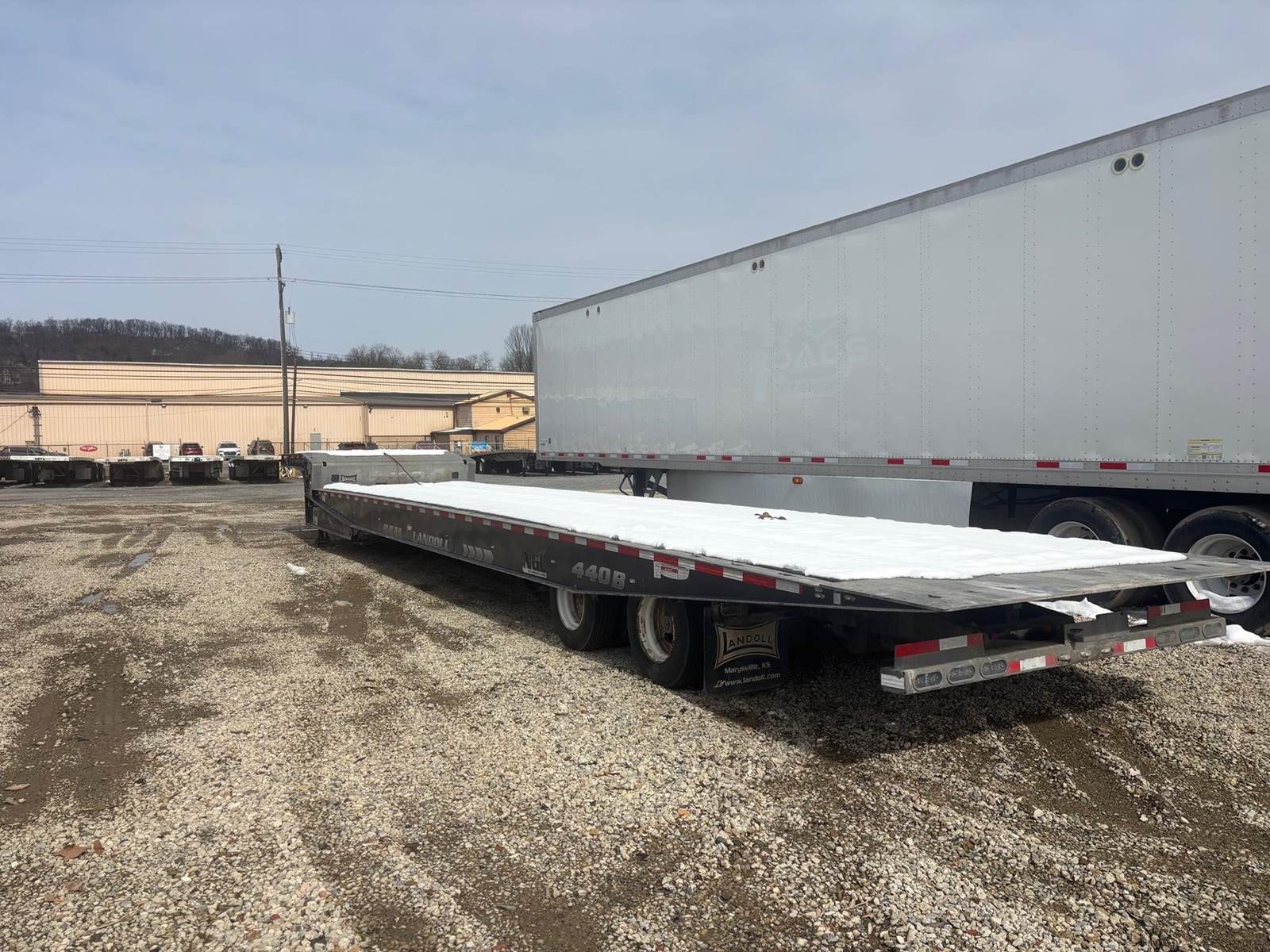

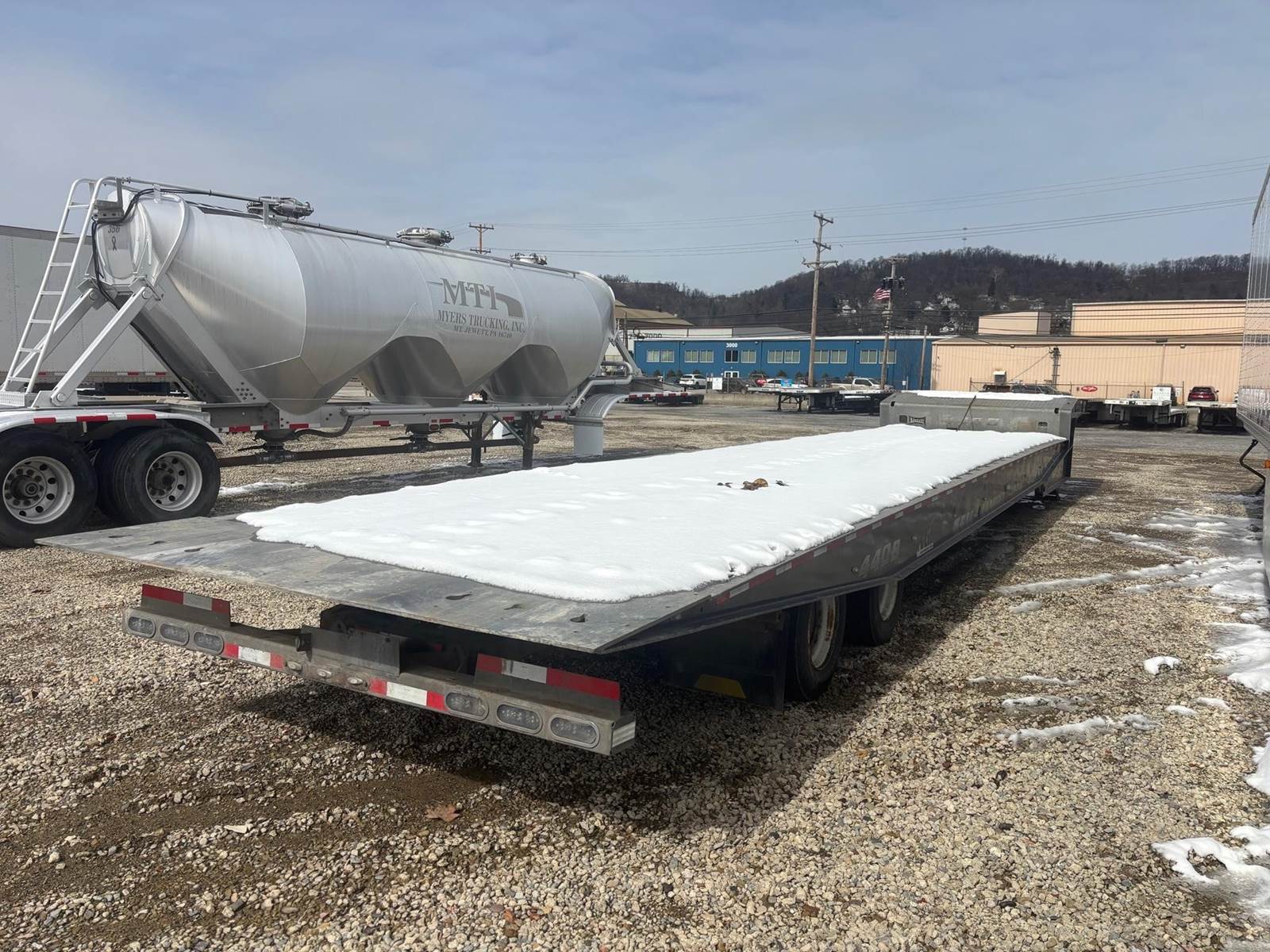

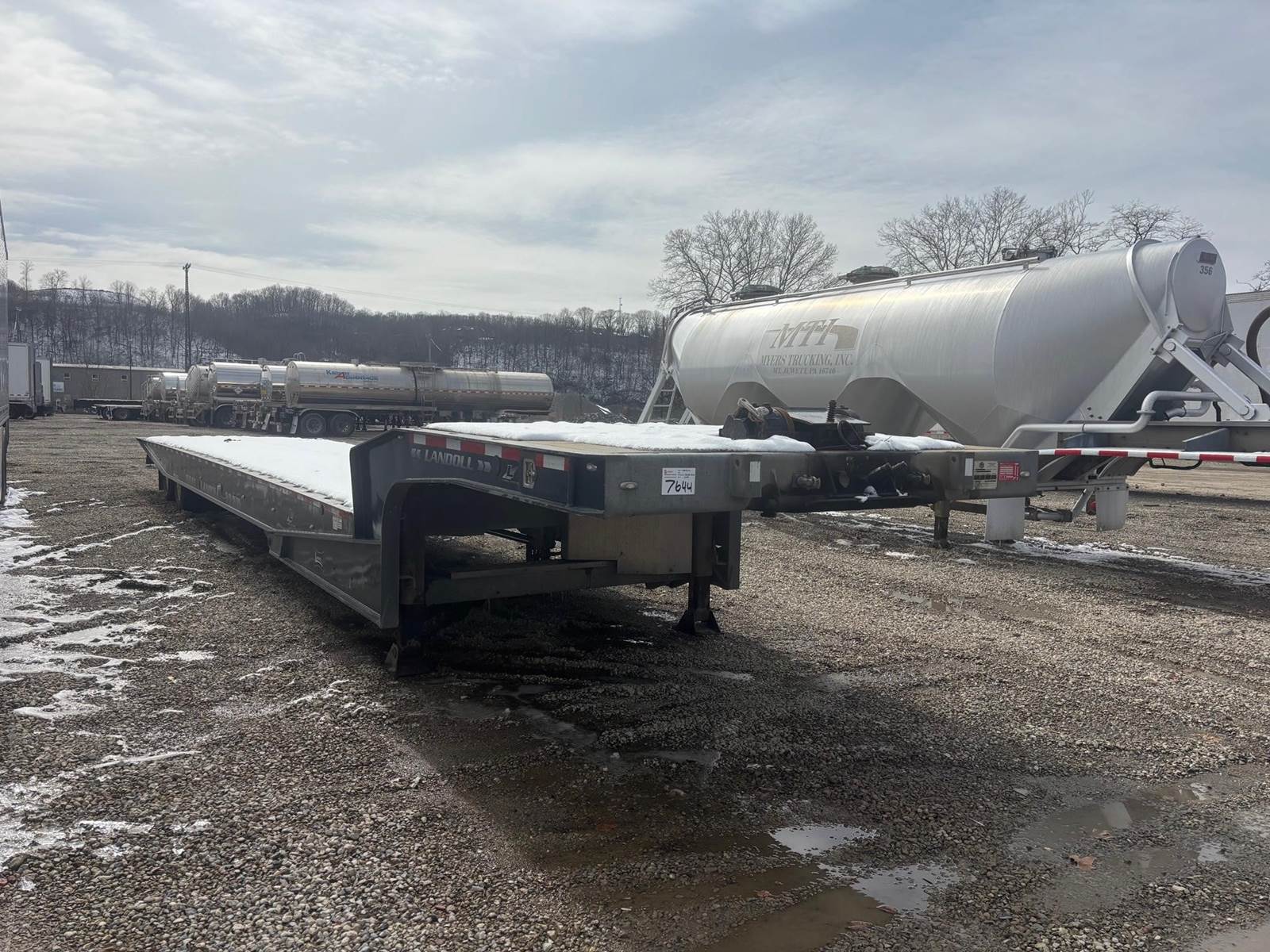

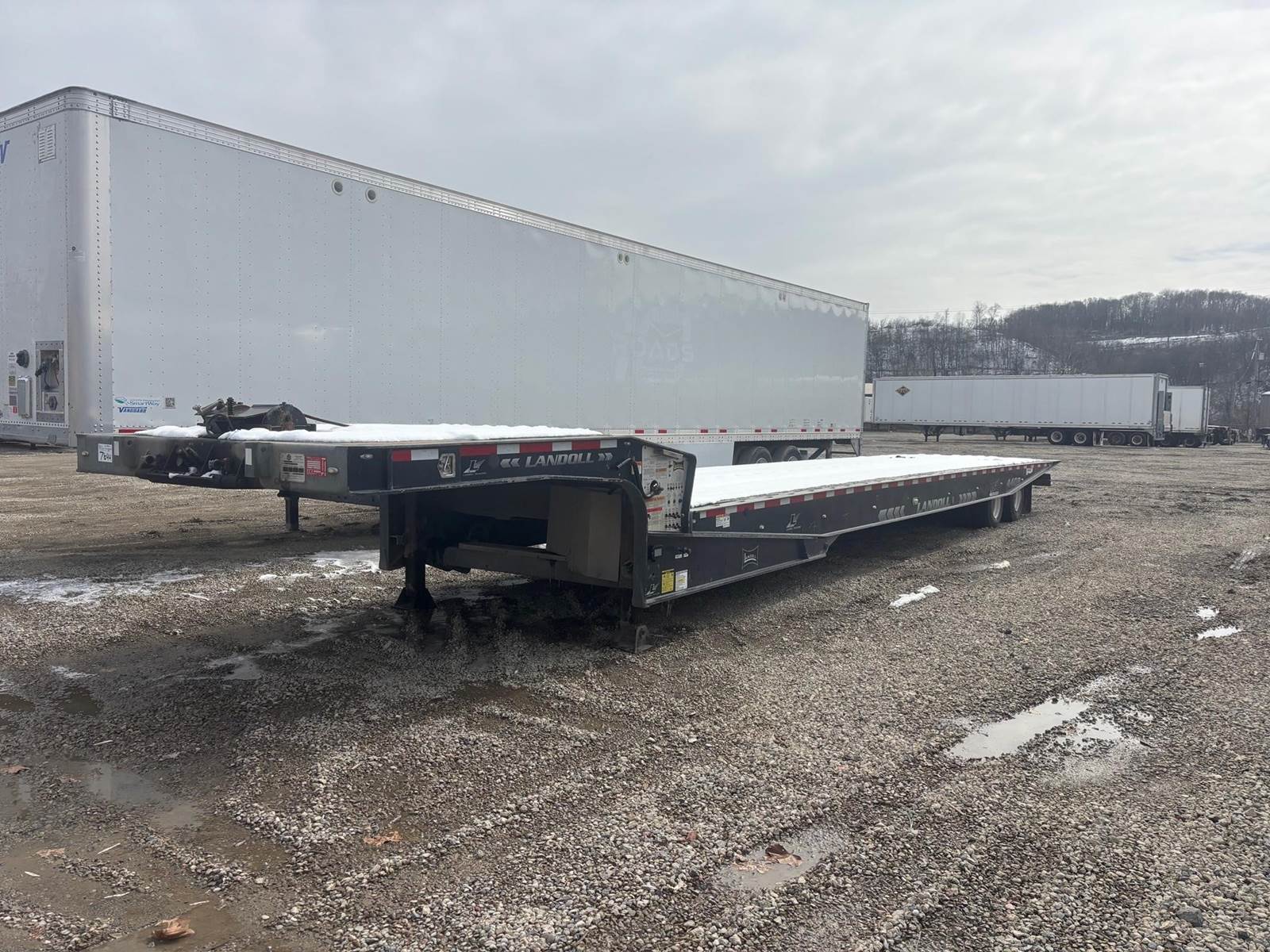

2020 Landoll 440B Traveling Axle Trailer

Length 50'
Width 102"
Top Deck Length 10'
Main Deck Length 40'
Main Deck Height 37" loaded
Inspection T-FHWA 3/26
Flat Body

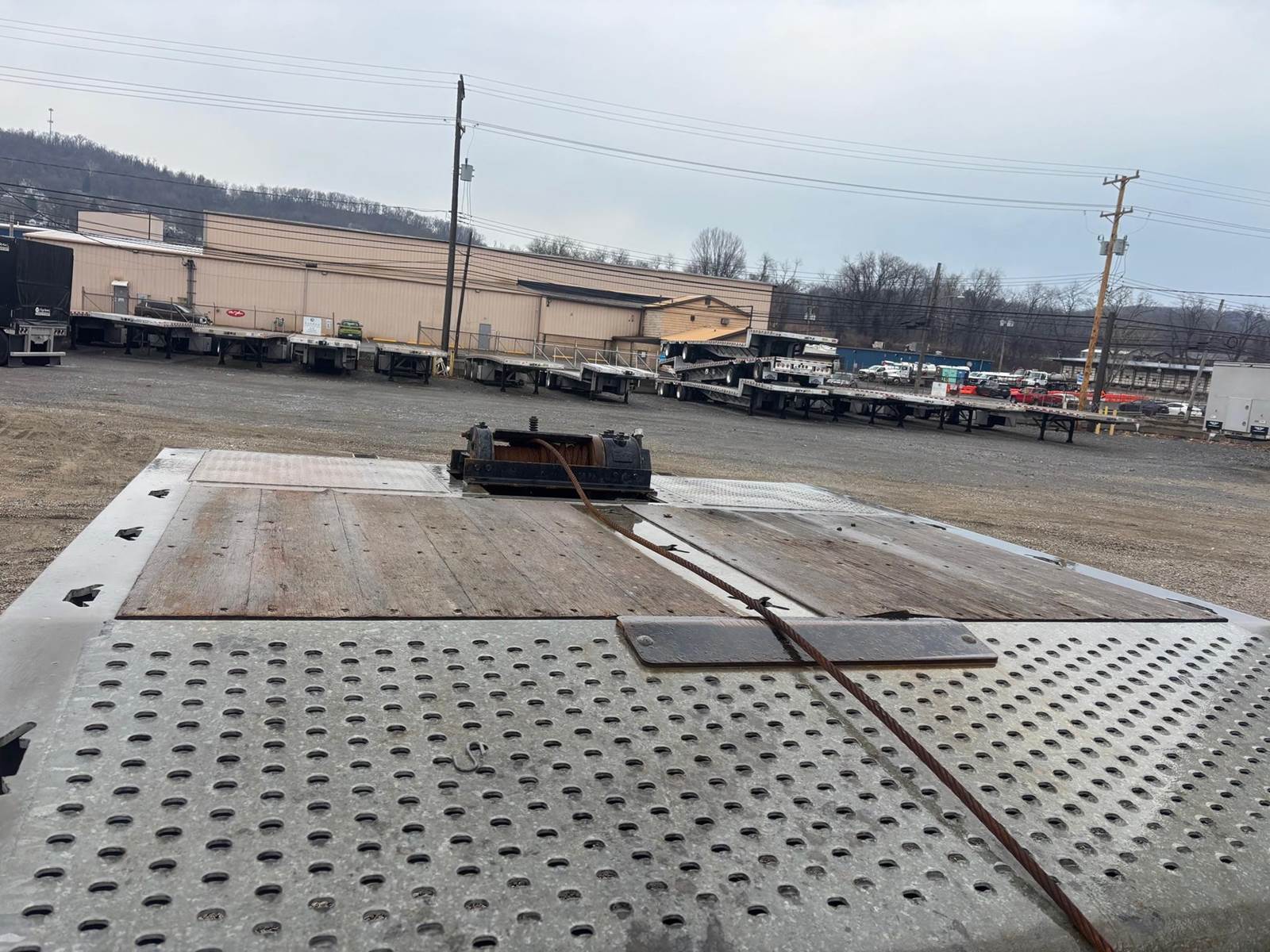

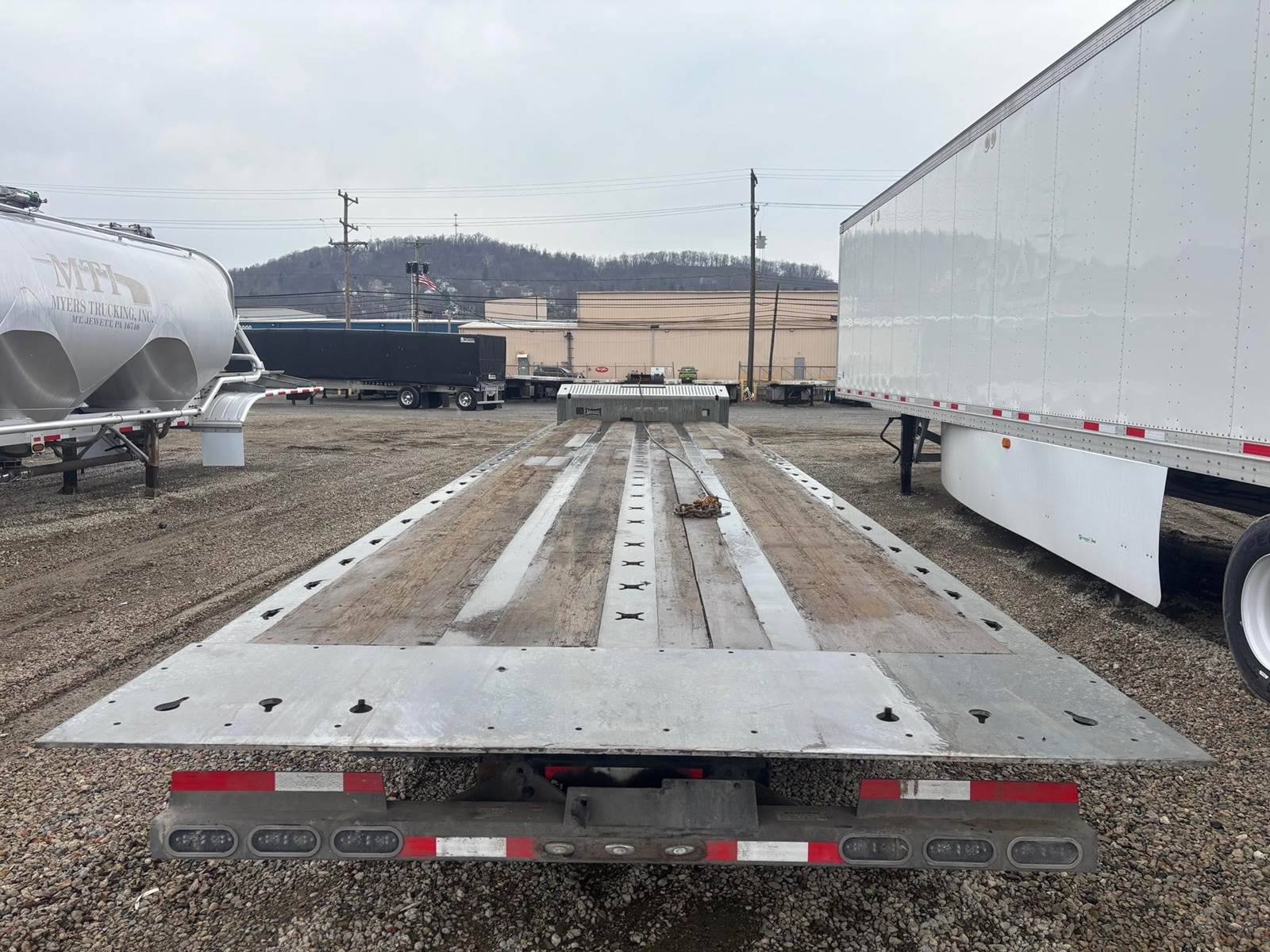

Floor 1 3/8" Apitong
Chain Slots Double Key Hole Chain on 16" centers
Approach Plate Flat with Six (6) Key Hole Tie Downs
Load Angle 6.5 degrees
Side Rail Steel
Toolbox Side opening toolbox
Rear Lights (3) Stop/Tail, (3) Clearance
Hydraulics
Hydraulic Winch Braden Winch, 20,000 lbs.

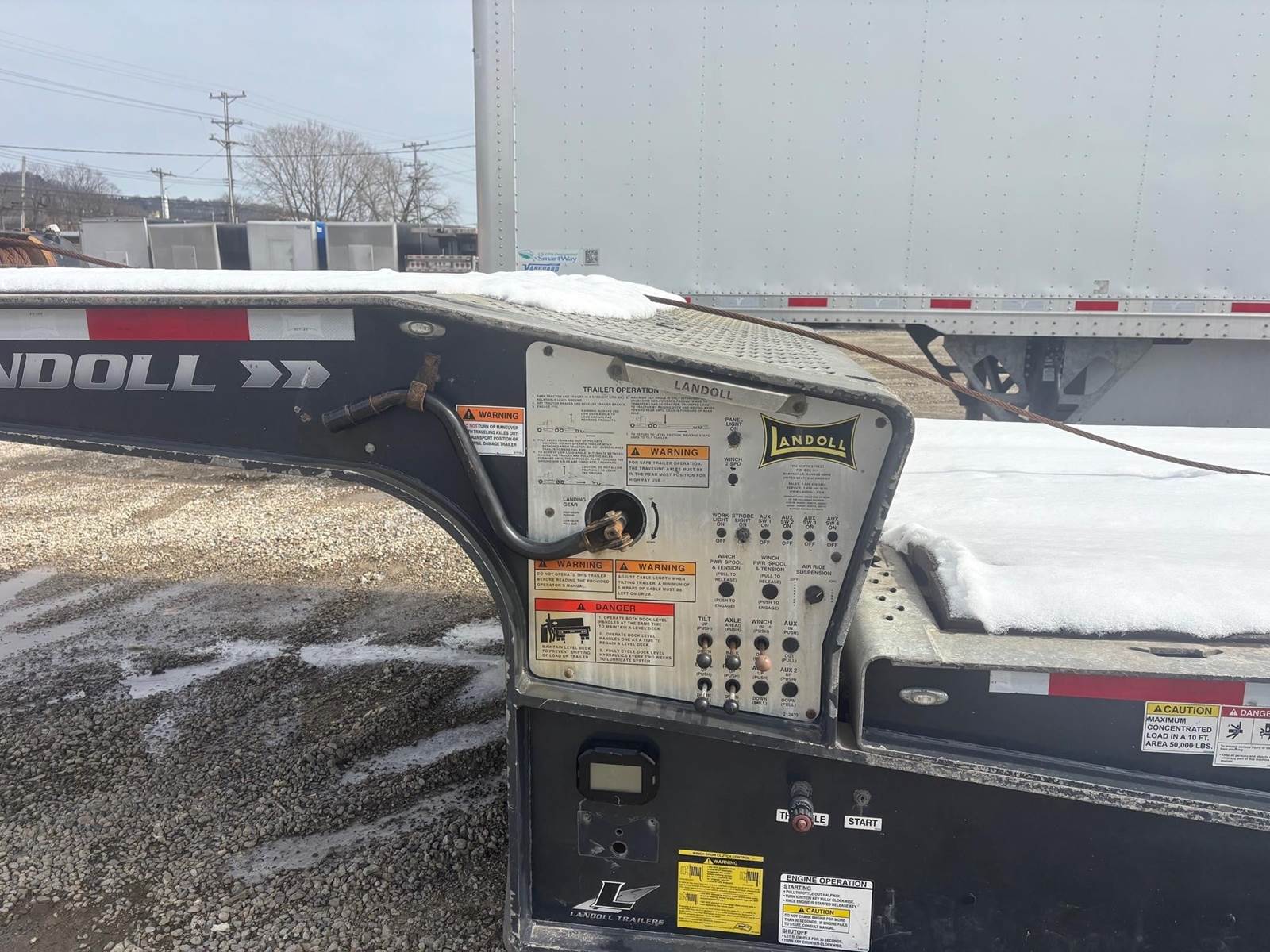

Wireless Remote Six Function
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Neway
Tire Size 235/75R17.5
Tire % 4/60% 4/40%
Wheels steel
Brake % 40-50%
UnderFrame
King Pin Setting 21"
5th Wheel Condition good

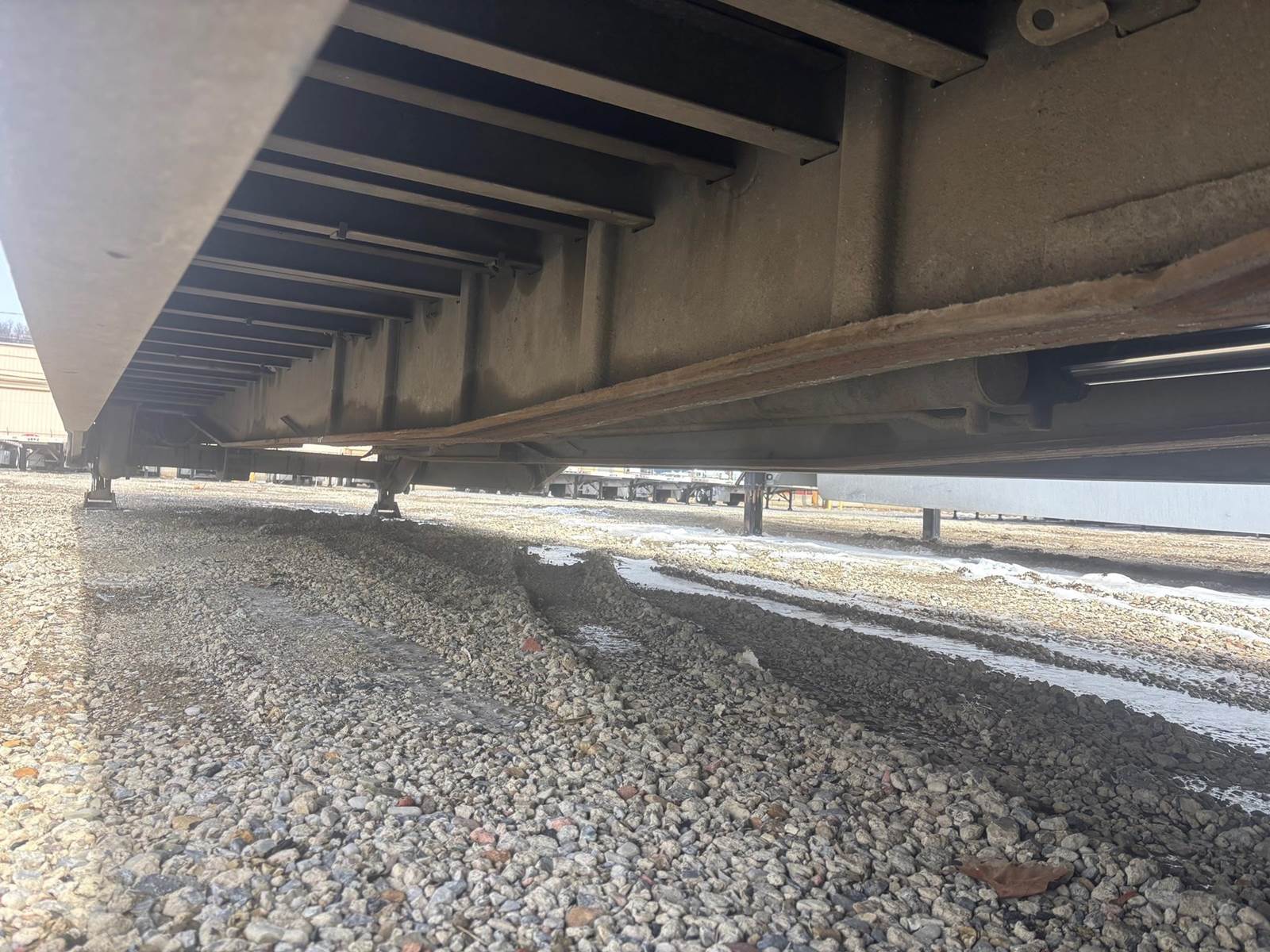

Cross Member Center 4" and 3" junior I beam on 8" centers
Landing Gear Two Speed
Paint Entire Trailer Galvanized, Sides Painted Grey
Paint Condition good
Weight Ratings 40 Ton
