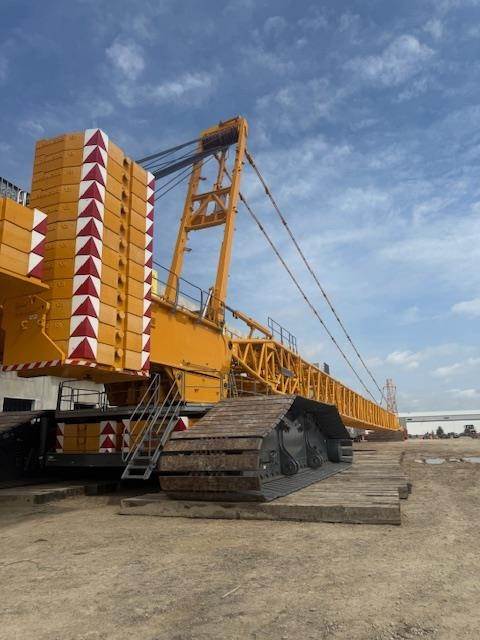

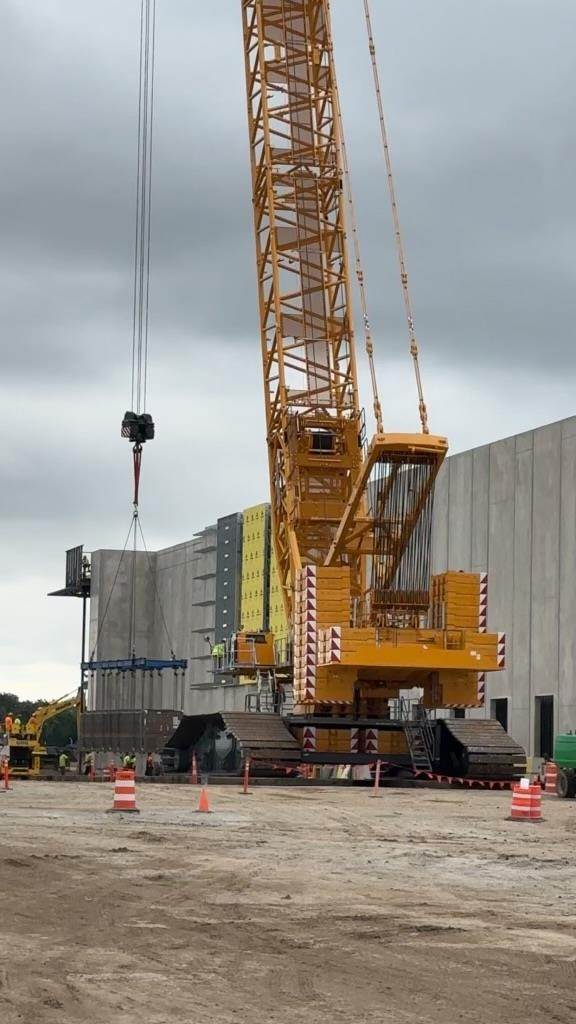

2020 Liebherr LR11000 Crawler Crane

2020 LIEBHERR LR11000
BASIC SPECIFICATIONS
Capacity: 1200-ton
102-M OF SL-9 BOOM AND 108-M OF SL-8F2 BOOM AND 15-M FIXED JIB
Main Boom
Qty Description Length
1 S Foot Section S3228 10.5M
1 Insert S3228.40 12M
1 Insert S3228.25 FLM 12M
1 Insert S3228.25 12M
2 Insert S3228.20 12M
1 Insert S3228.15 LF 12M
1 Insert S3228.25 6M
1 Insert S3228.20 6M
1 L - Head w/ 650t sheave set 1.5M

Runner (S,SL,W) - 32t capacity
S/L Reducer 6M

Fixed Jib - 15M
F Adapter Head F2 (main boom8).25M
1 F2 Foot section F2318.10 6M
1 Insert F2318.10 (F2) 3M
1 F2 Top F2318.10 6M

Load Blocks
650t/325t (2X7 sheave)
250t (2X3 sheave) - F2 jib
250t (5 sheave)
HA Ball (25t)

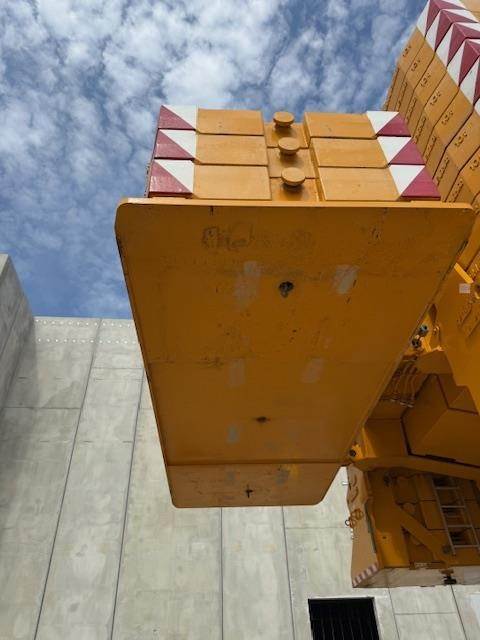

CTWT
Qty Description
42 10t CTWT

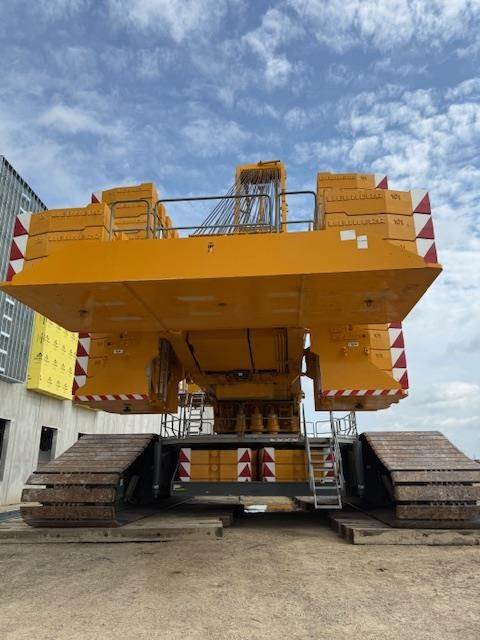

Total CTWT Set Up:
Superstructure - 250t total
Superstructure Ext. - 80t total
Central Ballast - 130t total
Crane CTWT Extension (rear)

2.4M track pads
Winches: 1,2,4,6
Winch 6 = 28mm rope
Assembly jacks
Assembly cylinder
Mechanical outriggers
APU
Pin puller - mini crawler and Trl HPU
Hyd Aggregate - Trl HPU
W (luffing jib) Prep
BW Prep
Derrick prep

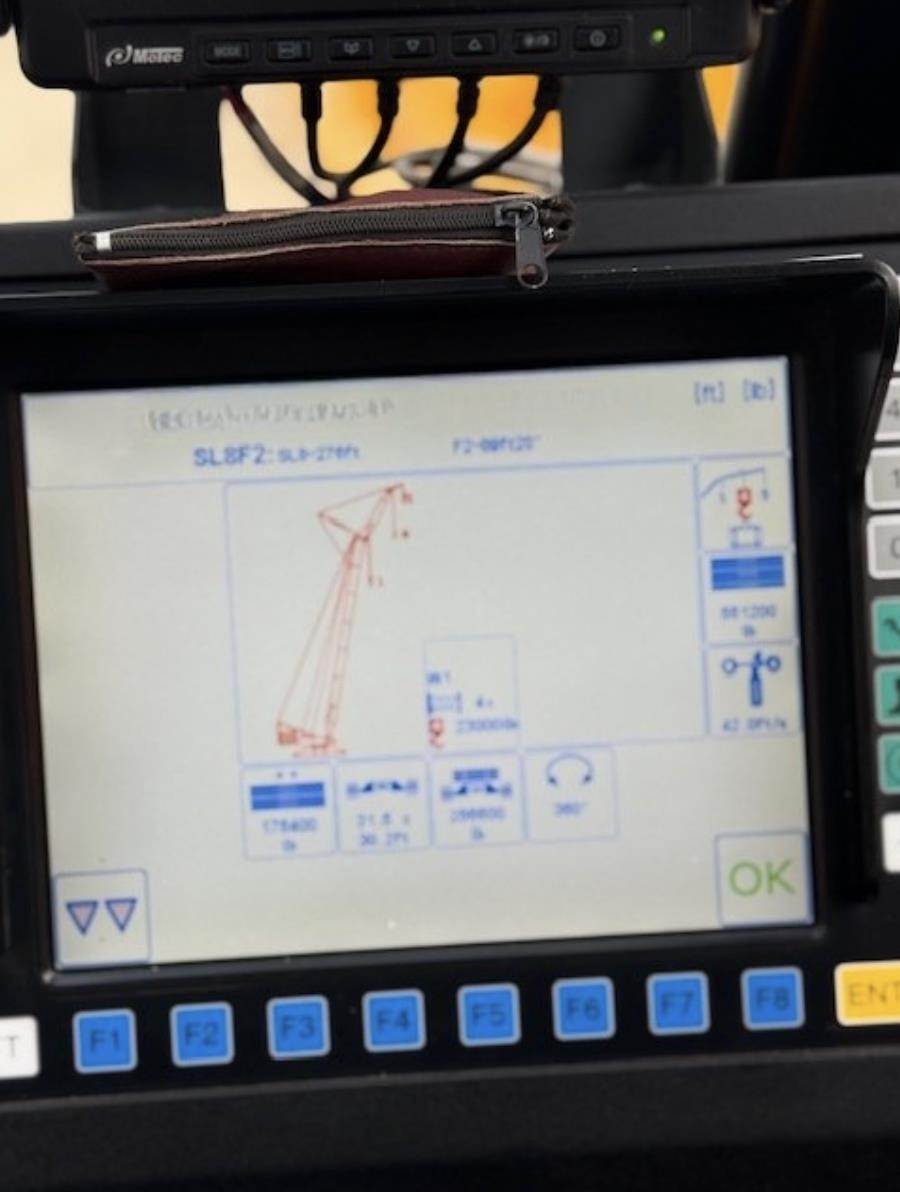

FMS Interface
4-Fold drives
Cold Weather Package
8-cylinder Liebherr diesel engine, 680-HP max torque of 2335 pounds

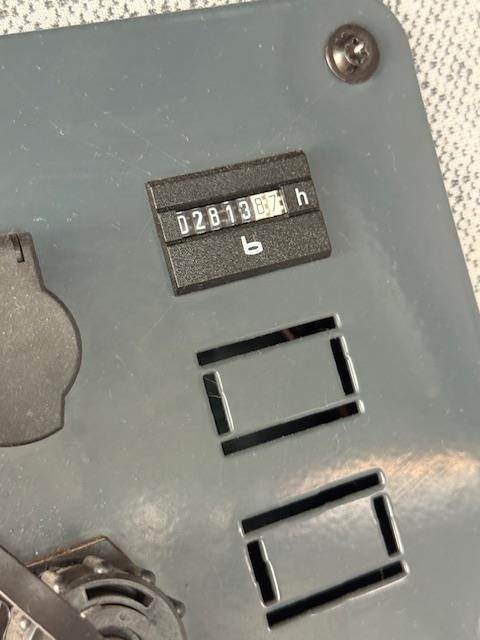

Hours: 2,813
Location: Mid-West USA
