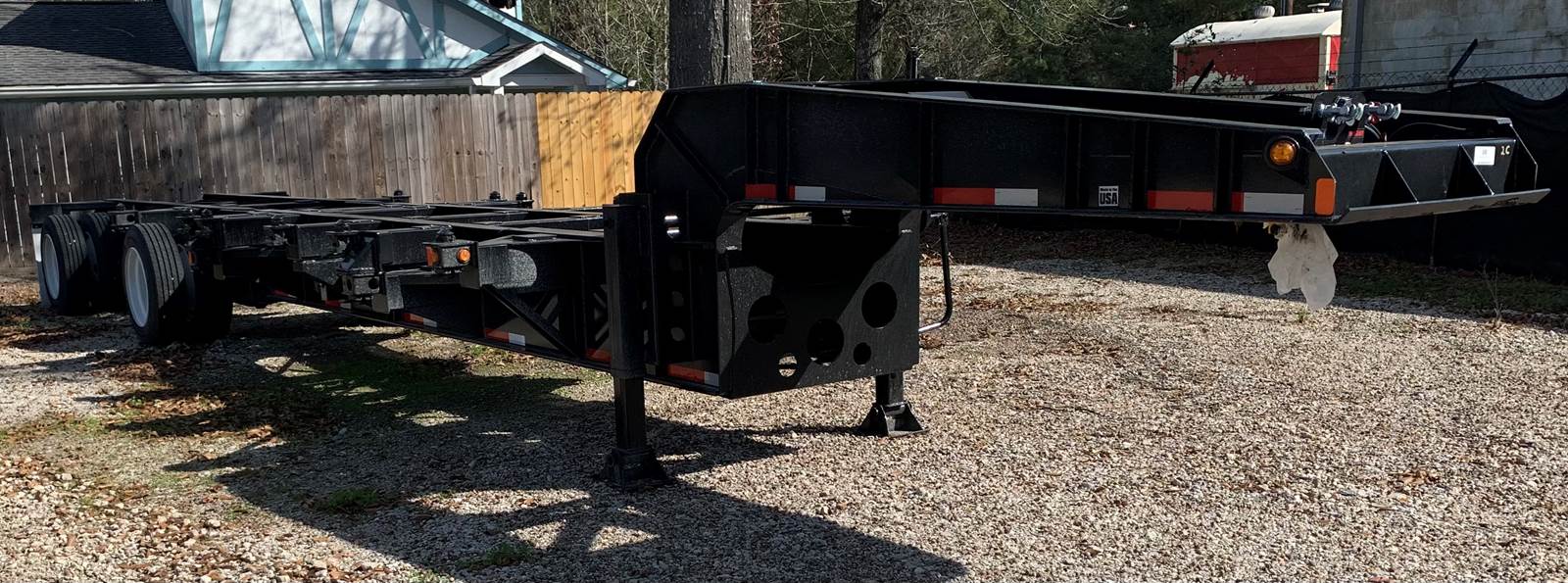

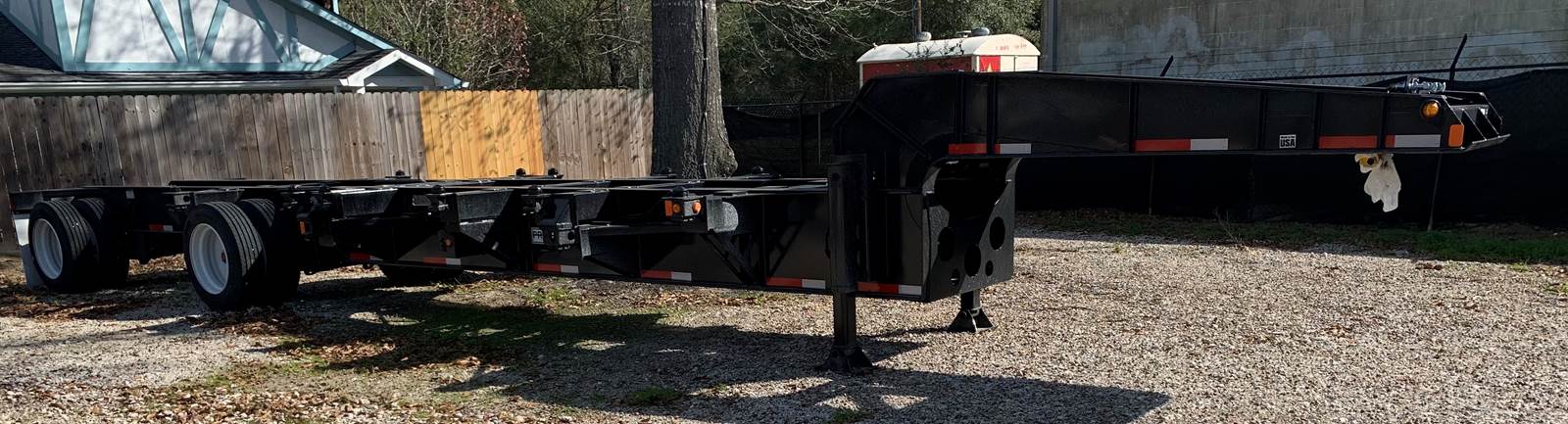

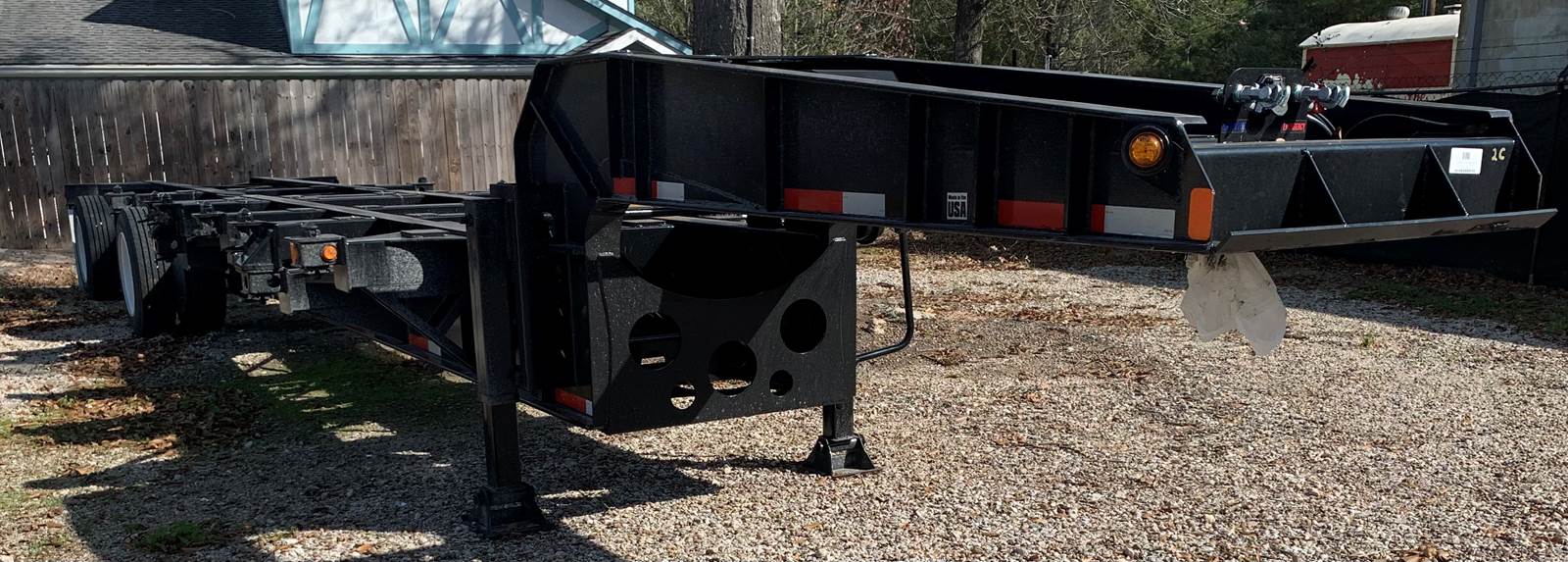

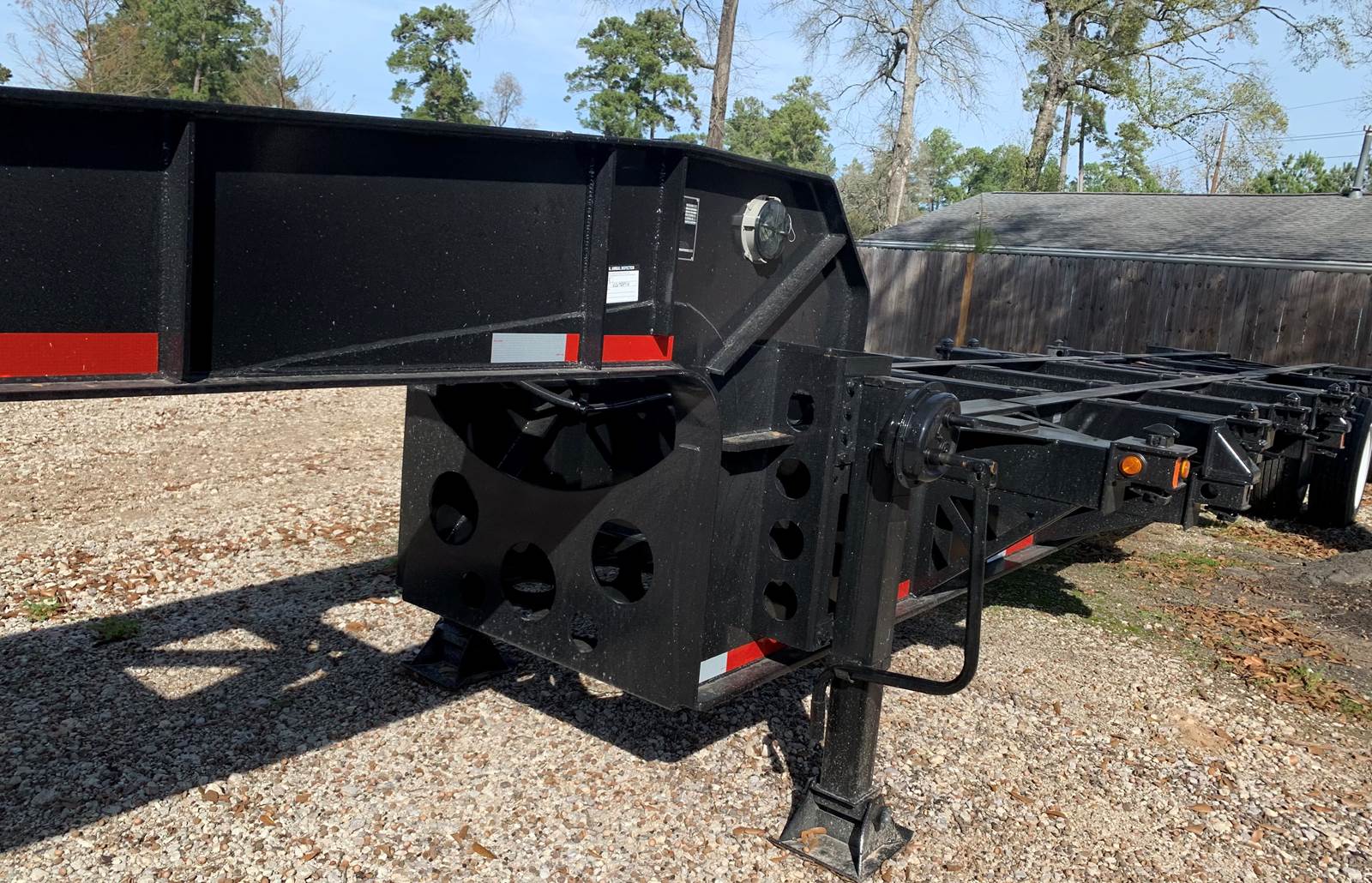

2020 Pro-Haul 43' SAND CHASSIS Container Chassis

2020 New PRO-HAUL 43' Sand chassis
Meets DOT requirements, GVWR: 65,000 LB, Tare Weight: 12,500 LB 8' or 10' Standard bin configuration,
11,200 LB 127" tall 10' bin or 20' tank configuration
Overall Length & Type: 43'
Frame Bogie Type: Widespread Axle Bogie (2-Axle) with 25,000 LB axles
Overall Frame Width: 96" over Bolster,
Main Frame Width: 43"
Maximum Rear Height: 41 1/2"
King Pin Location: 18" from the front of chassis
Cross member: Fabricated channel cross member with triangle gusset, A572GR50 Cross member Thickness: 3/16”
L/G Support Bracket: 1/4" box type bracket
Rear Gusset Spec: 3/16"
Bolster Spec: 7" Height X 7" Deep
Bolster Material: 3/16” x 7" Square Tubing (A572GR50)
Bolster Locking Device: Twistlock
License Plate Bracket: Standard Install Location
Mud flaps: 24"x30" white factory furnished mud flaps mounted on vertical steel flange with a horizontal member
Rear Under Ride Bumper: Weld-on Vertical steel flange with Horizontal Member: 4” C-channel horizontal step guard
