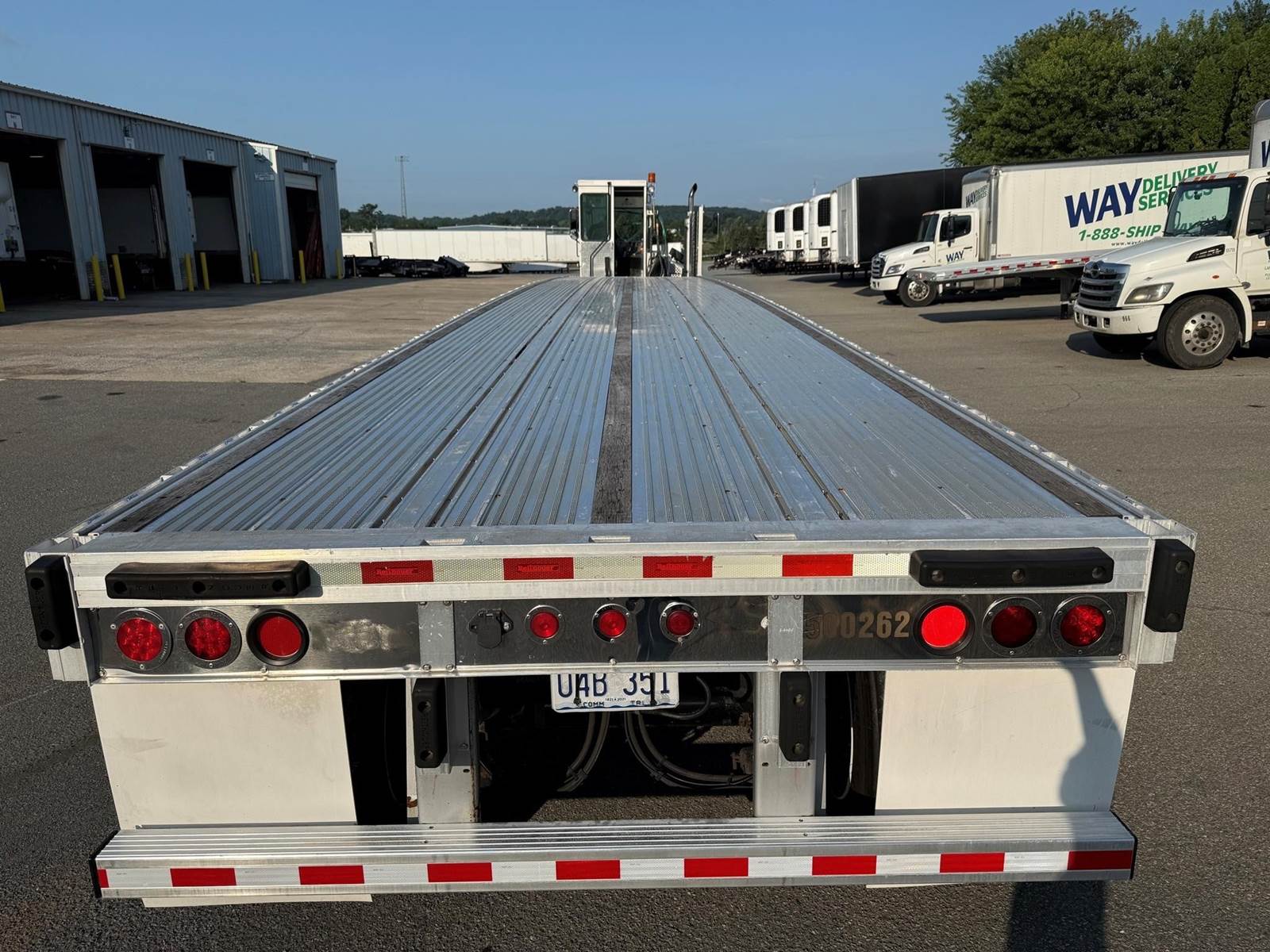

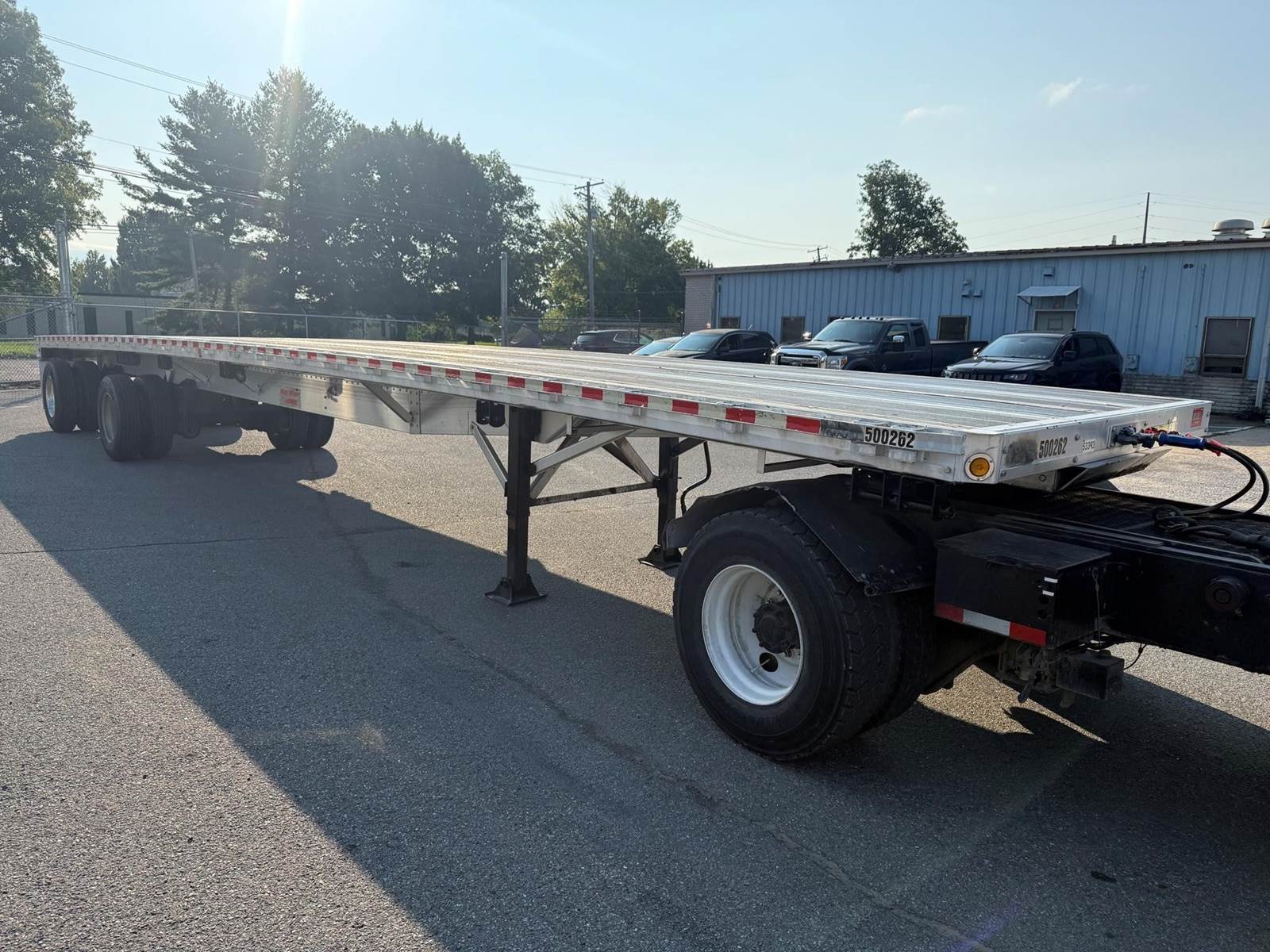

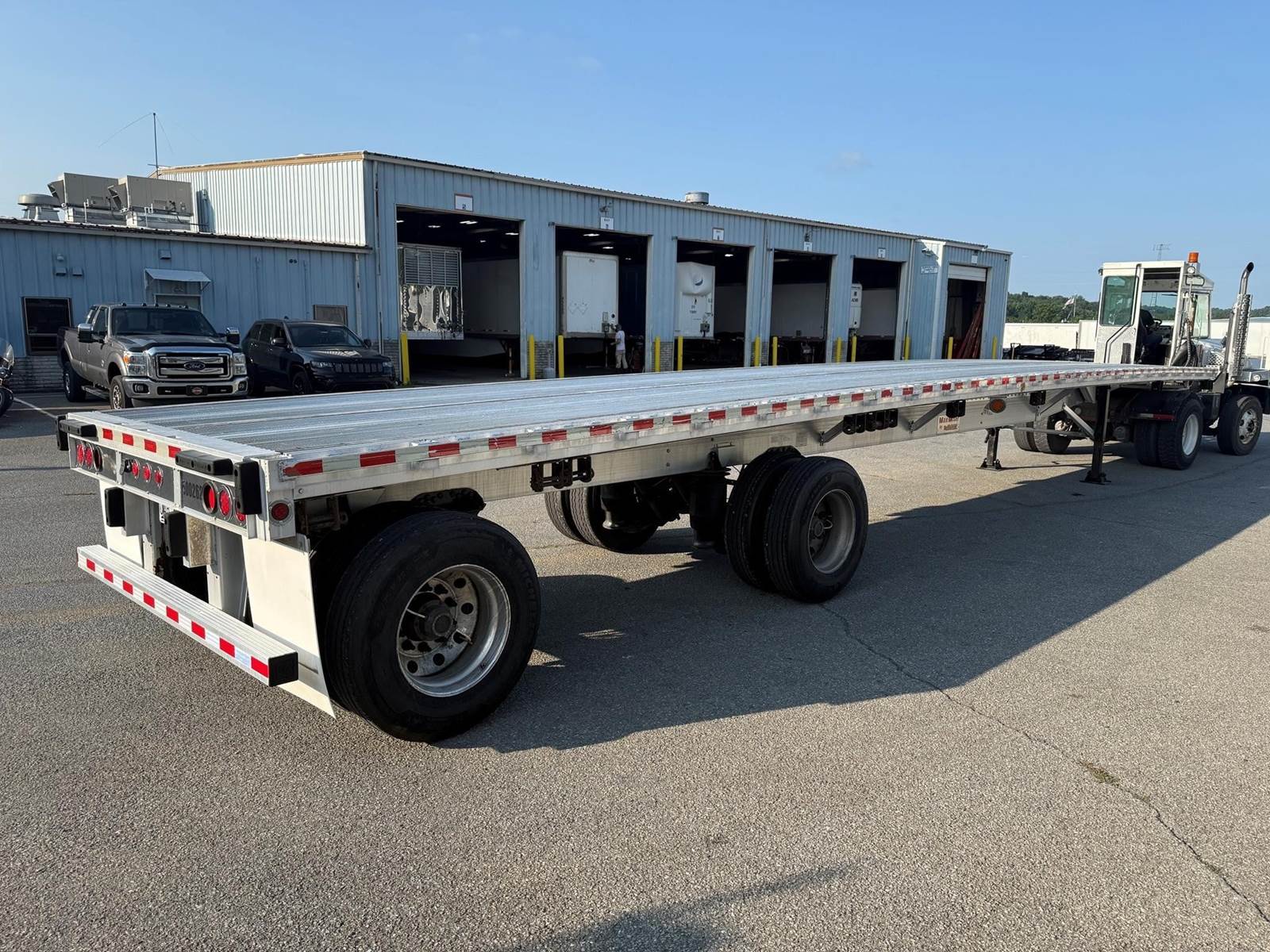

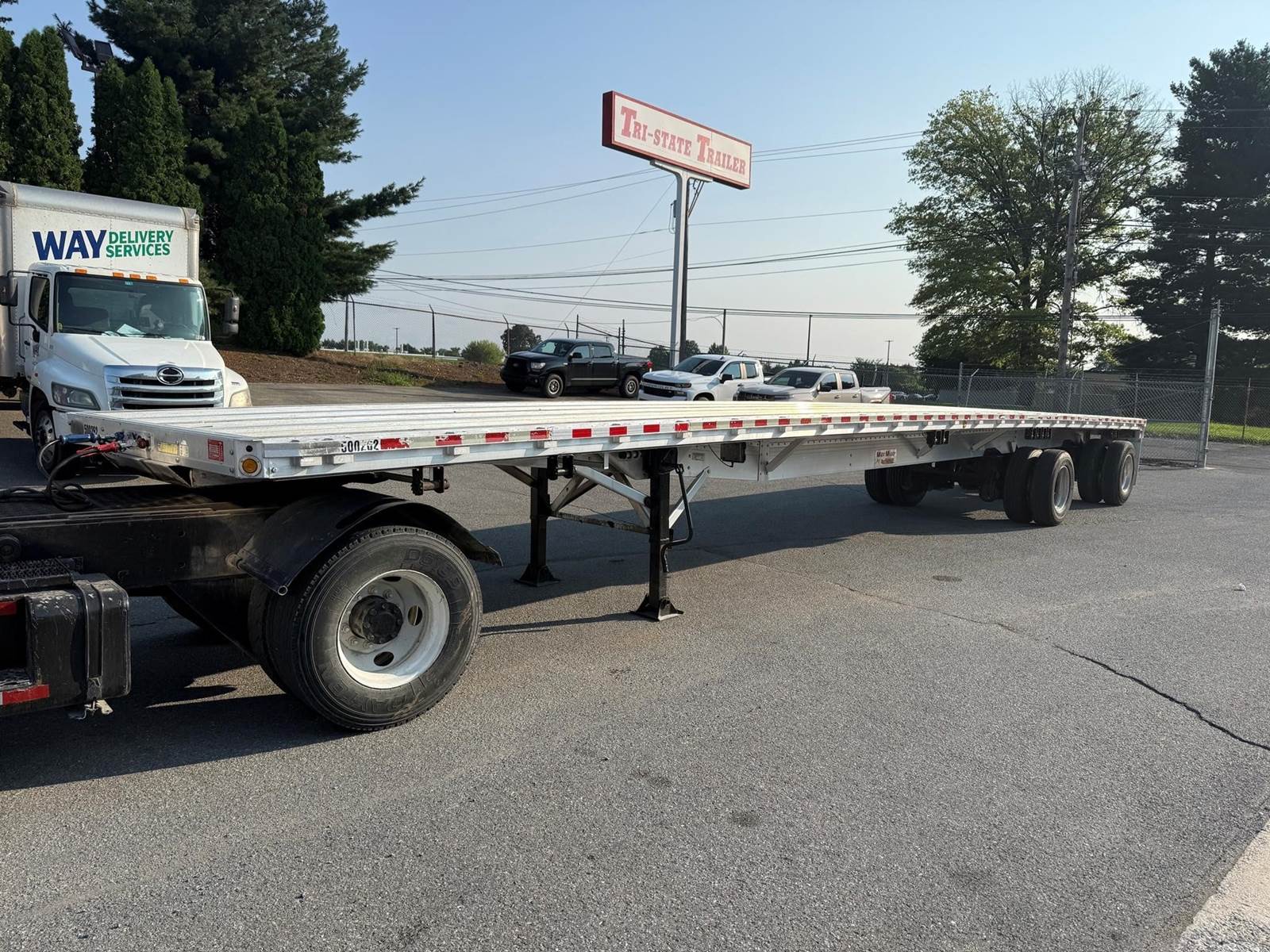

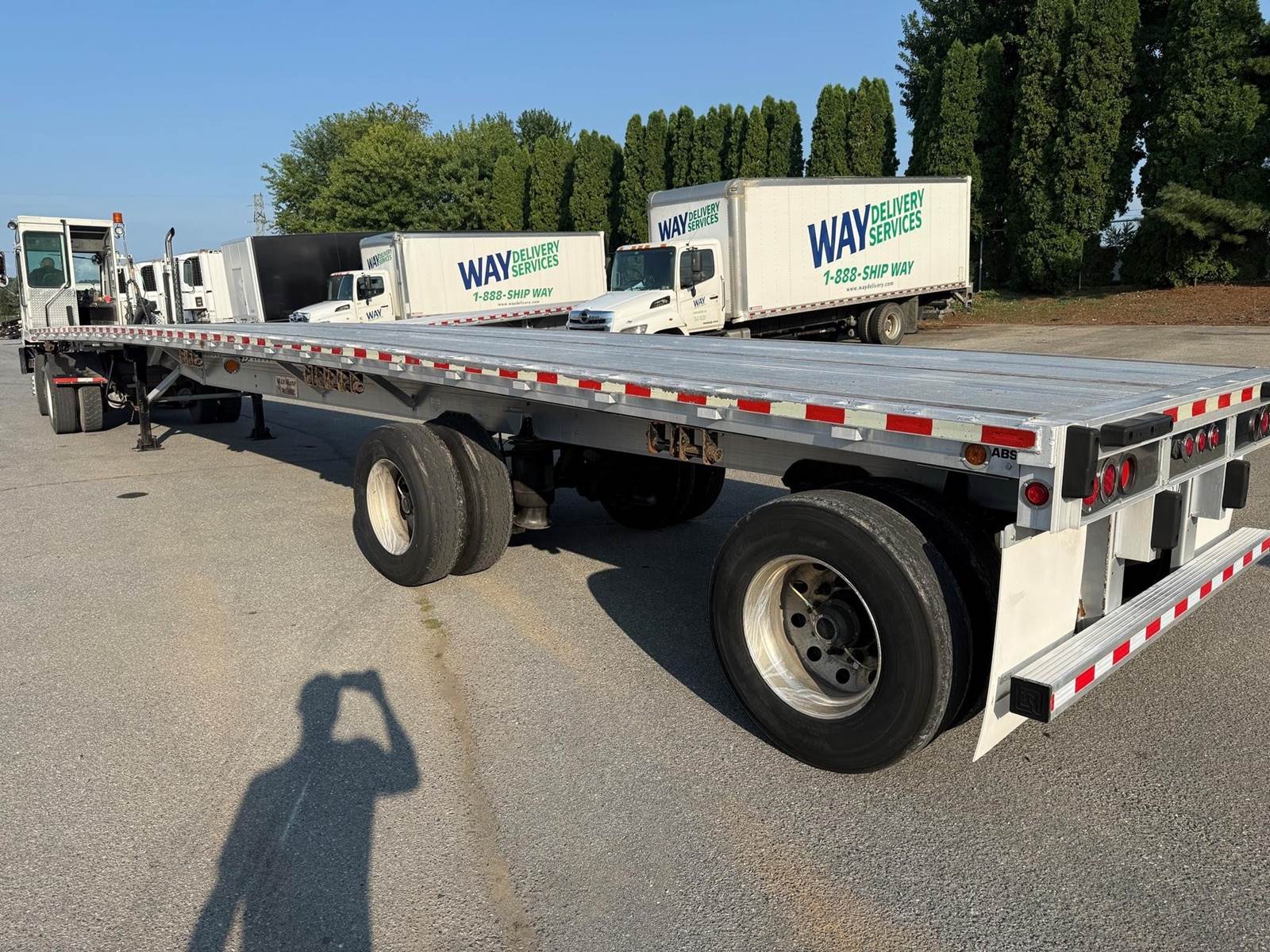

2020 Reitnouer MaxMiser 48x102 Aluminum Flatbed Trailer - Air Ride, Fixed Spread Axle

*PHOTOS ARE REPRESENTATION OF GROUP*
Federally Inspected
Length 48'
Width 102"
Inspection C-FHWA-8/26
Flat Body
Bulkhead None
Floor Aluminum
Nailing Strips Three (3), Apitong
Front/Rear Member Aluminum
Side Rail Aluminum
Pipe Spools Double
Winch Track Both Sides
Side Rail Lights Three (3) per Side
Rear Lights (2) Stop/Tail, (3) Clearance
Mud Flap Brackets Behind Rear Axle Only

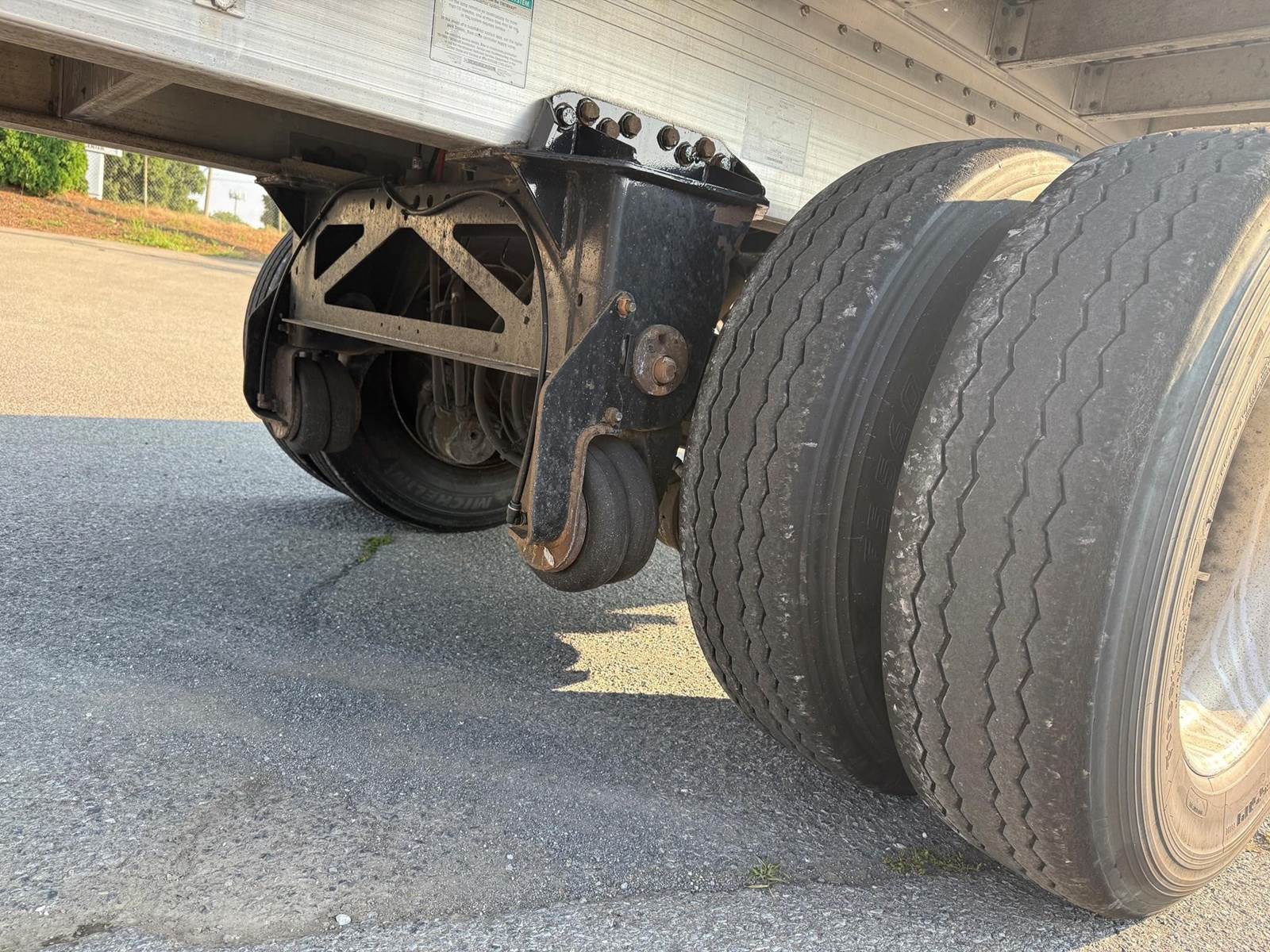

Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 10' 2" Spread, Set at Rearmost Position
Lift Axle Hendrickson Smart Lift Front Axle
Electric Dumpvalve No
Manual Dumpvalve Auto 4-Bag Dump Valve
Tire Size 275/80R22.5
Tire % 70%
Wheels Aluminum
Brake % Disc
UnderFrame
King Pin Setting 30"
5th Wheel Condition Good
Cross Member Center 15"
Coil Package Mini Coil Package with 6 Extra Cross Members
Landing Gear Two Speed
Paint Black
Weight Ratings 60,000 lbs. in 10', 50,000 lbs. in 4'
Hendrickson Disc Brakes
Hendrickson Axles w/ Sealed Grease
Hendrickson Tire Inflation System
Bendix ABS w/ Anti-Roll
3 1/2" Reduced Arch
Fleet Rear w/ Stainless Steel Panels
7-Wire Receptacle on Rear
Axle Scale on D/S between Spread
