2020 TEUPEN TC69A 70' ARTICULATING TELESCOPIC TRACK BACKYARD BOOM LIFT

Buyer Activity

Viewed

1 time

Shared

Not yet

Saved

Not yet

Product Specifications

Year	2020
Category	Boom Lifts
Manufacturer	TEUPEN
Model	TC69A
Condition	Used
MLS Number	13798801
Serial Number	10002906
Usage	2,195 Hours

Weight & Dimensions

Length	20.4 ft.
Height	6'5"
Weight	6592
Ground Clearance	15.0 in
Platform Length	4.7 ft.
Platform Width	2.3 ft.

Engine

Horse Power	0 HP
Engine Manufacturer	Kubota
Engine Type	Z602
Fuel Type	Diesel
Fuel Capacity	3.1 gal

Drivetrain

Drive Type	Track

Body & Chassis

Enclosed Cab	No

Interior & Controls

Air Conditioning	No
Heating	No

Addons & Attachments

Attachment Type	Aerial Lift
Attachment Manufacturer	TEUPEN
Attachment Model	TC69A
Winch	No
Outriggers	Yes

Additional Details

Gradeability	30
Occupancy	2
Platform Height	68.10 ft.
Working Height	75 ft.
Lift Height	68.10 ft.
Horizontal Reach	75 ft.
Lift Capacity in Tons	.22 ton
Lift Capacity in Lbs	441 lbs.

Product Description

FORGET NEEDING THE BOOMBOX TO WIN HER BACK OVER WHEN YOU CAN CRAWL THROUGH HER WINDOW WITH THIS ONE HERE!!

For sale in absolute flawless mechanical condition:

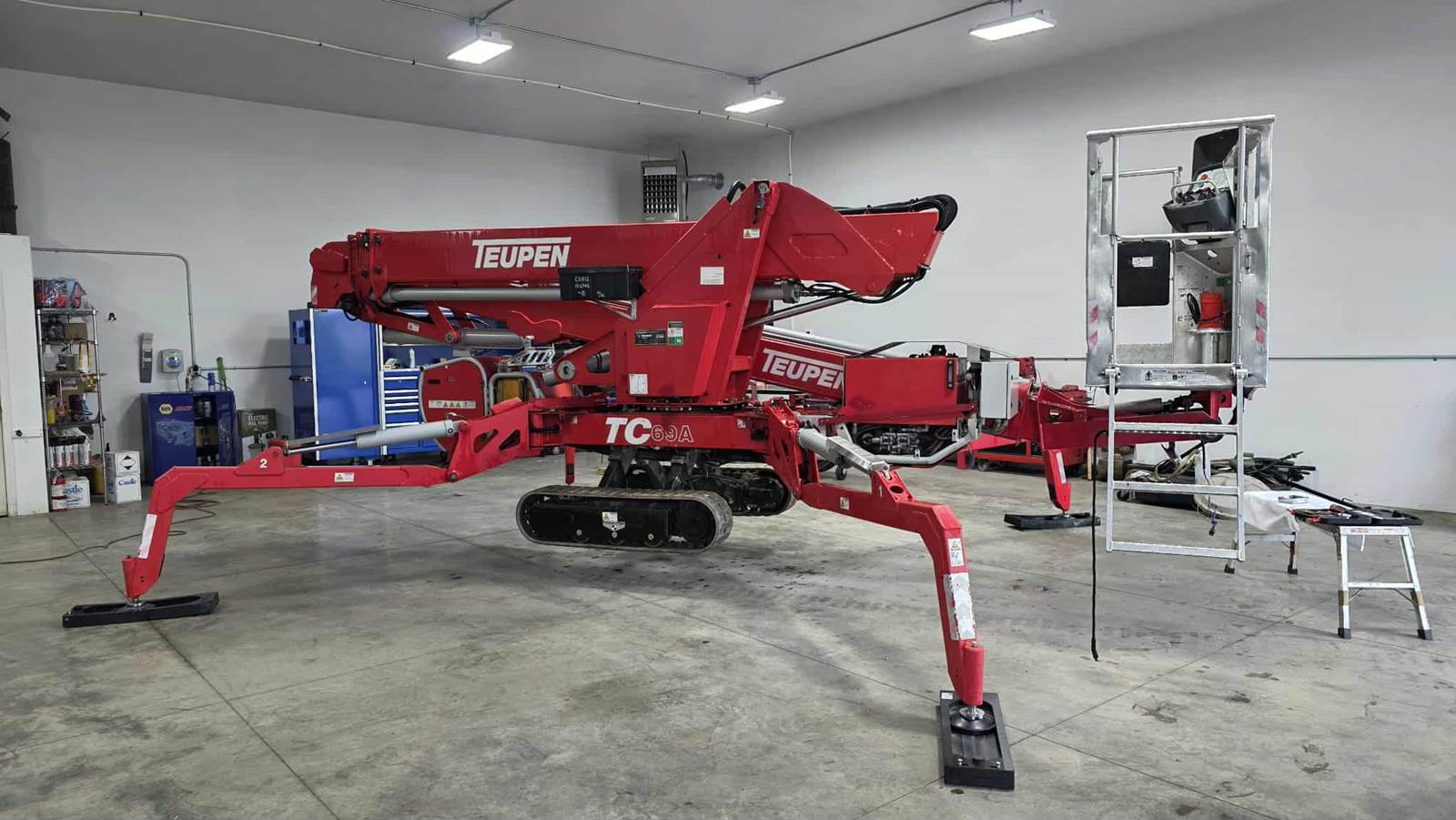

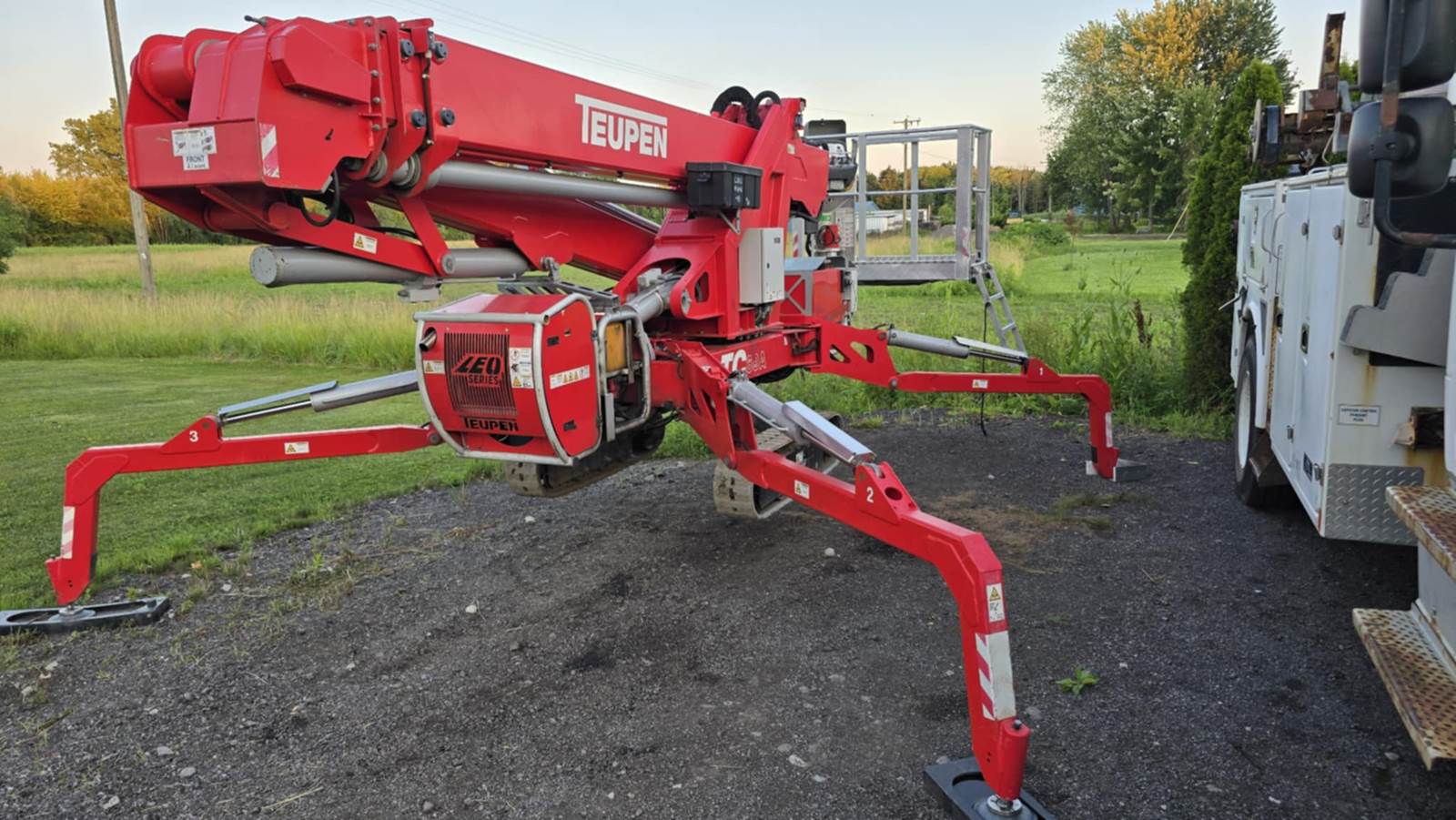

2020 Teupen TC69A Backyard Articulating Telescopic Bucket Boom Lift with only 2,195 hours. Unit operates with no issues whatsoever.

NEW:
- Outrigger Foot Pad
- Control System Leveling Plug
- Engine Oil & Fuel Filters
- Battery Disconnect

Teupen Articulating Telescopic Backyard Bucket (Model No. TC69A - Serial No. 10002906) specifications:

• Hydraulically height- and width-adjustable crawler track drive
• Electrohydraulic stabilizers with automatic leveling and ground pressure sensor system
• Telescopic upper and lower boom
• Power socket at platform (115 V / 13 A)
• Max Working Height - 75' 5"
• Max Platform Height - 68' 10"
• Horizontal Outreach - 36' 8"
• Length - 20' 4"
• Travel Height - 6' 5"
• Max Platform Capacity - 441 lbs
• Max Turntable Rotation - 360°
• Gradeability, Max - 16,7° / 30,0 %
• Slope Angle, Max - 15,5° / 27,0 %
• Travel Speed - 0.8 mph
• Total Weight - 6,592 lbs
• Fuel Tank Capacity - 3.17 gallons

Must see to appreciate.
Call today 716-438-6294
