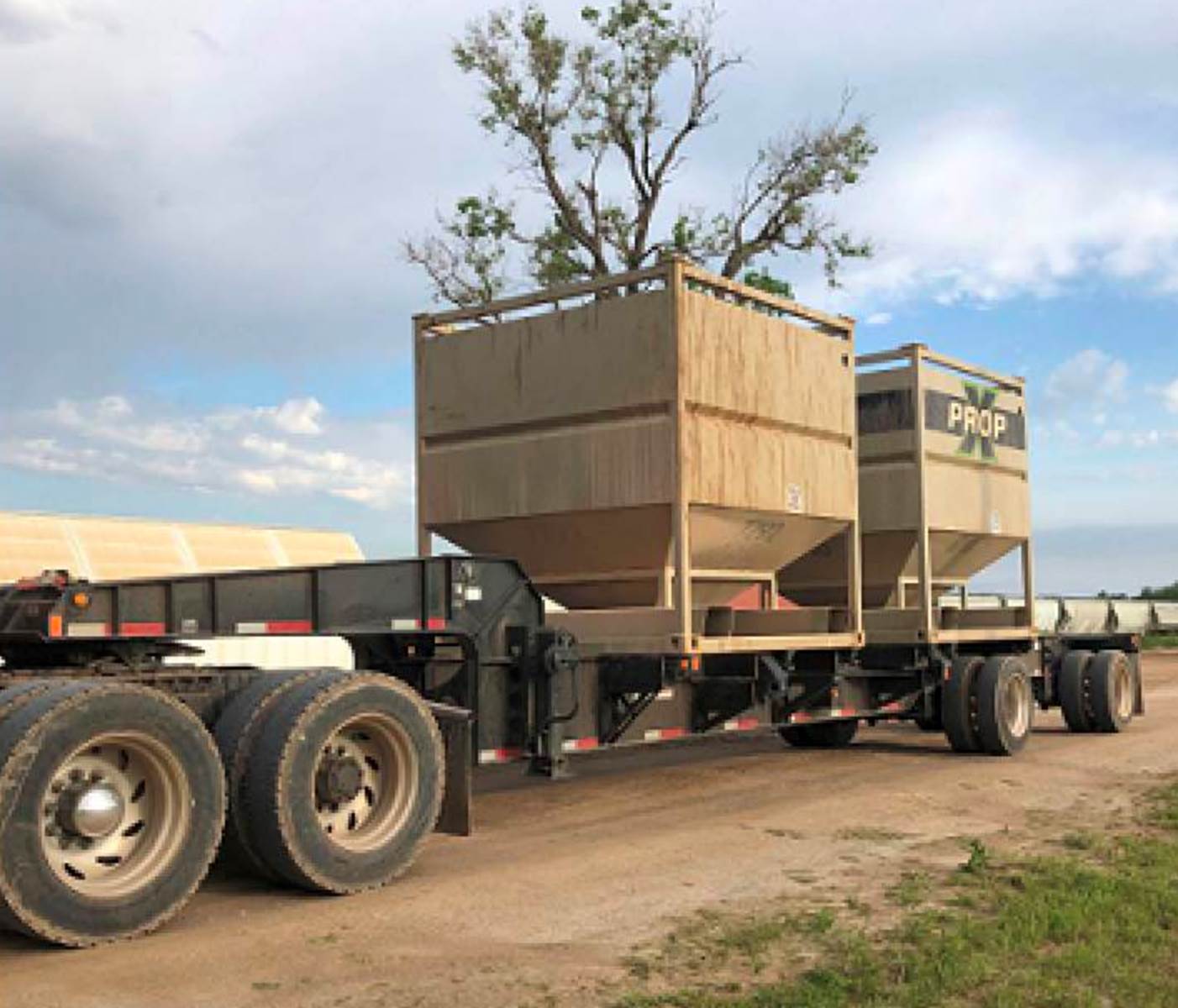

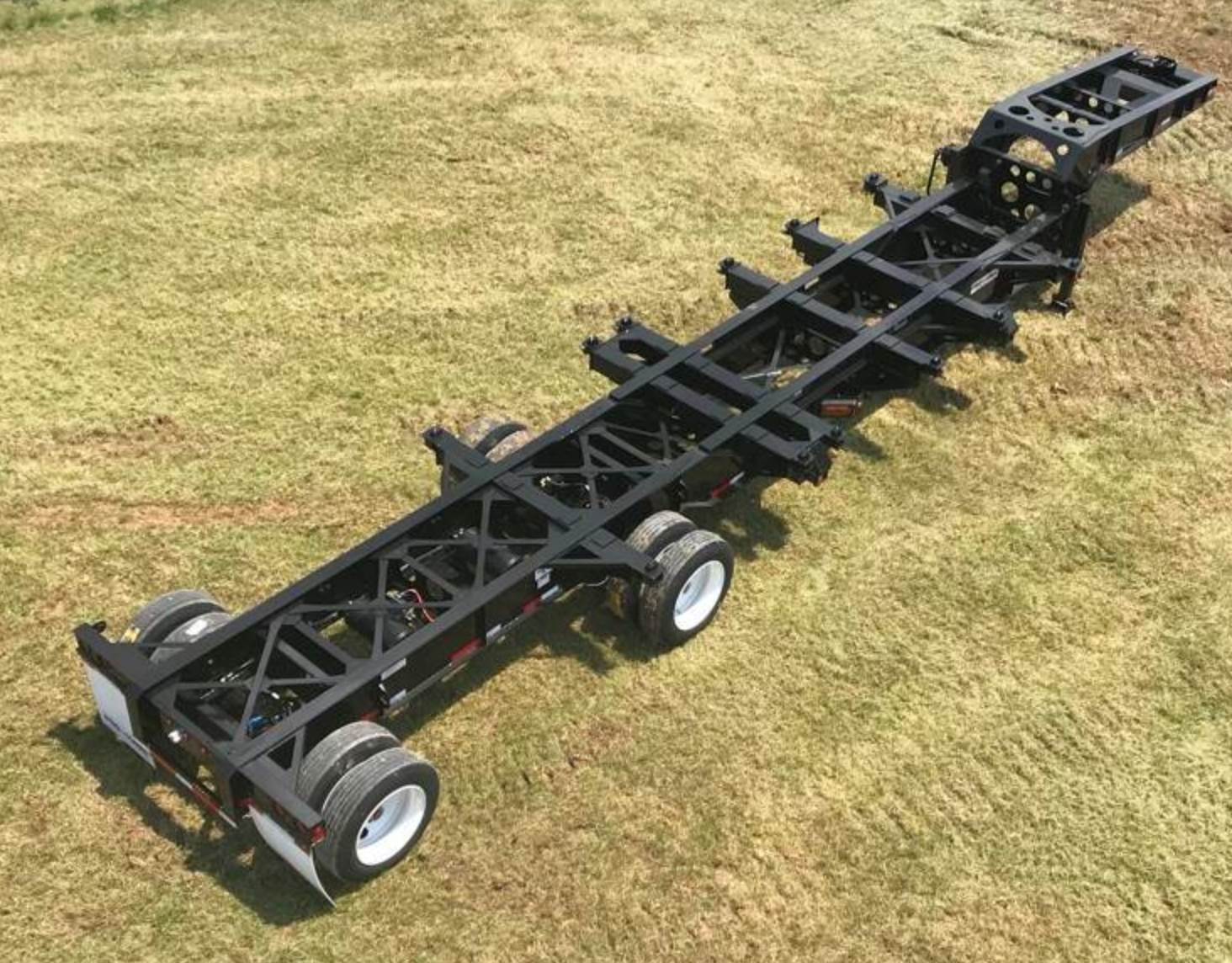

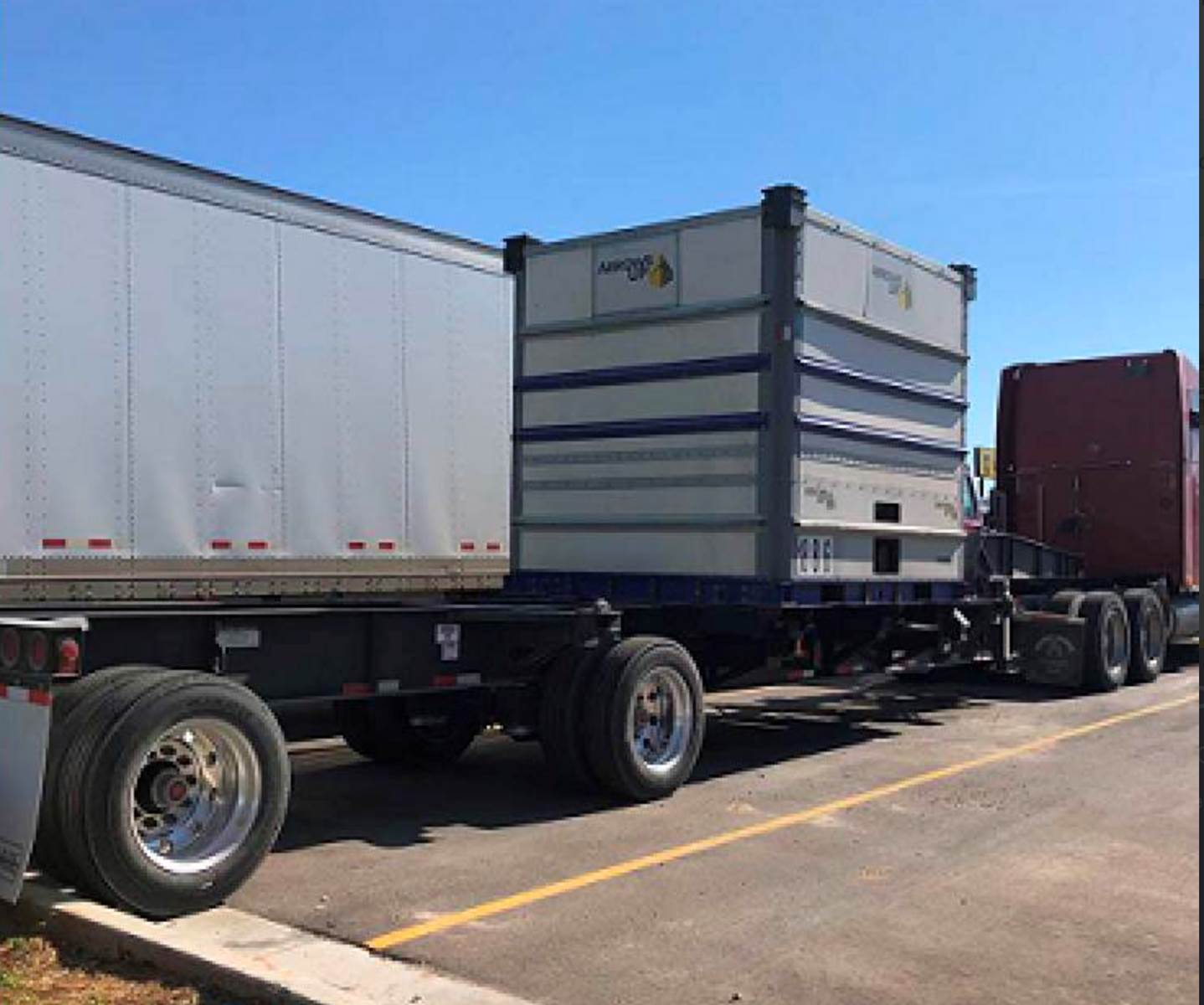

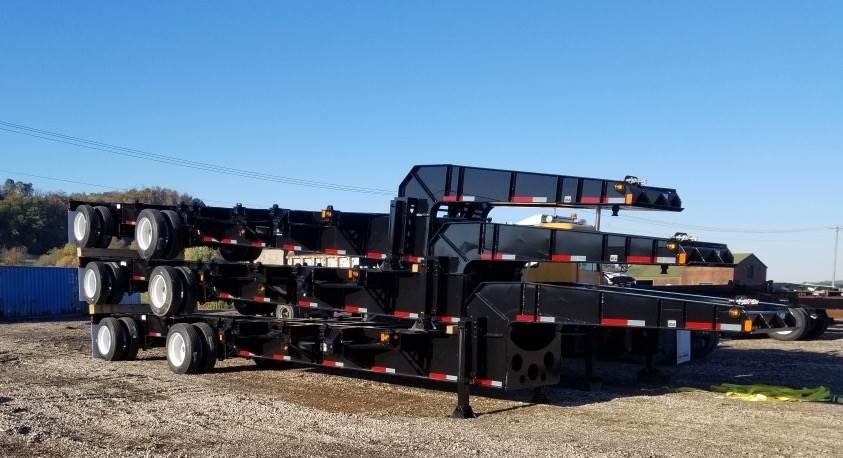

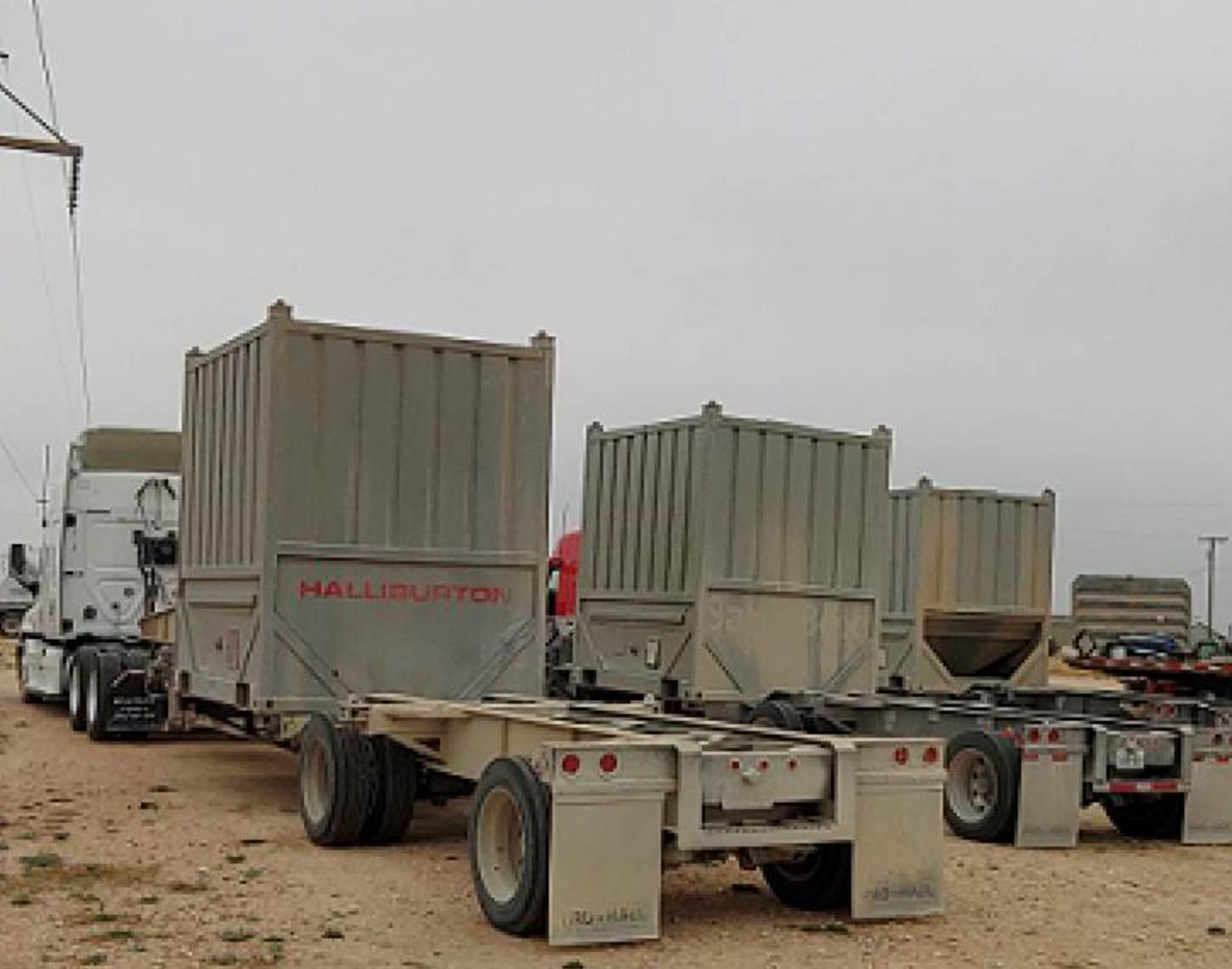

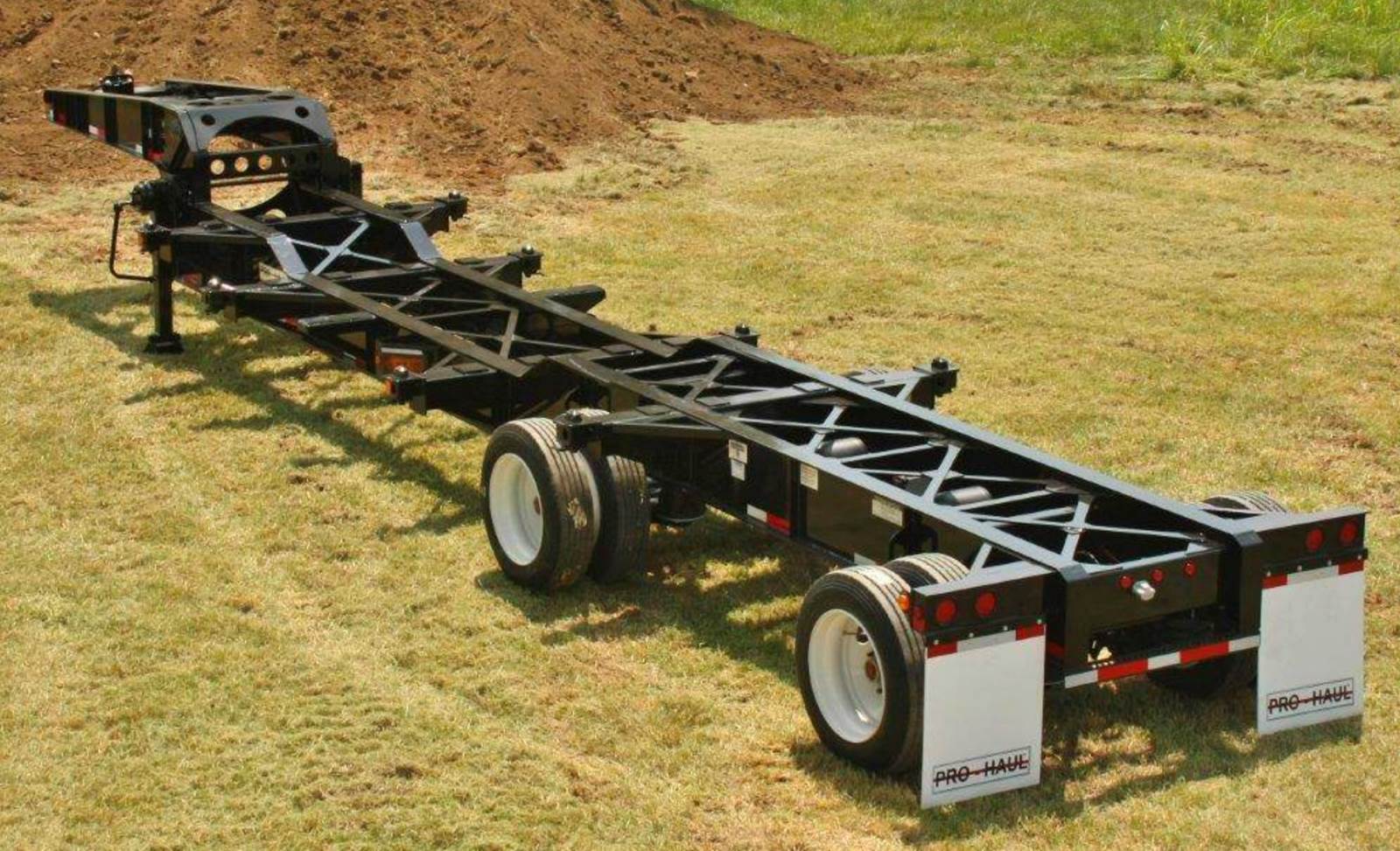

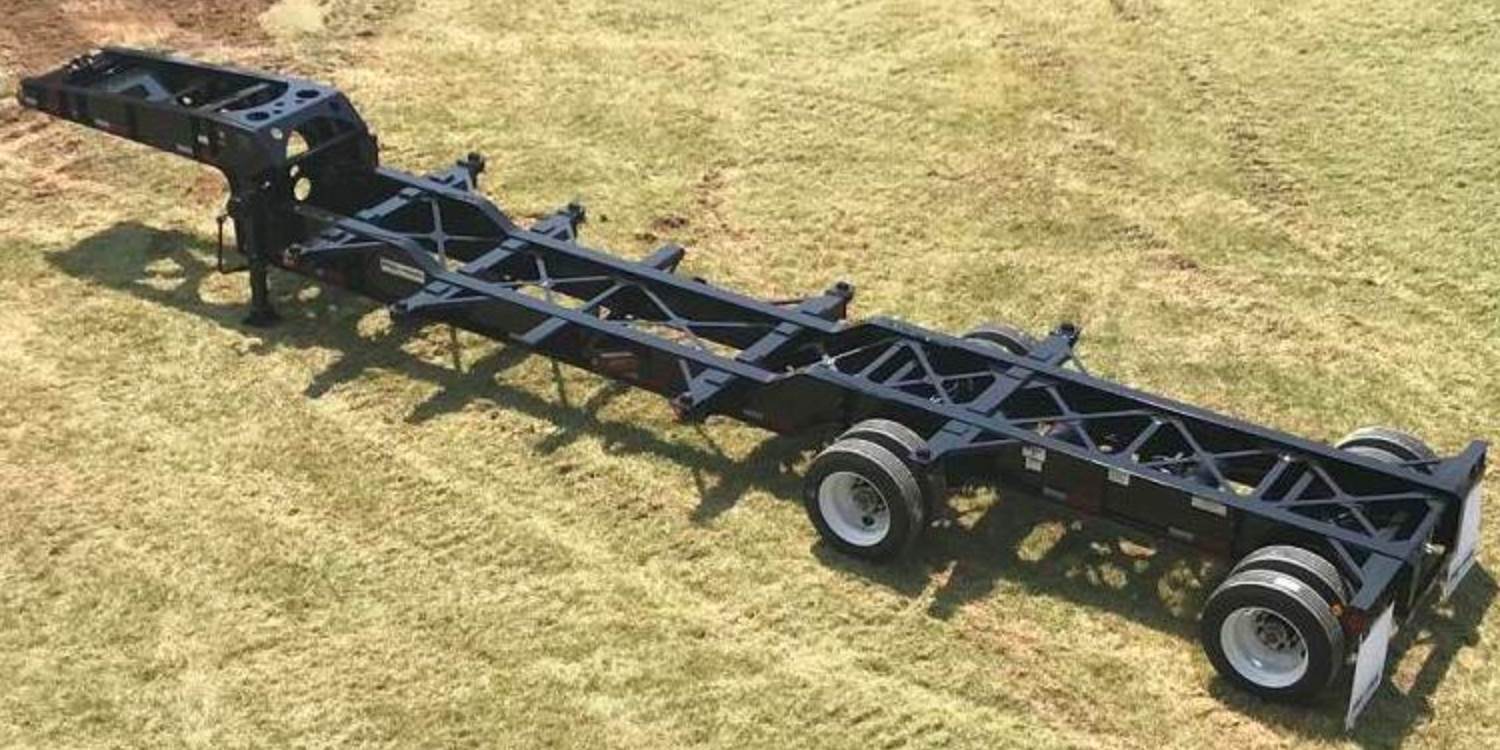

2026 New PRO-HAUL Sand chassis Anysizer 43' SPREAD 2x8' H-1x10' SAND OR 1x20' TANK CHASSIS AIR RIDE Designed for repeated use in transportation of frac sand and ISO 20' Tanks Ability to haul 2-8' Sand Bins, or 1-10' (standard or 127" tall) Sand Bin, or 1-20' ISO Container/Tank Meets DOT requirements, GVWR: 65,000 LB, Tare Weight: 12,500 LB 8' or 10' Standard bin configuration 11,200 LB 127" tall 10' bin or 20' tank configuration Overall Length & Type: 43' Frame Bogie Type: Widespread Axle Bogie (2-Axle) with 25,000 LB axles Overall Frame Width: 96" over Bolster, Main Frame Width: 43" Maximum Rear Height: 41 1/2" King Pin Location: 18" from the front of chassis Cross member: Fabricated channel cross member with triangle gusset, A572GR50 Cross member Thickness: 3/16” L/G Support Bracket: 1/4" box type bracket Rear Gusset Spec: 3/16" Bolster Spec: 7" Height X 7" Deep Bolster Material: 3/16” x 7" Square Tubing (A572GR50) Bolster Locking Device: Twistlock License Plate Bracket: Standard Install Location Mud flaps: 24"x30" white factory furnished mud flaps mounted on vertical steel flange with a horizontal member Rear Under Ride Bumper: Weld-on Vertical steel flange with horizontal member Horizontal Member: 4” C-channel horizontal step guard WE WORK WITH ALL TYPES OF CREDIT AND HAVE FINANCE PROGRAMS TO FIT EVERY SITUATION. We make it easy and affordable for you to finance your next truck or trailer quick and easy. Call JEFF ELLISON Today at (972) 210-2142 Available for Immediate Delivery !! Hablamos español llamenos hoy para iniciar el proceso para obtener su credito. Aqui aceptamos todos los tipos de credito.
