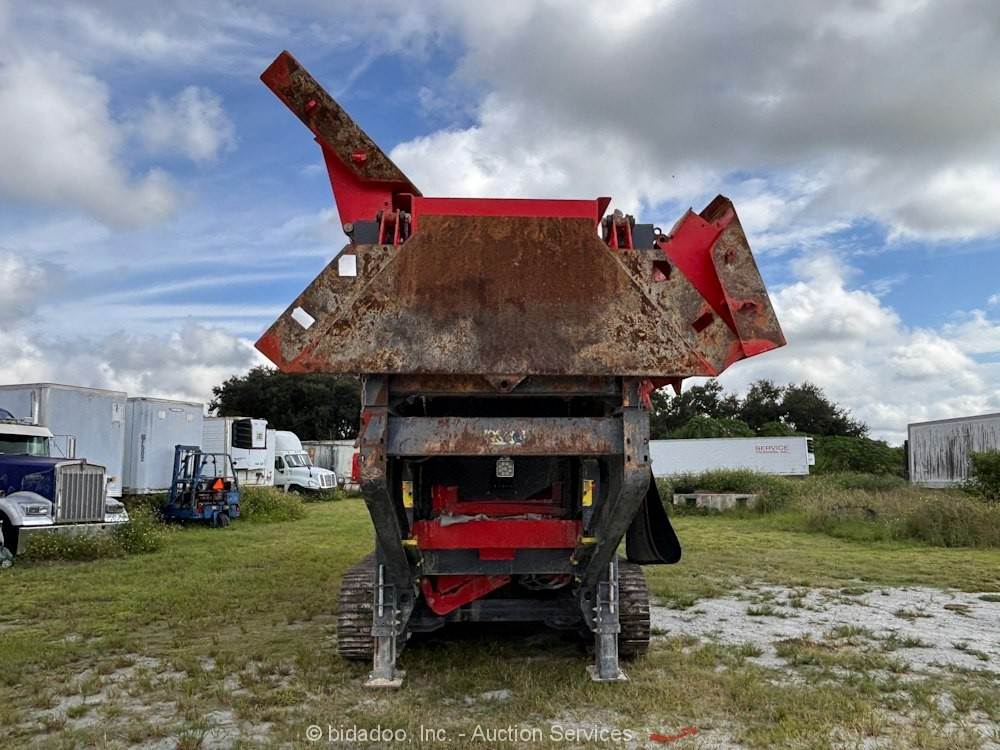

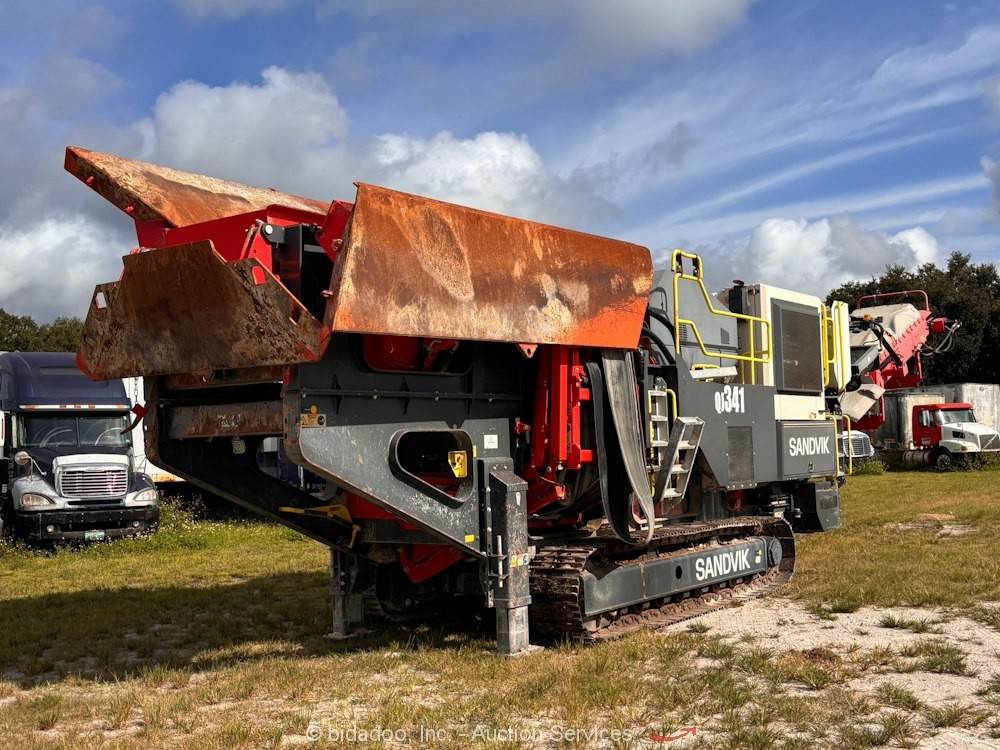

Feed hopper with wear resistant liners
Vibrating feeder with stepped grizzly

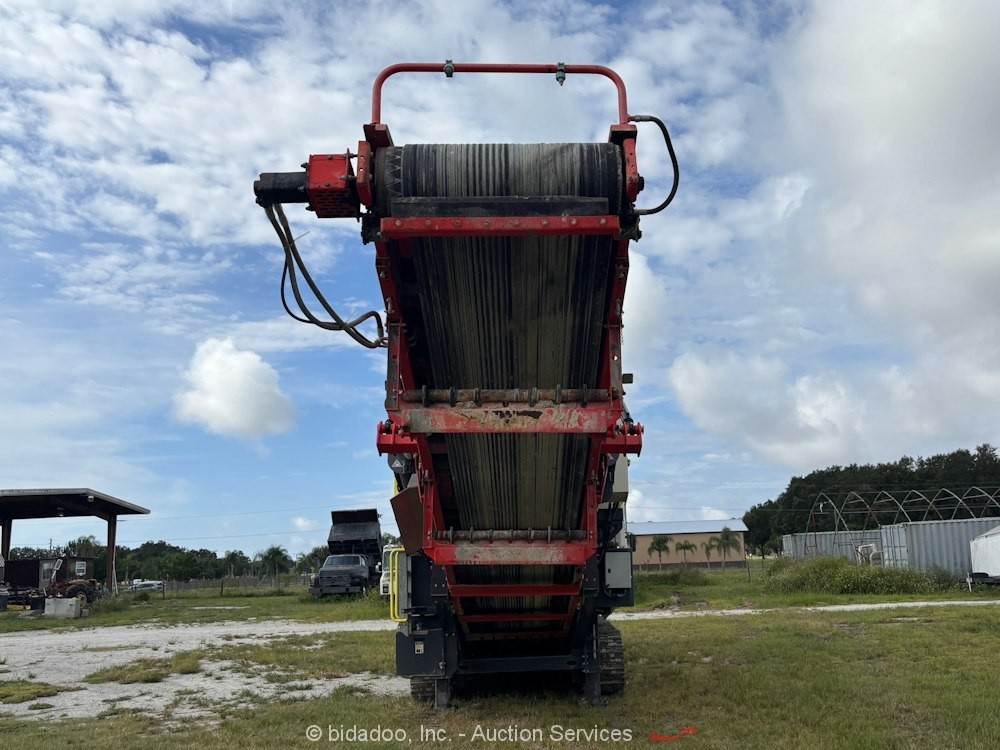

Main conveyor with dust covers

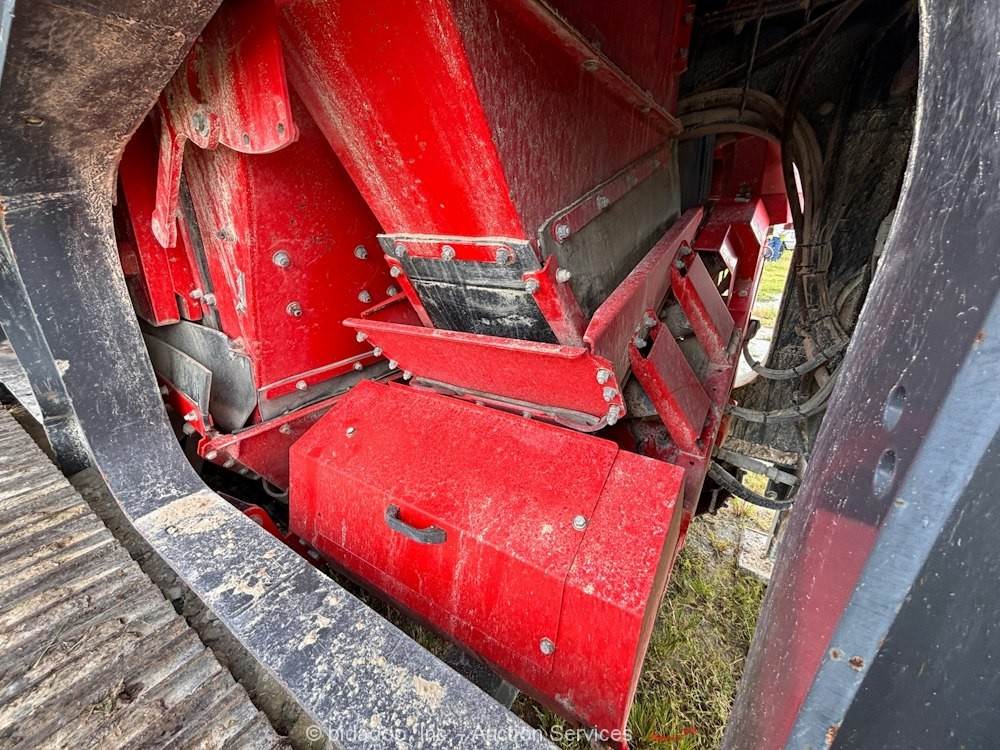

Belt protection plate under jaw crusher discharge
Central greasing unit, crusher and torque arm
Pull stop cords
Remote diesel pump

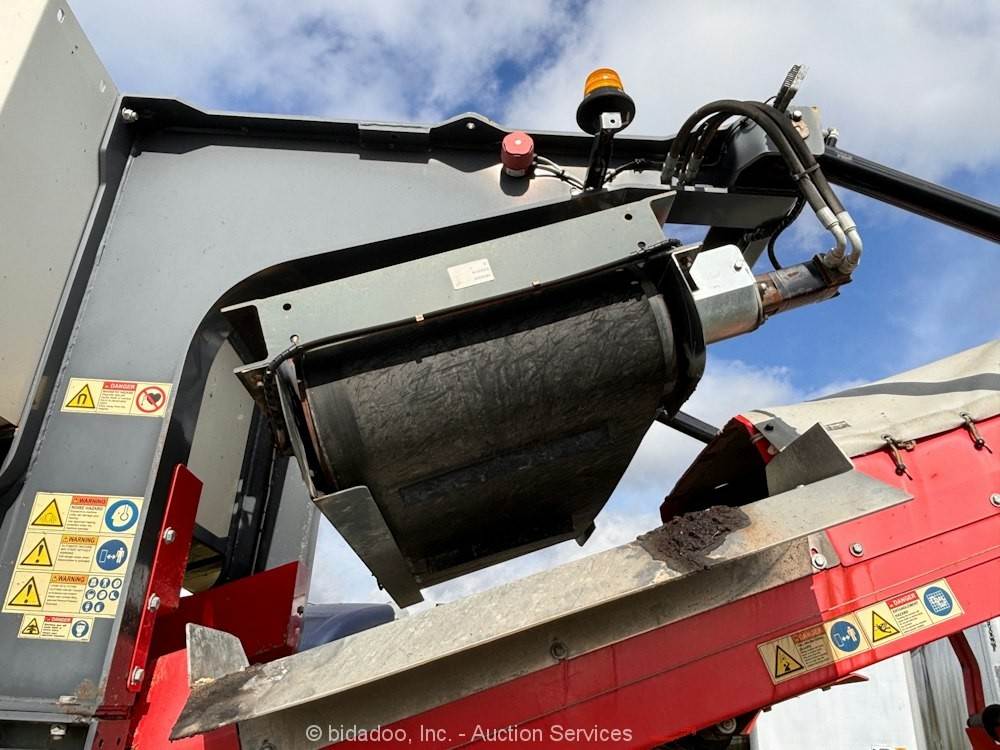

Single pole overband magnet

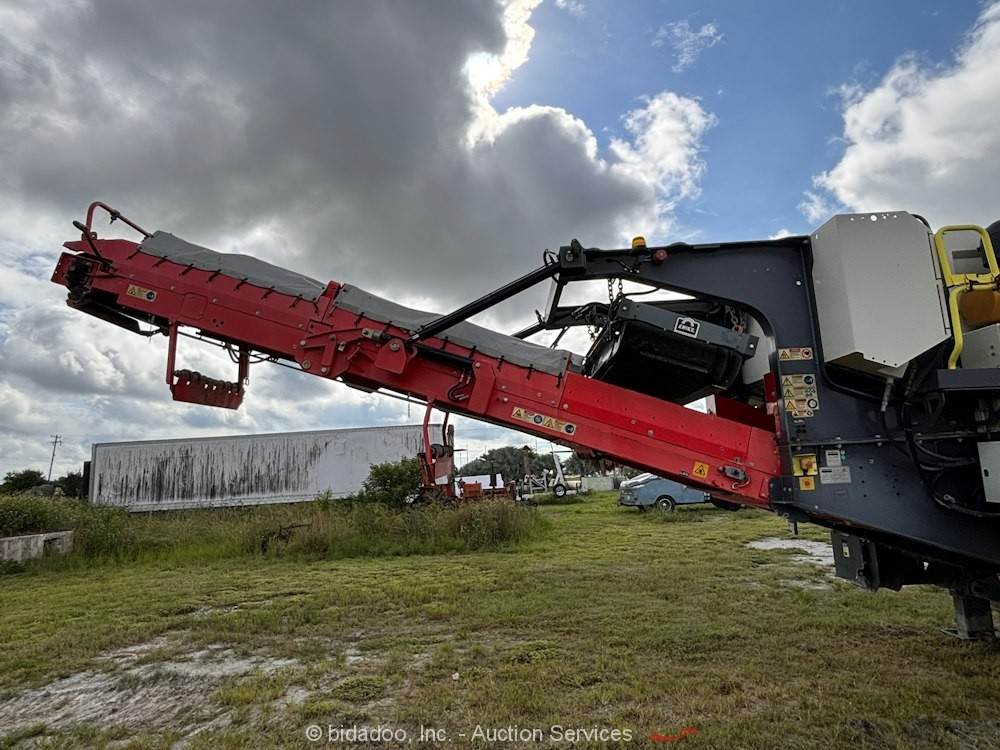

Telescopic natural fines conveyor c/w dust cover
Light mast and cabinet lights
Radio control tracking, proportional
Level sensor on crushing chamber
Hydraulic jacking legs
Dust suppression spray bars
US emission control label
Engine
Make: Caterpillar
Model: C9.3B
Output: 375 @ 2,200 rpm
Fuel Type: Diesel
Track
Size: 20 in
Type: Steel
Length of Track on Ground: 12 ft 2 in
Hopper
Width: 8 ft 1 in
Length: 14 ft 2 in
Capacity: 12.3 yds³ Heaped
Feeder
Width: 43 in
Length: 13 ft 1 in
Crusher Feed Opening: 47 x 29 in
CSS Range: 2-6 in
Maximum Feed Size: 25.6 inch³
Capacity (up to): 440 stph
Travel Speed: 0 - 0.81 mph
Max incline / Side to side: 20°/10°
