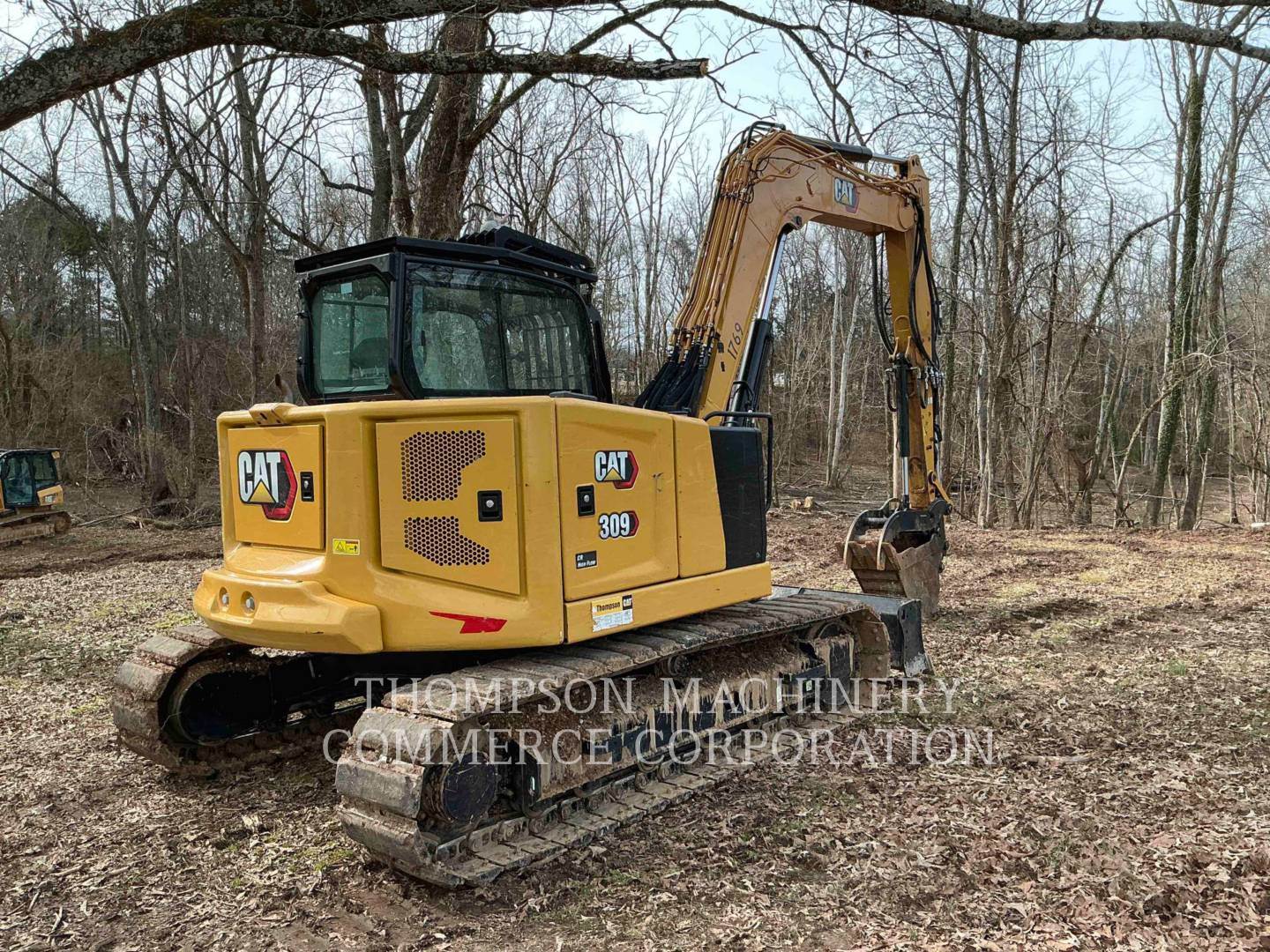

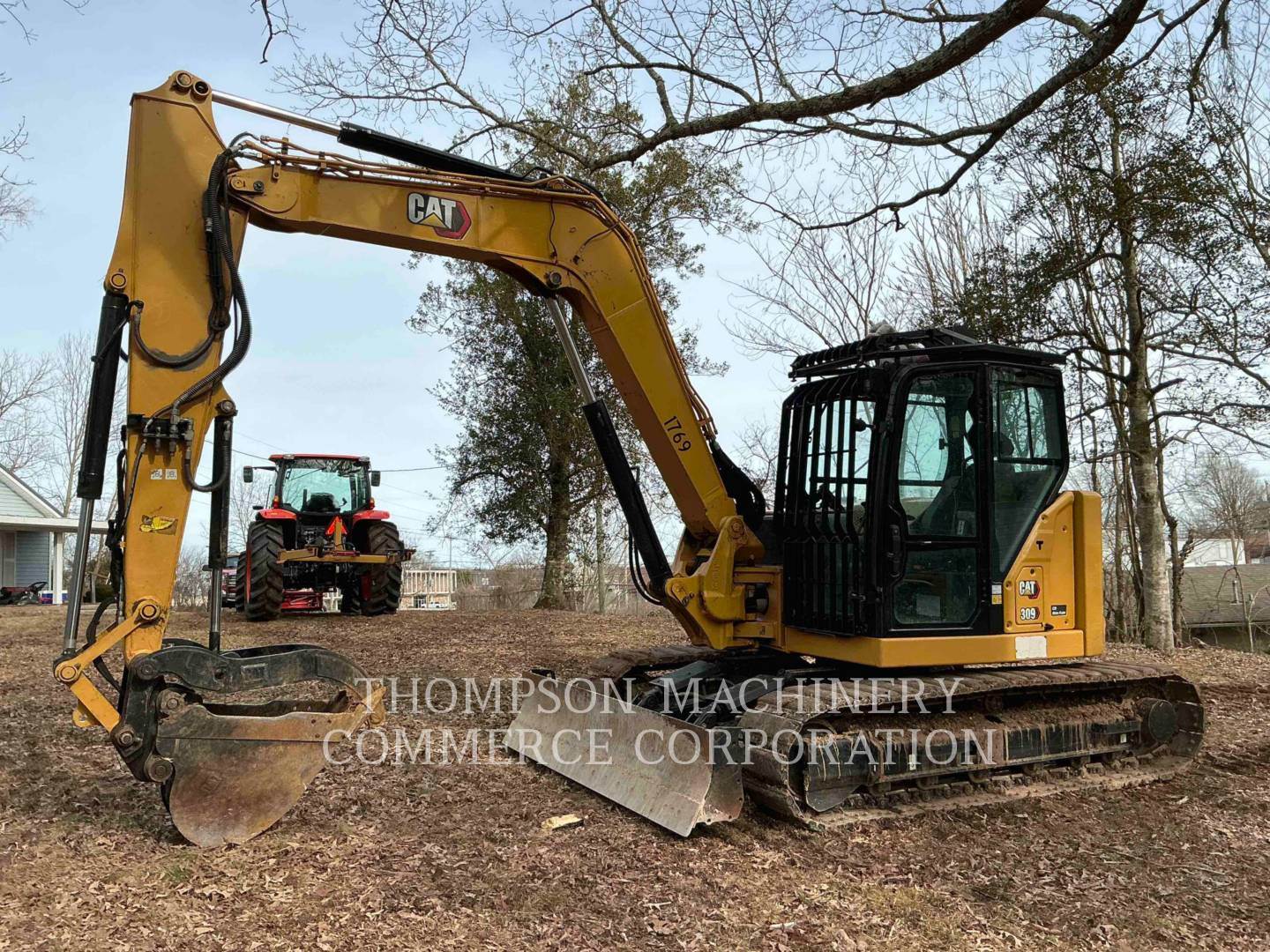

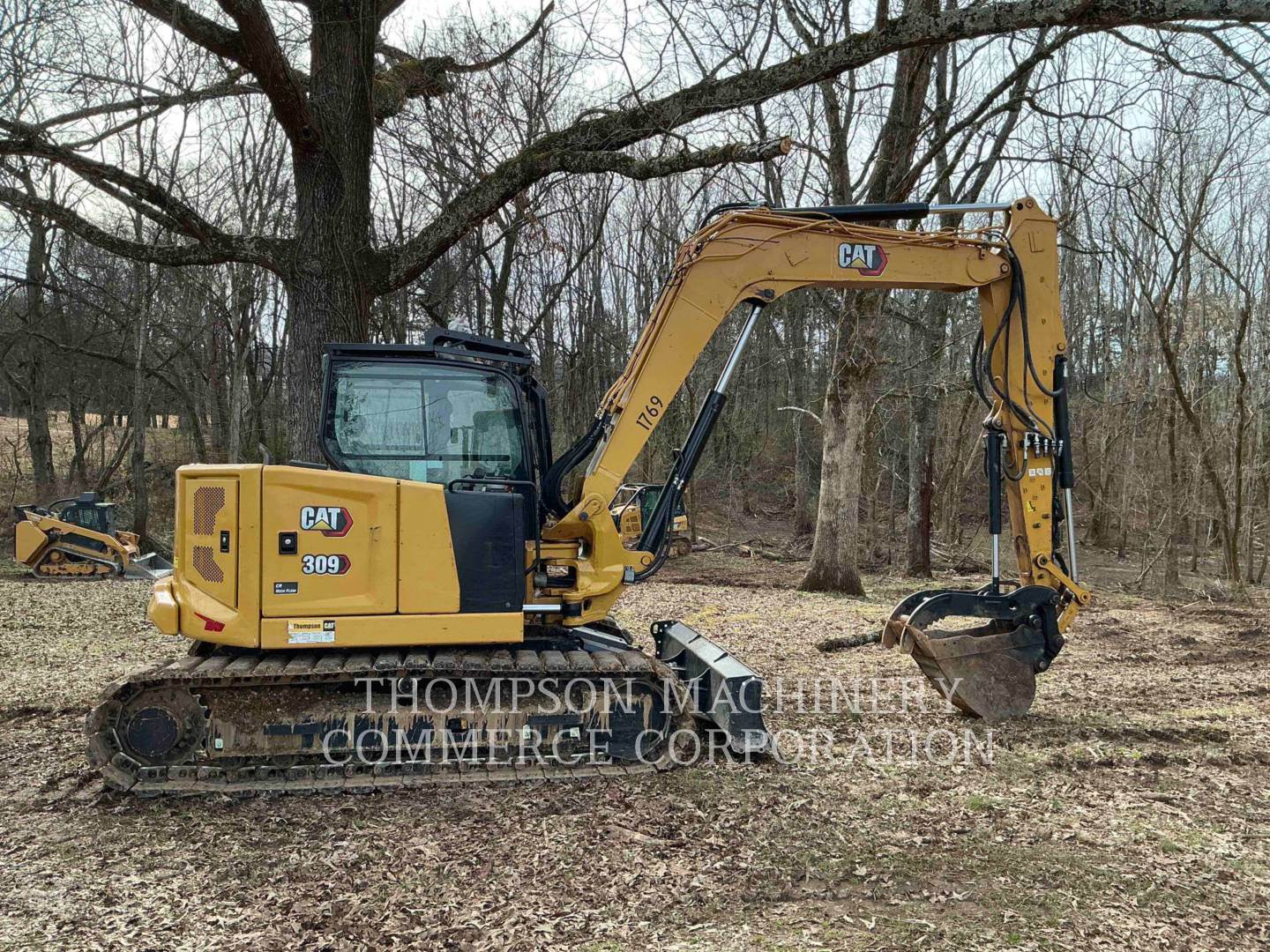

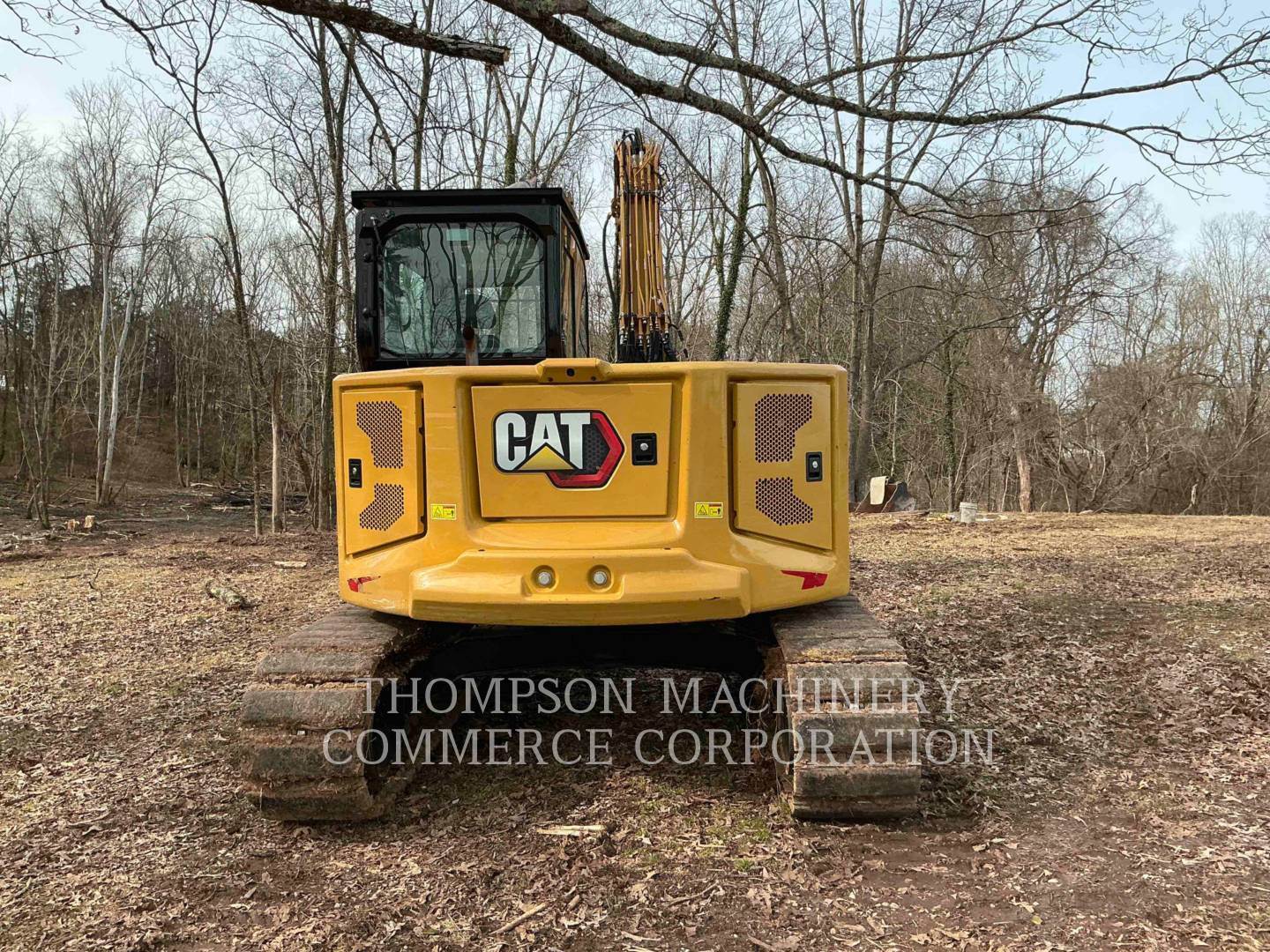

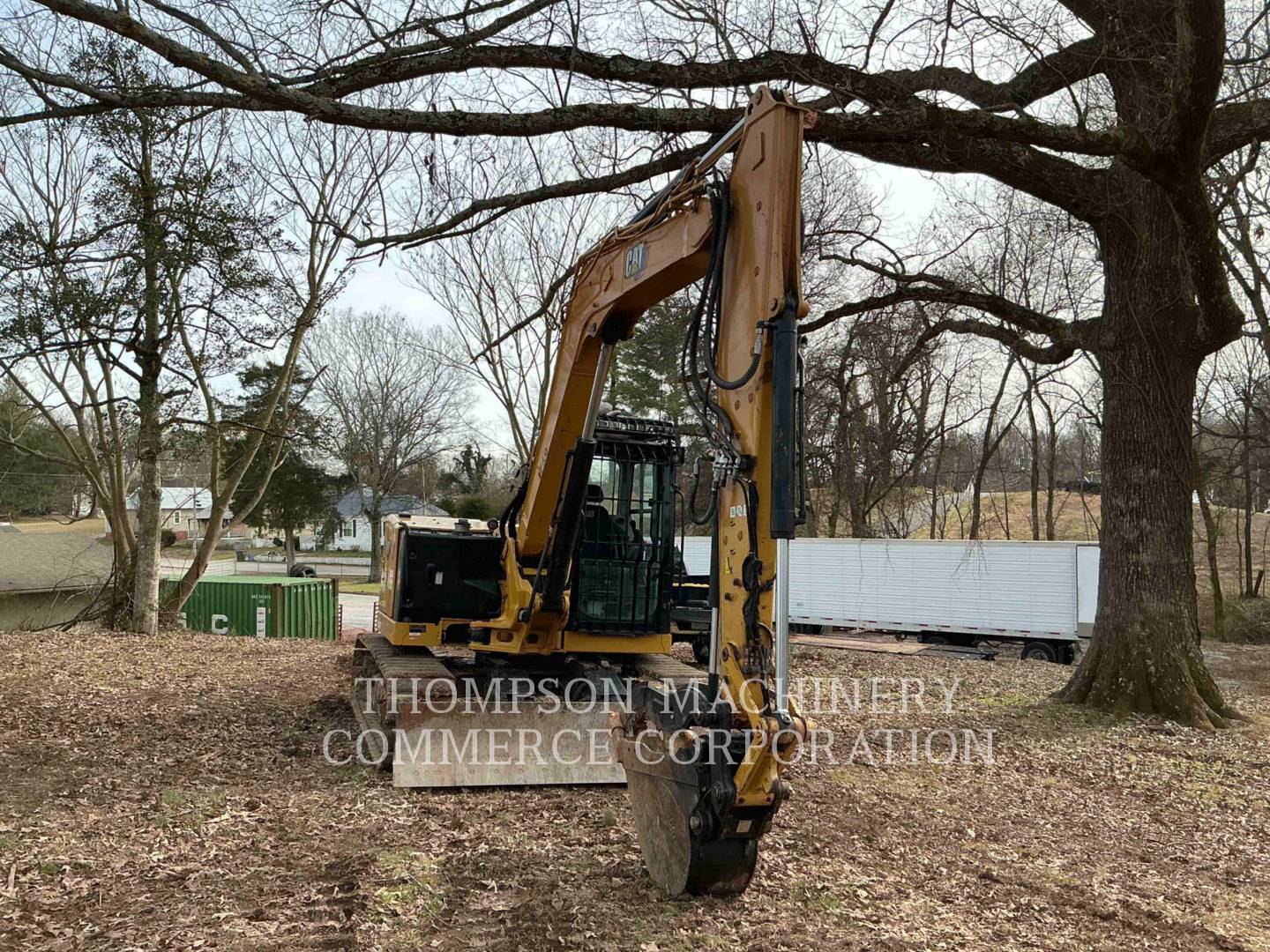

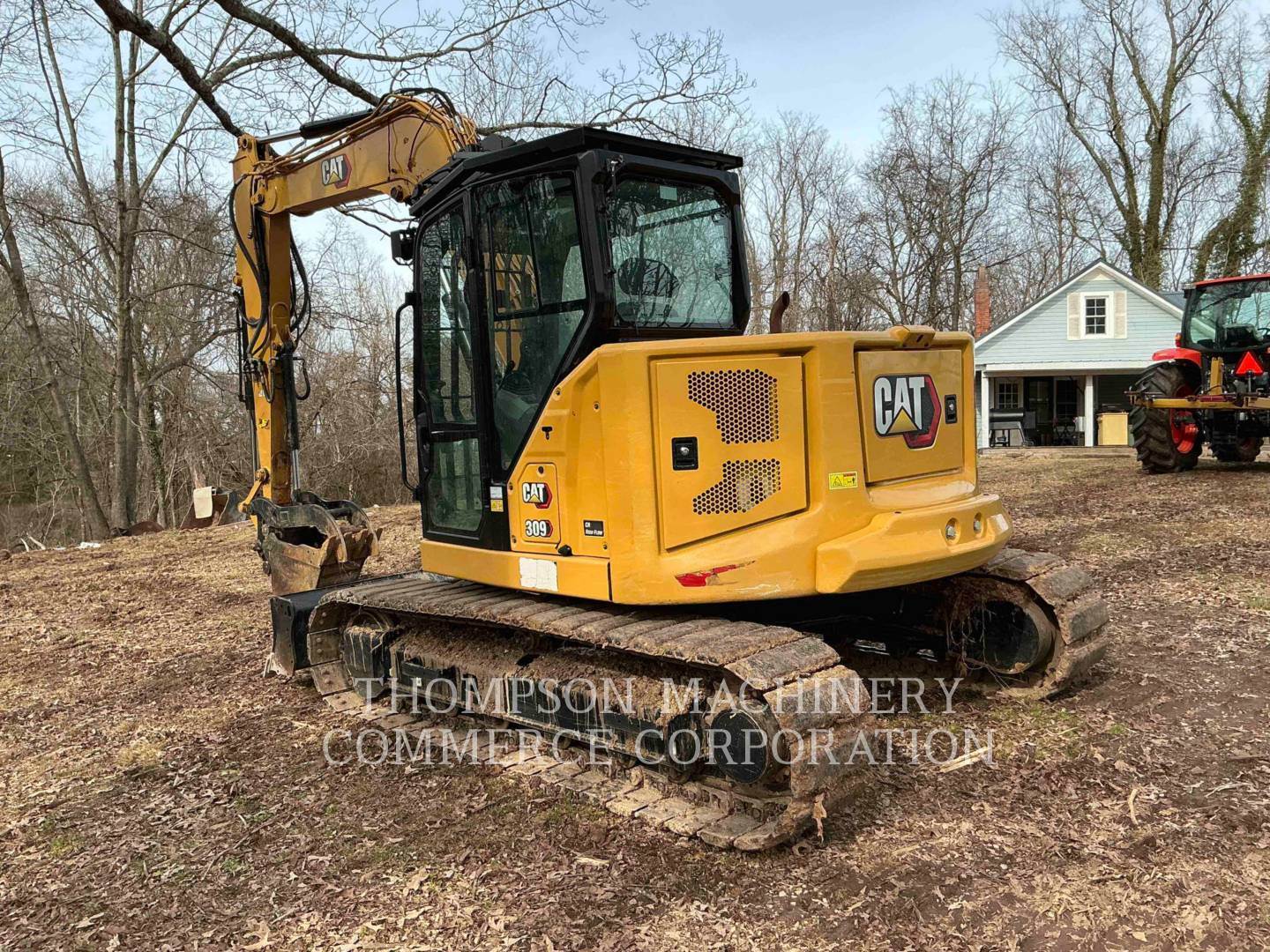

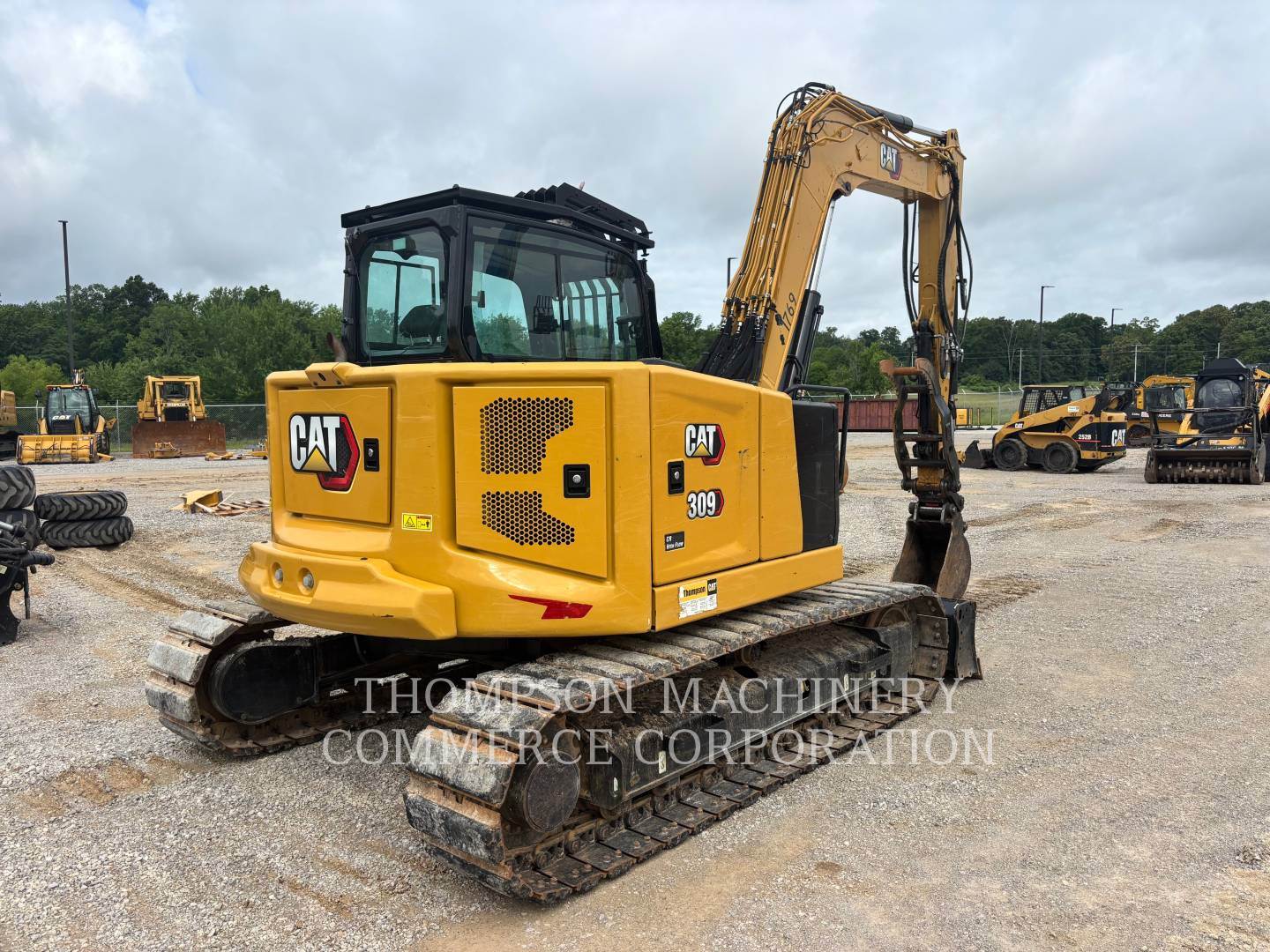

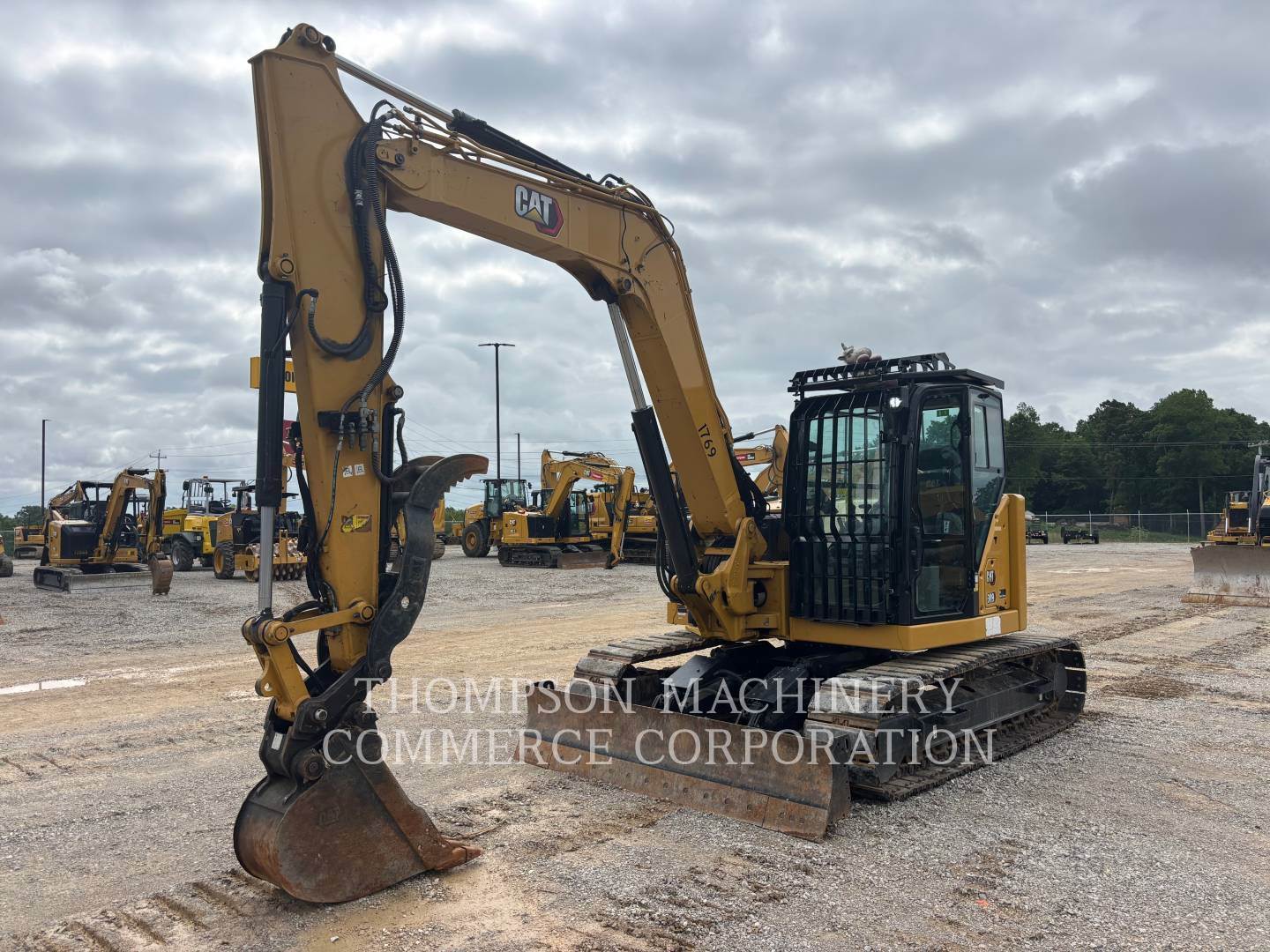

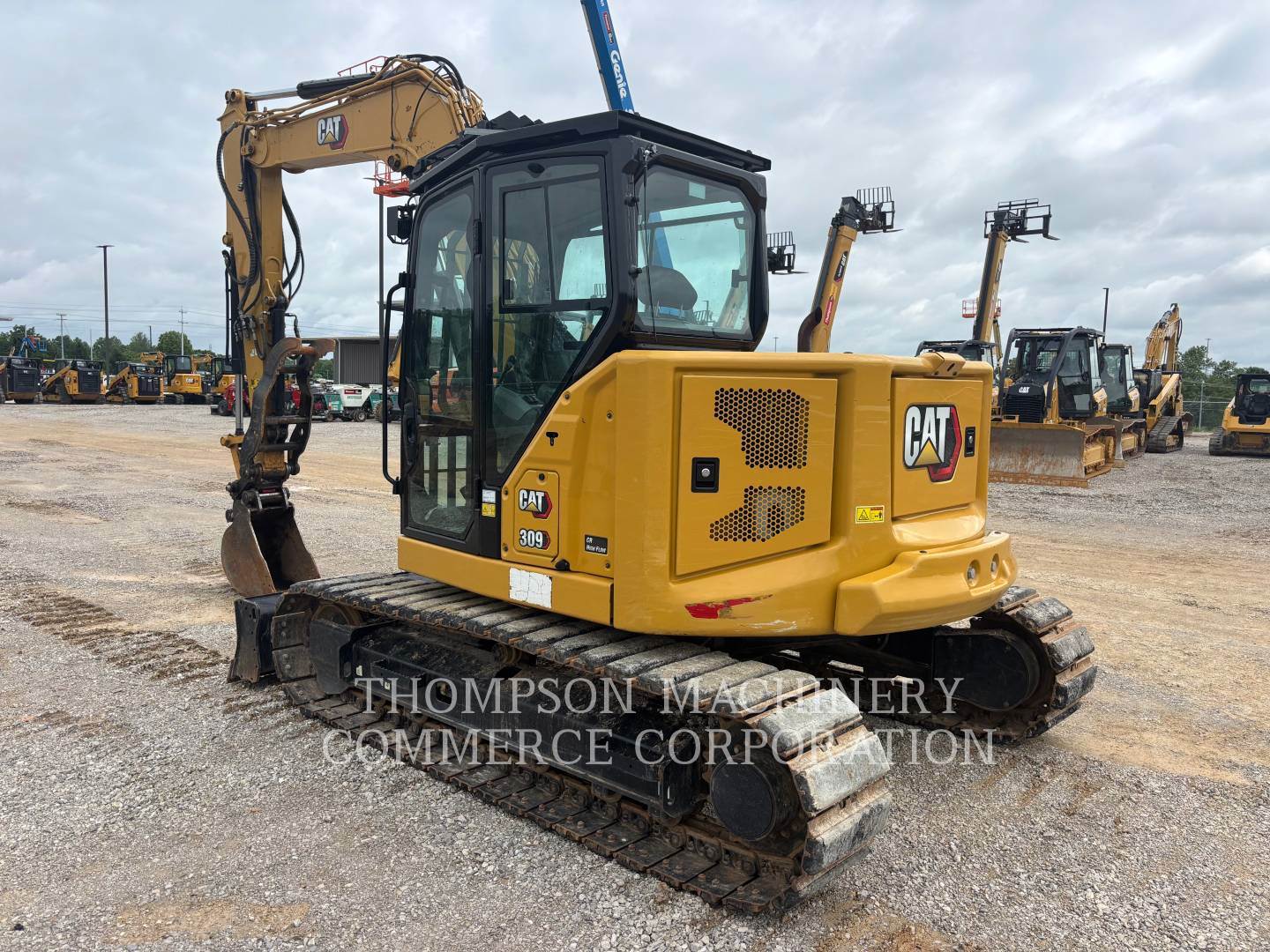

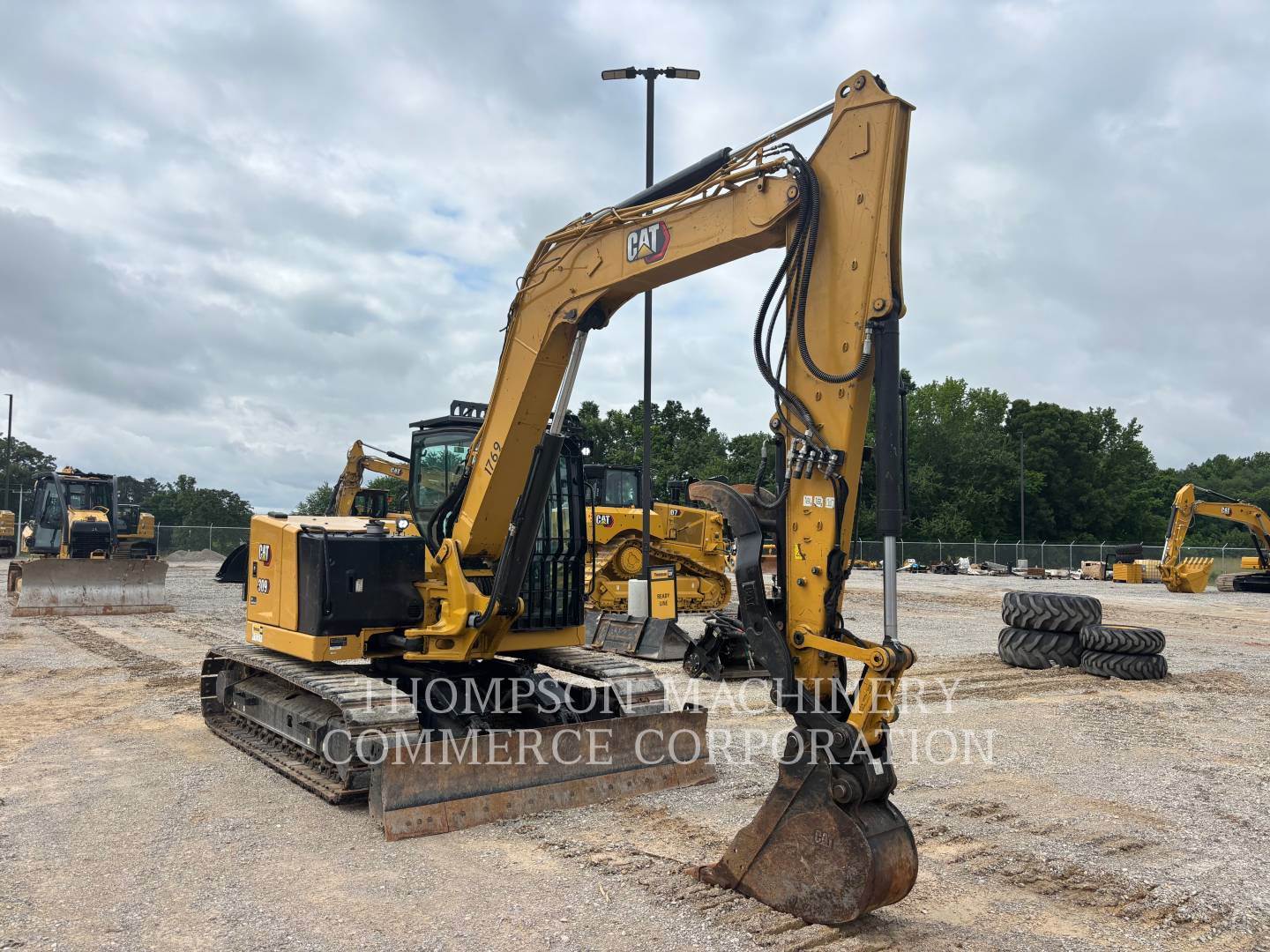

2023 Caterpillar 309 CR Mini Excavator

Buyer Activity

Viewed

Not yet

Shared

Not yet

Saved

Not yet

Product Specifications

Year	2023
Category	Mini Excavators
Manufacturer	Caterpillar
Model	309 CR
Condition	Used
MLS Number	14202174

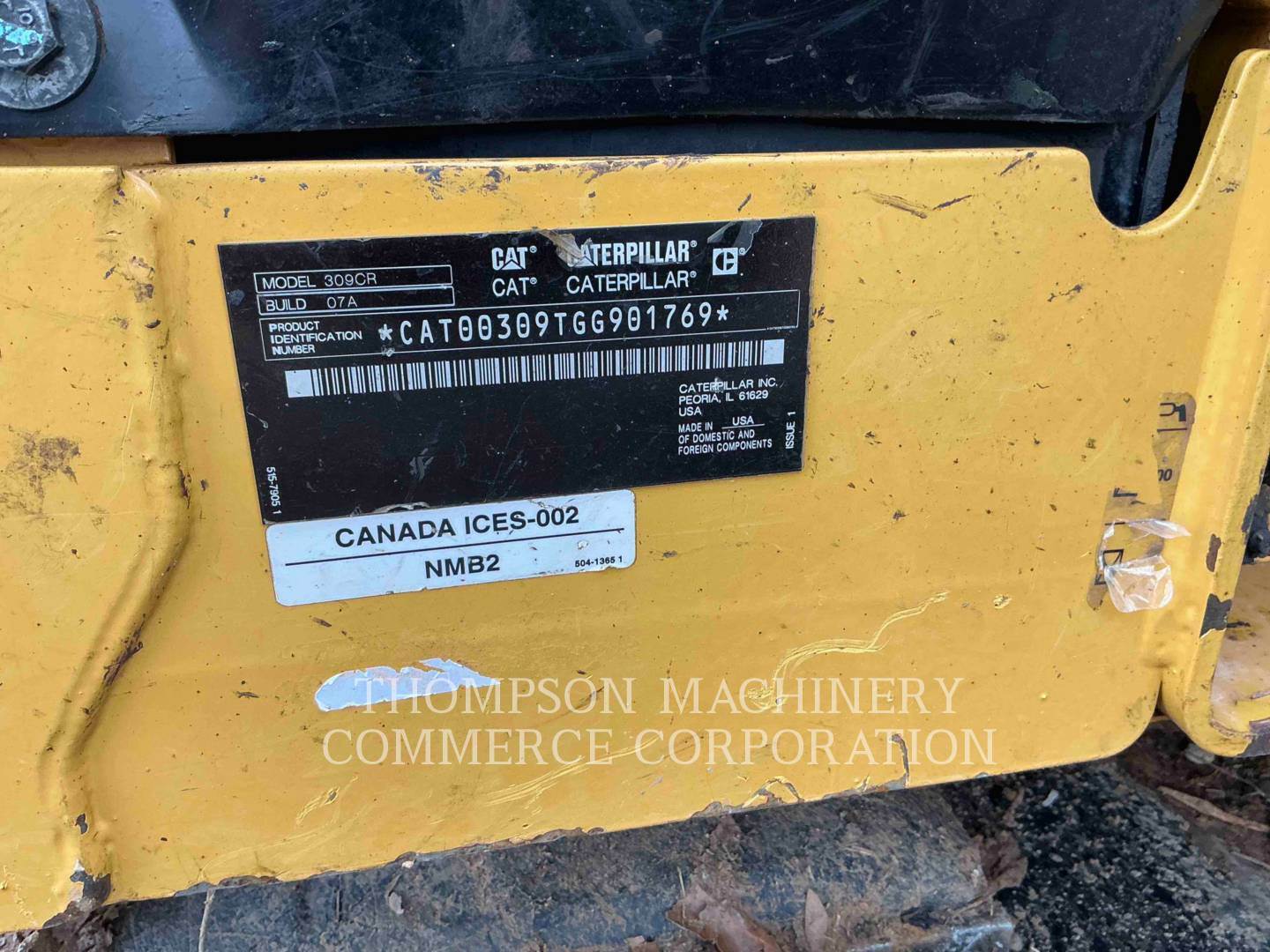

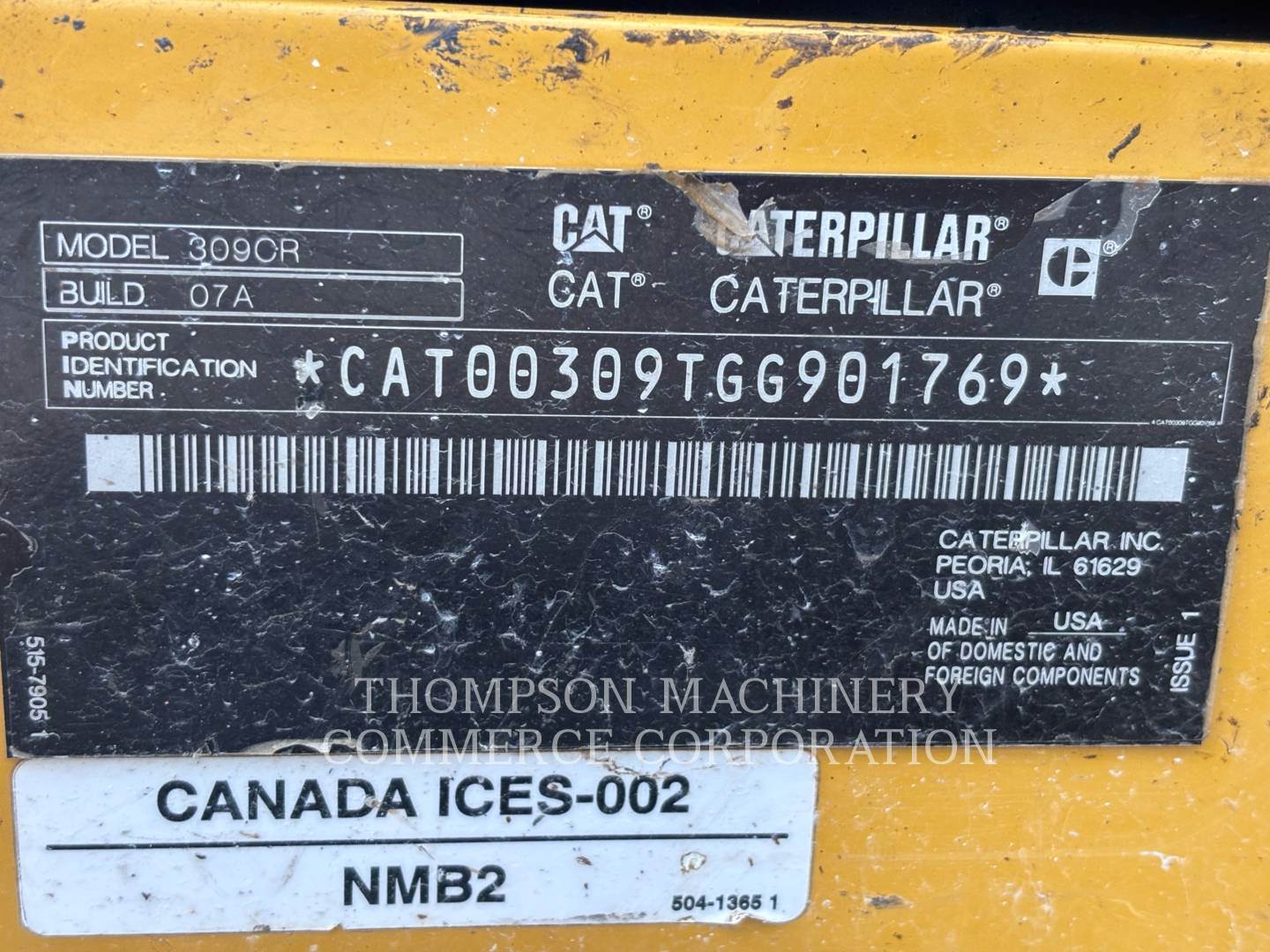

Serial Number	GG901769

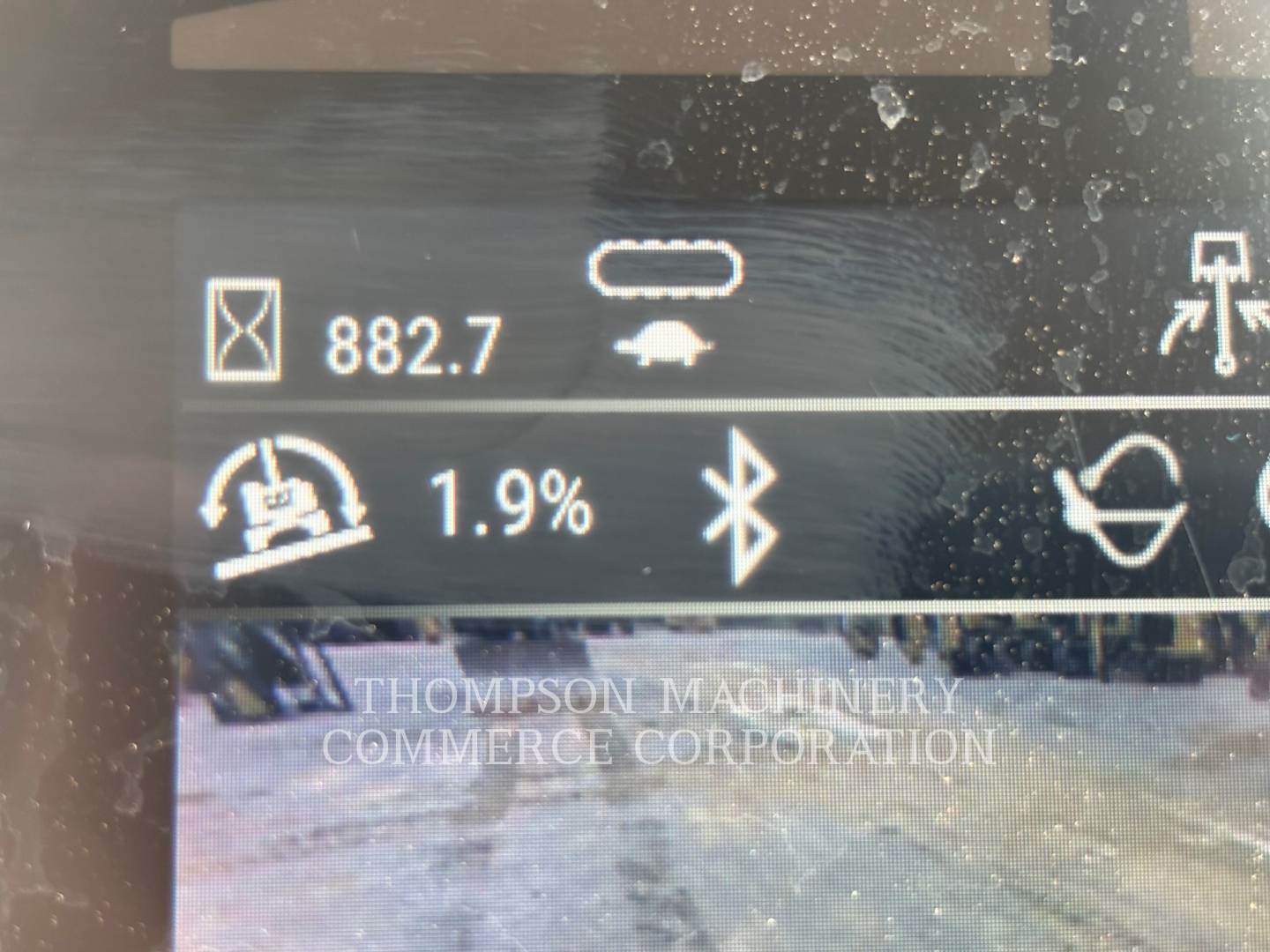

Usage	881 Hours

Additional Details

Rating	As-Is

Product Description

Air Conditioner
Anti-theft System
Auxiliary Hydraulics Pressure - High Pressure
Boom - 1 Piece
Boom Check Valve
Bucket
Car Body - Standard
Combined Hydraulics - Two Way
Connectivity Source - Product Link
Counterweight Removal System
Coupler - Quick
Coupler Type - Hydraulic
Emissions Level - EPA - Tier4
Emissions Level - Japan - 2014 Regulation
Engine Enclosures
Hand and Foot Control
Lighting
Mirrors
Online Owner's Manual

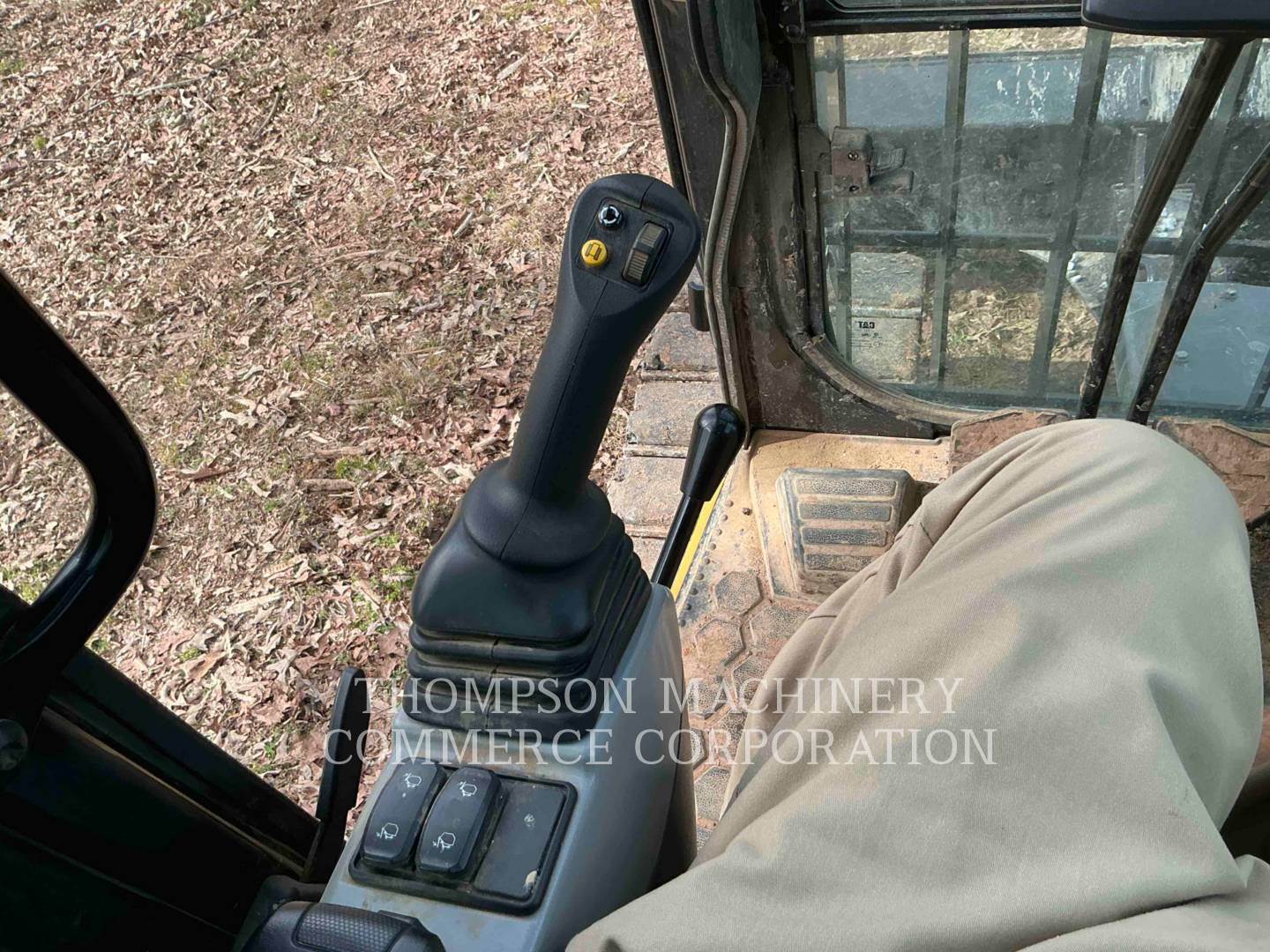

Pilot Control
Radio - AM FM Radio
Stick - Medium
Stick Check Valve
Straight Travel Pedal
Thumb Type - Hydraulic
Ultra Low Sulfur Diesel Fuel

$172,000 USD

Located in Sparta, TN, US

Email Seller (855) 458-___ SHOW
NUMBERCall Seller

Seller Information

Thompson Machinery

667 Horace Lewis Rd
Cookeville, TN 38506
United States

+18554580291

Get Directions

View all Inventory (60)

Notes

Get Shipping Quotes Save Price Alert Send to a Friend Print Listing

Inspection Report

GENERAL CONDITION

ET Product Status Report Download	Yes
Logged / Active Codes	Yes
Machine Starts and is Operable	Yes
S.O.S. (All Compartments)	No
VIDS/VIMS Download Available	No
Visible Oil Leaks	No
Notes - GENERAL CONDITION	Good
Body	Fair
Frame	Good
General	Good

GENERAL APPEARANCE

Cleaning Required	Yes
Extra Fuel Tanks	No
Notes - GENERAL APPEARANCE	Good
Bumper	Good
Car Body	Good
Catwalk	Good
Counterweight	Fair
Crankcase Guard / Battery Box	Good
Decals	Fair
Draw Bar	Good
Eng. Enclose Hood / Stack	Good
Engine Doors	Good
Fenders	Good
Fiberglass	Good
Fuel Tank	Good
Grab Irons	Good
Hood	Good
Main Frame Welds	Good
Paint	Fair
Plastic	Good
Radiator Grill & Shroud	Good
Sheet Metal	Good
Steps / Ladder	Good

SAFETY ITEMS

Parking Brake Functioning	Yes
ROPS	Yes

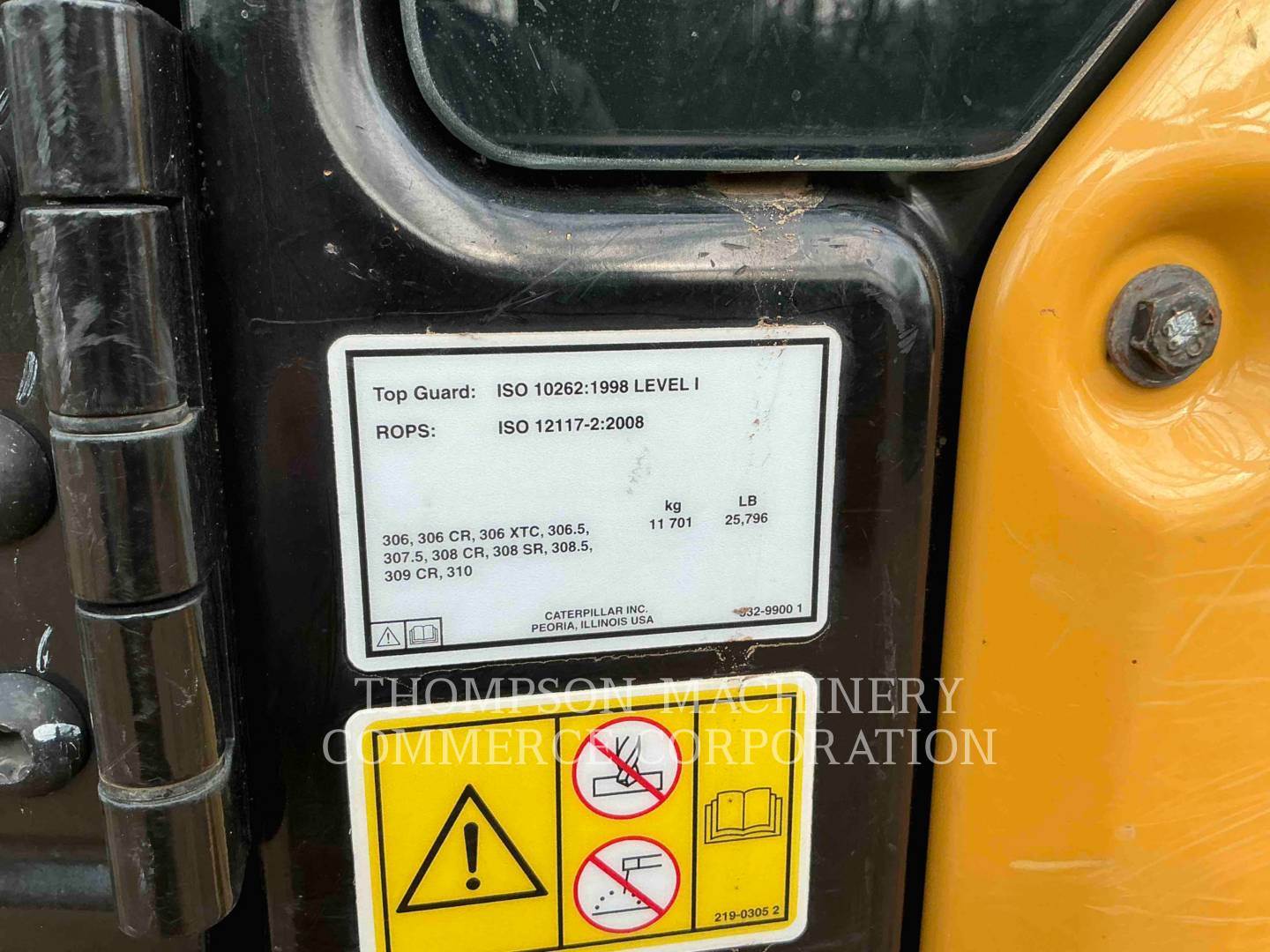

ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
Safety Locks / Pins	Yes
Service Brakes Functioning	Yes
Notes - SAFETY ITEMS	Good
Camera(s)	Good
Horn	Good
Seat Belt / Date	Good
Secondary Exit	Good
Travel Alarm	Good

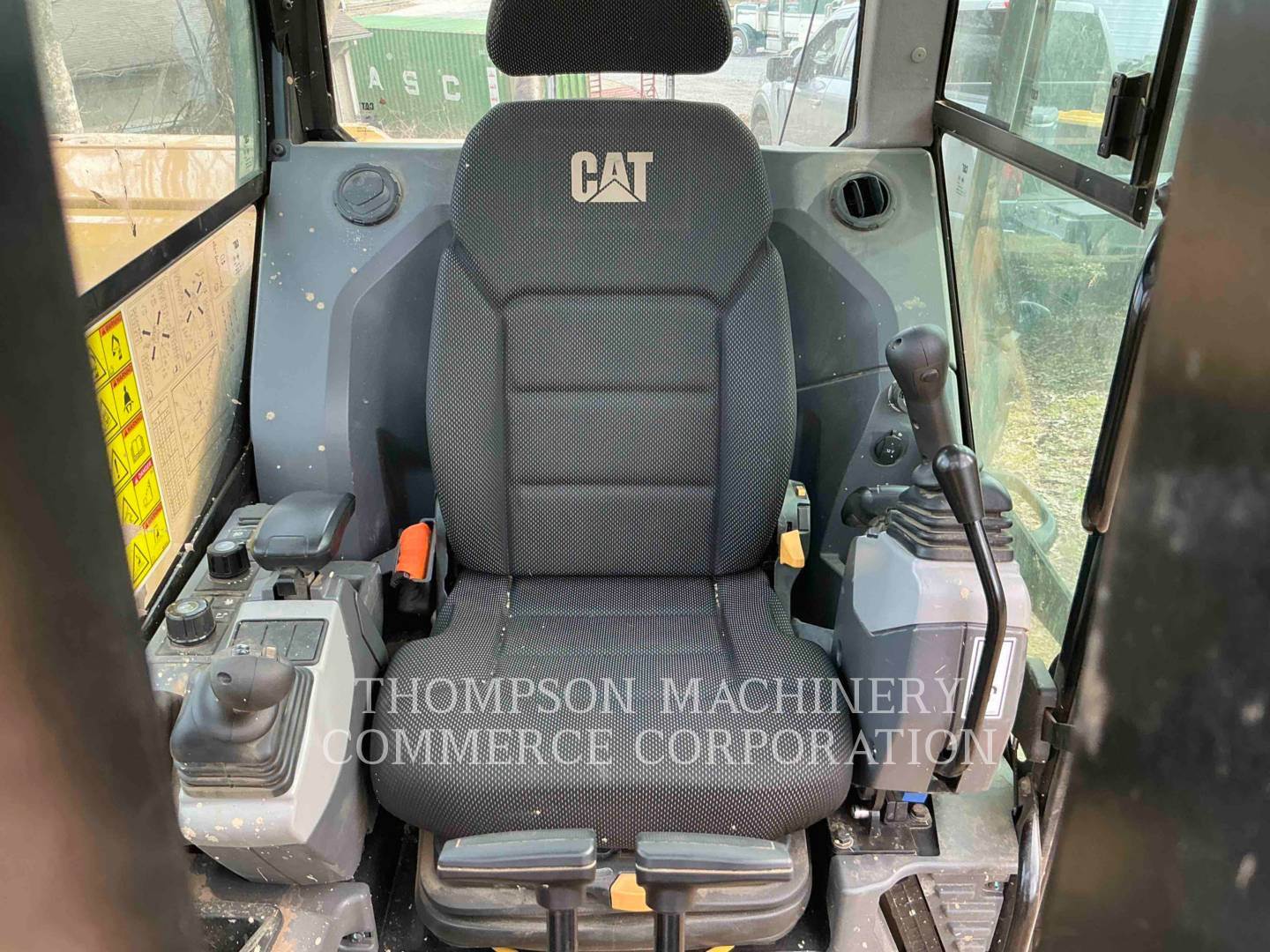

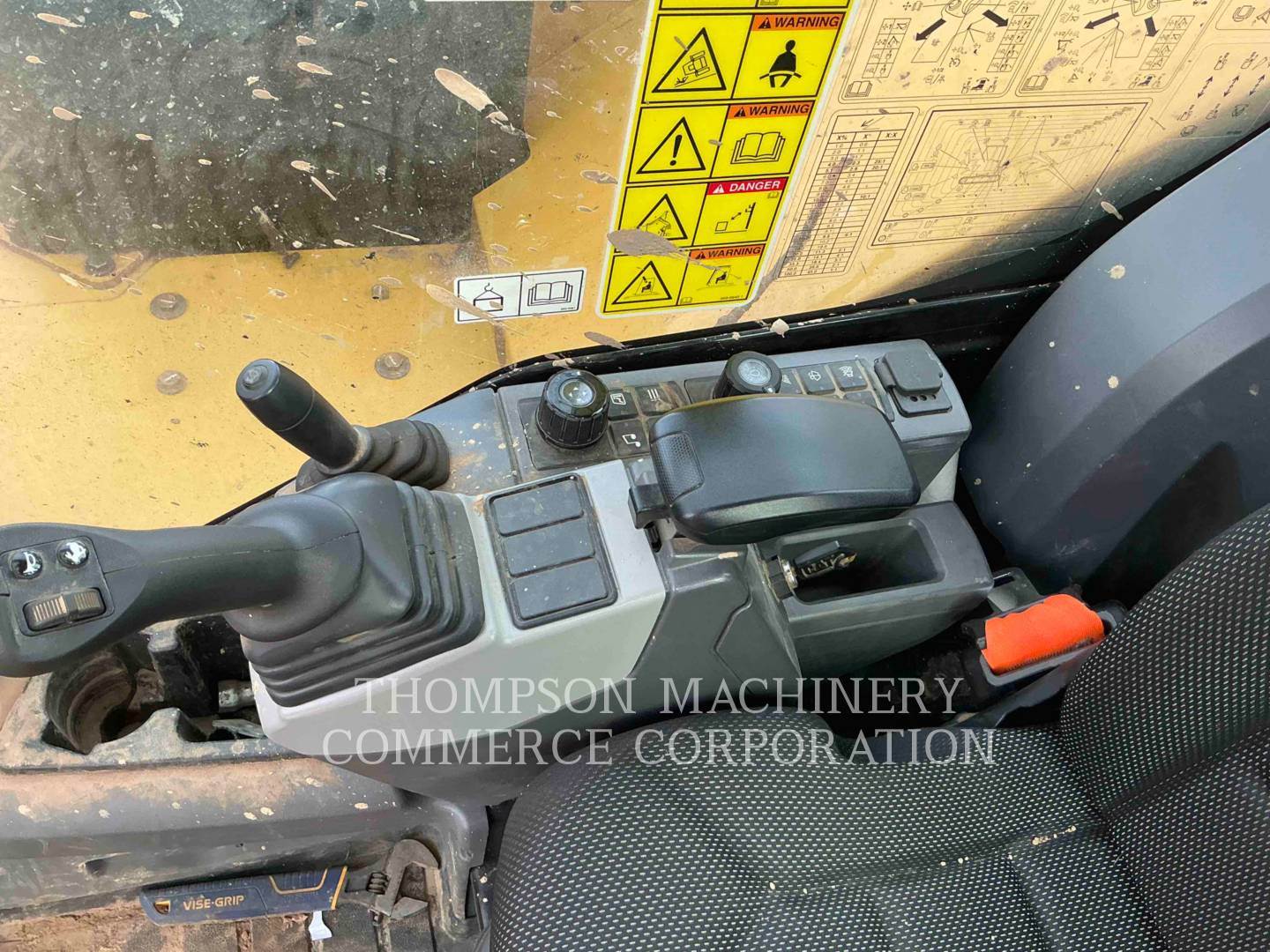

OPERATOR STATION

Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION	EGR
Fuel Level - OPERATOR STATION	18%
Notes - GAUGES, OPERATOR STATION, CONSOLE	Good
Current O&MM	Yes
Current Parts Manual	No
Current Safety Manual	Yes
Sound Proofing	Yes
Air Conditioner	Good
Armrests	Good
Cab Filter / Heat Vent Louvres	Good
Dash Console	Good
Door Latches / Hinges / Seals	Good

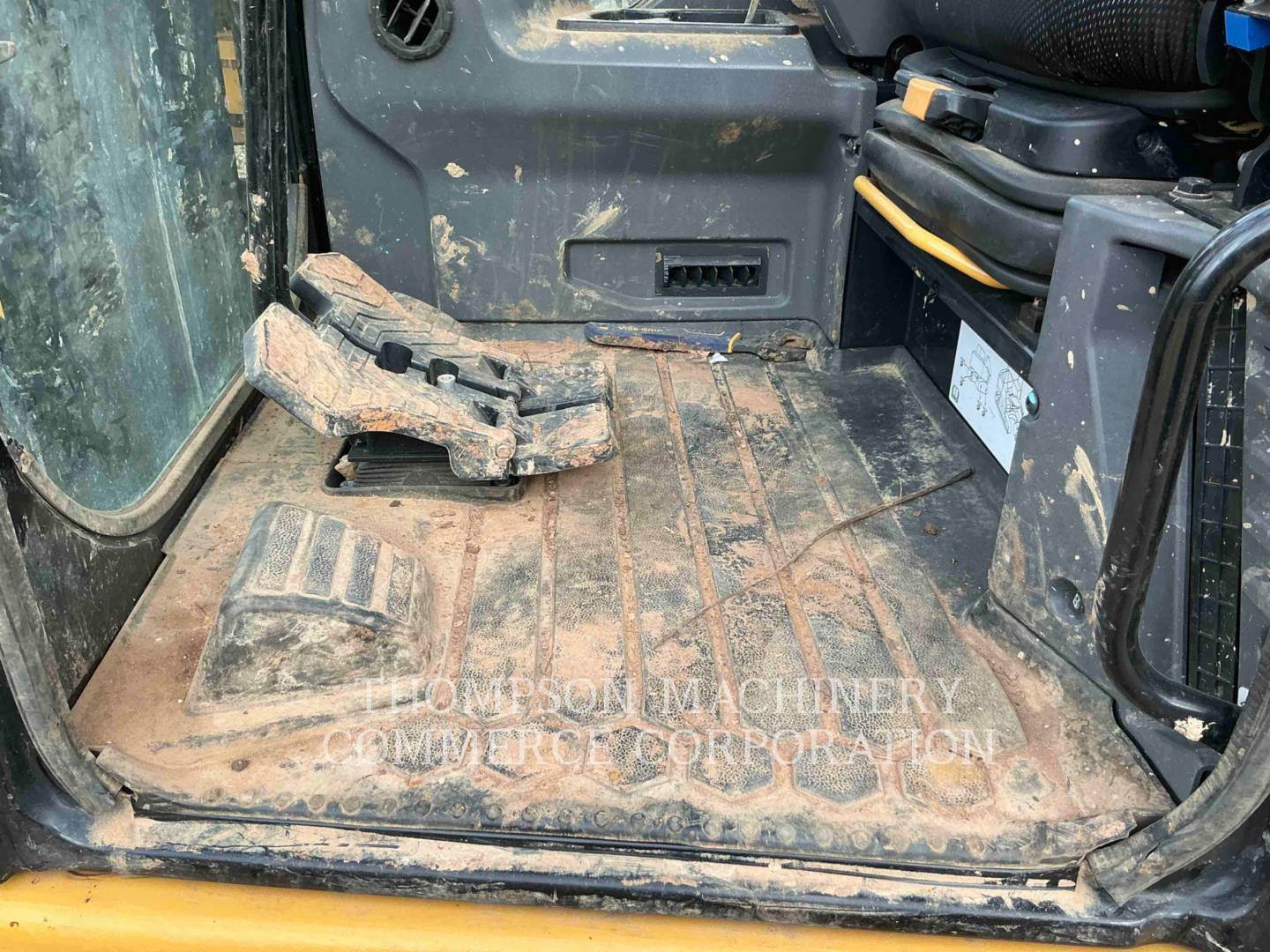

Floor Boards / Mats	Good
Gauges	Good
Headliner	Good
Heater / Defroster	Good

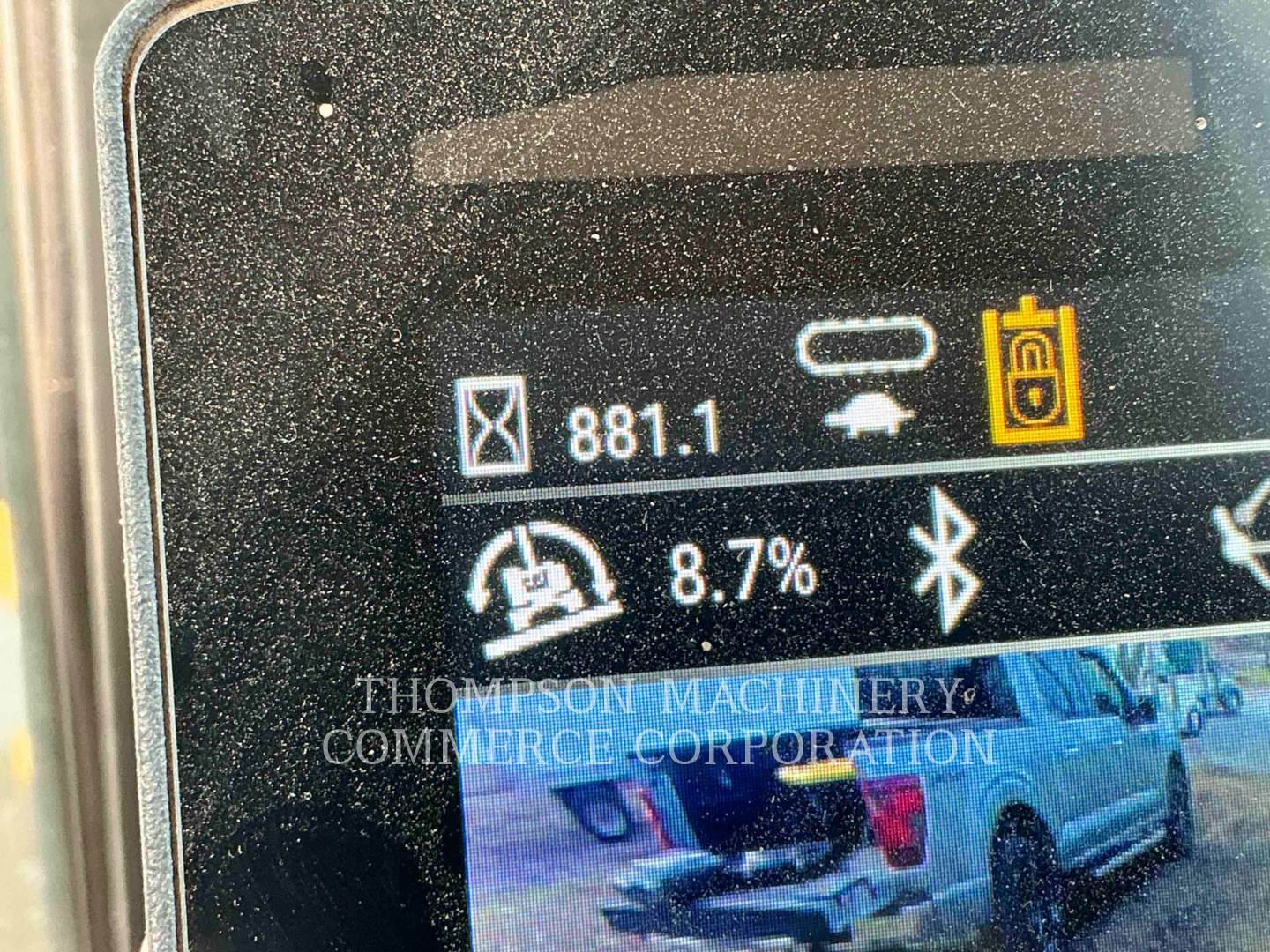

Hour Meter - GAUGES, OPERATION STATION, CONSOLE	Good

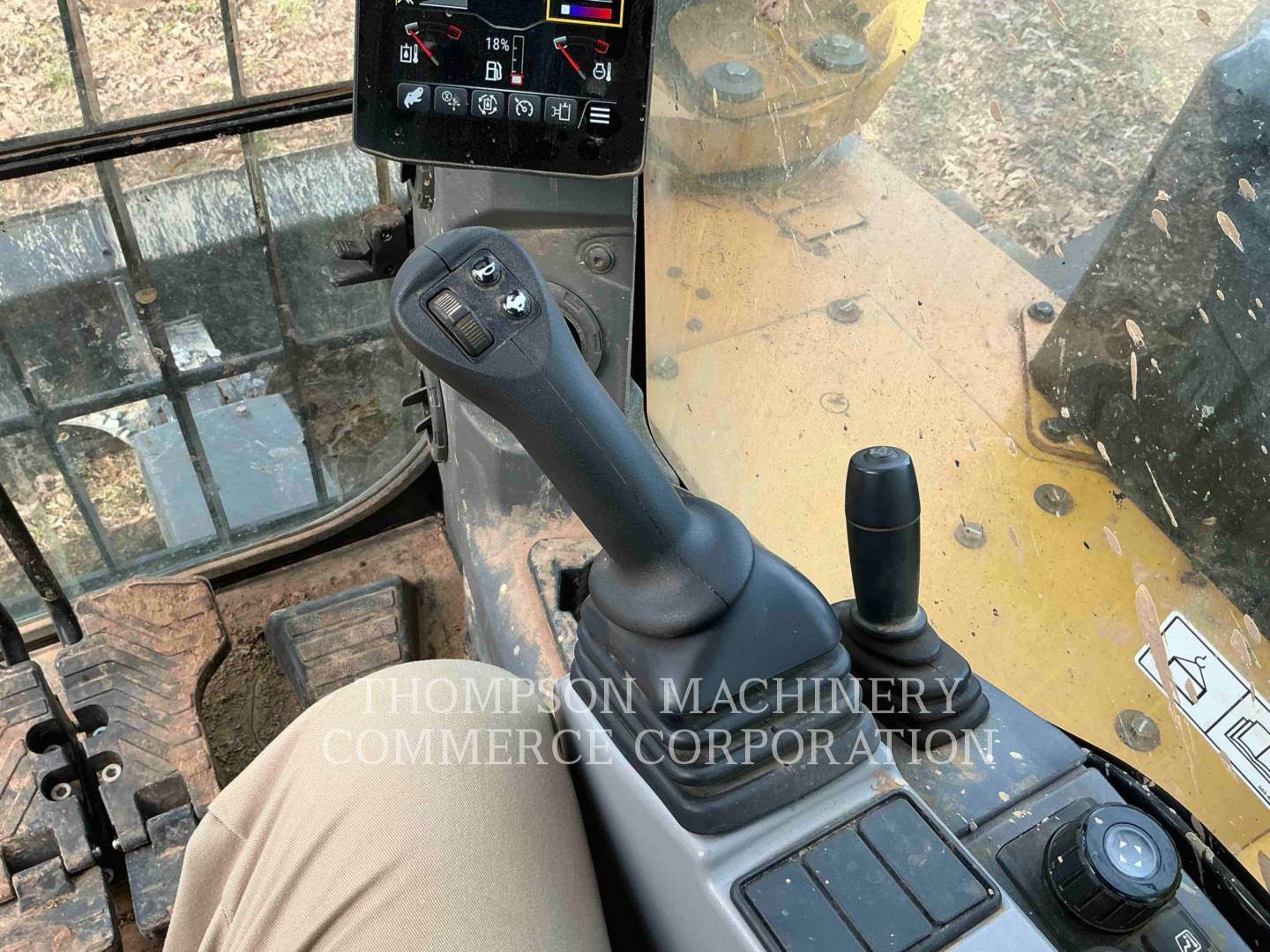

Hydraulic Controls	Good
Interior Lights	Good
Interior Plastic / Fabric	Good
Mirrors	Good

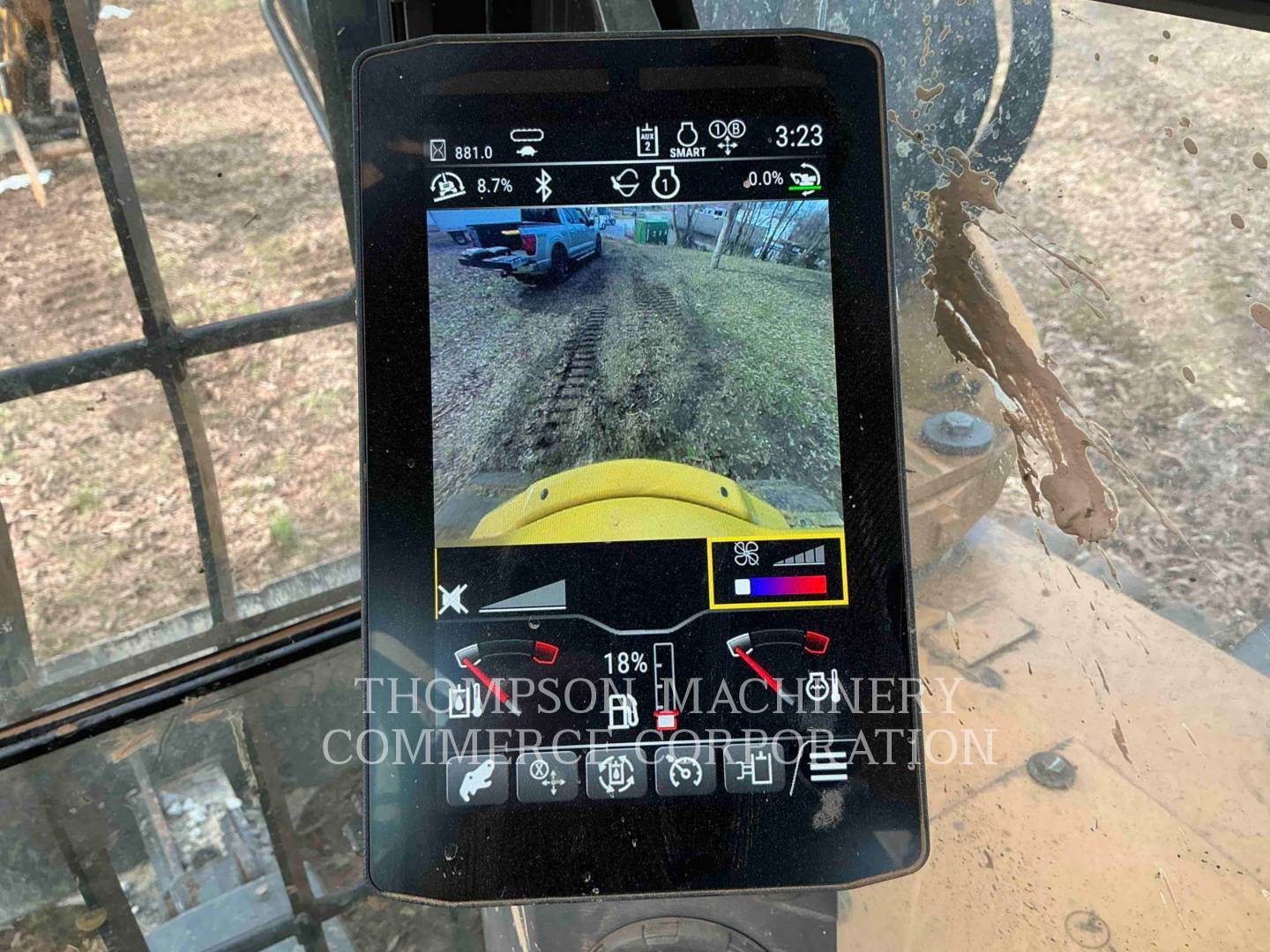

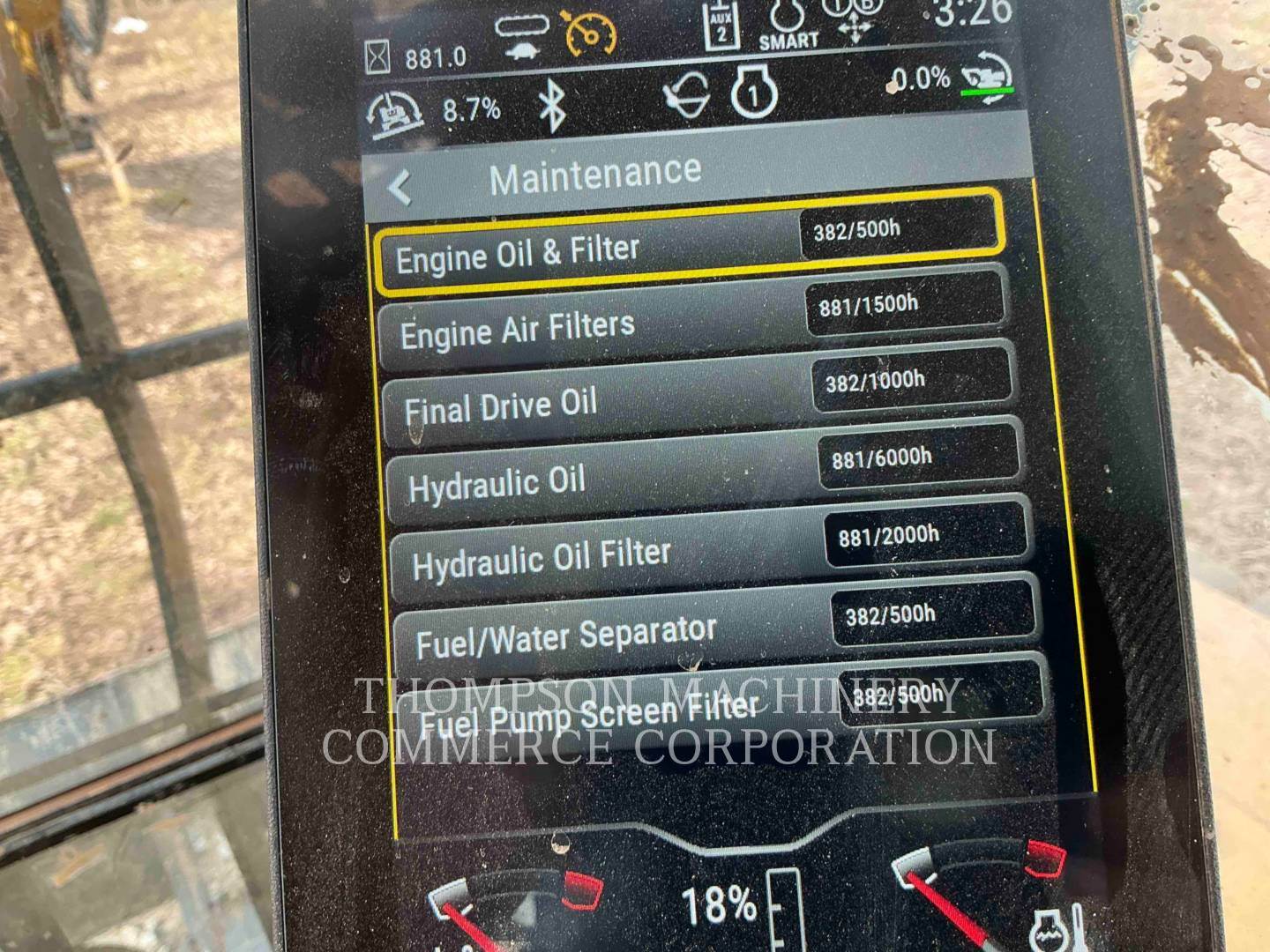

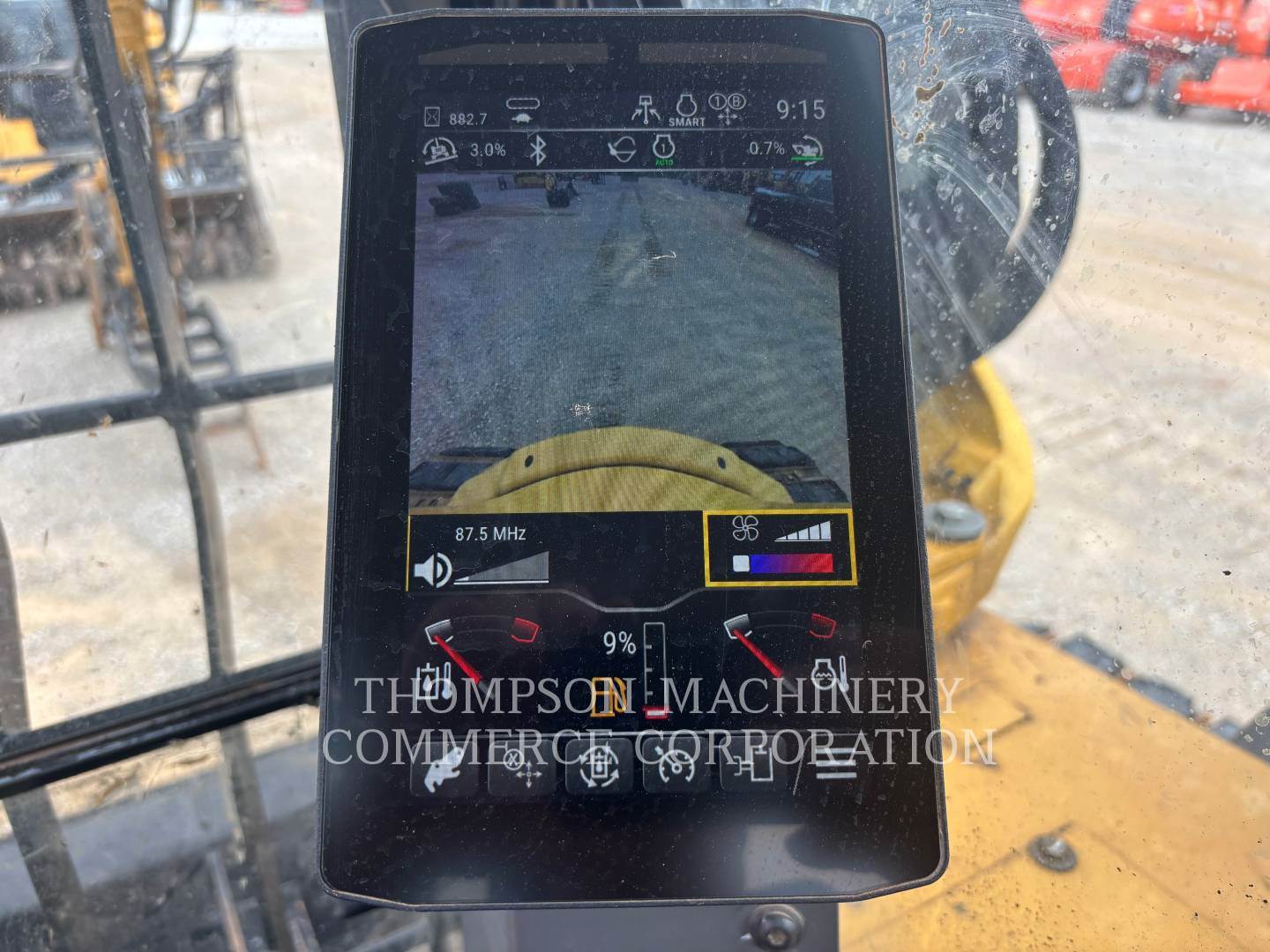

Monitoring Display	Good
Pans/Guards	Good
Radio	Good
Seat Cushions / Suspension / Type	Good

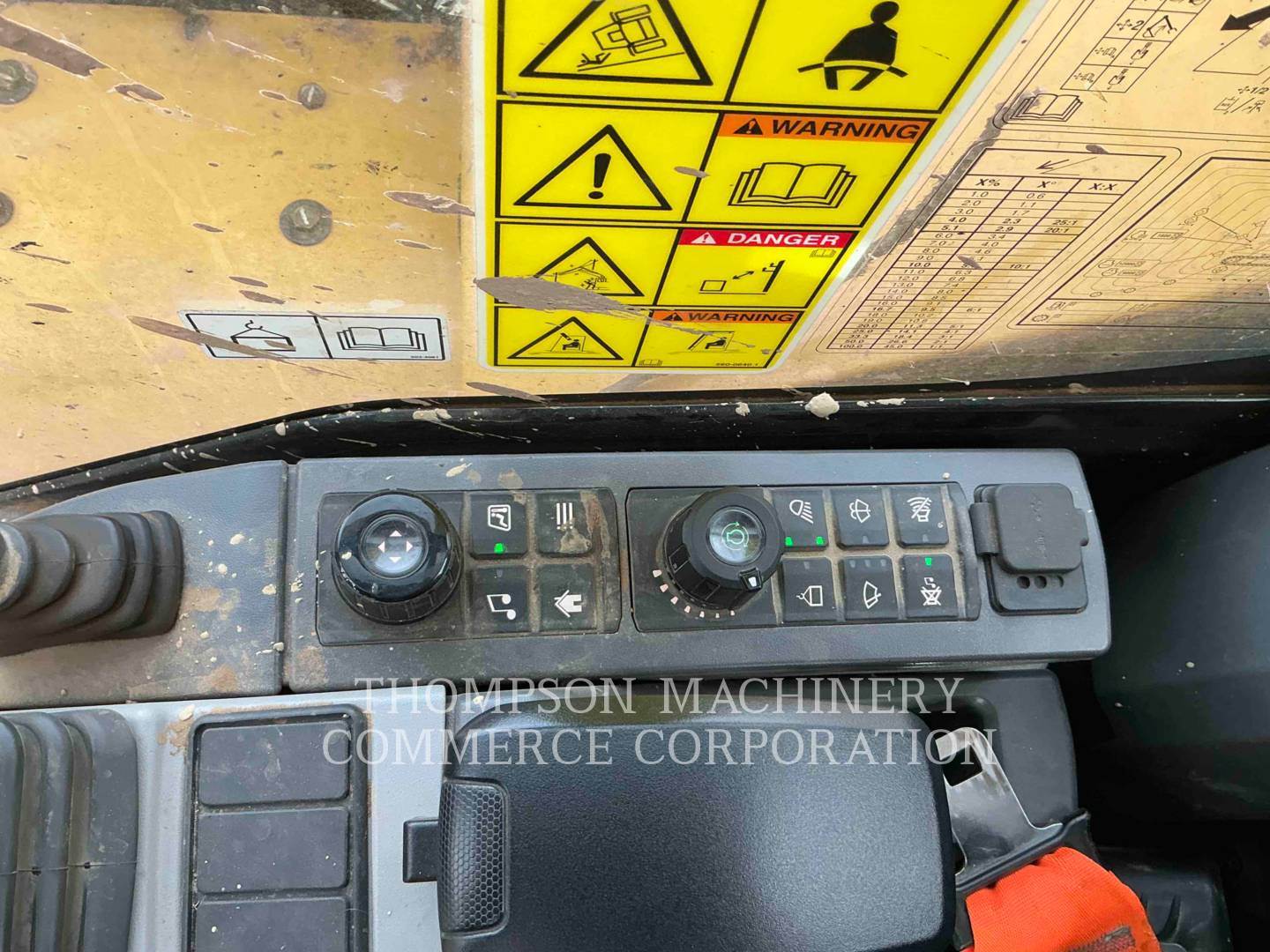

Switches	Good
Travel Controls (Type)	Good
Visor / Sunshade	Good
Windows	Good
Windshield Wipers	Good

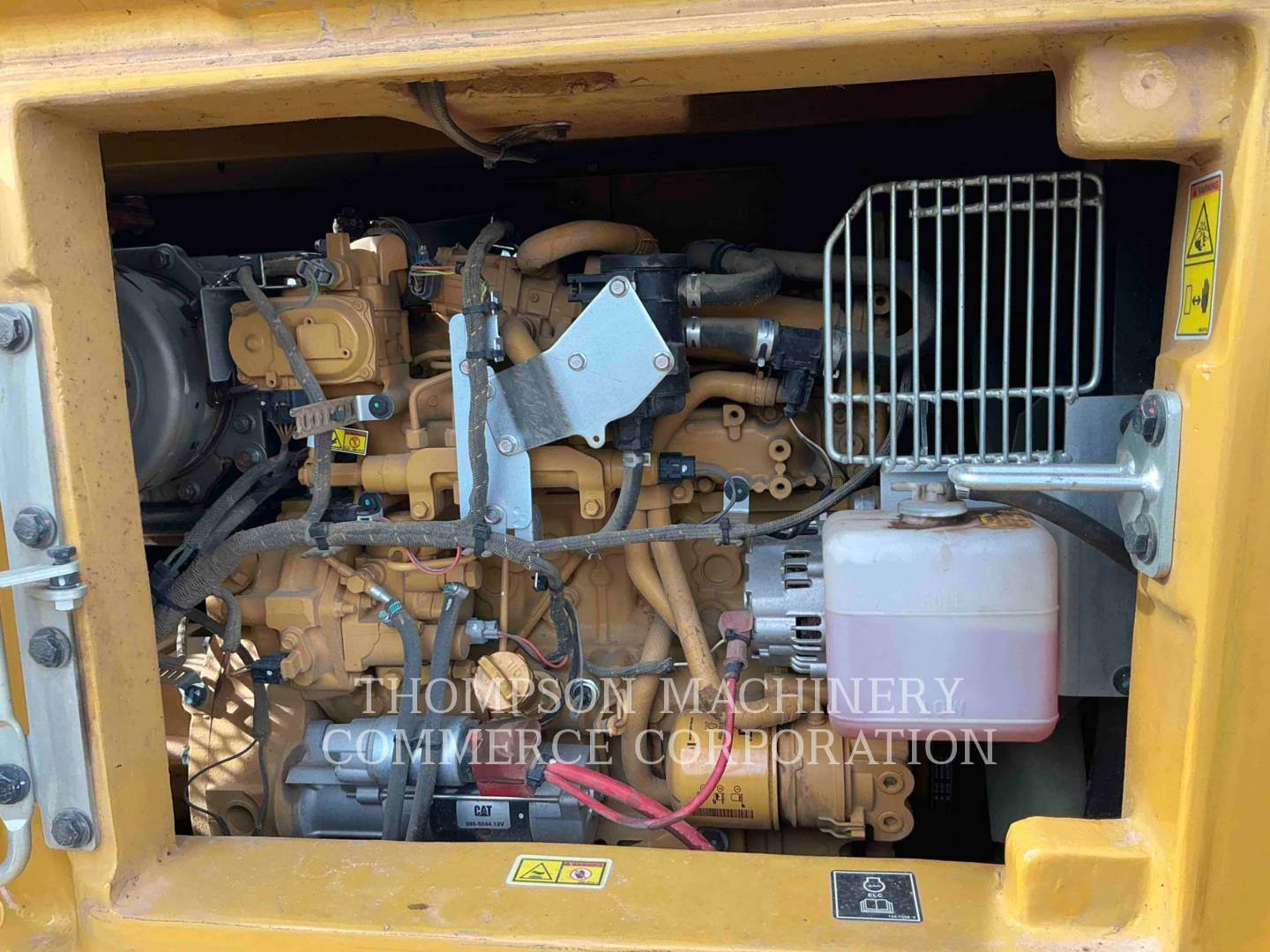

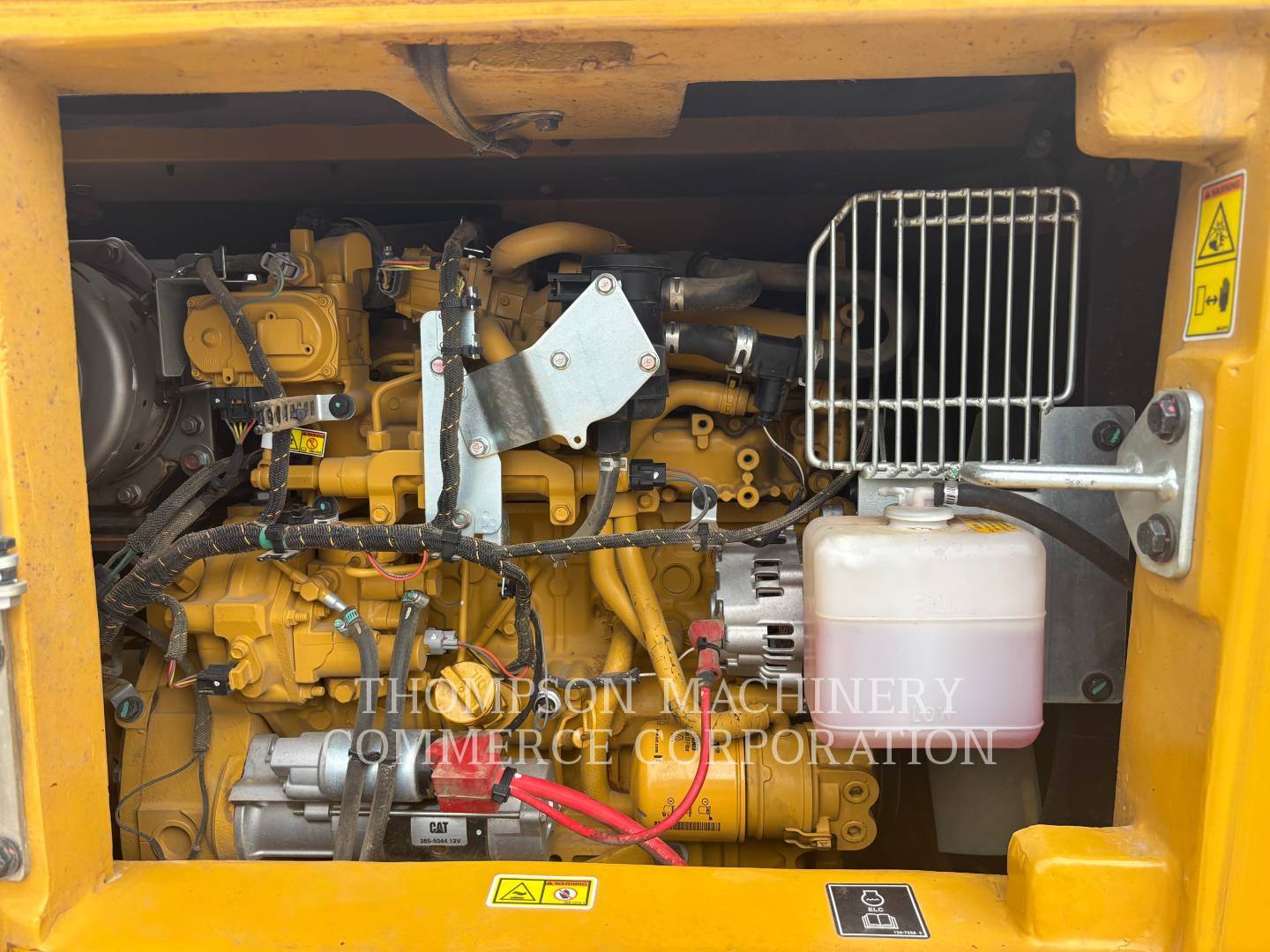

ENGINE

Apparent Other Engine Damage	No
Blow By	No
Emissions Decal Legible	Yes
Fuel Leaks	No
Knocking	No
Oil Leaks	No
Pre Lube System	No
Service Needed	No
Water in Oil	No

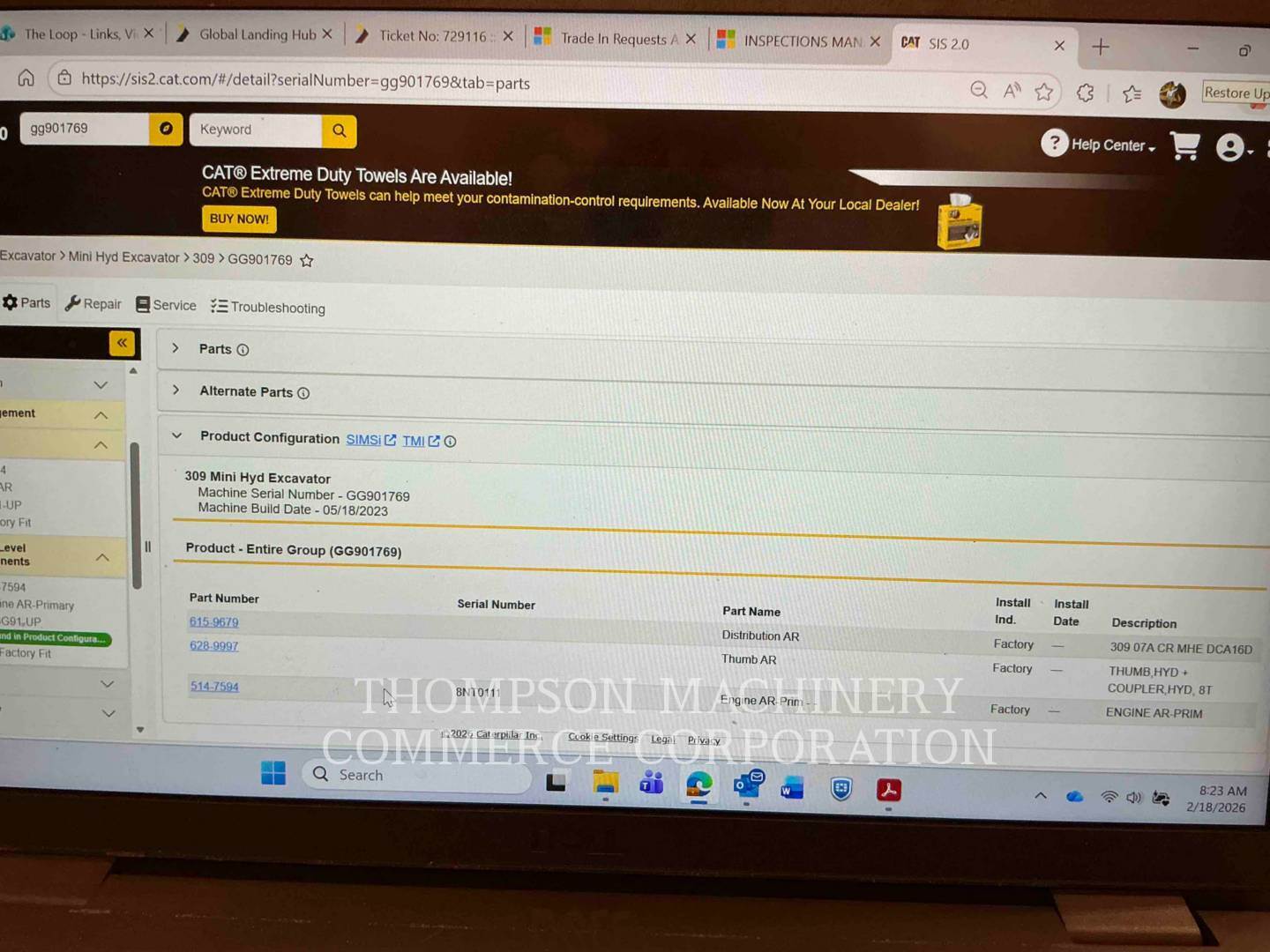

Engine S/N	8NT0111
Hours On Engine	Same
Notes - ENGINE	514-7594
Oil Pressure (H/L/N)	Normal
Smoke Color (B/D/L/W)	Clean
Belts / Pulleys - ENGINE	Good
Engine Oil Level / Condition	Poor
Engine Supports / Mounts	Good

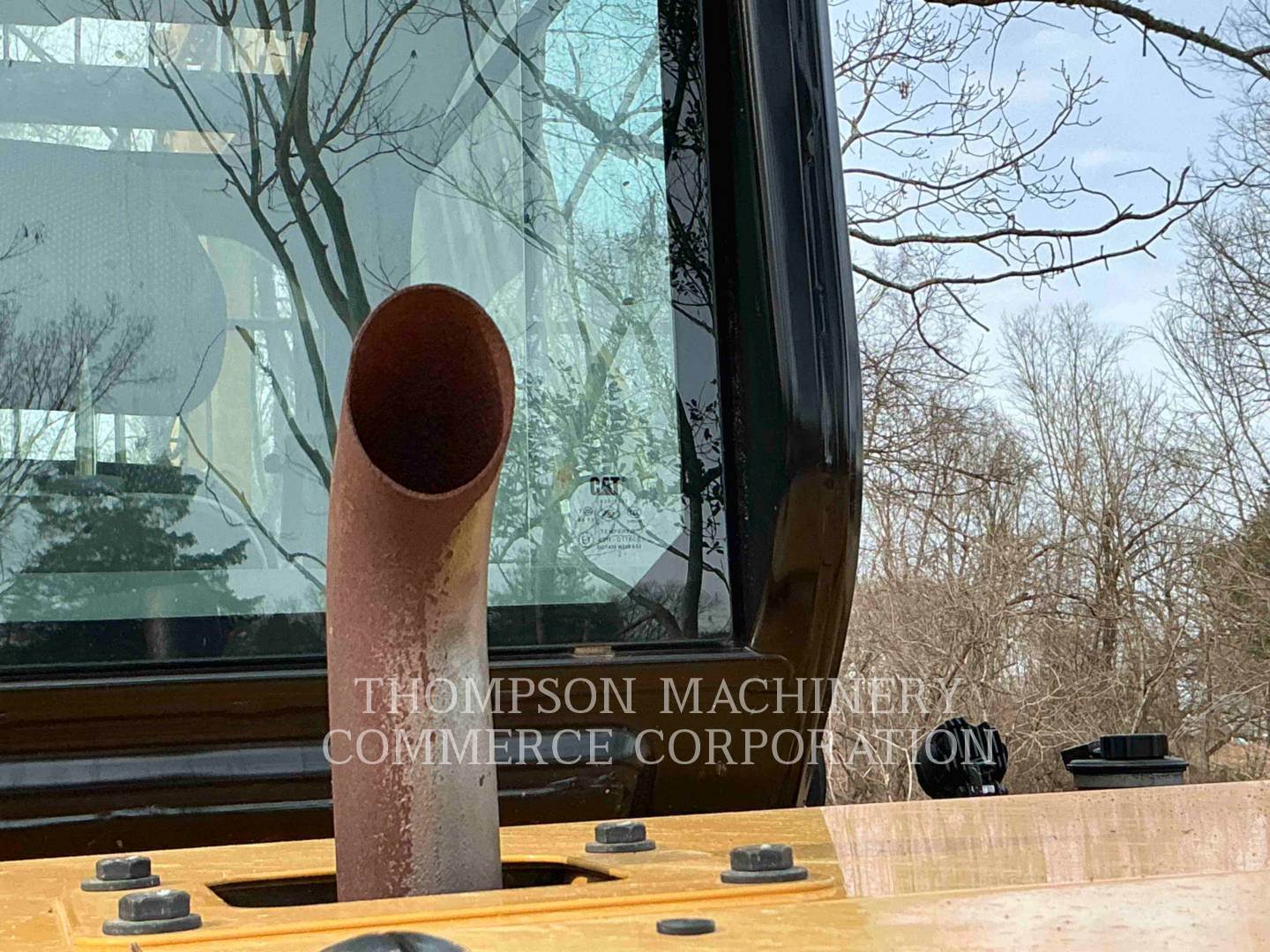

Exhaust / Muffler / Stack	Good
Fuel Injection System	Good
Governor	Good

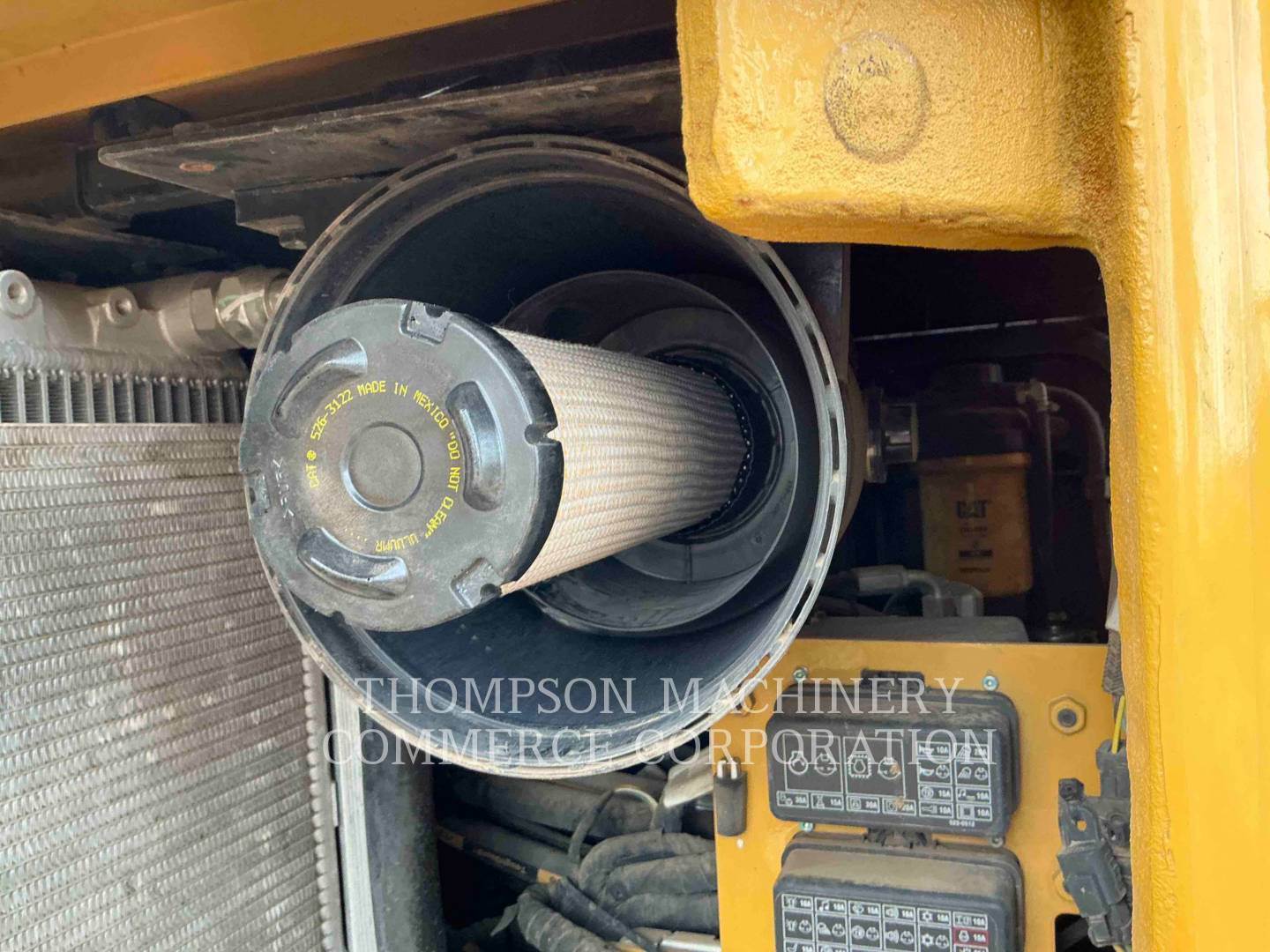

Intake / Air Filters	Good
Operating Condition - ENGINE	Good
Other	Good
Turbocharger / Blower	Good

EMISSIONS

Aftertreatment System Codes	No
Leaks / Type	No
Notes - EMISSIONS	Good

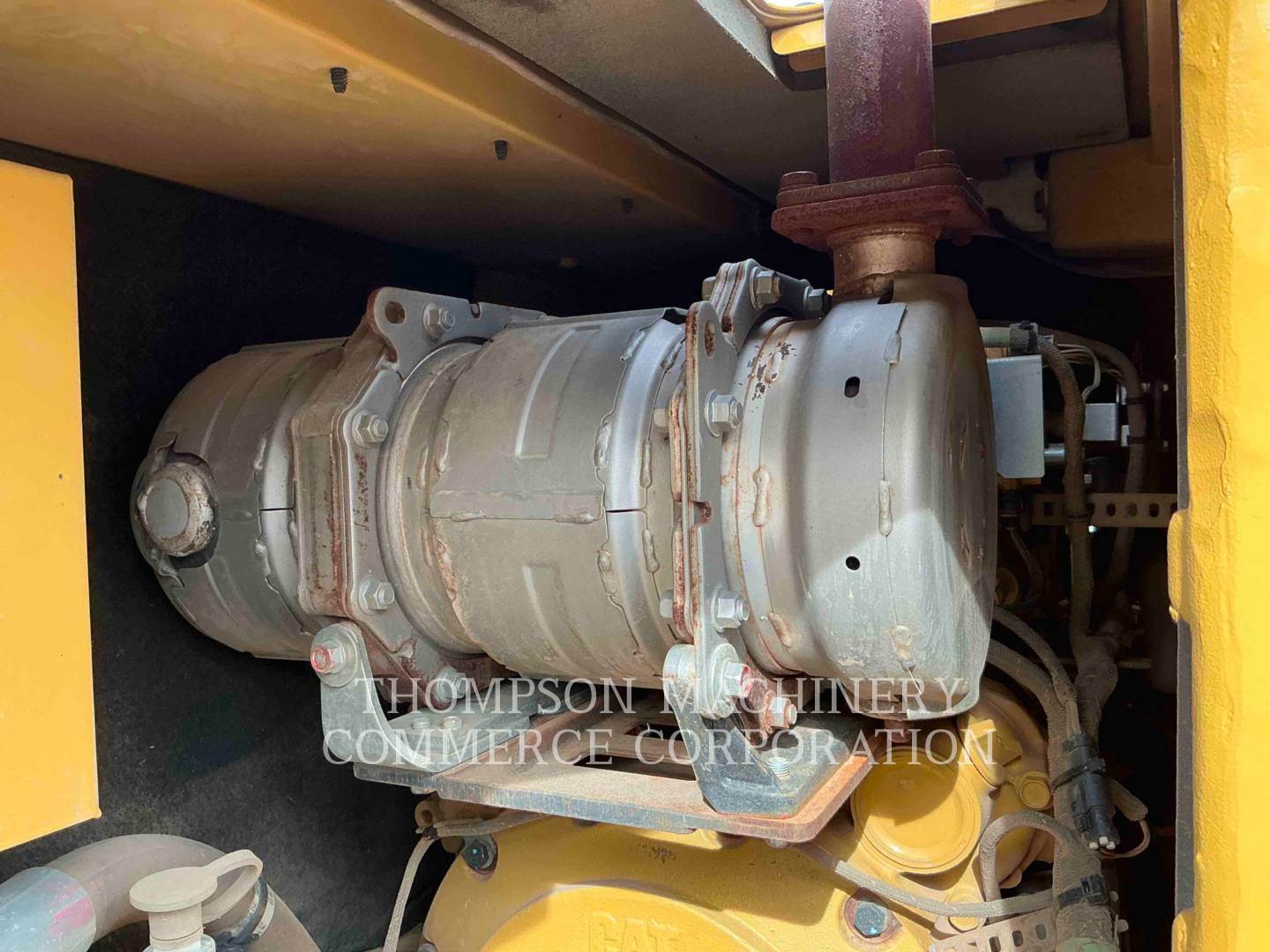

Diesel Particulate Filter (DPF) Condition / Service Hours	Good

COOLING SYSTEM

Compression in Radiator	No
Coolant Leaks	No
Folded Core Radiator	No
Modular Radiator	No
Oil in Anti-Freeze	No
Sand Blast Grid	No
Standard Radiator	Yes
Current Hours on Radiator	Same
Notes - COOLING SYSTEM	Good
Anti-Freeze Level / Color / Condition	Good
Belts / Pulleys - COOLING SYSTEM	Good
Coolers	Good
Fan	Good
Fan Drive / Type	Good
Fan Shrouds / Guards	Good
Hoses / Tubes	Good
Radiator	Good
Water Pump	Good

ELECTRICAL, STARTING AND CHARGING SYSTEM

Block Heater	No
Ether Aid	No
Notes - ELECTRICAL, STARTING AND CHARGING SYSTEM	Good
Alternator	Good
Batteries / Cables / Master Disconnect	Good
Lighting	Fair
Starter	Good
Wiring	Good

HYDRAULICS

Notes - HYDRAULICS	Good
Swing Drive Oil Level	Good
Boom Cylinder	Good
Bucket Cylinder	Good
Control Linkage	Good
Hose Lines	Poor
Hydraulic Swivel	Good
Operating Condition - HYDRAULICS	Good
Pump Drive	Good
Pumps & Valves	Good
Rotex	Good
Stick Cylinder	Good
Swing Gear	Good
Swing Motors	Good
Tank	Good
Thumb Cylinder	Good
Travel Motors	Good

TECHNOLOGY

Technology System Operational	No

ATTACHMENTS / WORK TOOLS

Auger	No
Claw	No
Crusher	No
Grapple	No
Hammer	No
Pulverizer	No
Rake	No
Ripper	No
Shear	No

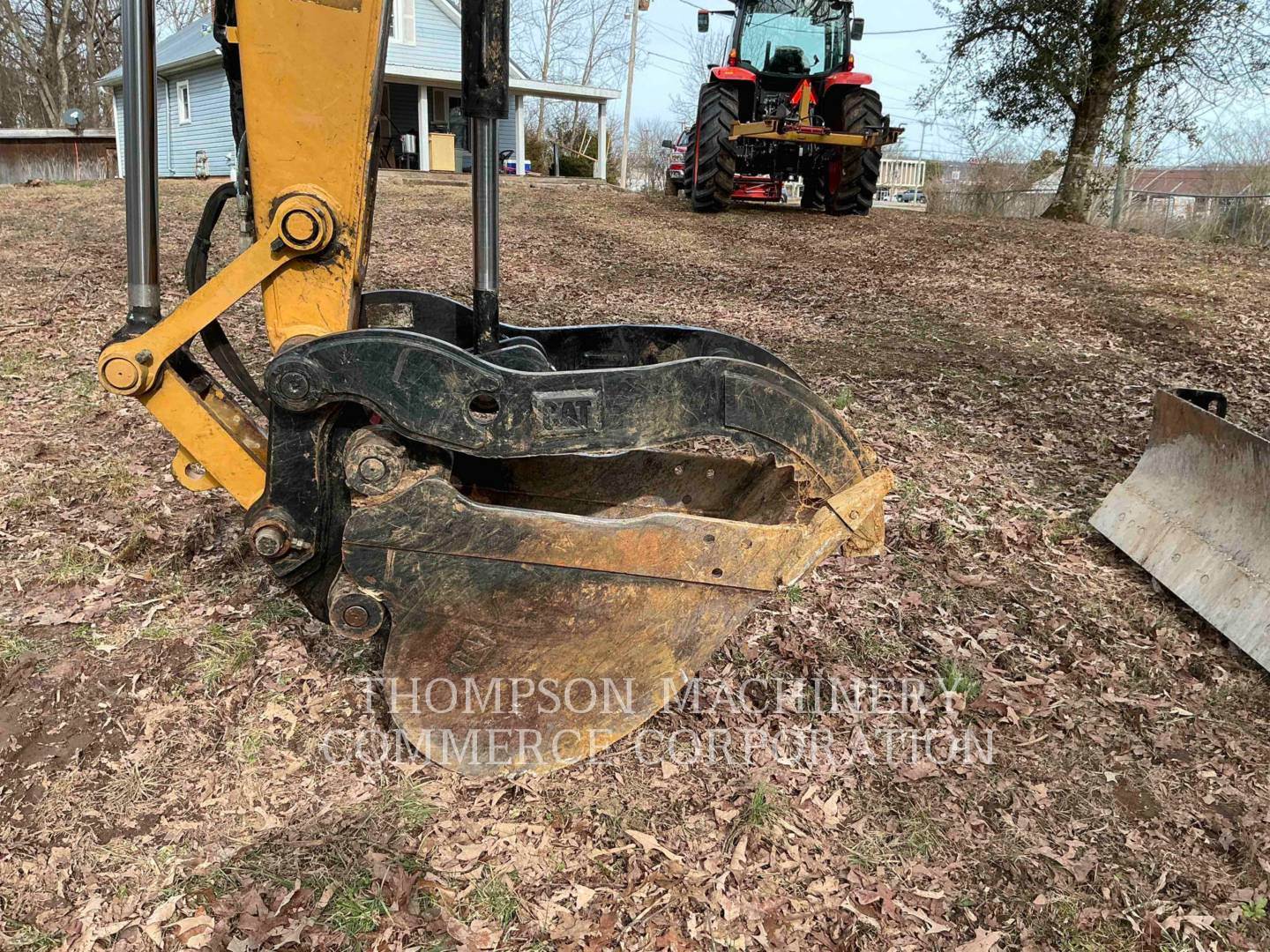

Thumb	Yes
Tilting Ditch Bucket	No
Vibratory Plate	No
Notes - ATTACHMENTS / WORK TOOLS	Good
Other	HM – 210 Mulcher, is at his shop equipment shed location.

BOOM

Boom Length (Actual Length)	11.2 ft
Notes - BOOM	Good
Boom Condition	Good
Boom Pins	Good
Pins & Bushings - BOOM	Good

STICK

Notes - STICK	Good
Stick Length	8.6 ft
Pins & Bushings - STICK	Good
Stick Conditions	Good
Stick Pins	Good

BUCKET

Quick Coupler	Yes
Brand	Cat Both
Notes - BUCKET	Good
Quick Coupler (Make/Model)	Cat hyd
Width	1-36 inch 295-5954 Cat, 5 tip1-18 inch Cat, 4 tip
Bucket Bottom	Good
Bucket Linkage	Good
Bucket Mounts	Good
Bucket Sides	Good
Cutting Edges	Good
Teeth / Adapters	Good

UNDERCARRIAGE

Pins & Bushings Turned?	No
Average Life Remaining - UNDERCARRIAGE	4000 hr
Cannon	Good
Idlers	Shell
Link Part Number	518-4652
Notes - UNDERCARRIAGE	Good
Segments	Good

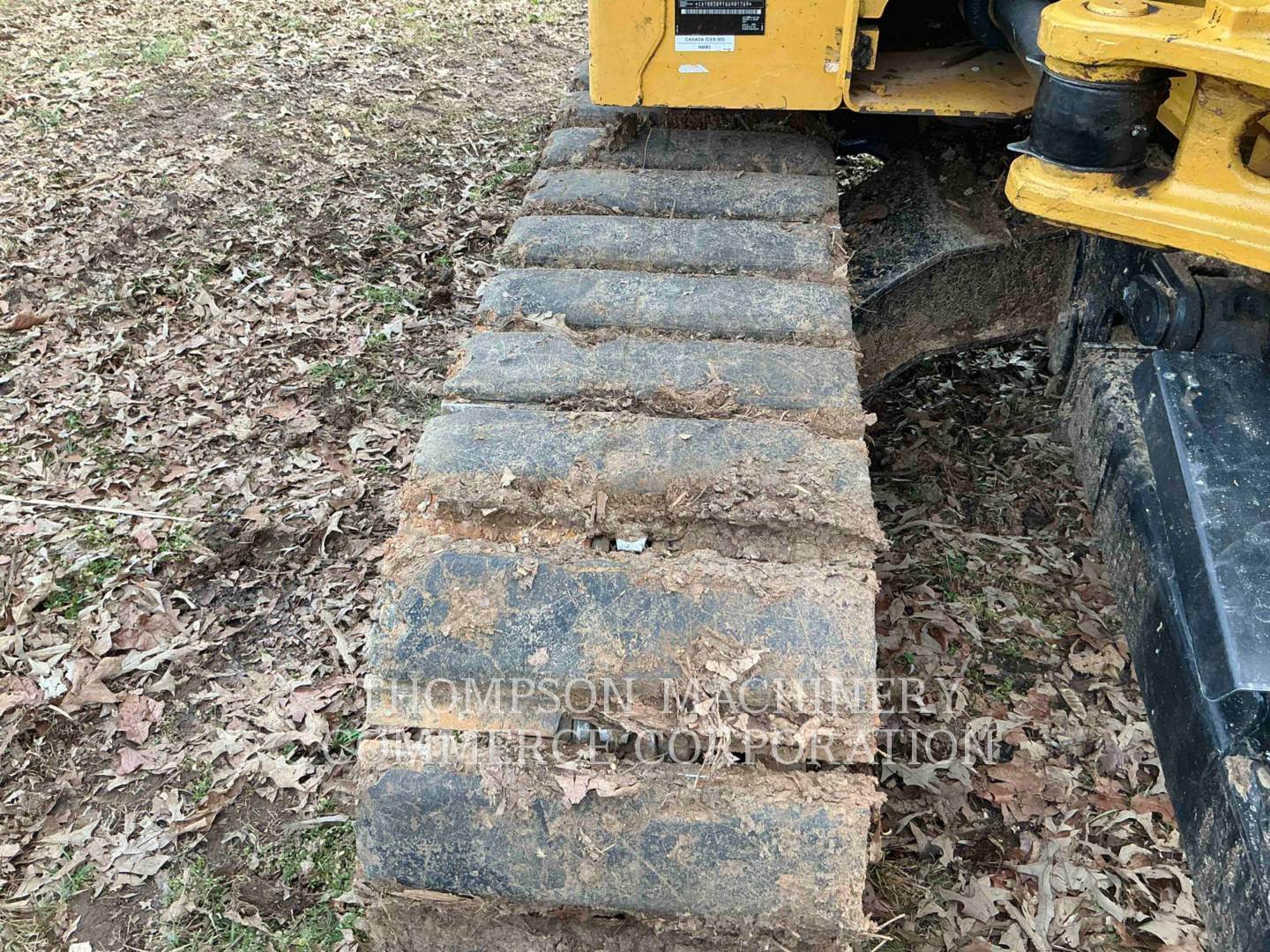

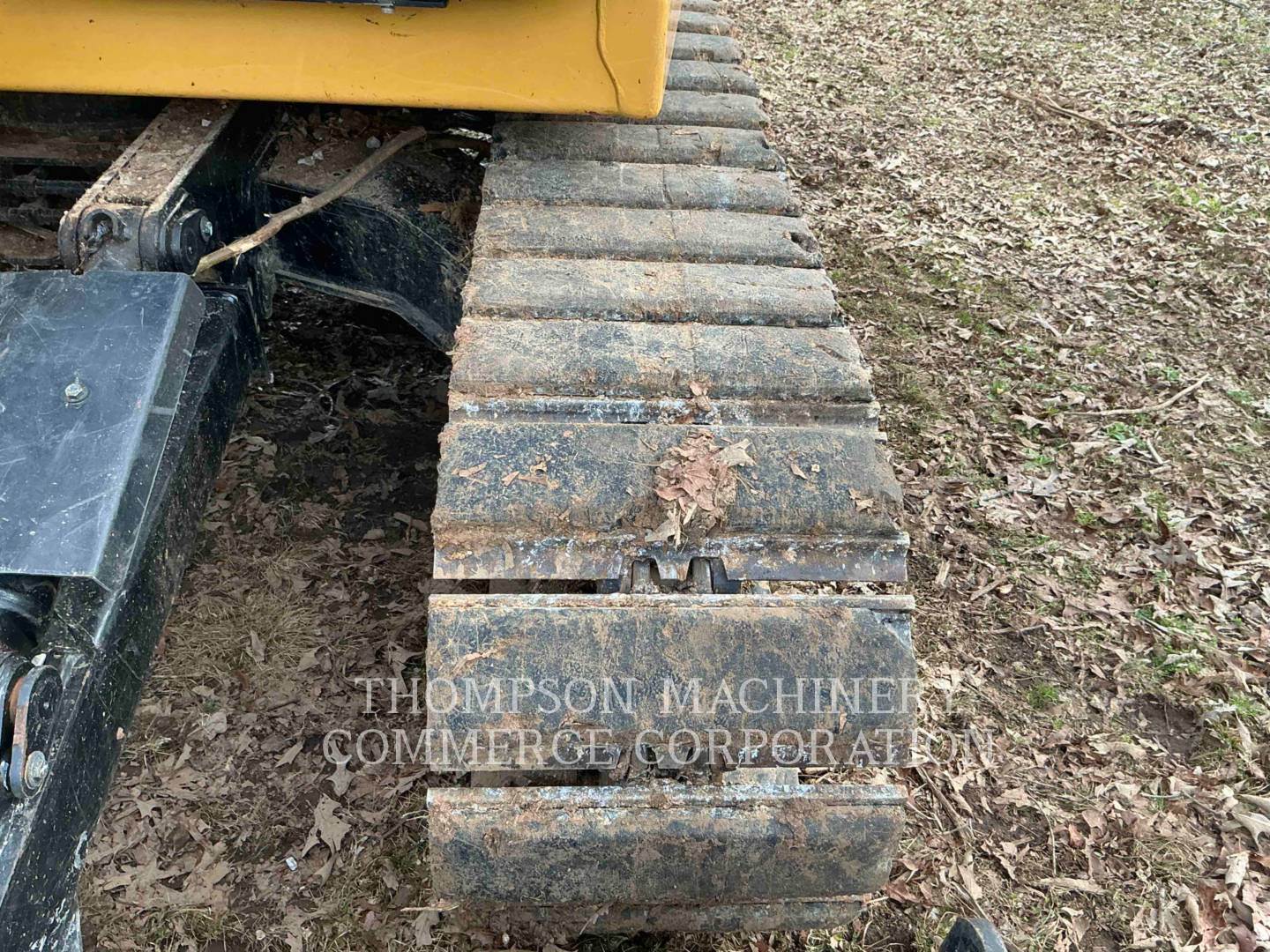

Track Shoes Width / Type	17.7 inch, steel triple Grazer , with rubber bolt on pads Cat
Track Frame - Left	Good
Track Frame - Right	Good
Carrier Rollers Front
Left	3.28 / 18% Worn
Right	3.28 / 18% Worn
Idlers Front
Left	1.08 / 40% Worn
Right	1.08 / 40% Worn
Links
Left	3.14 / 2% Worn
Right	3.14 / 2% Worn
Pins & Bushings (External)
Left	1.7 / 40% Worn
Right	1.7 / 40% Worn
Pins & Bushings (Internal)
Left	24.3 / 10% Worn
Right	24.3 / 10% Worn
Segments
Left	/ 0% Worn
Right	/ 0% Worn
Track Roller 1
Left	.52 / 25% Worn
Right	.52 / 25% Worn
Track Roller 6
Left	.52 / 25% Worn
Right	.52 / 25% Worn
Track Shoe Grouser Height
Left	.75 / 8% Worn
Right	.75 / 8% Worn

FINAL DRIVES

Magnetic Plugs Removed & Checked?	No
Notes - FINAL DRIVES	Good
Housings, Left	Good
Housings, Right	Good
Planetaries / Differential, Left	Good
Planetaries / Differential, Right	Good

COMMENTS, MISC. REPAIRS, GENERAL REMARKS

comment 1	The two boom lights are missing off of the boom
comment 2	One steel tube is bent on top of boom
comment 3	The paint and counterweight have scratches
comment 4	Clear logged codes
comment 5	Clean machine
