2023 Caterpillar 980 Wheel Loader For Sale, 14,107 Hours | Bloomington, MN | EQ0178335

Year	2023
Category	Wheel Loaders
Manufacturer	Caterpillar
Model	980
Condition	Used
Stock Number	EQ0178335
MLS Number	14491532

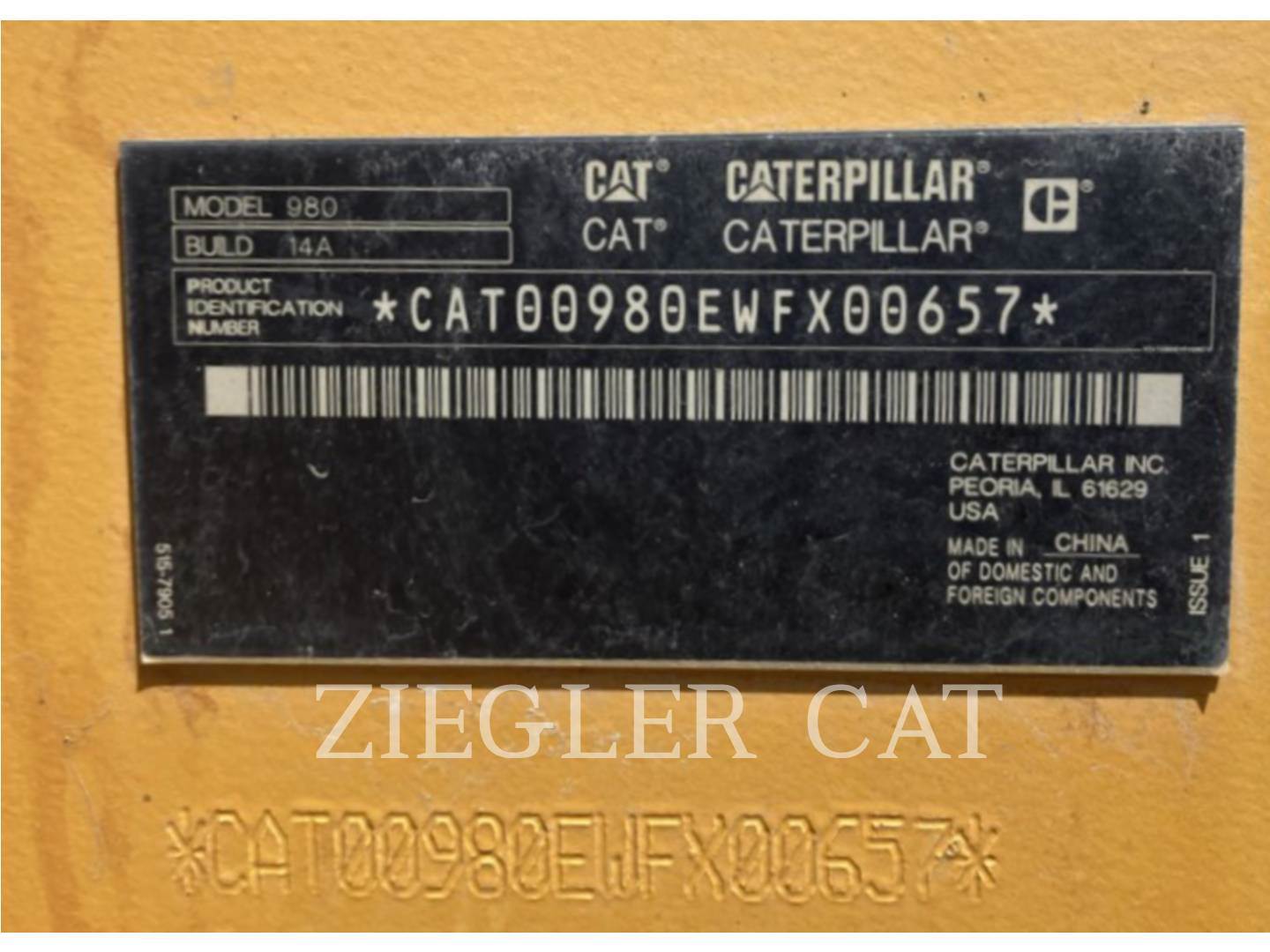

Serial Number	WFX00657

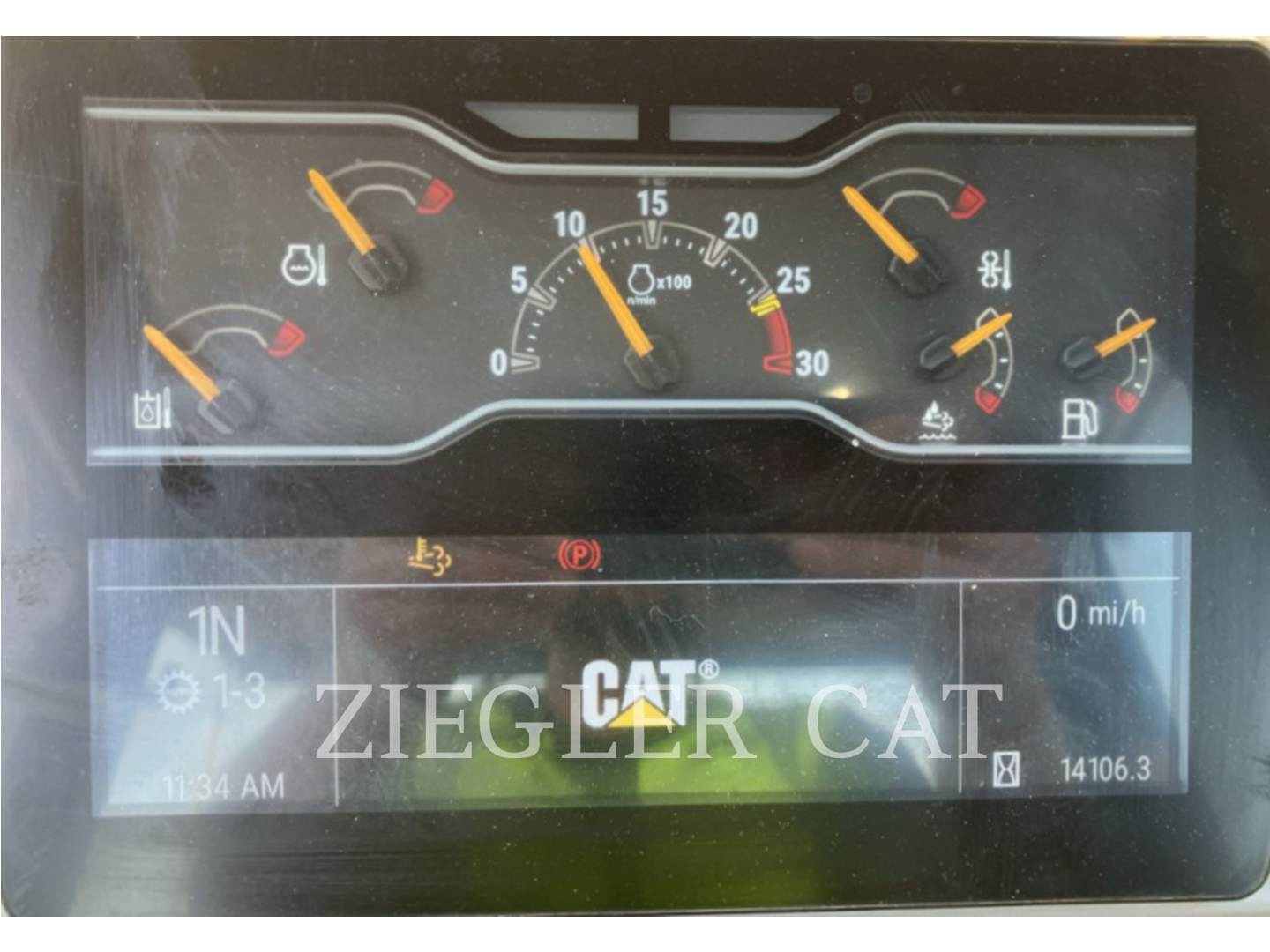

Usage	14,107 Hours

Rating	As-Is

Inspection Report

GENERAL COMMENTS

GENERAL COMMENTS	Normal

ENGINE

ADDITIONAL ITEMS OR COMMENTS.	Normal
BREATHERS AND PIPES	Normal
CYLINDER HEADS	Normal
ENGINE FULL LOAD RPM	Normal
ENGINE MOUNTS/SUPPORTS	Normal
ENGINE OIL LEVEL	Normal
ENGINE OIL PAN, BLOCK AND COOLER	Normal
ENGINE OIL PRESSURE COLD	Normal
ENGINE OIL PRESSURE HOT AT HIGH IDLE	Normal
ETHER STARTING AID CYLINDER	Normal
FLYWHEEL HOUSING	Normal
FRONT HOUSING, COVERS, MAIN SEAL	Normal
HIGH IDLE RPM	Normal
IS VALVE ADJUST OR OVERHAUL NEEDED	Normal
LEAKS OR ABNORMAL NOISE/ EXHAUST COLORS	Action
LOW IDLE RPM	Normal
OIL CONSUMPTION/ BLOWBY	Normal
OIL LEVEL GAUGE AND TUBE	Normal
PULLEYS AND BELTS	Normal
ROCKER BOXES AND VALVE COVERS	Normal

AIR CONDITIONER AND HEATER

ADDITIONAL ITEMS OR COMMENTS	Normal
AIR CONDITIONER COMPRESSOR	Normal
CONDENSER	Normal
CONDENSER FANS	Normal
HEATER AND A/C HOSES	Normal
HEATER WATER VALVES	Normal

COOLING SYSTEM

ADDITIONAL ITEMS OR COMMENTS	Normal
BELT GUARDS	Normal
BELT TIGHTENER	Normal
BLOCK/ENGINE HEATER	Normal
COOLANT FREEZE PROTECTION	Normal
COOLANT LEVEL AND APPEARANCE	Monitor
FAN DRIVE (HYDRAULIC OR BELT)	Normal
FAN GUARD, BAFFLE AND ENCLOSURE	Normal
HYDRAULIC OIL COOLER	Normal
LEAKS PRESENT	Monitor
RADIATOR CAP	Normal
RADIATOR CORE (S) CONDITION	Action
SCREEN GUARD	Monitor
TRANSMISSION OIL COOLER	Normal
WATER HOSES	Normal
WATER PUMP	Action

AIR INLET, EXHAUST AND EMISSIONS

ADDITIONAL ITEMS OR COMMENTS	Normal
AFTERCOOLER CORE CONDITION	Normal
AFTERCOOLER HOUSING(S)	Normal
AIR CLEANER ELEMENTS AND HOUSING	Normal
AIR LINE OR EXHAUST LEAKS	Normal
AIR RESTRICTION INDICATOR	Normal
DEF FILL SCREEN	Normal
DEF LEVEL, COLOR, AND APPEARANCE	Normal
EXHAUST MANIFOLD & STUDS	Normal
LEAKS PRESENT	Normal
MUFFLER & EXHAUST STACK	Normal
PRECLEANER AND DUST EJECTOR	Normal
TURBOCHARGER	Normal

FUEL SYSTEM

ADDITIONAL ITEMS OR COMMENTS	Normal
FUEL INJECTION PUMP, LINES & RETAINERS	Normal
FUEL INJECTION PUMPS AND BONNETS	Normal
FUEL INJECTORS	Normal
FUEL PRESSURE	Normal
FUEL PRESSURE UNDER LOAD	Normal
FUEL PRIMING PUMP	Normal
FUEL SUPPLY LINES	Normal
FUEL TANK	Normal
FUEL TANK CAP, VENT AND FILL SCREEN	Normal
FUEL/WATER SEPARATOR	Normal
LEAKS PRESENT	Normal

ELECTRICAL

ADDITIONAL ITEMS OR COMMENTS	Normal
ALTERNATOR	Normal
ALTERNATOR BELTS AND PULLEYS	Normal
BACK-UP ALARM	Normal
BACKUP CAMERA	Normal
BATTERIES AND COMPARTMENT	Normal
BRAKE LIGHTS	Action
CAB HARNESS	Monitor
CHECK BATTERY BOX / ISOLATOR	Normal
ENGINE HARNESS	Normal
FRONT HARNESS	Normal
FRONT WIPER AND WASHER	Normal
FRONT WORK LIGHTS	Normal
FUSES AND BREAKERS	Normal
GROUND LEVEL SHUTDOWN SWITCH OPERATION	Normal
HEAD LIGHTS	Normal
INSPECT BATTERY CABLES	Normal
LEFT SIDE WIPER AND WASHER	Action
LIGHT BRACKETS	Normal
MAIN OR OTHER HARNESS	Normal
MARKER LIGHTS	Normal
MASTER SWITCH OPERATION	Normal
REAR HARNESS	Normal
REAR WIPER AND WASHER	Normal
REAR WORK LIGHTS	Normal
RIGHT SIDE WIPER AND WASHER	Action
SIDE WORK LIGHTS	Normal
STARTER MOTOR(S)	Normal
TAIL LIGHTS	Normal
WARNING HORN	Normal

POWER TRAIN

ADDITIONAL ITEMS OR COMMENTS	Normal
ANY UNUSUAL NOISES	Normal
DIFFERENTIAL LOCK OPERATION	Normal
DRIVE SHAFTS AND SUPPORT BEARING	Normal
FRONT AXLE AND MOUNTS	Normal
FRONT DIFFERENTIAL OIL LEVEL AND BREATHER	Yes (Passed)
IF CVT, CHECK	Normal
IF CVT, CHECK CLUTCH PRESSURE NOTE: PROVIDE PRESSURE SPECS AND ACTUAL READINGS	Normal
LEAKS?	Normal
LEFT FRONT FINAL DRIVE	Normal
LEFT REAR FINAL DRIVE	Normal
MISC OPERATOR TRANSMISSION FUNCTIONS	Normal
NEUTRAL START SAFETY, START IN GEAR?	Normal
OIL COOLER AND TEMPS	Normal
POWER TRAIN OIL LINES	Normal
REAR AXLE AND MOUNTS	Normal
REAR DIFFERENTIAL OIL LEVEL AND BREATHER	Yes (Passed)
REAR DIFFERENTIAL OSCILLATION/ BEARING WEAR	Normal
RIGHT FRONT FINAL DRIVE	Normal
RIGHT REAR FINAL DRIVE	Normal
TIRES PRESSURES AND RIMS (PLEASE NOTE THE PRESSURES)	Normal
TORQUE CONVERTER STALL - TEST NOTE: PROVIDE RPM SPECS AND ACTUAL RPMS	Normal
TRANSMISSION ACCUMULATOR (IF EQUIPPED) TEST PER SIS	Normal
TRANSMISSION AUTO SHIFT OPERATION	Yes (Passed)
TRANSMISSION MOUNTING	Normal
TRANSMISSION NEUTRALIZER OPERATION	Normal
TRANSMISSION OIL LEVEL	Normal
TRANSMISSION OPERATION	Normal
TRANSMISSION PUMP PRESSURE CHECK PER SIS	Normal

FRAME AND BODY

DOG BONE (MEASURE MOVEMENT)	Monitor
ENGINE ENCLOSURE/HOOD	Monitor
FENDERS	Monitor
HOOD ACTUATOR IF EQUIPPED INCLUDING OIL LEVEL	Monitor
INSPECT SERVICE LADDER, HANDRAILS & PLATFORM	Monitor
LOADER FRAME MOUNTING (MEASURE MOVEMENT	Monitor
LOADER PINS (MEASURE MOVEMENT)	Monitor
LOWER ARTICULATION PINS AND BORE (MEASURE MOVEMENT)	Normal
LOWER BUCKET PINS (MEASURE MOVEMENT)	Monitor
MACHINE MAIN FRAME	Normal
PLATFORMS AND CAT WALK	Normal
RADIATOR GUARD AND GRILL	Monitor
REAR BUMPER	Monitor
STEPS AND GRAB IRONS	Monitor
UPPER ARTICULATION PINS AND BORE (MEASURE MOVEMENT)	Normal
Z-BAR (MEASURE MOVEMENT)	Monitor

BRAKE SYSTEM

ADDITIONAL ITEMS OR COMMENTS	Normal
AIR COMPRESSOR AND LINES	Normal
AIR LINES	Normal
AIR TANKS AND DRAINS	Normal
BRAKE ACCUMULATOR(S) CHECK PER OMM	Normal
BRAKE ACTUATORS	Normal
BRAKE CONTROL AND VALVES	Normal
BRAKE PUMP	Normal
FLUID LINES	Normal
LEAKS?	Normal
MASTER CYLINDER(S) OR VALVES	Normal
PARK BRAKE CONTROLS	Normal
PARK BRAKE HOLDING TEST PER OMM	Normal
WHEEL CYLINDERS	Normal

STEERING SYSTEM

ADDITIONAL ITEMS OR COMMENTS	Normal
ARTICULATION LOCK IN PLACE?	Normal
LEAKS	Normal
LEFT STEERING CYLINDER AND PINS (MEASURE MOVEMENTS)	Action
OPERATIONAL ISSUES OR NOISES ?	Normal
RIGHT STEERING CYLINDER AND PINS (MEASURE MOVEMENTS)	Action
SECONDARY STEERING TEST PER OMM	Normal
STEERING HAND METERING UNIT	Normal
STEERING PUMP STALL RELIEF PRESSURE NOTE: PROVIDE PRESSURE SPECS AND ACTUAL READINGS	Normal
STEERING PUMP STANDBY PRESSURE	Normal
STEERING SYSTEM LINES	Normal

HYDRAULIC SYSTEM

ADDITIONAL ITEMS OR COMMENTS	Normal
AUXILIARY HYDRAULIC OPERATION IF EQUIPPED	Normal
CHECK HYDRAULIC OIL LEVEL	Normal
DEAD ENGINE LOWER PER OMM	Normal
HYDRAULIC PUMP	Normal
HYDRAULIC SAFETY LOCKOUT OPERATION	Normal
HYDRAULIC TANK MOUNTING	Normal
HYDRAULIC TANK, CAP, FILL SCREEN	Normal
IMPLEMENT PUMP STALL RELIEF PRESSURE NOTE: PROVIDE PRESSURE SPECS AND ACTUAL READINGS	Normal
IMPLEMENT PUMP SUCTION LINES	Normal
IMPLEMENT/ PILOT LINES	Normal
KICKOUTS, DETENTS, AND FLOAT	Normal
LEAKS?	Normal
LEFT LIFT CYLINDER (MEASURE MOVEMENT)	Action
LEFT TILT CYLINDER (MEASURE MOVEMENT)	Monitor
LIFT CIRCUIT LINES	Normal
MAIN CONTROL VALVES	Normal
MAIN HYDRAULIC PUMP PRESSURE	Normal
MISC OPERATOR HYDRAULIC FUNCTIONS	Normal
OPERATIONAL ISSUES OR NOISES?	Normal
PILOT CONTROL LINKAGE	Normal
PILOT CONTROL VALVES	Normal
PILOT HYDRAULIC PUMP	Normal
PILOT PRESSURE	Normal
RIDE CONTROL ACCUMULATOR CHECK PER OMM	Normal
RIGHT LIFT CYLINDER (MEASURE MOVEMENT)	Action
RIGHT OR CENTER TILT CYLINDER (MEASURE MOVEMENT)	Monitor
TILT CIRCUIT LINE	Normal

WORK TOOLS

BASE EDGE	Monitor
BUCKET LINER AND WEAR PLATES	Normal
BUCKET ROCK GUARD	Normal
BUCKET SIDE PLATES AND CORNERS	Normal
CUTTING EDGES	Monitor
HEEL PLATES	Normal
SKID PLATES	Normal

OPERATOR STATION

AC OUTPUT TEMP	Normal
ACTIVE FAULT CODES/ EVENTS	Normal
ADDITIONAL ITEMS OR COMMENTS	Monitor
AIR DUCTS AND LOUVERS	Normal
ALL OPERATOR FUNCTIONS WORKING AS DESIGNED?	Normal
ARM RESTS	Monitor
CAB AIR FILTERS	Normal
CAB GLASS	Normal
CAB MOUNTS	Normal
CAB PANELS AND INSULATION	Normal
CAB SEAT ADJUSTMENTS, SUSPENSION AND CUSHIONS	Normal
CAB STRUCTURE	Normal
DOWNLOAD PSR AND EMAIL TO SUPERVISOR TO BE ATTACHED TO TA	Normal
EMS/ DASH TEST	Normal
EVAPORATOR CORE	Normal
FLOOR MAT	Normal
HEADLINER	Normal
HEATER CORE	Normal
IS PRODUCT LINK WORKING/ REPORTING?	Normal
IS THE MACHINE SOFTWARE INCLUDING PRODUCT LINK & VIMS CONFIG FILES CURRENT WITH WHAT IS PUBLISHED IN SIS?	Normal
LEFT CAB DOOR AND LATCHES	Monitor
LEFT MIRRORS	Normal
OTHER MIRRORS	Normal
RIGHT MIRRORS	Normal
ROLL OVER STRUCTURE	Normal
ROPS CHECK PER OMM	Normal
SEAT/SEAT BELT NOTE SEAT BELT DATE, WITHIN SERVICE DATE RANGE PER OMM	Action
WORN OR BROKEN WINDOW LATCHES OR SLIDES	Normal

FLUID SOS AND PM SERVICE

ALL GREASE POINTS TAKE GREASE?	No
COOLANT SAMPLE	Yes
DUE FOR PM SERVICE?	No
ENGINE OIL SAMPLE	Yes
FOUR FINAL DRIVE OIL SAMPLES	Yes
FRONT DIFFERENTIAL OIL SAMPLE	Yes
HYDRAULIC OIL SAMPLE	Yes
MISC SAMPLE NOT LISTED ABOVE, SEE OMM	No
REAR DIFFERENTIAL OIL SAMPLE	Yes
TRANSMISSION OIL SAMPLE	Yes

2023 Caterpillar 980 Wheel Loader

Product Specifications

Product Description

$250,000 USD

Located in Bloomington, MN, US

Ziegler CAT
