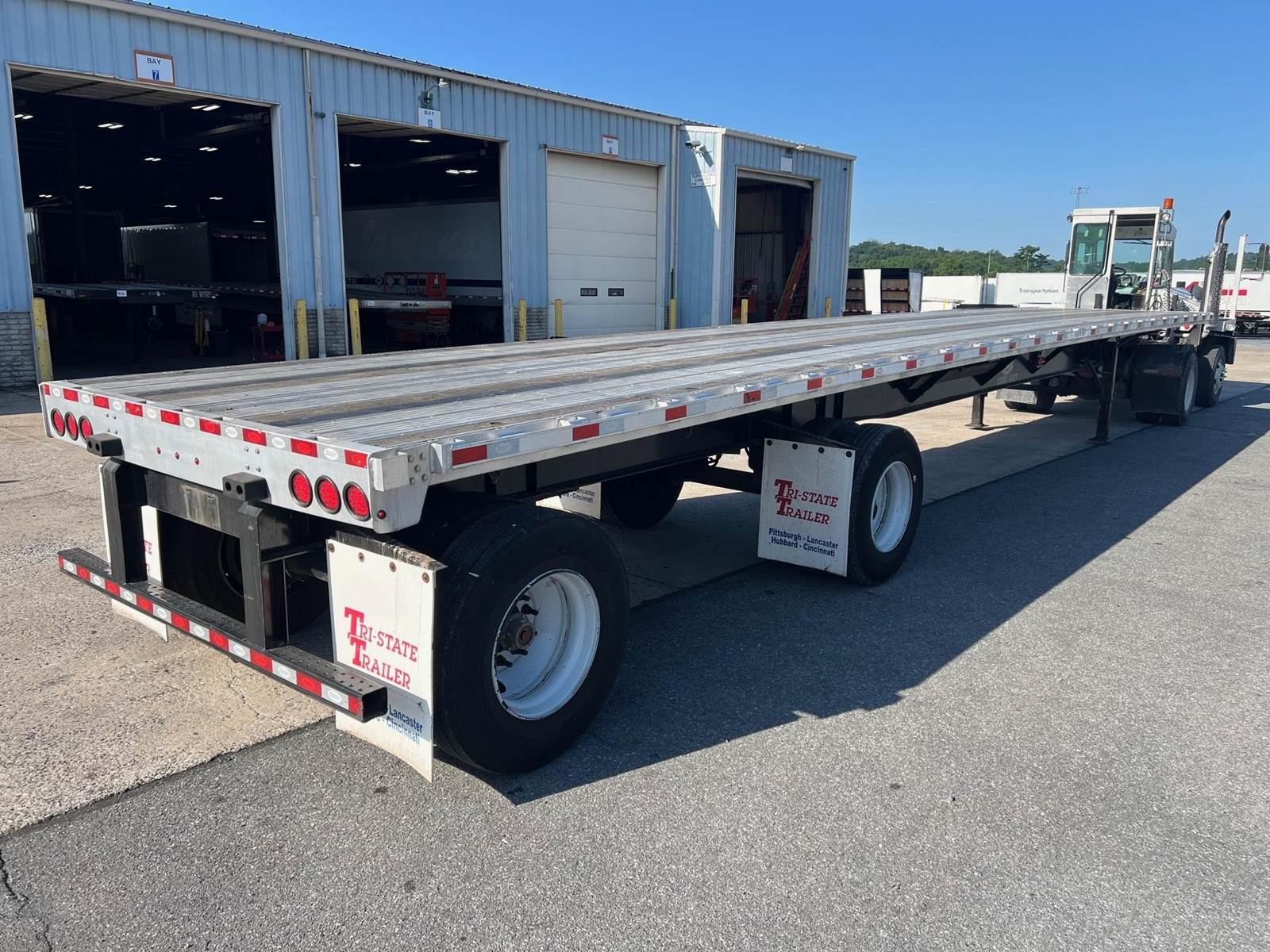

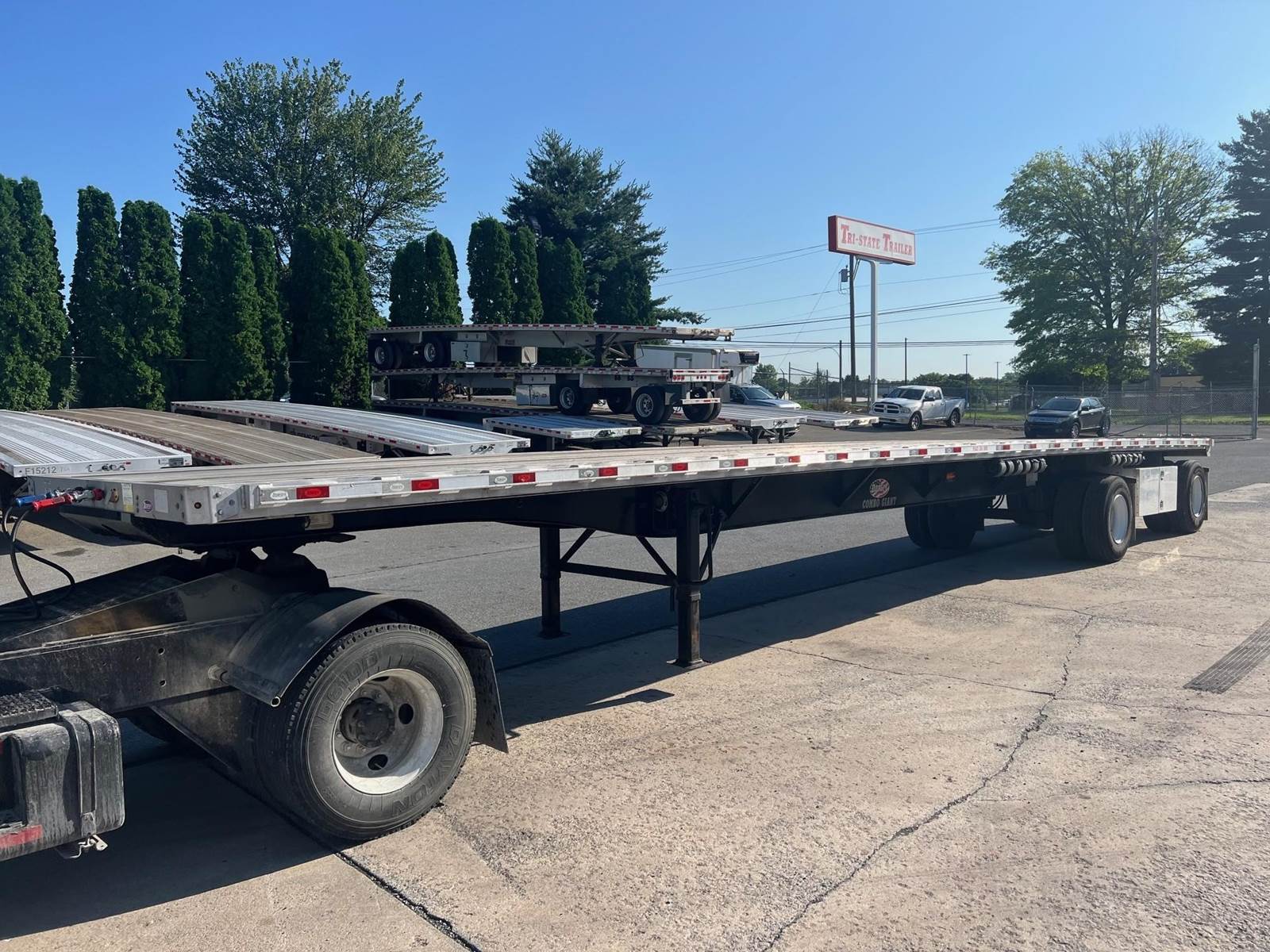

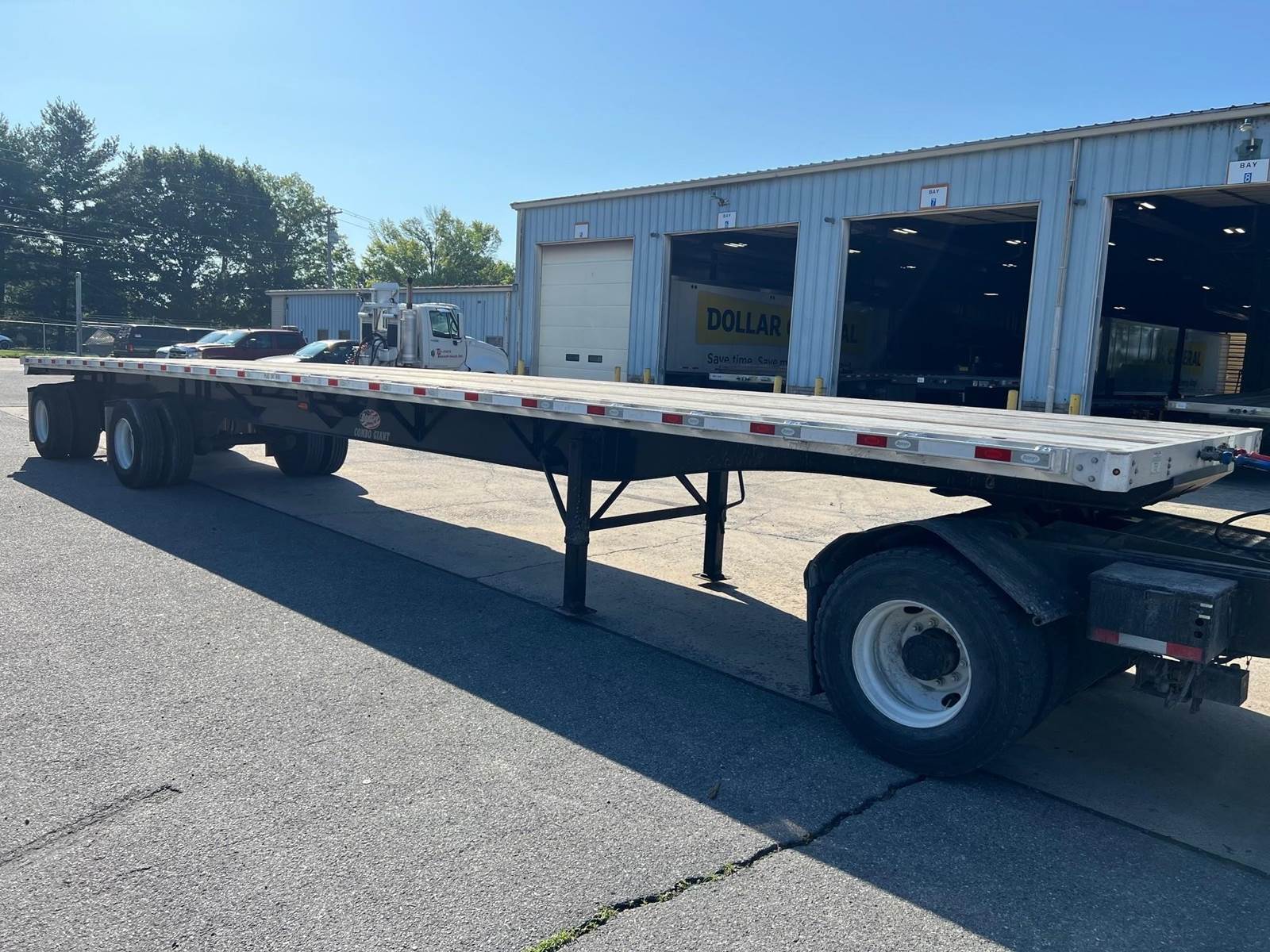

2023 Dorsey 48x102 Combination Flatbed Trailer - Air Ride, Fixed Spread Axle

Length 48'
Width 102"
Weight 10,380 Lbs. +/- 3%
Inspection T-FHWA-6/25
Flat Body
Bulkhead None
Floor Aluminum
Nailing Strips 4
Chain Tiedowns 14 Pair
Front/Rear Member Aluminum
Side Rail Aluminum
Pipe Spools Single
Winch Track Roadside with Tie Bar on Curbside
Sliding Winches 12

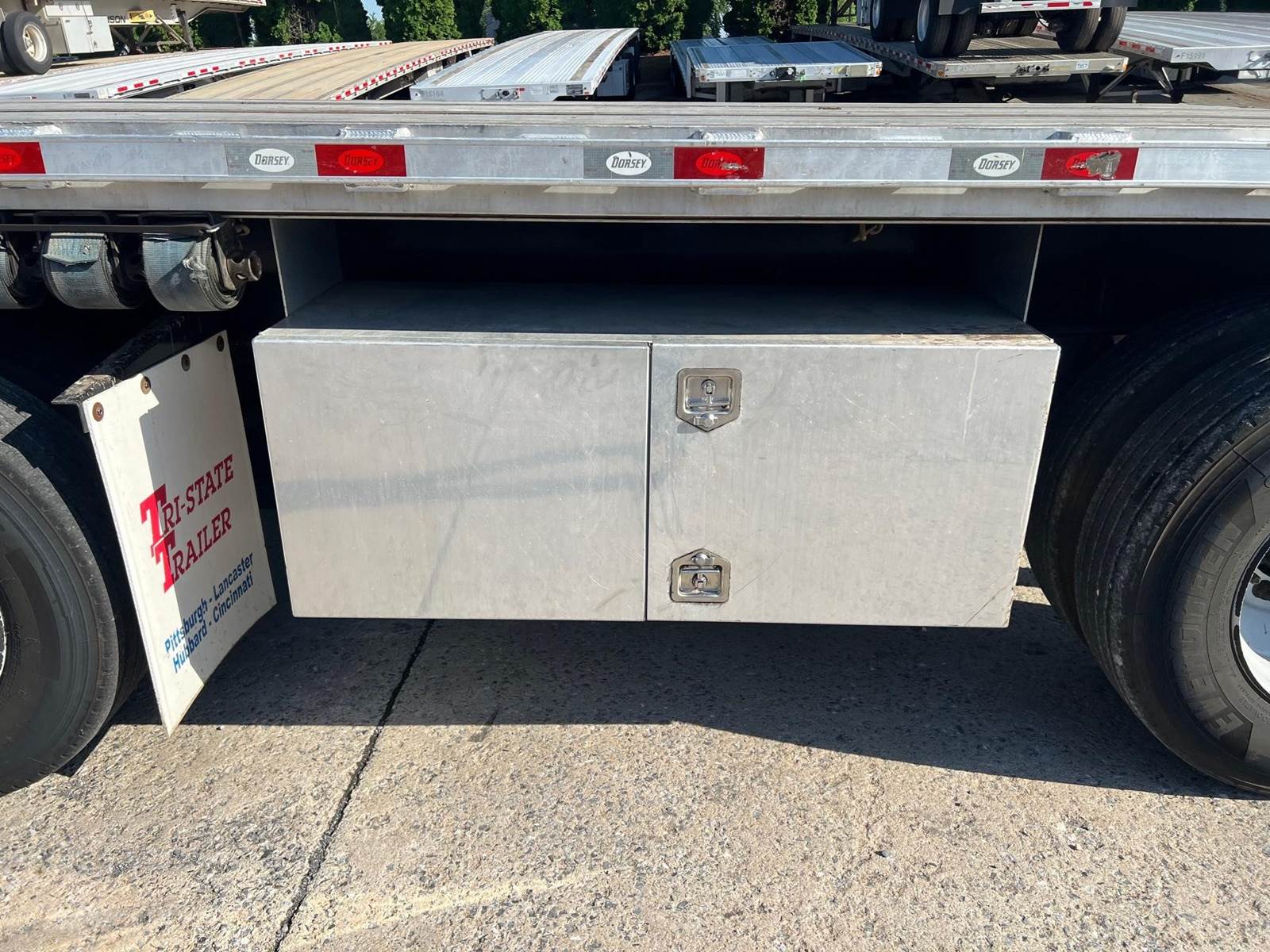

Toolbox 24x24x60 Drivers side between spread
Rear Lights (3) Stop/Tail, (3) Clearance
Mud Flap Brackets Behind Front & Rear Axle
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax 23K
Suspension Setting 10' 2" with Rear Axle set at Rearmost Position
Lift Axle None
Electric Dumpvalve Rear Axle
Tire Brand Double Coin
Tire Size 11R22.5
Tire % 80%
Wheels Steel
Brake % New

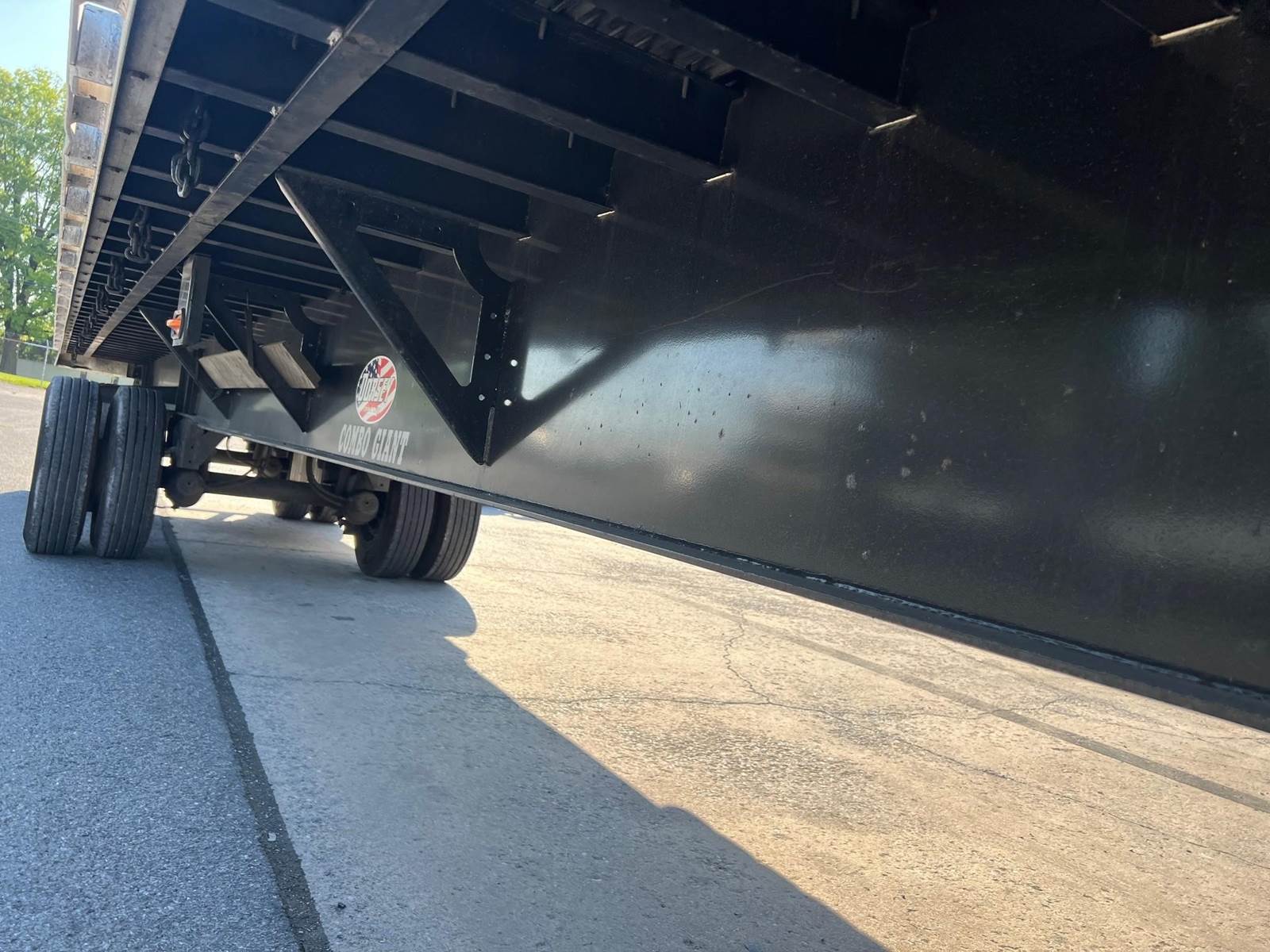

UnderFrame
King Pin Setting 30"
5th Wheel Condition Good
Cross Member Center 4" Steel on 12" Centers
Coil Package Coil Pack w/ 5 Stub Crossmembers
Landing Gear Jost, Two-Speed
Paint Black
Weight Ratings 80,000 GVWR - 60,000 in 10'
