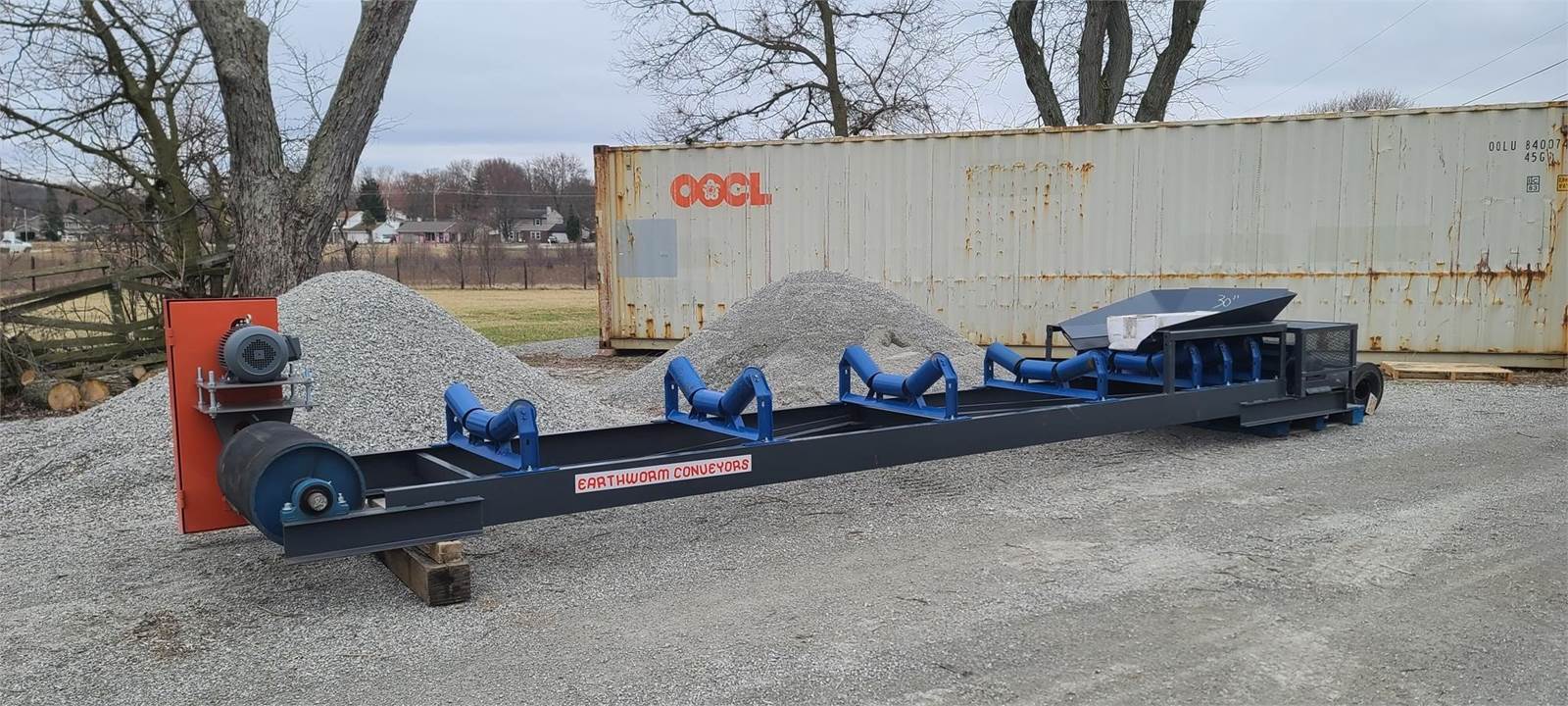

2025 Earthworm Conveyors 30x80 Conveyor

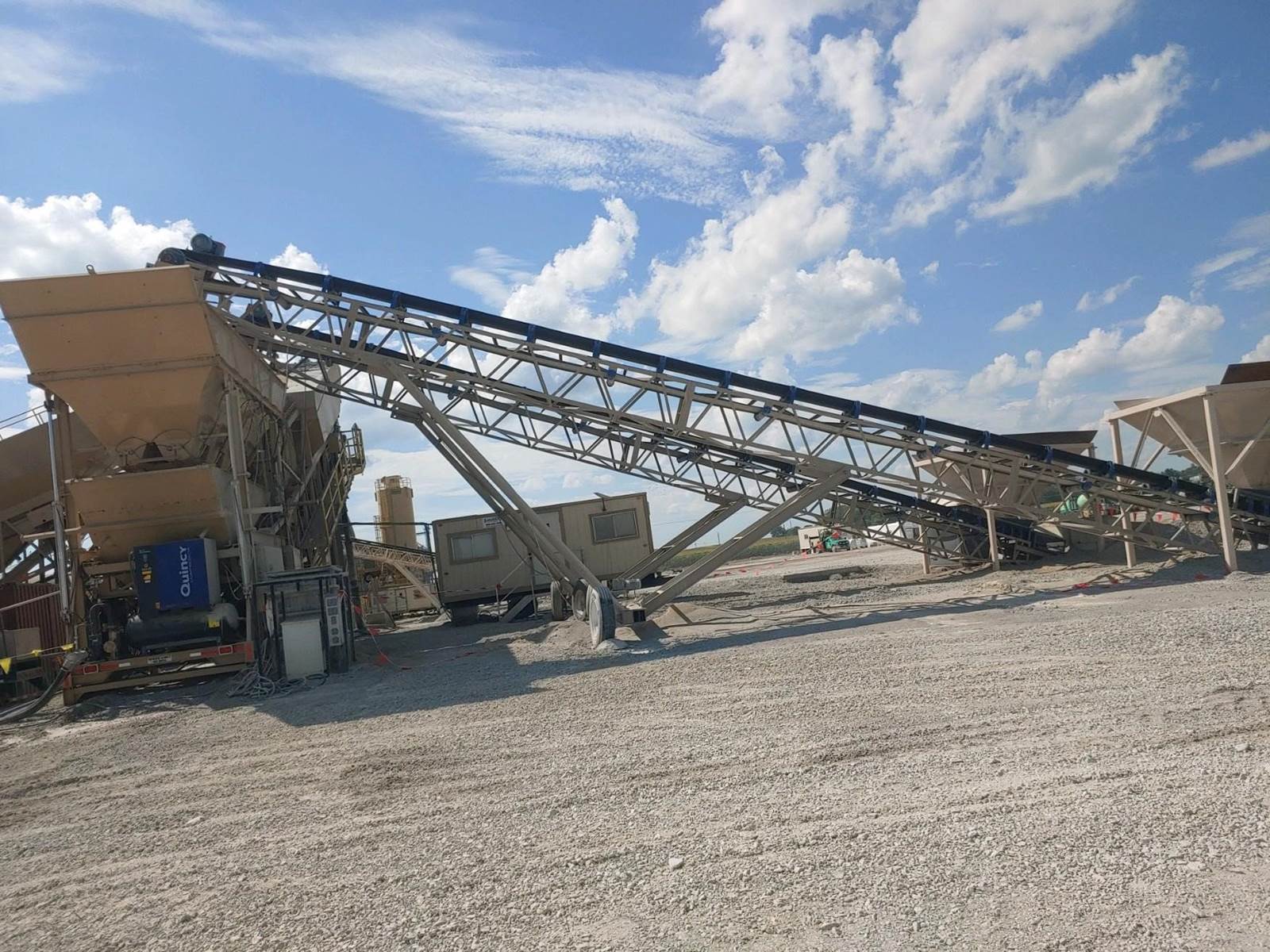

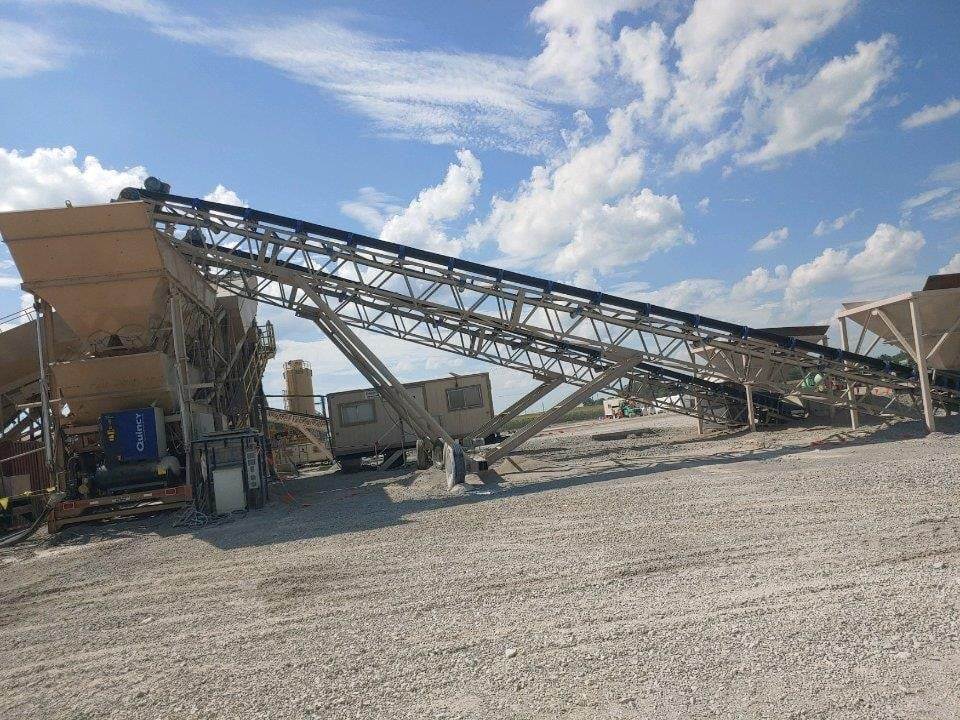

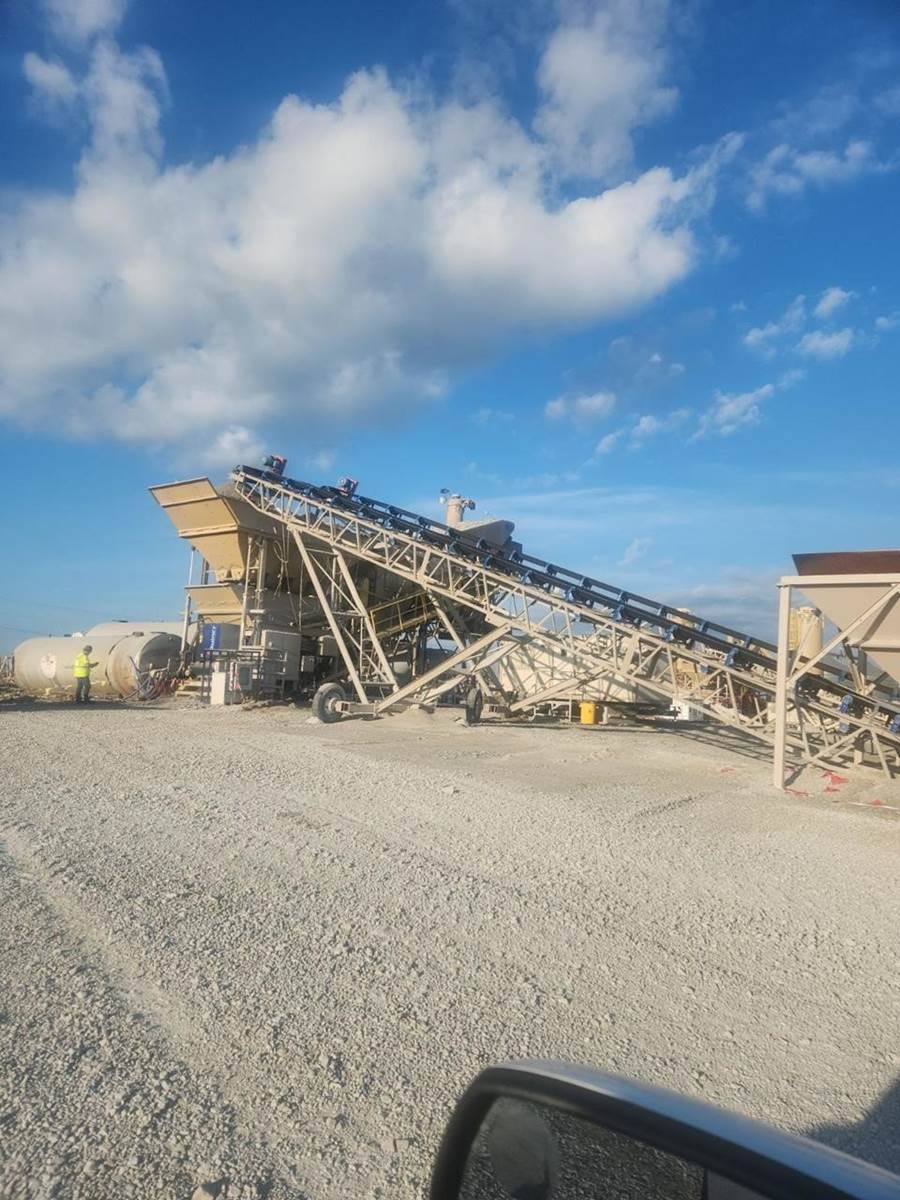

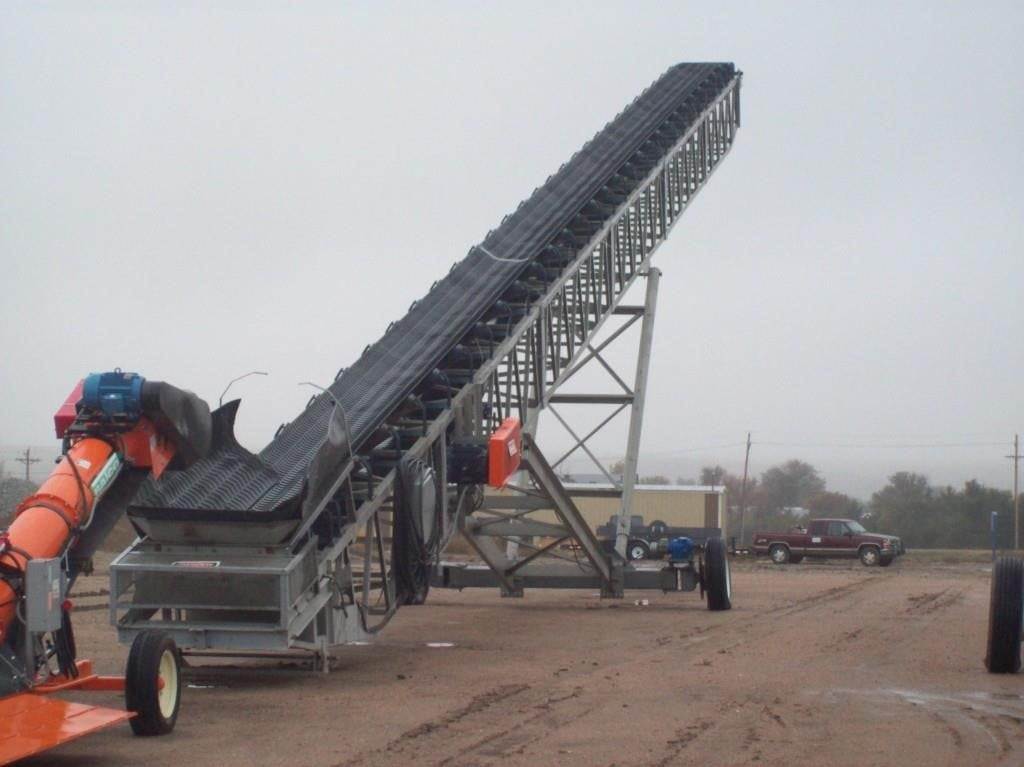

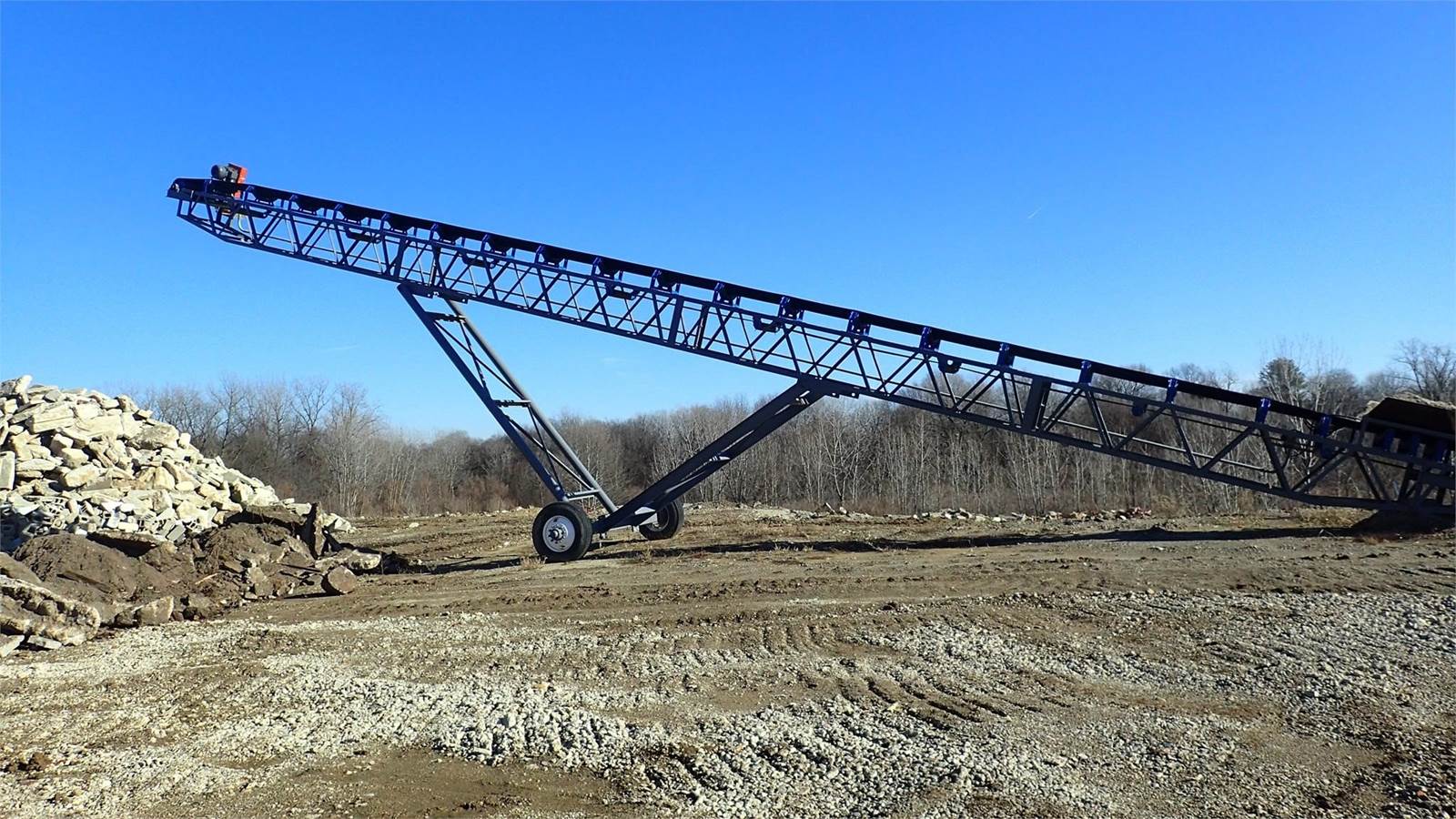

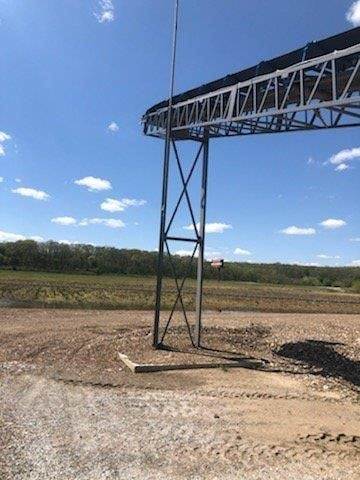

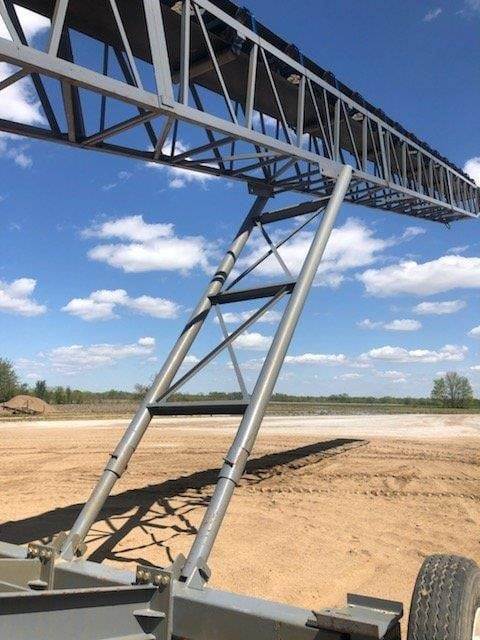

30'' X 80' PIT PORTABLE RADIAL STACKER,

*** TRANSPORT INCLUDED!!


•   36” Deep Truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice

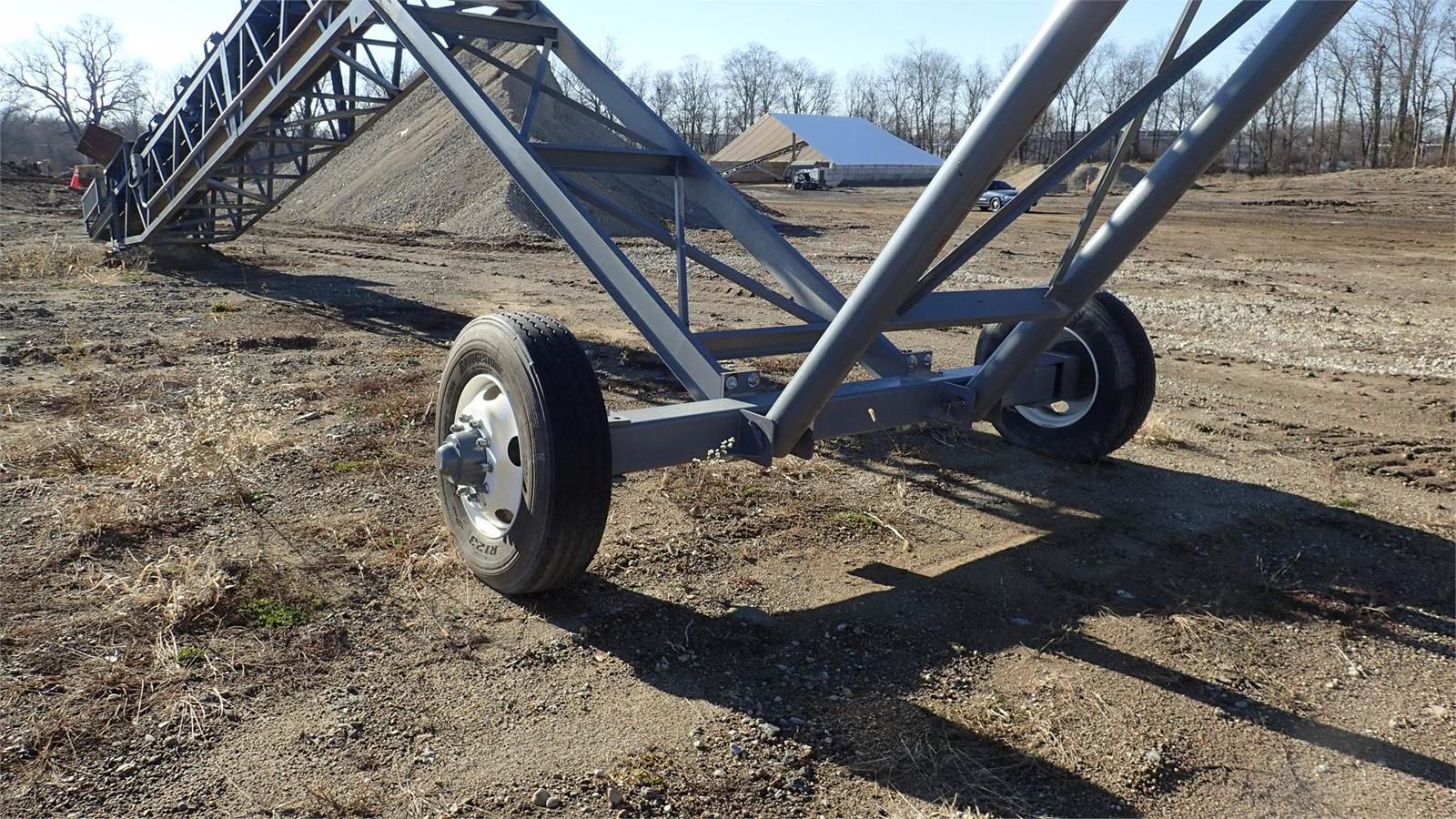

•   Heavy Duty Undercarriage, 8x8 Tubing Axle, 20” Regrooved Tires
•    Lagged head 16” Dia., 2 15/16” Shaft & Ball Bearing
•   Winged Tail, 2 15/16” Shaft & Ball Bearings w/Screw Take-ups
•   World Wide #5 Drive, Motor Mount, Belt Guard
•   20 hp, TEFC, 1800 RPM, 230/460 volt
•   Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
•   Pioneer, 5” Returns w/Brackets, 10’ Centers
•   Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover

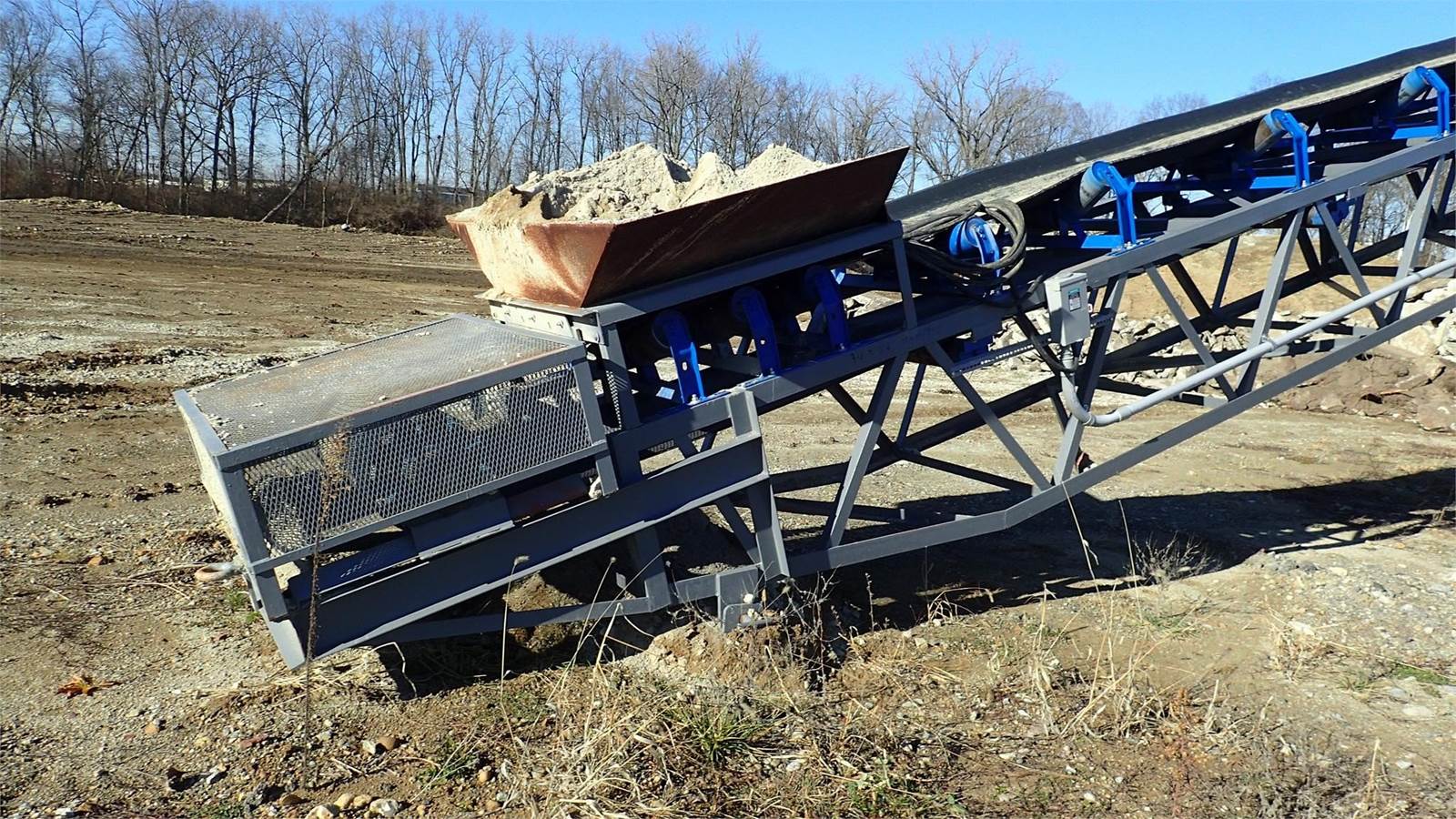

•   48” Load Zone w/Skirt Rubber
•   Swivel Pivot plate
•   Tow Hook
•   Tail Guard
•   Primed & Painted, Tool Steel Gray, Unless Specified Differently.
Proudly built in the USA with American parts and materials.
WE CAN FINANCE WITH RATES FROM AS LOW AS 4.25% WITH $1 BUYOUTS *SUBJECT TO APPROVAL AND CHANGE*, TRANSPORT AND SHIPPING WORLDWIDE AVAILABLE.
WE ARE OPEN 7 DAYS A WEEK PLEASE CALL JOE

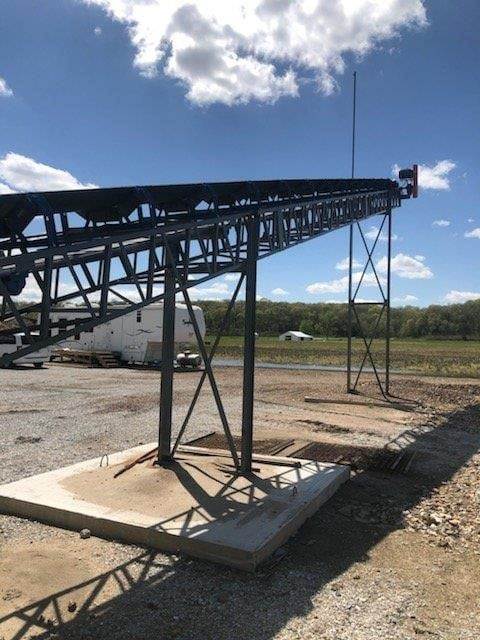

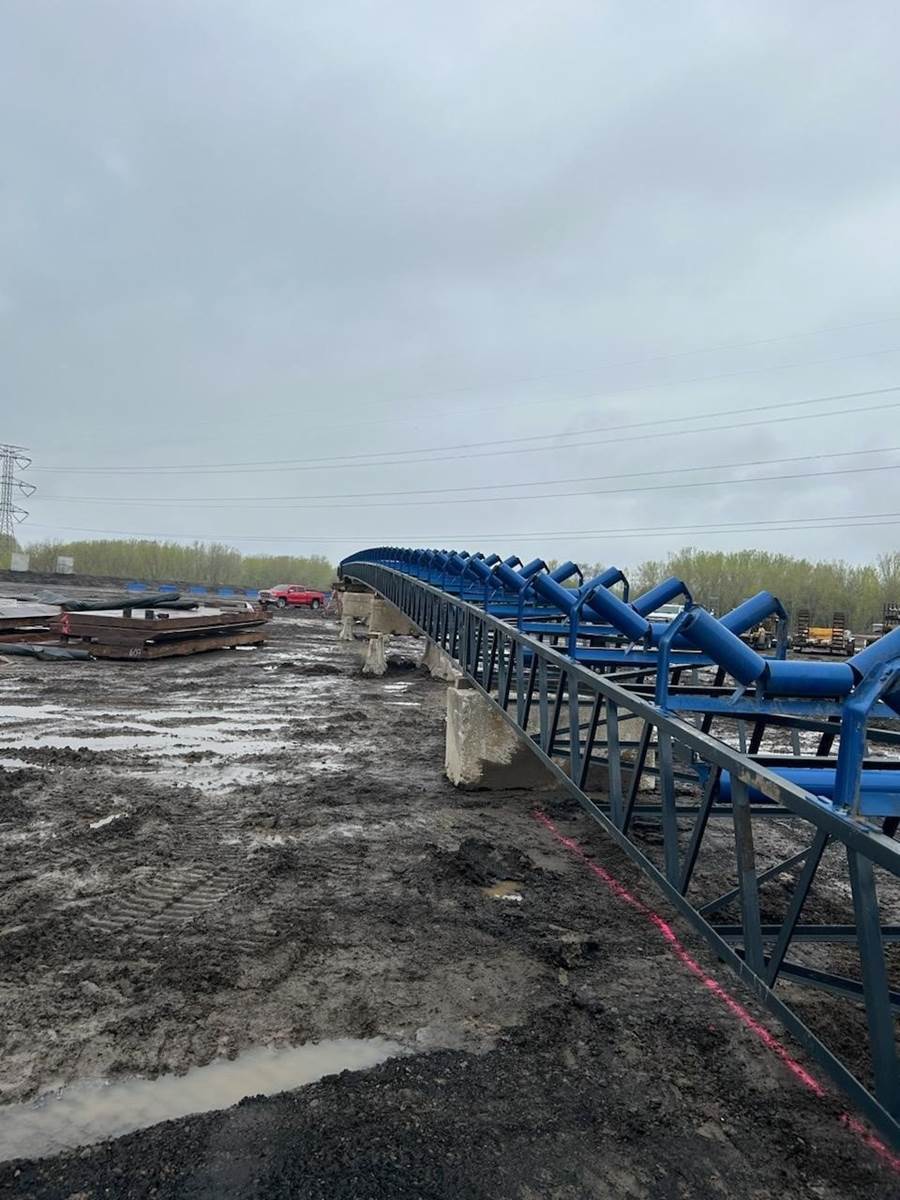

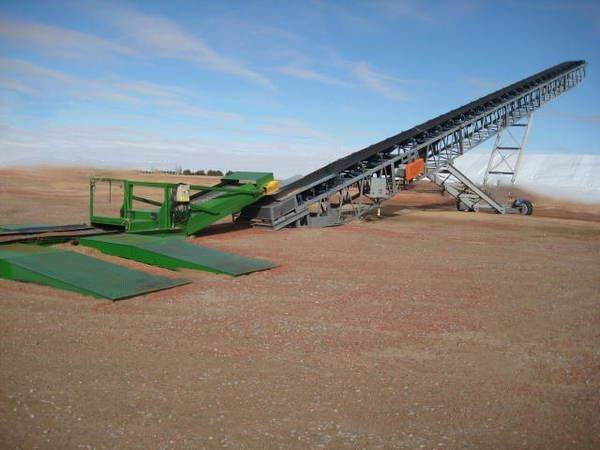

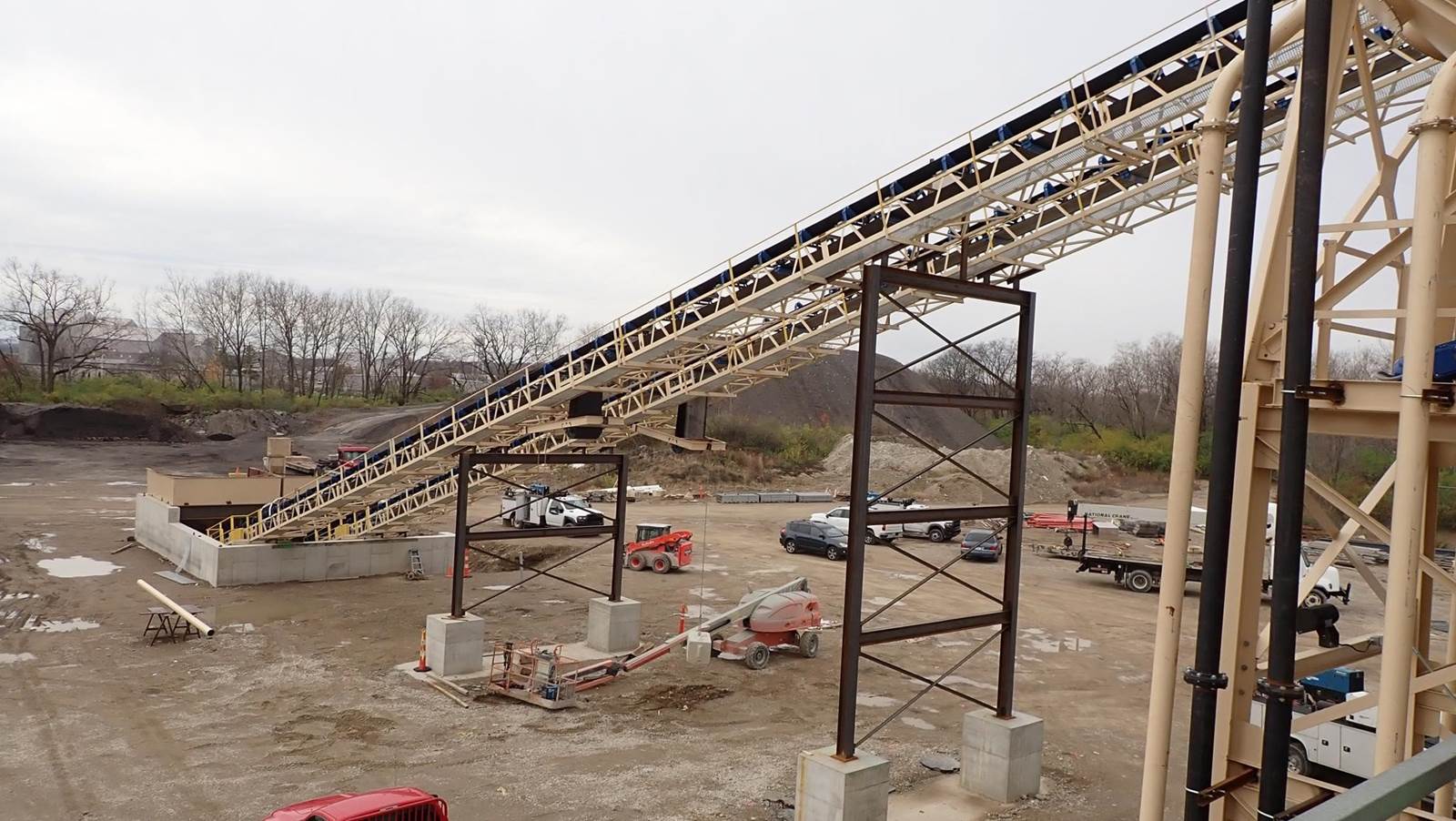

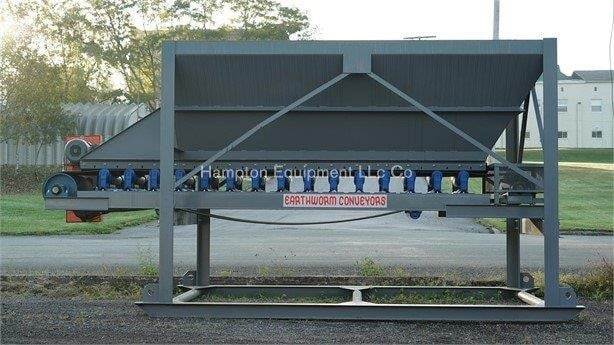

We Manufacture All Types Of: Radial Stackers, Transfer Conveyors, Channel Frame Conveyors, Truss
Frame Conveyors, Jump/Grasshopper Conveyors, Overland Conveyors, Feeder Conveyors. Any Width
Or Length. Anywhere In The USA.

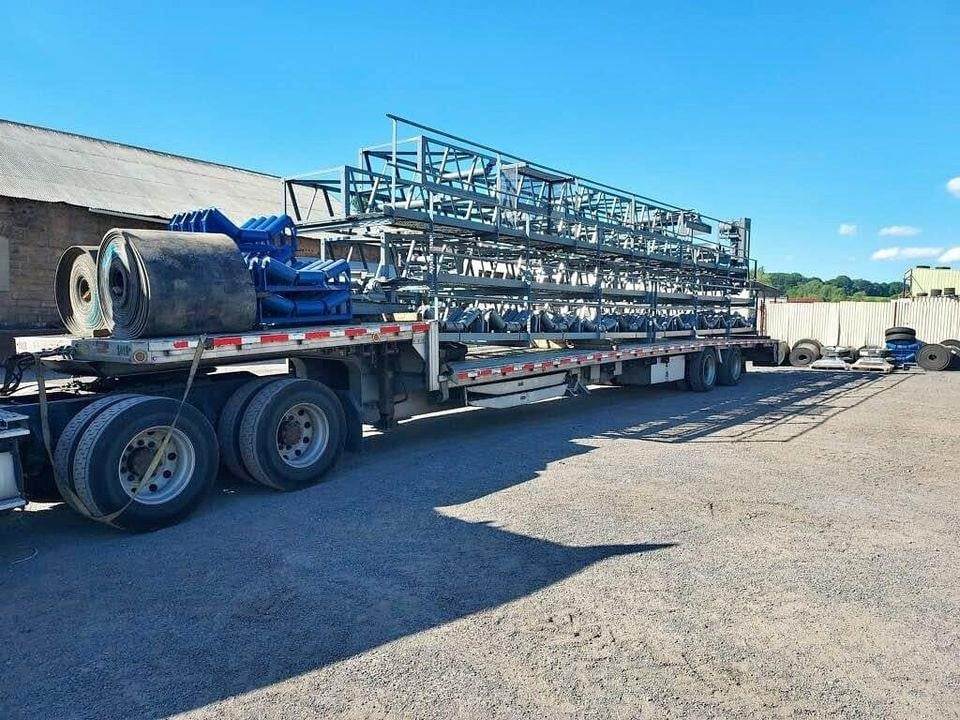

WE DELIVER
