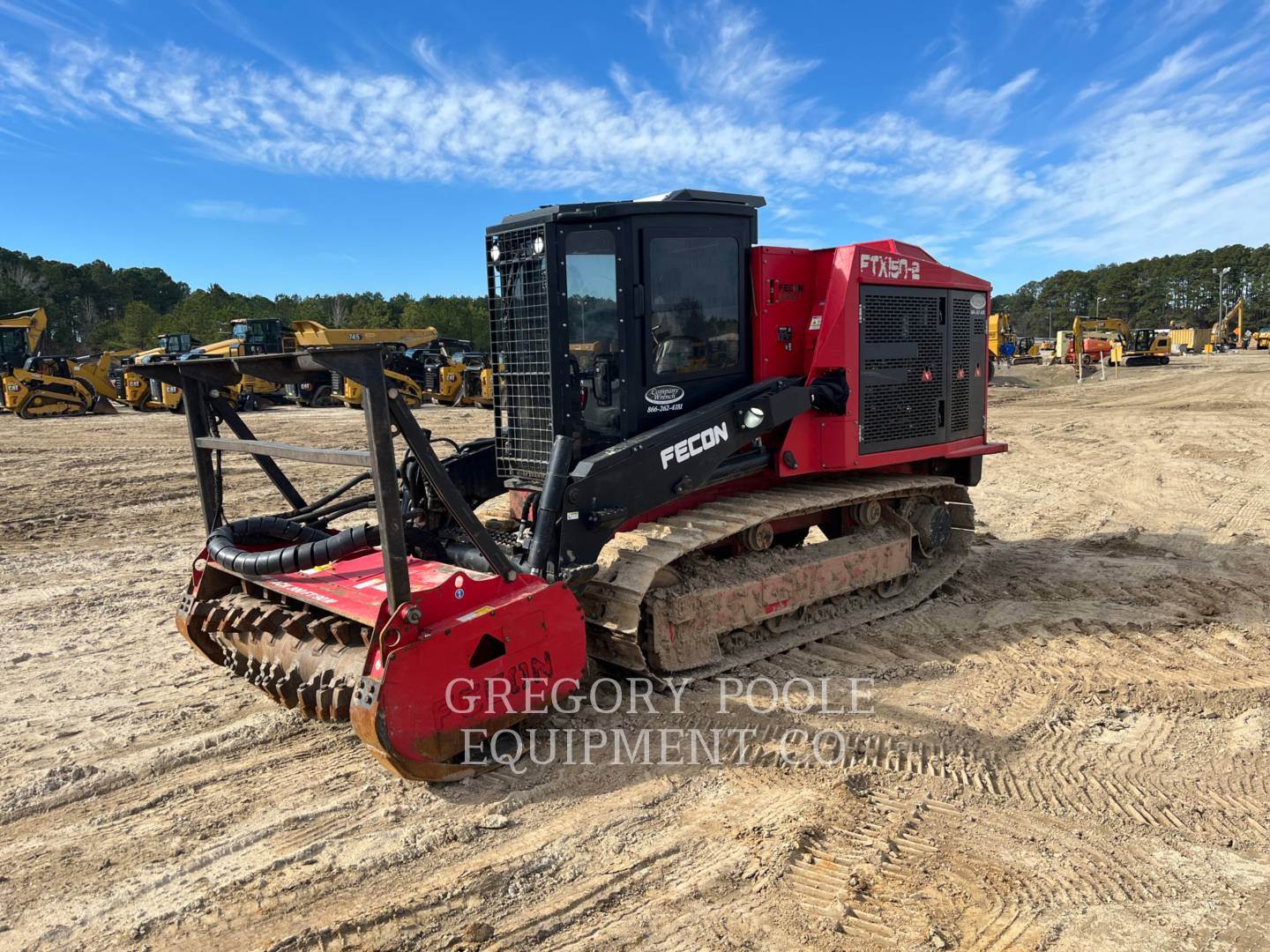

2023 Fecon FTX150T5A Logging Processor For Sale, 1,404 Hours | Hope Mills, NC | 14146552

Year

2023

Rating	As-Is

Inspection Report

Cleaning Required	Yes
S.O.S. Taken	No

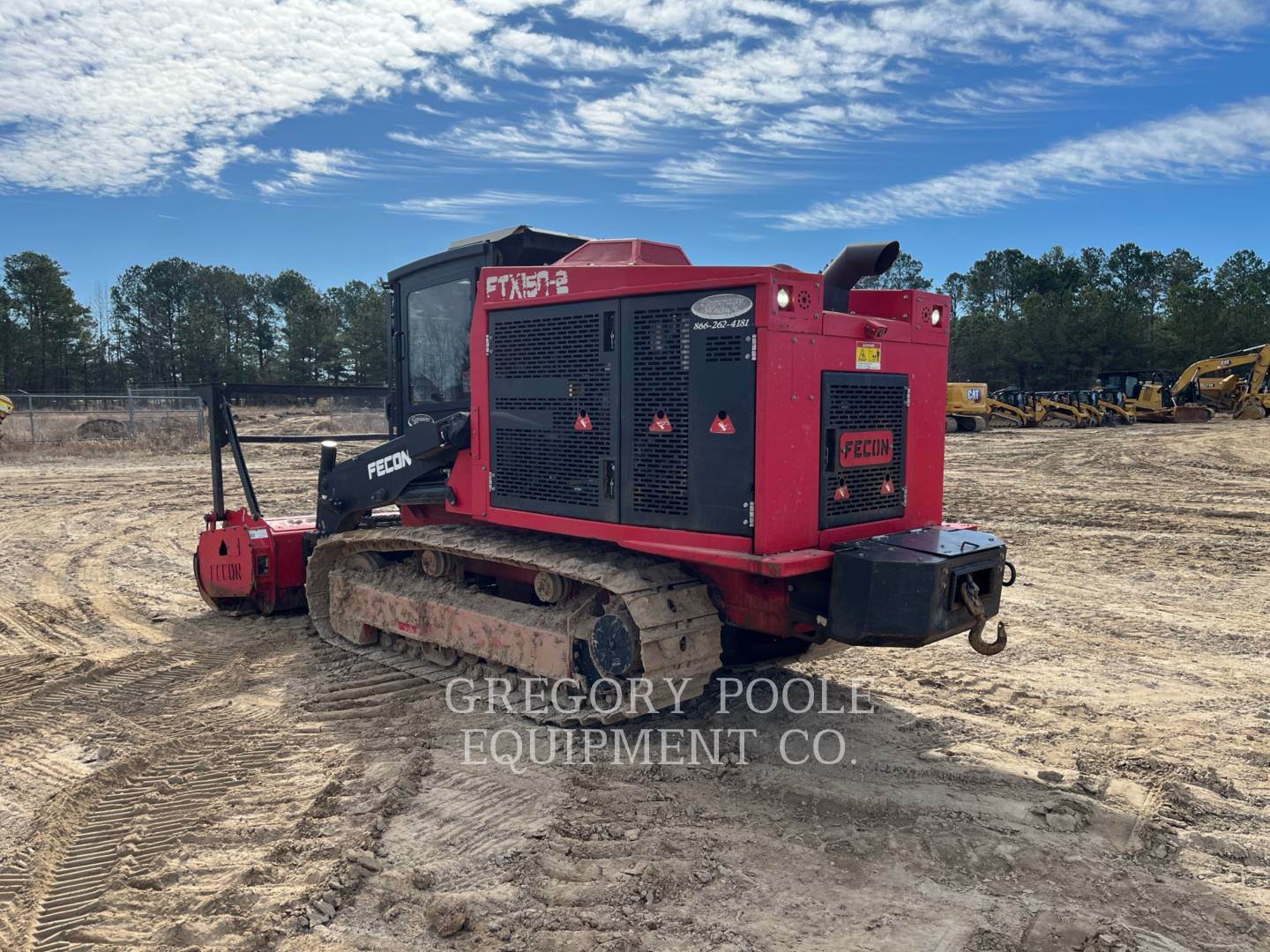

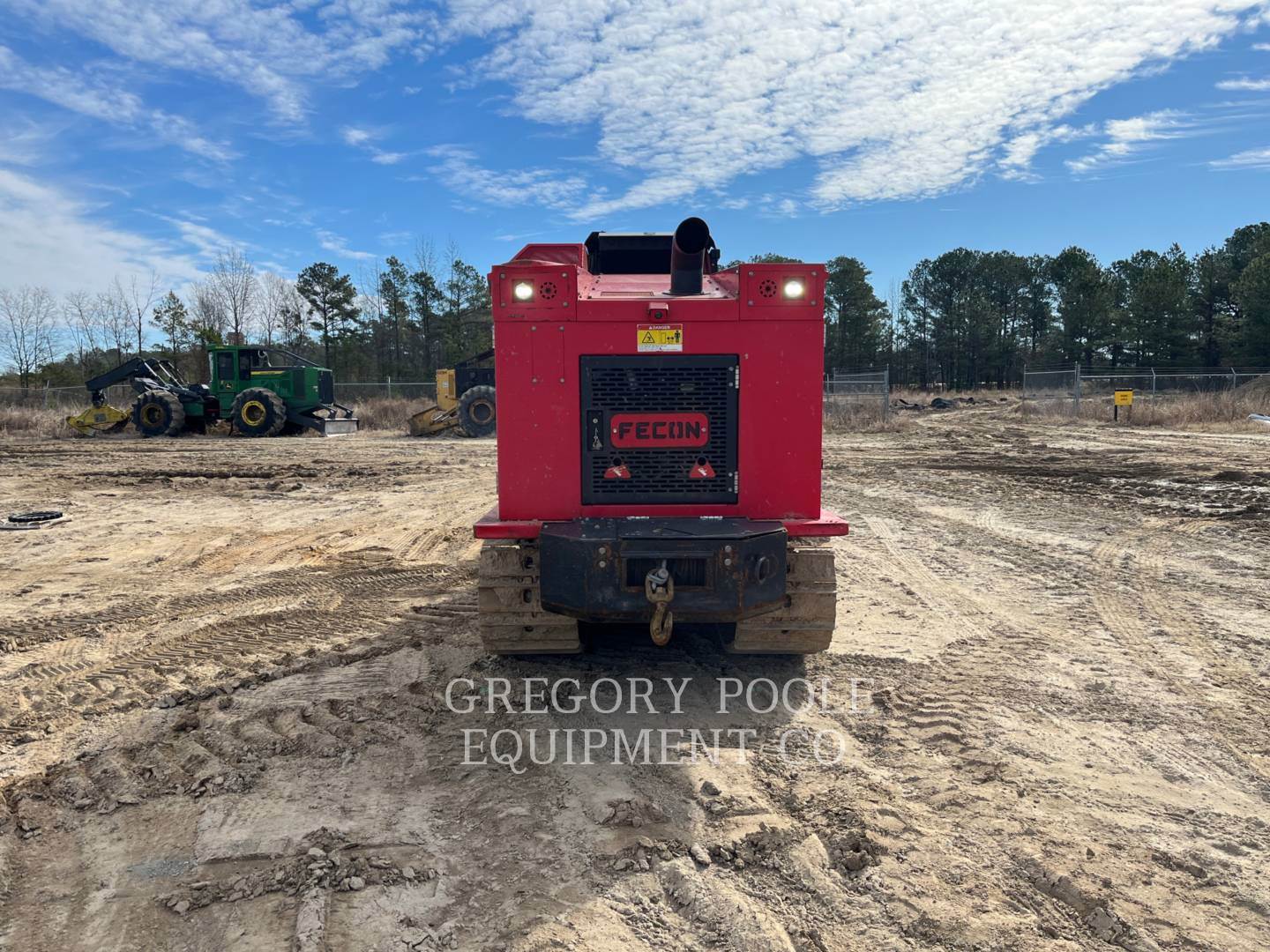

Notes - GENERAL APPEARANCE	Winch frame housing is bent and dented at rear of machine, bottom aux hose appears to be seeping, right side hose is rubbed into the wire
Bumper	Good
Car Body	Good
Crankcase Guard / Battery Box	Good
Eng. Enclose Hood / Stack	Good
Engine Doors	Good
Fenders	Fair
Fuel Tank	Good
Grab Irons	Good
Hood	Fair
Main Frame Welds	Good
Paint	Fair

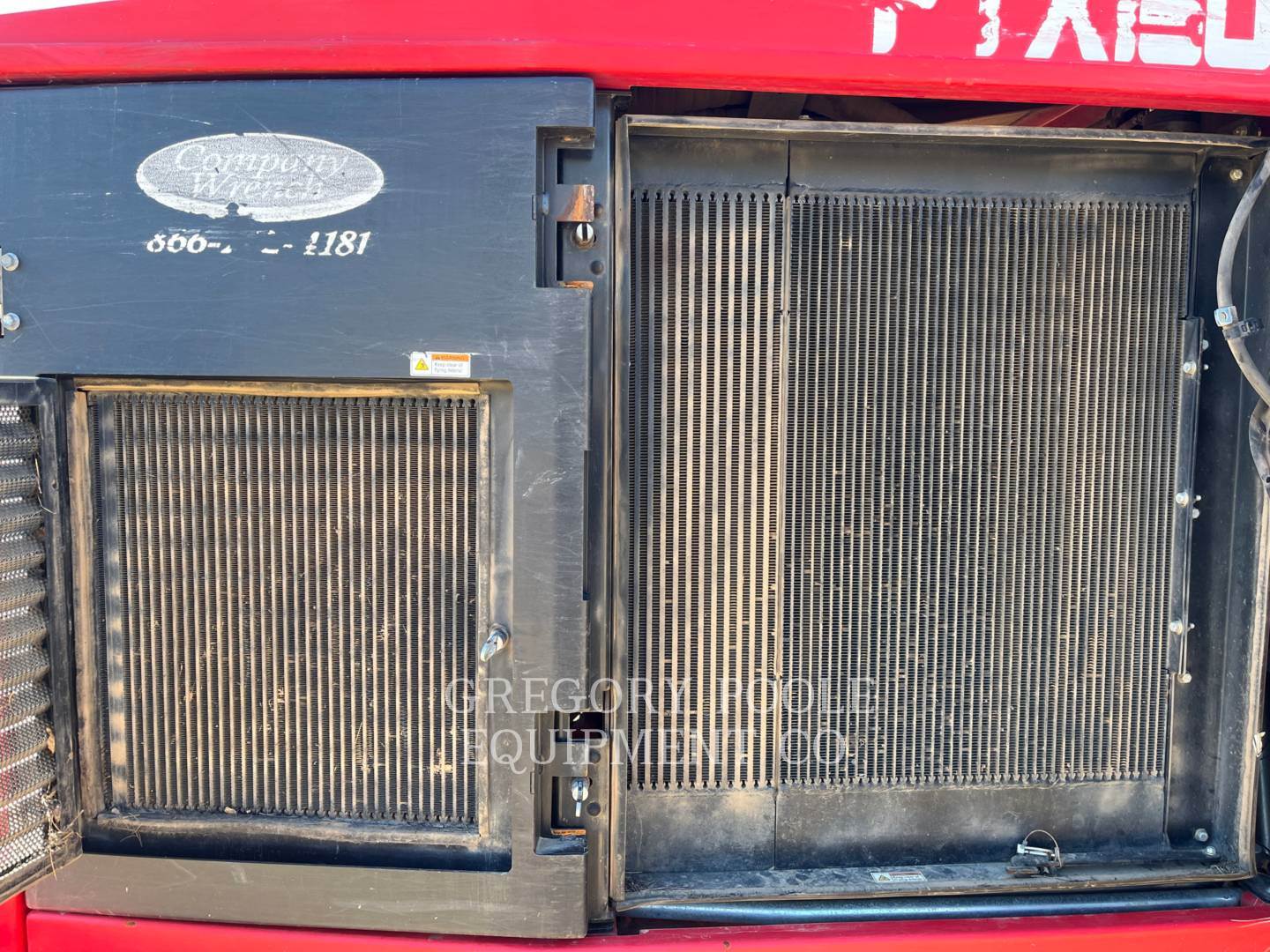

Radiator Grill & Shroud	Fair
Sheet Metal	Fair
Steps / Ladder	Fair

Cab Guards	Yes
ROPS	Yes
Safety Decals In Place	Yes
Safety Decals In Place / Legible	No
Notes - SAFETY ITEMS	left side tilt cylinder is leaking
Back Up Alarm	Good
Brake Hold	Good
Horn	Good
Seat Belt - SAFETY ITEMS	Good

Back Up Alarm	Yes
Current O&MM	Yes
Current Safety Manual	No
ROPS Certification Plate	Yes
Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION	3/4 tank
Fuel Level - OPERATOR STATION	Full

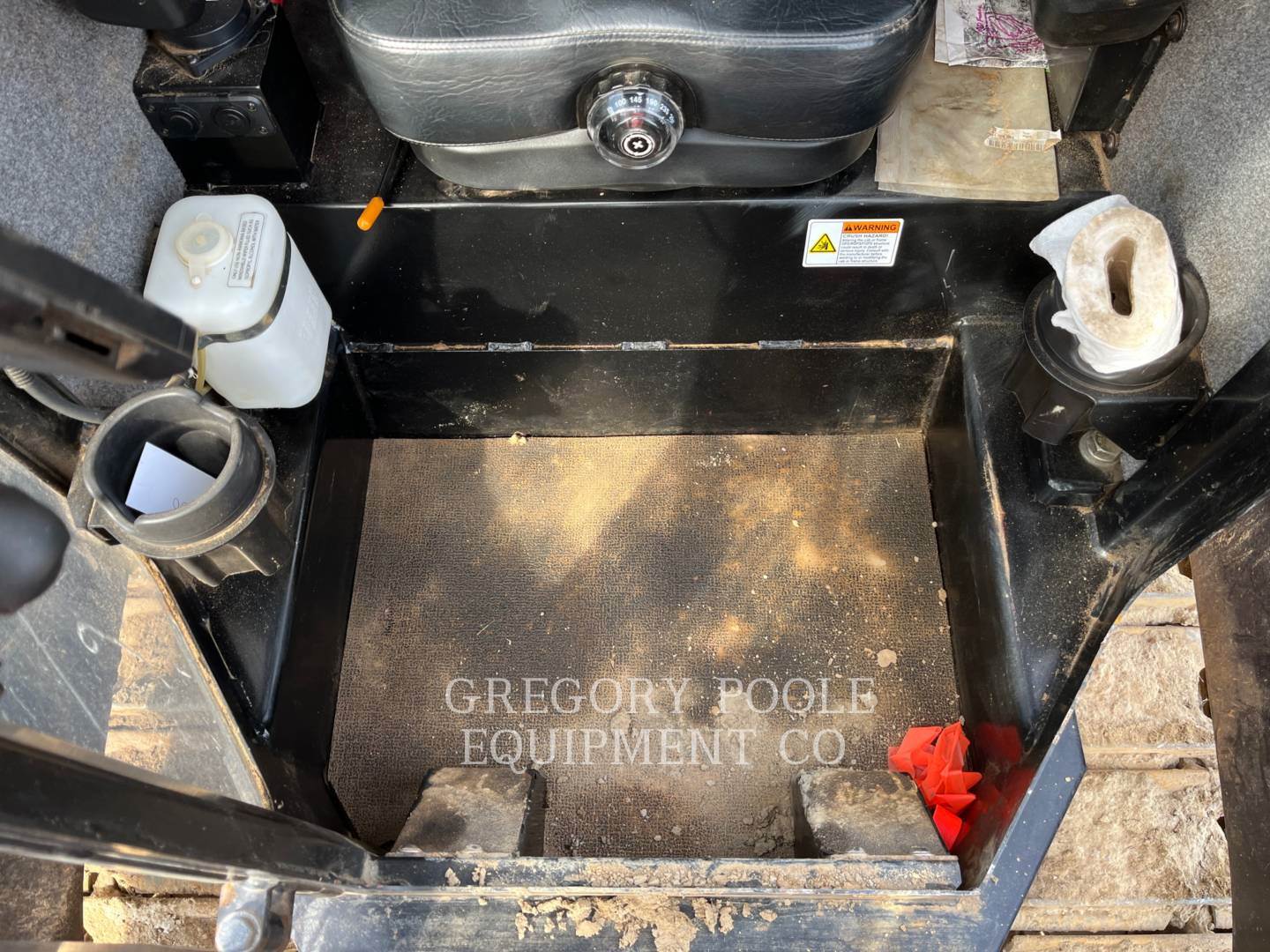

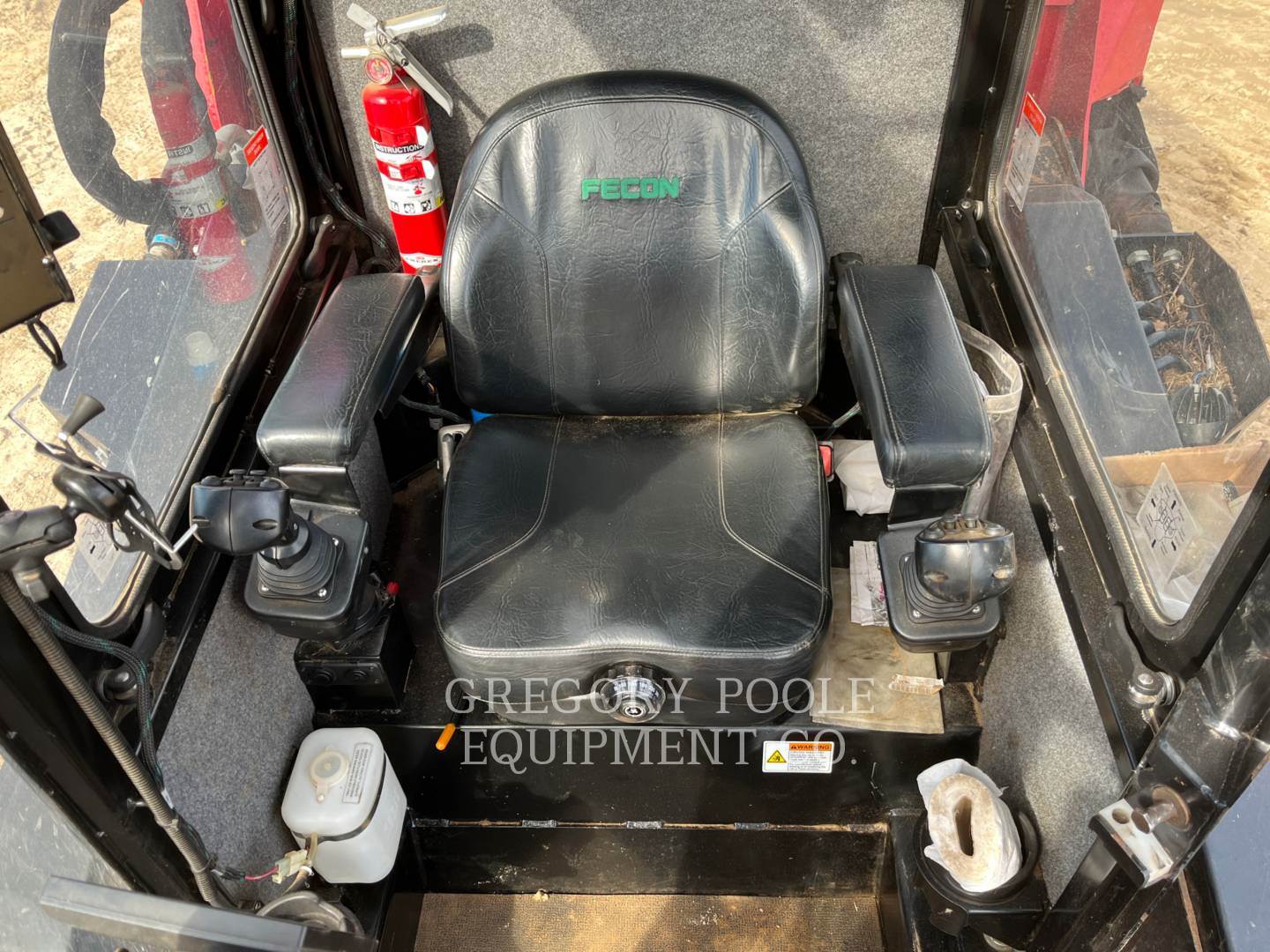

Notes - OPERATOR STATION 1	Rear camera functions, implements - both tilt and lift functions have a chatter/ light vibration in them when raising loader arm or tilting mulcher back- not sure if this is the way it’s supposed to have this feel to it
Air Conditioner	Poor
Dash Console	Good
Door Latches	Good
EMS Panel / Warnings	Good
Floor Boards	Good

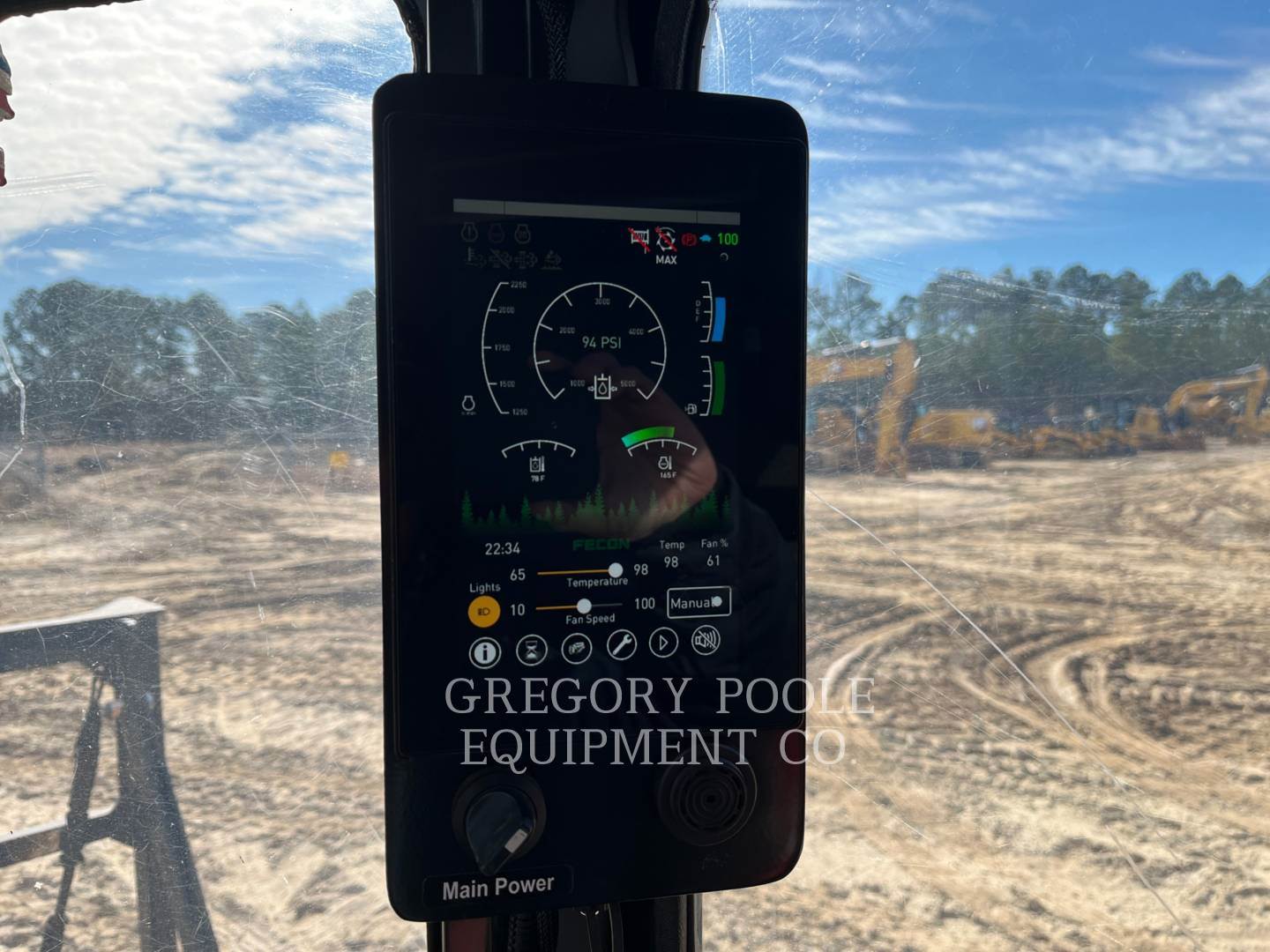

Gauges	Good
Glass / Mirrors	Good
Heater	Poor
Interior Lights	Good

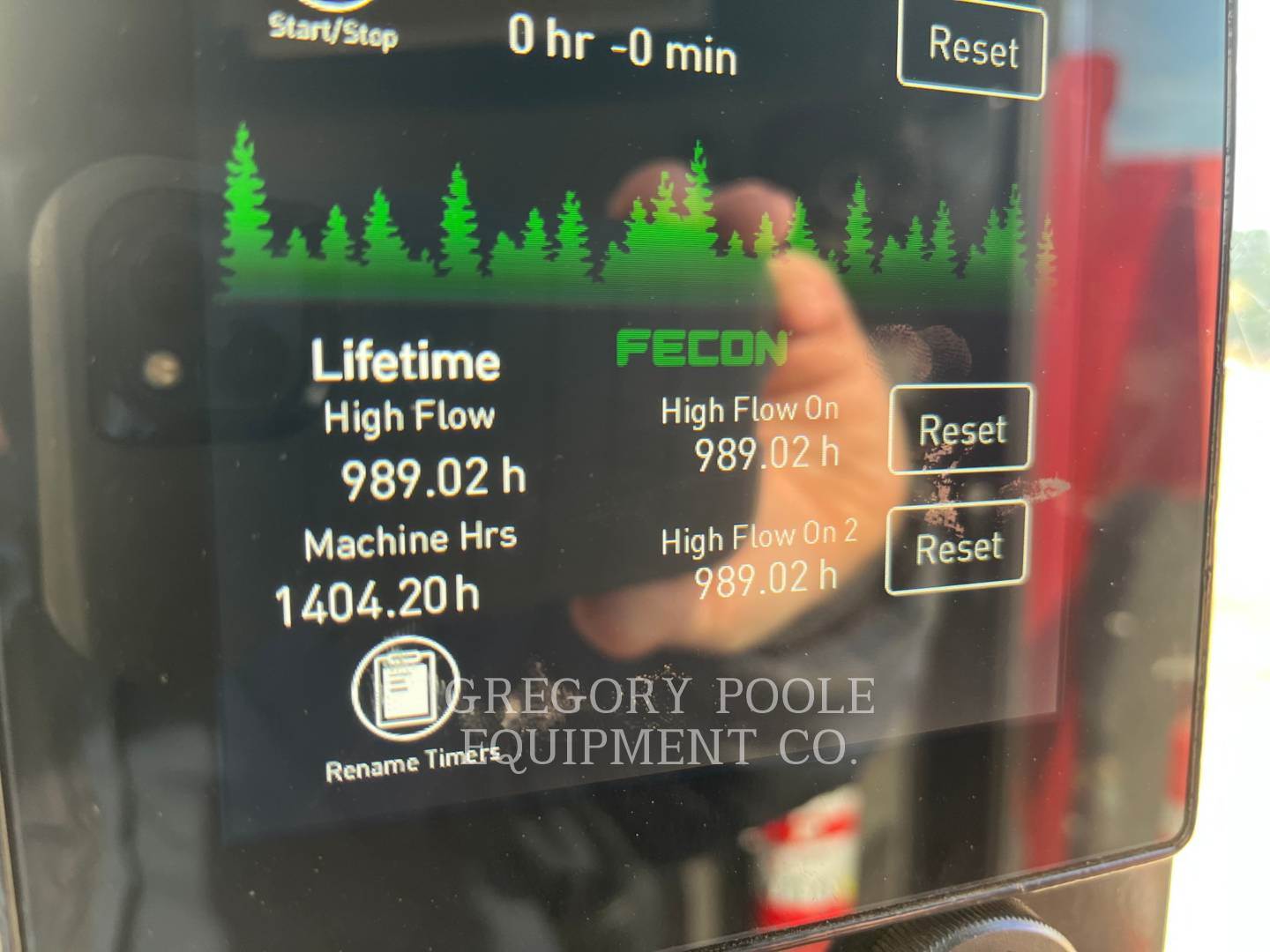

Meter	Good
Seat Belt - OPERATOR STATION	Good
Seat Cushion / Arm Rest	Good
Switches	Good
Windshield Wipers	Good

Blow By	No
Compression in Radiator	No
Emissions Decal	No
Fluid Levels OK? - ENGINE	Yes
Knocking	No
Oil Leaks	No
Water in Oil	No
Anti-Freeze Color	Red coolant
Diesel Exhaust Fluid (DEF) Level - ENGINE	3/4 tank
Fuel Level - ENGINE	Full

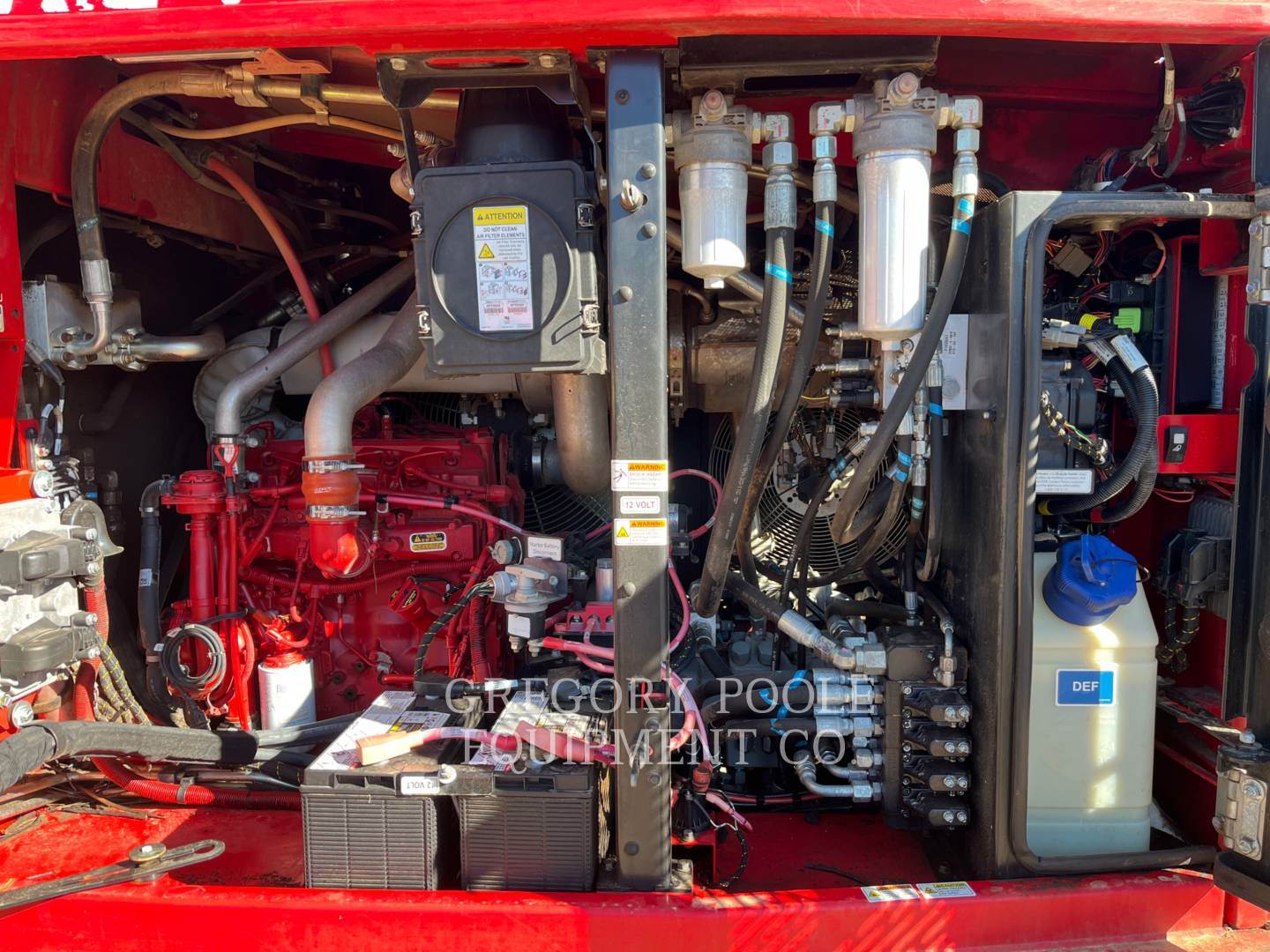

Notes - ENGINE	Been a year since last oil change- possibly needs a service - no hours on filter
Oil Pressure (H/L/N)	Normal
Smoke (B/D/L/W)	Normal
Air Cleaners	Fair
Belts / Pulleys - ENGINE	Good
Engine Supports	Good
Exhaust / Muffler	Good
Fuel Injection System	Good
Governor	Good
Operating Condition - ENGINE	Good
Turbocharger / Blower	Good

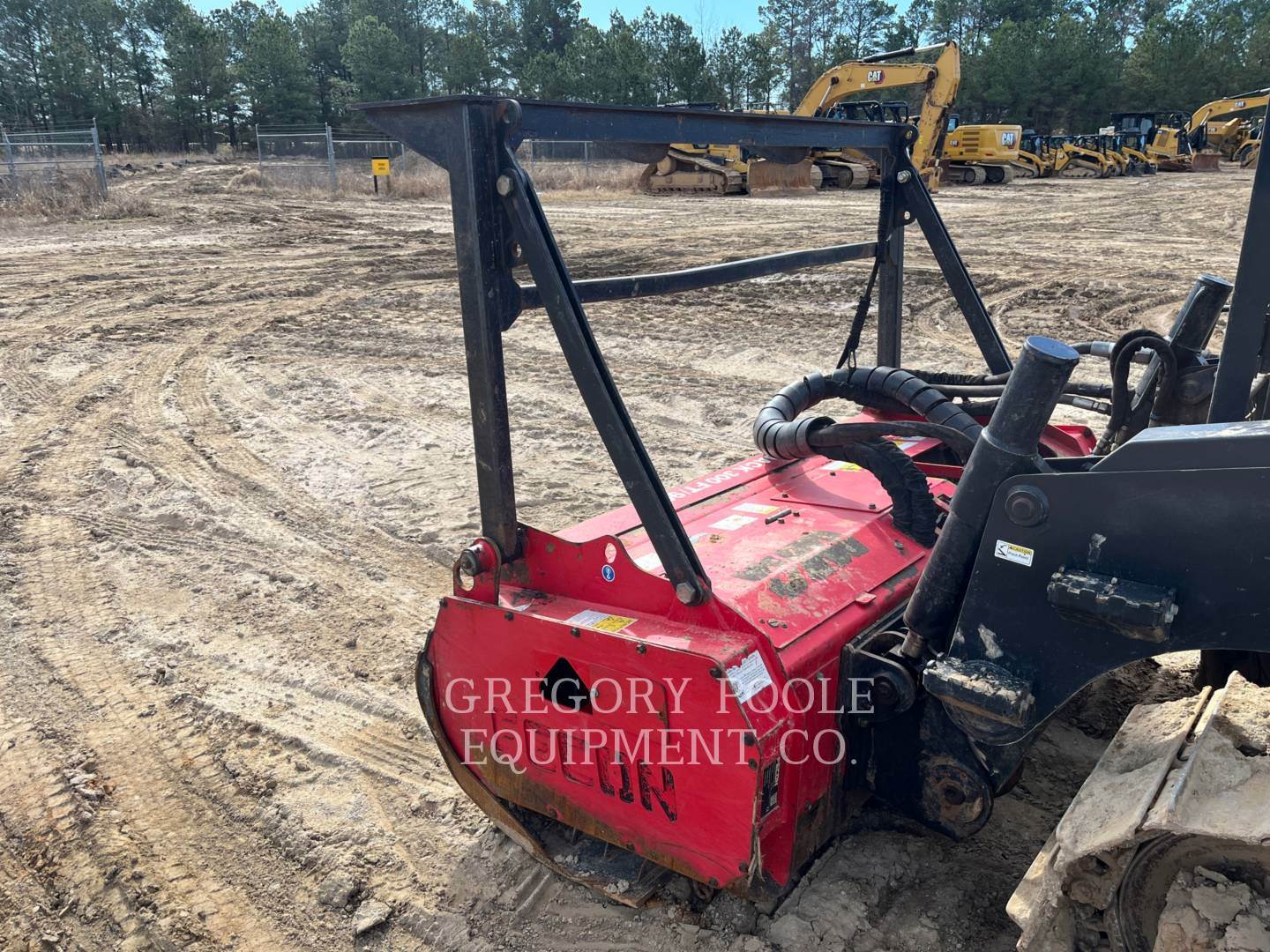

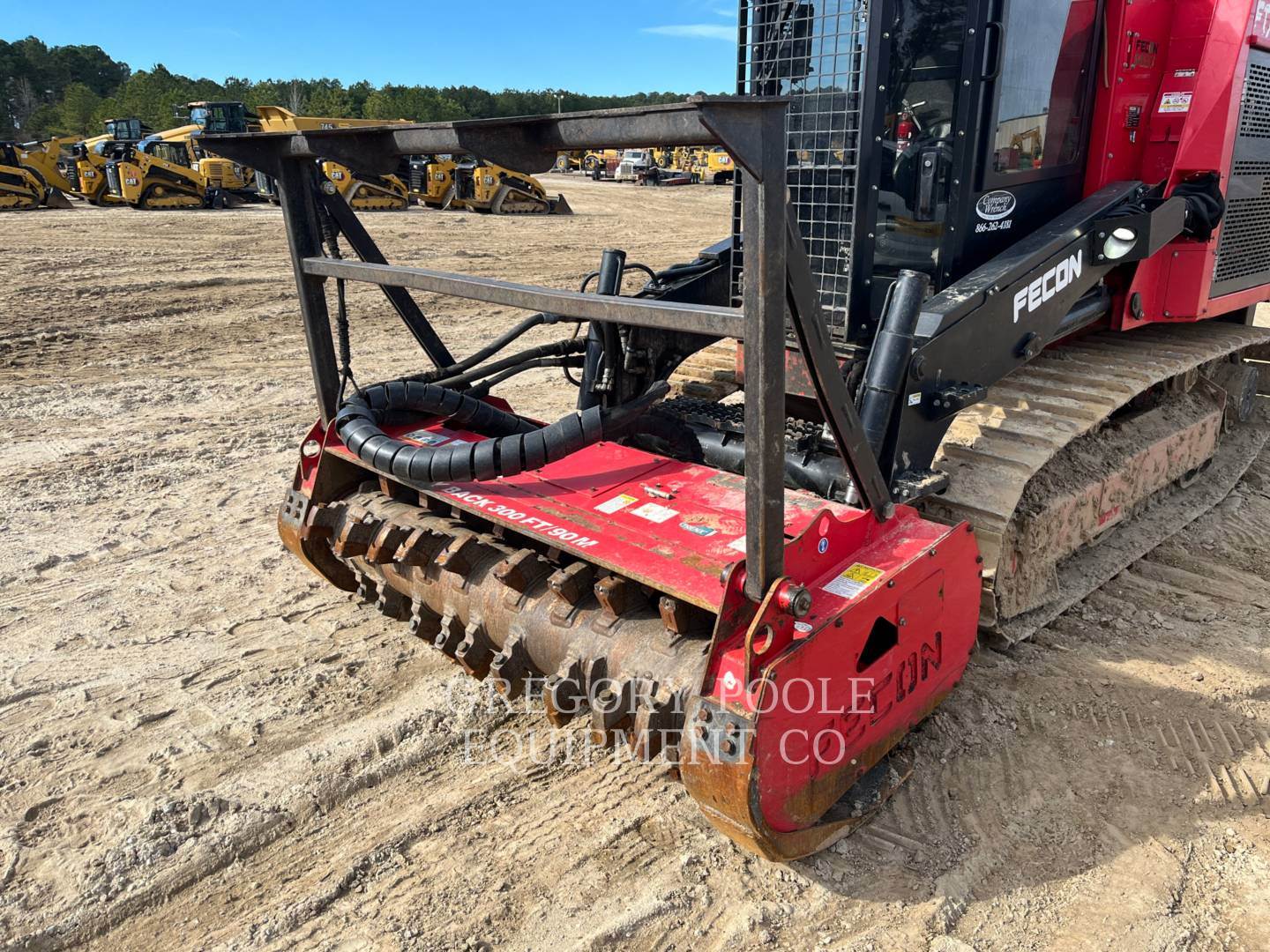

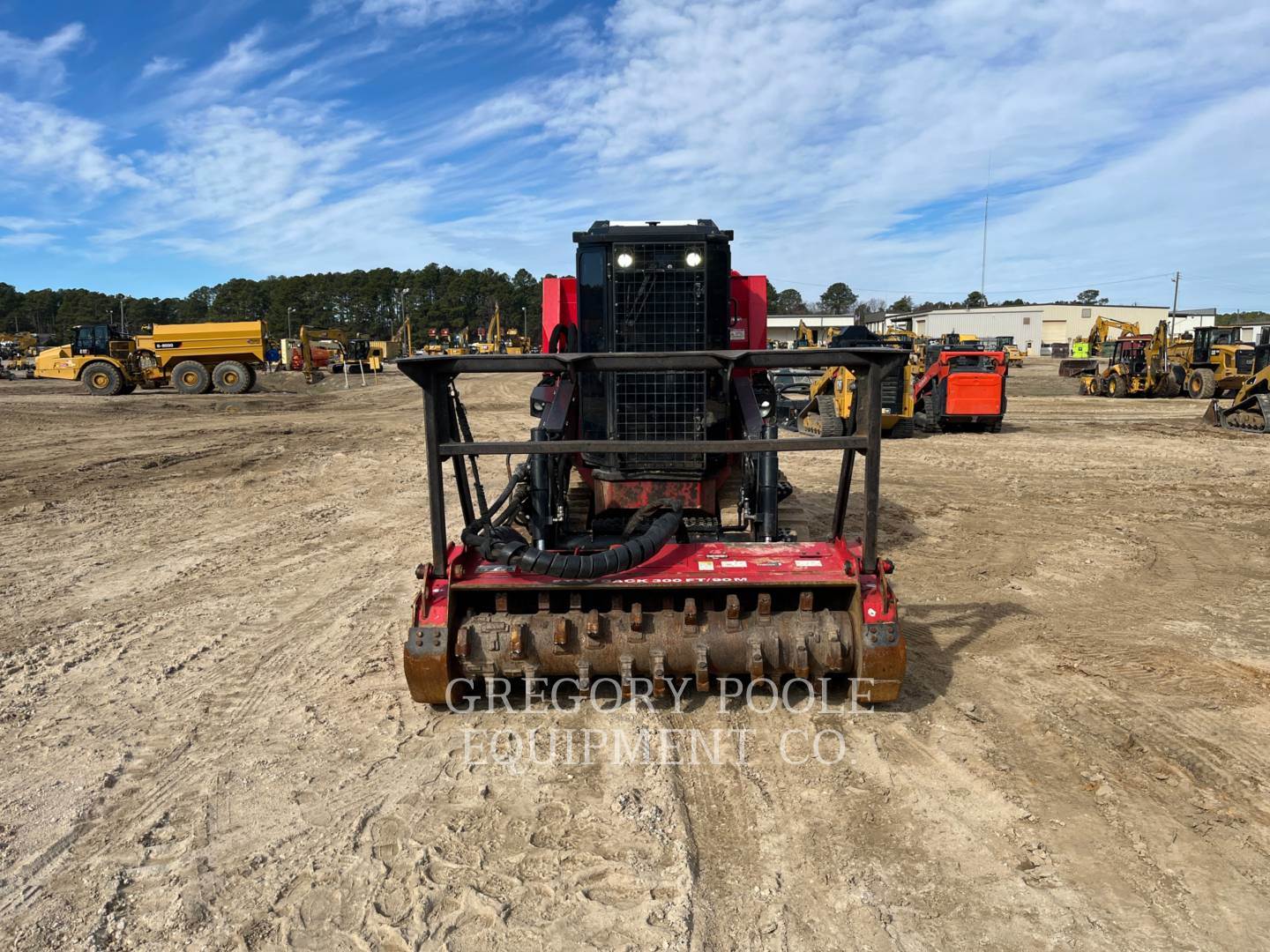

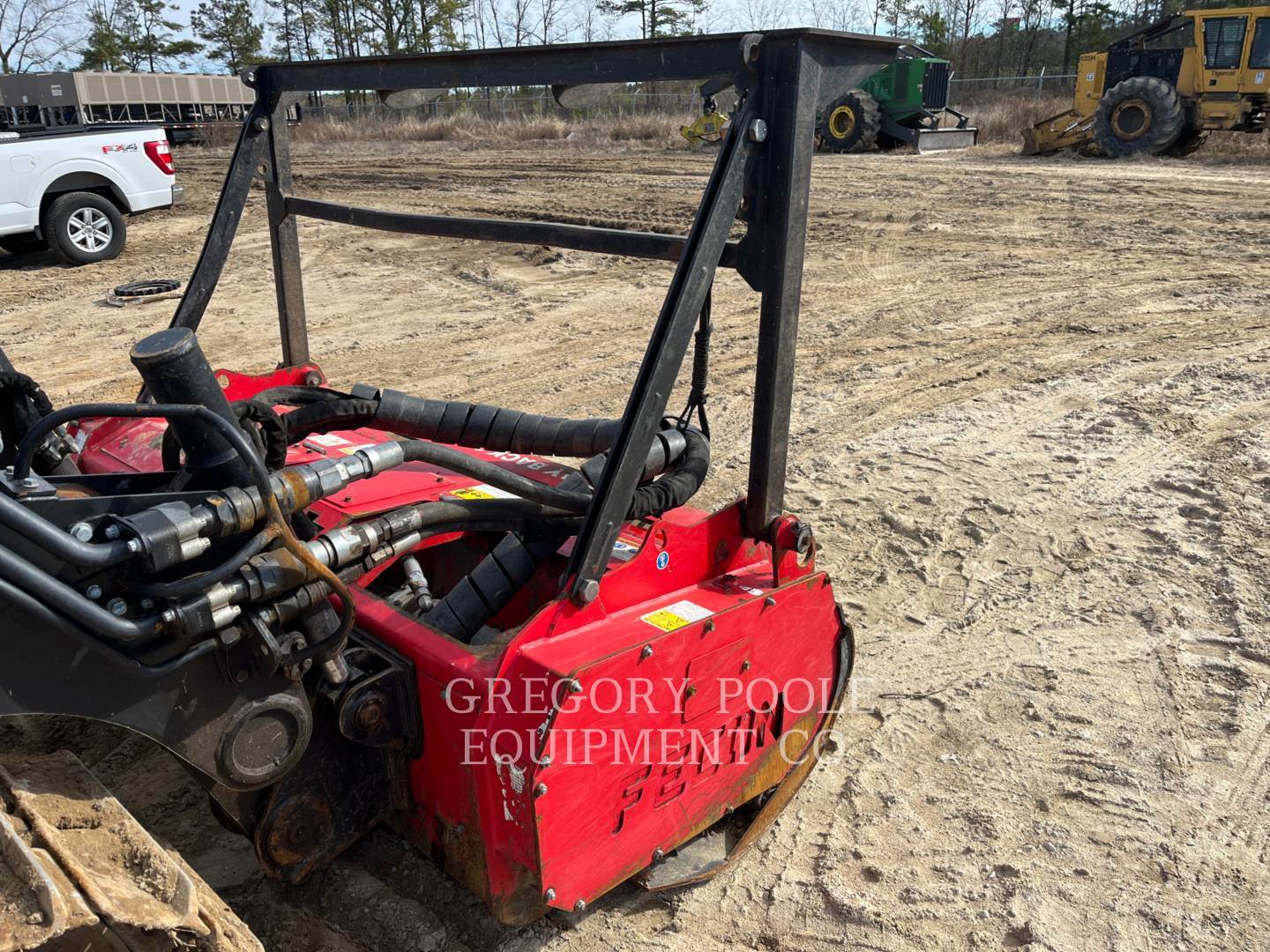

Notes - ATTACHMENTS / WORK TOOLS	Has all new carbide bits on drum, customer said new drum drive belt was recently installed, middle crossover bar is bent, hinges for access panels are to be replaced and access covers to be reinstalled
Other	Rear winch functions properly according to customer but cable is twisted up on spool, safety latch is missing from hook- if equipped, eye is broken out of loop in cable

Pins & Bushings Turned?	No

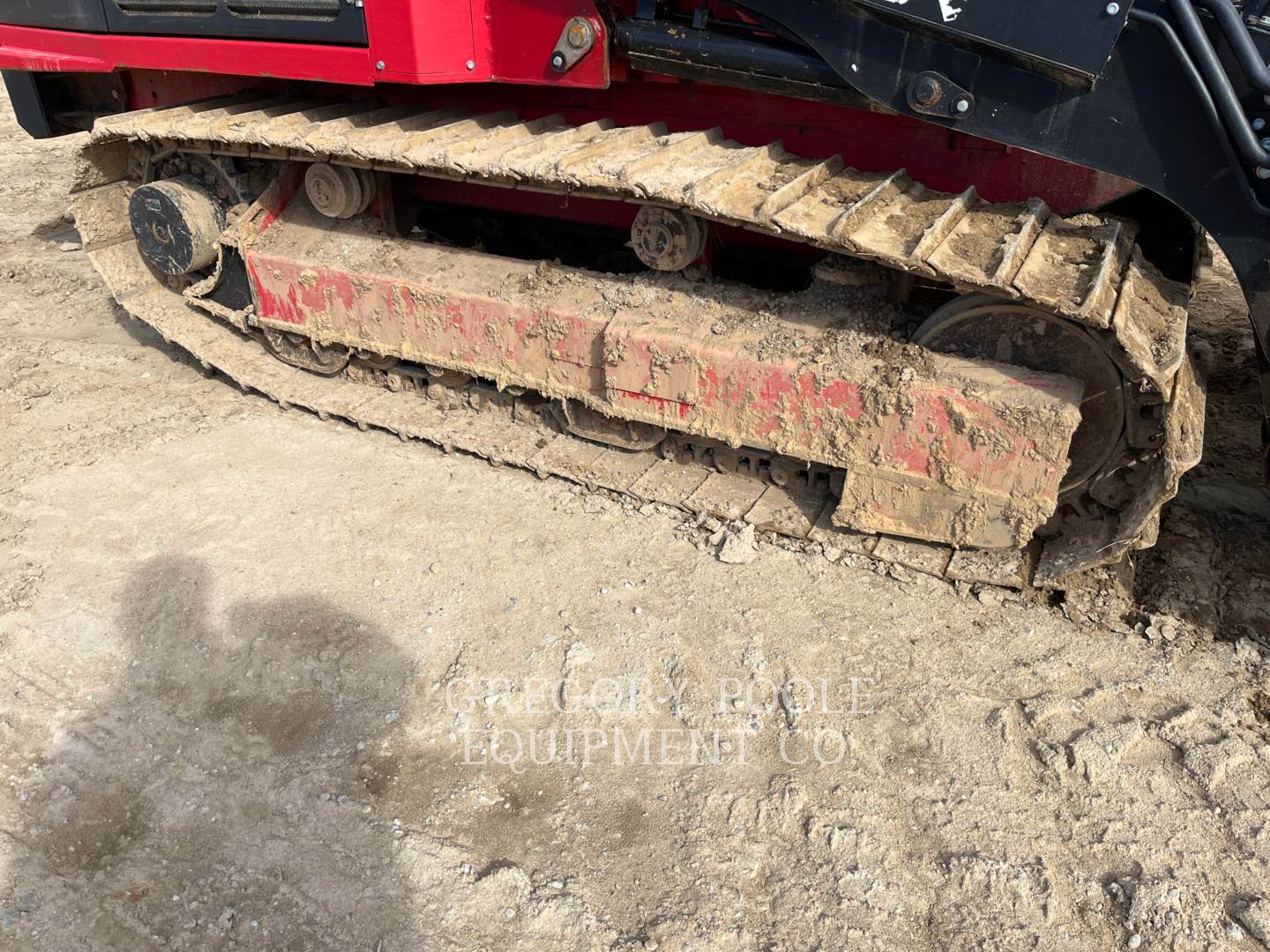

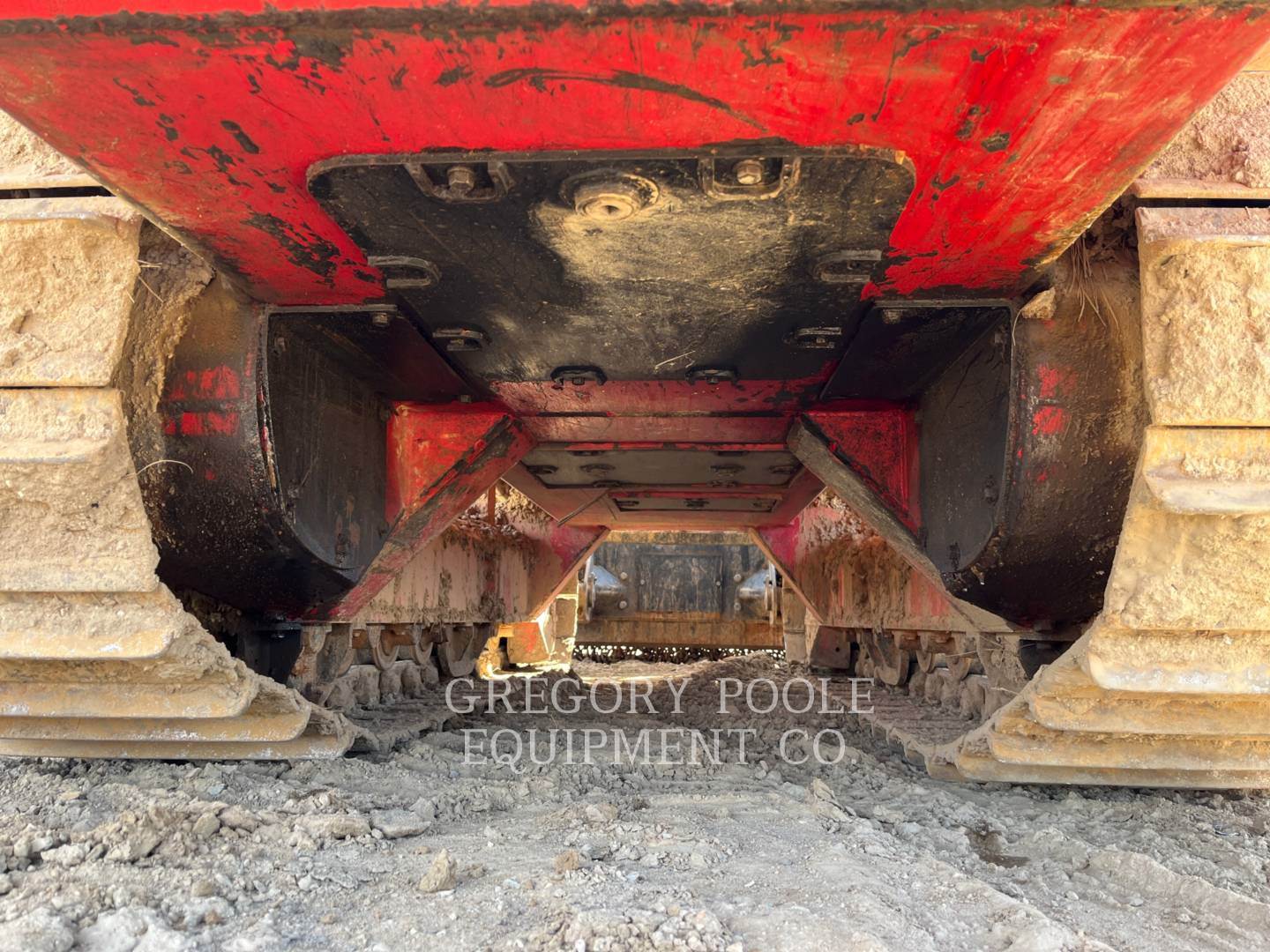

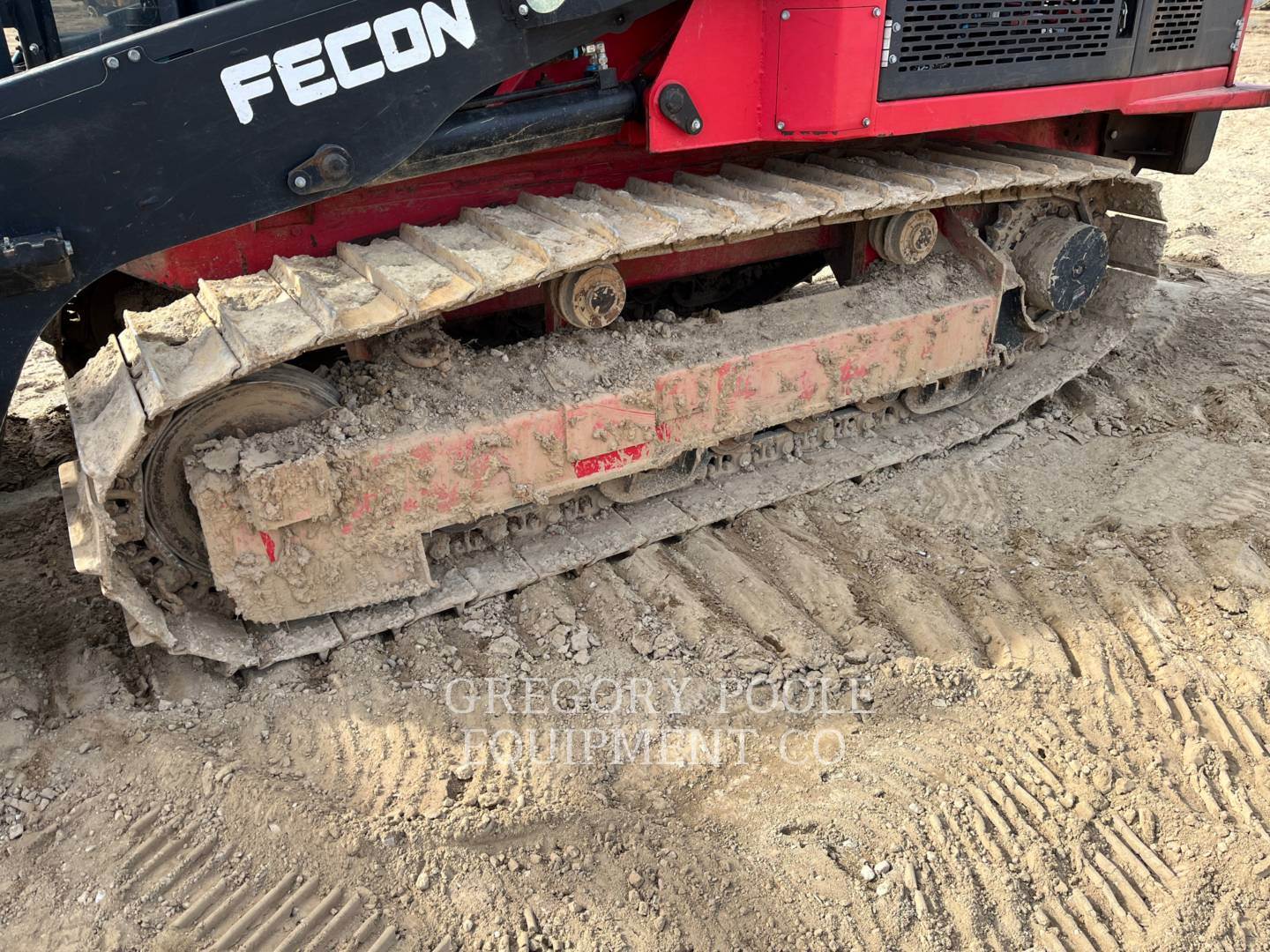

Notes - UNDERCARRIAGE	Track rollers appear to be good ( appear to have 20% wear) sprockets are worn ( customer has new sprockets that go with machine) links have some scalloping in them, undercarriage is making a popping noise when going rearward ( track tension is tight)
Carrier Rollers (Front) - Left	Good
Carrier Rollers (Front) - Right	Good
Track Frame - Left	Good
Track Frame - Right	Good
Track Shoes (type/width) - Left	Good
Track Shoes (type/width) - Right	Good
Carrier Rollers Front
Left	/ 25% Worn
Right	/ 25% Worn
Carrier Rollers Rear
Left	/ 25% Worn
Right	/ 25% Worn
Idlers Front
Left	/ 20% Worn
Right	/ 20% Worn
Links
Left	/ 25% Worn
Right	/ 25% Worn
Pins & Bushings (External)
Left	/ 50% Worn
Right	/ 50% Worn
Track Shoes (Width)
Left	/ 10% Worn
Right	/ 10% Worn

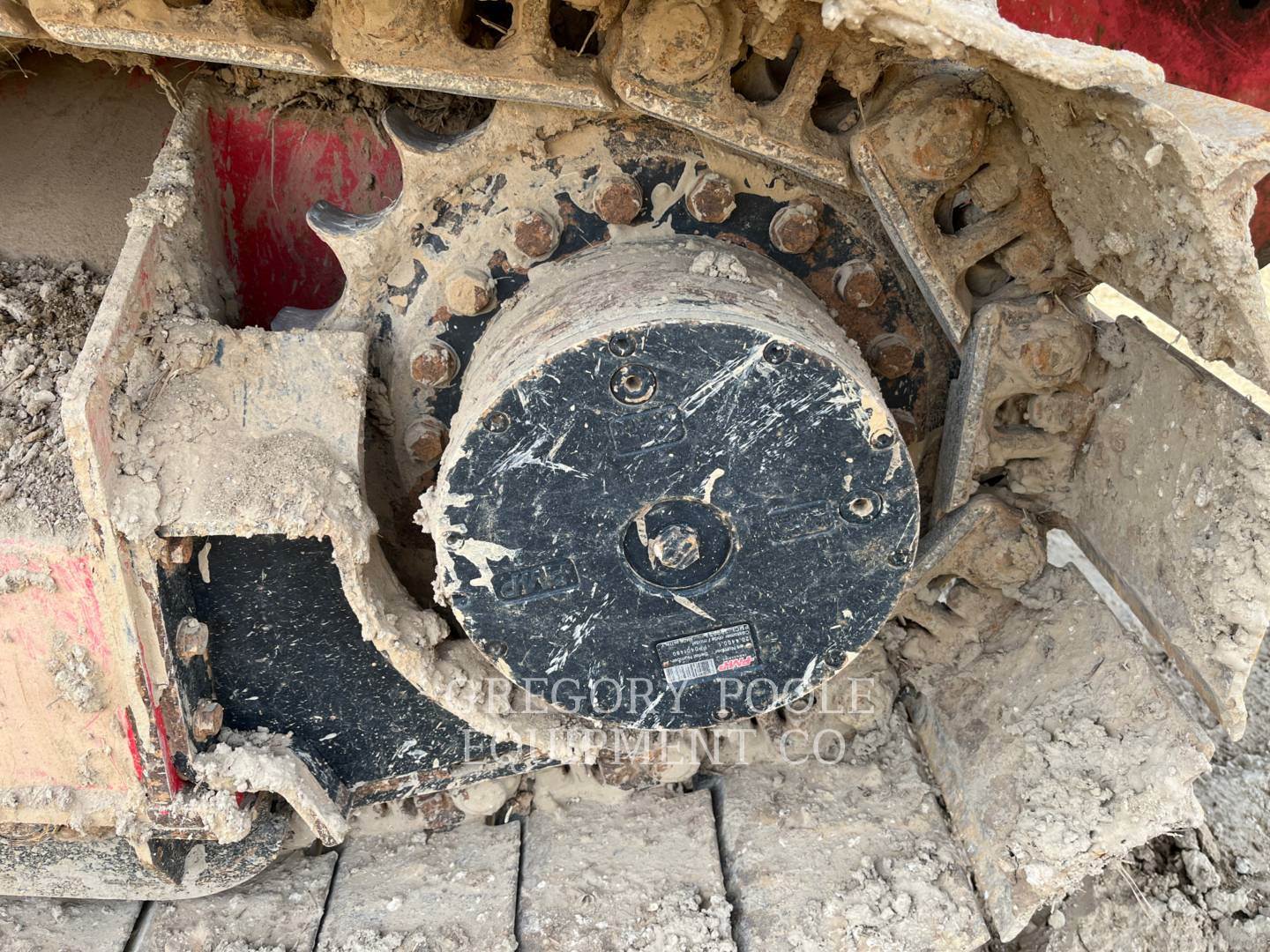

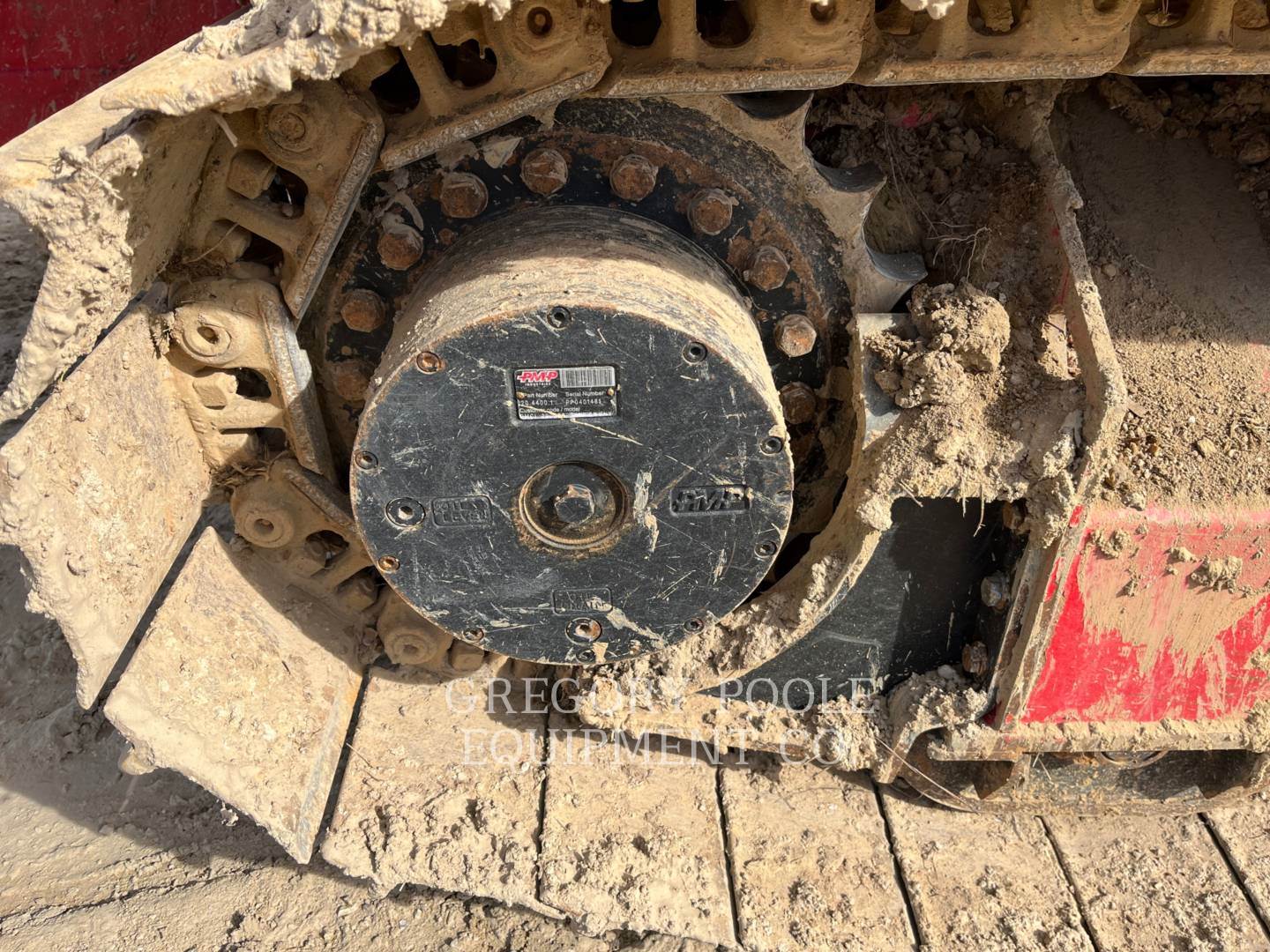

Notes - FINAL DRIVES	Drive operation is good, two speed functions, but do feel popping noise in undercarriage when going reverse- possibly due to track tension being too tight and worn sprockets
Housings	Good
Planetaries / Diff	Good
