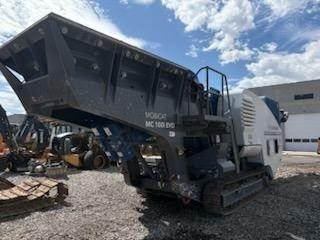

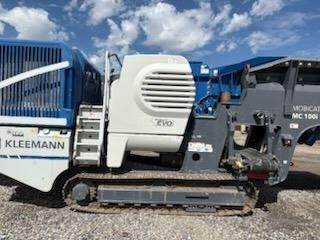

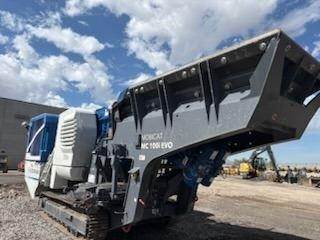

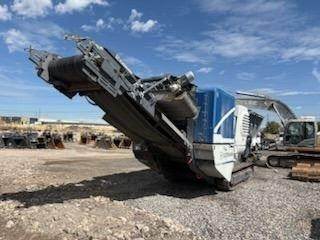

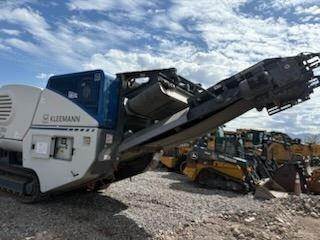

2023 KLEEMANN MC100I EVO Crushing Plant

MOBILE TRACKED JAW CRUSHER -

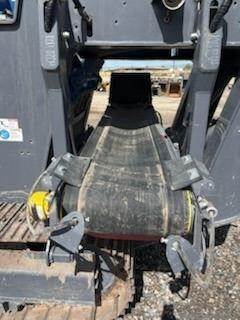

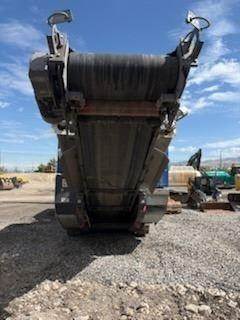

CRUSHER DISCHARGE CONVEYOR, STUD BELT -
LOWER DECK DUMMY COVER -
CONTINUOUS FEED SYSTEM -
CRUSHER JAWS TR-BITE.18 INSTALLED -
PERMANENT MAGNETIC SEPARATOR -
MACHINE CONTROL SYSTEM W/ HEAT -
DEUTZ POWER SUPPLY -
UPPER DECK HEXAGONAL PUNCHED PLATE 50MM -
SIDE DISCHARGE CONVEYOR -
WATER PUMP -
MAY BE SUBJECT TO NEW EQUIPMENT SALES TAX

Specifications and features are based on general factory information and may not reflect the exact machine being offered. Please contact the seller to verify machine specifications, options, attachments, and condition. -

Factory Specs -
Jaw Opening: 37" x 22" (950 mm x 550 mm) -
Crusher Type: Single-toggle jaw crusher (STR 95-055) -
Engine: Deutz Tier 4 Final diesel engine -
Engine Power: 208 HP (155 kW) -
Drive System: Diesel-direct (D-Drive) -
Production Capacity: Up to 243 TPH (220 tph) -
Maximum Feed Size: 34" x 21" x 13" (855 x 530 x 320 mm) -

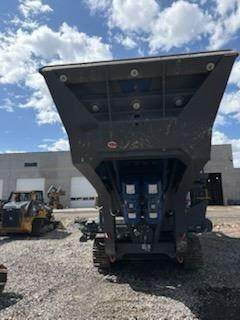

Hopper Capacity: 4.2 yd³ standard, 9.3 yd³ with extension -
Hydraulic Jaw Adjustment: 0.8" to 5.1" (20 to 130 mm) -
Crusher Weight: Approximately 26,455 lb (12,000 kg) -
Discharge Conveyor Width: 40" (1,000 mm) -
Transport Length: 42' 6" (12.97 m) -
Transport Width: 9' 10" (3.0 m) -
Transport Height: 10' 6" (3.2 m) -
Operating Weight: Approximately 68,000 to 84,900 lb (31,000 to 38,500 kg), depending on configuration -
Features Continuous Feed System (CFS) for optimized material flow -
Hydraulic crusher unblocking and reverse function -
Remote control operation -
Integrated prescreen for removal of fines -
Optional magnetic separator and side discharge conveyor -
Ideal for concrete, asphalt, demolition debris, and natural stone applications -
