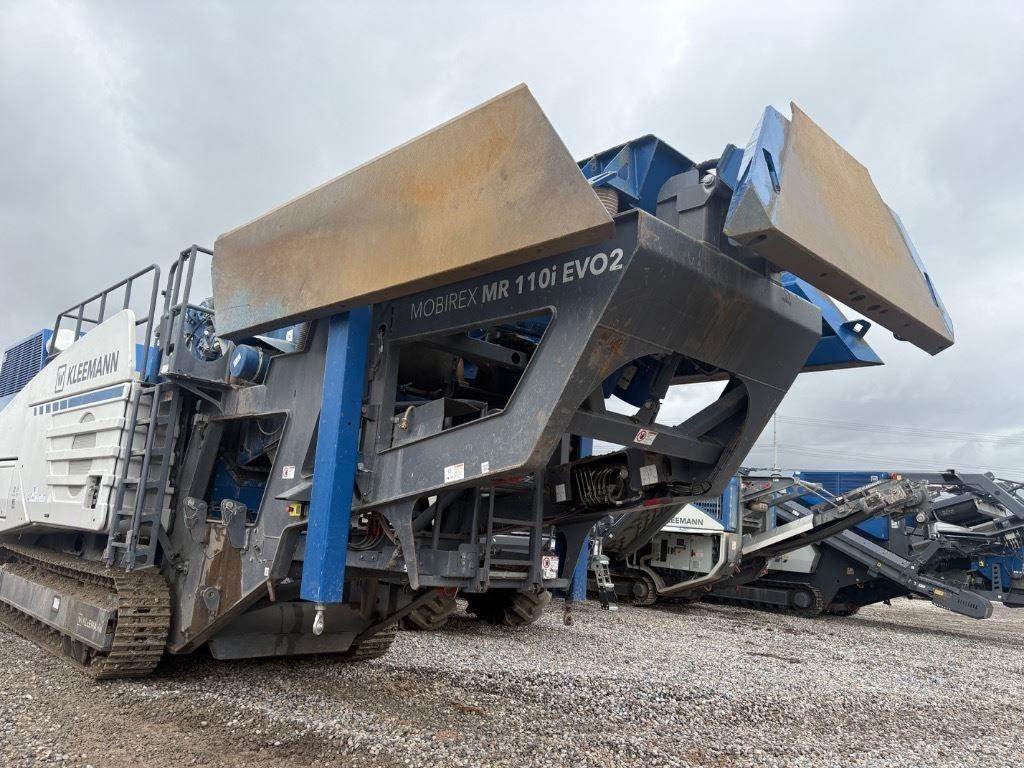

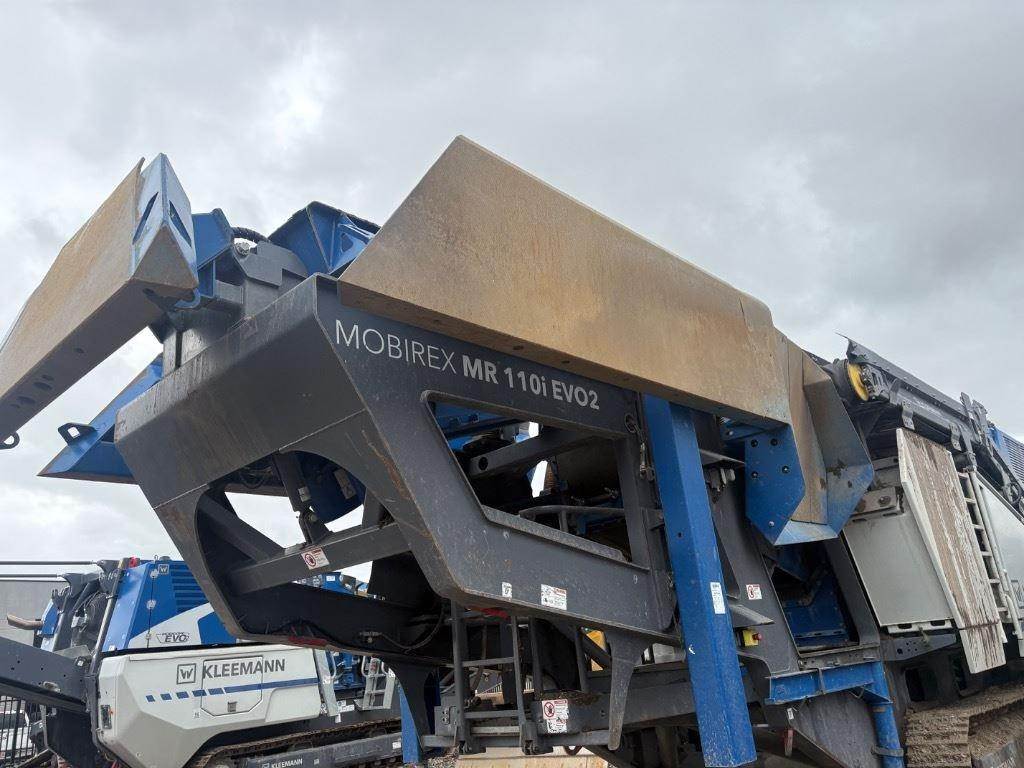

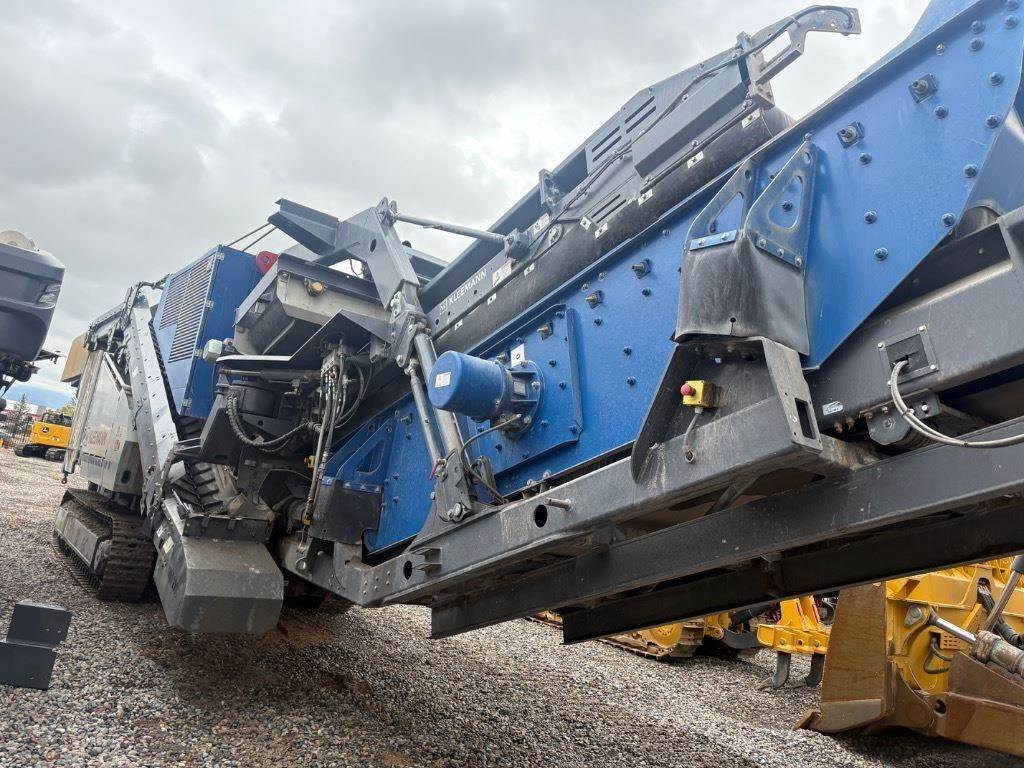

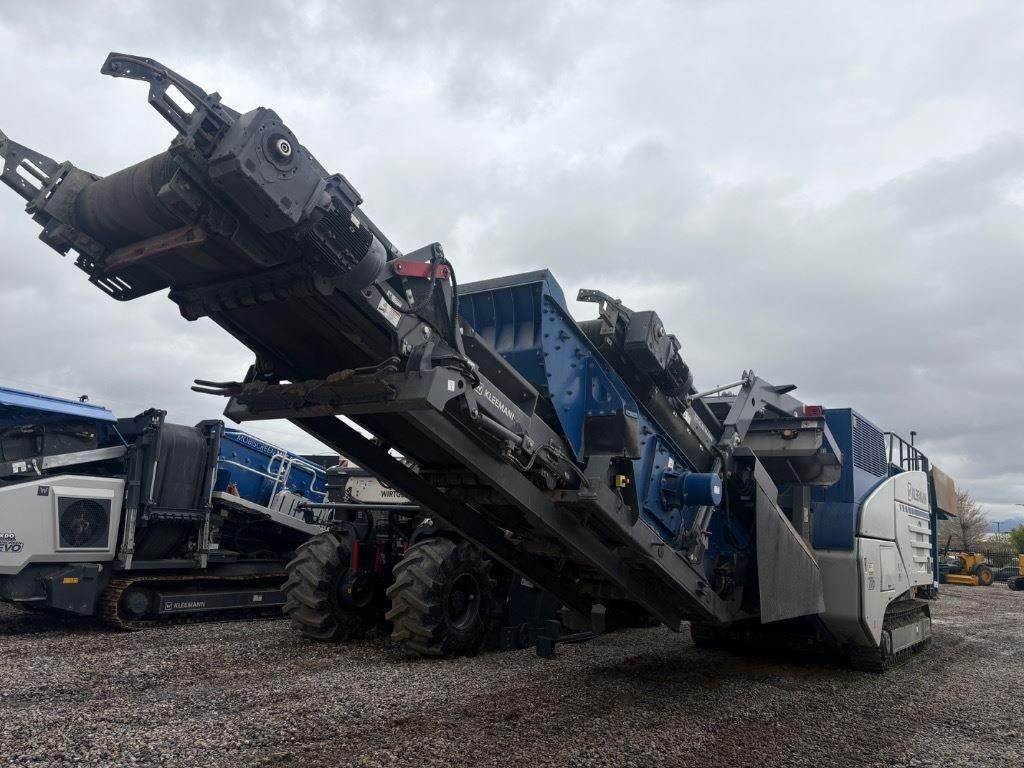

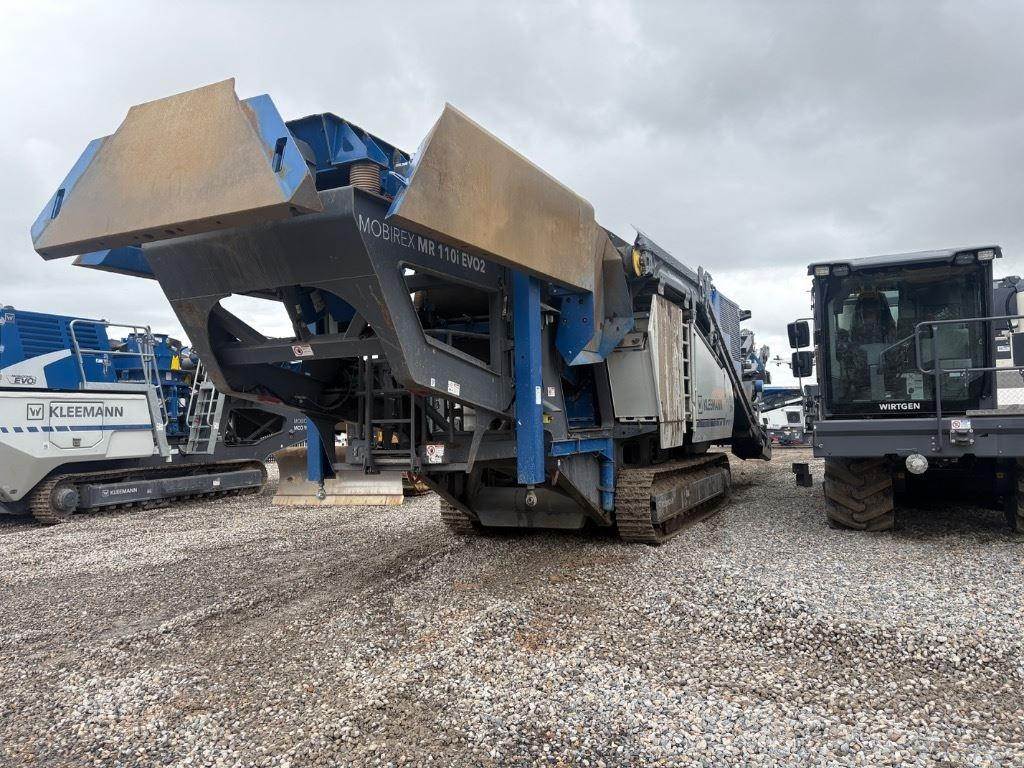

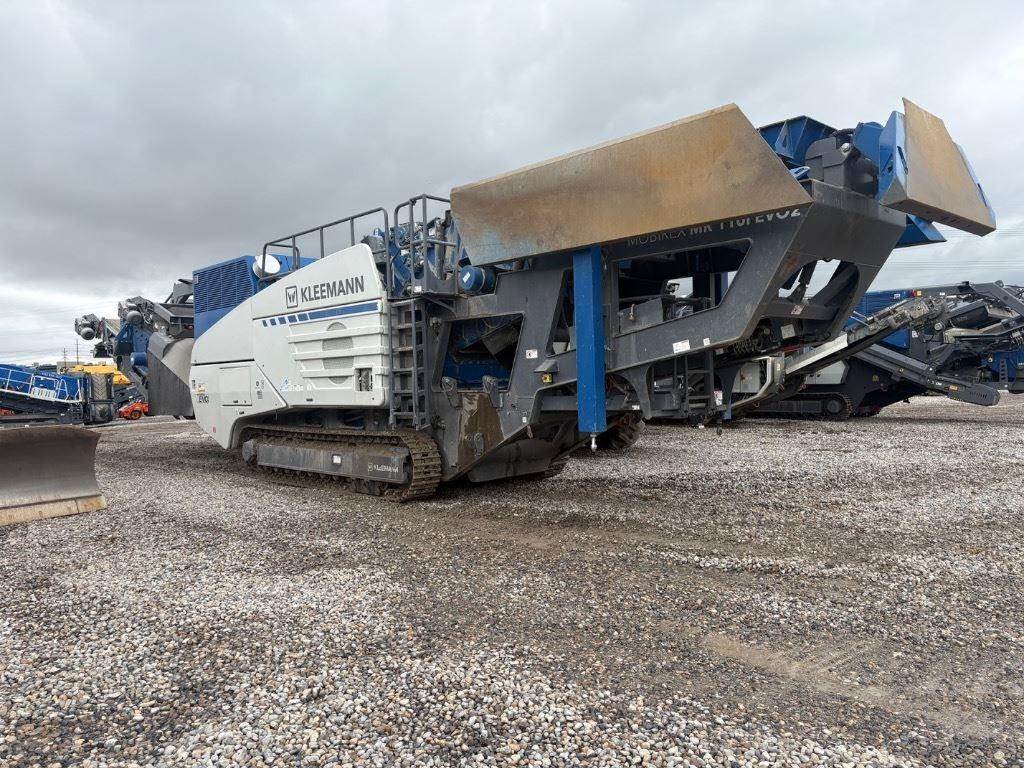

2023 KLEEMANN MOBIREX MR110I EVO2 Crushing Plant

MR110IEVO2 KLEEMANN TRACK MOUNT IMPACT CRUSHER -
3 WAY ROTOR -
SECONDARY SCREENING UNIT RFB BB 500 -
BASIC EQUIPMENT OR MAGNETIC SEPARATOR -
BLOW BAR SET MARTENSITIC 3/0 MOUNTED -
LOWER DECK DUMMY COVER BLANKING MAT MOUNTED -
UPPER DECK PUNCHED PLATE HOLE DIAMITER 1 1/8" MOUNT -
HOOK LIFT SYSTEM DIN 30722 -
SSU SCREEN COVERING WIRE CLOTH MESH WIDTH 1" MOUNT -
SCANIA TIER 4F -
US STANDARD MACHINE CONTROL SYSTEM -
RADIO REMOTE CONTROL NAFTA QUICK TRACK -
WITOS FLEETVIEW MF3 4G NA PRO TELEMATICS -
PERMANENT MAGNETIC SEPARATOR -
WATER PUMP -
MAY BE SUBJECT TO NEW EQUIPMENT SALES TAX -

Factory Features -
TYPE: Mobile Impact Crusher -
CRUSHER TYPE: SHB 110-080 Impact Crusher -
DRIVE SYSTEM: D-DRIVE Diesel Direct -

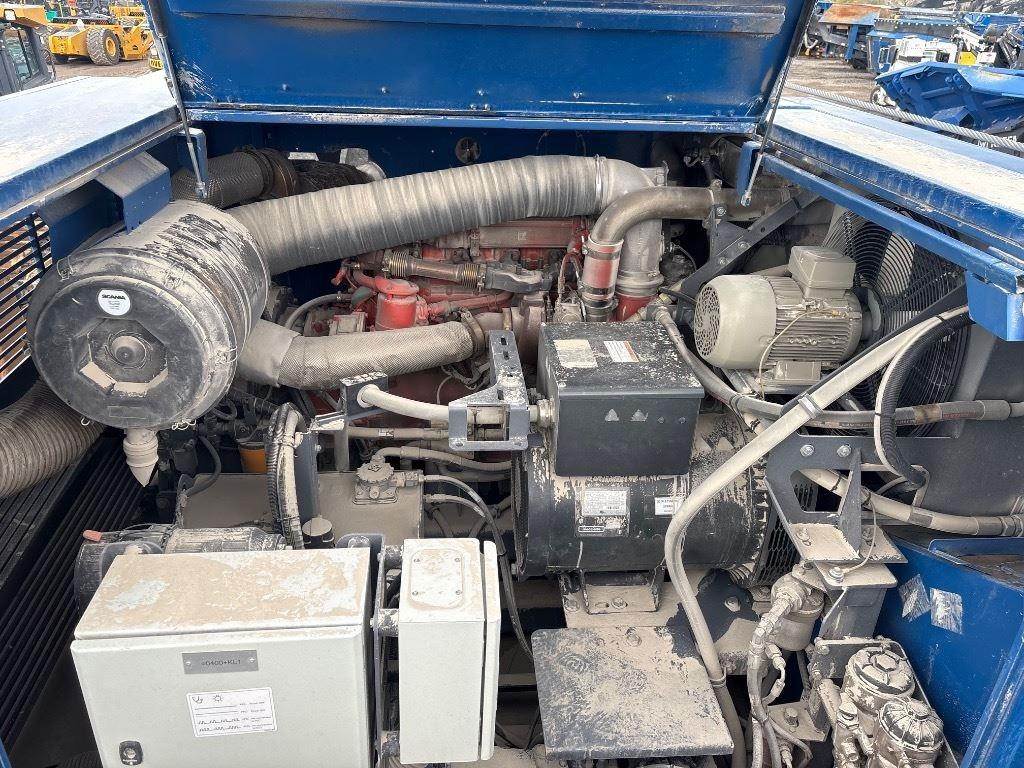

ENGINE: Scania Tier 4 Final -
ENGINE POWER: 493 HP -
CRUSHER POWER: 416 HP -
MAX PRODUCTION: 386 TPH -
MAX FEED SIZE: 35 in x 22 in -
CRUSHER INLET: 44 in x 31 in -
ROTOR DIAMETER: 43 in -
HOPPER CAPACITY: 5.8 yd³ -
HOPPER CAPACITY WITH EXTENSION: 10.5 yd³ -
FEED HEIGHT: 13 ft 9 in -
FEED HEIGHT WITH EXTENSION: 14 ft 11 in -
VIBRATING FEEDER: 36 in x 8 ft 6 in -

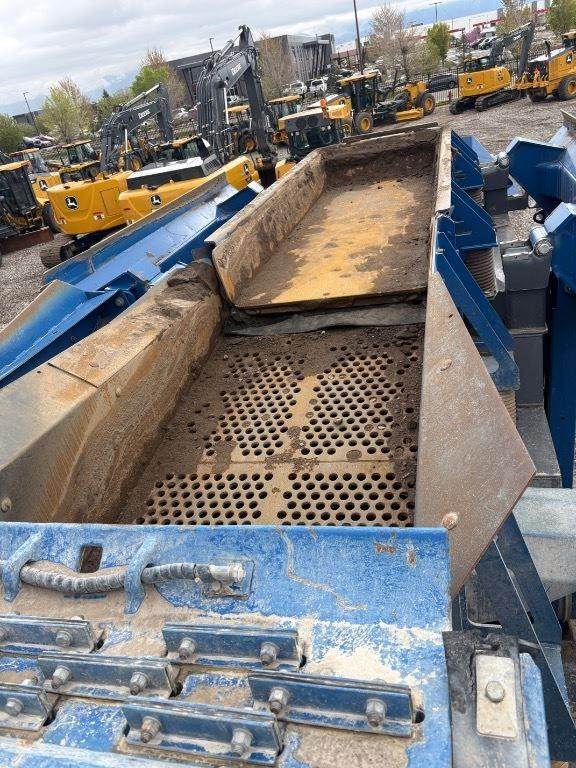

PRESCREEN: Double-Deck Heavy-Duty Screen -

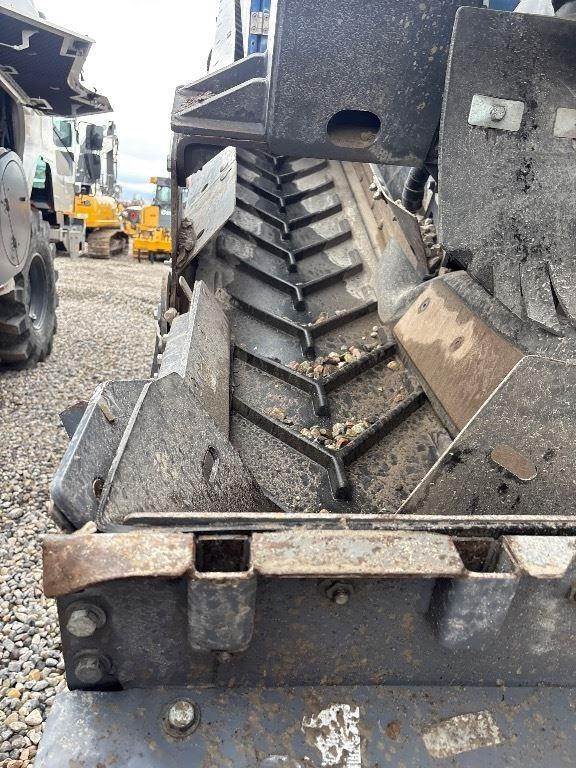

SIDE DISCHARGE CONVEYOR: 26 in x 13 ft 1 in -

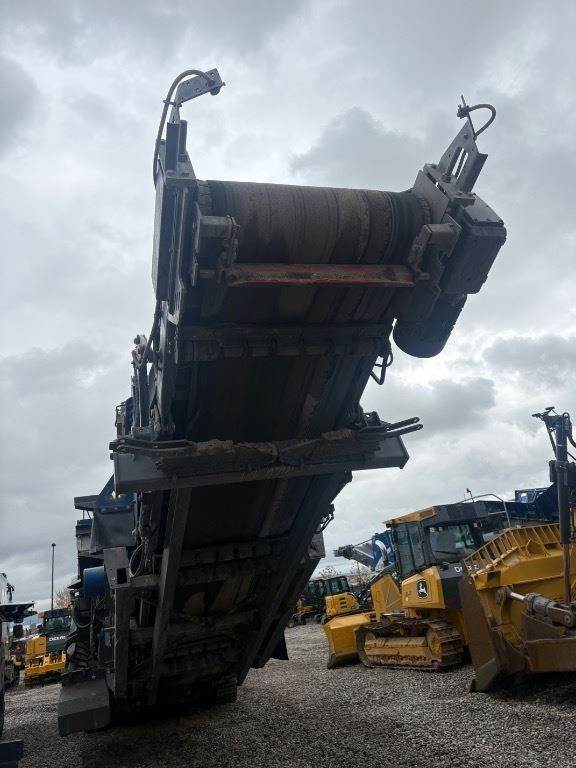

MAIN DISCHARGE CONVEYOR: 48 in x 30 ft 6 in -
DISCHARGE HEIGHT: 11 ft 8 in -
CONCRETE CAPACITY: Up to 265 TPH -
RUBBLE CAPACITY: Up to 265 TPH -
ASPHALT CAPACITY: Up to 226 TPH -
LIMESTONE CAPACITY: Up to 292 TPH -
GENERATOR: 135 kVA -
TRANSPORT LENGTH: 56 ft 11 in -
TRANSPORT WIDTH: 9 ft 10 in -
TRANSPORT HEIGHT: 11 ft 10 in -
MAX OPERATING WEIGHT: Approx. 128,000 lb -

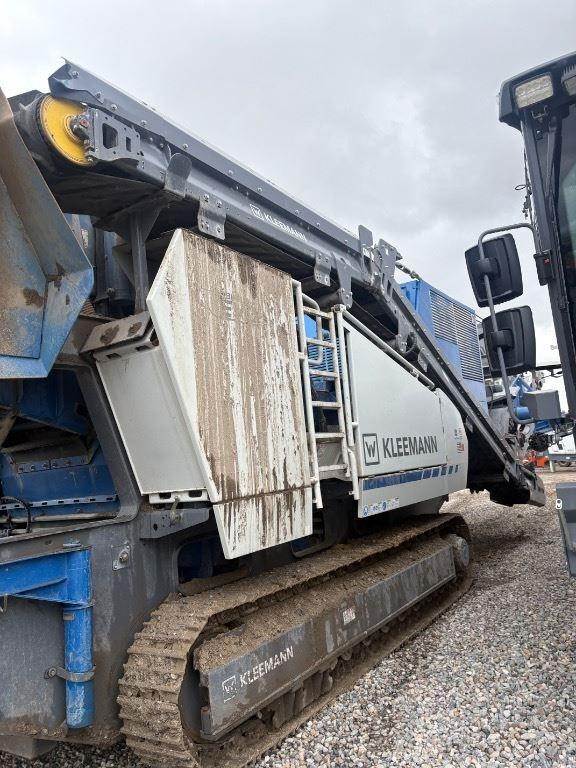

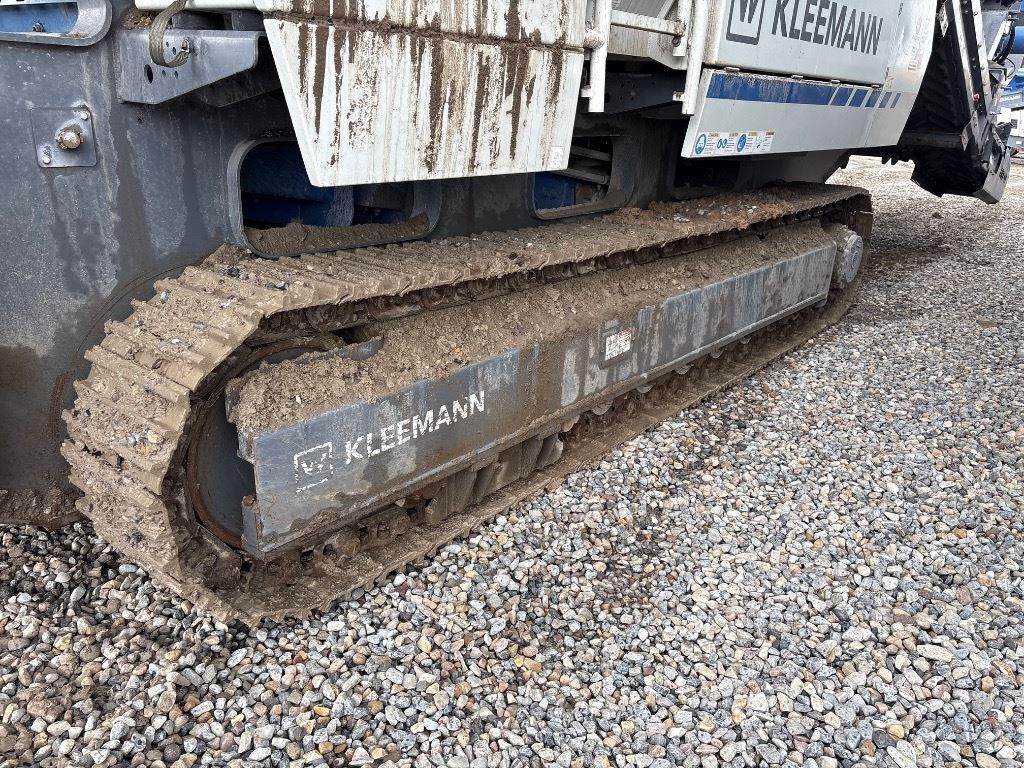

TRACK UNDERCARRIAGE -
CONTINUOUS FEED SYSTEM (CFS): Standard -
HYDRAULIC GAP ADJUSTMENT: Fully Hydraulic -
OVERLOAD PROTECTION: Automatic -
REMOTE CONTROL: Standard -
APPLICATIONS: Quarry, Aggregate, Concrete Recycling, Asphalt Recycling, Demolition Material Processing -

Specifications and features are based on general factory information and may not reflect the exact machine being offered. Please contact RDO Equipment Company to verify machine specifications, options, attachments, and condition.
