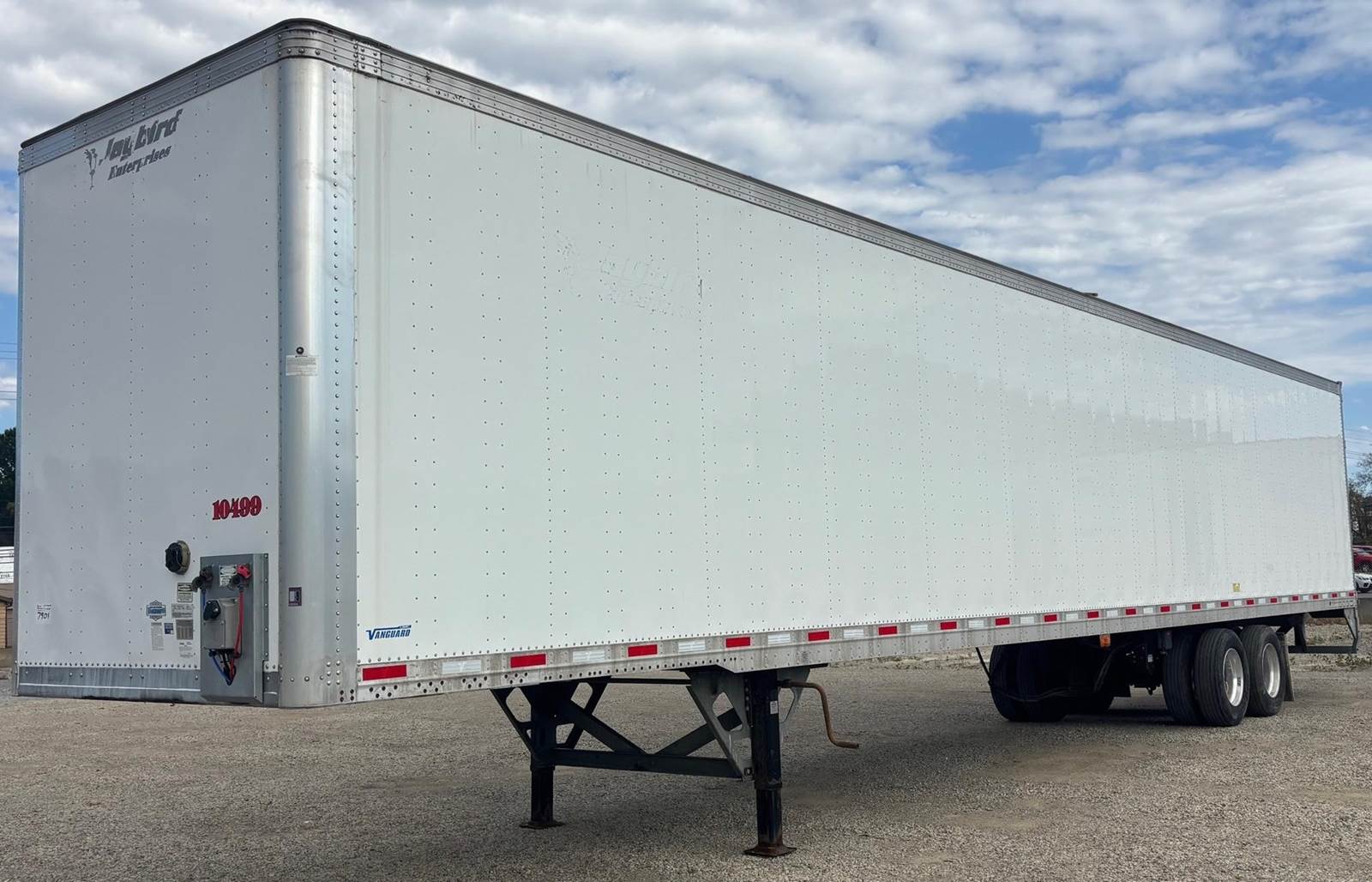

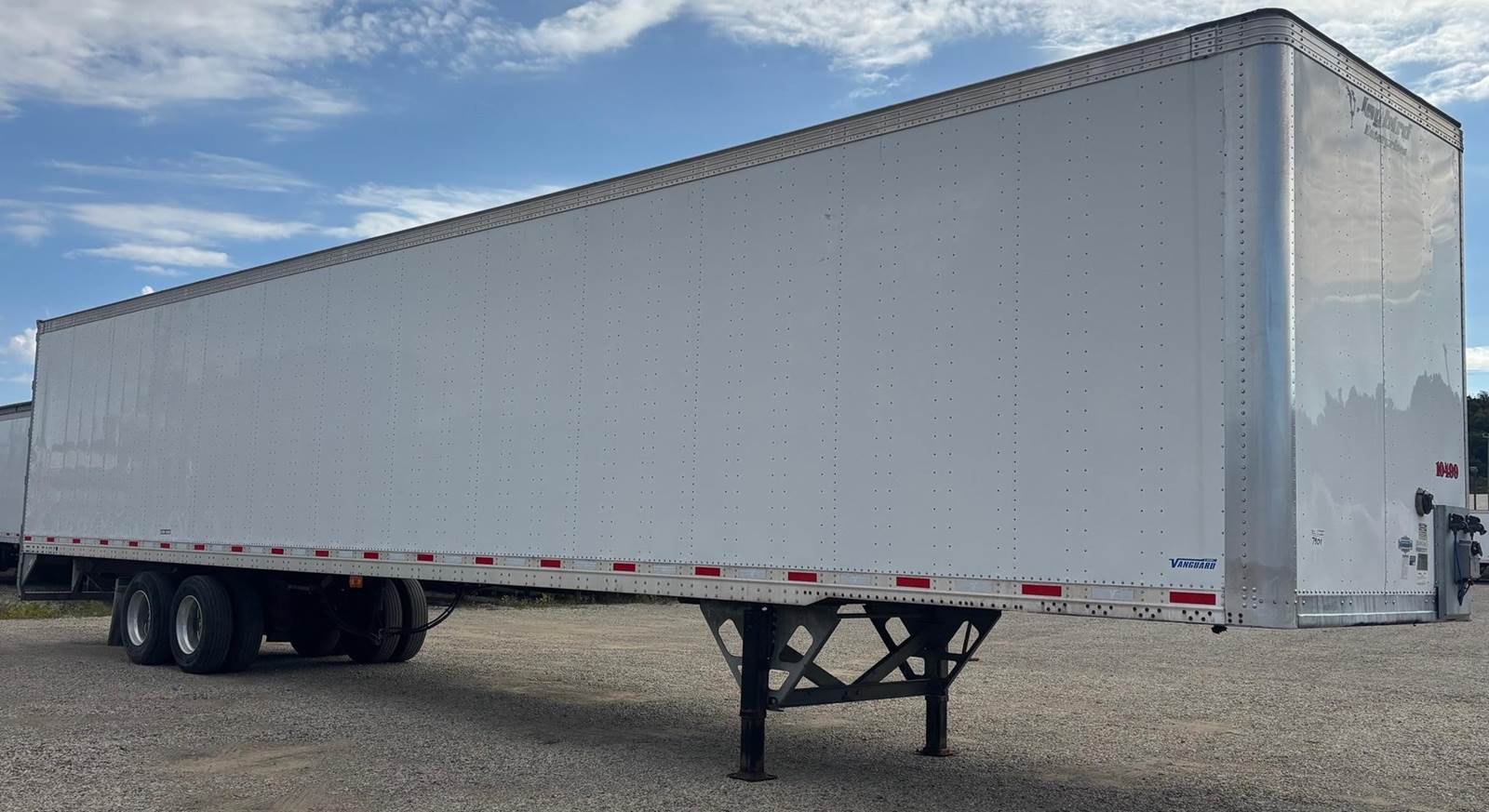

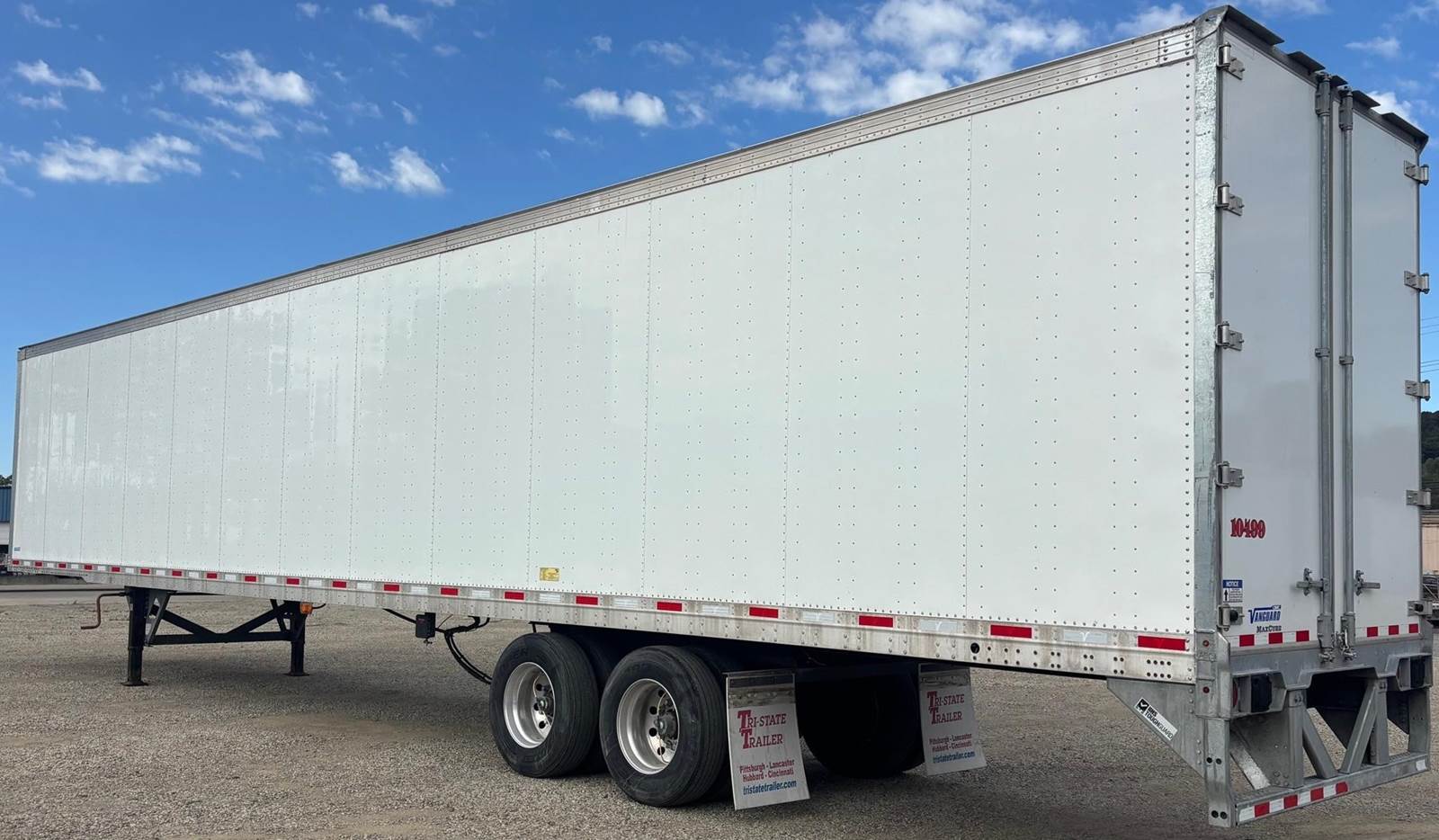

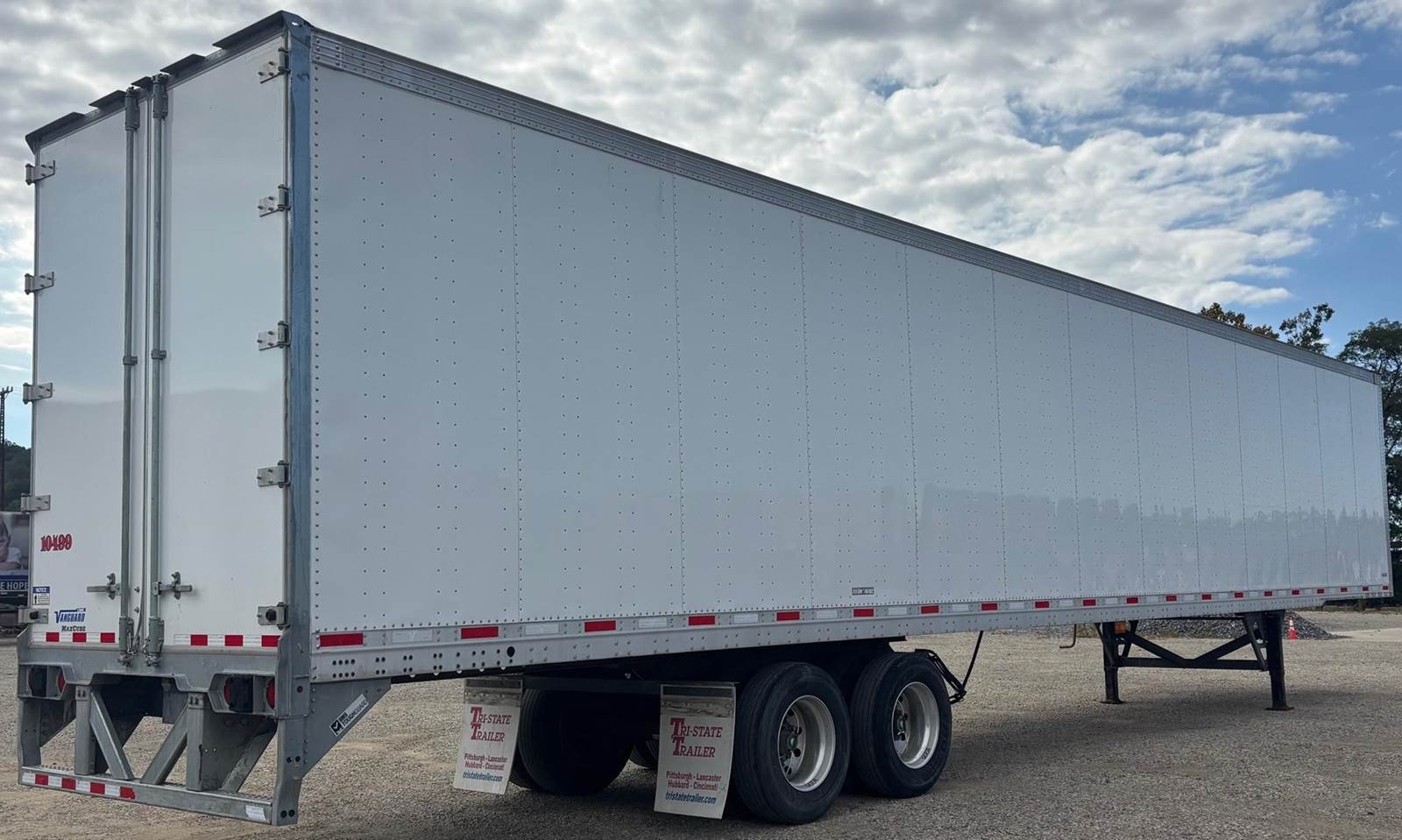

2023 Vanguard MaxCube 61.5 ft Dry Van Trailer - Swing Door, Air Ride, Sliding Axle

Length 53'
Width 102"
Height 13' 6"
Inspection T-FHWA 10/26
Unit Description Sheet & Post Van

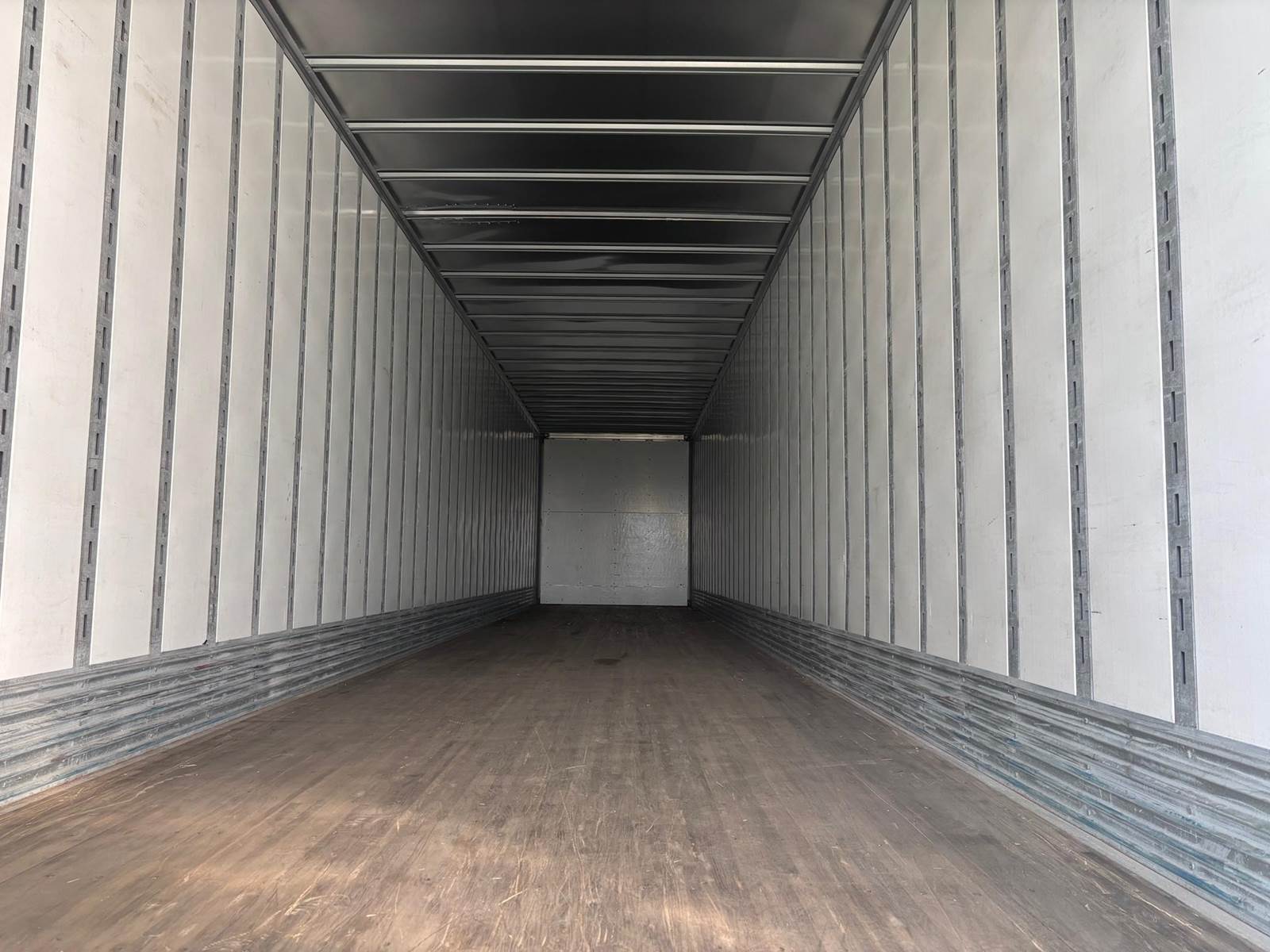

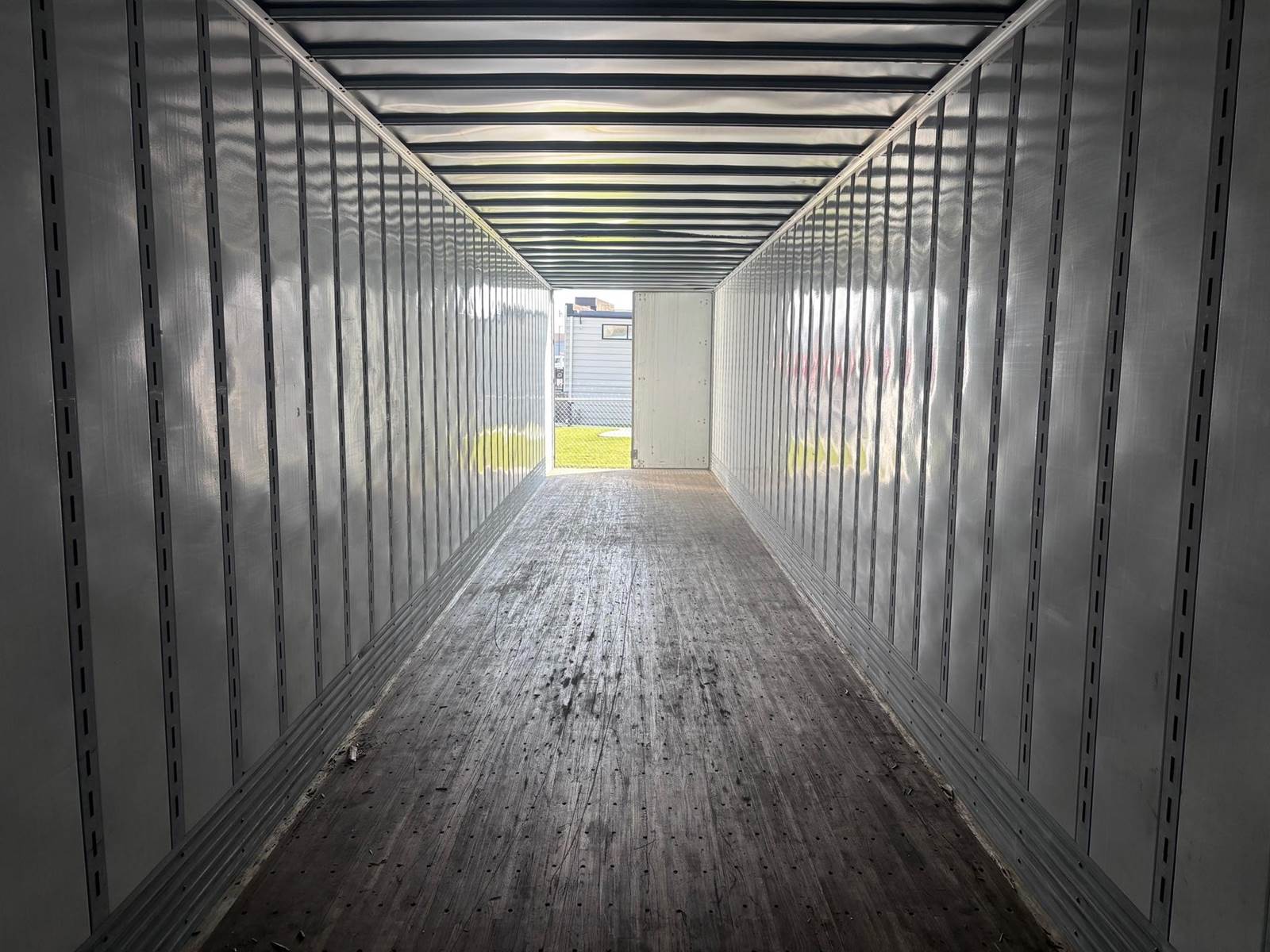

Body
Inside Width 101"
Inside Height 110"
Door Opening 110"
Sides .050" Smooth Aluminum
Color White
Type Posts Series "A" logistics posts
Post Spacing 16"
Side Scuff 12" Corrugated Steel
Side Lining Plastic

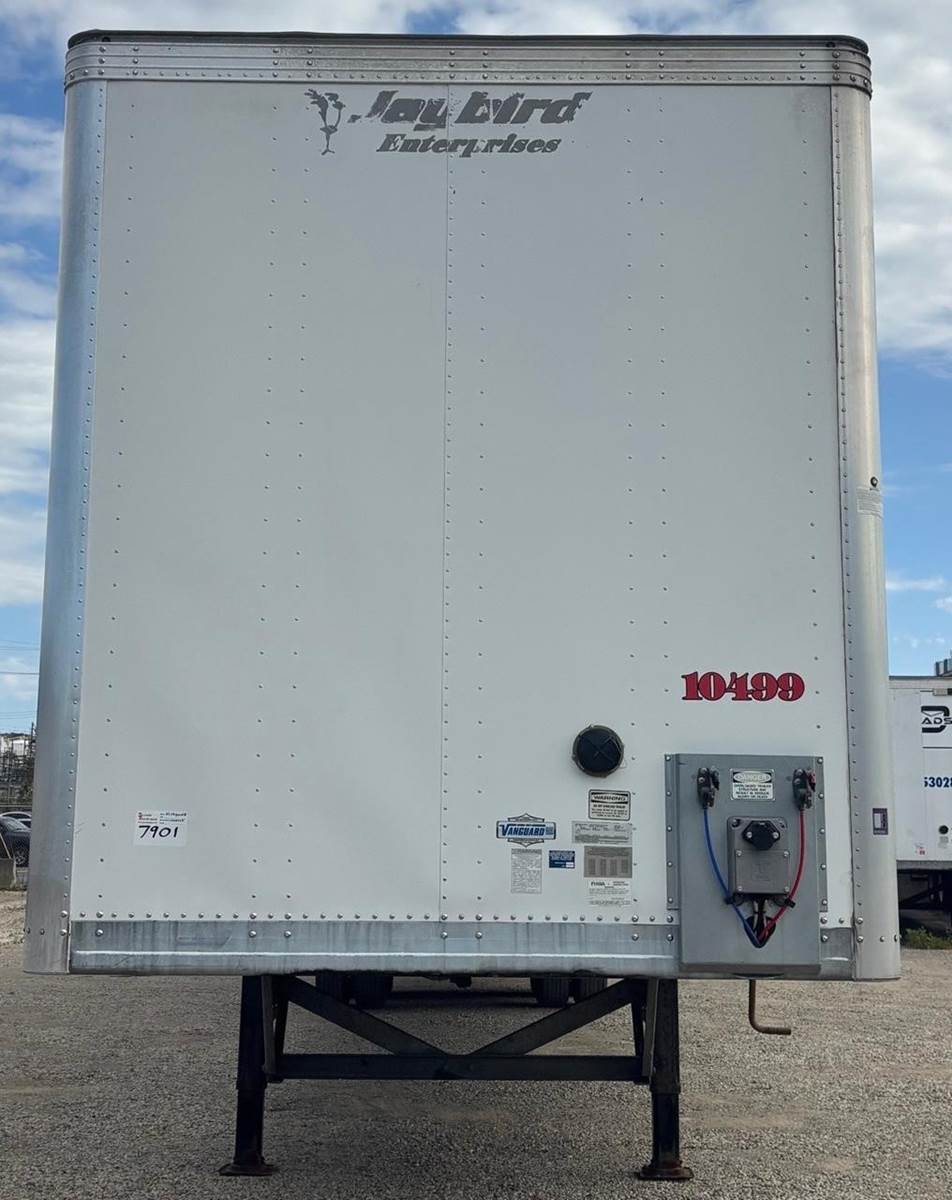

Nose Lining .180" Ridge OGRE Full Height
Internal Bulkhead 10 ga x 12" Smooth Steel

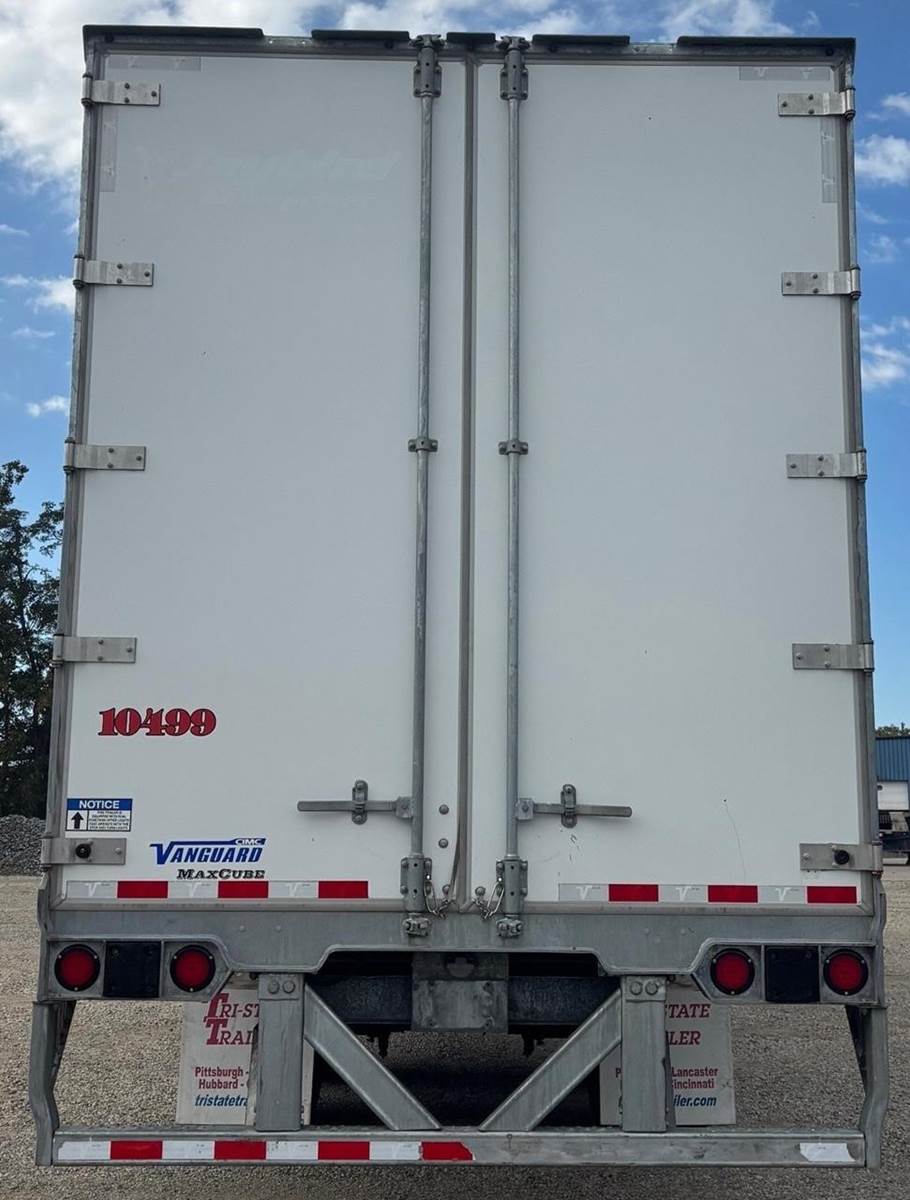

Rear Doors 1/2" Composite PPW Galvanized Panels
Hinges Five per Door
Roof Aluminum
Roof Bows 1" Deep Galvanized Anti-Snag on 16"/24"
Rear Frame GALVANIZED
Bumper GALVANIZED, Reinforced for Dock-Lock
Rubber Dock Bumpers One Pair Recessed Between Lights
Floor/Body
Van Floor 1 3/8" Oak with Three 5/16" Screws per Board
Threshold Plate 27" Galvanized Steel
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Holland CBX40 AeroBeam with PosiLok and AiRelease
Suspension Setting 49" Sliding Tandem, 216" Slide Rails
Tire Size 295/75R22.5
Wheels Aluminum Outside / Steel Inside HP
Tire % 4-60% 3-40% 1-Bad
Brake % 40%

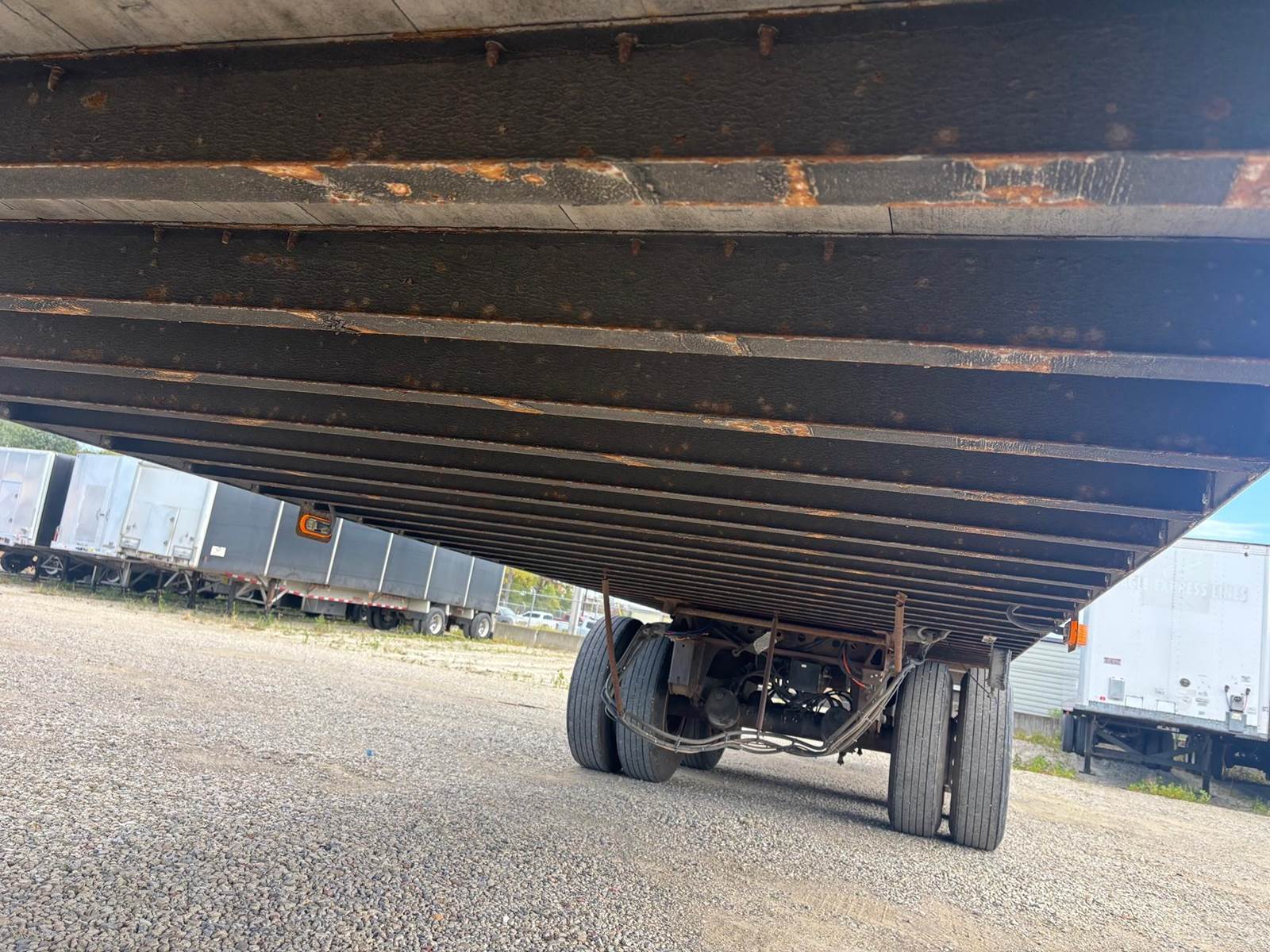

UnderFrame
King Pin Setting 36"
Cross Member Center 12"
Landing Gear Jost, Two-Speed
Comments
MTIS (Meritor Tire Inflation System) with ThermAlert
