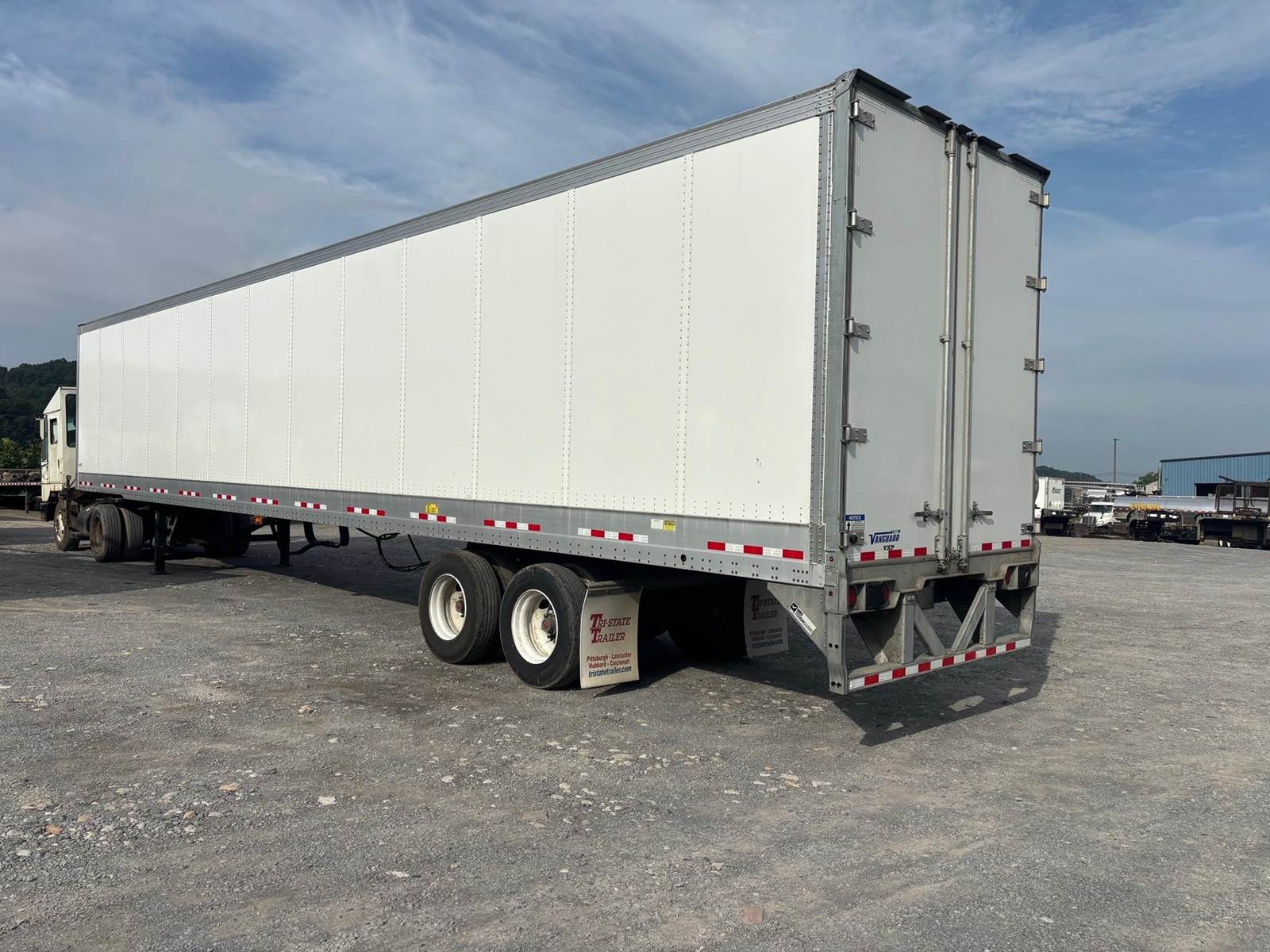

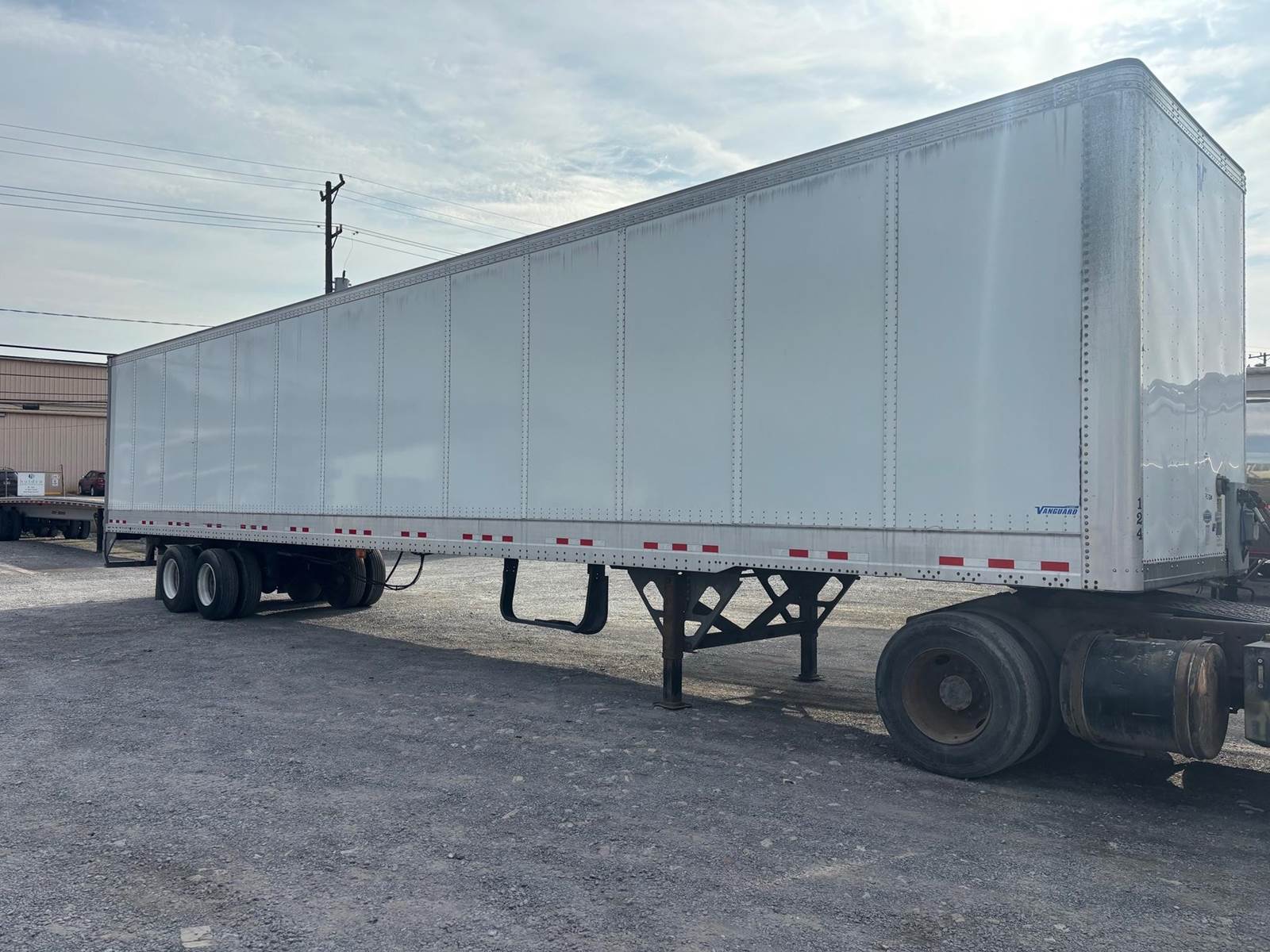

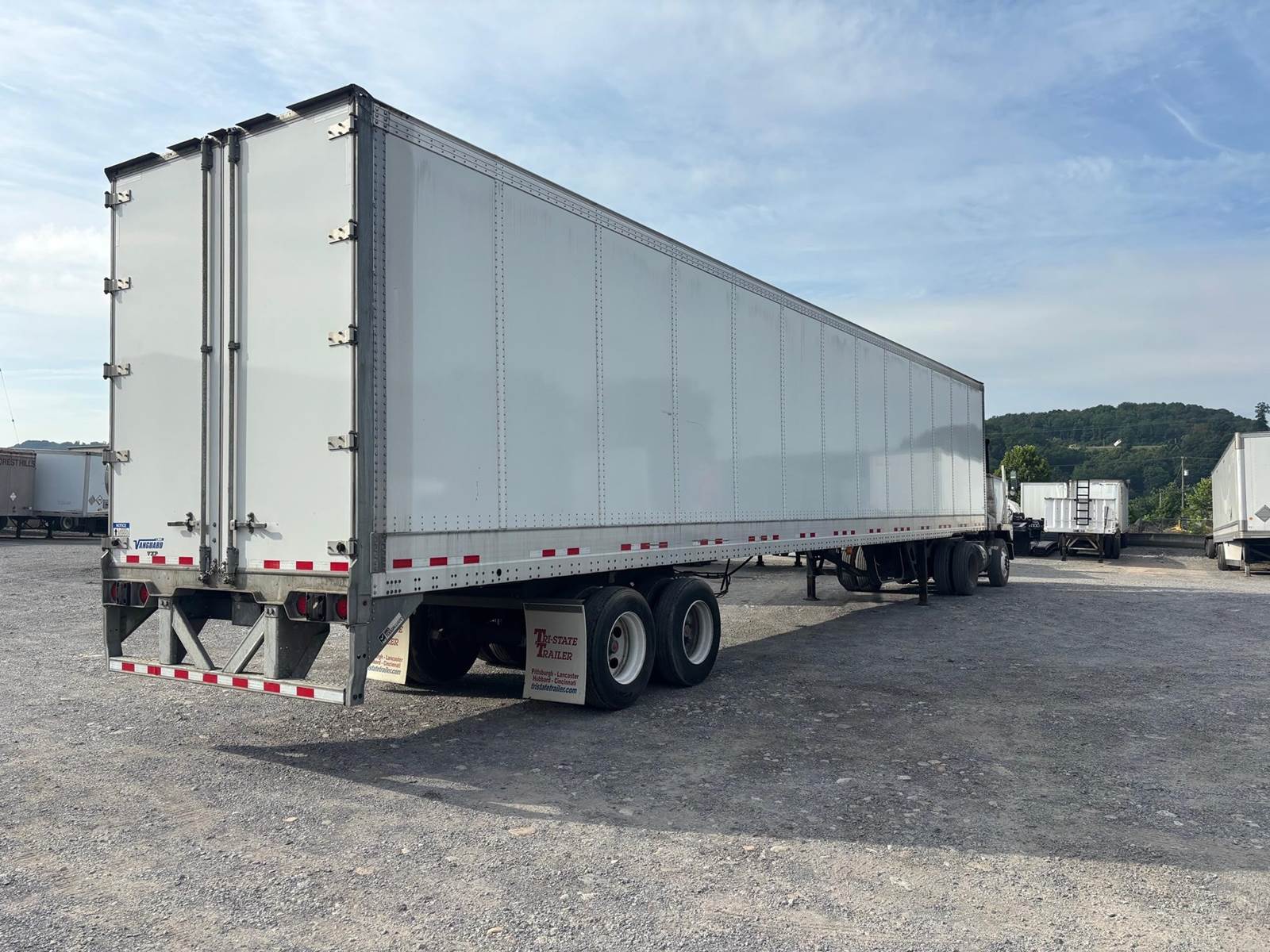

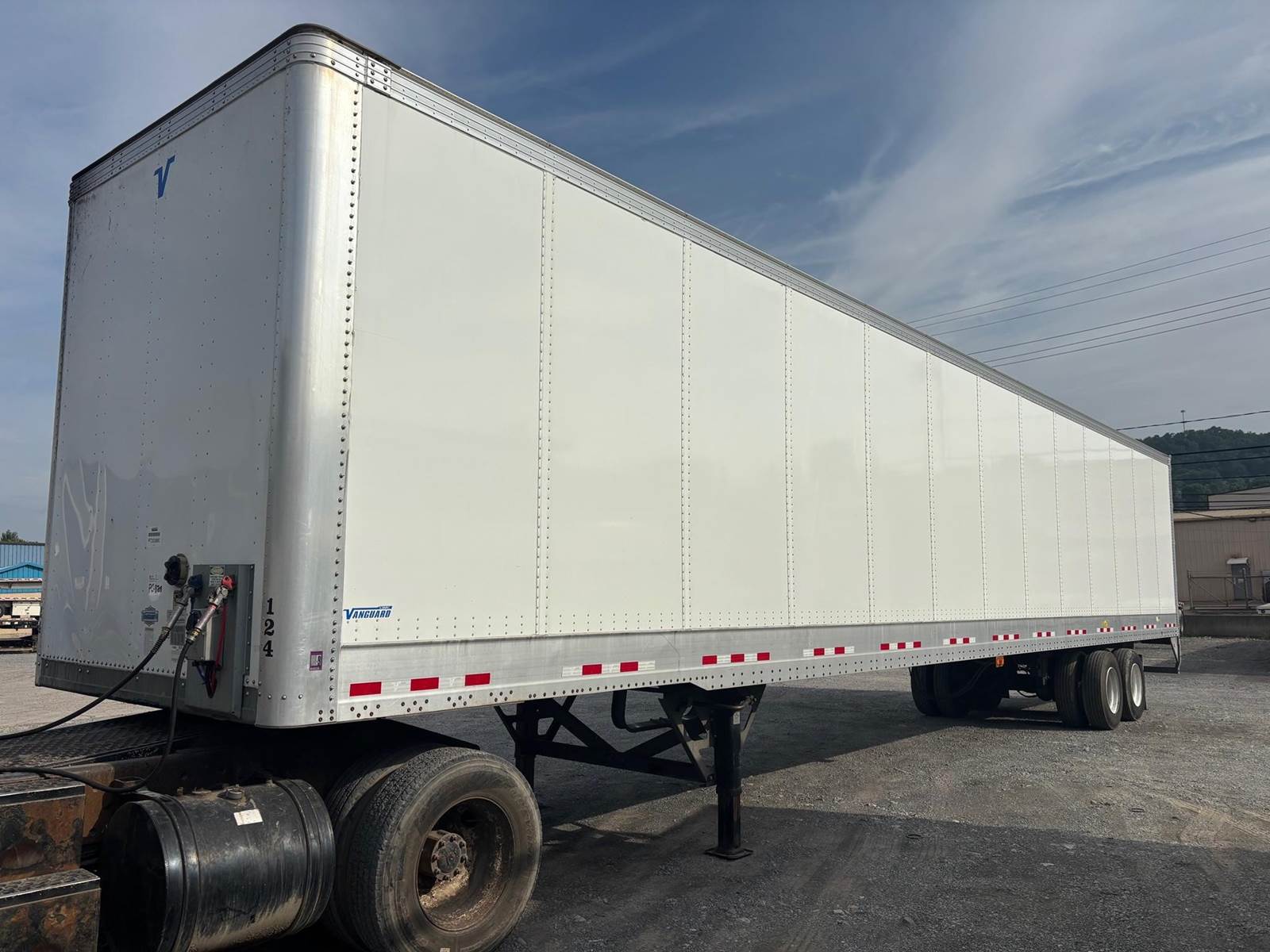

2023 Vanguard VXP 53 ft Dry Van Trailer - Swing Door, Air Ride

Length   53'
Width   102"
Height   13' 6"
Inspection   C-PA 9/26
Inside Width   101"
Inside Height   110"
Door Opening   110"
Sides   .313 Composite Plate (10 year warranty)
Color   White
Type Posts   Series "A" logistics posts
Post Spacing   48"
Side Scuff   14" - HBR Design w/ Integral Alum. Scuff
Side Lining   Plate
Nose Lining   .180" Ridge OGRE Full Height
Internal Bulkhead   10 ga x 12" Smooth Steel
Rear Doors   1/2" Composite PPW Galvanized Panels
Hinges   Five per Door
Roof    Aluminum
Roof Bows   1" Deep Galvanized Anti-Snag on 16"/24"
Rear Frame   GALVANIZED
Bumper   GALVANIZED, Reinforced for Dock-Lock
Rubber Dock Bumpers   One Pair Recessed Between Lights
Van Floor   1 3/8" Oak with Three 5/16" Screws per Board
Threshold Plate   27" Galvanized Steel
# of Axles   2
Suspension Type   Air Ride
Suspension Brand   Hendrickson HKANT40K, SureLok & QuikDraw
Suspension Setting   49" Sliding Tandem, 216" Slide Rails
Tire Size   295/75R22.5
Wheels   Steel, Powder Coated White
Tire %   2-60% 4-40% 2-30%
Brake %   30-40%
King Pin Setting   36"
5th Wheel Condition   Good
Cross Member Center   10" - Bolted vs. Riveted to Base Rail
Landing Gear   Jost, Two-Speed
Unit Description   HBR Plate Van
