Product Description
Available in 2025 - Call to reserve - 4th quarter Freightliner build.

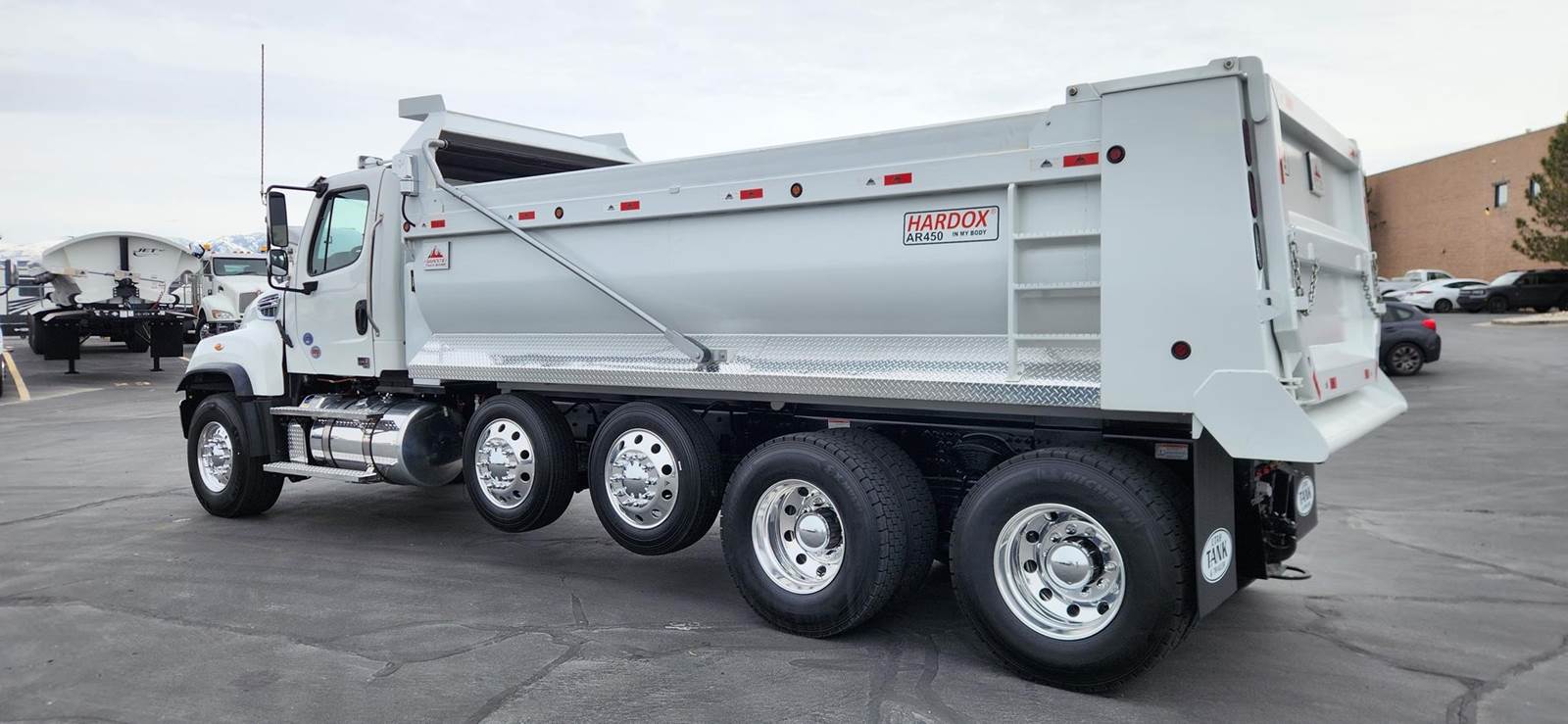

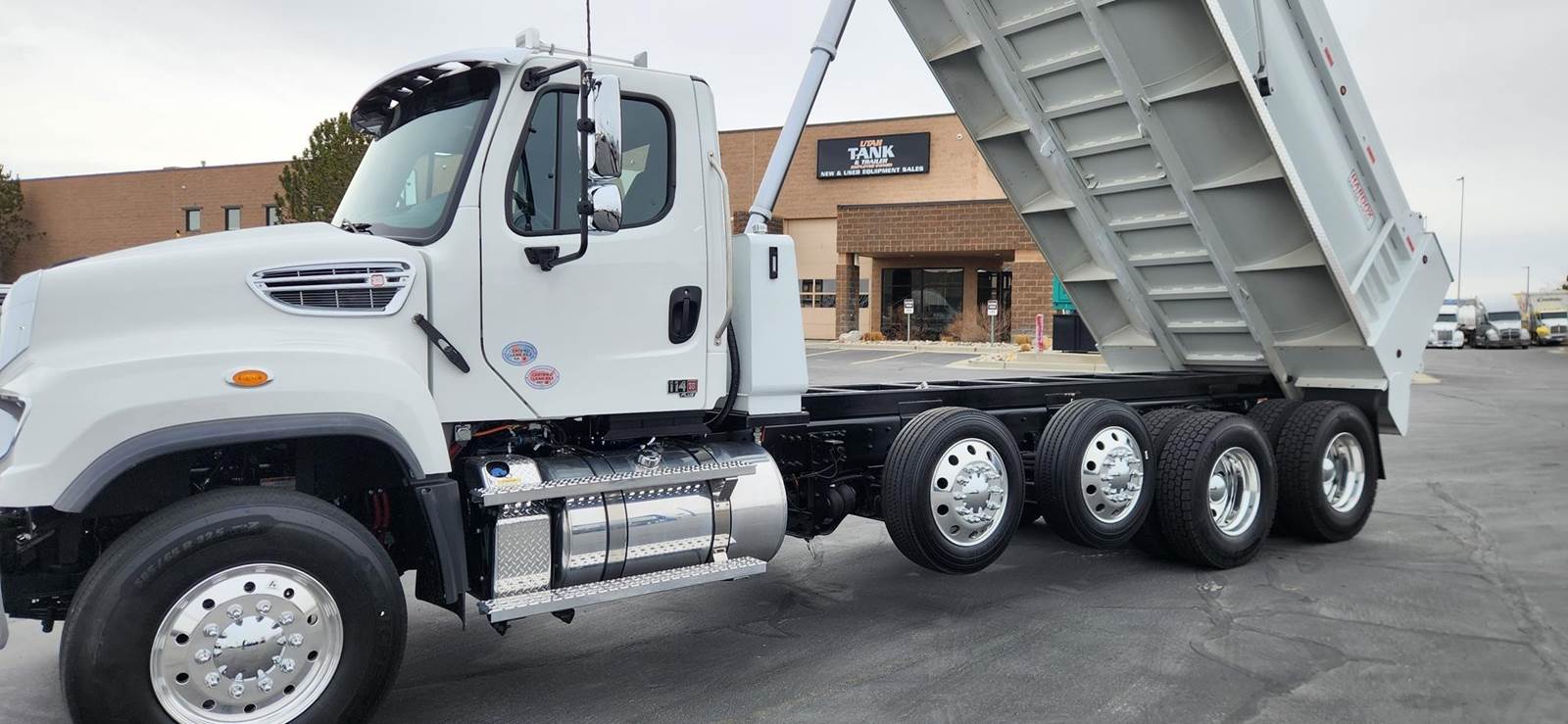

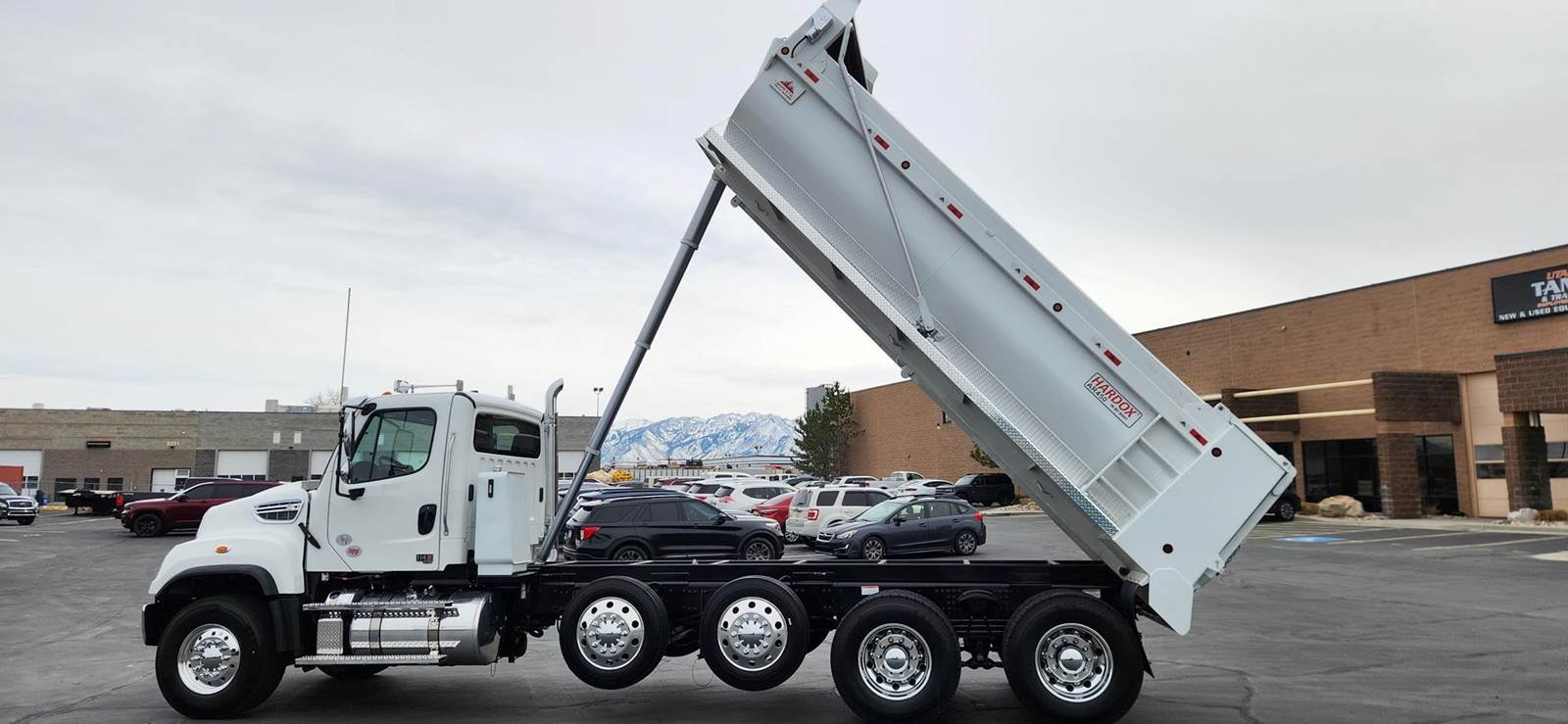

2025 Freightliner 114SD
18' Elliptical Dump Body, 52" Sides, (47" with 6" angle top rail)
Granite Dump Bodies - Hardox
Cummins X12 500V HP @ 1900 RPM, 1700LB-FT @ 1000 RPM GOV RPM VOC
California Carb Compliant
Eaton Fuller 18 speed automated transmission
255” WB, 7/16 X3-9/16x11-1/8 inch steel frame, ¼ inch C-channel inner frame reinforcement.
CT – Cab to Trunnion 168”
Trailer Towing Provision/Pintle hitch and plate plumbed with electric and air with glad hands
Front Axle: 20,000 Taperleaf Suspension
Rear Axle: 46,000 Tandem R Series, TufTrac Gen2 Rear Spring Suspension
Driver controlled – Lockers both axles, 3 switch interaxle lock, controlled differential lock forward/rear,
rear/rear. Traction differential lock driver controlled – interaxle driveline with half round yokes
Set forward axle. Truck - 55” Axle spacing, Dual pusher axle with forward 96 inch and 48 inch of forward
most drive axle
2 Hendrickson EX13 13,500# Air lift steerable pusher suspension, 15x4 Brakes FF1 Axles, in cab
regulators.
Expected GVW: 78,000
Bendix ADB22X Air Disc Front Brakes
WABCO 4S/4M ABS Brakes
Wheels/Tires
Polished Aluminum wheels, front, rear, inside/outside and pusher axles

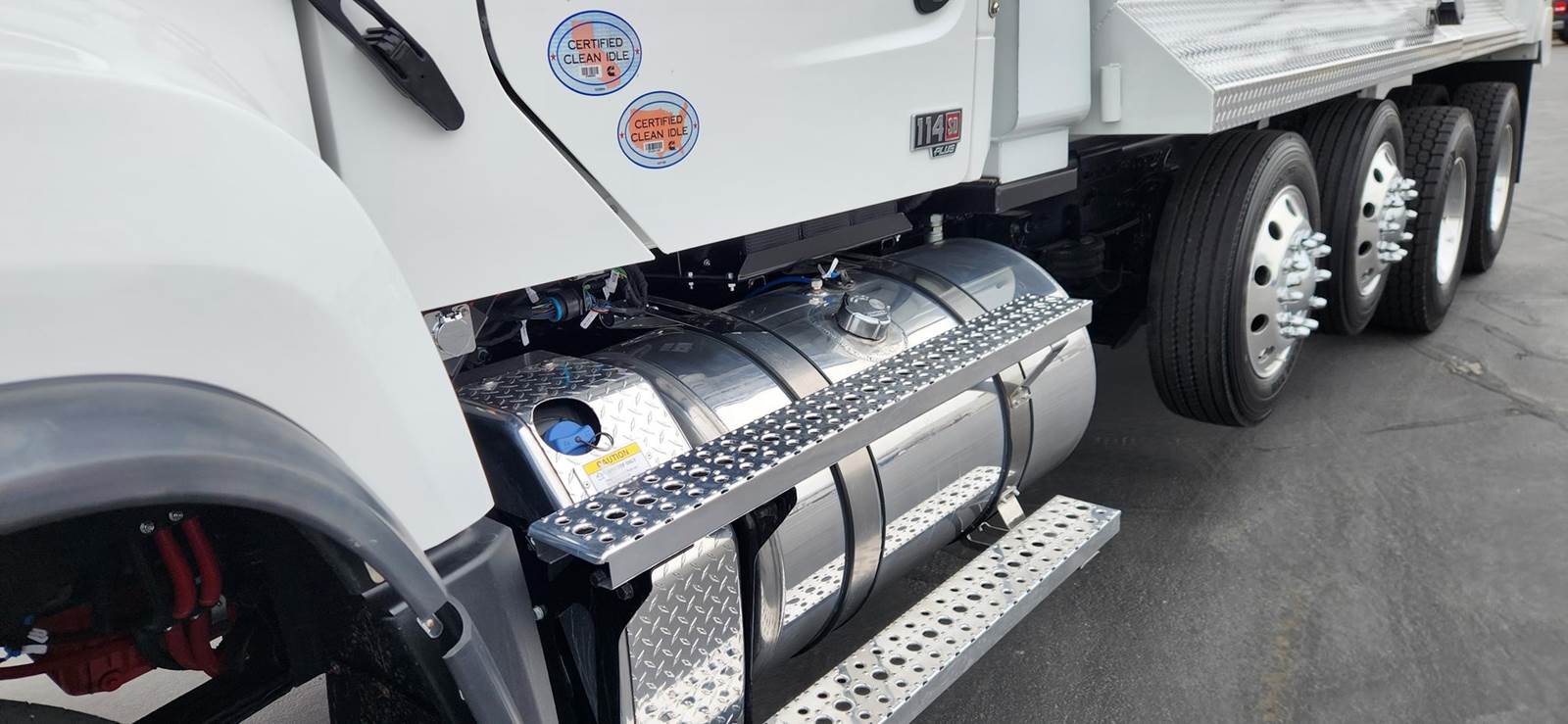

Polished Aluminum 100 gallon Fuel Tank

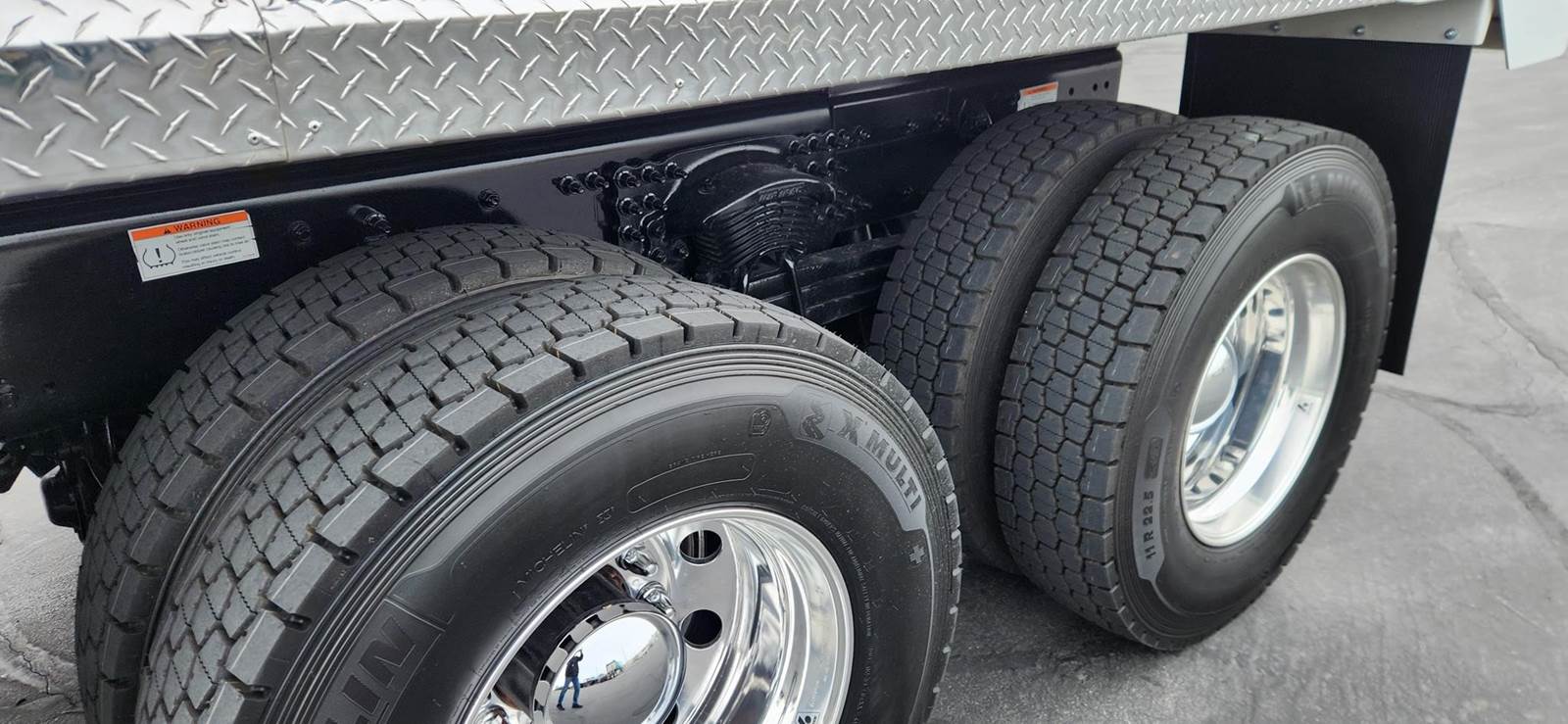

Michelin FT X Multi HLZ 385/65 R22.5, RR X Multi D 11R 22.5, P/T 255/70R22.5
Air Conditioned, Cruise control, Power window, locks. Sun visor, tinted window, heated mirrors,

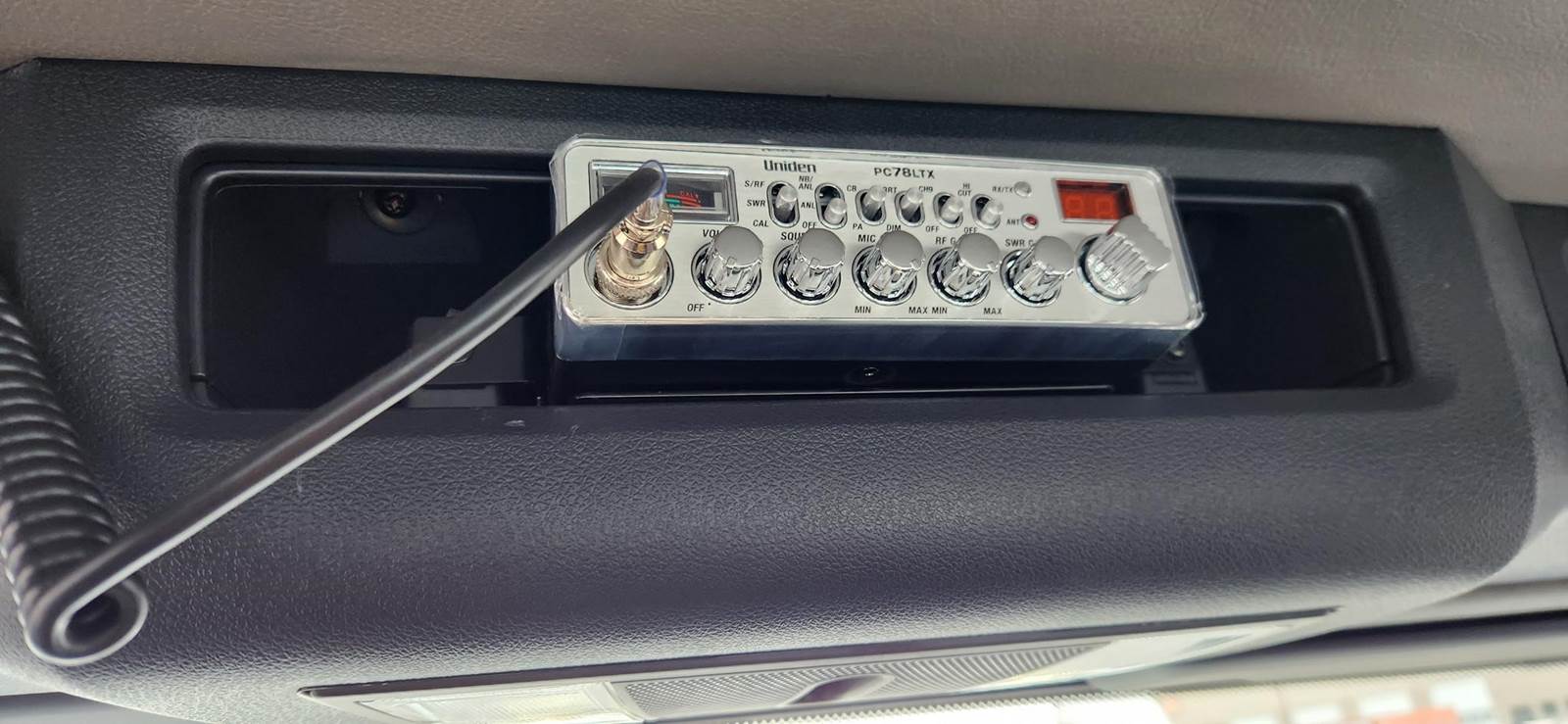

aluminum bumper and tanks, tilt wheel, AM/FM/WB/XM/BT/Ipod Interface USP and Aux Stereo, CB
NAP - Granite Truck bodies, 18' Dump bed
Warranty begins at delivery date as if zero miles. Actual miles, est 2,200
Anticipated completion date 4/15/24
