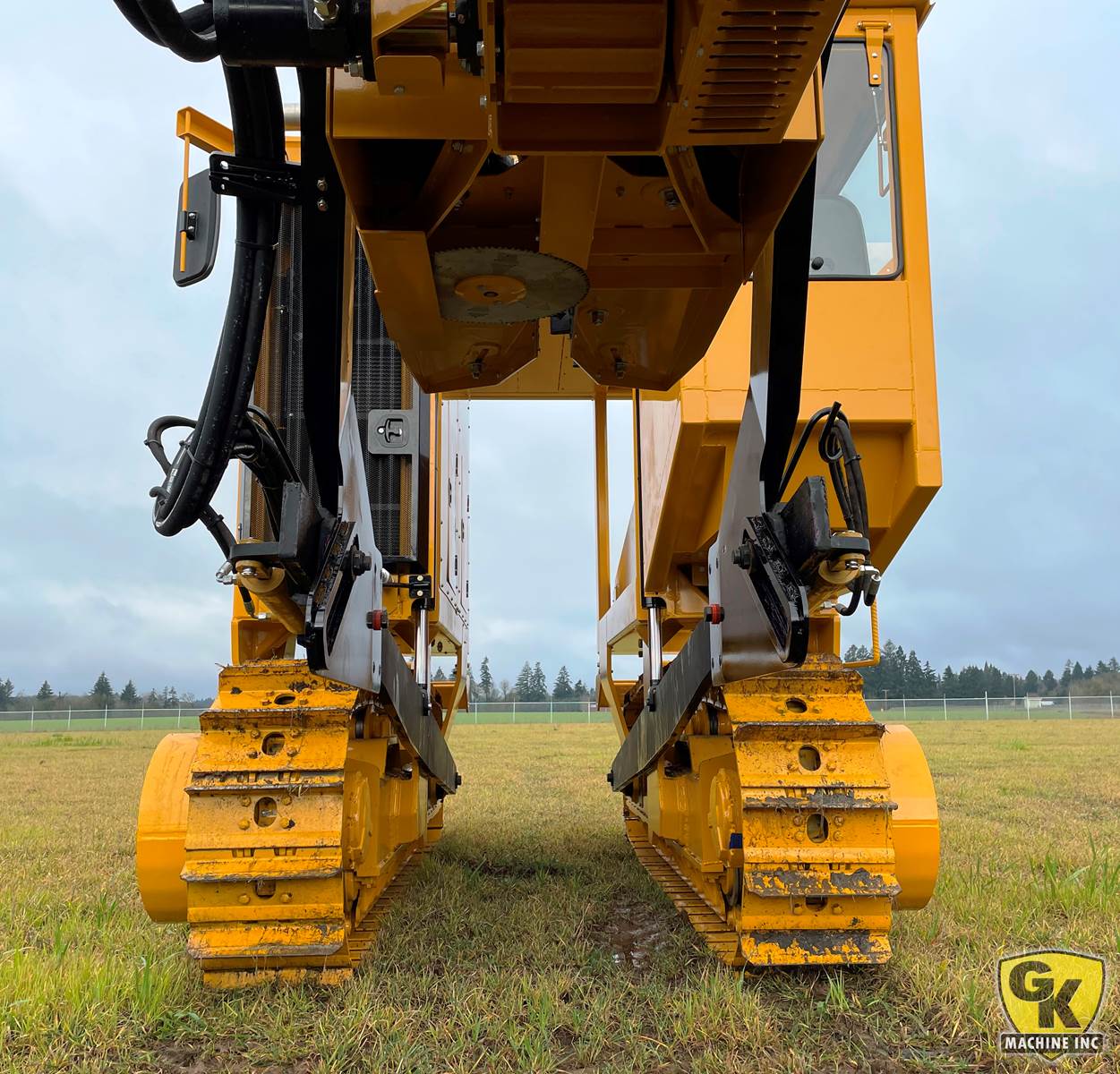

2024 GK Machine H9 Tree Digger

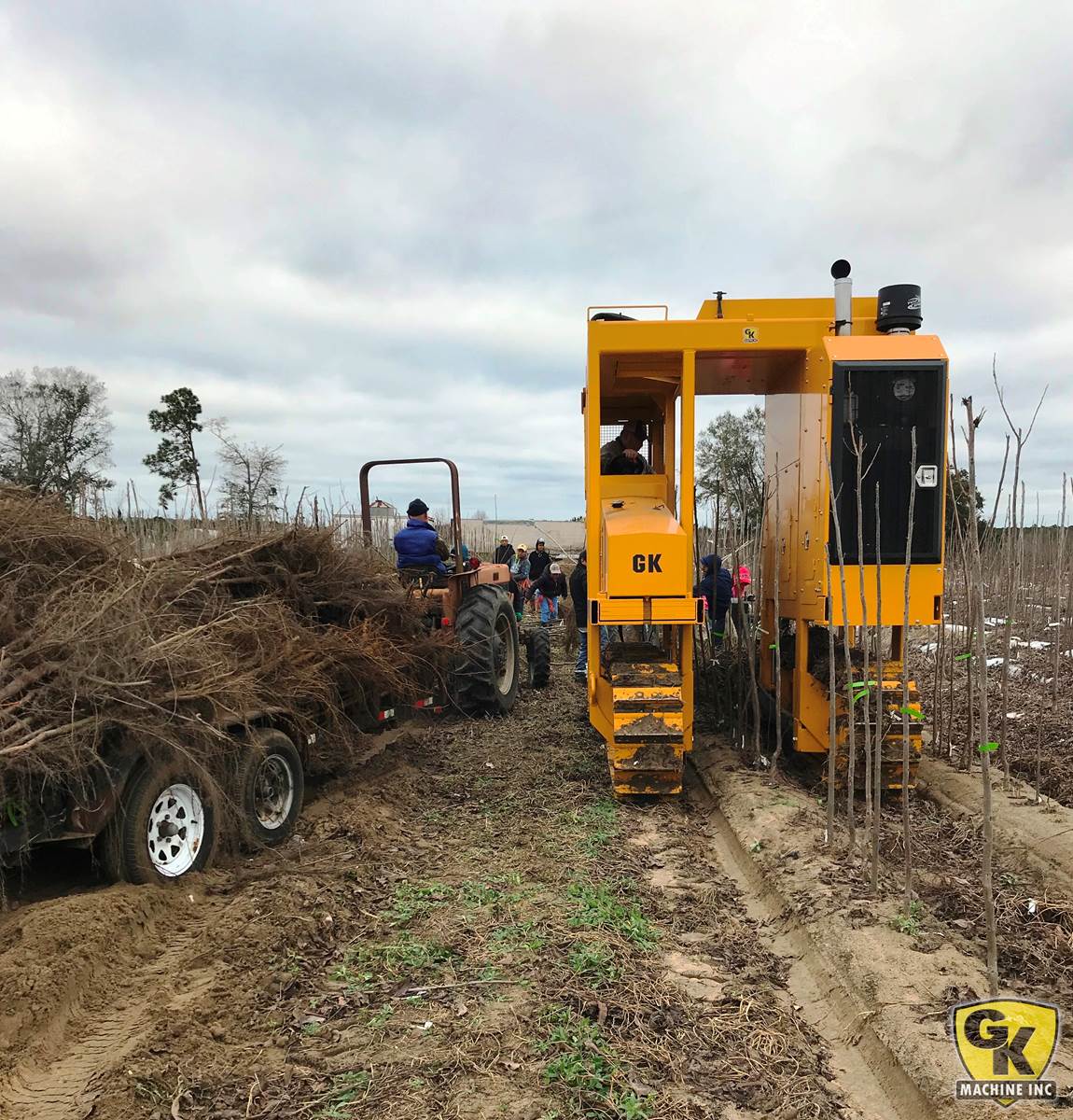

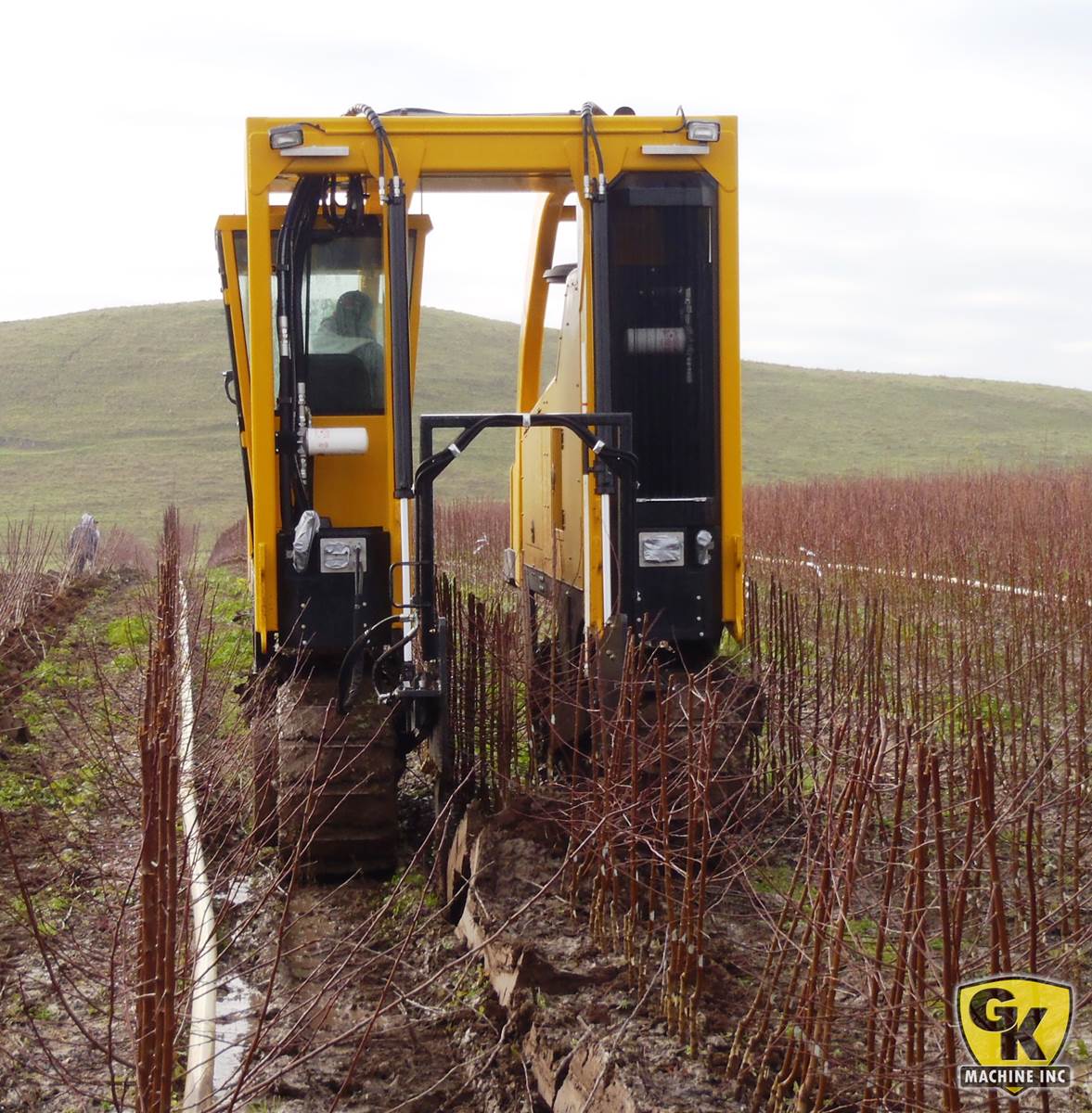

GK Machine’s H9 Bare Root Tree Digger has proven itself year after year as the industry's premier bare root tree and shrub digger. With a very low center of gravity, the H9 maneuvers well in difficult terrain and wet ground conditions. This workhorse gets the job done quickly and efficiently and is extremely easy to operate and maintain.

New Updates and Features:

• Cummins Stage V, 4.5 liters, 173 HP 4-cylinder; increased fuel economy and quieter operation
• 2-speed planetary gearbox, 0-4.5 MPH final drives
• Full load sensing, 36 GPM, and 3000 PSI hydraulics
• Variable speed oscillating shaker arms u-blade:  22”- 32” wide, ½” thick, 30” max depth
• The up-fitter panel in the fuse box for self-installed accessories (CB, radio, lights, cameras, etc.)

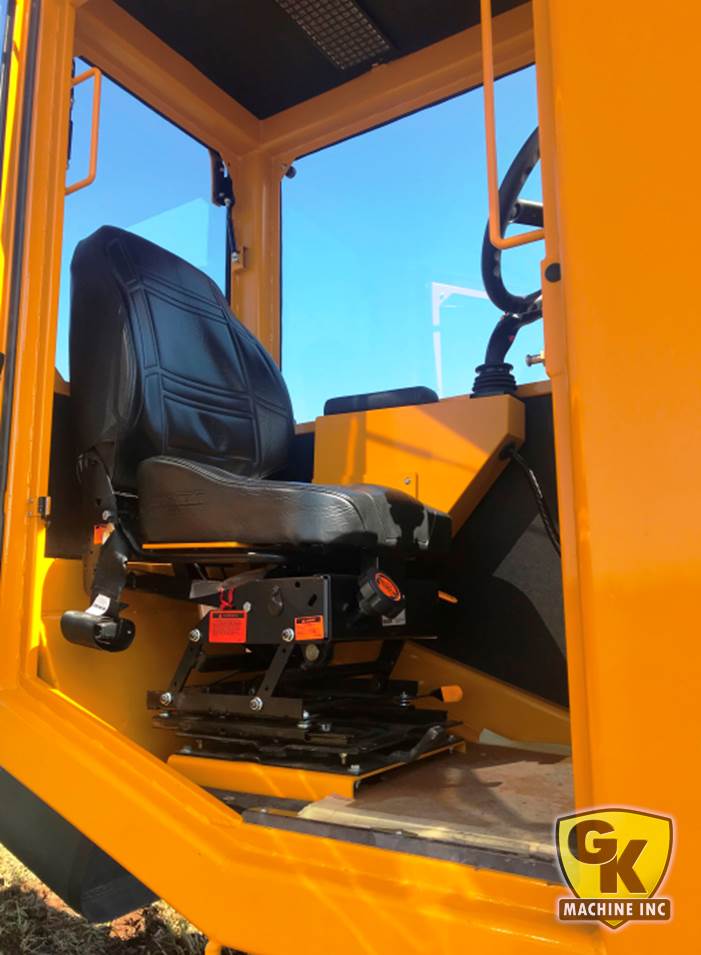

• Wider cab and longer cab
• D4 undercarriage with mud holes

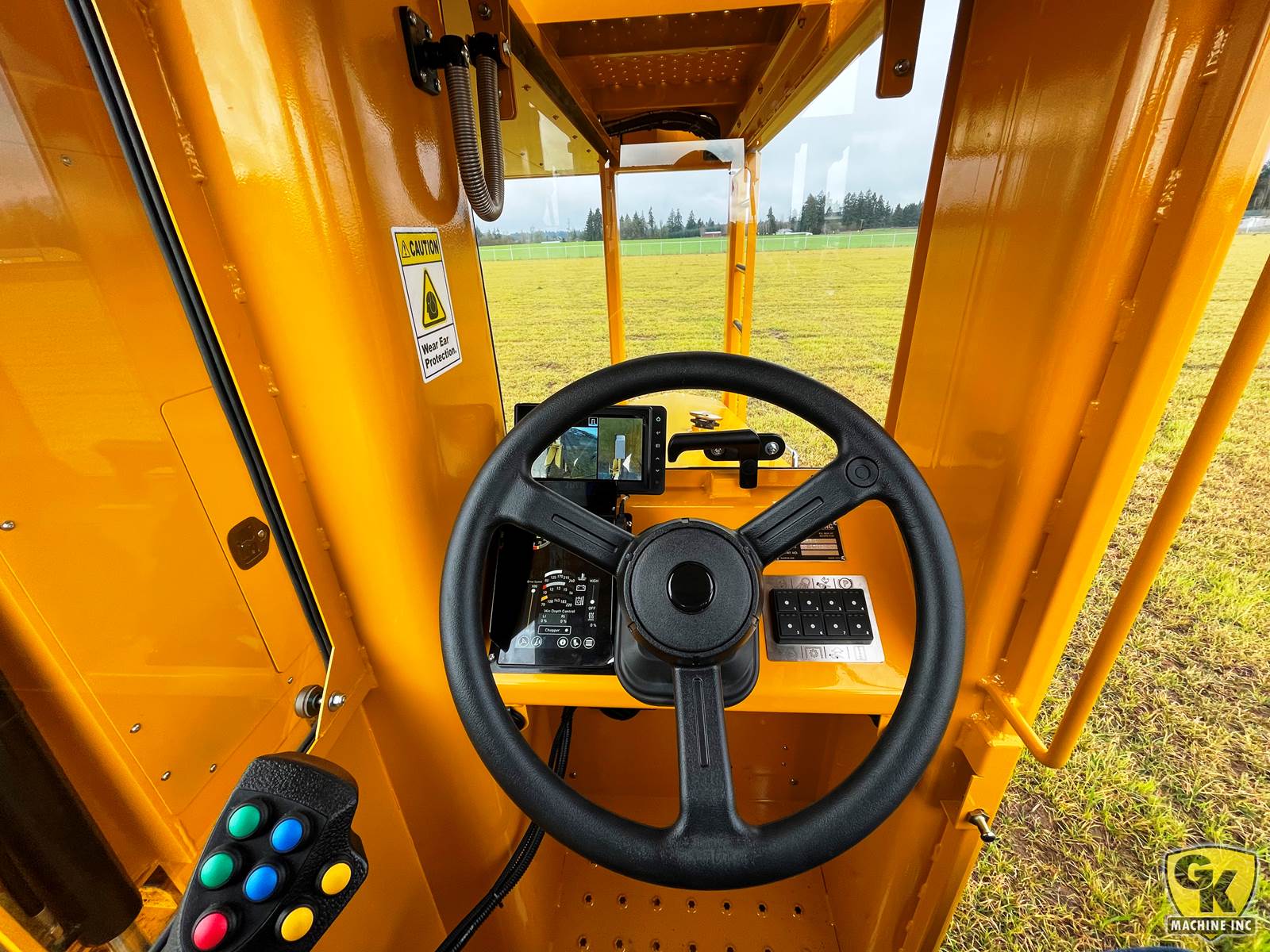

• New larger display screen

SPECIFICATIONS:
ENGINE                              Cummins Stage V, 4.5 liters, 173 HP 4-cylinder engine
TRANSMISSION                Two axial piston hydrostatic pumps
FINAL DRIVES                   2-speed planetary gearbox, 0-4.5 MPH
HYDRAULICS                    Pressure compensated with full-load sensing - 36 GPM and 3000 PSI
UNDERCARRIAGE            D4 16” single grouser pads and rock guards
U-BLADE                            Variable speed oscillating shaker arms 22”-32” wide blade, ½” thick, 36” max depth

OPTIONAL PERFORMANCE FEATURES:

HYDRAULICS

•  3-point hitch (left and right)

Width adjustment for widening tunnel. Auxiliary hydraulics to run chopper or tiller (Standard)

IMPLEMENTS

• Nose Cones - keeps dirt and debris from building up into tracks

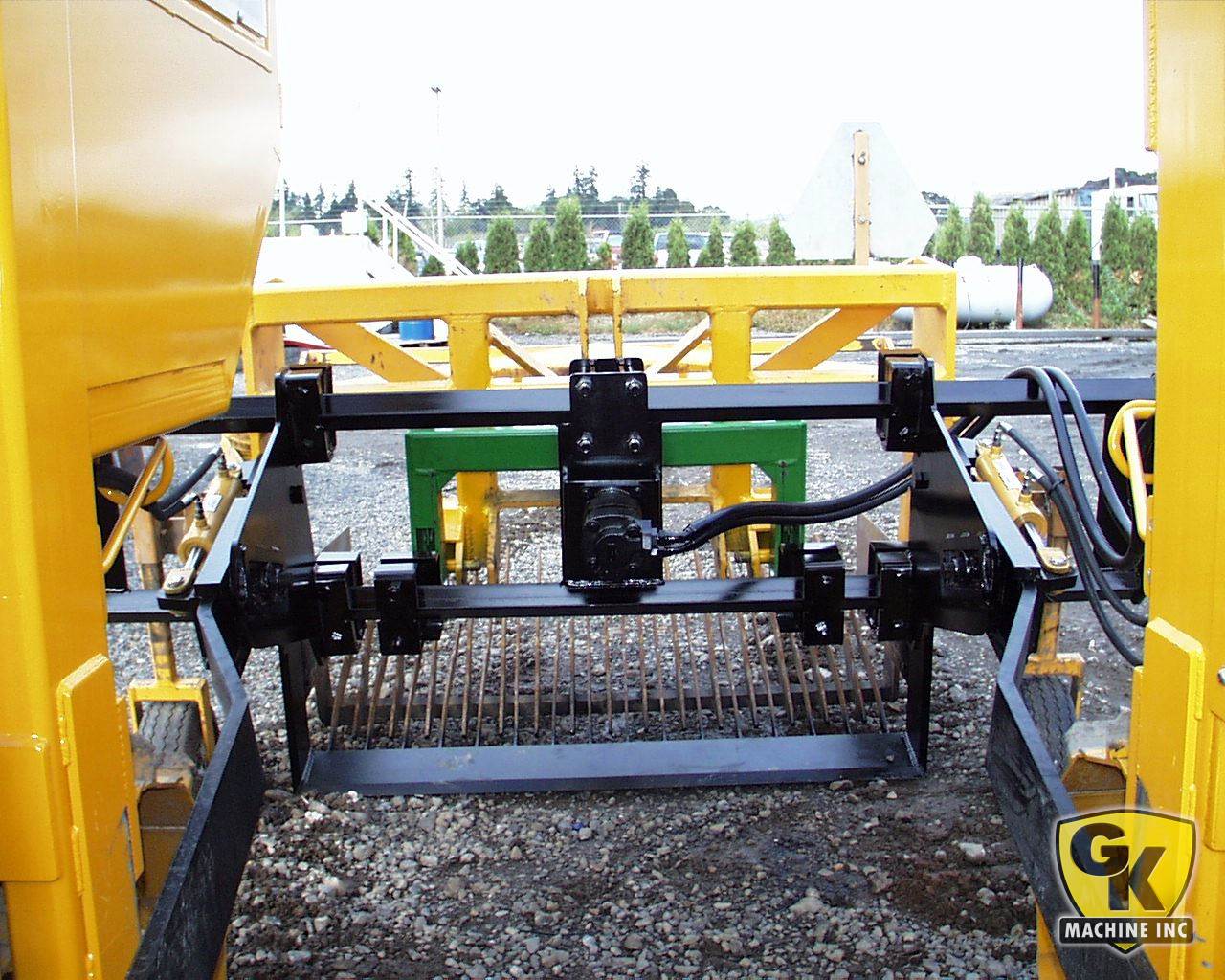

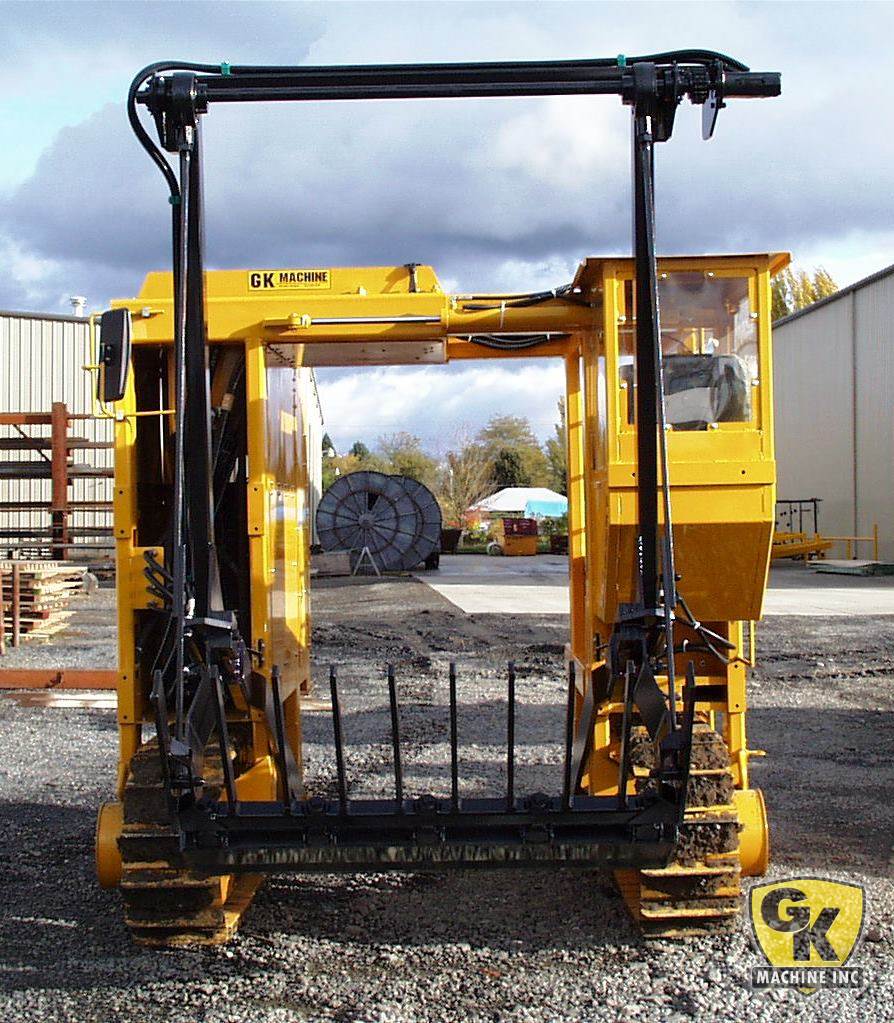

• 4’ bend digger/shaker - digs up trees and shakes excess dirt off root-ball for easy loading
• 3/4” thick digger blade - for larger trees and plants
• Extended track grouser - in moist conditions, prevents tracks from digging into the soil

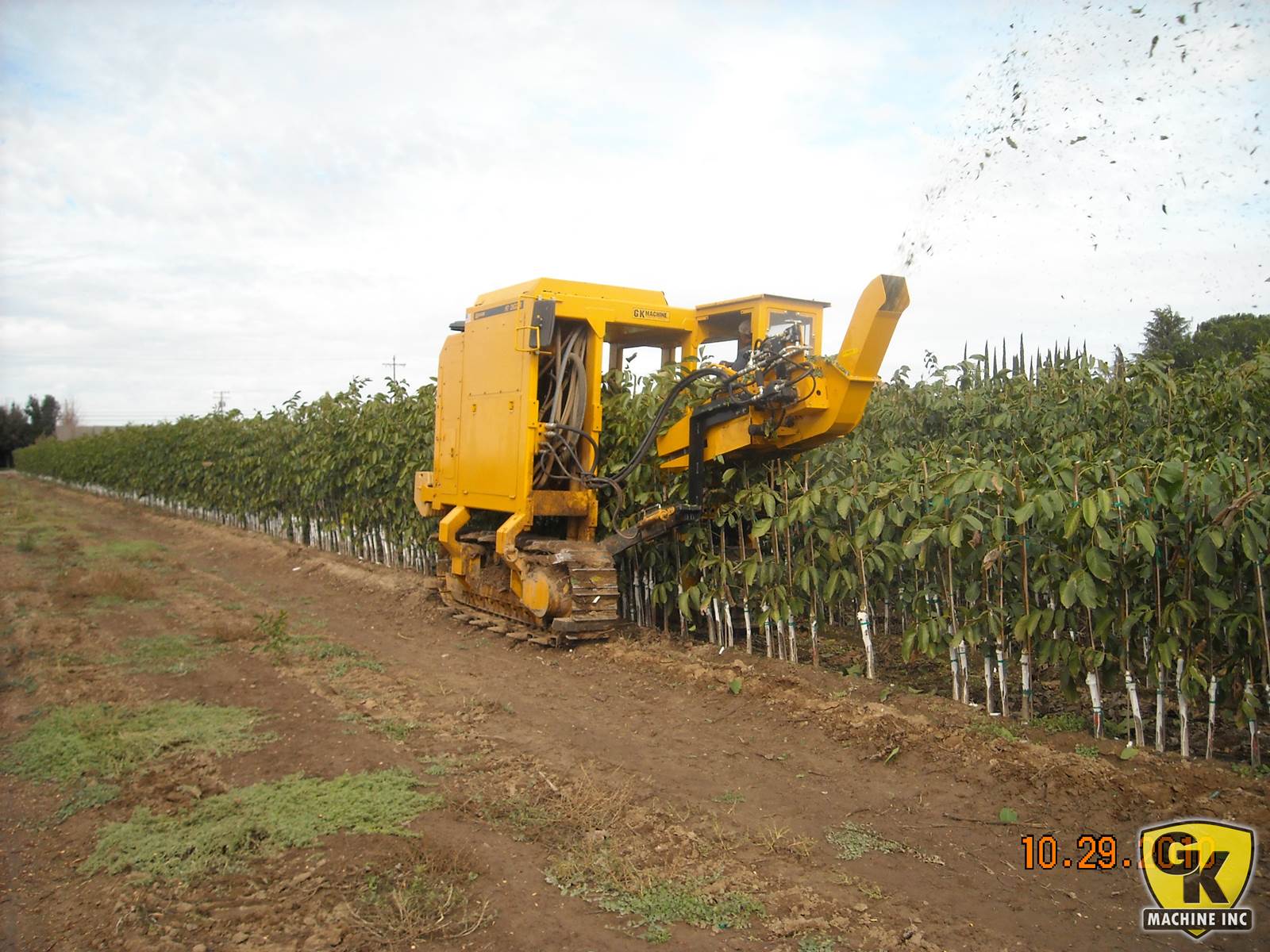

• Tree Chopper - easily removes tops of plants and trees

OTHER

• Lexan windows
• AC and heated cab
• Heater Kit

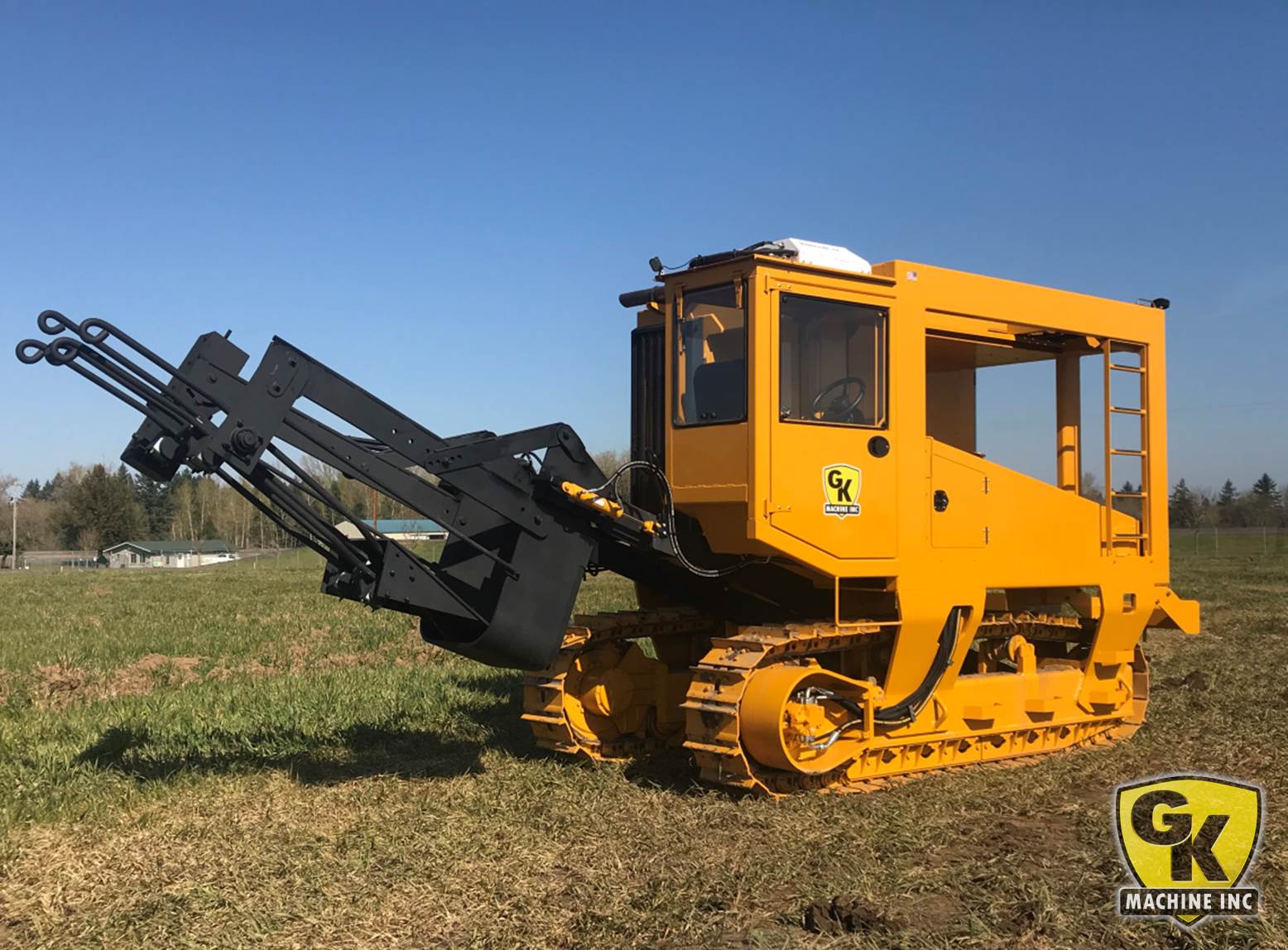

• Pull-arm toolbar

Many items require quote for actual pricing, many products varying in size, features and options. A GK Machine salesperson is able to answer your detailed questions and provide you with the most current pricing options.
